70" X 167" Table, AMADA VM3800 Vertical Plate Saw, 150"X, 31-1/2" Throat, 24" Ht, 2" Blade, Chip Auger, 10 HP, 1990

Manufacturer

AMADA

Category

Saws

Type

SAWS, PLATE

Stock

60693

Model

VM3800

Dealer Location

Illinois

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

#VM-3800 AMADA VERTICAL BAND BLOCK/PLATE SAW
MODEL VM-3800
NEW 1990

WORKING LENGTH -------------------------------- 150"
MAXIMUM WORK HEIGHT ----------------------- 24"
THROAT DEPTH ( BLADE TO COLUMN ) ---- 31-1/2"

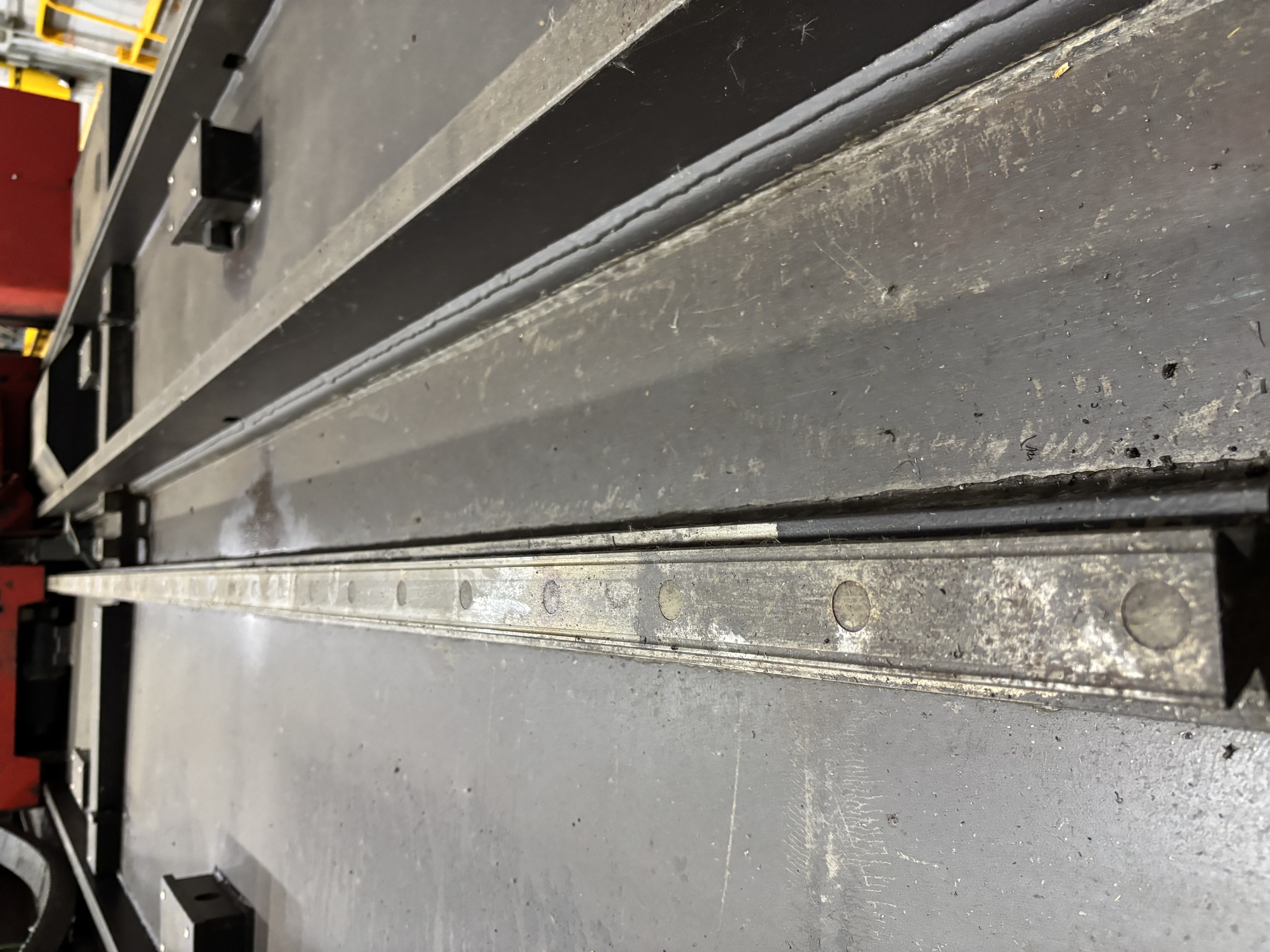

TABLE SIZE ------------------------------------------- 70" X 167"
MAXIMUM TABLE LOAD -------------------------- 26,460 LBS.
BLADE SIZE ------------------------------------------ 253" L X 2" W X .063" THICK
BLADE SPEED -------------------------------------- 39 TO 262 FPM
TABLE HEIGHT -------------------------------------- 55.5"
MAIN DRIVE MOTOR ------------------------------ 10 HP 480/3/60
HYDRAULIC DRIVE MOTOR --------------------- 2 HP A.C.
POWER REQUIRED -------------------------------- 14 KVA
APPROXIMATE MACHINE WEIGHT ----------- 22,000 LBS
APPROXIMATE MACHINE DIMENSIONS ---- 324"(LR) X 109"(FB) X 125"(H)

EQUIPPED WITH ---

OPTIONAL 3 LIFTER & PUSHER UNITS IN TABLE ( NEEDS ADJUSTMENT OR WORK )
LIFTER & PUSHER CONTROL BOX
PROGRAMMABLE CONTROL
HYDRAULIC BLADE TENSION
COOLANT SYSTEM
CHIP AUGER
CENTRALIZED CONTROL PANEL

CAN BE INSPECTED UNDER POWER.

VIDEO AVAILABLE UPON REQUEST.
