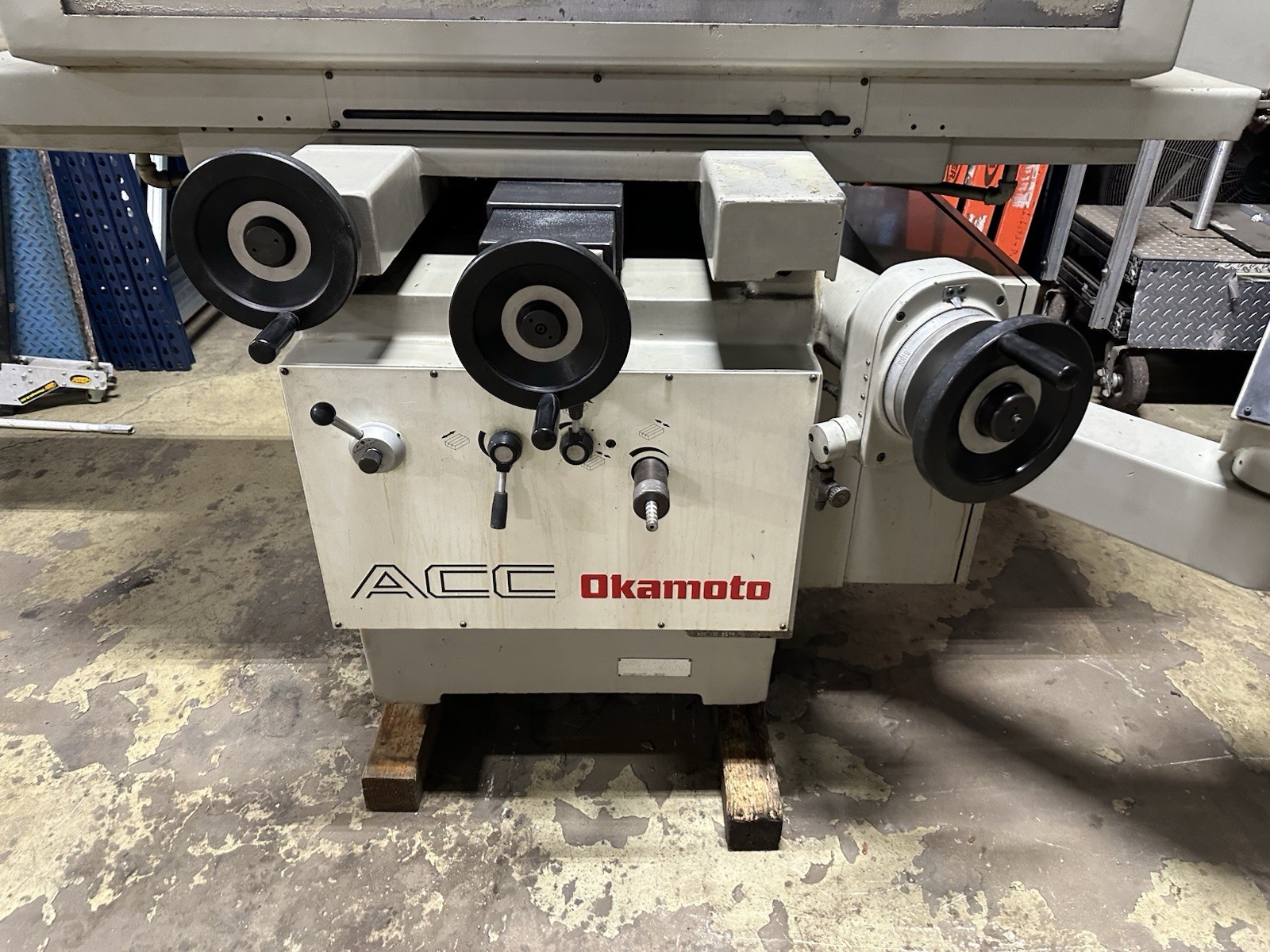

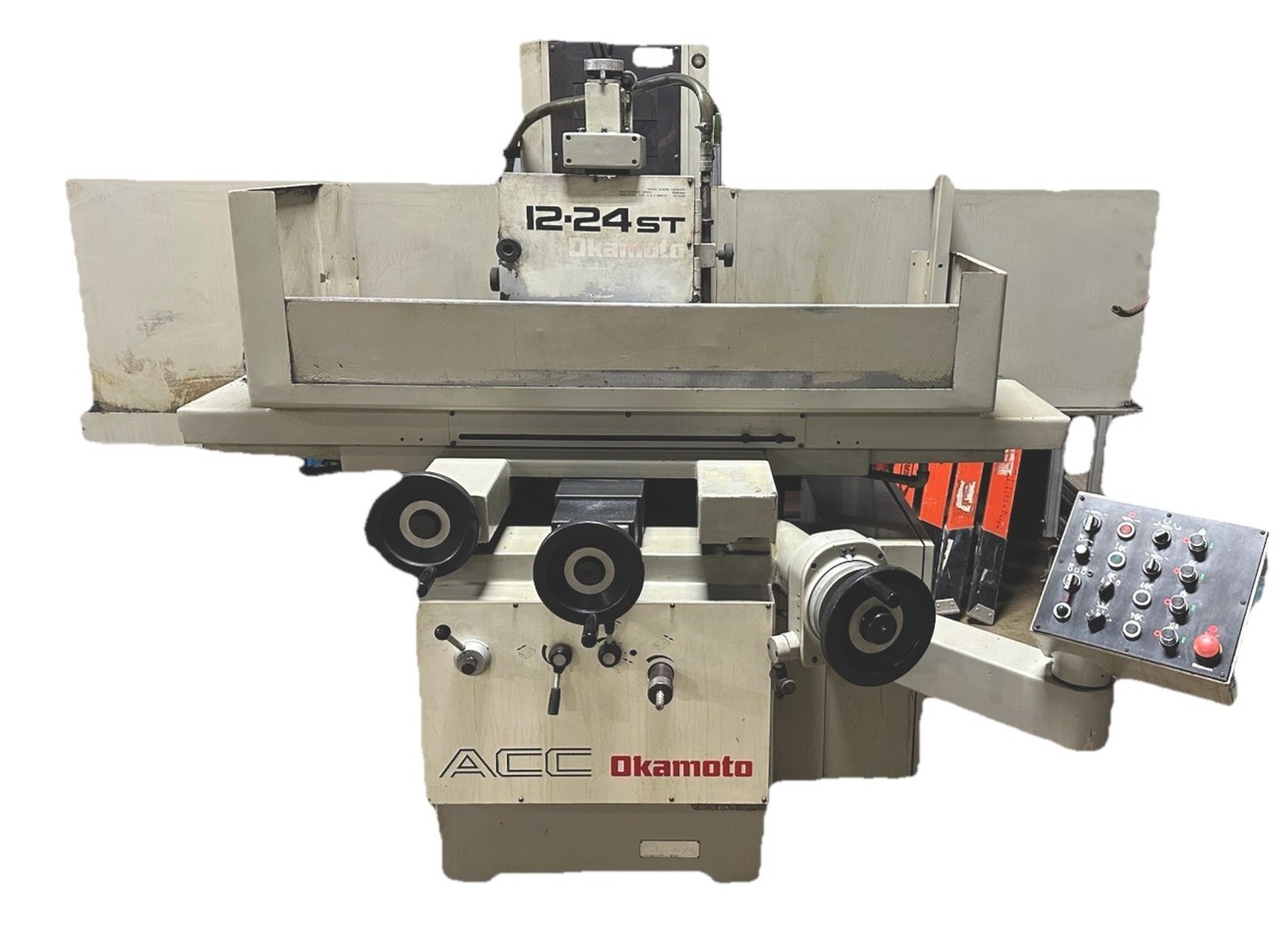

12" x 24" OKAMOTO #ACC-1224ST Hydraulic Surface Grinder, Magnetic Chuck, Over The Wheel Dresser, Coolant, 1996

Manufacturer

OKAMOTO

Category

Grinding Machines

Type

GRINDERS, SURFACE, RECIPROCATING TABLE, (Horizontal Spindle)

Stock

60700

Model

ACC-1224ST

Dealer Location

Illinois

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

12" X 24" OKAMOTO AUTOMATIC SURFACE GRINDER
MODEL ACC/12-24ST
S/N 83187 NEW 1996

TABLE WORKING SURFACE ------------------------------ 12" X 24"
MAXIMUM DISTANCE TABLE TO WHEEL ------------- 13.7"
LONGITUDINAL FEED RATE ------------------------------ 1 TO 82 FT./MIN.
CROSS FEED, AUTOMATIC - ( INTERMITTENT ) --- .02" TO .5"
CROSS FEED, AUTOMATIC - ( GRINDING FEED )--- 4 TO 40 IPM
WHEEL FEED, VERTICAL -- ( AUTOMATIC ) ---------- .0001" TO .0015"
SPARK OUT PASSES ----------------------------------------- 5
WHEEL SIZE ---------------------------------------------------- 12" X 1.5" X 5"
SPINDLE MOTOR --------------------------------------------- 5 HP 230/460/3/60
HYDRAULIC MOTOR ----------------------------------------- 2 HP 230/460/3/60
VERTICAL RAPID FEED & DOWNFEED MOTOR ---- 0.5 HP 230/460/3/60
APPROXIMATE MACHINE WEIGHT --------------------- 3,900 LBS
APPROXIMATE MACHINE DIMENSIONS -------------- 103"(LR) X 74"(FB) X 70"(H)

EQUIPPED WITH ---

INCREMENTAL DOWN FEED

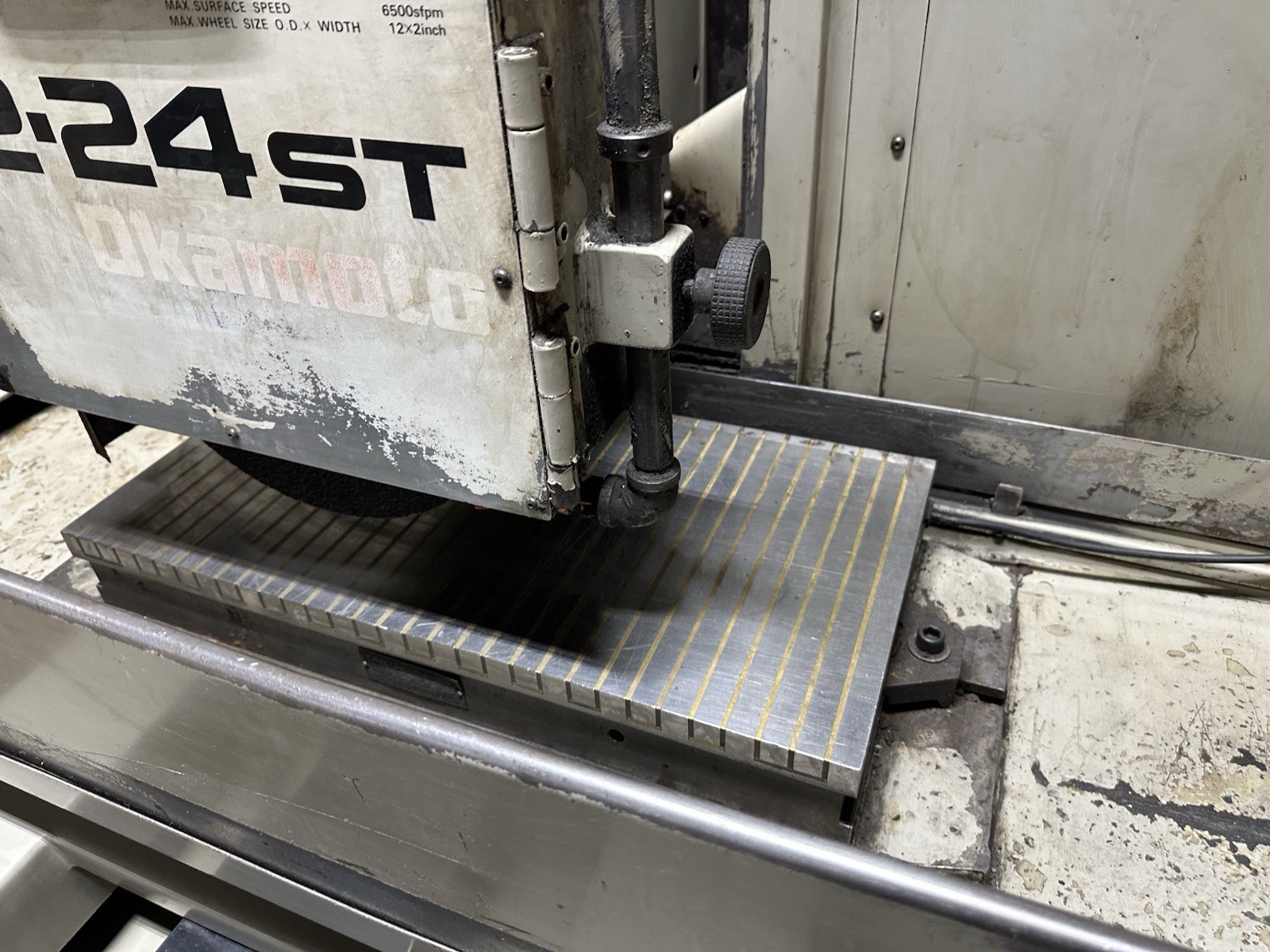

12" X 24" ELECTROMAGNETIC CHUCK & CONTROLS

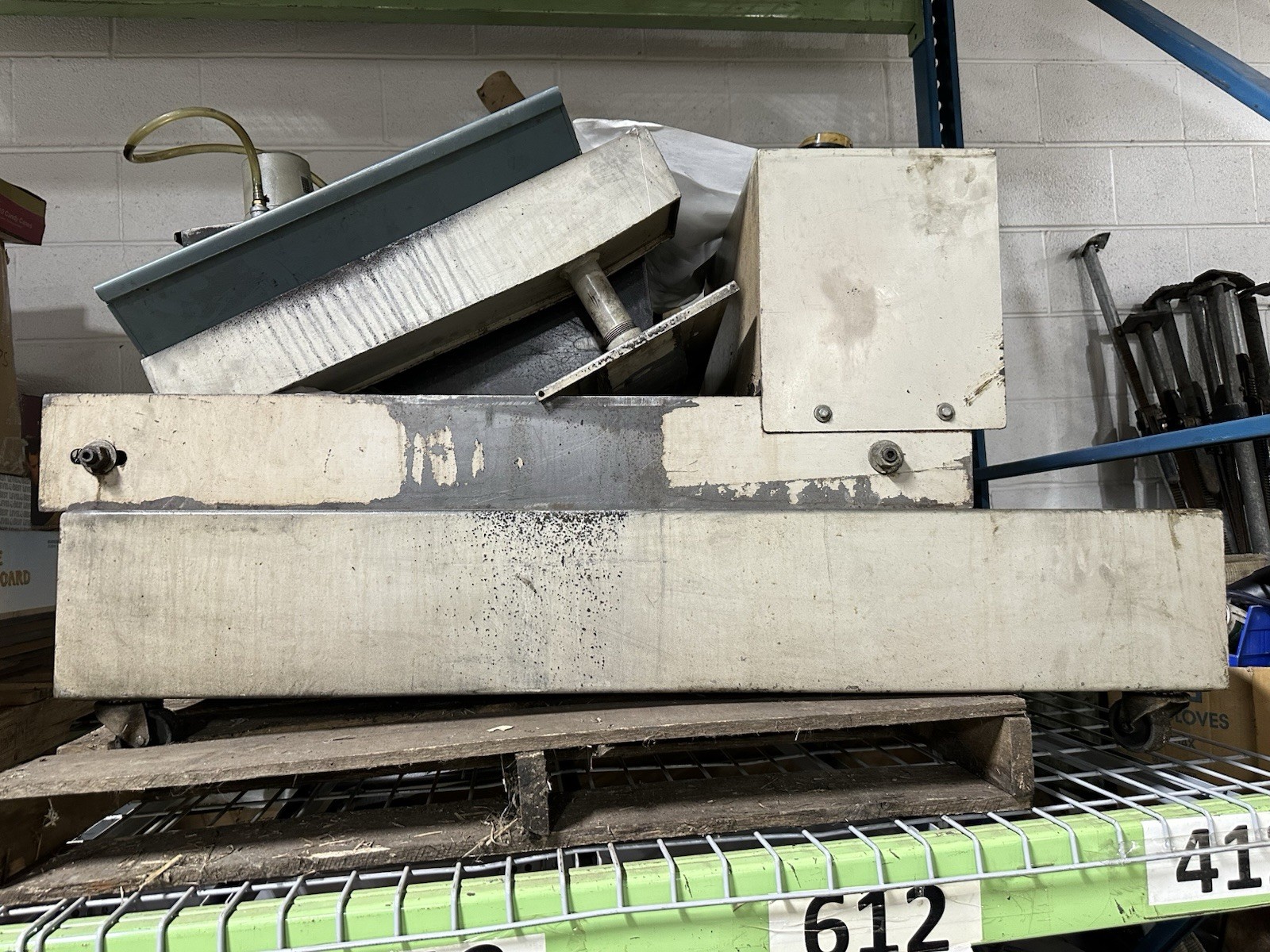

COOLANT SYSTEM

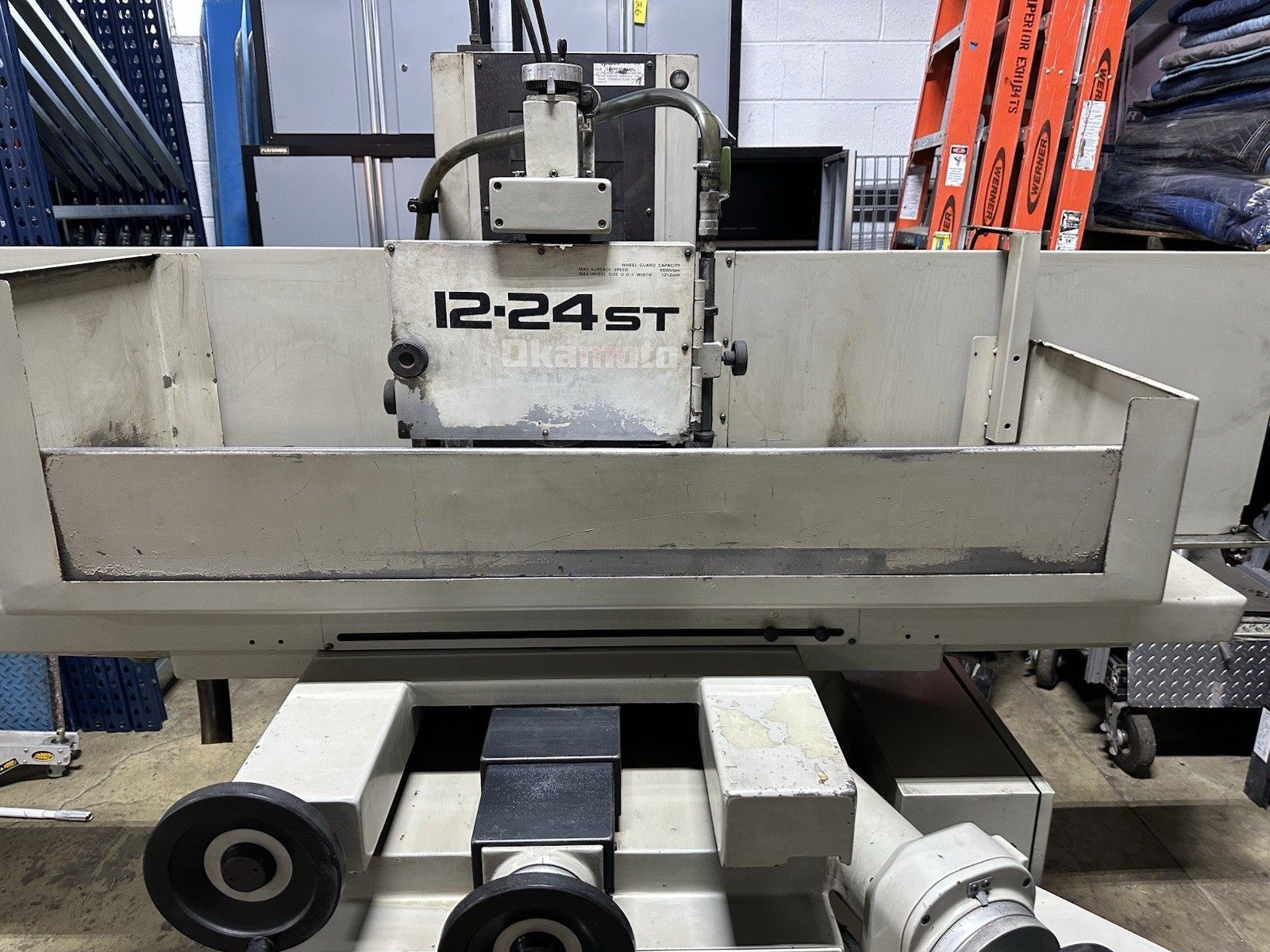

OVER THE WHEEL DRESSER

NOTE: MACHINE IS IN ILLINOIS WAREHOUSE AND CAN BE INSPECTED,
BUT NOT UNDER POWER. THEREFORE, IT IS SOLD AS-IS, BUT
WITH A 30 DAY RETDURN PRIVILEGE. (FREIGHT OUT AND
BACK PAID BY BUYER.)
