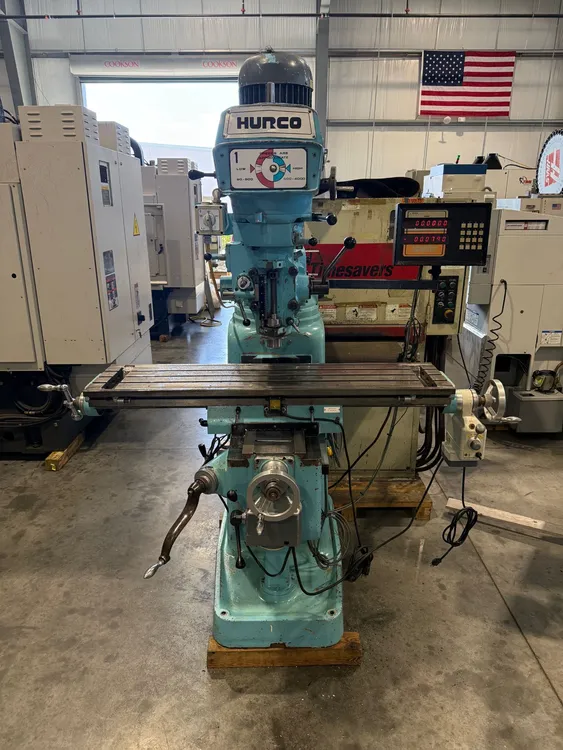

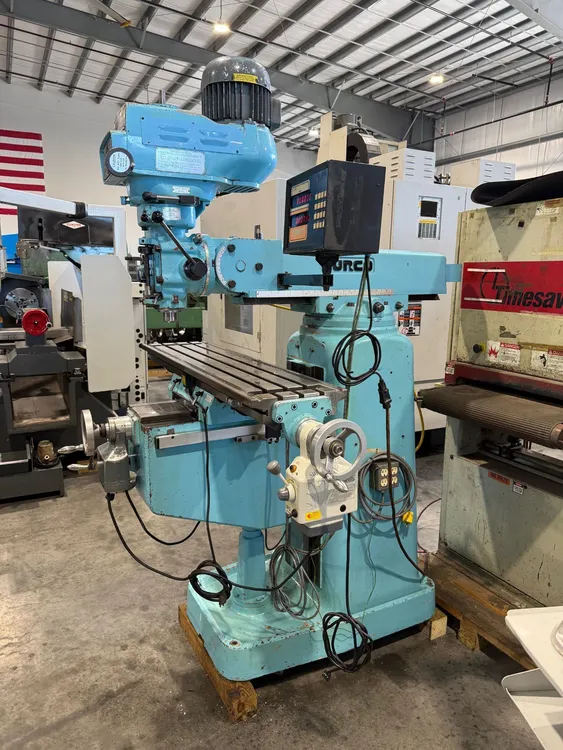

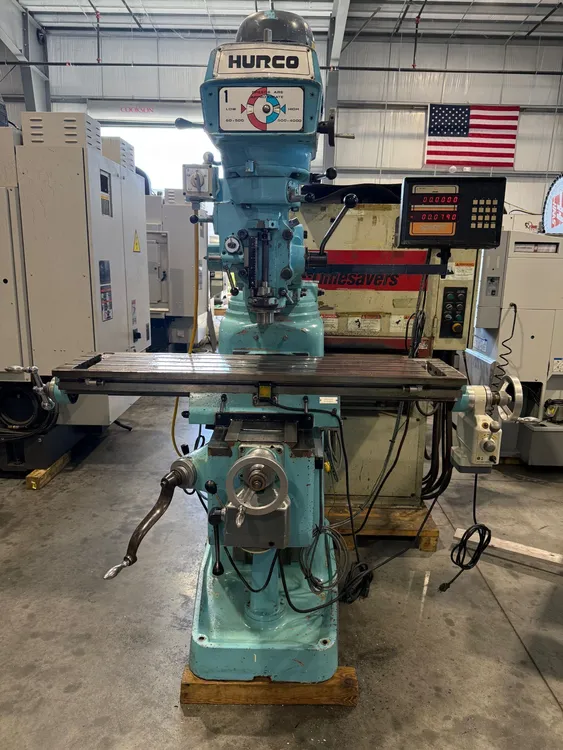

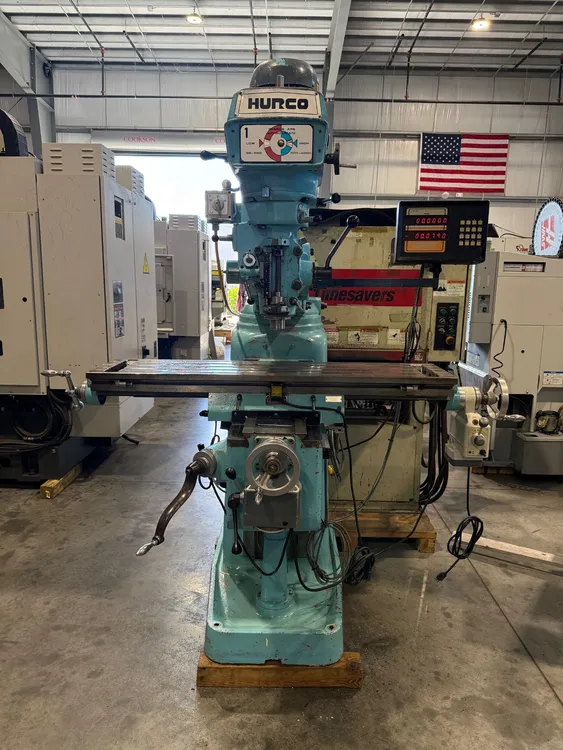

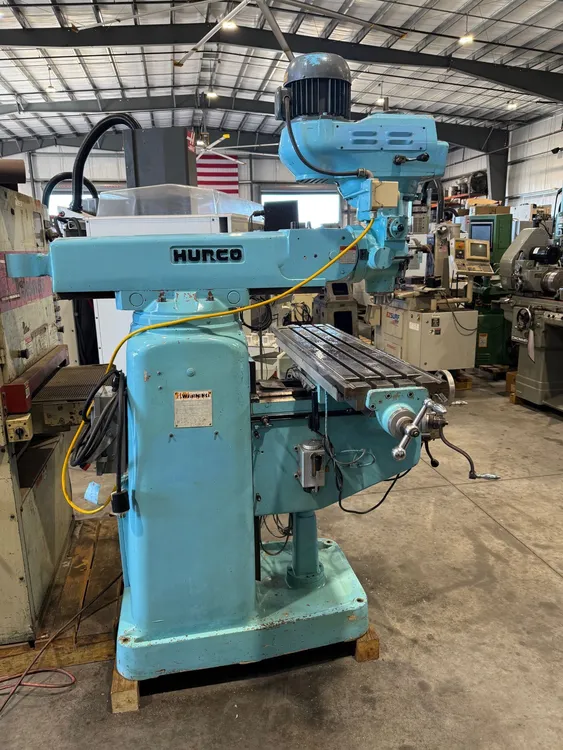

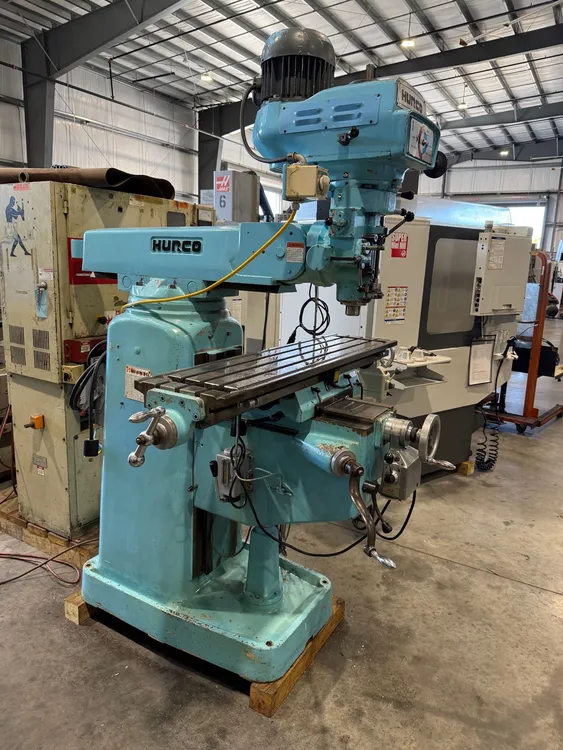

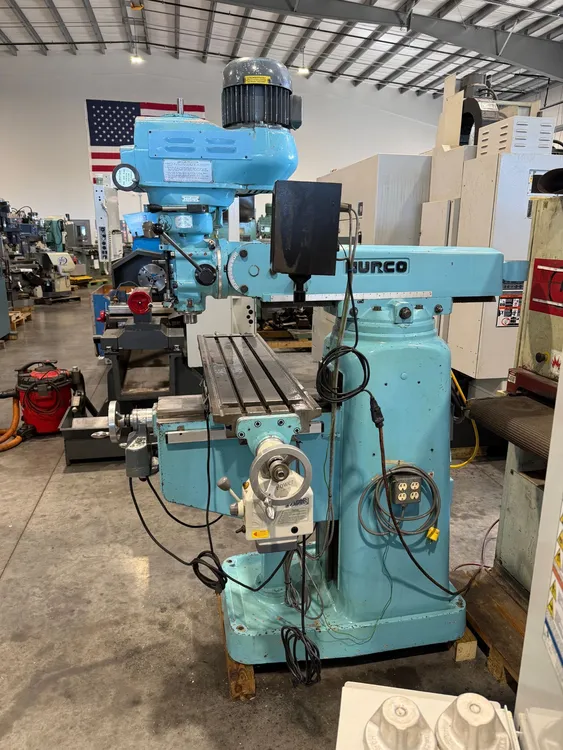

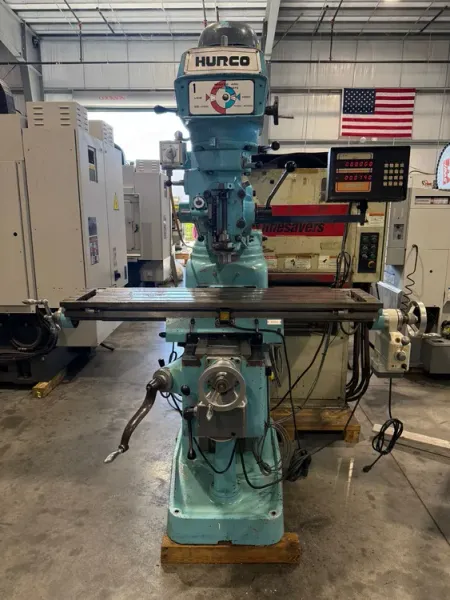

HURCO SM-1 Vertical Milling Machine 3 H.P. DRO #8151

Manufacturer

HURCO

Category

Milling Machines

Type

MILLERS, VERTICAL/UNIVERSAL, CNC

Stock

8151

Model

SM1

Dealer Location

Florida

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
Milling Machines
Manufacturer:
HURCO
Model:
SM1
Stock #:
8151
Status:
For Sale

Description

HURCO SM-1 Vertical Milling Machine 3 H.P. DRO #8151

Table-W12"304.8 mm
Table-L42"1,066.8 mm
Power3 hp2.2 kW
RPM4,000 RPM4,000 RPM
Dimensions72” x 68” x 91” H72” x 68” x 91” H
Weight2,750 Lbs.2,750 Lbs.

HURCO SM-1 Vertical Milling Machine 3 H.P. DRO #8151
Reference # 8151
Model # SM-1
Serial # SF-8012074

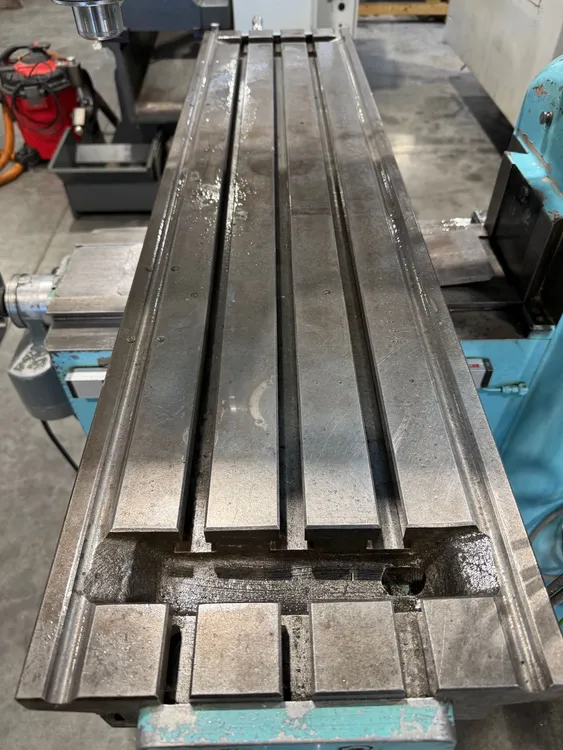

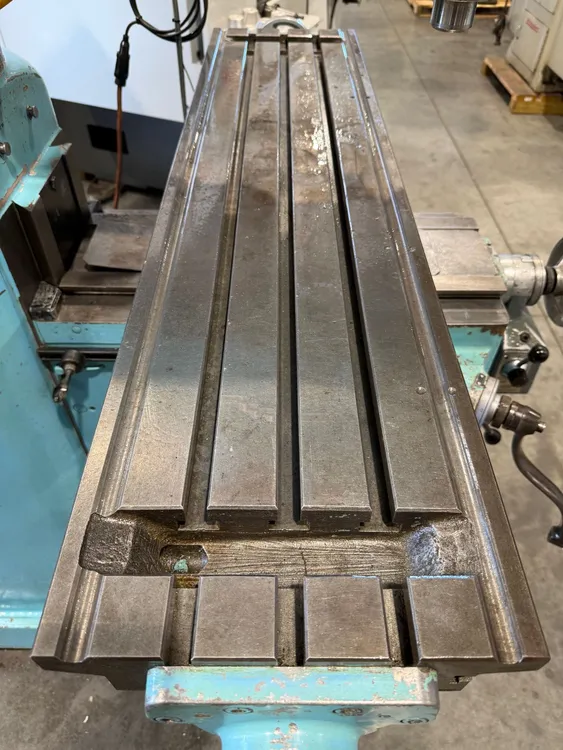

Overall Table Size 11” x 48”
Distance between T-Slots 2 ½”
Longitudinal Table Travel 30”
Cross Travel 14”
Vertical Travel 18”
Overarm Travel 23”
Distance Center of Spindle to Column 10” – 26”
Distance Center of Table to Column 6” – 19 ½”
Distance Spindle Nose to Top of Table 8 ½” – 30”
Head Tilt, Front to Back 45 degrees
Head Tilt, Side to Side 90 Degrees
Spindle Speeds 60-4000 ROM
Quill Feeds 5”
Quill Diameter 2”

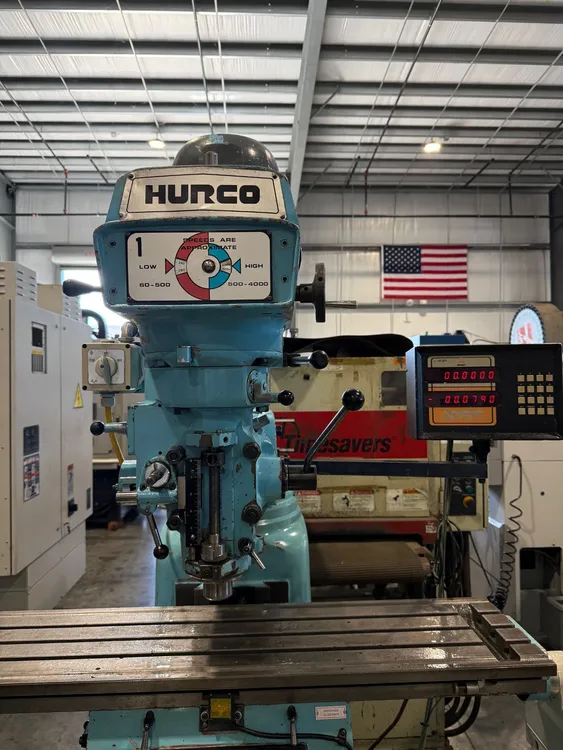

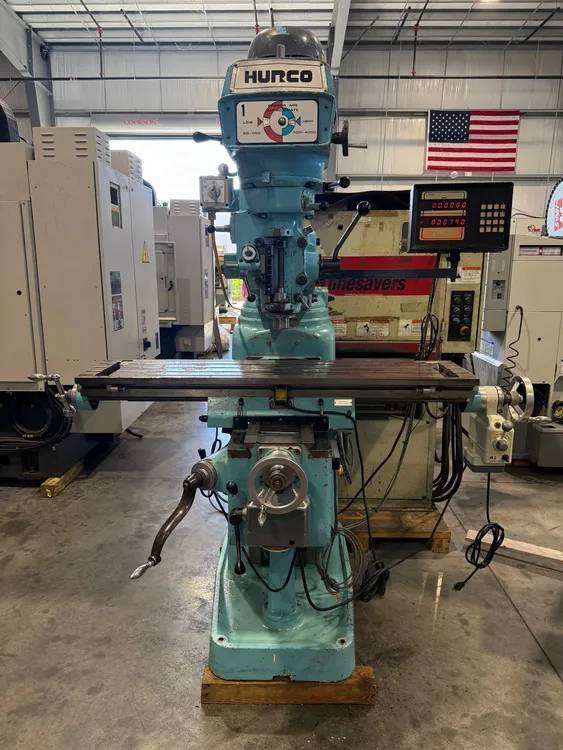

2 Axis DRO Digital Readout
Y & X power feeds
3 H.P Spindle motor
Machine is wired for 230 volt / 3 phase/ 60 H.Z.
Machine weight- 2,750 Lbs.
Machine dimensions-72” x 68” x 91” H
Machine location- F.O.B. Sarasota, Florida
