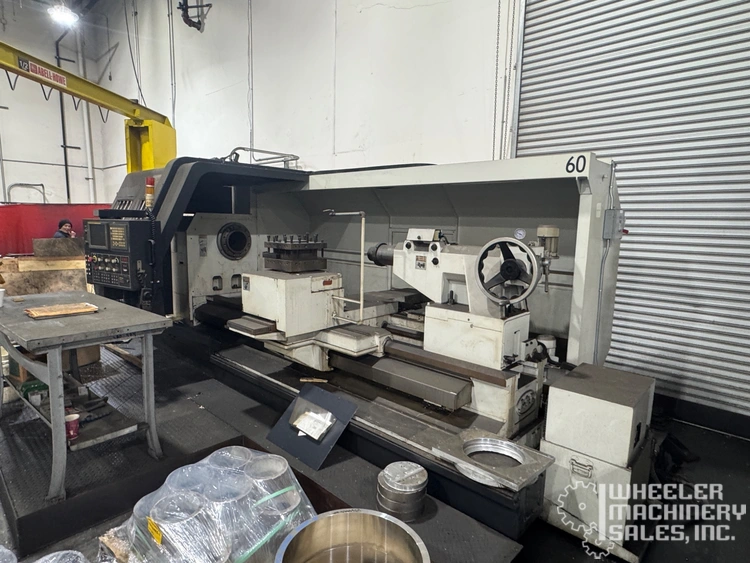

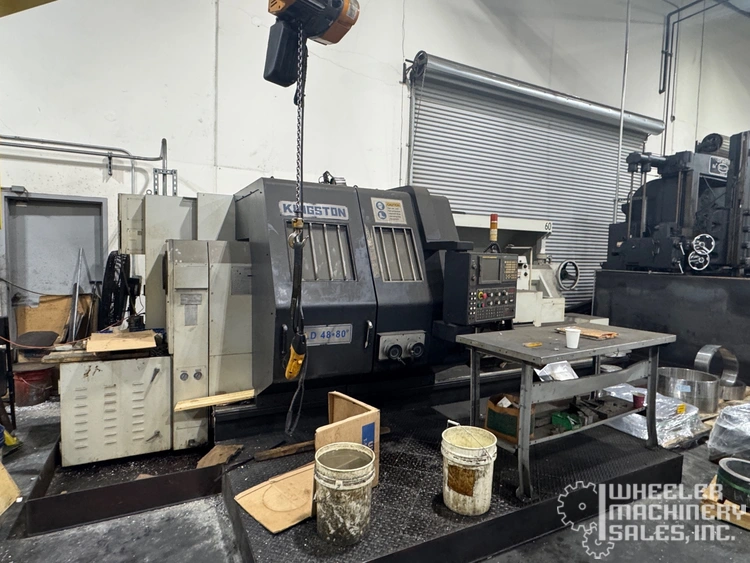

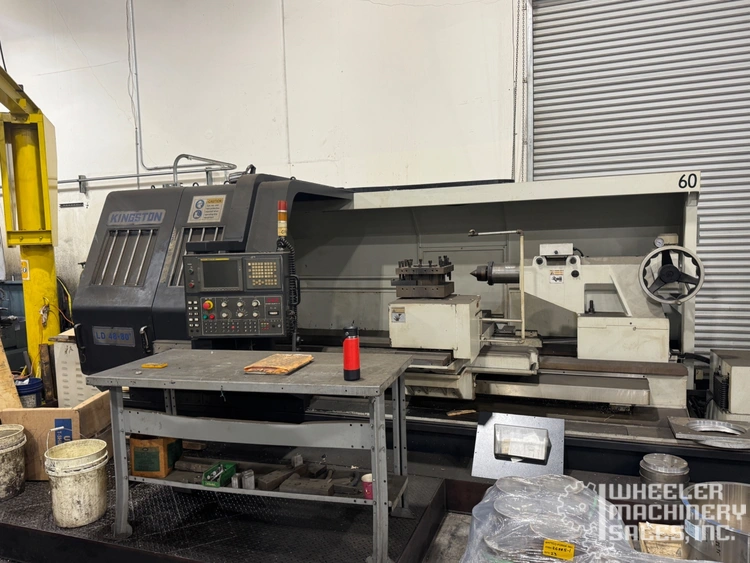

2007 KINGSTON LD 48 X 80 CNC Oil Country Lathe #8139

Manufacturer

KINGSTON

Category

Lathes

Type

LATHES, OIL FIELD & HOLLOW SPINDLE

Stock

8139

Model

LD 48 X 80

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
LATHES, OIL FIELD & HOLLOW SPINDLE
Manufacturer:
KINGSTON
Model:
LD 48 X 80
Year:
2007
Stock #:
8139
Status:
For Sale

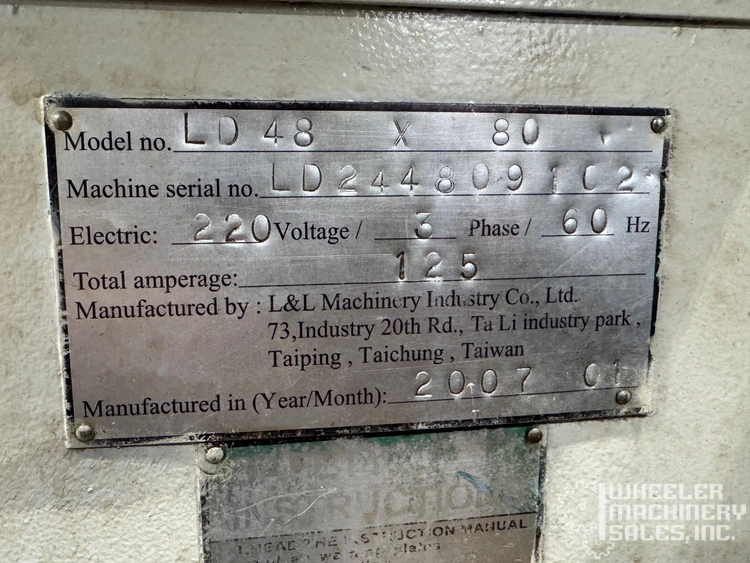

Serial #:
LD244809102
Country:
United States

Description

2007 KINGSTON LD 48 X 80 CNC Oil Country Lathe available. This used lathe is ideal for oil field and hollow spindle operations. A reliable choice from a trusted manufacturer. Contact us for more details and pricing information.

2007 KINGSTON LD 48 X 80 CNC Oil Country Lathe #8139

SPECIFICATIONS:
Core Capacities
Swing Over Bed: 48"
Distance Between Centers: 80"

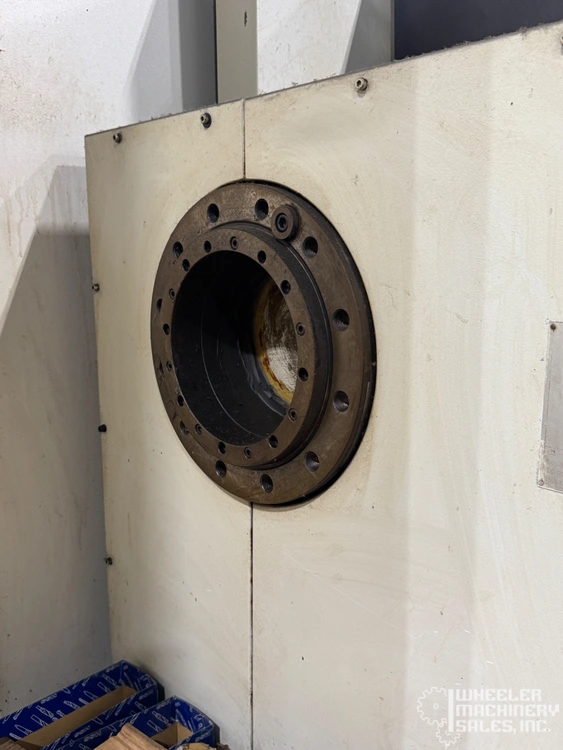

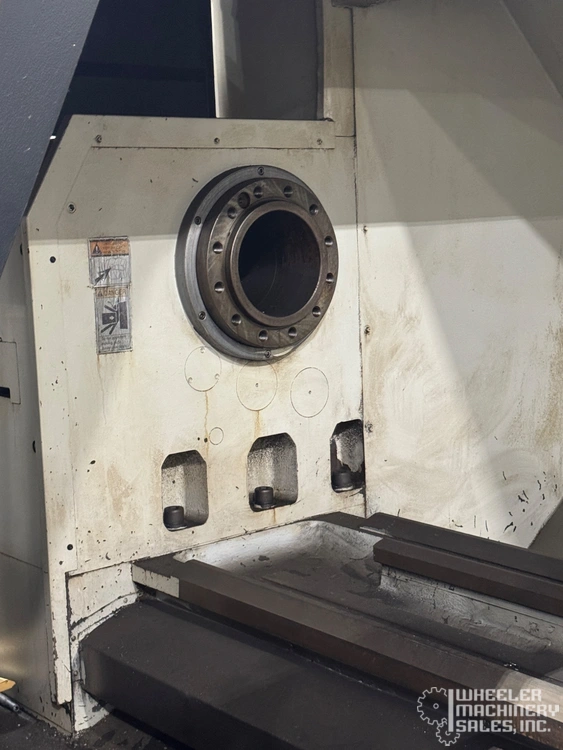

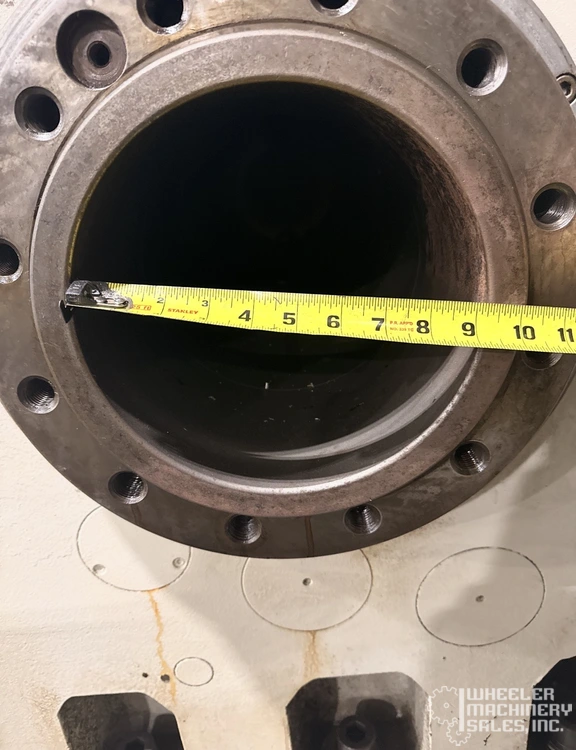

Spindle Bore : 9"
Spindle Nose: A2-28

Power and Motion
Main Spindle Motor: Standard 50 HP
Servo Motors: 5.3 HP for the X-axis and 8.0 HP to 9.4 HP for the Z-axis
Rapid Traverse: Approximately 236 in/min on the X-axis and up to 314 in/min on the Z-axis.
Bed Width: 28.5 inches, featuring a heavy-duty one-piece casting for extreme rigidity.

Standard Features and Control

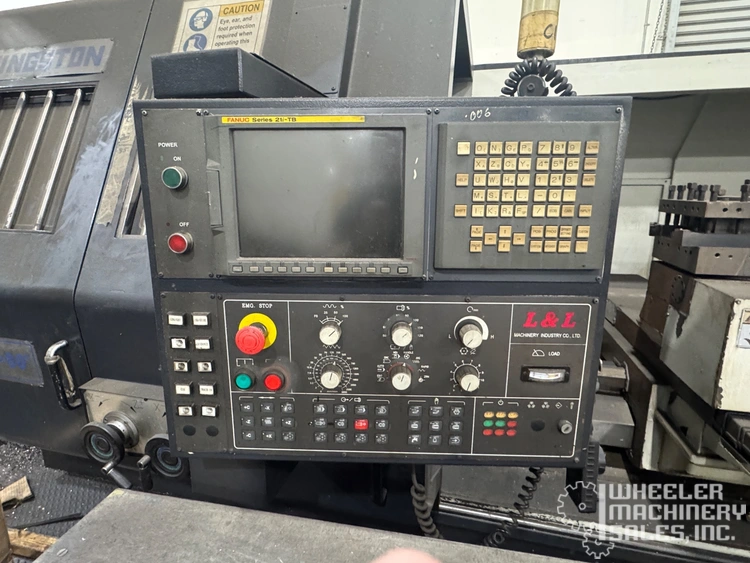

CNC Control: Fanuc 21iTF controller
Turret: Standard V8 Hydraulic Turret
Tailstock: Heavy-duty MT#6 quill with a load capacity of approximately 26,000 lbs.
Way Construction: Hardened and ground box ways on the cross slide and carriage

**NO CHUCKS AVAILABLE FOR THIS MACHINE** - **CAN BE PURCHASED SEPERATELY**
