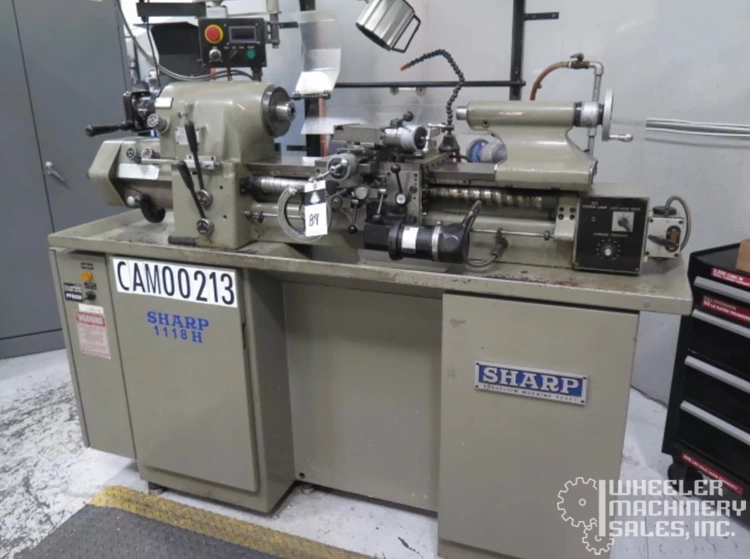

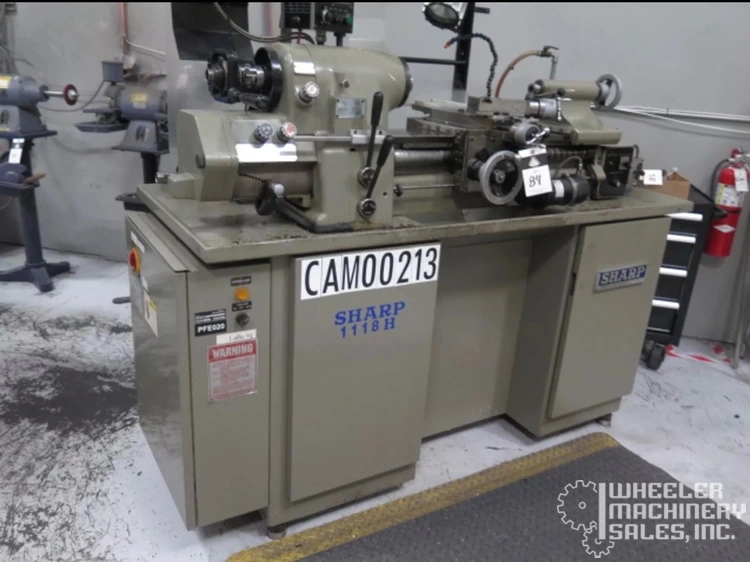

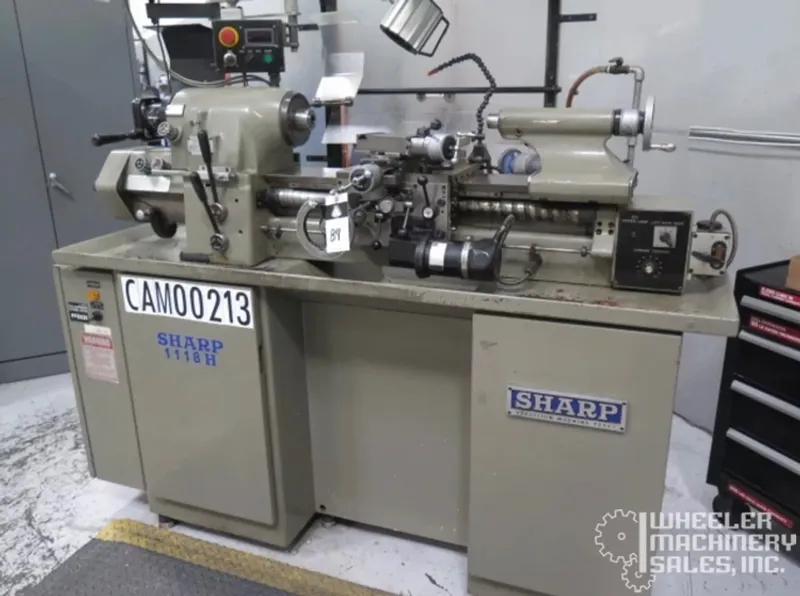

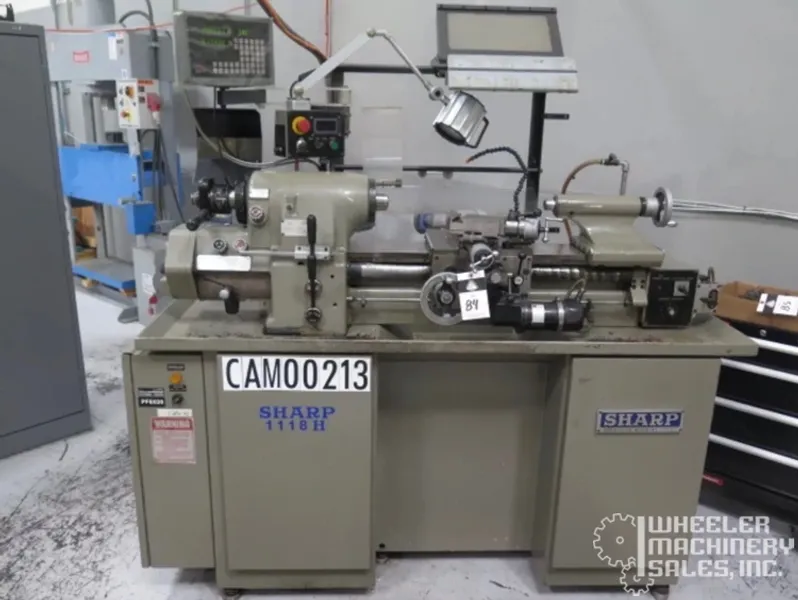

2003 SHARP 1118H Precision Toolroom Lathe #8142 #2

Manufacturer

SHARP

Category

Lathes

Type

LATHES, PRECISION, JEWELERS, TOOLROOM, (Etc.)

Stock

8142

Model

1118H

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
LATHES, PRECISION, JEWELERS, TOOLROOM, Etc.
Manufacturer:
SHARP
Model:
1118H
Year:
2003
Stock #:
8142
Status:
For Sale
Serial #:
CTL-1470
Country:
United States

Description

2003 SHARP 1118H Precision Toolroom Lathe available. This used lathe from SHARP offers reliable performance for precision work, making it an ideal choice for jeweler and toolroom applications. Model: 1118H.

2003 SHARP 1118H Precision Toolroom Lathe #8142 #2

SPECIFICATIONS:
Capacity:
Swing over bed: 11”
Swing over carriage: 9”
Swing over cross slide: 6”
Distance between centers: 18”

Spindle:
With round 5C collets: 11/16”
With hexagon 5C collets: 7/8”
With square 5C collets: ¾”
With expanding chucks: 3”
With step chucks: 1-1/16 – 6”
With jaw chucks: 5”
Spindle speed range (infinitely variable): 130-4,000 rpm
Spindle nose taper (inside): 5C (10°)
Spindle nose taper (outside): 4°
Spindle bore: 1 “

Travel & Feed Range:
Cross slide travel: 6”
Compound slide travel: 3”
Quick-action compound slide travel: 0.1”
Carriage power feed range: 5/16-7”
Cross slide power feed range: 5/16-4”

Threading:
Leadscrew pitch, diameter: 8 tpi, 1”
Inch threads (36): 11-108
Metric threads (36): 0.275-2.7

Tailstock:
Tailstock spindle diameter: 1.358”
Tailstock spindle taper: MT #2
Tailstock spindle travel: 3.75”

General:
Main motor: 5HP (digital variable speed)
Coolant pump motor: 0.25 hp
Feed Motor (DC): 75 watt, 110 volt
Coolant tank: 5 gallon
Dimensions: (WxDxH): 73” x 30” x 75”
Net weight (approximately): 2,300 lbs.
