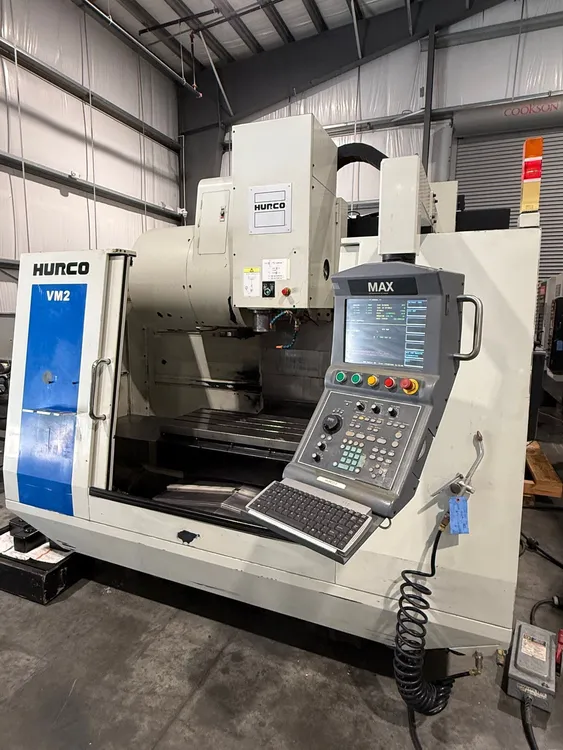

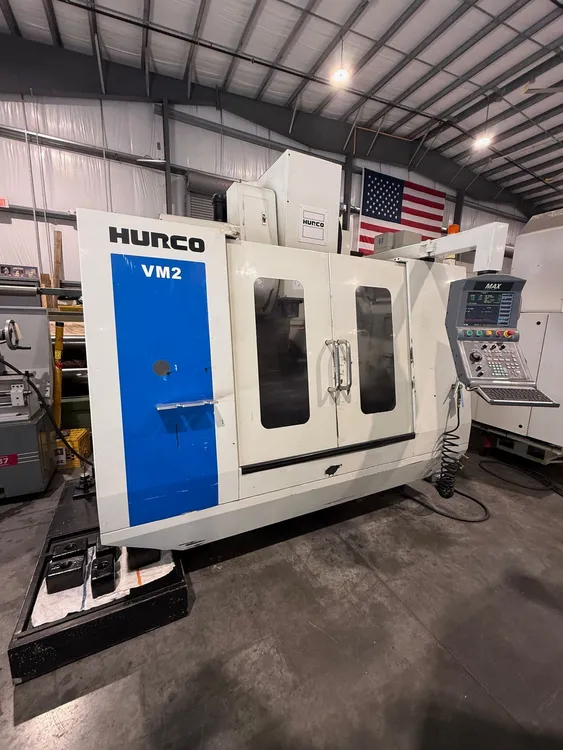

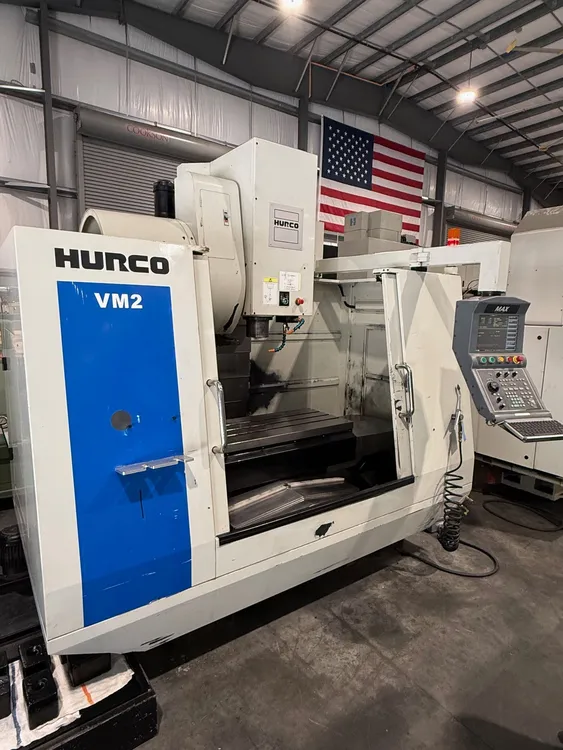

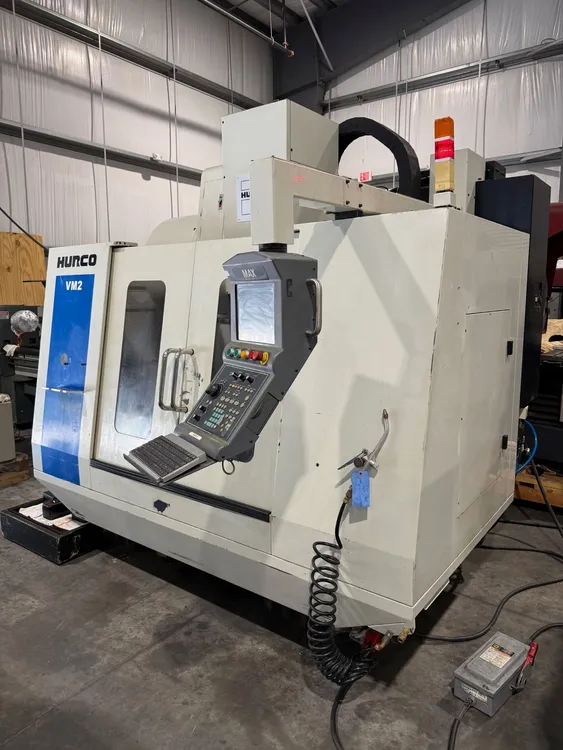

HURCO VM-2 CNC Vertical Machining Center 2007’ #8167

Manufacturer

HURCO

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

8167

Model

VM2

Dealer Location

Florida

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
Vertical Machining Centers
Manufacturer:
HURCO
Model:
VM2
Year:
2007
Stock #:
8167
Status:
For Sale

Description

HURCO VM-2 CNC Vertical Machining Center 2007’ #8167

X axis40"1,016 mm
Y axis18"457.2 mm
Z axis18"457.2 mm
Power20 hp14.9 kW
RPM8,000 RPM8,000 RPM
# ATC1616
Table-W18"457.2 mm
Table-L46"1,168.4 mm
Dimensions100 L x 90” W x 100” H100 L x 90” W x 100” H
Weight6500 Lbs.6500 Lbs.

HURCO VM-2 CNC Vertical Machining Center 2007’ #8167
Reference # 8167
Model # VM-2
Serial # H-V20459
Year of Manufacture- 2/06/2007’

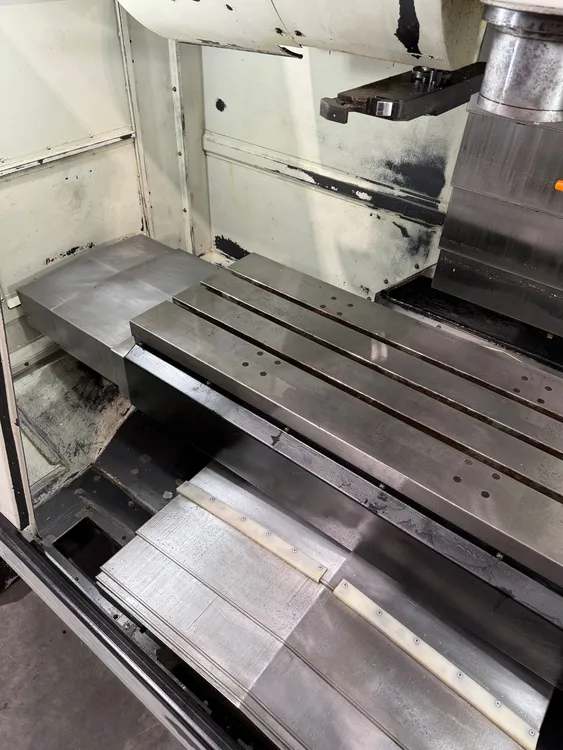

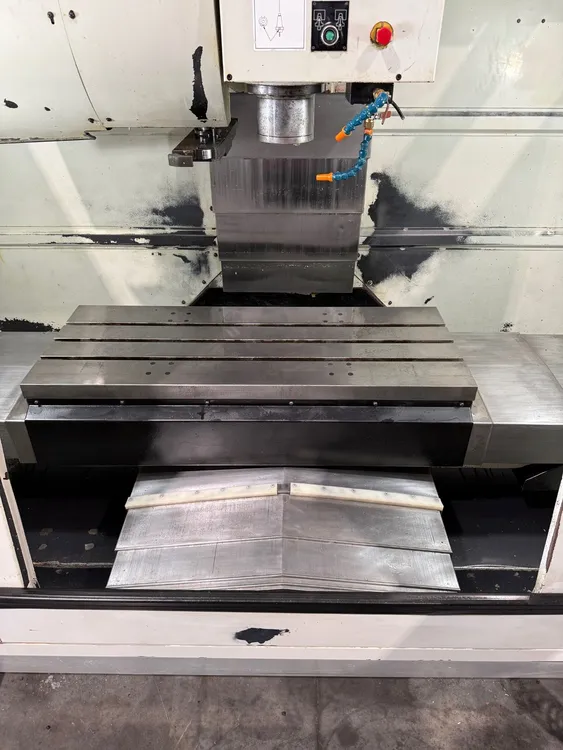

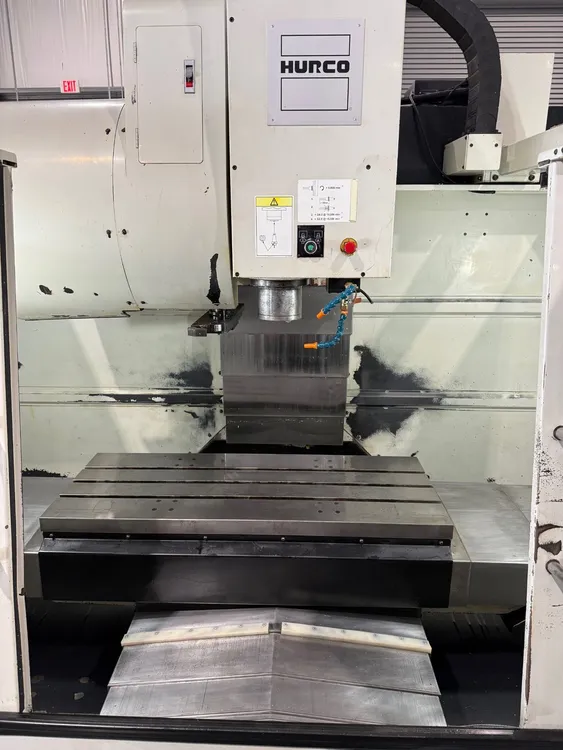

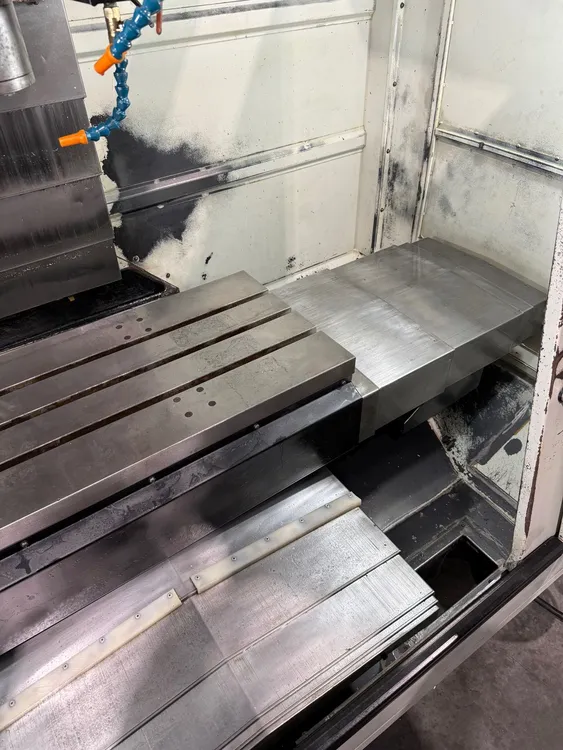

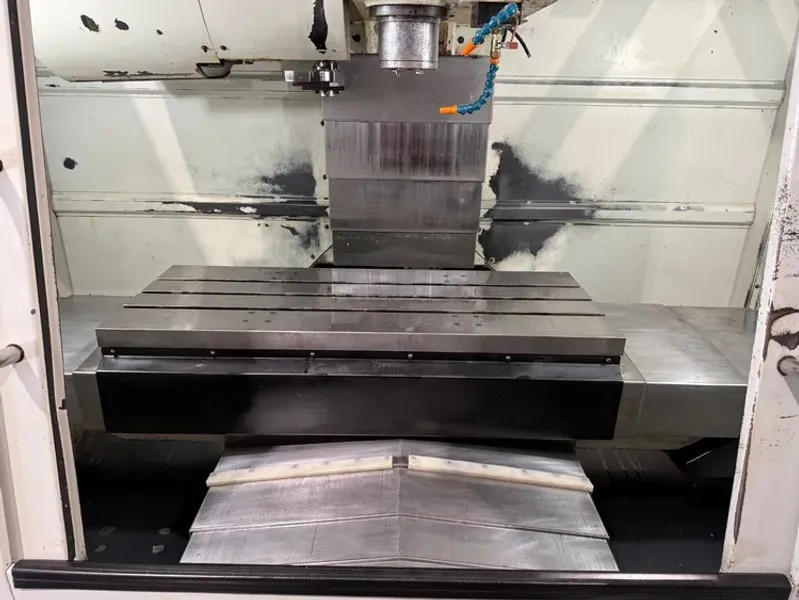

Table size- 46” x 18”
Max table weight- 1200 Lbs.
X axis travel- 40”
Y axis travel- 18”
Z axis travel- 18”
Spindle taper- CAT 40
Max spindle speed- 8,000 R.P.M.
ATC # of tools- 16 (side mount)
Tool change time- 3 seconds
X & Y axis rapids- 945 I.P.M.
Z axis rapids- 750 I.P.M.

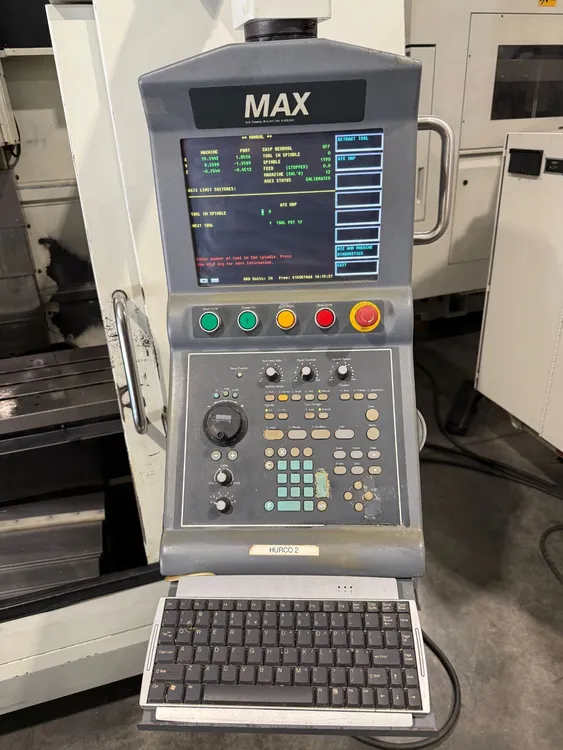

Winmax CNC Control / Touch screen Version 2.37.03E
Control options- #D Mold, Ulit-Pockets, DXF, Industry Standard NC, Rigid Tap, Ultinet, Advanced Velocity Control, Ramp / Helical Entry, Floppy Drive, Graphics, Extended HDD, Extended Memory
20 H.P. Main spindle motor
Coolant tank & pump
(6) Leveling pads
Machine is currently wired 220 / 3 phase / 60 H.Z.
Machine weight- 6,500 Lbs.
Machine dimensions- 100 L x 90” W x 100” H
Machine location- F.O.B. Sarasota, Florida
