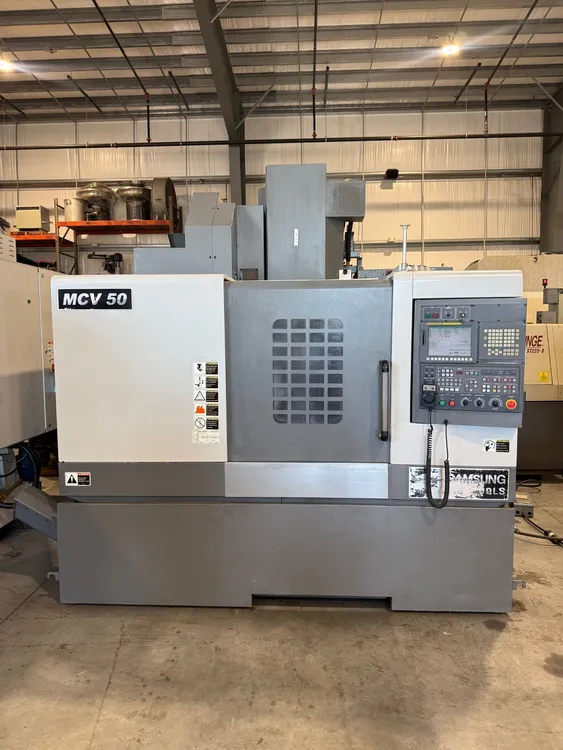

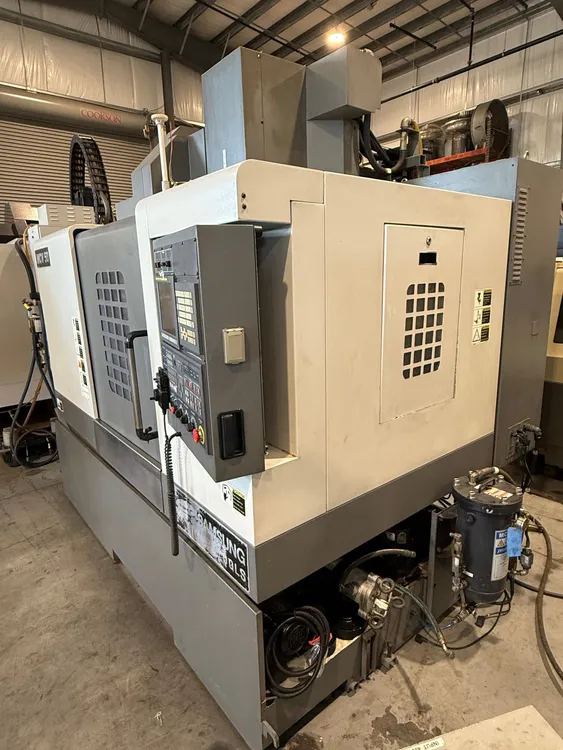

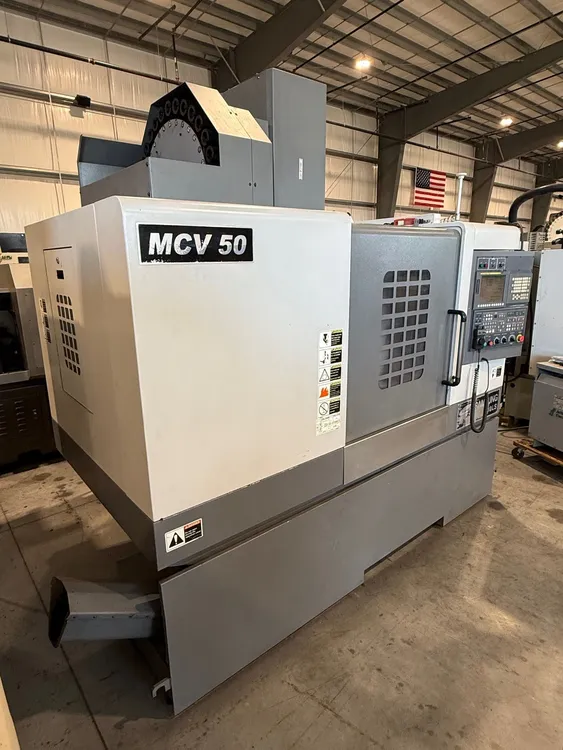

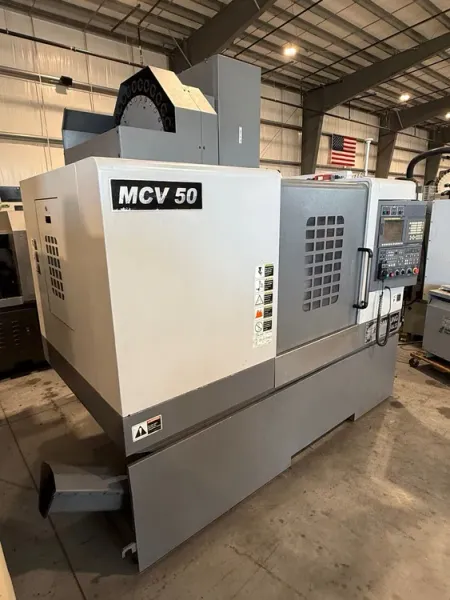

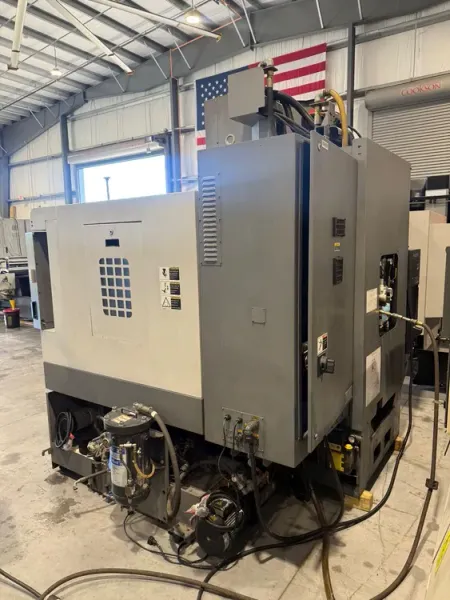

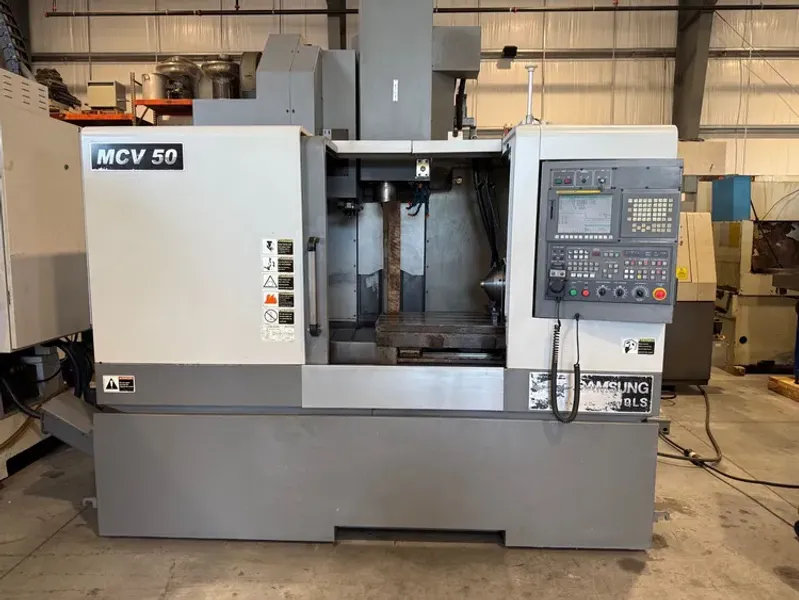

SAMSUNG MCV50 CNC Vertical Machining Center 4 Axis 2011’ #8171

Manufacturer

SAMSUNG

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

8171

Model

MCV-50

Dealer Location

Florida

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
Vertical Machining Centers
Manufacturer:
SAMSUNG
Model:
MCV-50
Year:
2011
Stock #:
8171
Status:
For Sale

Description

SAMSUNG MCV50 CNC Vertical Machining Center 4 Axis 2011’ #8171

X axis41.33"1,049.8 mm
Y axis20.47"519.94 mm
Z axis20.47"519.94 mm
Power20 hp14.9 kW
RPM12 RPM12 RPM
# ATC3030
TaperCAT40CAT40
Table-W20.1"510.54 mm
Table-L47.3"1,201.4 mm
Dimensions102” x 87” x 100” H102” x 87” x 100” H
Weight14,000 Lbs.14,000 Lbs.

SAMSUNG MCV50 CNC Vertical Machining Center 4 Axis 2011’ #8171
Reference #8171
Model # MCV50

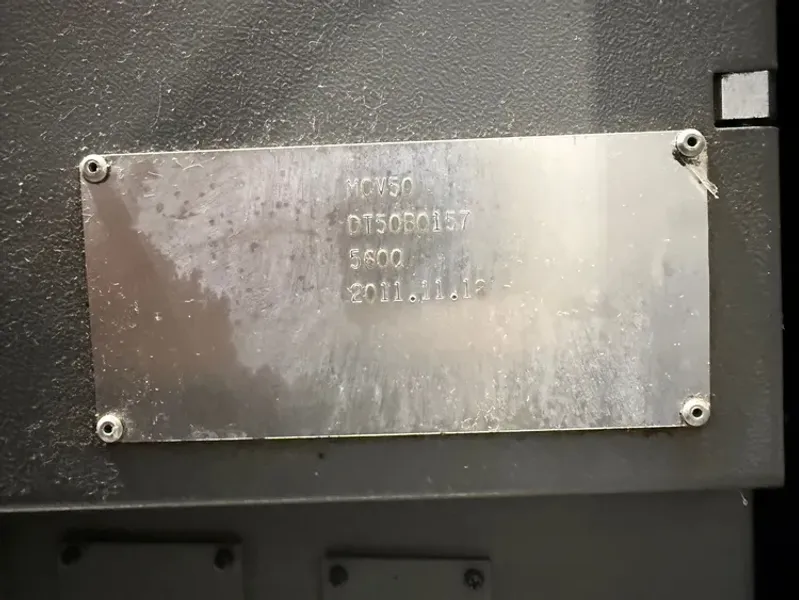

Serial # DT50B0157
Year of manufacture- 11/12/2011’
Table size- 36.22” x 19.69”
Max table load- 1,322 Lbs.
X axis travel- 35.43”
Y axis travel- 19.69”
Z axis travel- 20.08”
Rapids on X & Y- 1,417 I.P.M.
Rapids on Z axis- 1,181 I.P.M.
Spindle nose to table- 5.11” to 25.19”
Spindle taper- Cat-40
Spindle speeds- 12,000 R.P.M.
Tool changer- 30 Capacity side mount

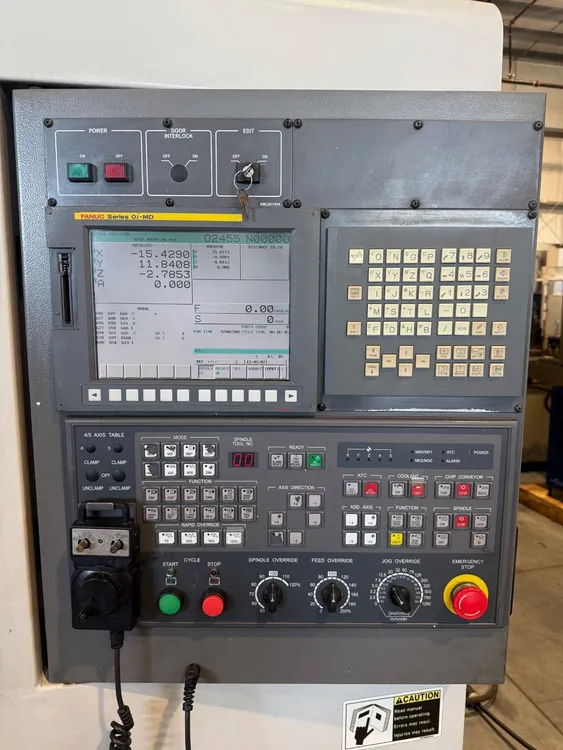

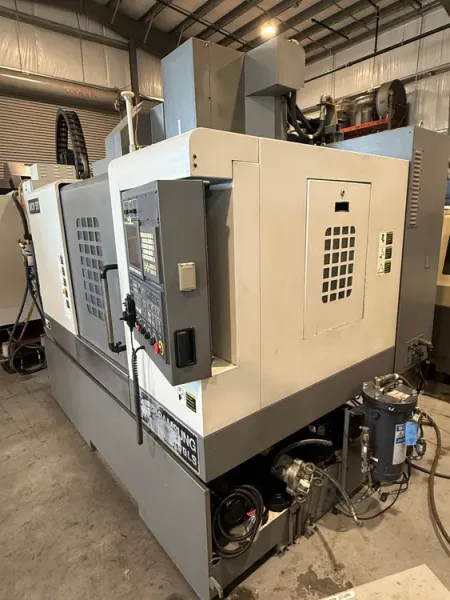

FANUC Oi-MD CNC Control with M.P.G. manual pulse generator
Machine cycle hours- 5,266

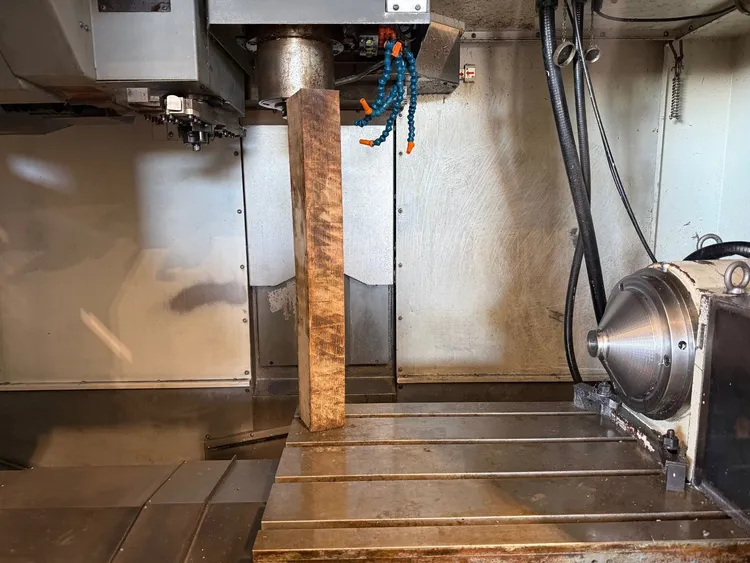

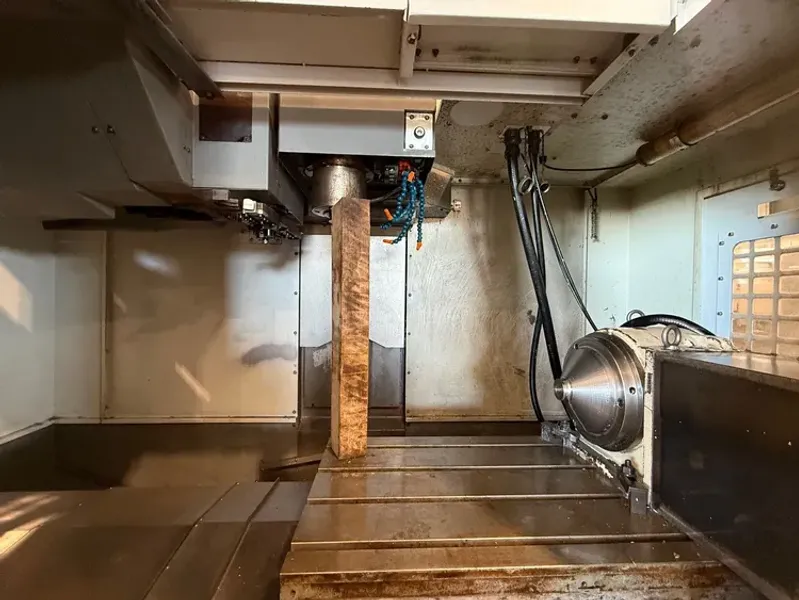

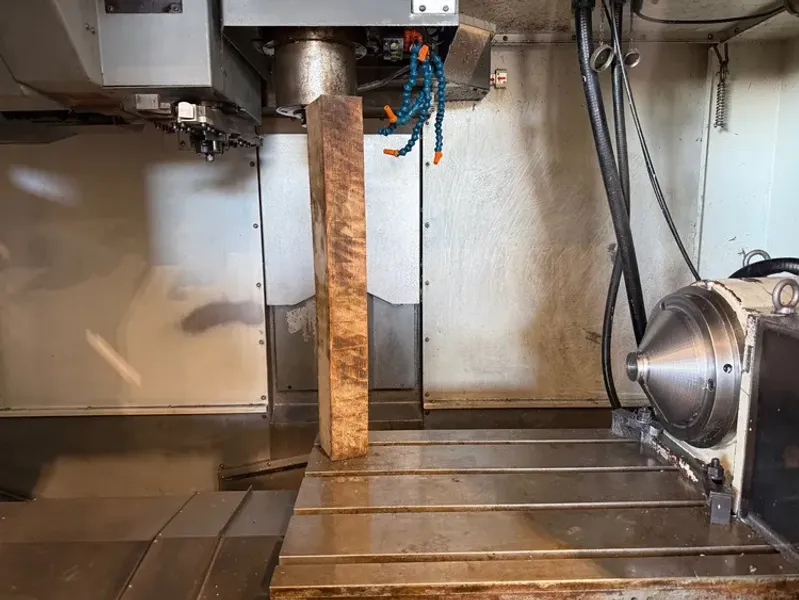

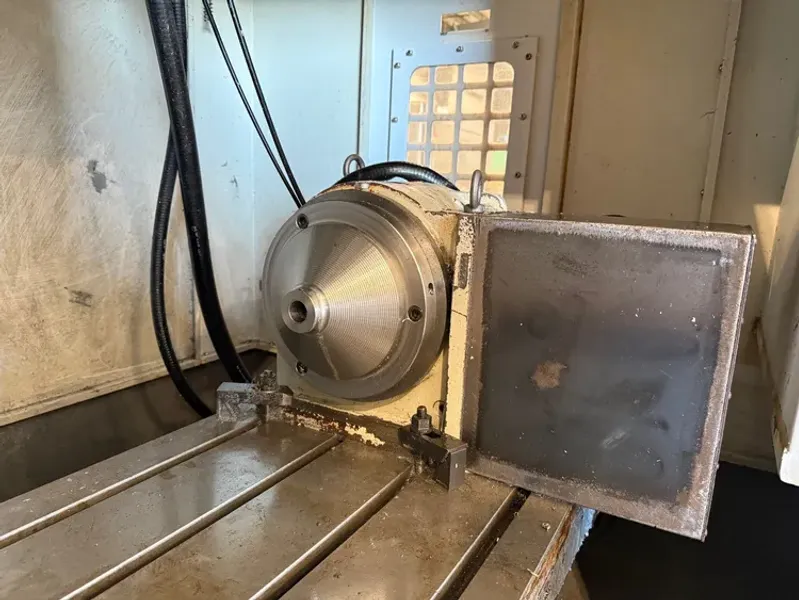

12” KOMA CNC Rotary Table

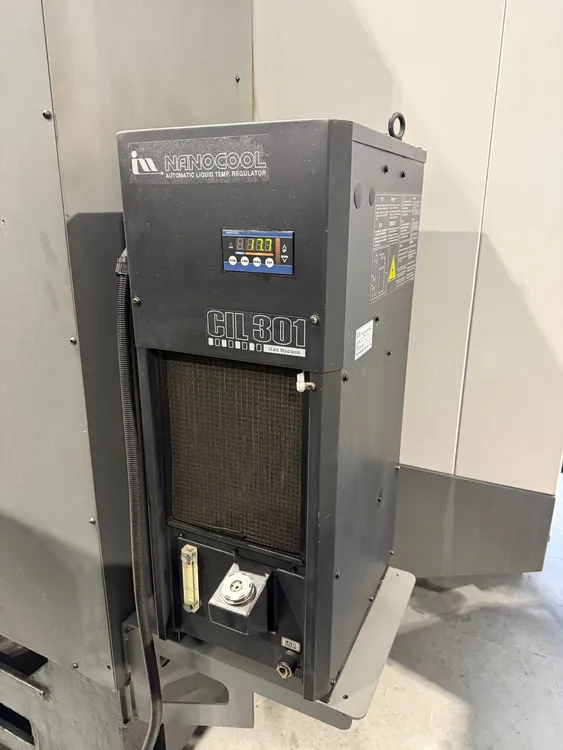

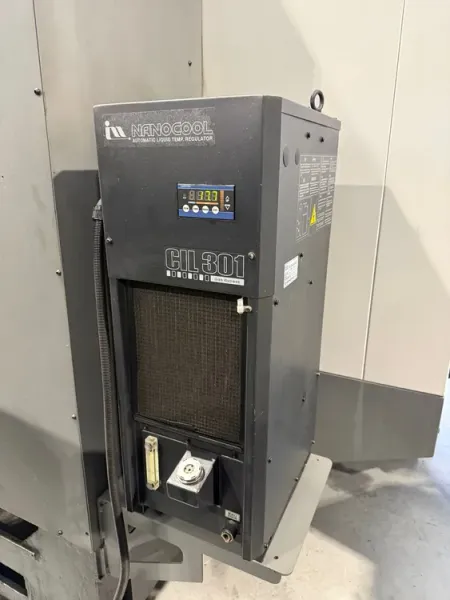

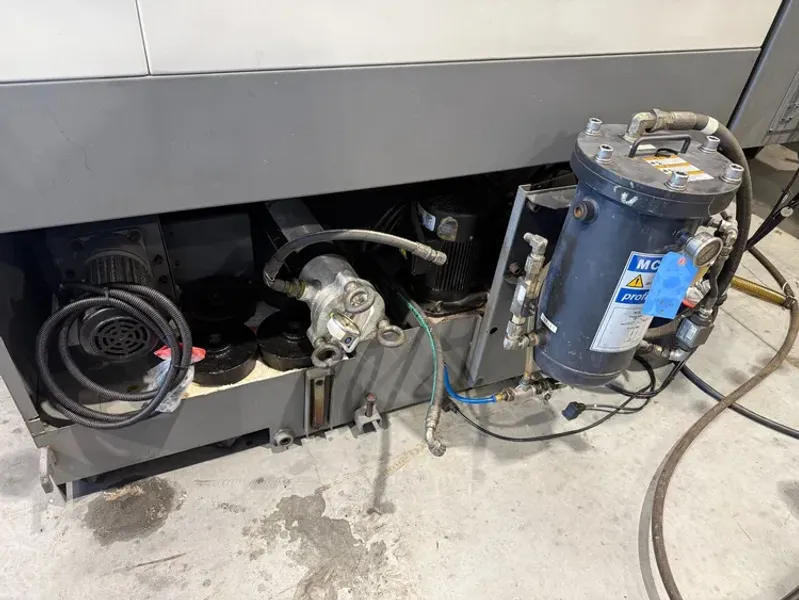

Spindle chiller
Chip auger
Coolant system
20 H.P. Spindle
Machine is wired for 220 volt / 3 phase / 60 H.Z.
Machine weight- 14,000 Lbs.
Machine dimensions- 102” x 87” x 100” H
Machine location- F.O.B. Sarasota, Florida
