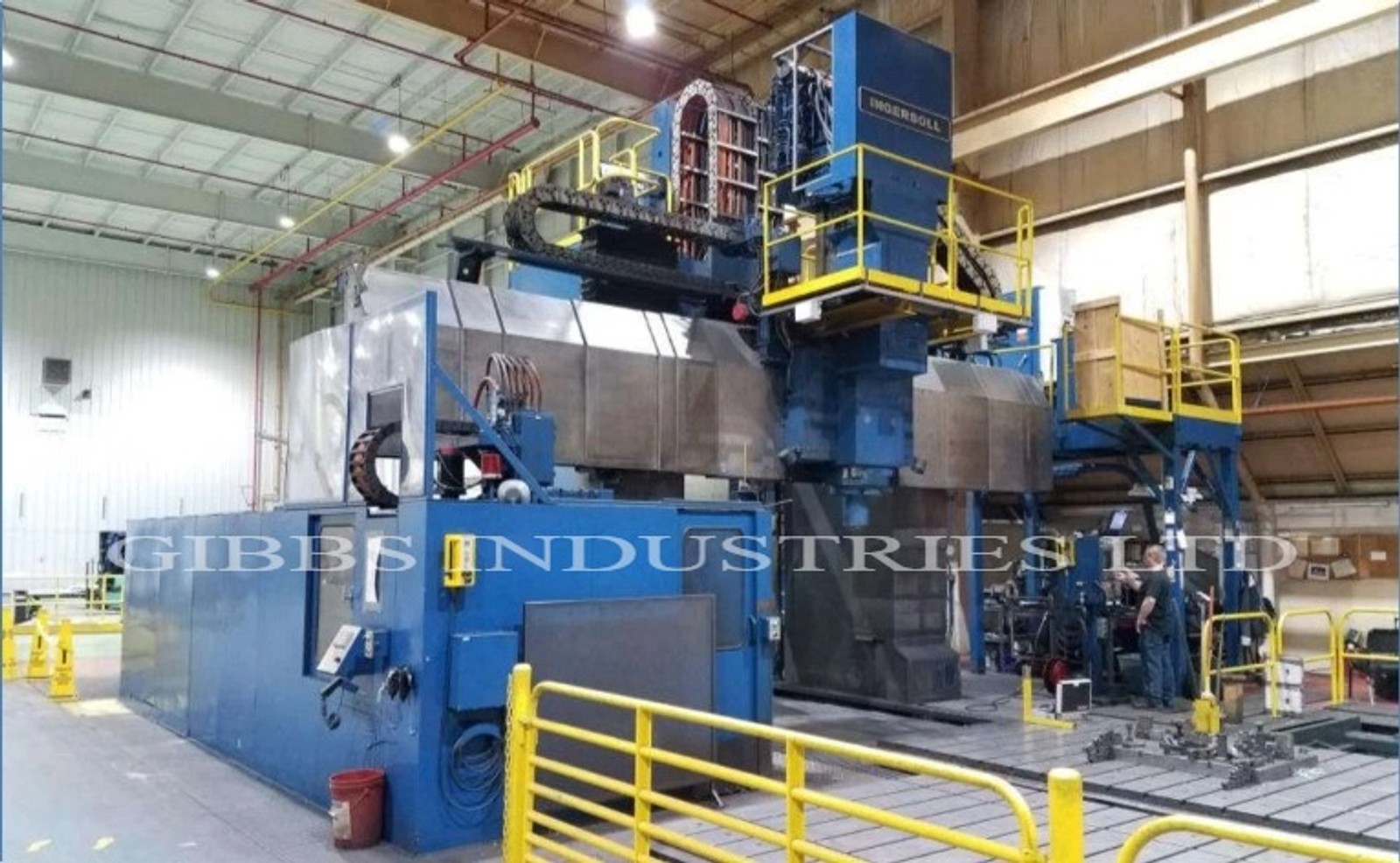

Ingersoll Mastermill 5 Axis CNC Vertical Machining Center

Manufacturer

Spec Sheet

INGERSOLL MASTERMILL 5 AXIS CNC VERTICAL MACHINING CENTER
Serial Number: N/A

Specifications:
Approximate Work Envelope: 2200mm H x 3000mm W x 5000mm L,
Using Pallets With The Following Capacities:
Pallet Width: 2500 mm / 98.4 in
Pallet Length: 4000 mm / 157.5 in
Width Between Column Way Covers: 3000 mm / 118.1 in
Height From Pallet Top To Ram Face (Ram Retracted): 2750 mm /
108.3 in

Machine Axes:
X-Axis: Table Movement
Y-Axis: Horizontal Motion of the Machine Saddle
Z-Axis: Vertical Motion of the Ram
W-Axis: Vertical Motion of the Rail
C-Axis: Rotary Motion of the Spindle Unit Around Z-Axis
B-Axis: Second Rotating Motion of the Spindle Unit
V1 & V2-Axis: Pallet Servo Axes
Xt-Axis: Tool Chain
Yt-Axis: Horizontal Motion of the Tool Manipulator
Zt-Axis (Hydraulic Cylinder): Vertical Motion of the Tool
Manipulator
U-Axis: Spindle Unit Transporter Axis

Axis Travels:
X-Axis: 6000 mm / 236.2 in
Y-Axis: 4000 mm / 157.5 in
Z-Axis: 1000 mm / 39.4 in
W-Axis: 1500 mm / 59.0 in
C-Axis: 360 Degree Continuous and Reversible Rotation
B-Axis: +/- 180 Degree

Spindle Capacity: 37KW, 50HP, 6000 RPM Spindle Motor Will Deliver
Up to 50 HP Using 2 Gear Ranges as Described Below:
High (M33) Second Gear: 43-4000 RPM (760 BSpd)
Low (M32) First Gear: 10-937 RPM (180 BSpd)

Spindle Units:
A1 = 1:1 Straight 50HP @ 180 RPM
A2 = 1:1 Right Angle 50HP @ 180 RPM

Tool Changer: Used to move tools between the spindle unit and the
tool chain. The Tool Changer consists of a 100 pocket (#50 taper),
Bertsche tool chain with a tool changer capable of changing tools
in straight and right angle spindle units (SU). Capabilities:
Maximum Weight: 35 kg (77 lb)
Maximum Diameter: 315 mm (12.4 in)
Maximum Length: 450 mm (17 in)

External Scales: The Closed Loop feedback of the linear and rotary
mechanisms is achieved using Heidenhain external scales. Transfer
errors from the mechanics are detected by the linear and rotary
encoders and corrected by the CNC resulting in a very accurate machine.

Equipped With:
Fanuc 15MB CNC Control
Single Head
Tool Chain: Capable of Storing Up to 60 Tools
Spindle Unit (SU) Transporter: Capable of Storing Up to 5 Spindle Units
Table (Pallet Receiver): Mounted on Top of the Bed with a Hydrostatic
Way System
