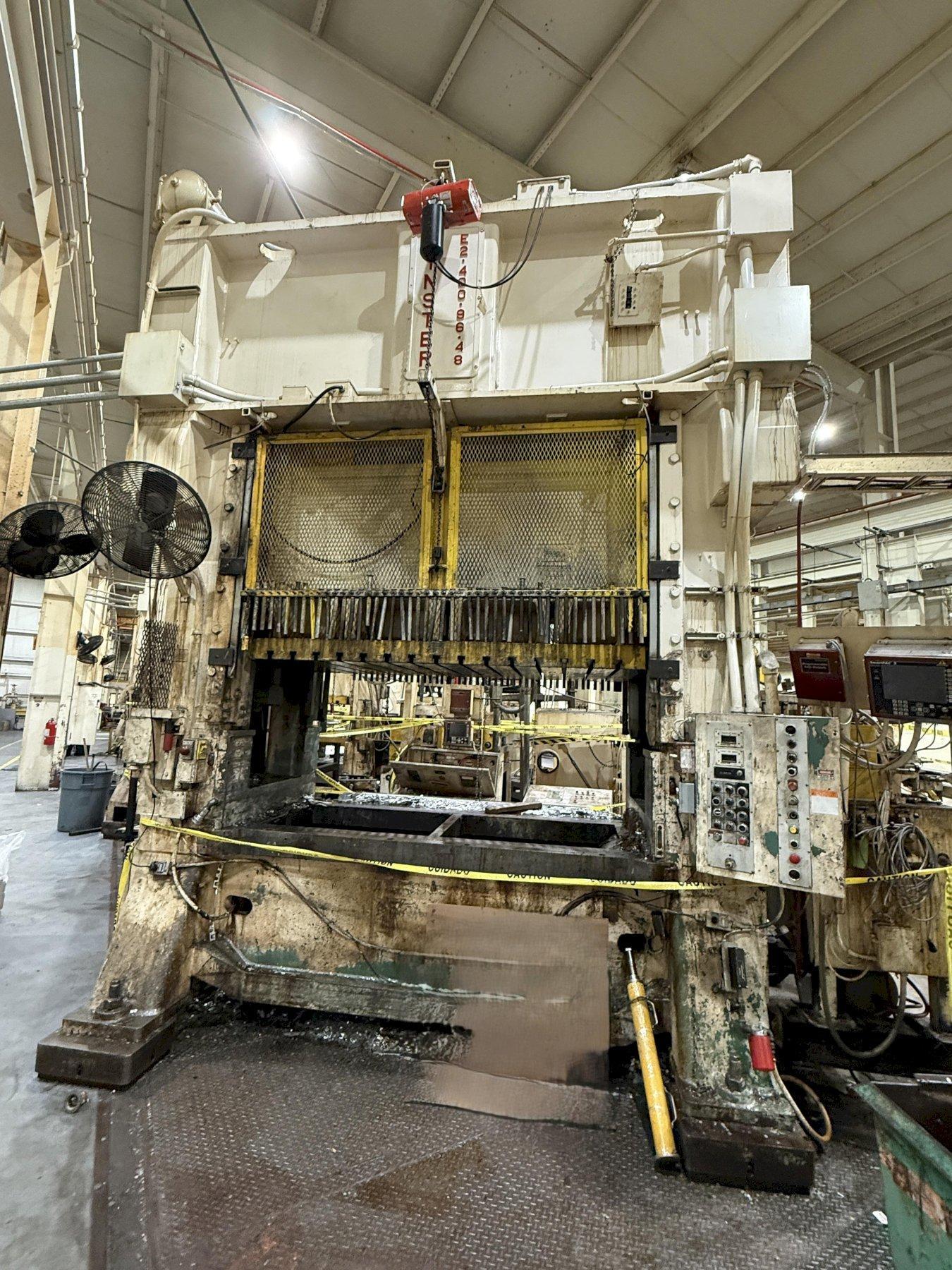

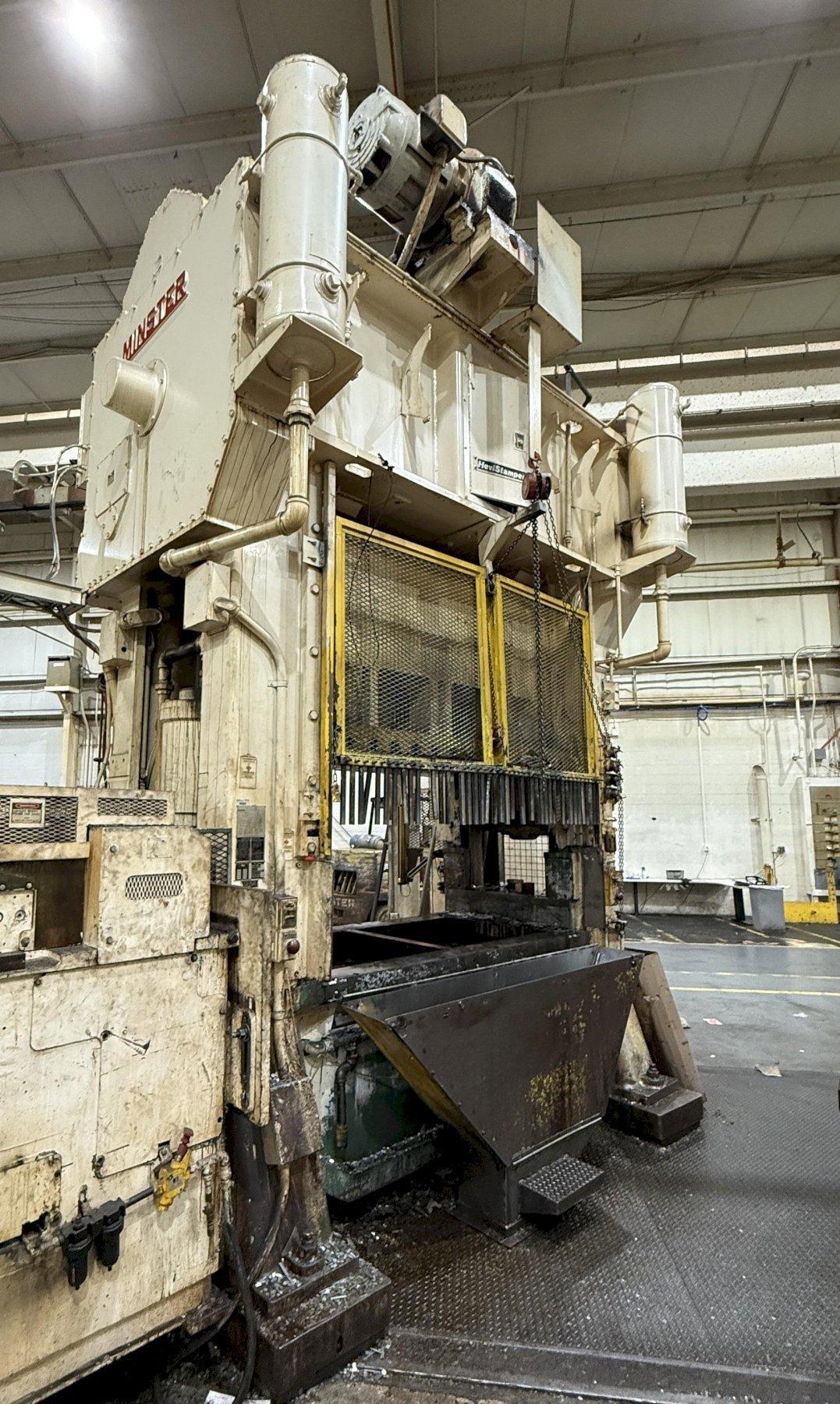

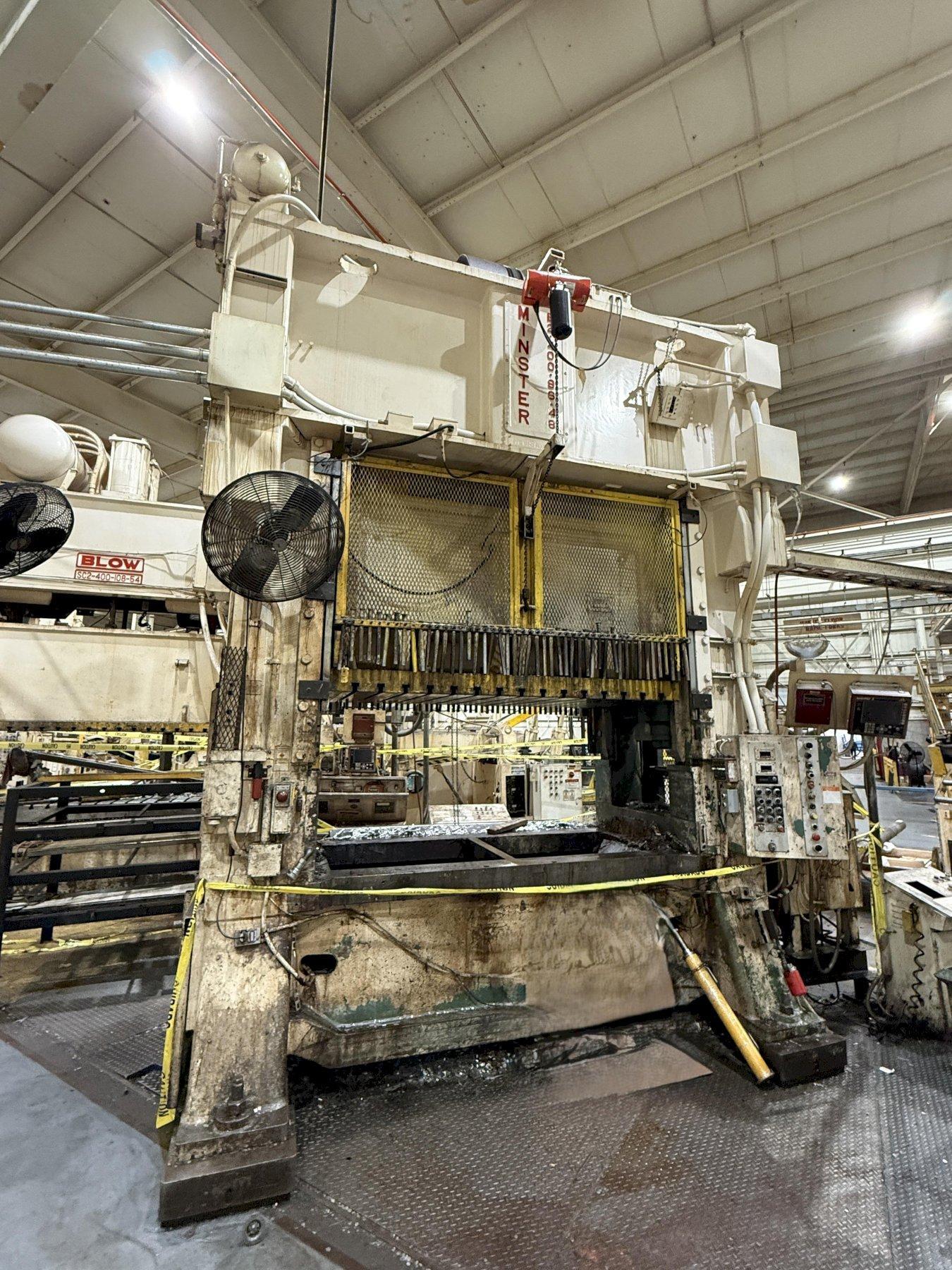

1986 MINSTER E2-400-96-48 Hevi-Stamper Double Crank Press - 400 Ton Capacity

Stock

2997

Model

E2-400-96-48 Hevi-Stamper

Dealer Location

Michigan

Spec Sheet

Tonnage - 400
Stroke - 12 inches
Shut Height - 32 inches
Adjustment - 6 inches
Bed Size - 96 x 48
Ram Area - 96 x 48
SPM - 35-70 VSPM


400-ton Minster Hevi-Stamper Model E2-400-96-48

Straight Side Mechanical Stamping Press


400-ton Capacity
12" Stroke
32" Shut Height On Bed
25" Shut Height Over Bolster
6" Motorized Adjustment
96" LR x 48" FB Bed Area
96" LR x 48" FB Slide Area
0-70 Variable Strokes Per Minute

Equipment and Features
Minster Pneumatic Clutch and Brake
Air Counterbalances
Minster Monitor Flow Lubrications System
T-Slotted Ram and Bolster Plate
7" Thick Bolster Plate
Wintriss Smart Pak 2 Press Controls
33" Wide Windows
Vibro Dynamic Floor Pads
8-Point Adjustable Gibbing
Single Geared - Twin End Drive
Floor Standing

This 400-ton Minster can be seen in operation at the plant upon request.

Boost your shop’s productivity with this elite 400-ton Minster Hevi-Stamper (E2-400-96-48), the industry benchmark for high-speed straight side mechanical presses. Engineered for precision metal stamping, this 1985 workhorse features a generous 96" x 48" bed area and a versatile 12" stroke, making it the ideal solution for complex progressive die applications. Equipped with Wintriss Smart Pak 2 controls, 8-point gibbing, and a variable speed drive reaching 0-70 SPM, this Minster E2 press ensures unmatched rigidity and tool life. This floor-standing, high-capacity mechanical press includes a Monitor Flow lubrication system, a T-slotted bolster and motorized adjustment for rapid setups. Don't miss this rare opportunity to acquire a legendary Minster stamping press—available for immediate inspection under power!
