200-ton Minster E2-200-72-42 Straight Side Metal Stamping Press - Double Crank, Single Action Ye

Manufacturer

MINSTER

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

2994

Model

E2-200-72-42

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Tonnage - 200
Stroke - 10 inches
Shut Height - 28 inches
Adjustment - 6 inches
Bed Size - 72" LR x 42" FB
Ram Area - 72" LR x 42" FB
SPM - 30-60 VSPM


Used 200-ton Minster Straight Side Mechanical Press
Model E2-200-72-42 Hevi-Stamper
200-ton Capacity
8" Stroke
31" Shut Height on Bed
6" Adjustment
72" LR x 42" FB Bed Area
72" LR x 42" FB Slide Area
30-60 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Minster Monitor Flow Lubrication System
T-Slotted Ram and Bolster
Free Standing Console Controls
8-Point Gibs - Brass Lined
Knockouts in Slide
37" Floor to Top of Bolster
74" Distance Between Gibs
30 HP Main Drive Motor - 1800 RPM
25" Wide Windows
Floor Standing

Approximate Weight 64,000 lbs.

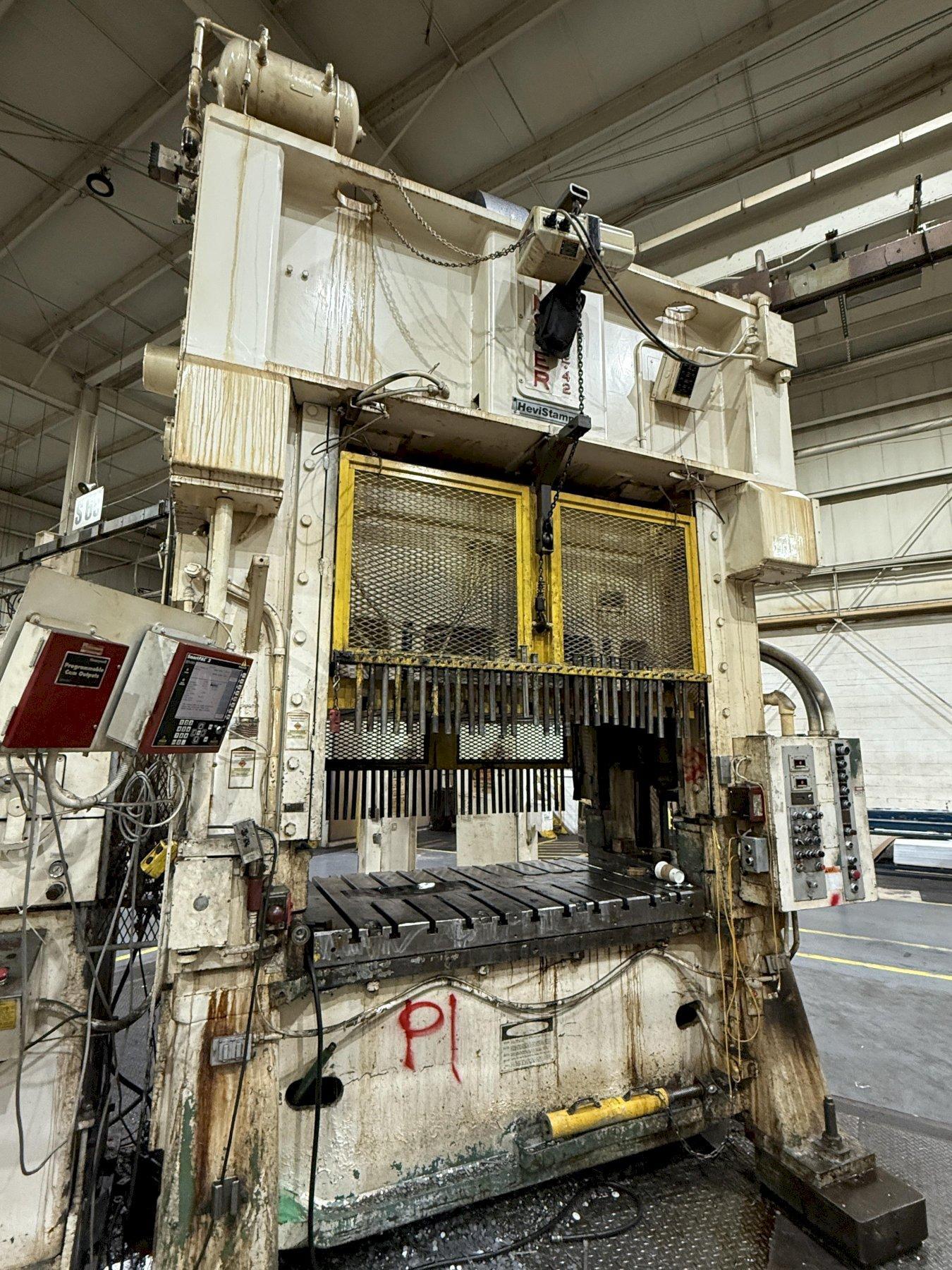

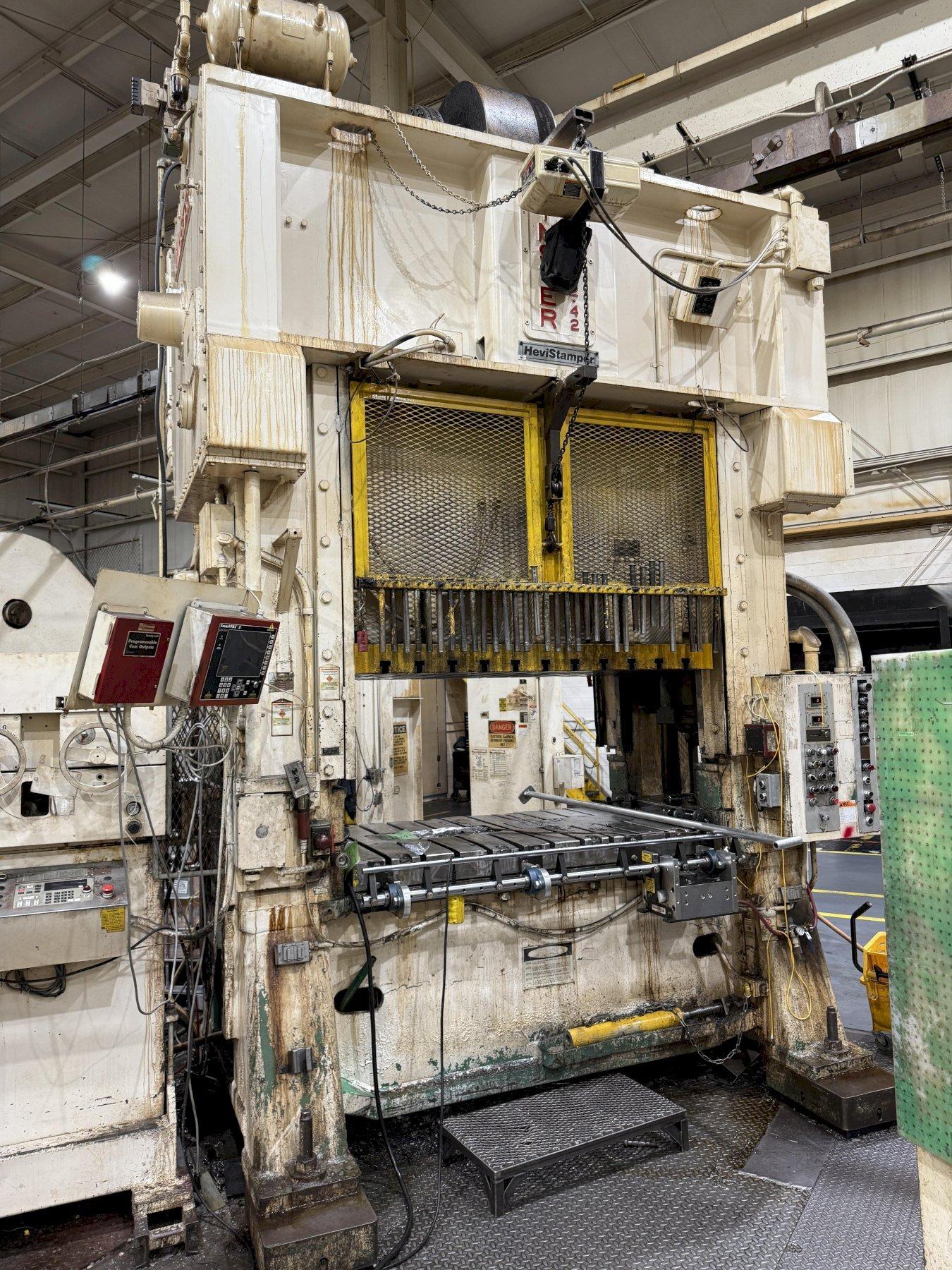

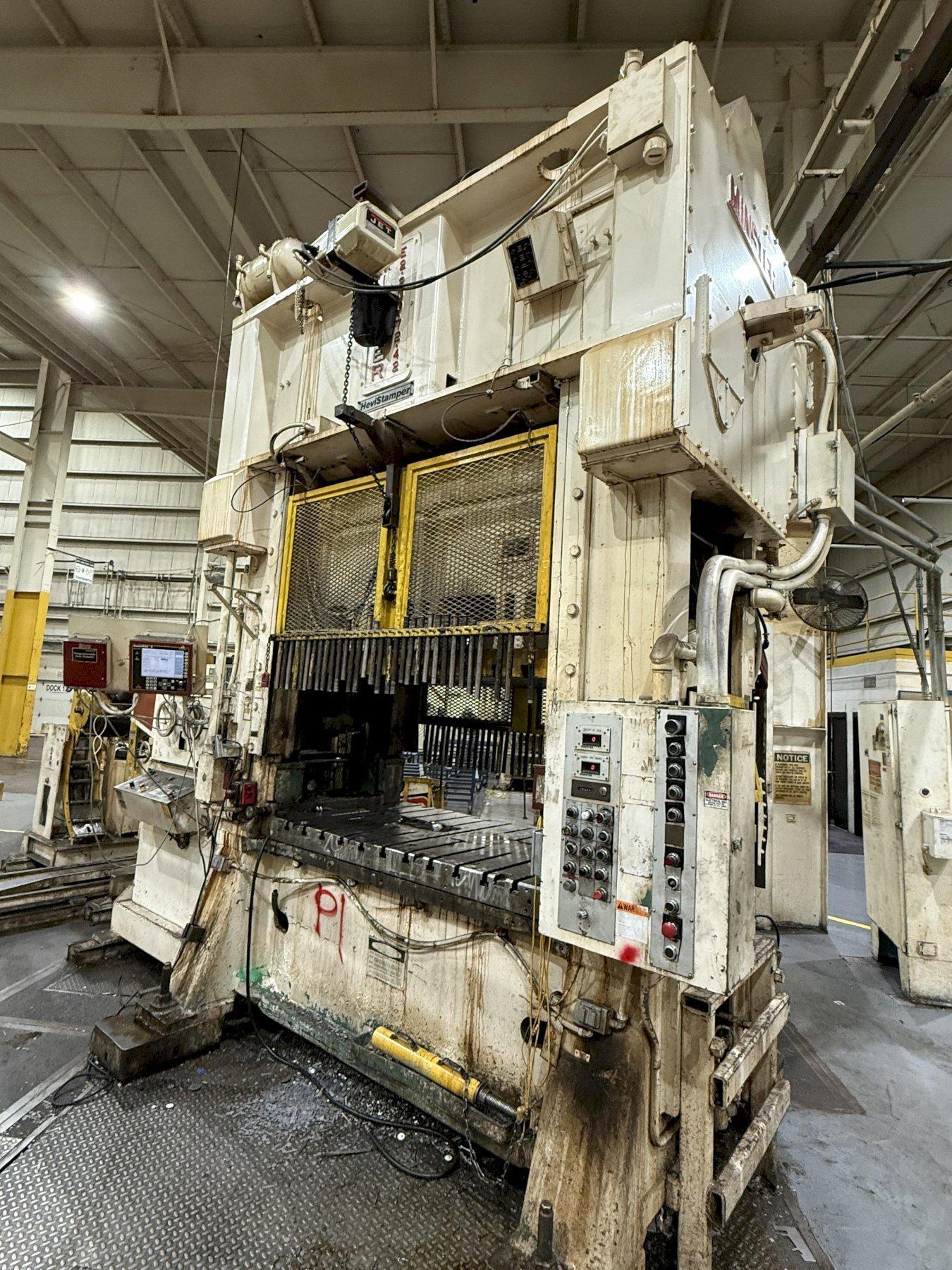

This Used 200-ton Minster Hevi-Stamper can be seen underpower in the S&G Press Warehouse.

Click for more 200-ton Stamping Press Options

This used 200-ton Minster Hevi-Stamper Model E2-200-72-42 is a high-performance straight-side mechanical stamping press engineered for demanding progressive and transfer die applications. Known for its robust construction, this 200-ton Minster press delivers the precision required for high-volume metalworking.



With a highly desirable 10" stroke and a variable speed range of 30–60 VSPM, this eccentric shaft press features a 72" x 42" bed area and 8-point brass-lined gibs for maximum stability. Key technical features include an air clutch and brake, Minster Monitor Flow lubrication, and air counterbalances.
