300-ton MINSTER E2-300-84-48 Straight Side Press - Double Crank Metal Stamping Press For Sale, Y

Manufacturer

MINSTER

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

2993

Model

E2-300-84-48

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Tonnage - 300
Stroke - 12 inches
Shut Height - 32 inches
Adjustment - 6 inches
Bed Size - 84" LR x 48" FB
Ram Area - 84" LR x 48"FB
SPM - 40-80 VSPM


Standard Specifications
300-ton Minster Straight Side Mechanical Stamping Press
Model E2-300-84-48 Hevi-Stamper
Year 1986
300 ton Capacity
12" Stroke
30" Shut Height on Bed
6" Motorized Adjustment
84" LR x 48" FB Bed Area
84" LR x 48" FB Slide Area
40-80 VSPM

Equipment and Features
Minster Combination Air Clutch and Brake
Air Counterbalances
Minster Monitor Flow Lubrication System
T-Slotted Ram and Bolster ( On 6” centers)
Dual Ross Air Valve
Wintriss Smart Pac 2 Press control
Vertical and Horizontal Light Curtains
Vari Speed Drive
8 Point Gibbing
Motors and Controls
27" Wide Windows
Motorized Ram Adjustment
Vibro Dynamic Floor Pads
Floor Standing

Weight of Press:  93,000 lbs.

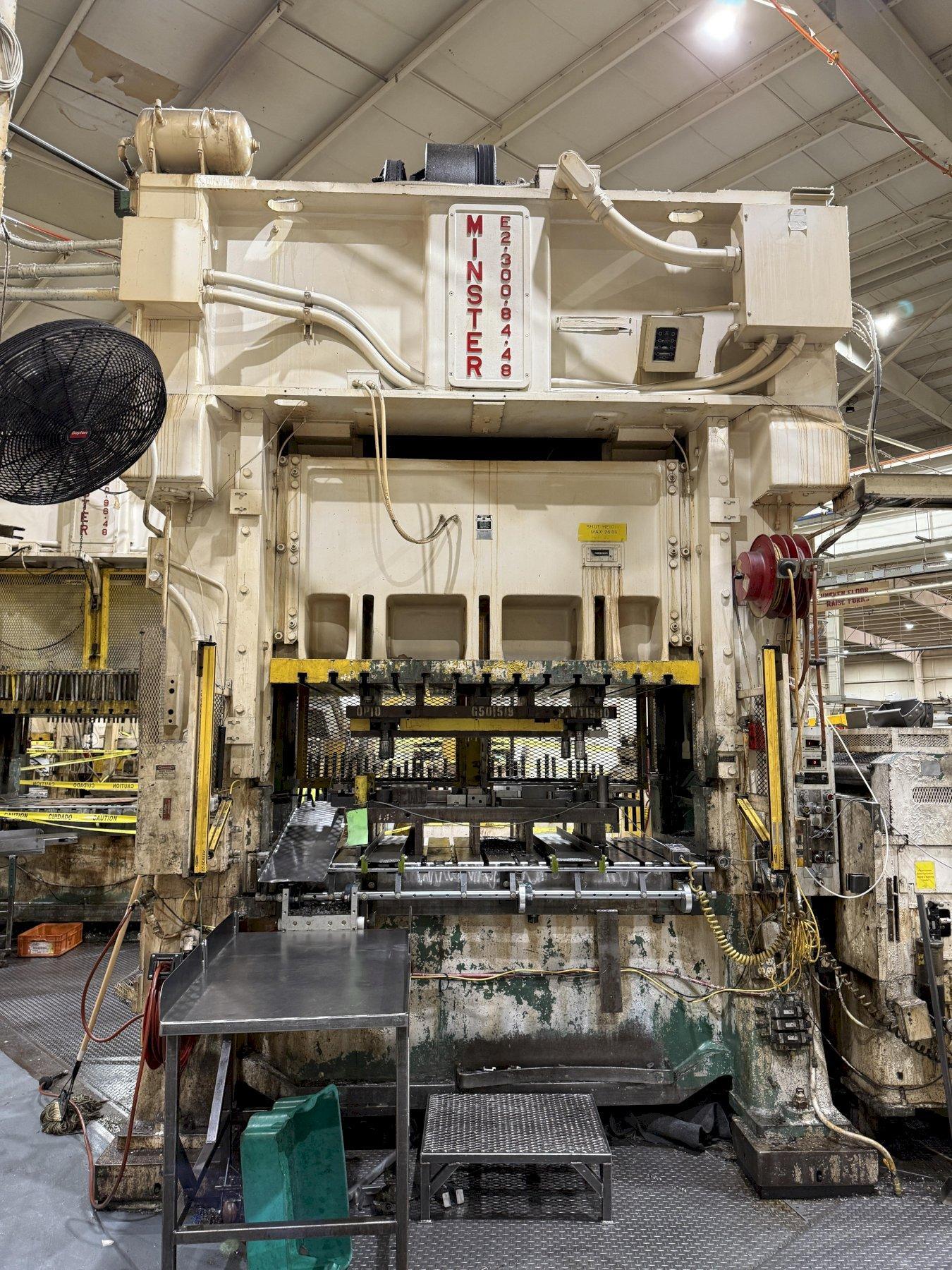

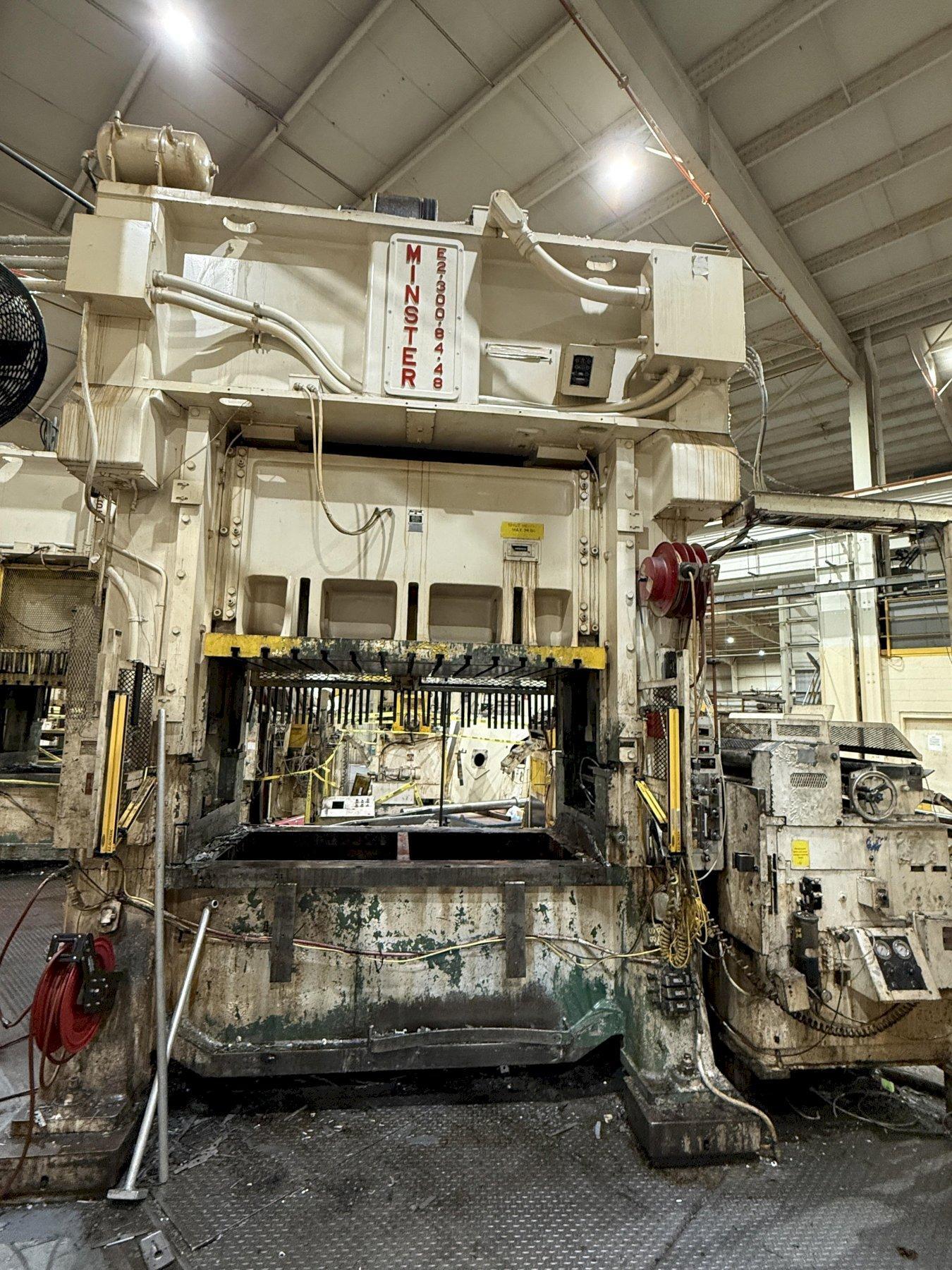

This used 300 ton Minster Hevi-stamper Press for sale can be seen under power in the Plant.  Call to schedule and inspection or more information.


This used 300-ton Minster Hevi-Stamper (Model E2-300-84-48) is a premier straight side mechanical stamping press now available for sale. Built in 1986, this high-performance metal stamping press features a 12" stroke, 30" shut height, and a spacious 84" x 48" bed/slide area.

Engineered for precision, the Minster E2-300 utilizes a single-geared, twin-end drive and a variable speed range of 40-80 VSPM. Key features include a Minster air clutch/brake, recirculating lube system, and 27" wide windows.
