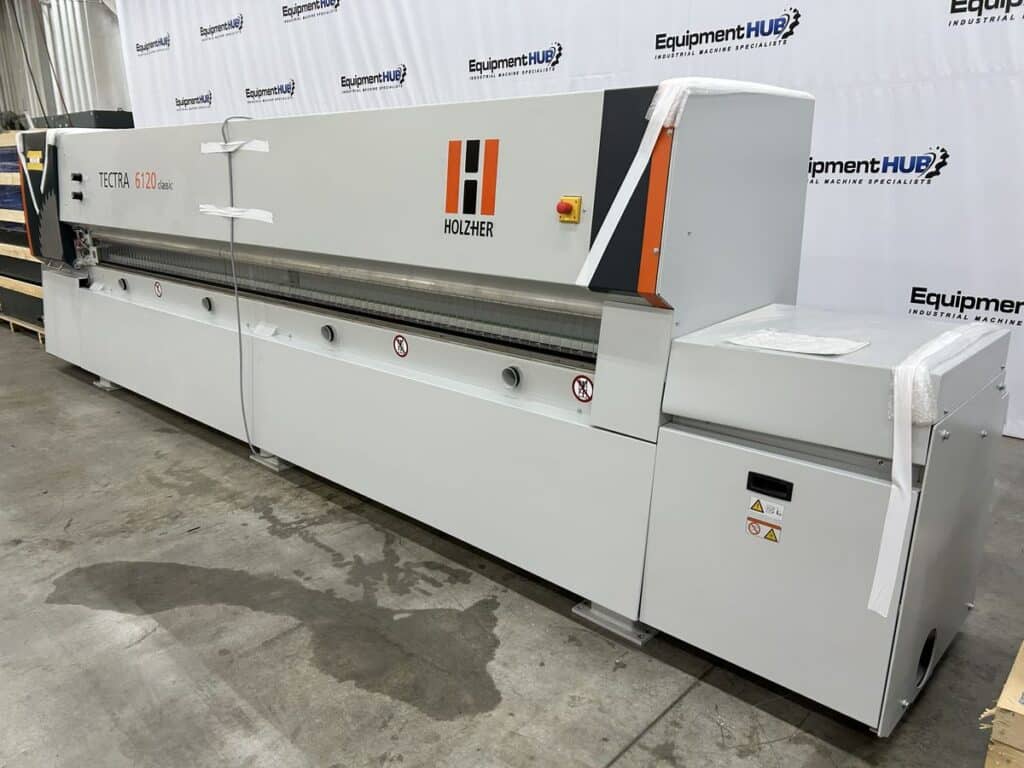

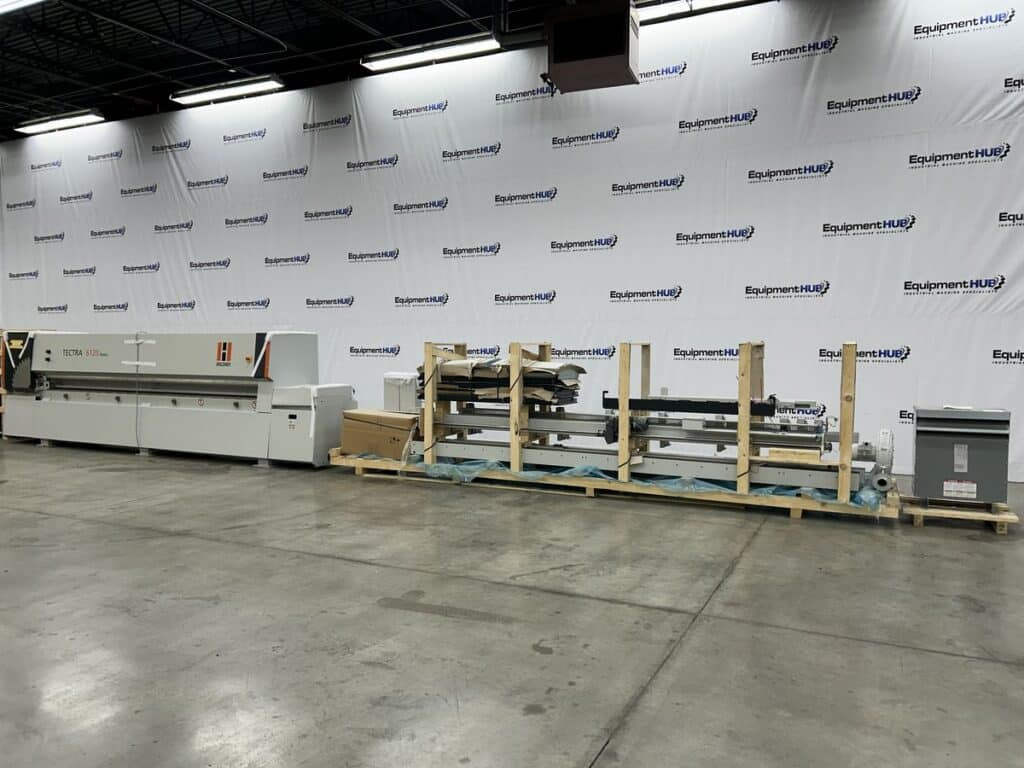

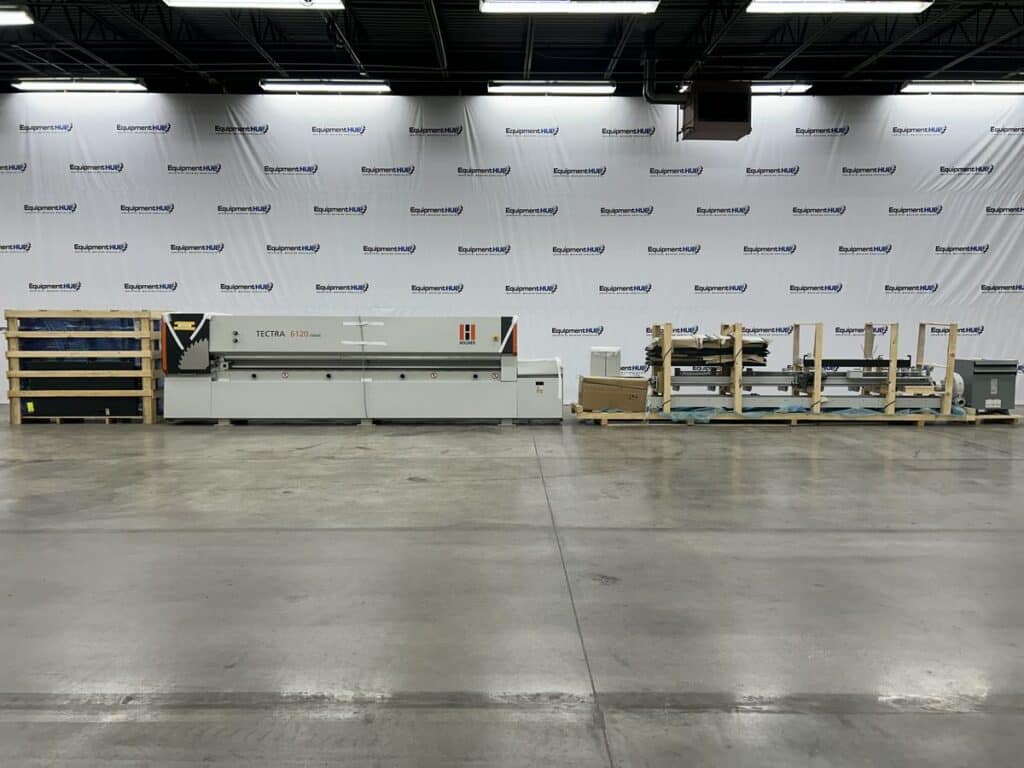

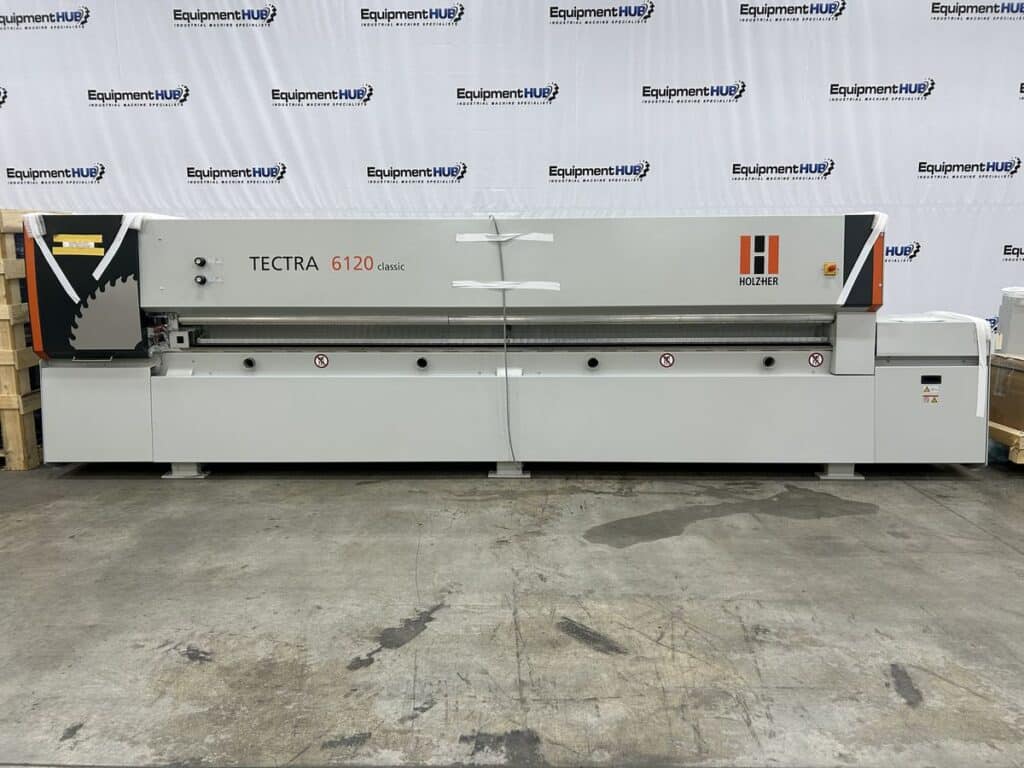

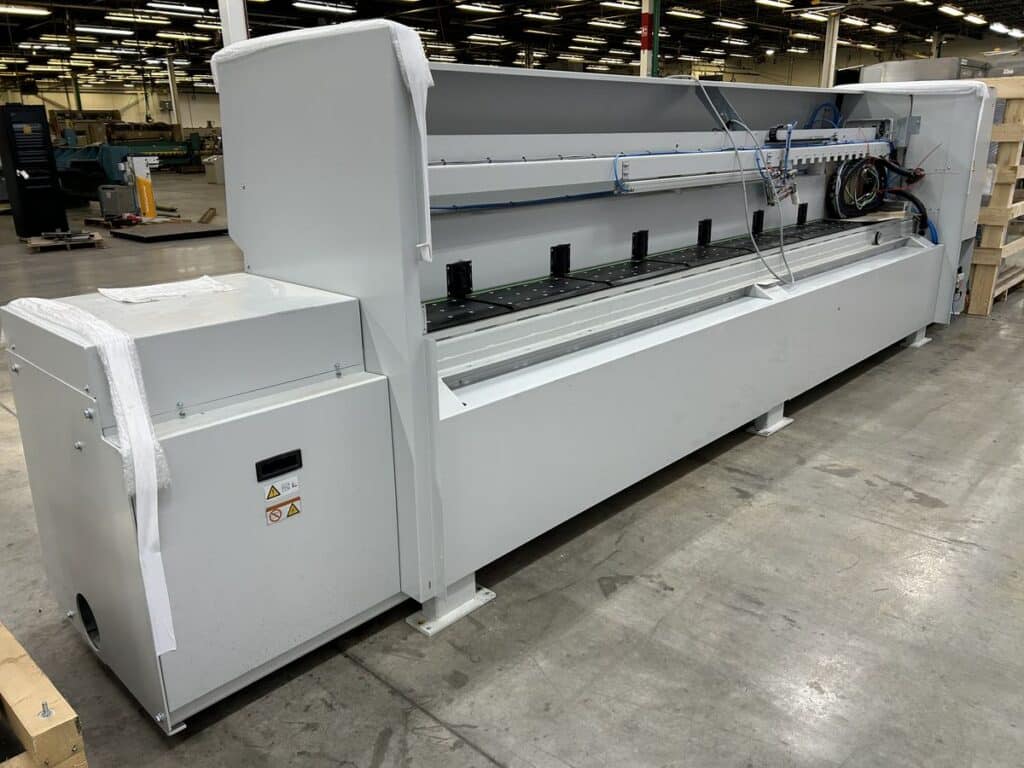

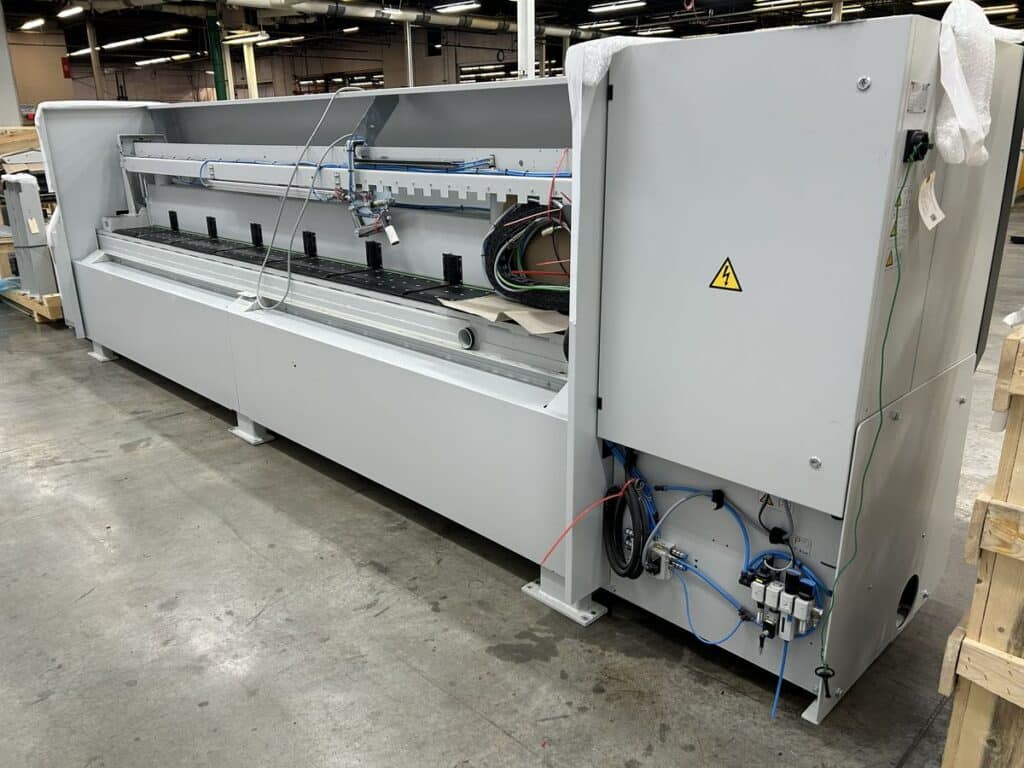

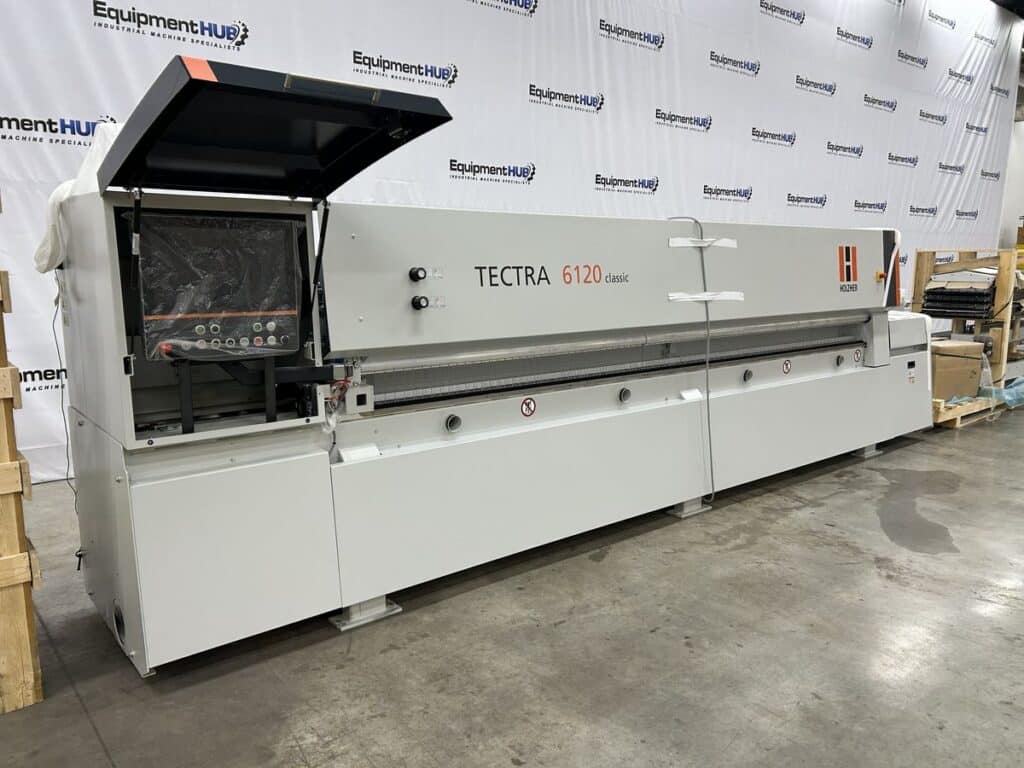

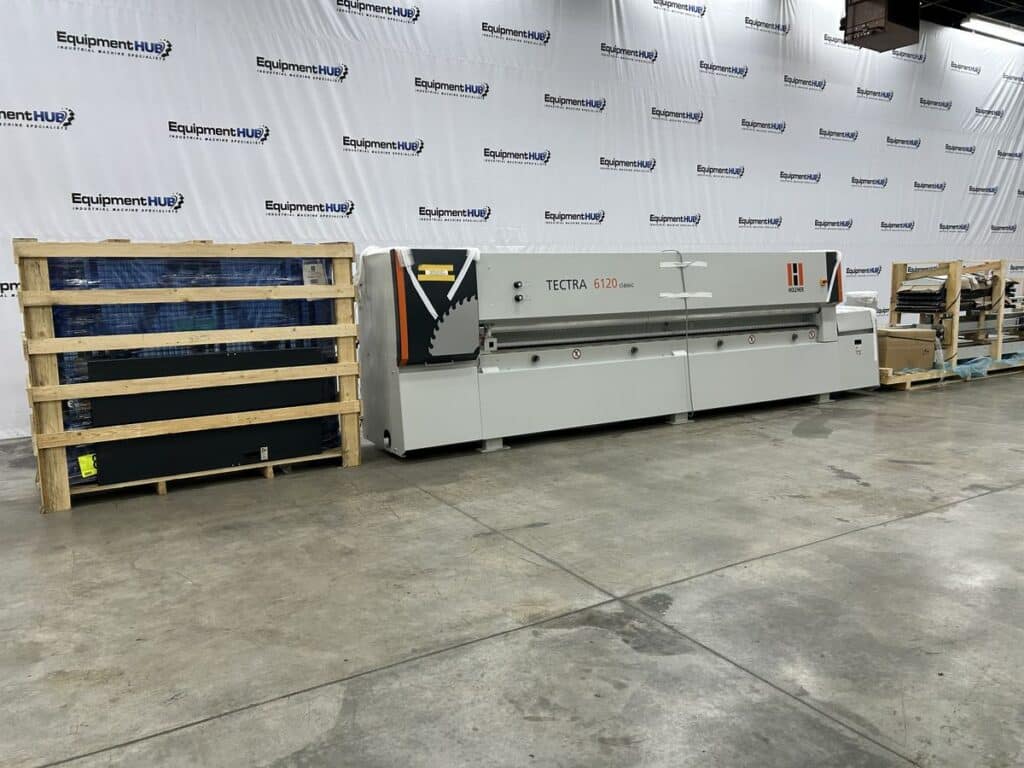

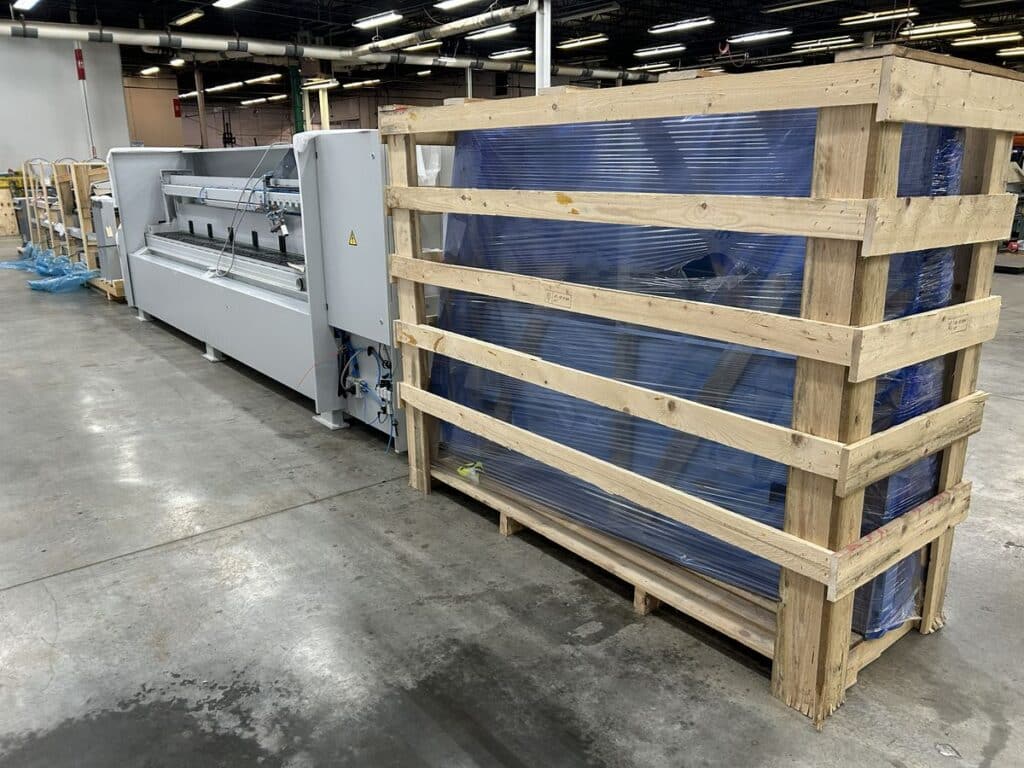

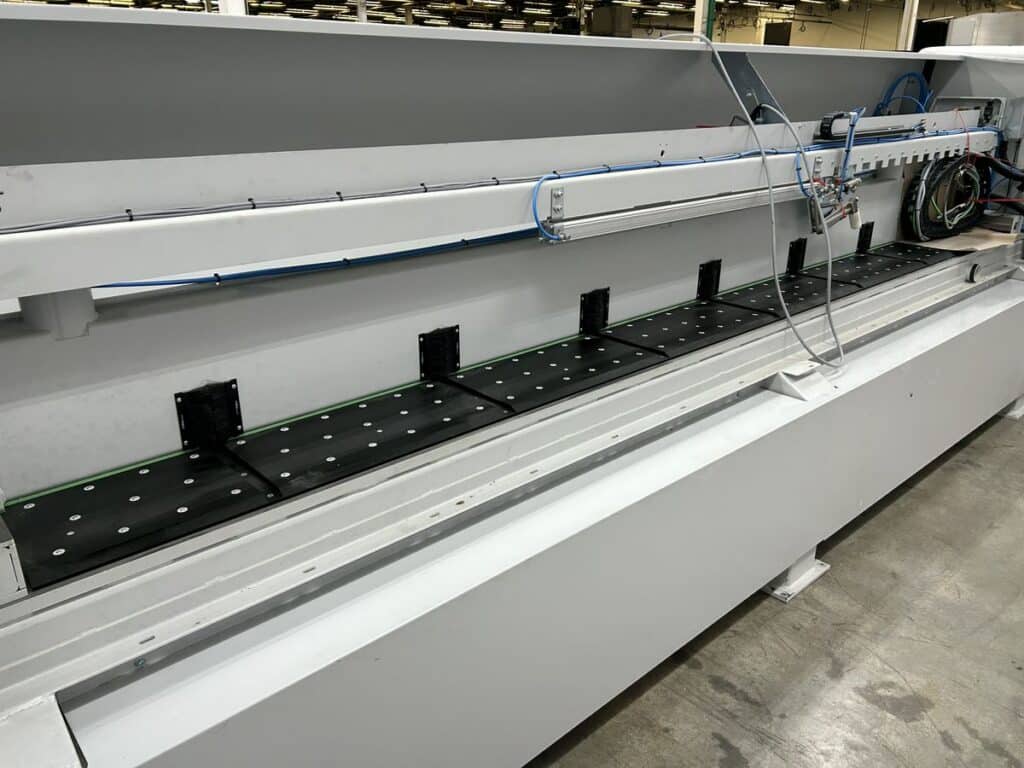

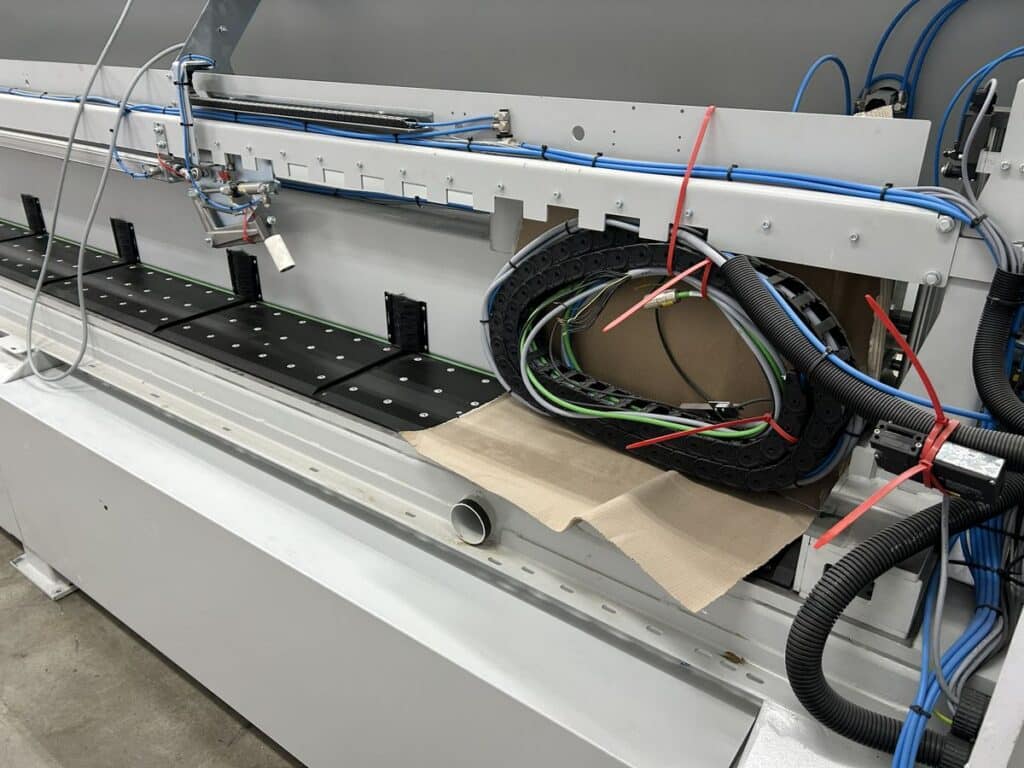

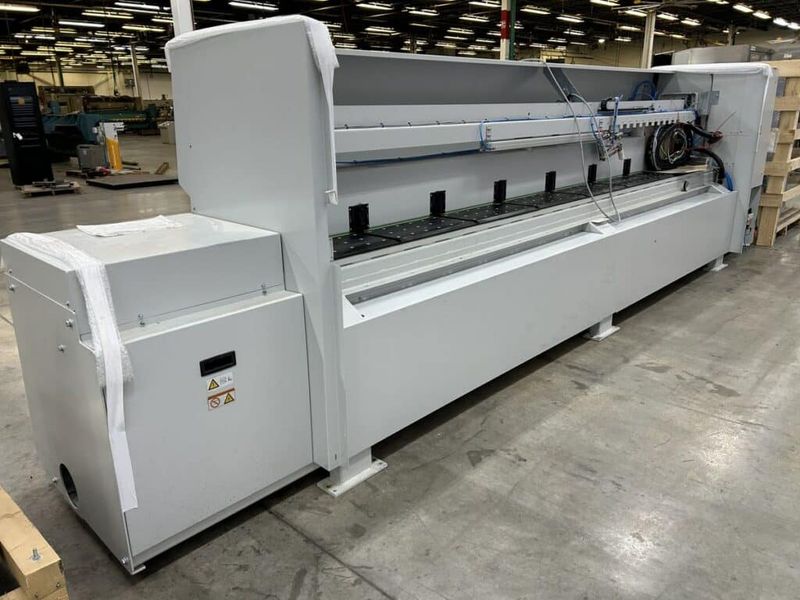

Holz-Her Tectra 6120 Classic 14′ Horizontal Beam Saw (New Never Installed 2024 model)

Manufacturer

Holz-Her

Category

Woodworking Machines

Type

WOODWORKING MACHINERY

Stock

110260001

Model

Tectra 6120 Classic

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 110260001
  • Location: Decatur, GA
  • Brand: Holz-Her
  • Model: Tectra 6120 Classic

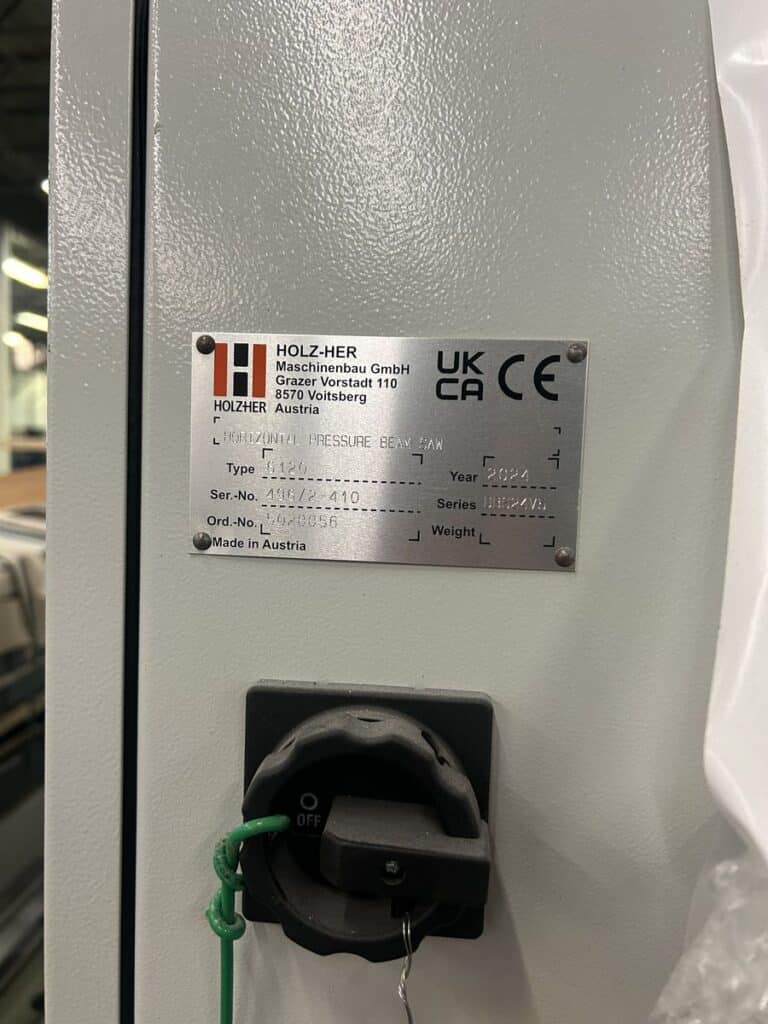

  • Serial #: 496/2-410
  • Year: 2024
  • Approx. Shipping Weight: 11,000 Lbs.
  • Approx. Shipping Dimensions: 42′ L x 8′ W x 6′ H

Specifications

  • Maximum Saw Blade Projection: 3.23″
  • Cutting Length: 173.23″
  • Main Saw Motor: 10HP
  • Scoring Saw Motor: 3HP
  • Main Saw Blade Diameter: 13.78″
  • Scoring Saw Blade Diameter: 7.09″
  • Saw Carriage Feed Speed: 0 – 230 Ft/min.
  • Saw Carriage Return Speed: 230 ft/min.
  • Pusher Speed (Forward): 82 ft/min.
  • Pusher Speed (Backward): 328 ft/min.
  • Max Opening for Clamps: 3.23″
  • Control Screen Size: 21.5″

Equipped With

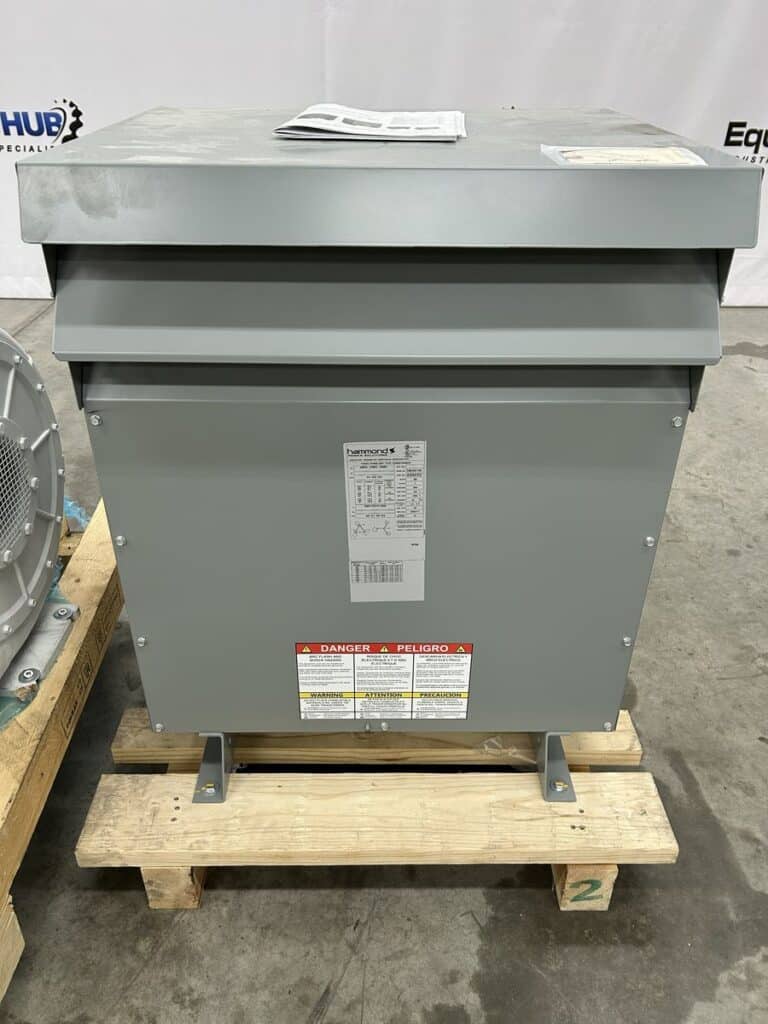

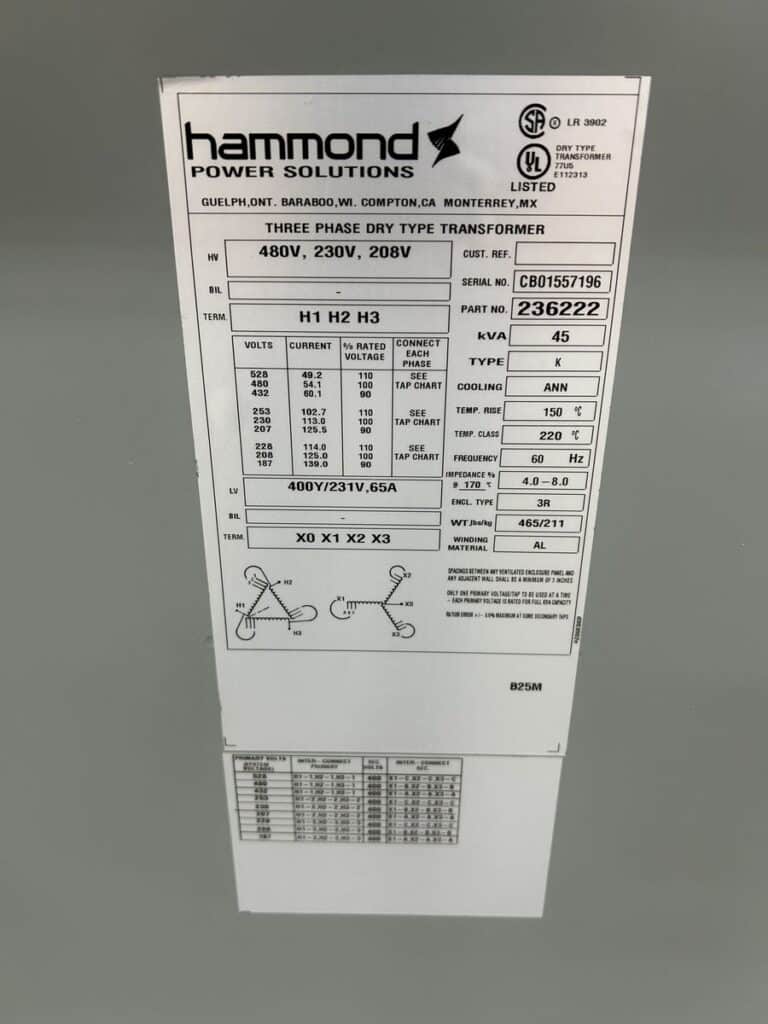

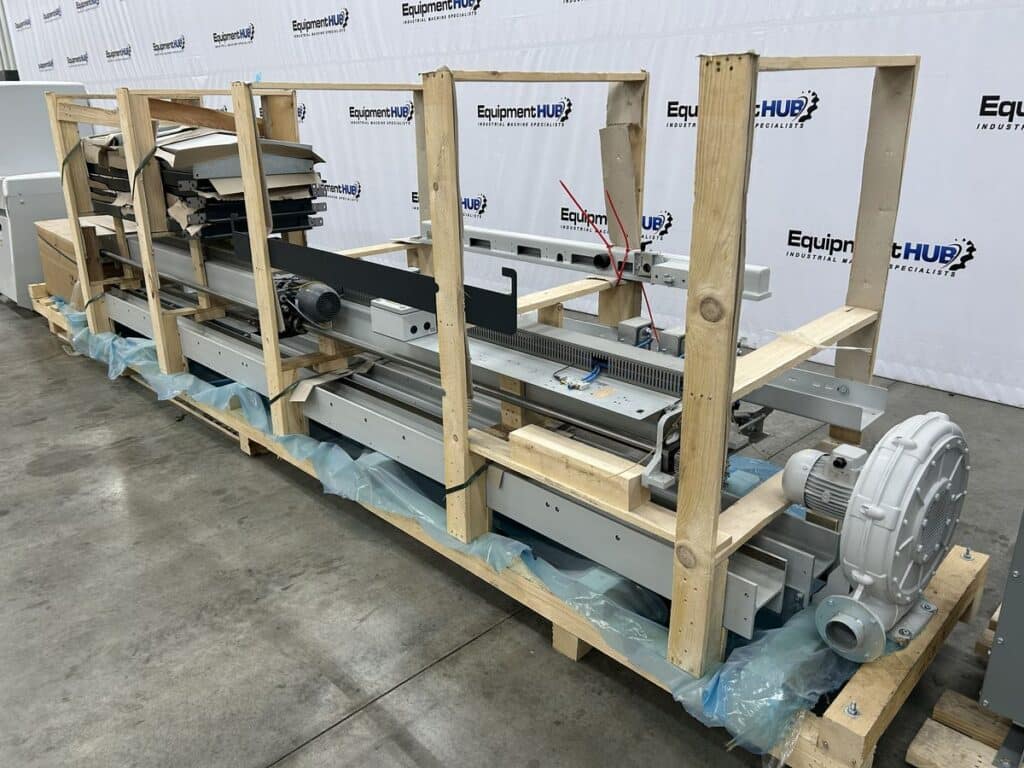

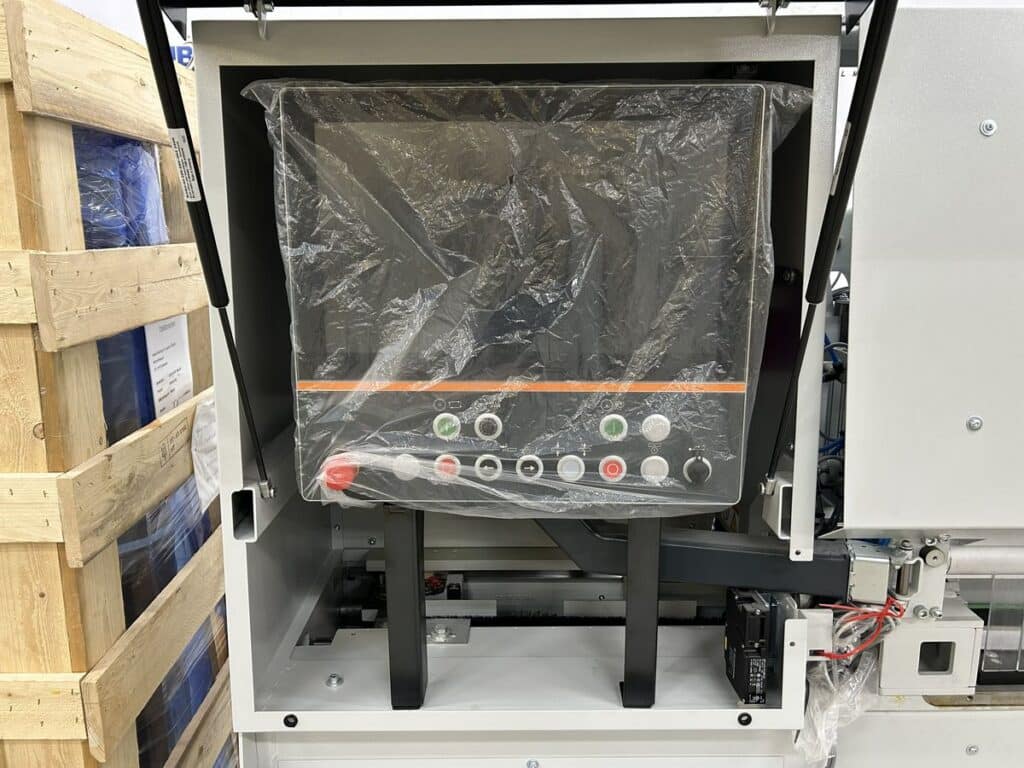

CUTControl 2 with 21.5″ TFT Display and 3D Graphics, Motor Driven Programmable Groove Depth Adjustment from 0 to 1.18″, Air Flotation Tables to Prevent Scratching, EASY-PLAN Optimization Software, New Hammond 45 kVA 400V Output Transformer, New Dust Collector

Additional Info

This is a brand new saw that was never put in production.
