400-ton Brown Boggs Straight Side Mechanical Press For Sale Model SS2-400-96-48, Year 1985

Manufacturer

BROWN & BOGGS

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

3000

Model

SS2-400-96-48

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

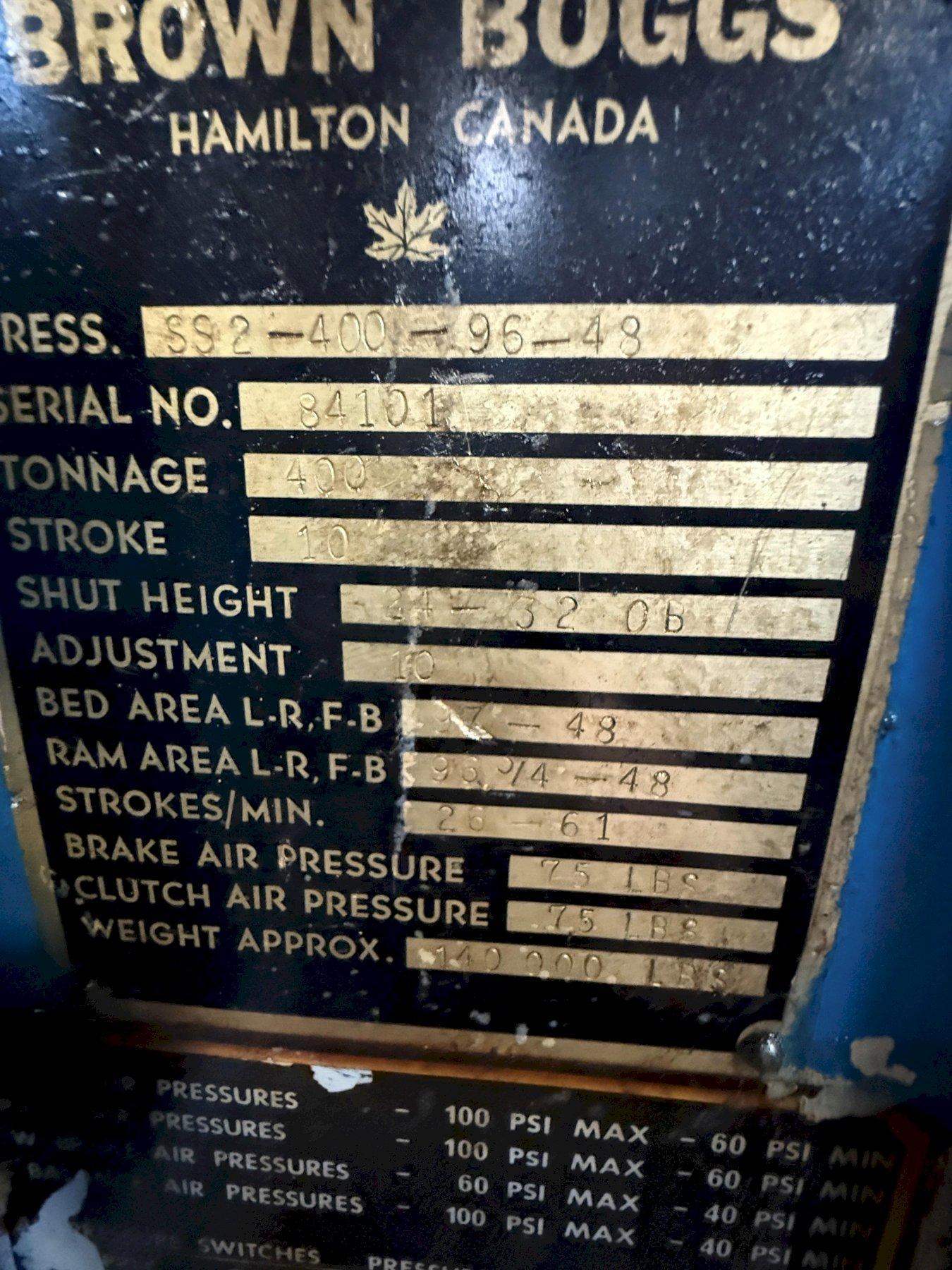

Spec Sheet

Tonnage - 400
Stroke - 10 inches
Shut Height - 32 inches
Adjustment - 10 inches
Bed Size - 96" LR x 48" FB
Ram Area - 96" LR x 48" FB
SPM - 26-61

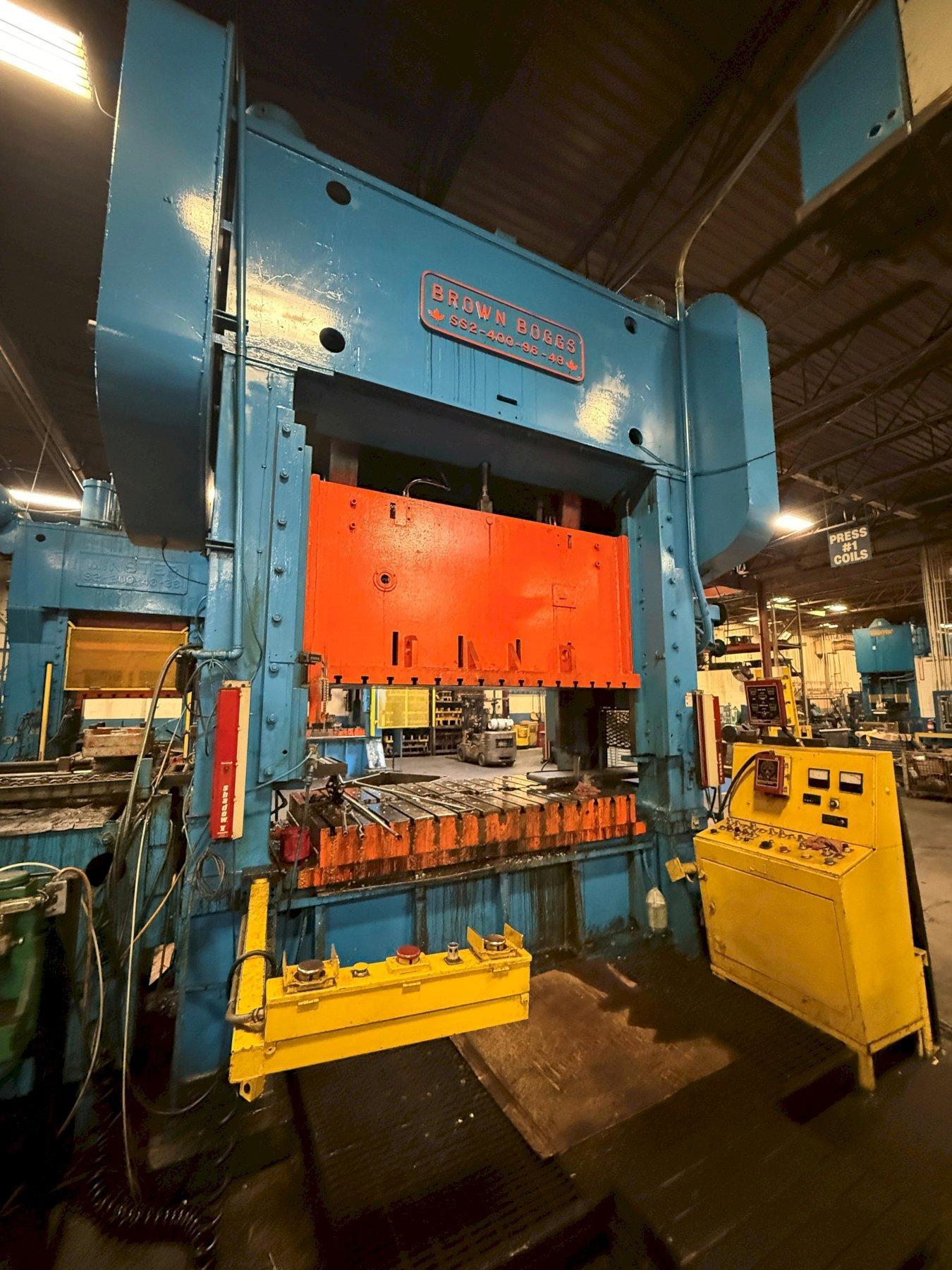

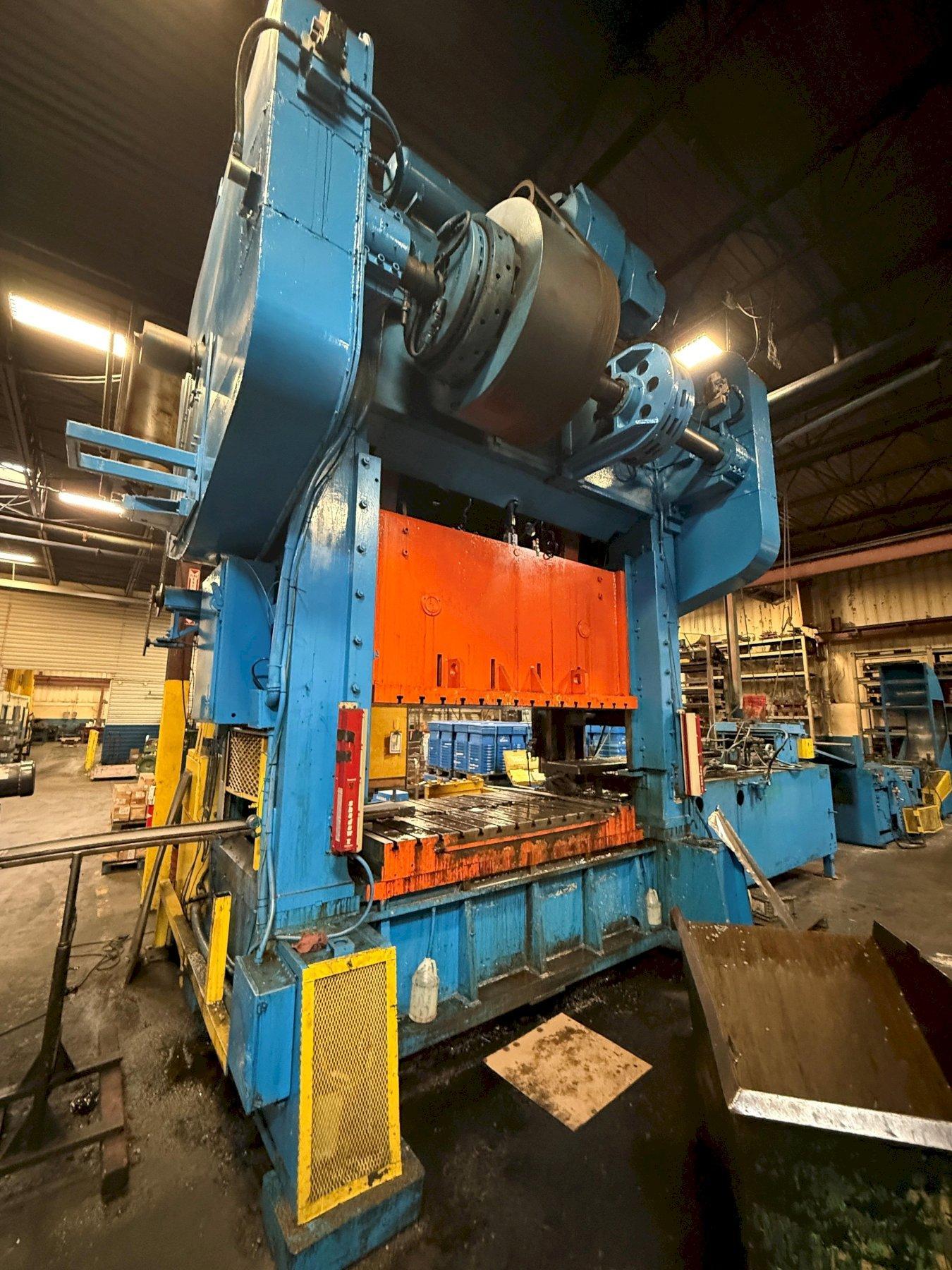

Brown Boggs Straight Side Mechanical Stamping Press

400-ton Capacity Metal Stamping / Progressive Die

Model # SS2-400-96-48

400-ton Capacity
10" Stroke
32" Shut Heigh on Bed
24" Shut Heigh on Bolster
10" Motorized Adjustment
96" LR x 48" FB Bed Area
96" LR x 48" FB Slide Area
21-61 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
8" Thick T-Slotted Ram and Bolster
Wintriss Shadow V Light Curtains
Wintriss  AutoSet 1504
Wintriss Brake Monitor

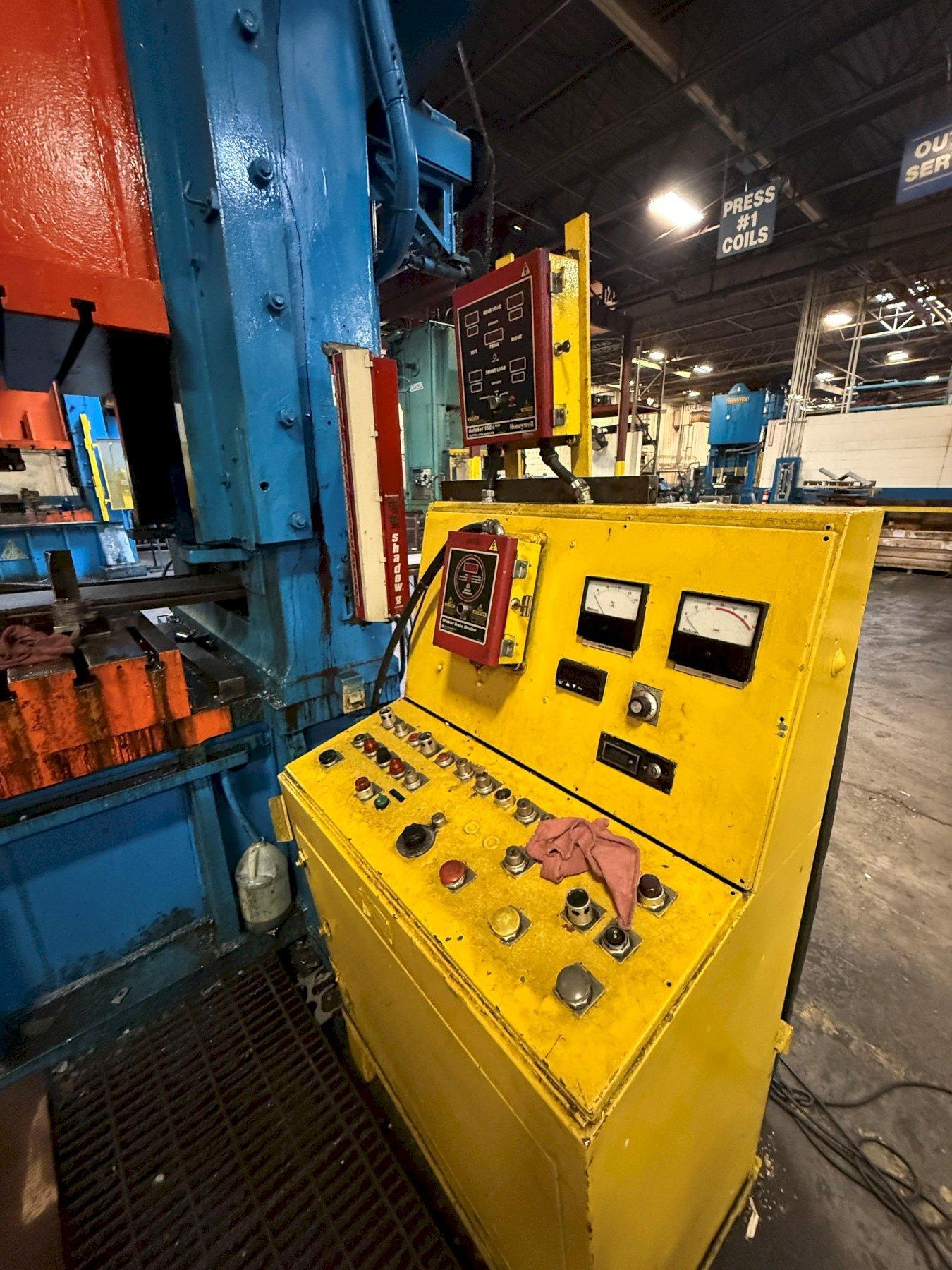

Free Standing Console Controls
Wide Windows
Vibro Dynamic Floor Pads
Floor Standing

Can be seen underpower in stamping operation.  For more details or to schedule an inspection please do not hesitate to call or email.

Optimize your metalforming production with this heavy-duty 400-ton Brown Boggs SS2-400-96-48, a high-performance straight side mechanical stamping press. Engineered for precision progressive die applications, it features a massive 96" x 48" bed, 10" stroke, and variable speeds of 21–61 VSPM. Equipped with Wintriss Shadow V light curtains and AutoSet 1504 controls, this floor-standing used mechanical press ensures maximum safety and accuracy. Available for immediate inspection under power in a professional stamping operation.
