300-ton Verson Straight Side Mechanical Stamping Press For Sale. Model S2-300-96-54t, In Operati

Manufacturer

VERSON

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

3001

Model

S2-300-96-54t

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Tonnage - 300
Stroke - 12 inches
Shut Height - 52 inches
Adjustment - 6 inches
Bed Size - 96" LR x 54" FB
Ram Area - 96" LR x 54" FB
SPM - 25 SPM


Verson Straight Side Double Crank

Mechanical Metal Stamping Press

300-ton Model S2-300-96-54T

300-ton Capacity
12" Stroke
52" Shut Height On Bed
45" Shut Height Over Bolster
6" Motorized Adjustment
96" LR x 54" FB Bed Area
96" LR x 54" FB Slide Area
25 SPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Lubrication System
7" Thick T-Slotted Bolster
Knockouts in Ram
T-Slotted Ram Plate
50 H.P. Main Motor
Single / Inch Operations
38" Wide Windows
Floor Standing

Total Weight:  101,000 lbs.

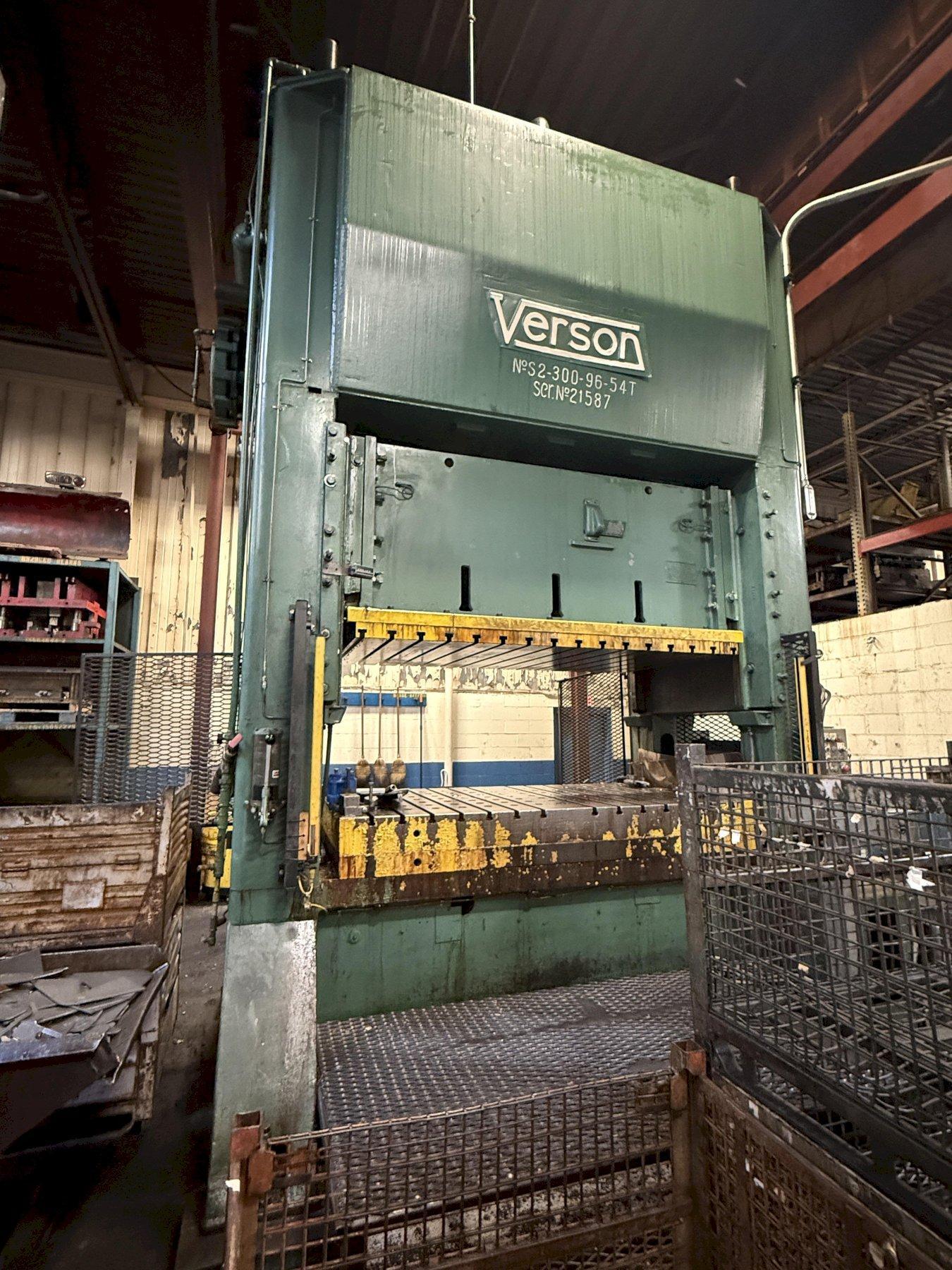

This 300-ton Verson Straight Side Press can be seen underpower in operation!

Maximize your stamping capabilities with this heavy-duty 300-ton Verson S2-300-96-54T, a robust straight side double crank mechanical press. Engineered for high-precision metal stamping, this 101,000 lbs. workhorse features a massive 96" x 54" bed area, 12" stroke, and a 50 H.P. main motor. Equipped with 38" wide windows, air counterbalances, and a 7" thick T-slotted bolster, this floor-standing used Verson press is ideal for demanding industrial applications. Experience unmatched rigidity and reliability—available for immediate inspection under power in a professional production environment
