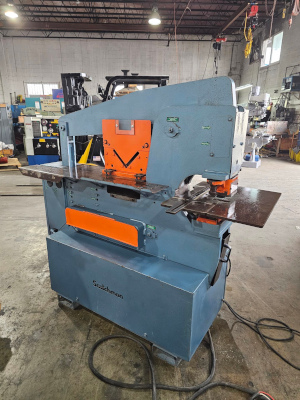

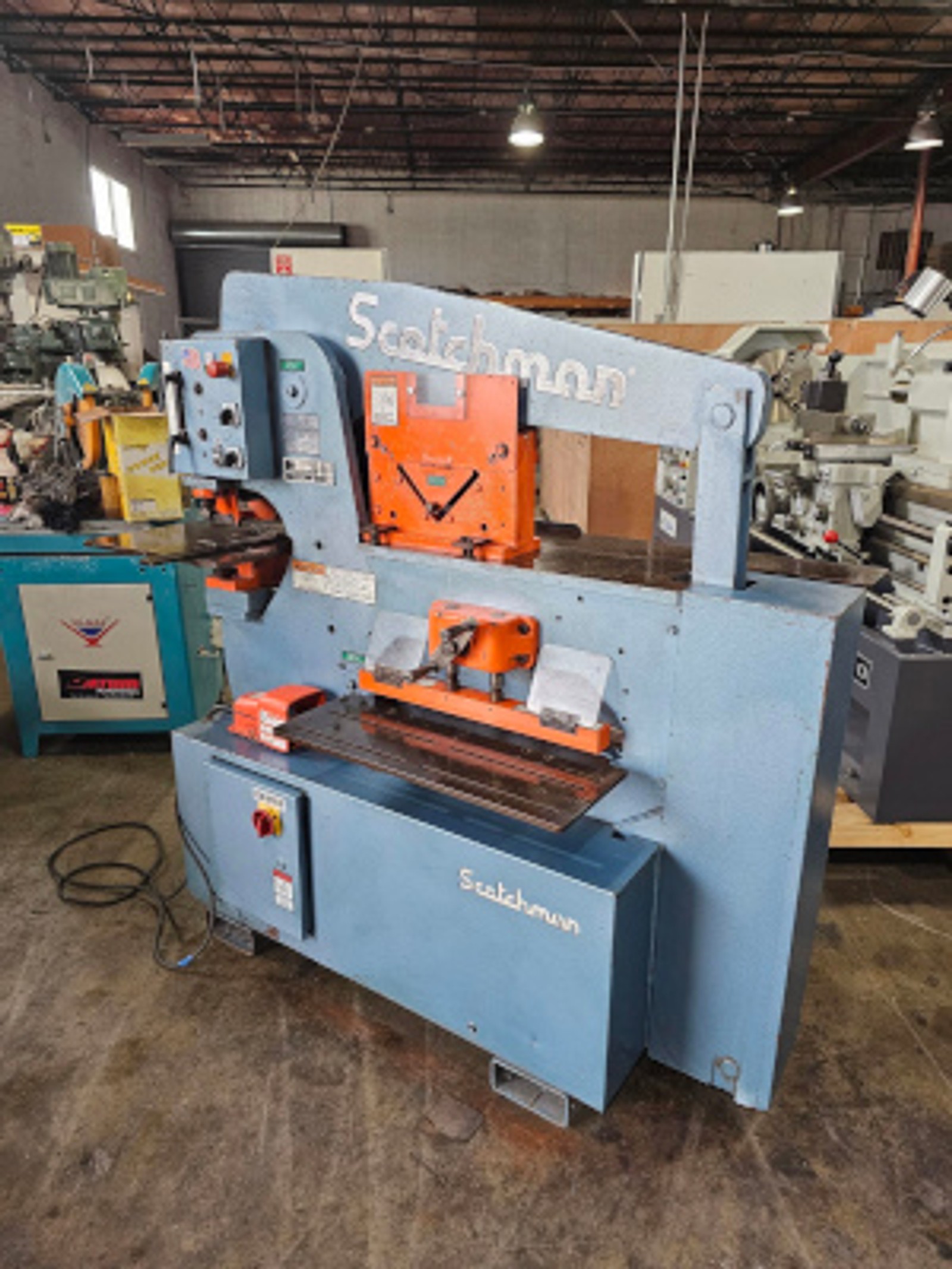

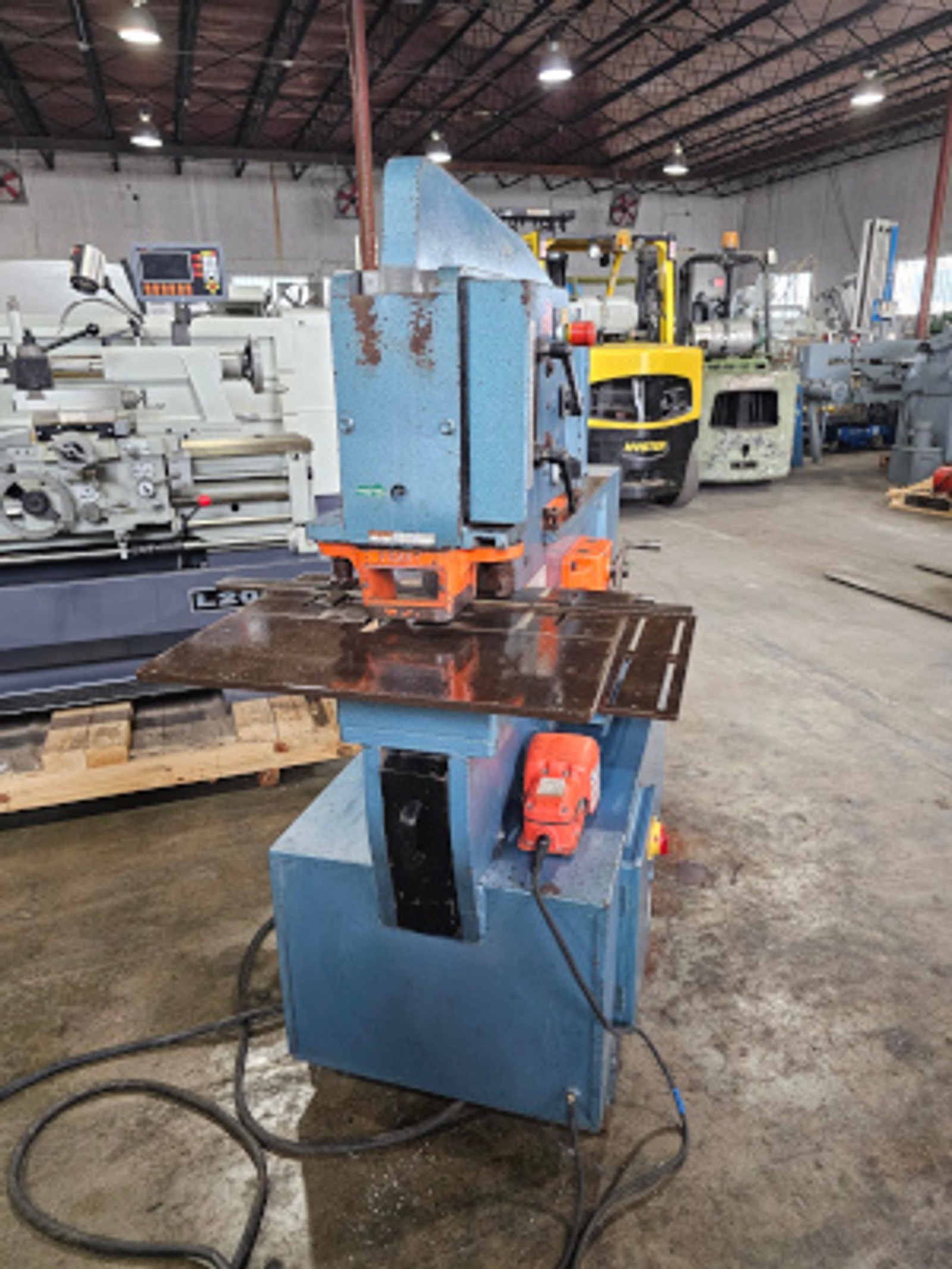

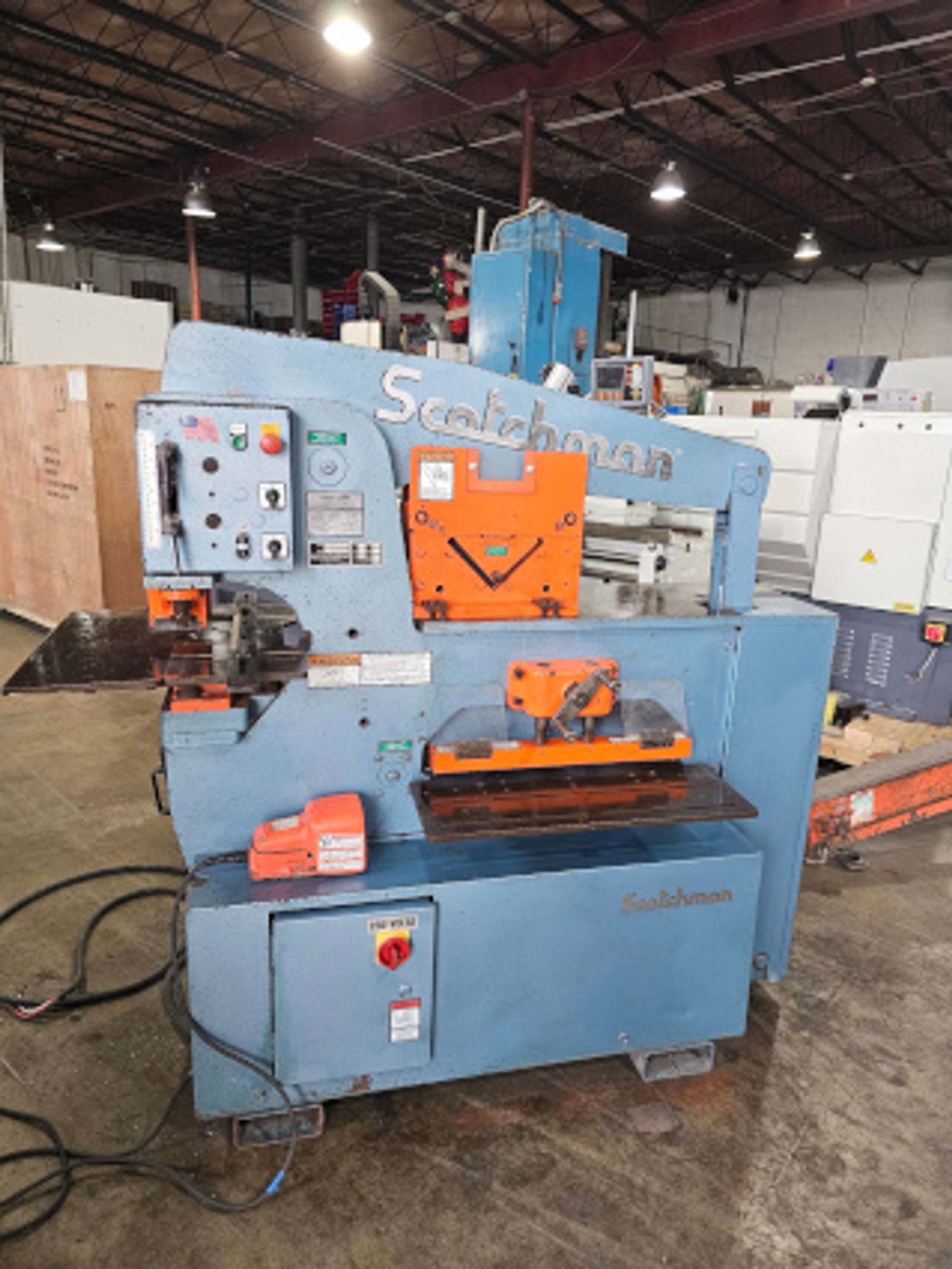

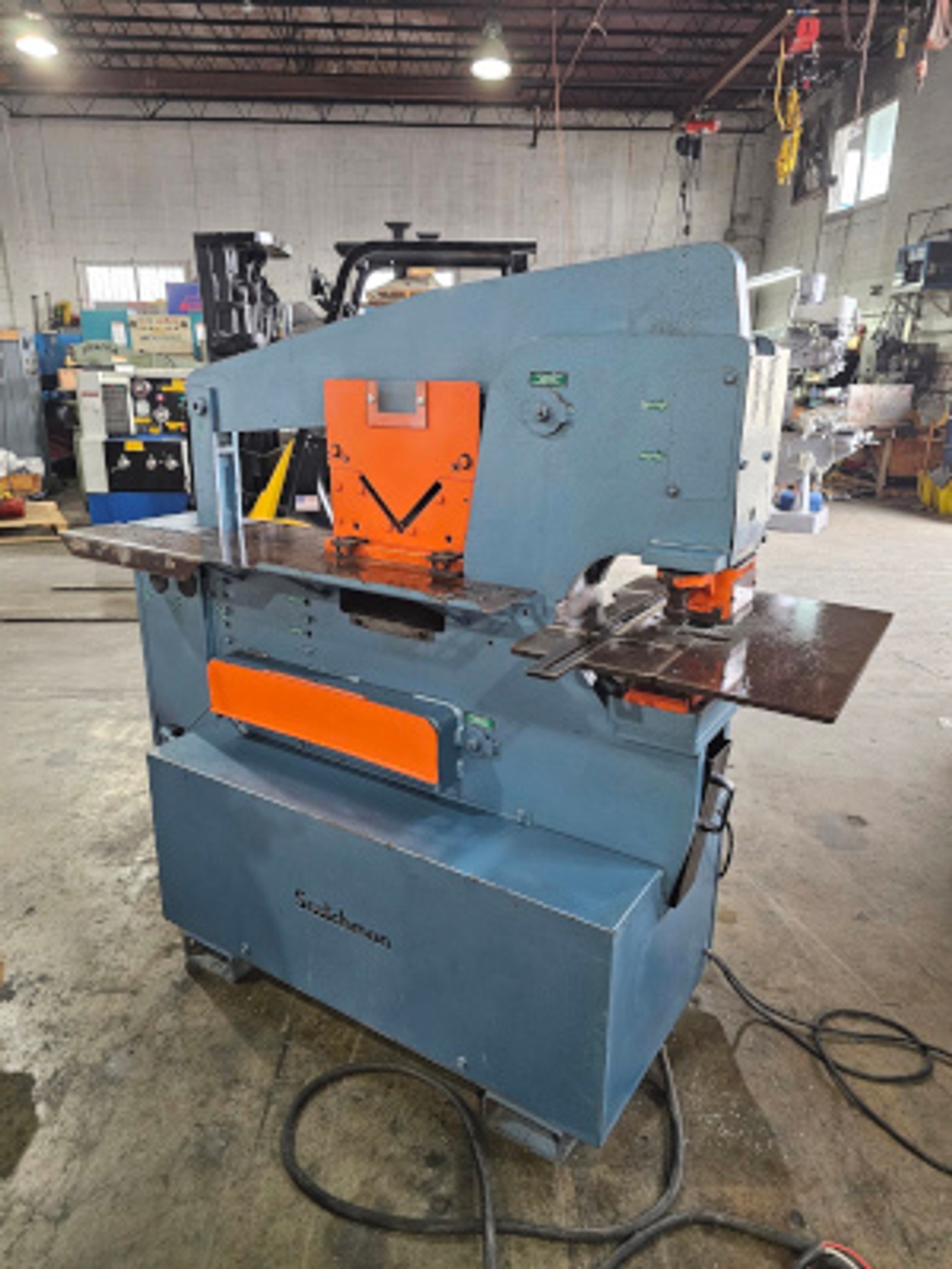

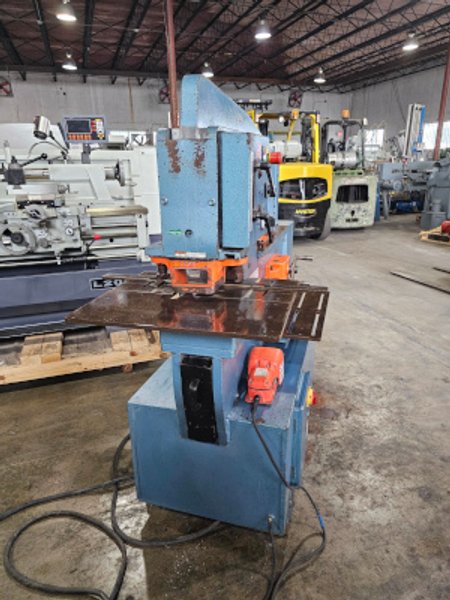

6" x 6" x 3/8", SCOTCHMAN, #6509, 65 tons, 24" shear, stroke control, 2016

Manufacturer

Scotchman

Category

Punches

Type

IRONWORKERS

Stock

7212

Model

# 6509

Dealer Location

Florida

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

6 x 6 x 3/8 , SCOTCHMAN, #6509, 65 tons, 24 shear, stroke control, 2016

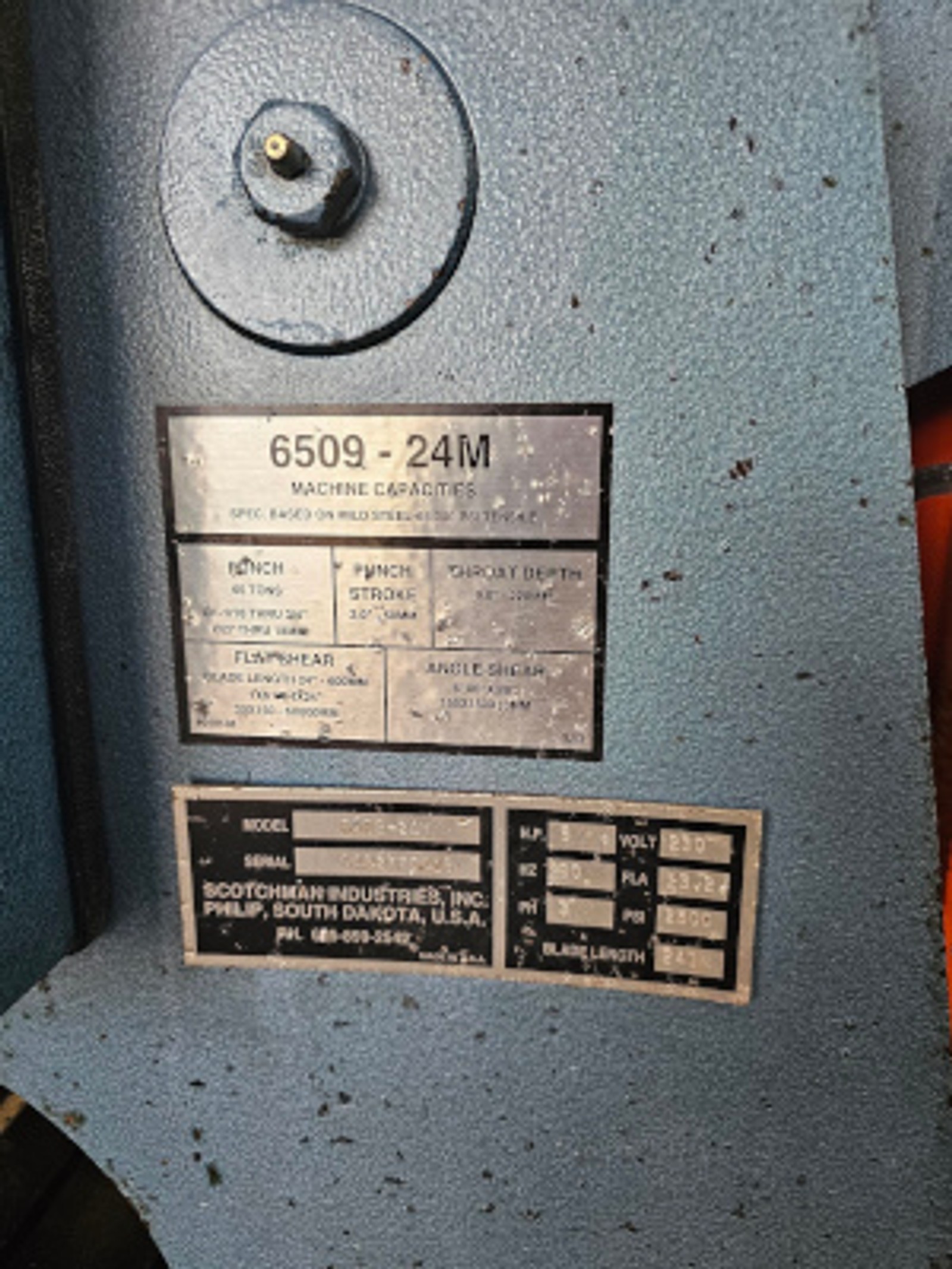

Model number 6509-24M
Year of manuanufacture 2016 (installed 2020)

SPECIIFICATIONS:
Tonnage 65
Throat 9"
Capacity 1-1/16" thru 3/4"
Maximum cutting length 24"
Cutting capacity--maximum width 3/16" x 24"
--max. thickness 1" x 6"
Maximum angle @ 90 degree 5" x 5" x 1/2"
6" x 6" x 3/8"
Motor power 5 HP
Electrics--standard 208-230/460/3/60
Base dimensions 22-1/2" x 60"
Overall height 66"
Net weight 2,500 lbs.

EQUIPPEDW WITH:
Electric remote foot pedal, 24" bar shear, Assorted punch and die sets

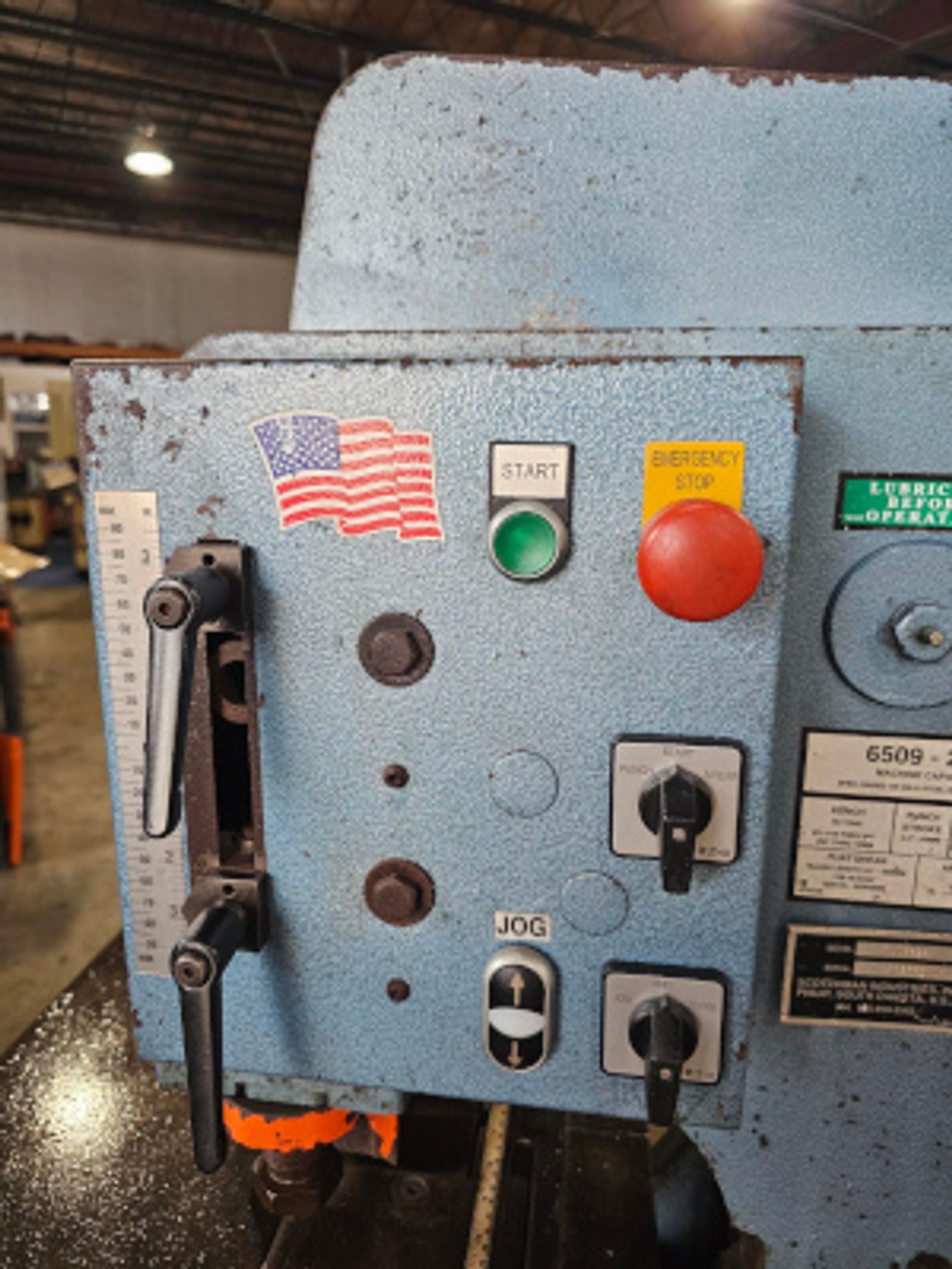

Adjustable electric stroke control with scale
Punch gauging table with fence and scale

This machine was purchased new and put in service in 2020.
