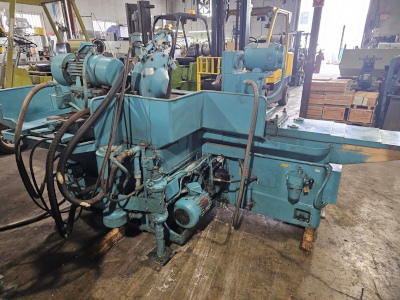

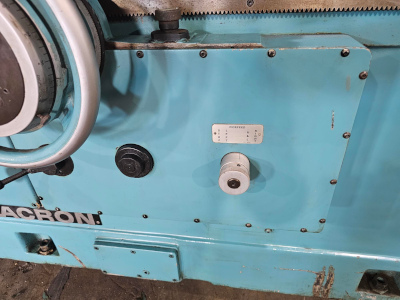

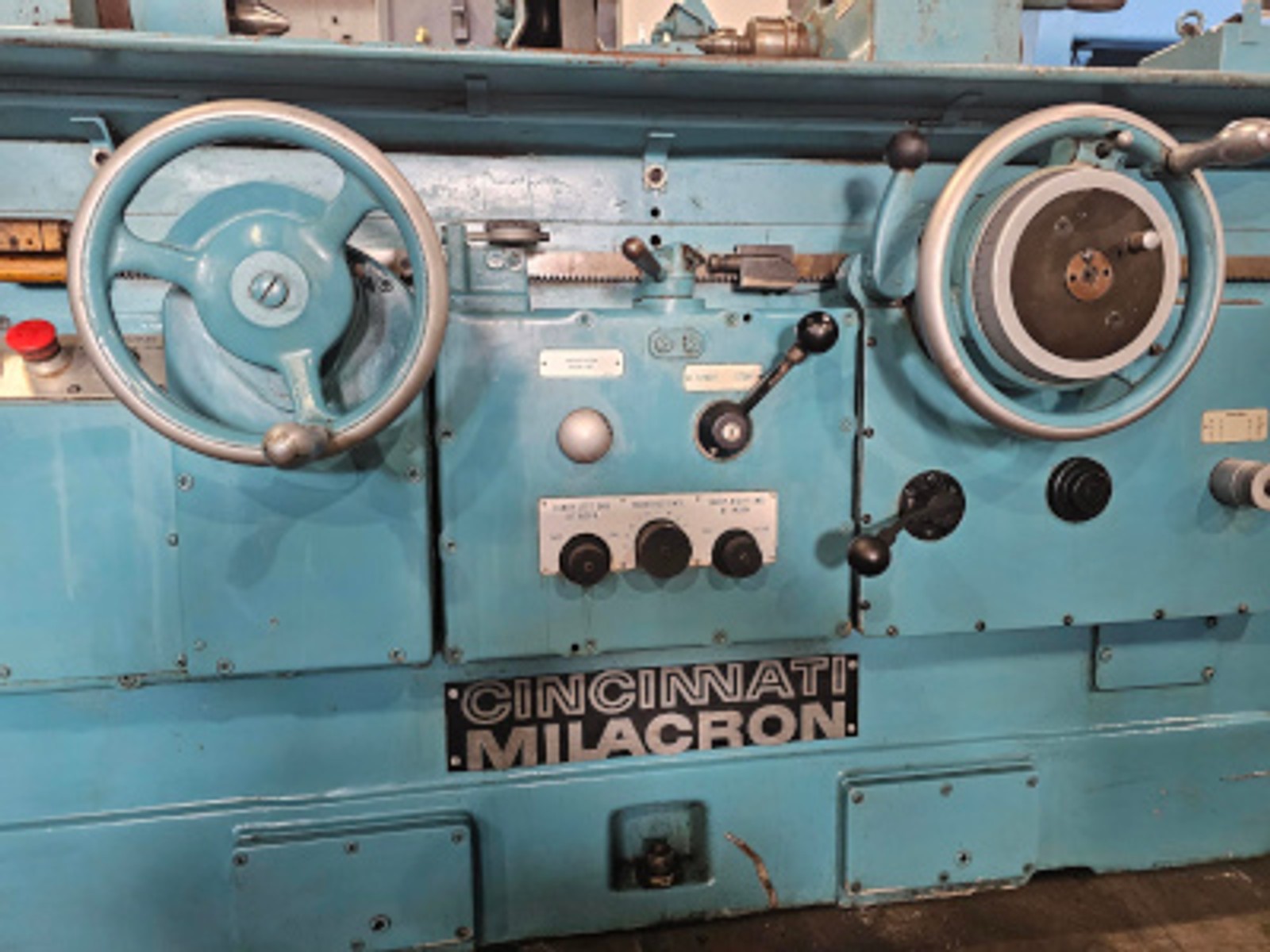

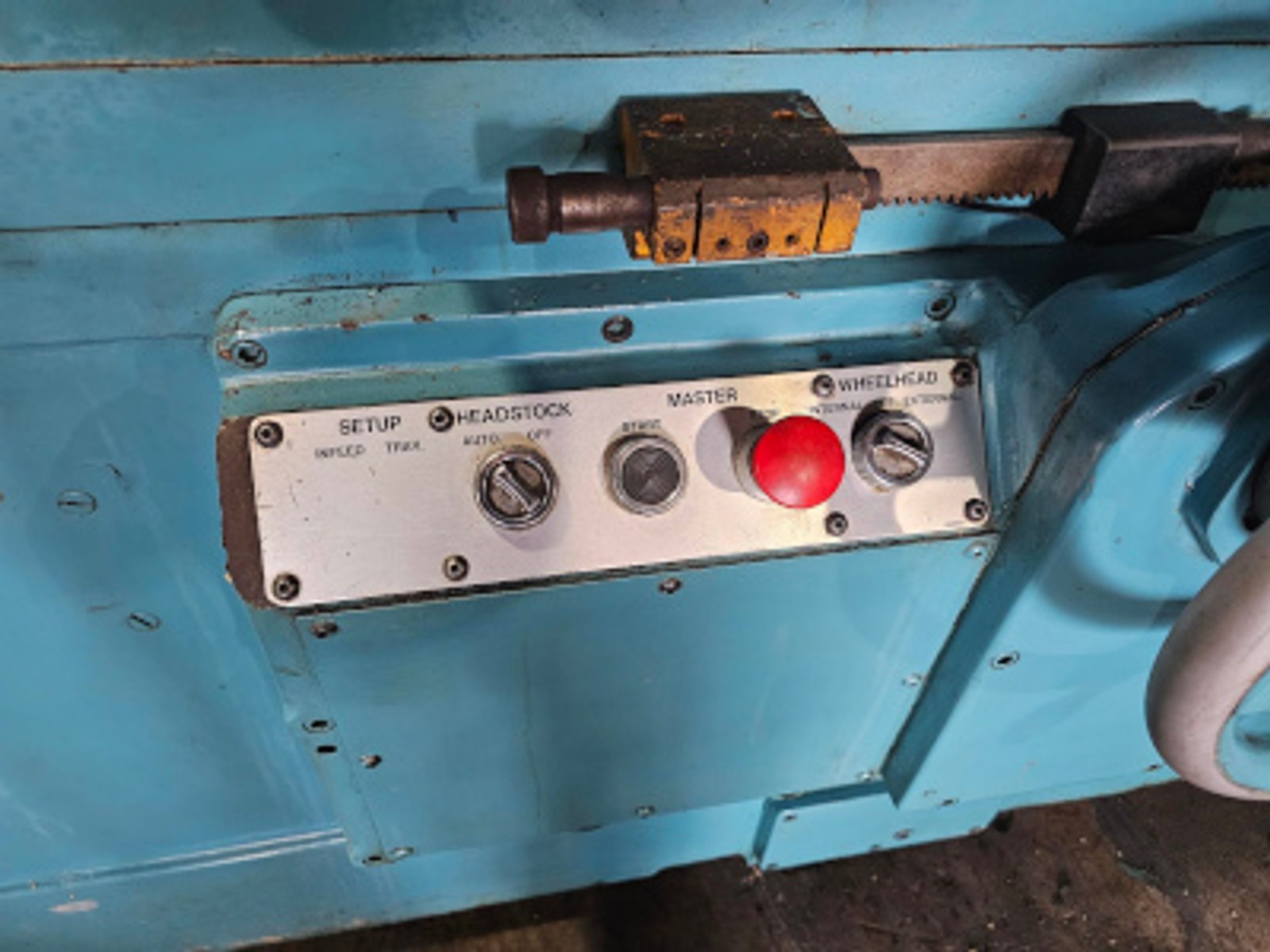

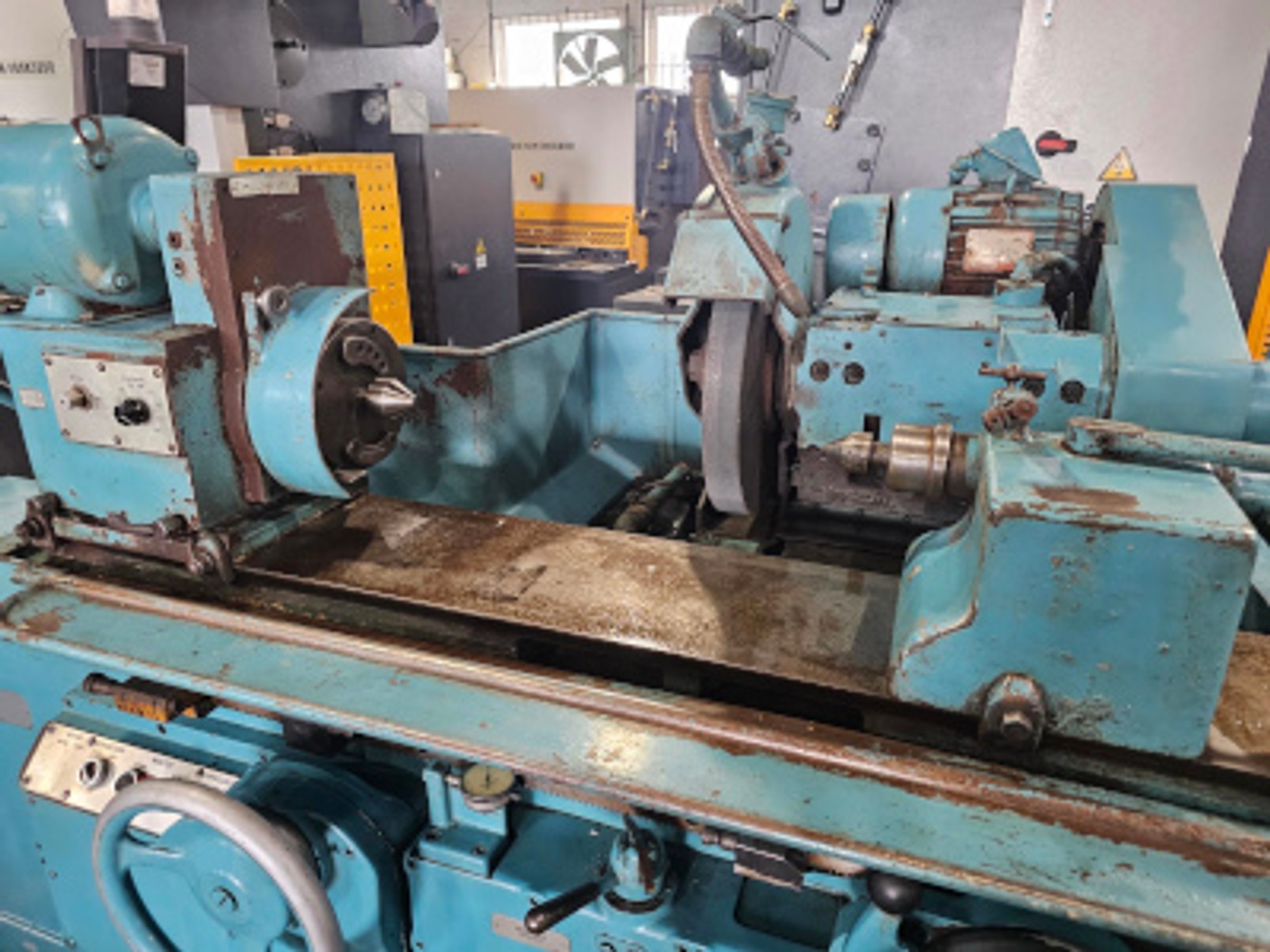

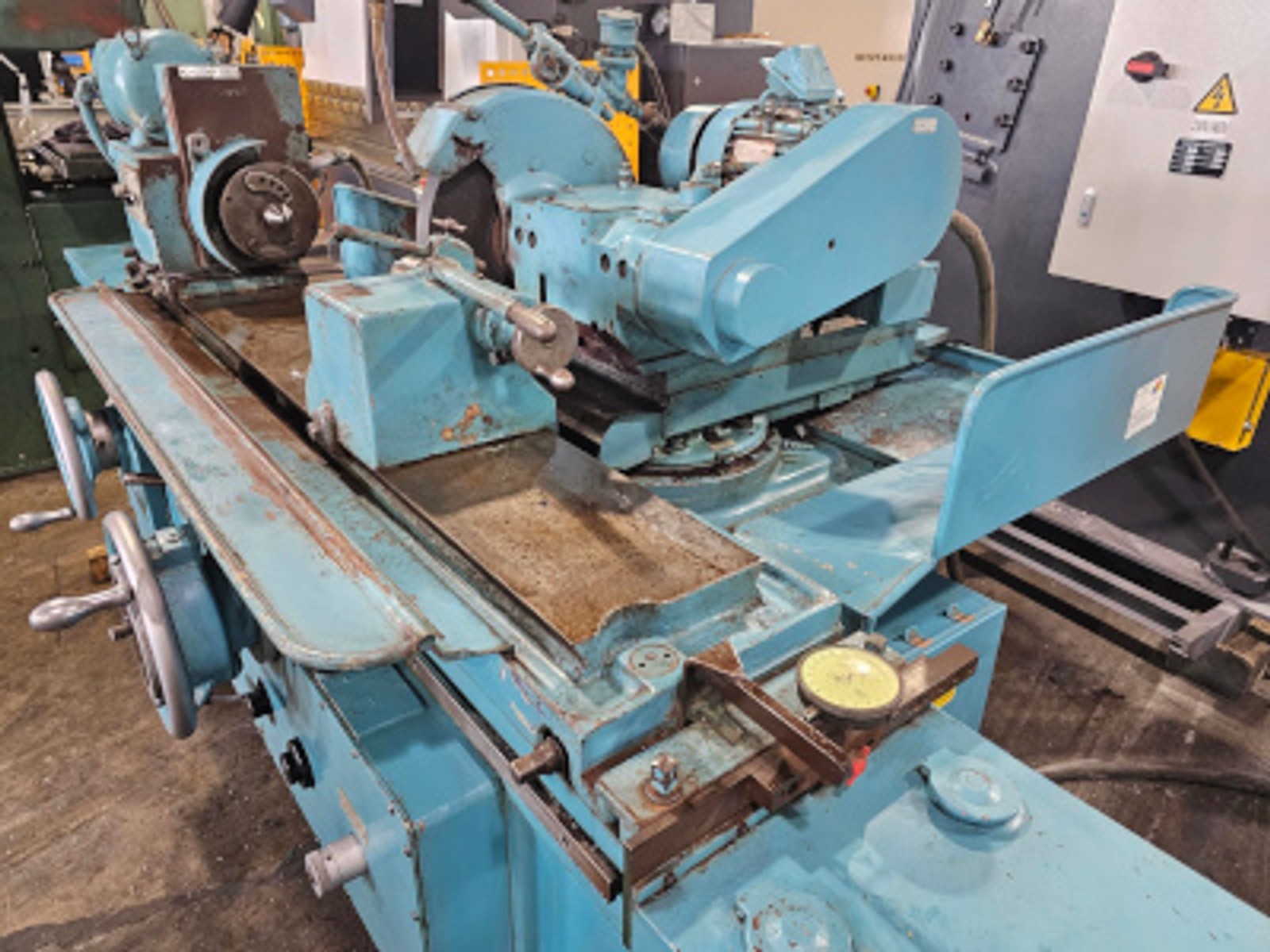

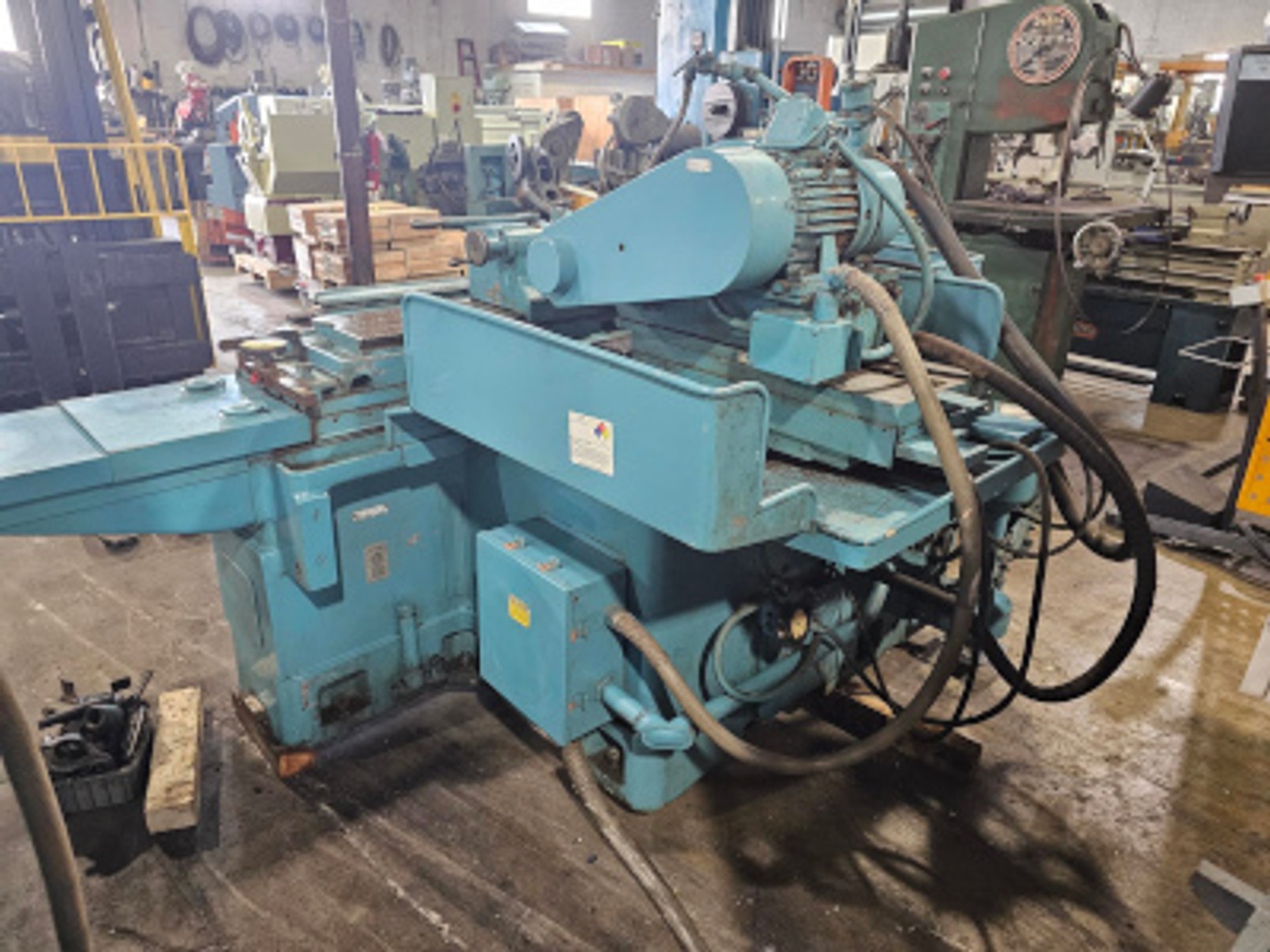

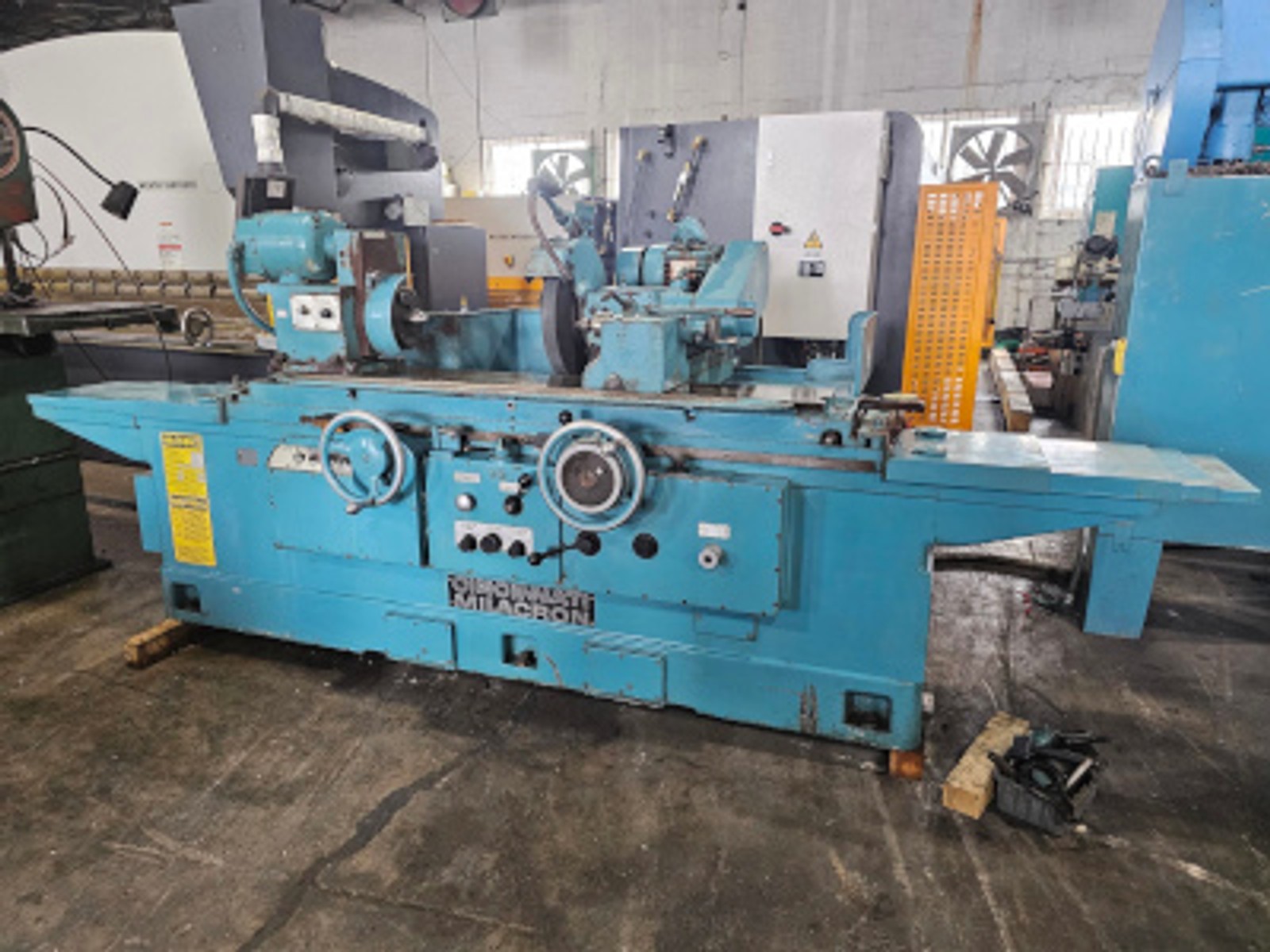

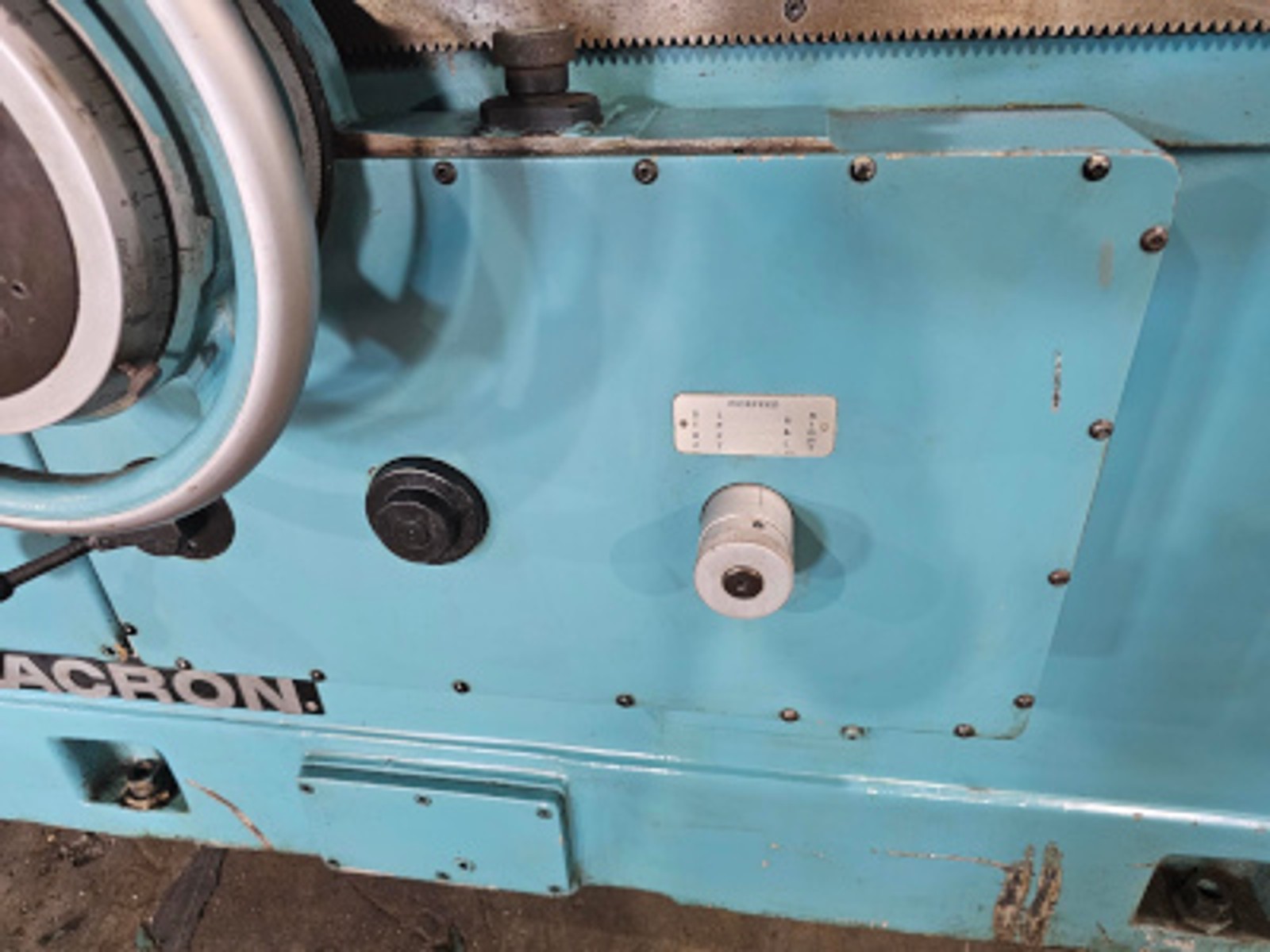

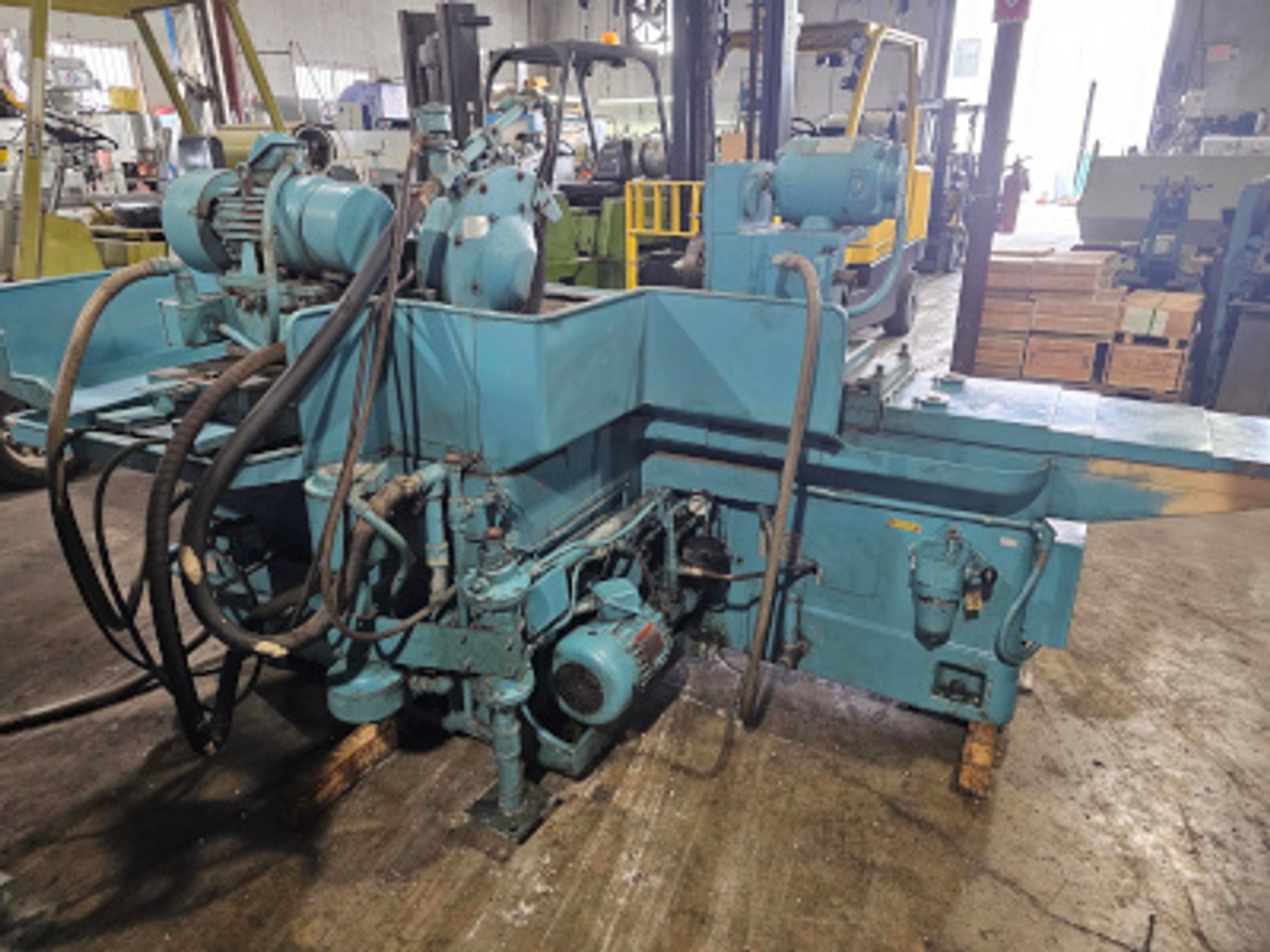

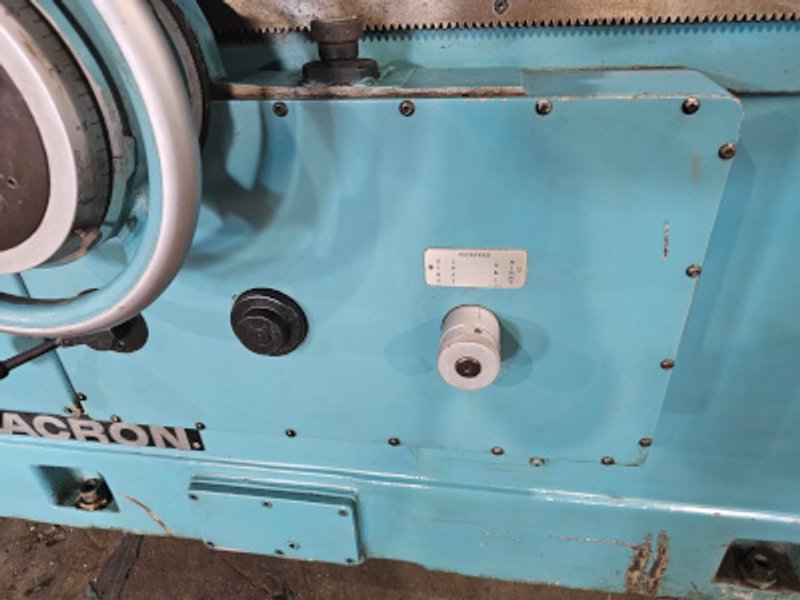

12" x 36", CINCINATTI-MILACRON, #12X36, motorized workhead, pick feed, 1979

Manufacturer

Cincinnati

Category

Grinding Machines

Type

GRINDERS, CYLINDRICAL, UNIVERSAL

Stock

7214

Model

12x36

Dealer Location

Florida

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Maximum diameter turned 12"
Distance between centers 36"
Swivel table graduated--forward 3.5 degrees
--back 11 degrees
Traverse speed 2 to 240 ipm
Grinding wheel dimensions 16" x 2" x 5" bore
Grinding head swivel--left & right 90 degrees
Workhead speeds--number variable speed
--range 50 to 500 rpm
Headstock swivel--towards wheelhead 90 degrees
--away from wheel head 30 degrees
Range of table traverse speeds-- 3 to 220 i/m (infinitely variable)
Independent right-hand and
left-hand tarry adjustments 0 to 5 seconds
Wheel drive motor 5 HP
Headstock motor 5 HP
Hydraulic motor 1.5 HP
Coolant motor 1/4 HP
Electrics 230/460/3/60
Machine weight, approx. 6,000 lbs.
Dimensions (L x W x H) 146" x 84" x 60"

MACHINE EQUIPPED WITH:
Pick feed off/right only/left only both left and right, Coolant system
Tarry--left and/or tarry--right, Dial indicator on table swivel
Micrometer stop with dial indicator, Assorted centers and tools
Diamond wheel dresser for front or sides of wheel
