3690011
TTL-66-66-T1Y-TY2
Kentucky

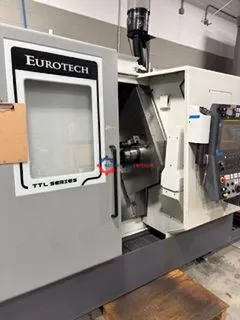

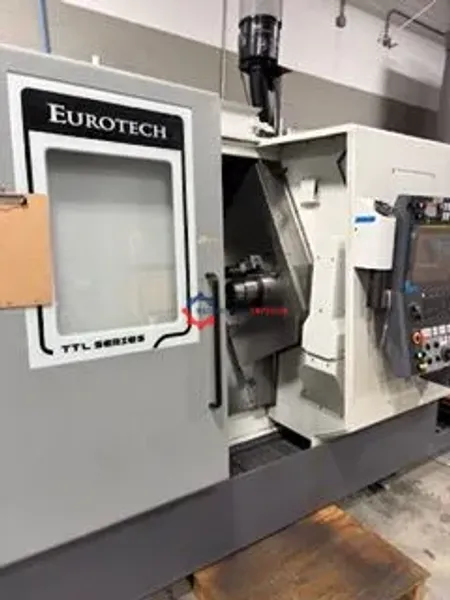

The Eurotech TTL-66-66-T1Y-T2Y is a 2023 twin-spindle CNC turning center from the CMZ TTL series, optimized for high-volume production of precision shafts and complex parts up to 66 mm bar capacity.

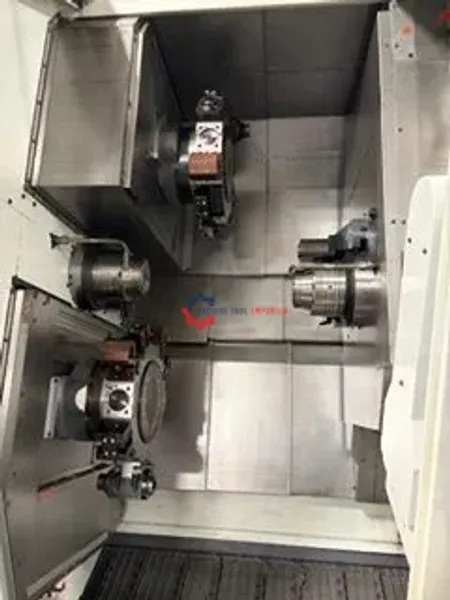

It features dual Y-axis turrets with 12 live tools each (up to 12,000 rpm), enabling simultaneous machining, overlap, and off-center operations for superior throughput.
Spindles deliver 35.5 kW/205 Nm torque at 4,000 rpm, paired with gantry automation compatibility for lights-out efficiency in job shops.
| Swing | 9.45" | 240.03 mm |
| Machining Length | 20.28" | 515.11 mm |
| # Axis | 4 | 4 |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 2.6" | 66.04 mm |
| Power | 47.6 hp | 35.5 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 8.66" | 219.96 mm |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| Control | CNC (Fanuc 31i) | CNC (Fanuc 31i) |
| Dimensions | 112.6x93.6x90.1 | 112.6x93.6x90.1 |
| Weight | 24250 | 24250 |
1000 PSI High Pressure Coolant Through 2 turrets
Royal Mist Collector
