Haas TR-310 4th/5th Axis Trunnion Rotary Table, Sigma 5 with Connectors

Manufacturer

Haas

Category

Tooling & Accessories

Type

ROTARY TABLES

Stock

7223

Model

TR-310

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Platter Diameter: 310mm (12.2")

A Axis (Tilt) Max Speed: 50 °/sec

Max Weight on Platter: 275 Lbs.

A Axis (Tilt) Max Torque: 300 ft-lbf

A Axis (Tilt) Gear Ratio: 1000 ft-lbf

A Axis (Tilt) Center Height: 72:1

B Axis (Rotary) # of Heads / Platens: 1

B Axis (Rotary) Max Speed: 50 °/sec

B Axis (Rotary) Max Torque: 300 ft-lbf

B Axis (Rotary) Nose or Platen: Platen

B Axis (Rotary) Gear Ratio: 72:1

Max Part Swing: 24" Diameter

Center Height w Tilt at 90 Degrees: 12.5"

Description:

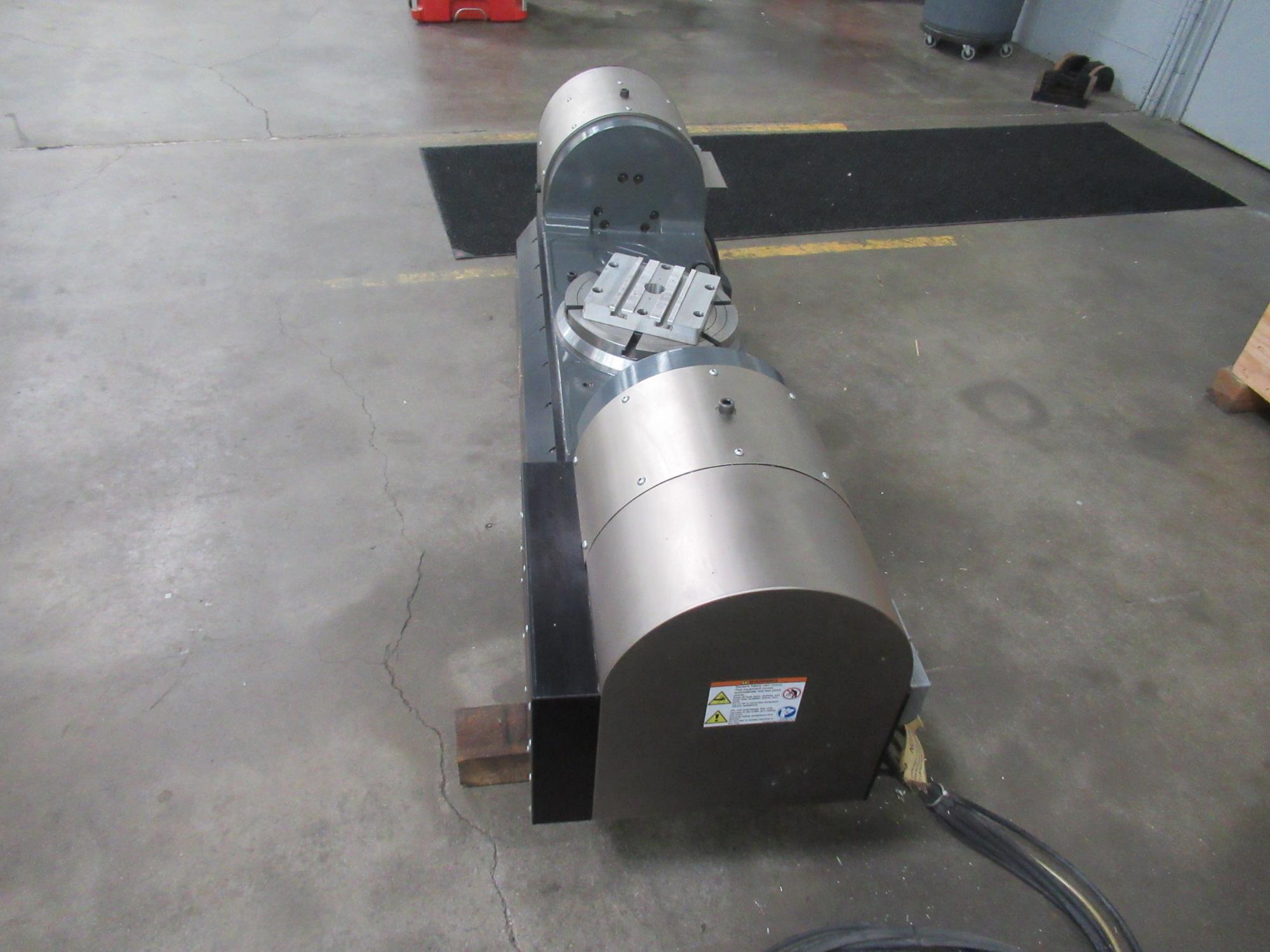

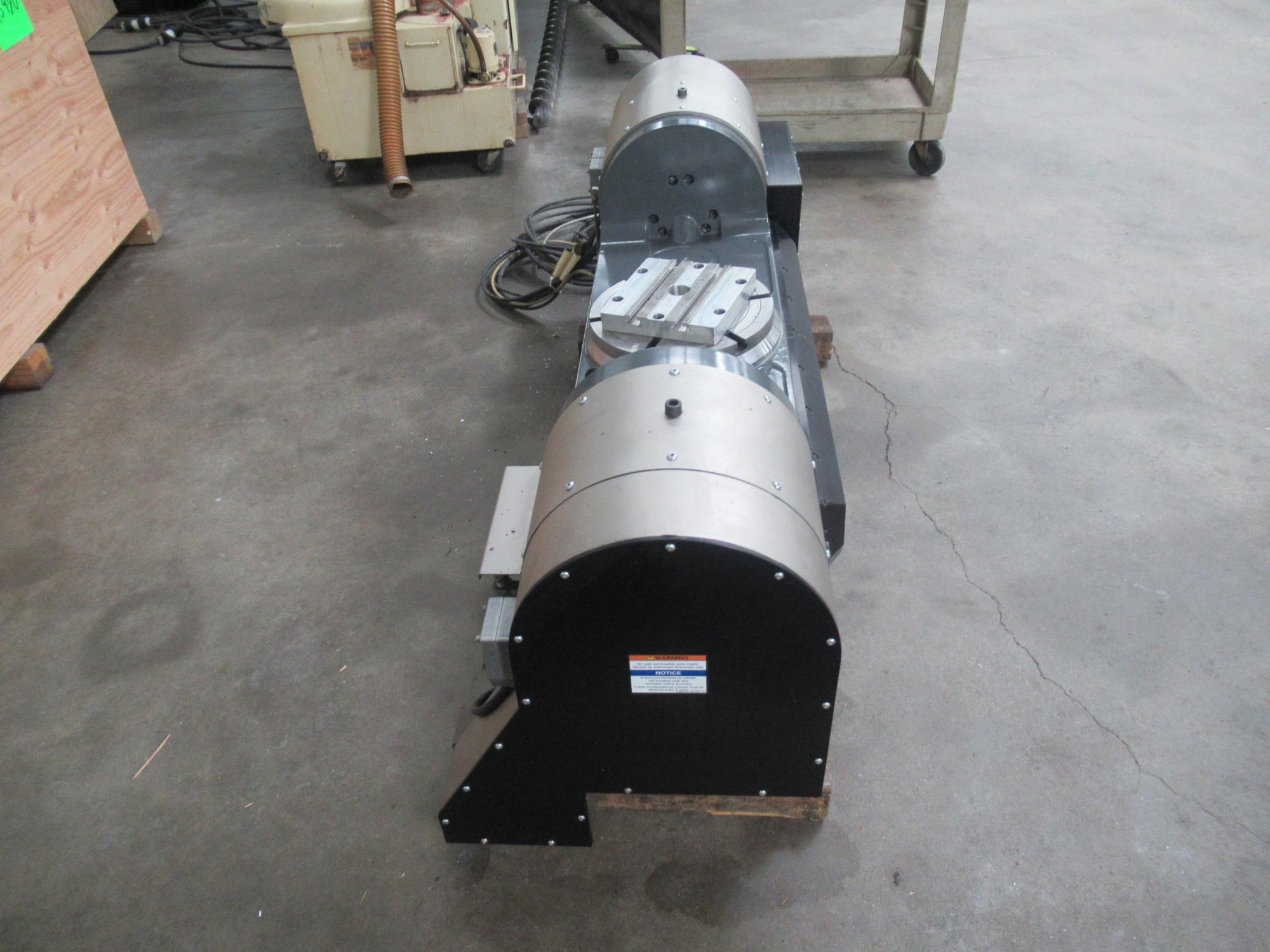

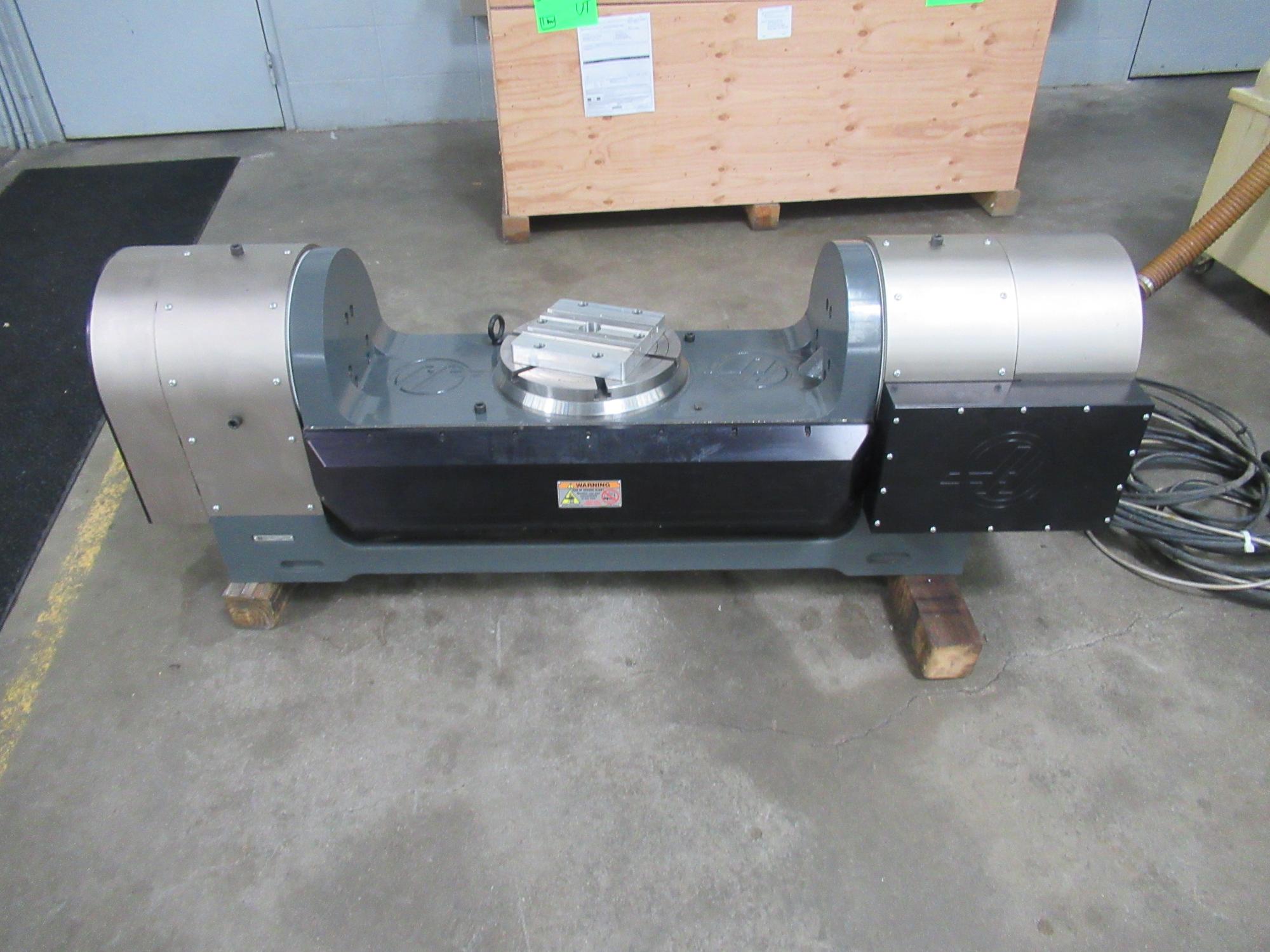

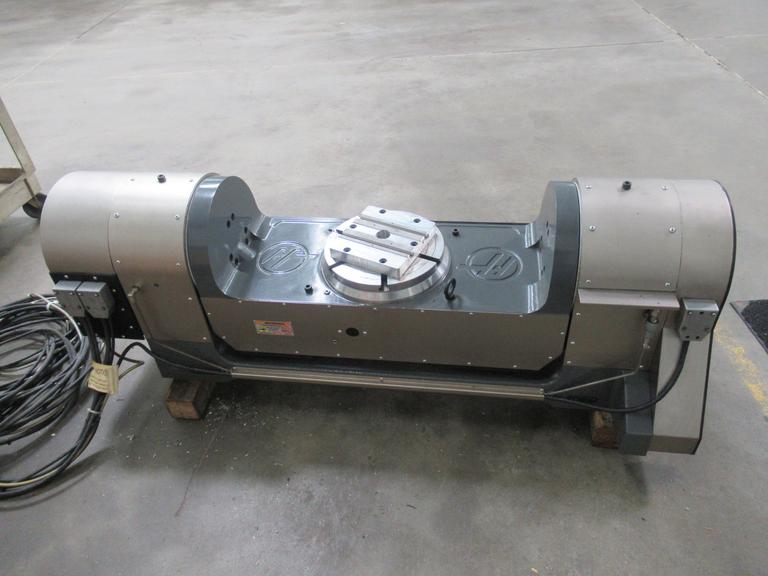

The Haas TR‑310 Trunnion Rotary Table is a robust dual‑axis CNC trunnion designed to expand vertical machining centers into full 5‑axis machining platforms. With a large 310 mm platter and heavy‑duty construction, the TR‑310 allows shops to accurately machine complex, multi‑sided parts in a single setup. Designed for seamless integration with Haas vertical machining centers, the TR‑310 delivers high positioning accuracy, repeatability, and rigidity for demanding applications. It is an excellent solution for manufacturers requiring efficient indexing, contouring, and simultaneous 5‑axis motion without sacrificing floor space or spindle access.

Equipped With:

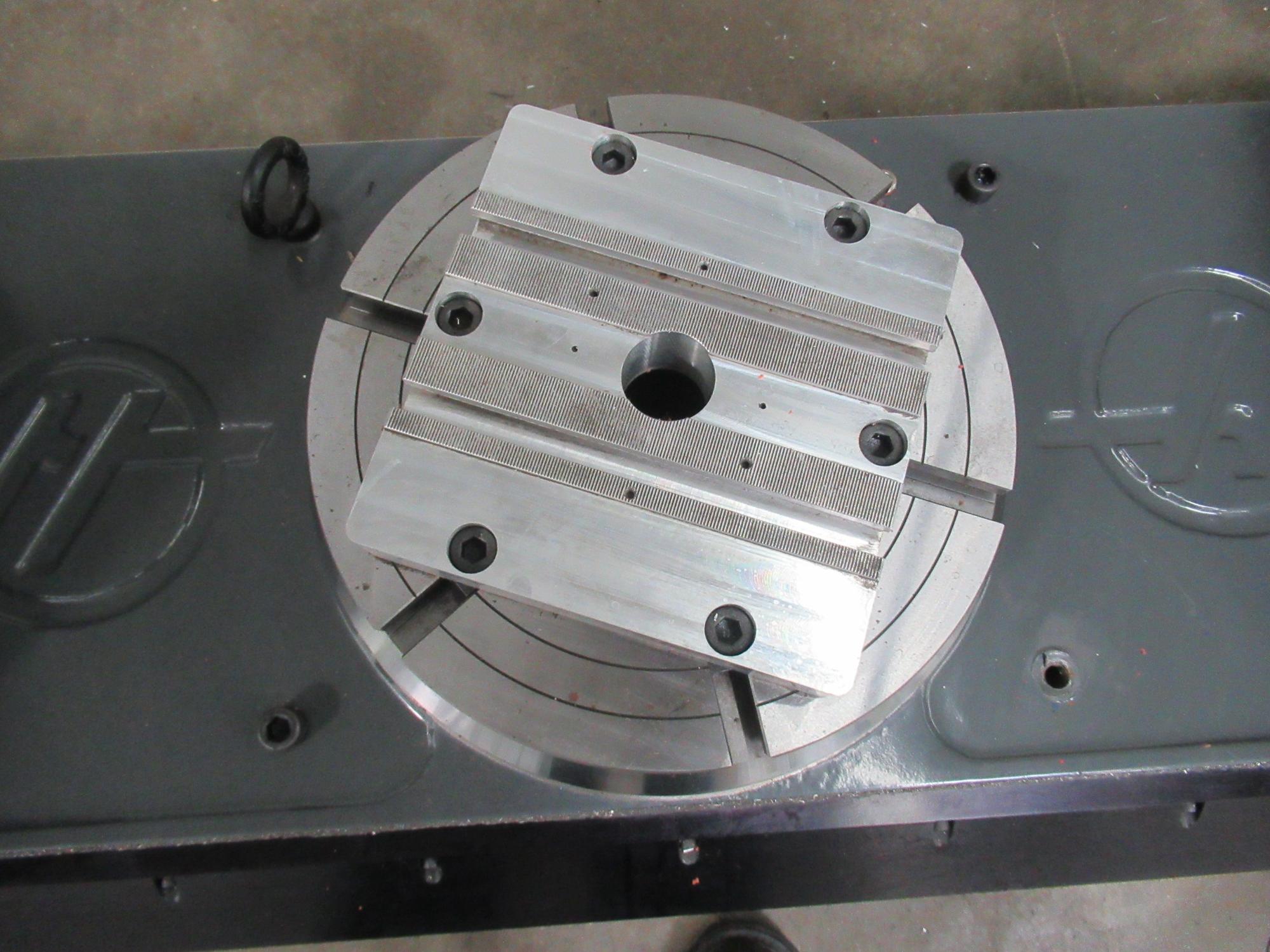

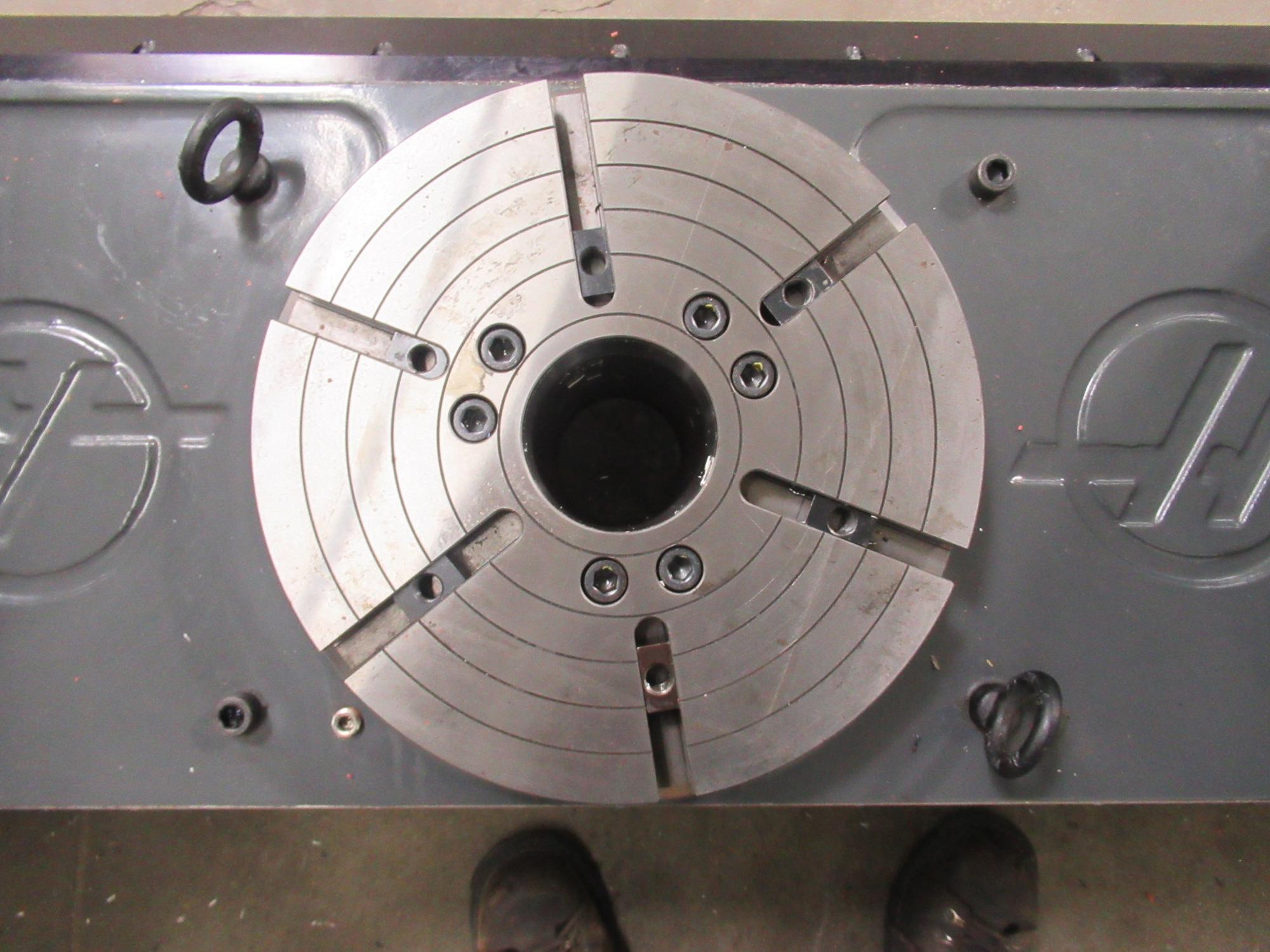

Sigma 5 Brushless Drive Motors, 310mm (12.2") Diameter Platten, Connectors and Cables

Electrics:

115 Volt, Single Phase

No Video Available

Want to request a quote from the owner of this listing?

Request a Quote
