40" x 0.019" x 30,000# Littell Cut To Length Line

Manufacturer

LITTELL

Category

Fabricating Machines

Type

CUT-TO-LENGTH LINES

Stock

12039

Model

None listed

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet


40" x 0.019" x 30,000# Littell "Scroll" Cut-To-Length Line

Model: LM2E

-Sheet Thickness Range: 0.13mm - 0.50mm (0.005" - 0.019")
-Max. Coil Weight: 13.5 Tons (30,000 lbs.)
-Maximum Sheet Length: 1200mm (47.24")
-Maximum Sheet Width: 1020mm (40")
-Minimum Sheet Width: 610mm (24")
-Maximum Pallet Stack Weight: 2.5 Tons
-Line Speed: up to 100 - 120 MPM (328 - 390 Ft/Min)

Consisting of the following:

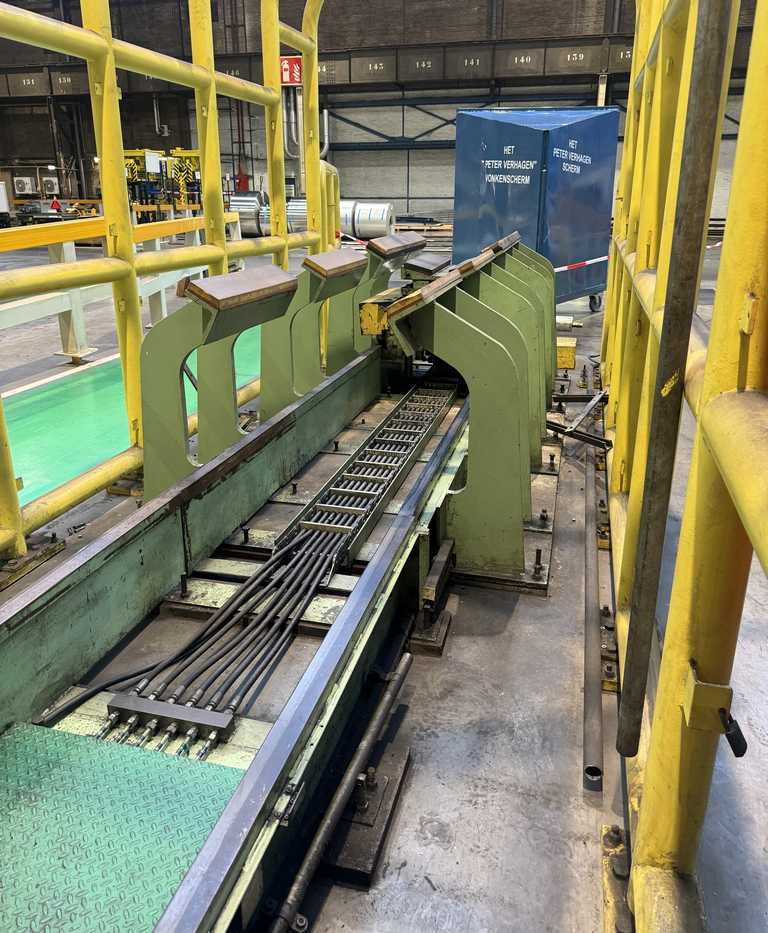

-Entry Coil Car:

-Uncoiler:
Hydraulic Expansion
Threading Drive

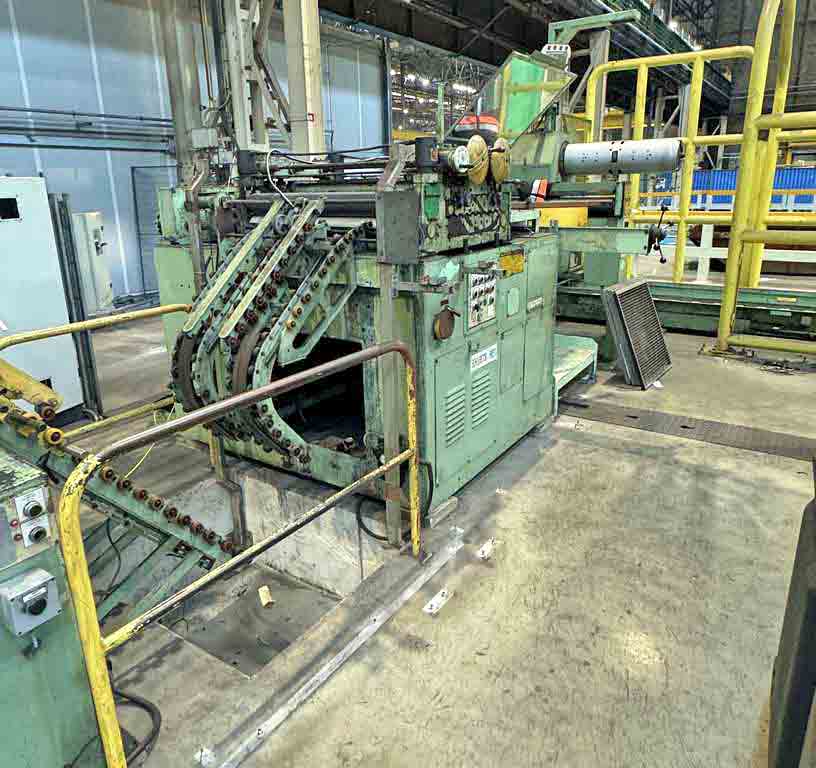

-Straightener:

-Feeder:
Servo Driven

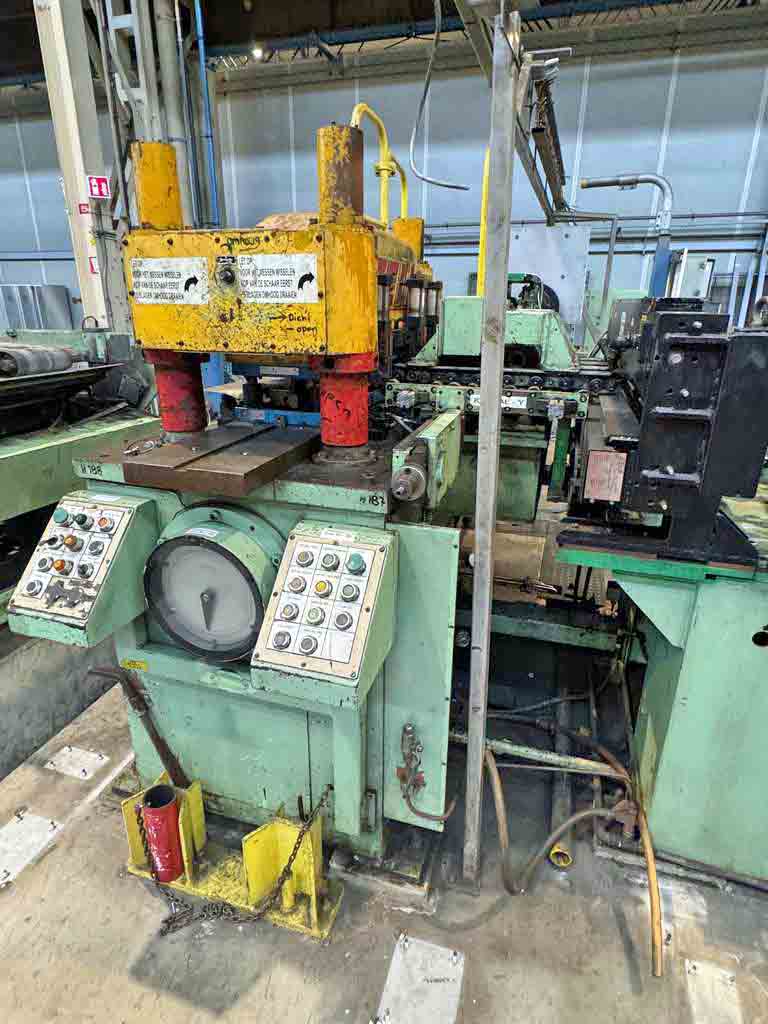

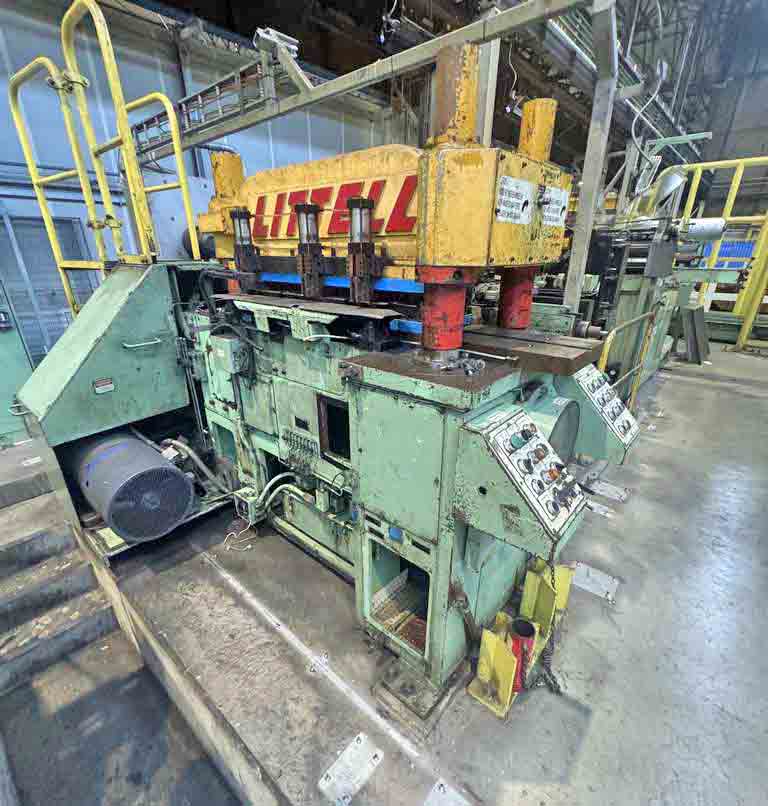

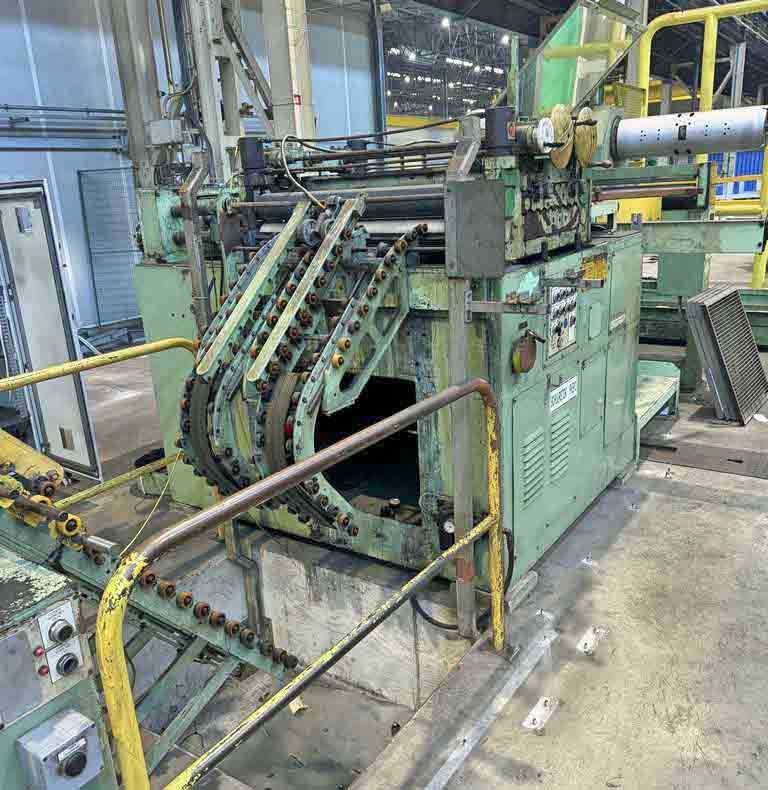

-Littell Shear:
4 Post Design
3 Cutting Knives - Straight and Scroll

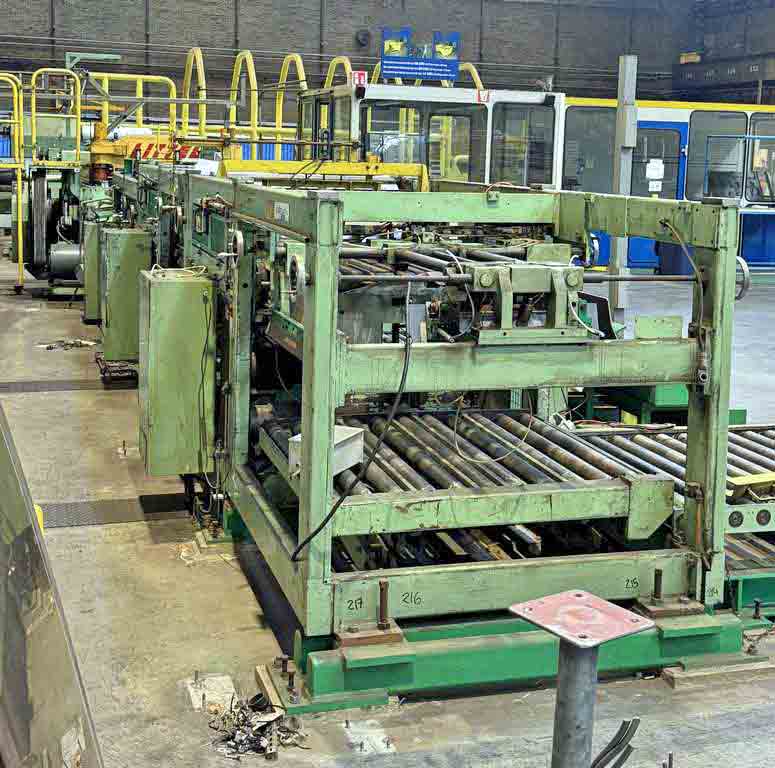

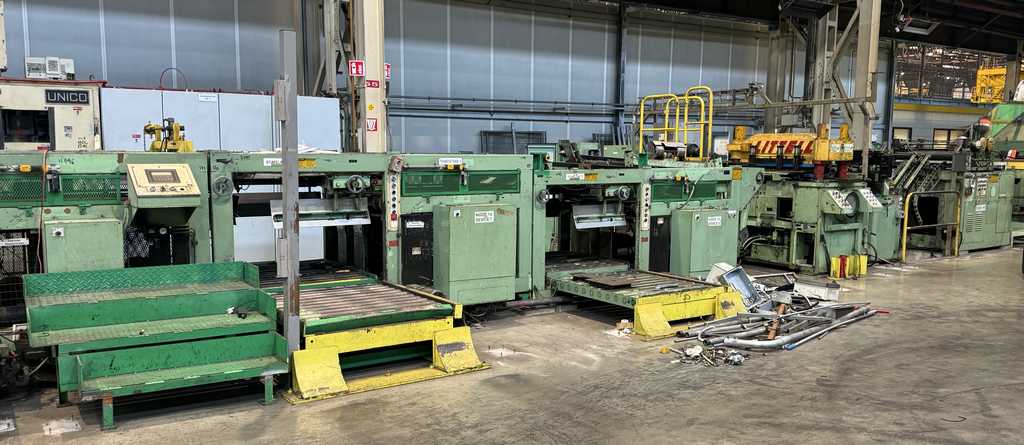

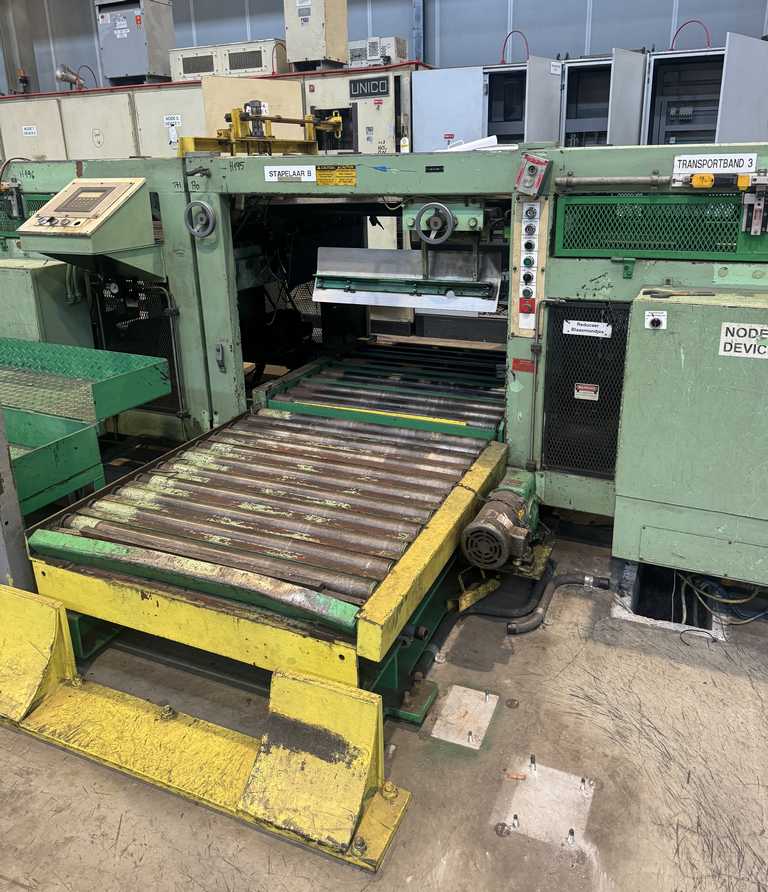

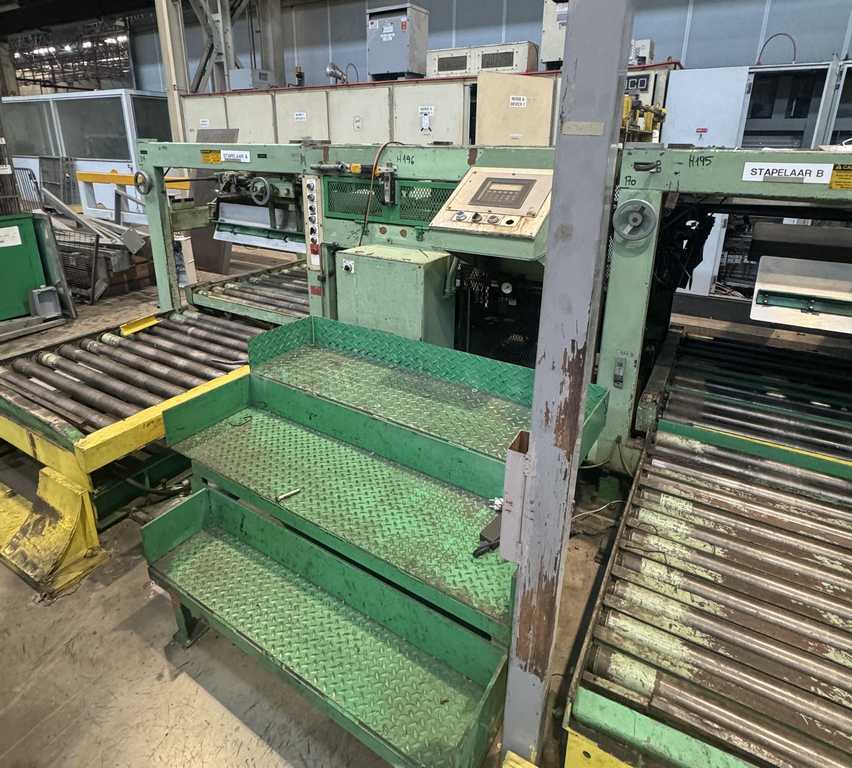

-Stacker 1:
For Rejected Sheets

-Stacker 2:
For Sheet Stacking

-Stacker 3:
For Sheet Stacking
