72" x 0.135" x 40,000# B & K Cut To Length Line

Manufacturer

B & K

Category

Fabricating Machines

Type

CUT-TO-LENGTH LINES

Stock

11721-C

Model

None listed

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet


72" B&K Cut-to-Length Line

Coil Weight: 40,000 lbs.
Thickness Capacity: 0.021" - 0.135" Mild Steel
Line Speed: 250 FPM
Line Direction: Left to Right

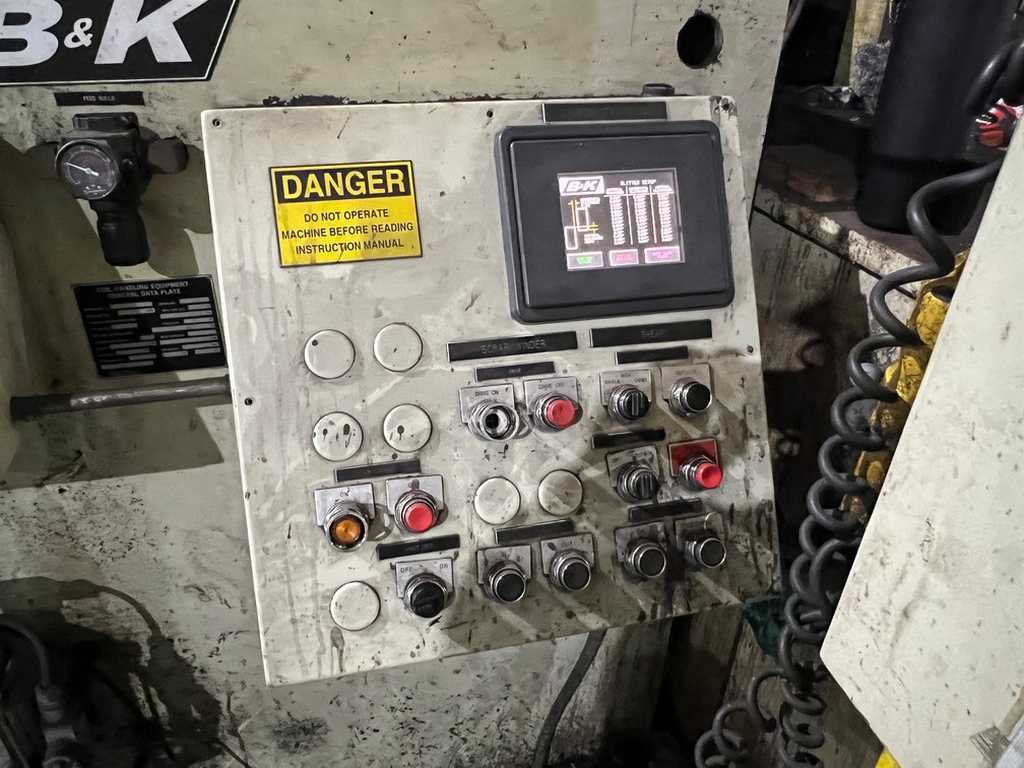

Updated Electrics

Consisting of the following:

-Coil Car:
Above Floor V-Shaped Design

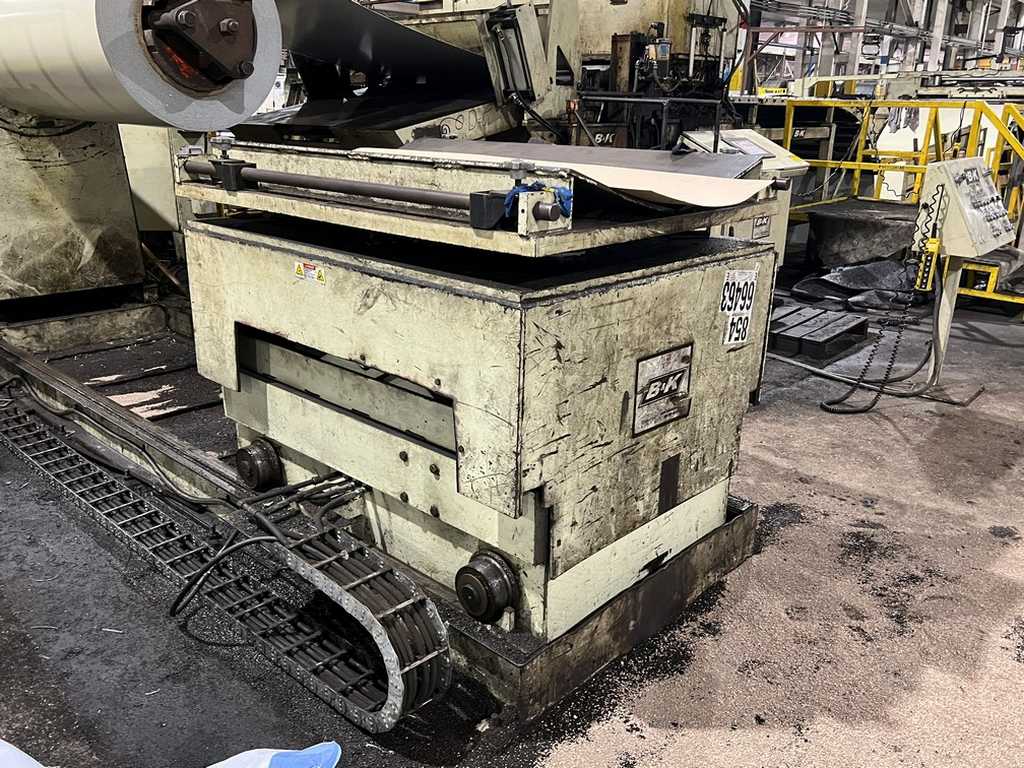

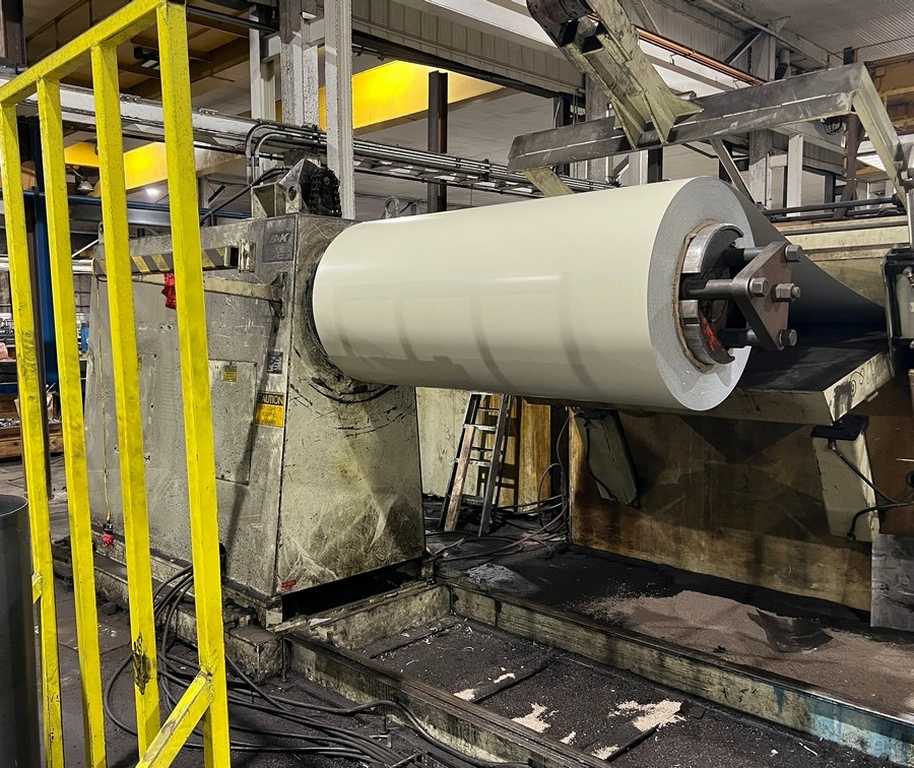

-Uncoiler:
Single Mandrel Design
20" - 24" Coil ID
72" Coil OD
Hydraulic Expansion
Slide Base

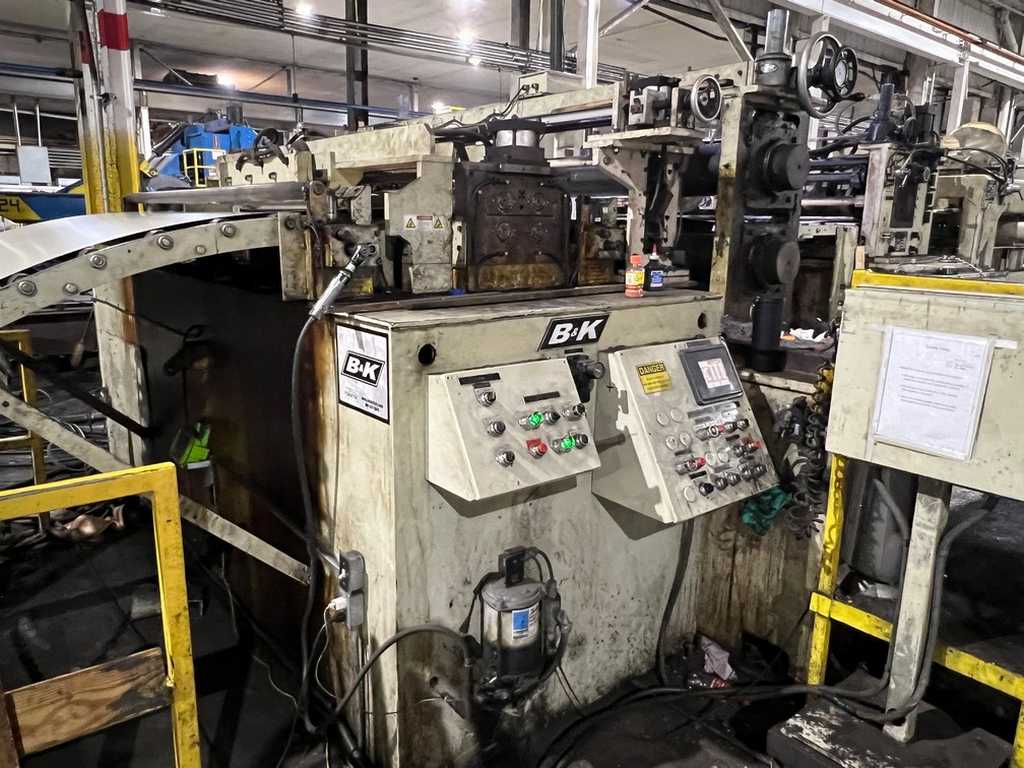

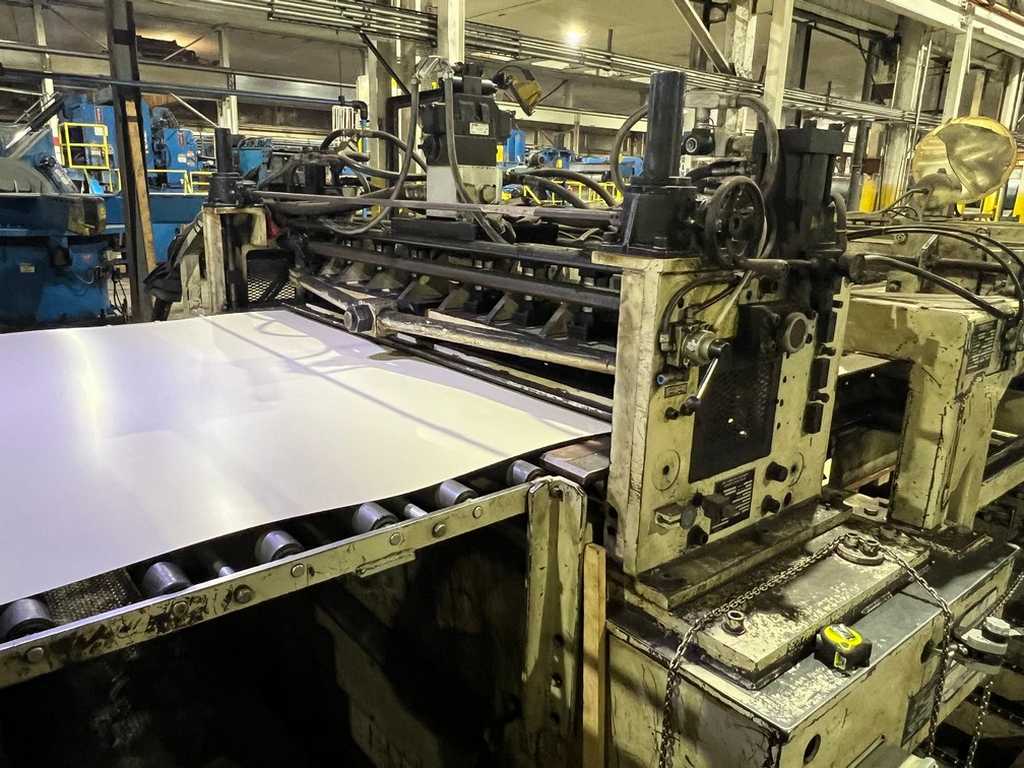

-Entry Unit / Leveler:
Holddown Roll
Peeler Table

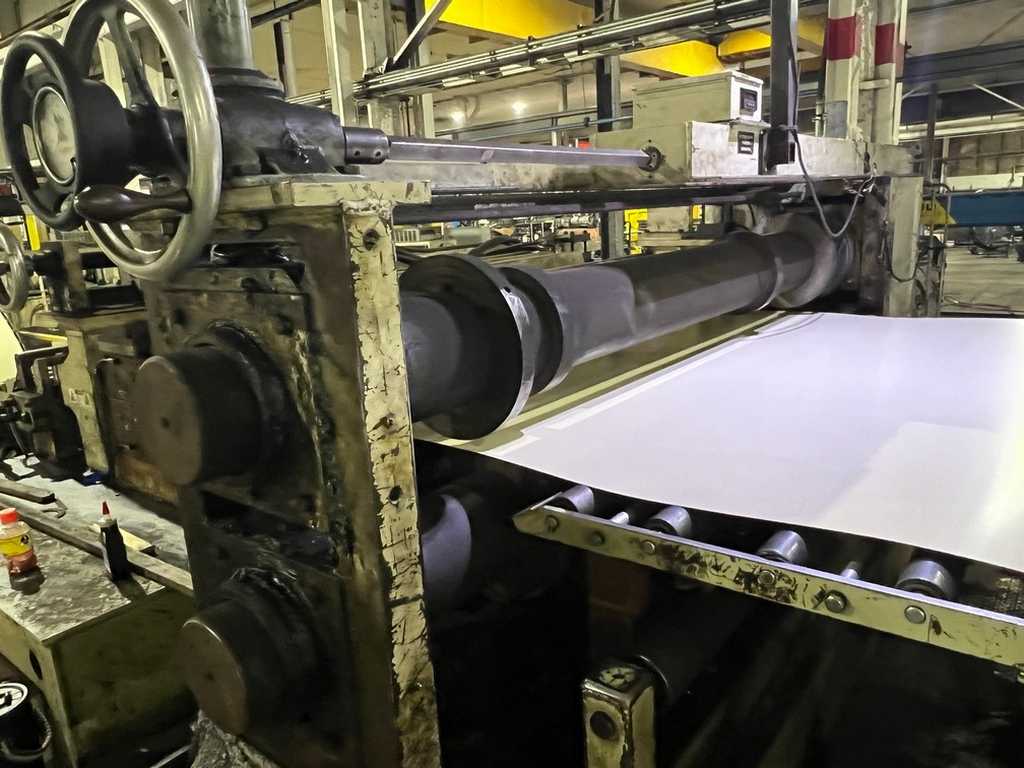

Leveler
19 Work Rolls, 9 over 10 Design
1.75" Dia. x 84" Wide Work Rolls
9 Flights of Backup Rolls, 7 Motorized

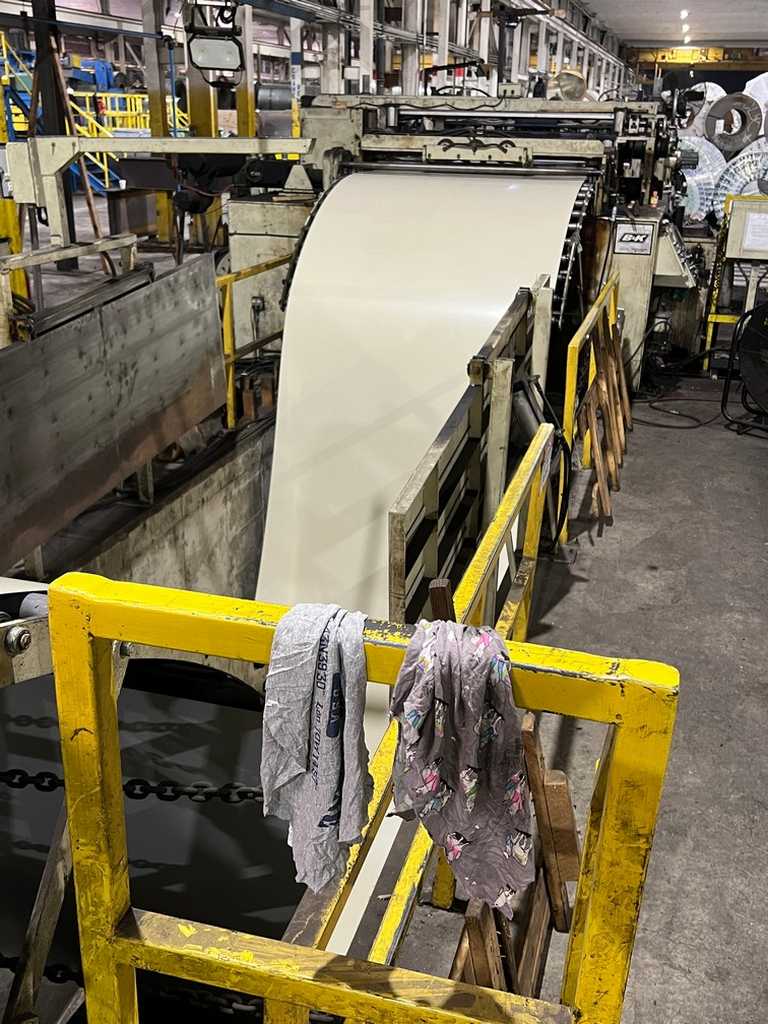

-Looping Pit:

-Exit Pit Unit:
Cascade Rolls
4 Roll Measuring Unit
Slitter Head (Presently not used)

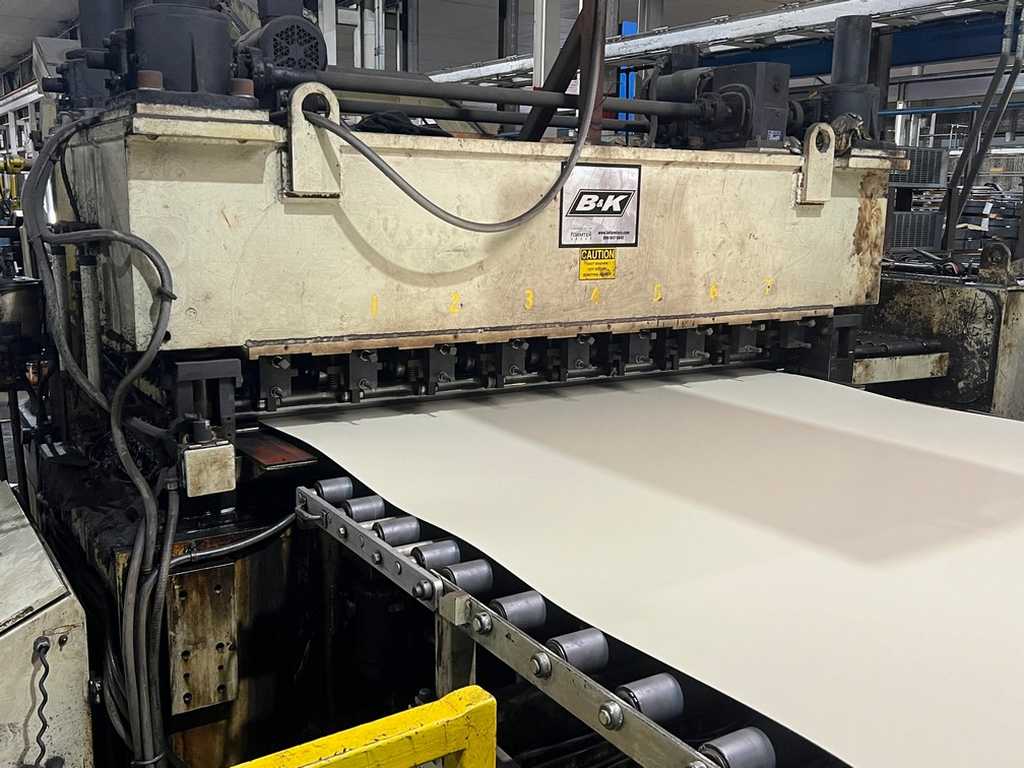

-Mechanical Shear:
300 SPM

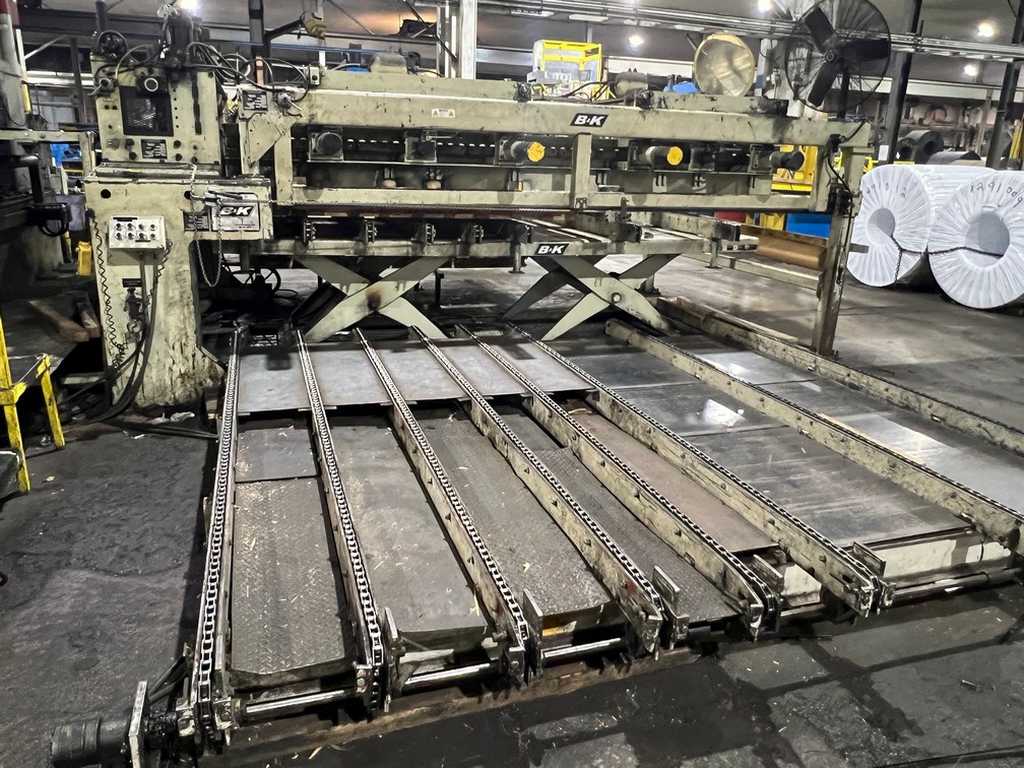

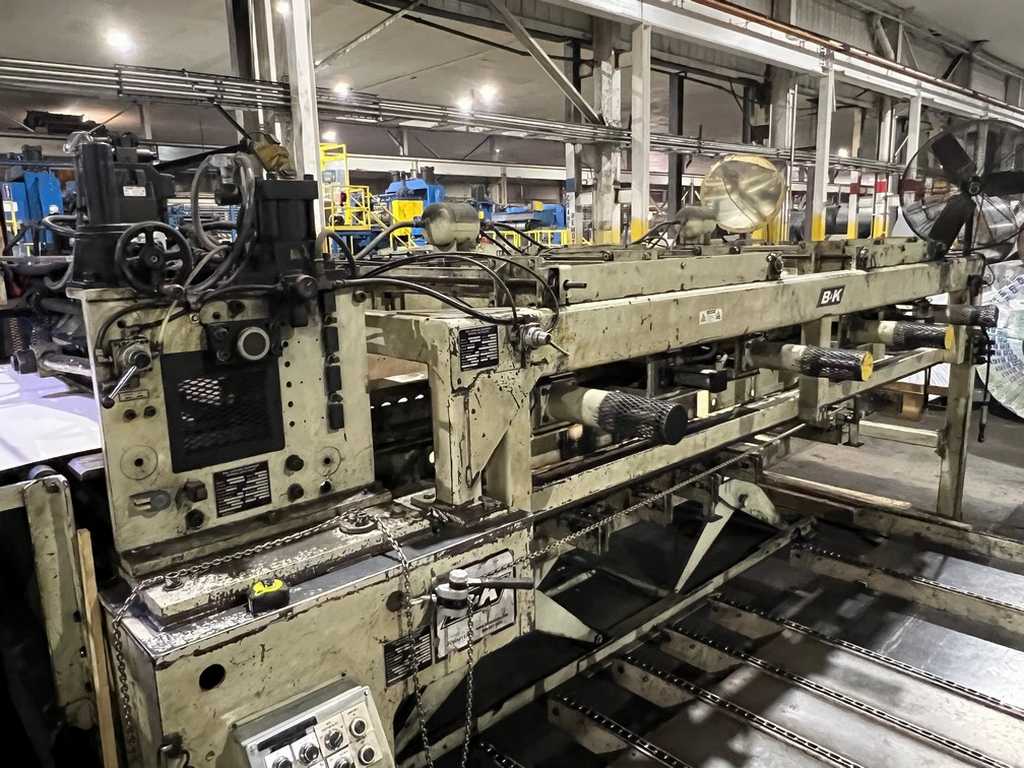

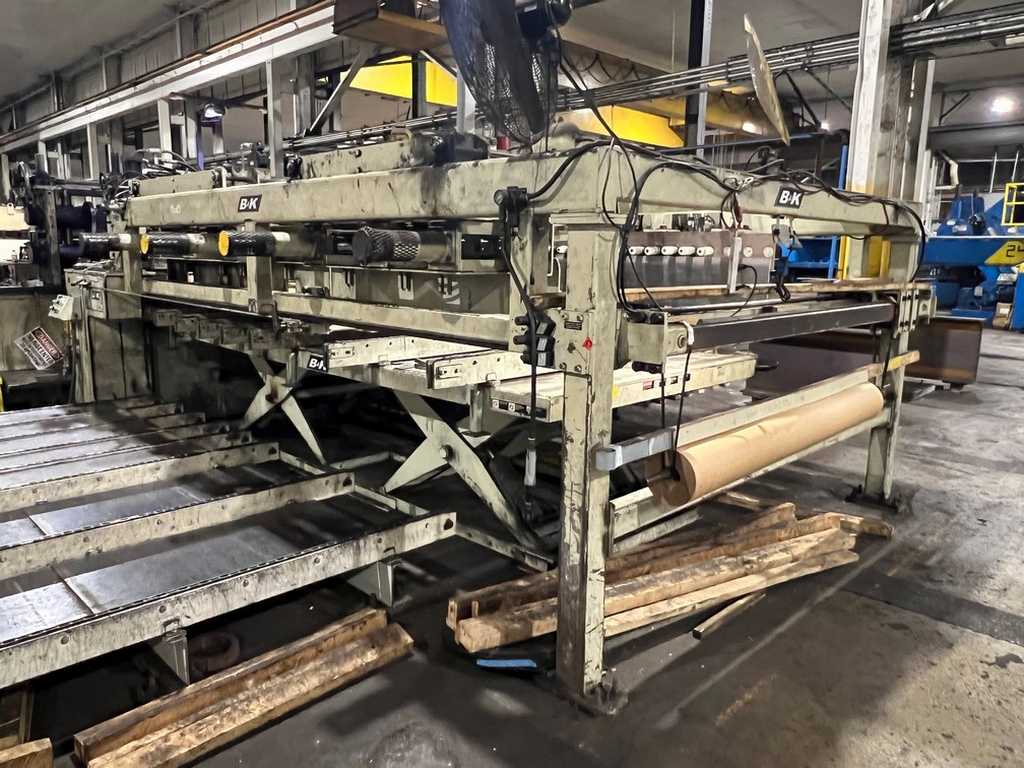

-Stacker:
10,000# Bundle Capacity
14' Sheet Length
Auto Drop Design
Motorized Back Stop
Chain Drive Side Eject Pallet System
Scissor Lift Sheet Stacker
Chain Drive Bundle Ejector System

-Line is Installed
