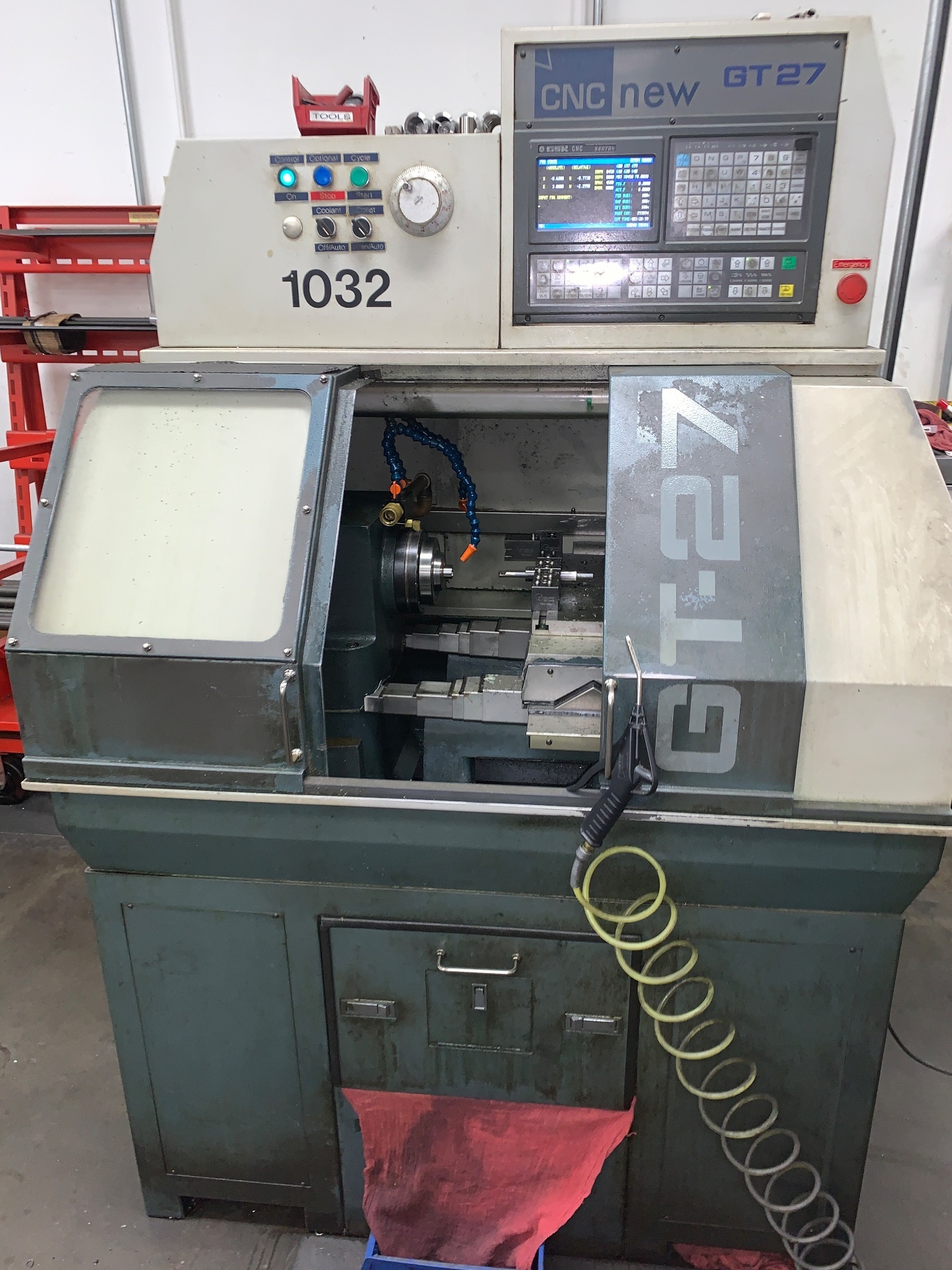

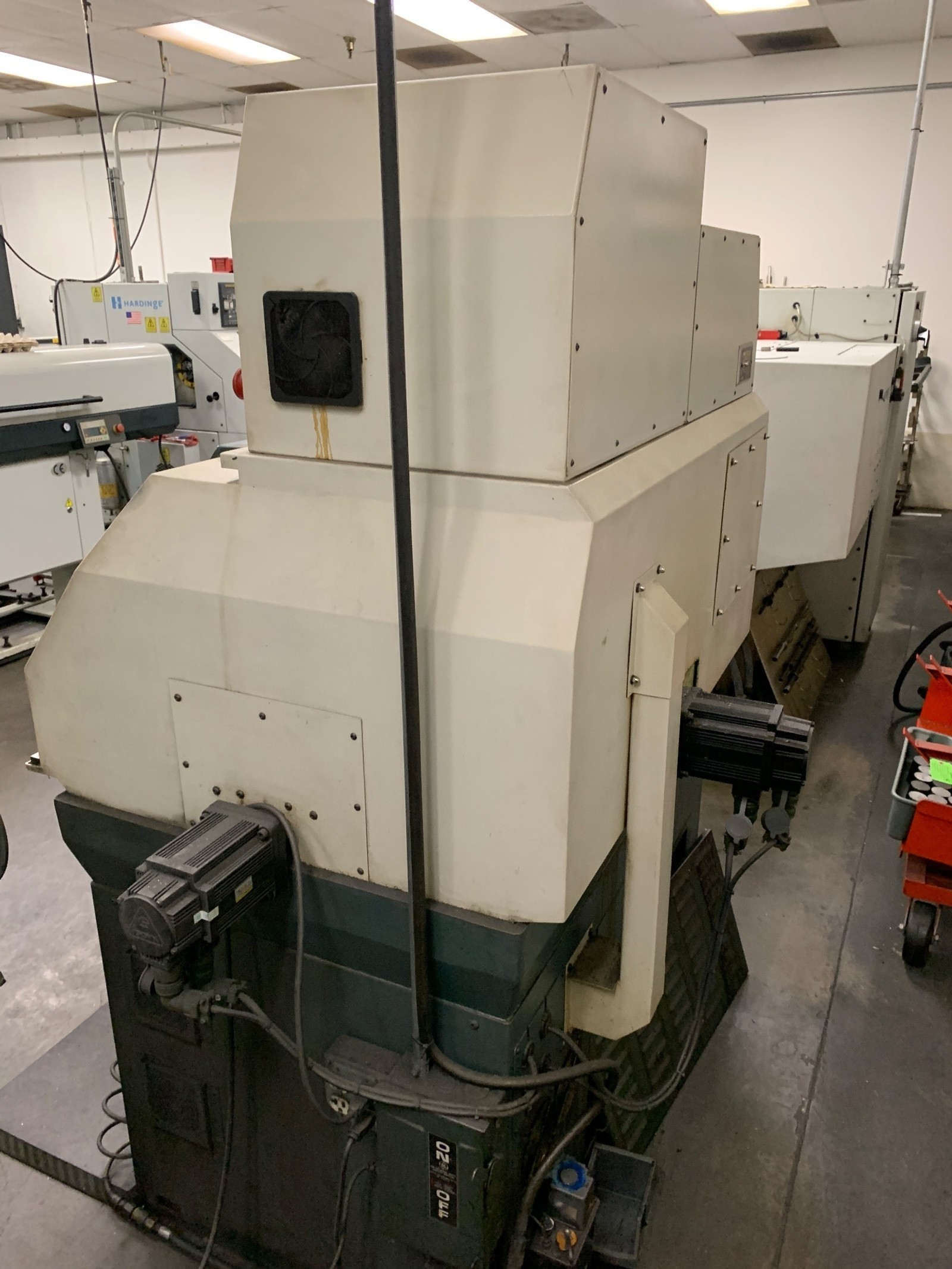

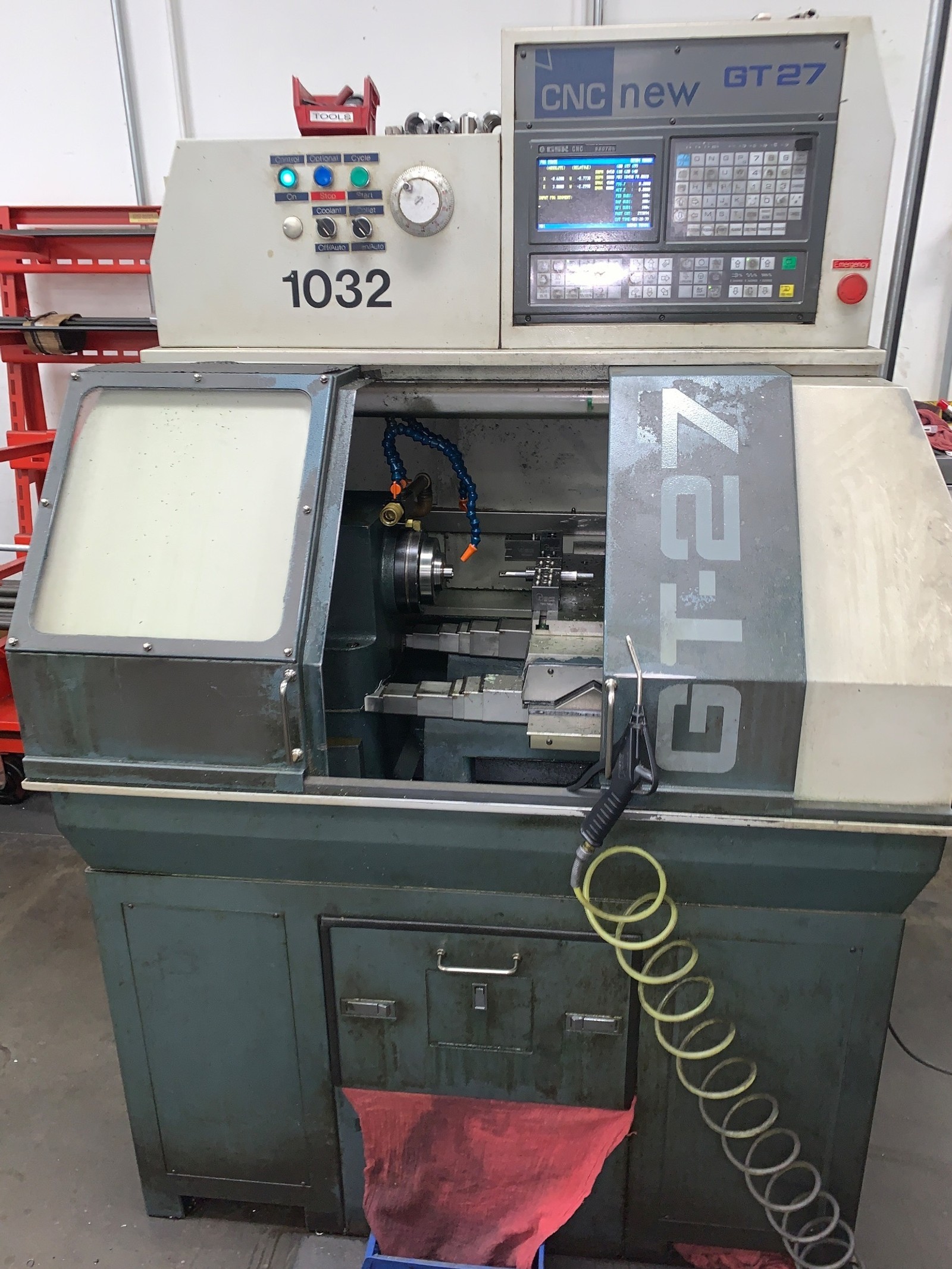

2012 CNC NEW GT 27 Rebuilt Second Operation including Speed Lathe

Manufacturer

CNC NEW

Category

Lathes

Type

LATHES, SPEED

Stock

81089225

Model

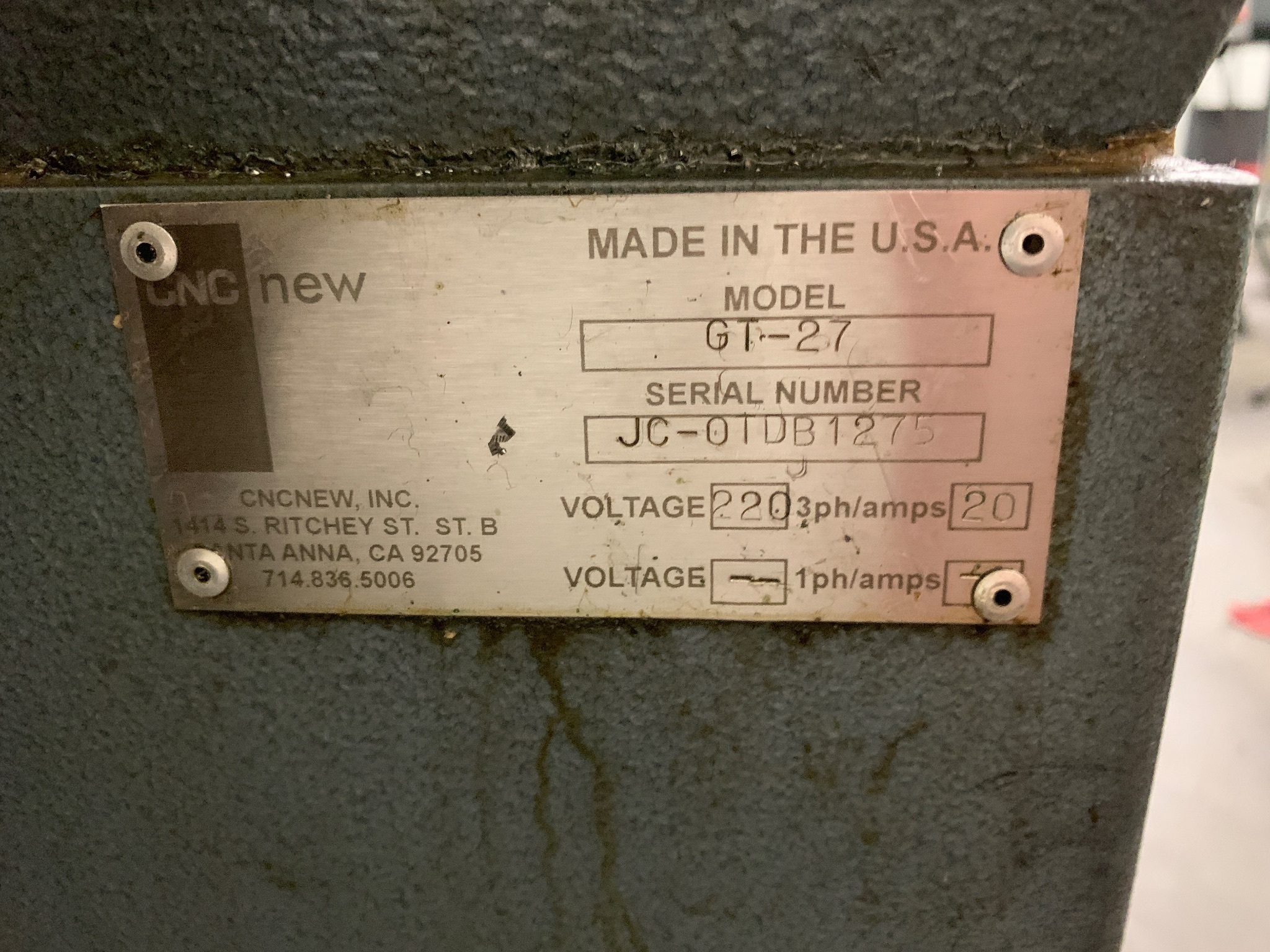

GT-27

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

X‑Axis Travel: 11.75"
Z‑Axis Travel: 7.5"
Spindle Speed: 0–4,500 RPM (programmable precision spindle)
Spindle Motor: 5 HP
Spindle Bore: 1.275"
Spindle Taper / Collet: 5C
Max Bar Size: 1‑1/16"
Collet Closer: 1,900 lb pull force, 5/16" stroke
Drive System Closed‑loop 2‑axis servo package 20A peak / 10A continuous
120 oz‑in liquid‑sealed axis motors
1000‑line encoder + tachometer
Built‑in manual pulse generator
Feeds & Rapids
Feed Rate: 200 IPM
Rapid Traverse: 600 IPM
Axis Thrust: 600 lb
Coolant & Pneumatics
Coolant System: 15‑gallon, high‑volume, high‑pressure (M‑function controlled)
Coolant Compatibility: Water‑ or oil‑based
Air Requirements: 80 PSI @ 35 CFM (clean, dry air)
Weight: 2,800 lb
Floor Space: 48" × 36" × 70"

EQUIPPED WITH

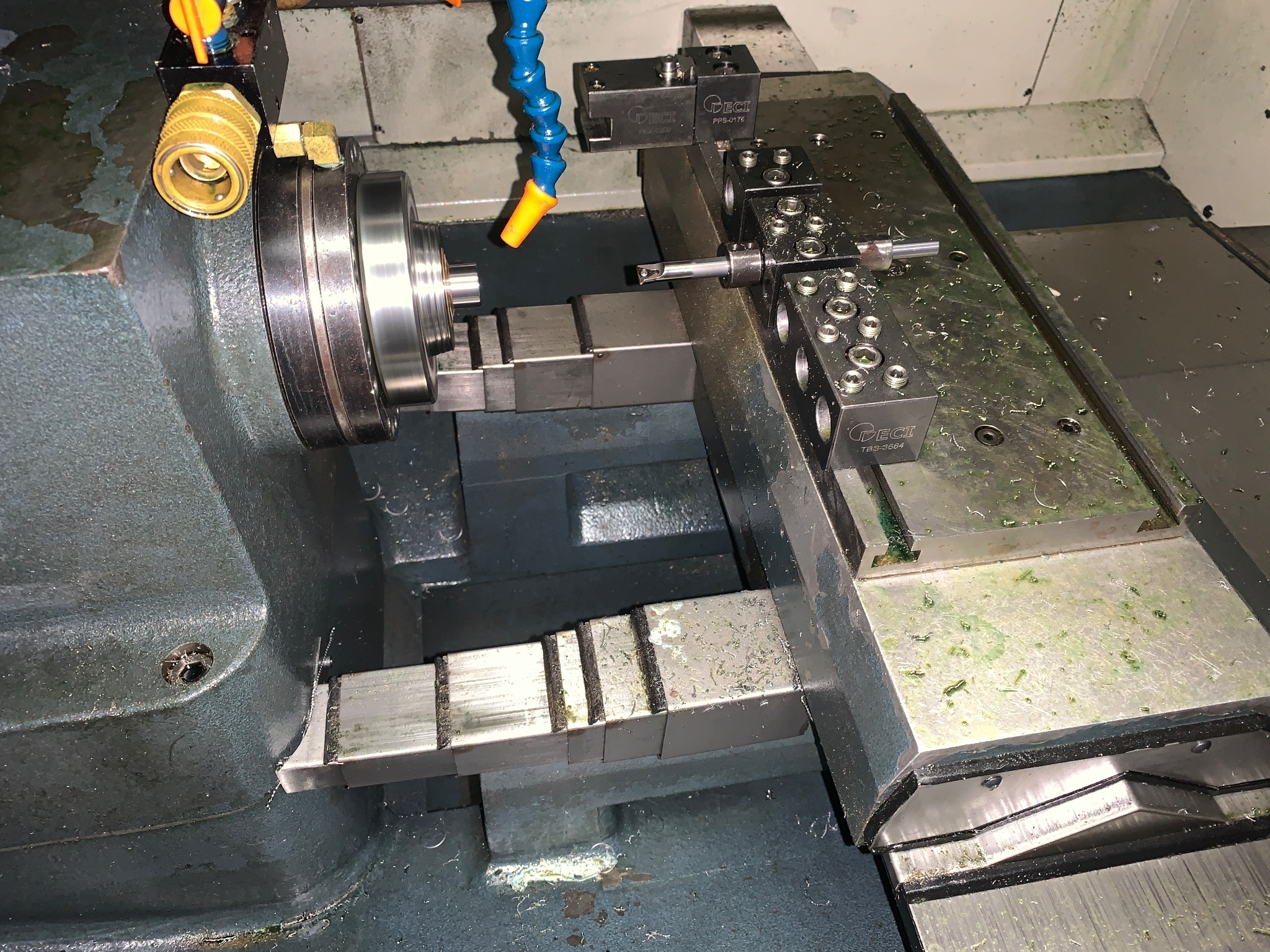

Assorted Tooling

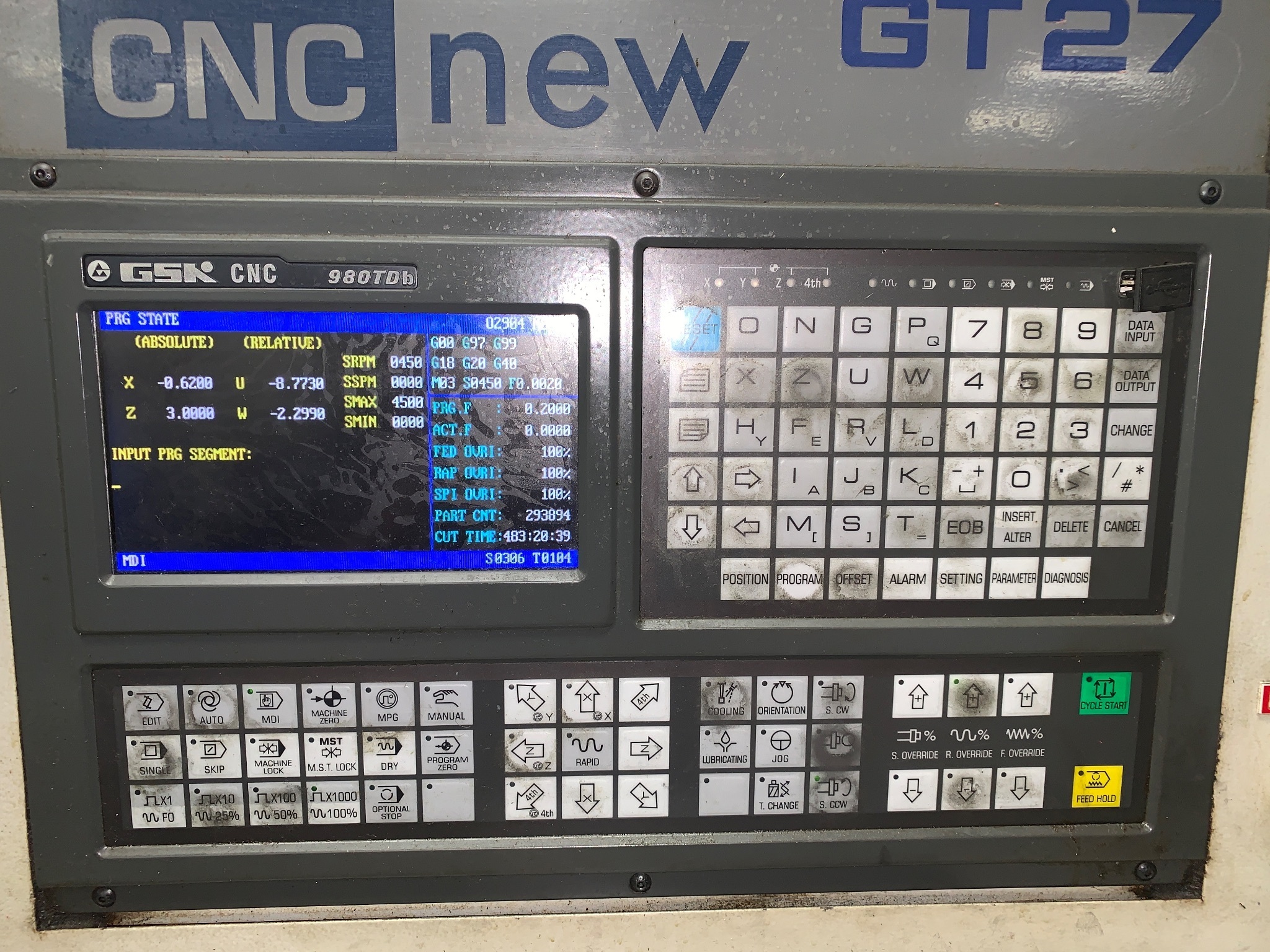

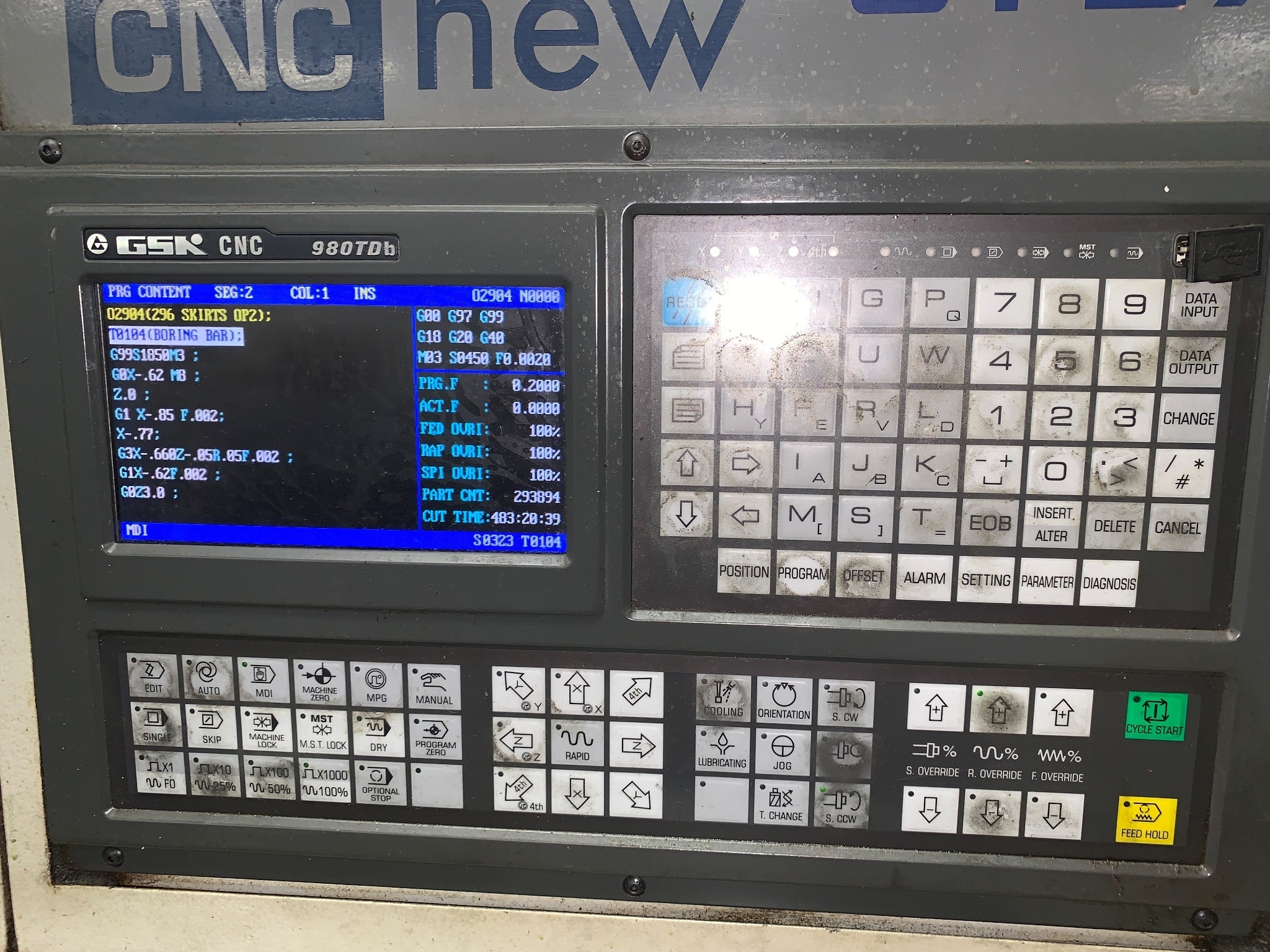

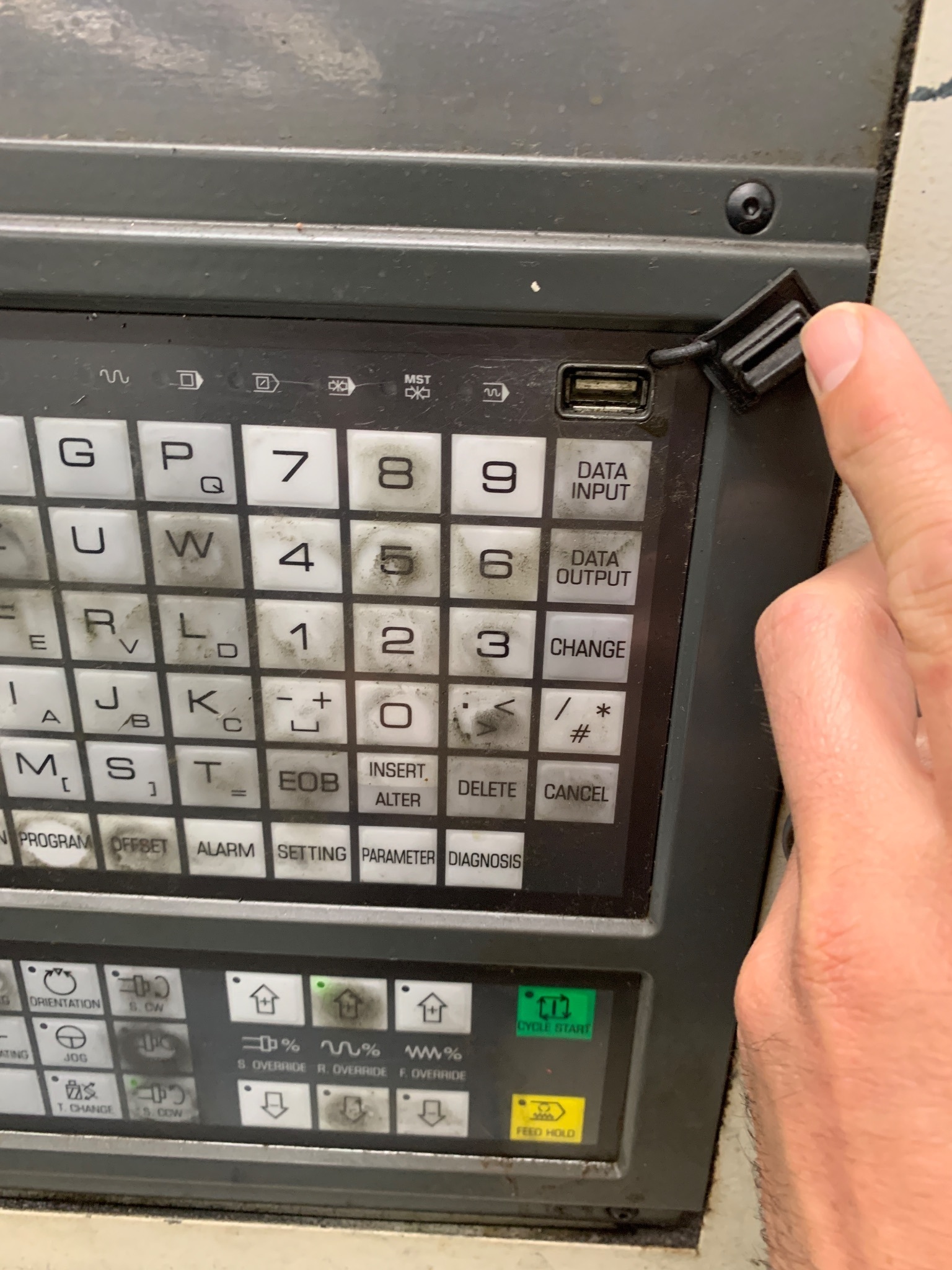

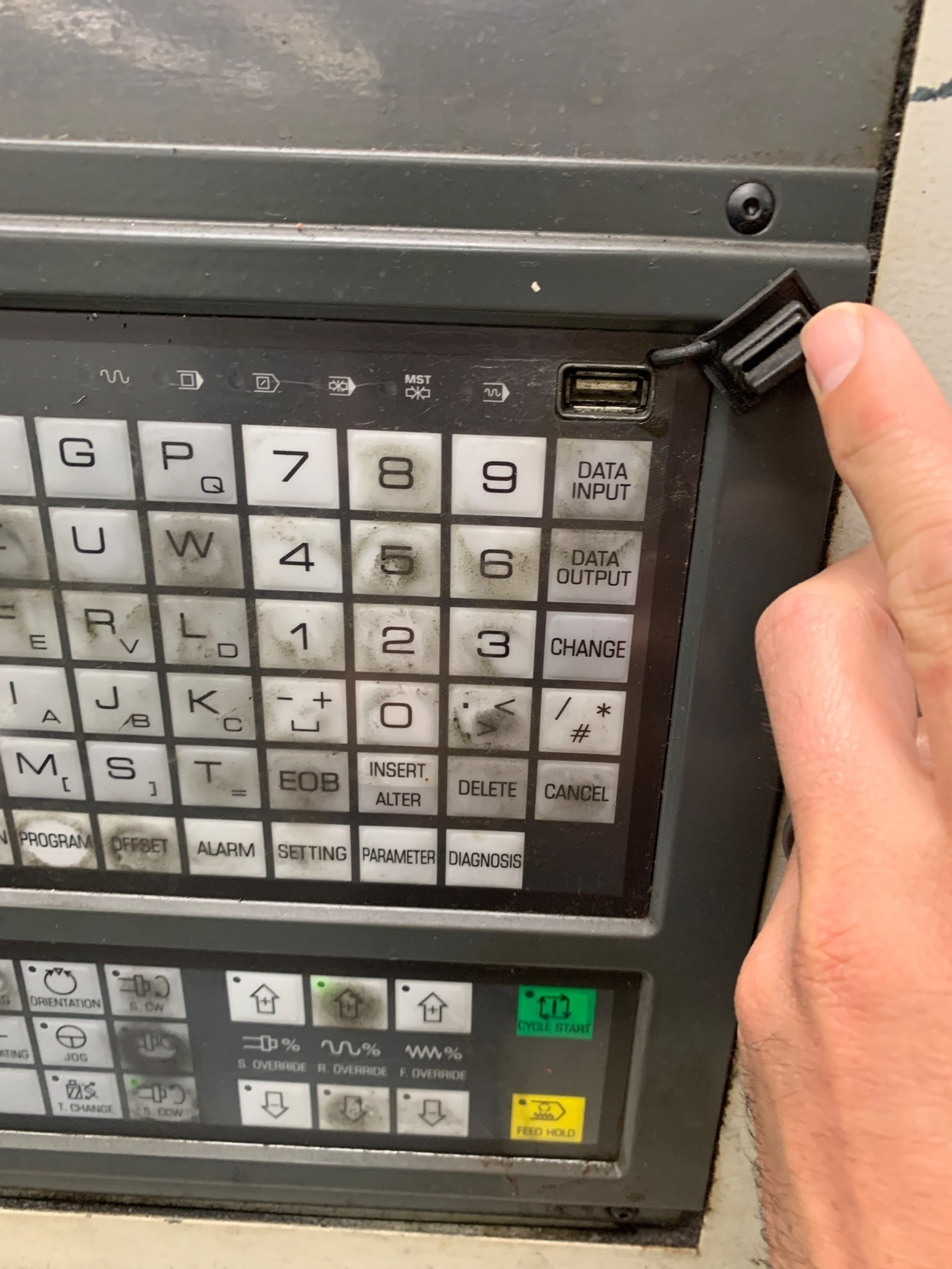

GSK CNC 980TDb Control

Watch Video On Our Youtube Channel www.youtube.com/@pmmmachines

Buyer Is Responsible For Scheduling Transportation Of All Items, As Well As All Cost To Move It. We Can Provide You With Shipping And Rigging Quotes If You Need Help. Please Contact Us And We Will Assist You With Any Questions You May Have.

All Items Are Sold "As Is, Where Is”. Specifications, Options, And Additional Accessories Are Quoted To The Best Of Our Knowledge And Are Subject To Buyer's Verification And Correction.
