30,000 lbs. x 72" Coe Press Equipment Coil Feed Line, 3 Complete Lines Available for Sale!

Manufacturer

COE

Category

Coil Processing Equipment

Type

COIL FEED LINES

Stock

3008

Model

CPR-PO-30072 / CPPS-PO-50072 / CPRF-872

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Coil Weight - 30000 pounds
Coil Width - 72 inches
Coil Thickness - .187 inches

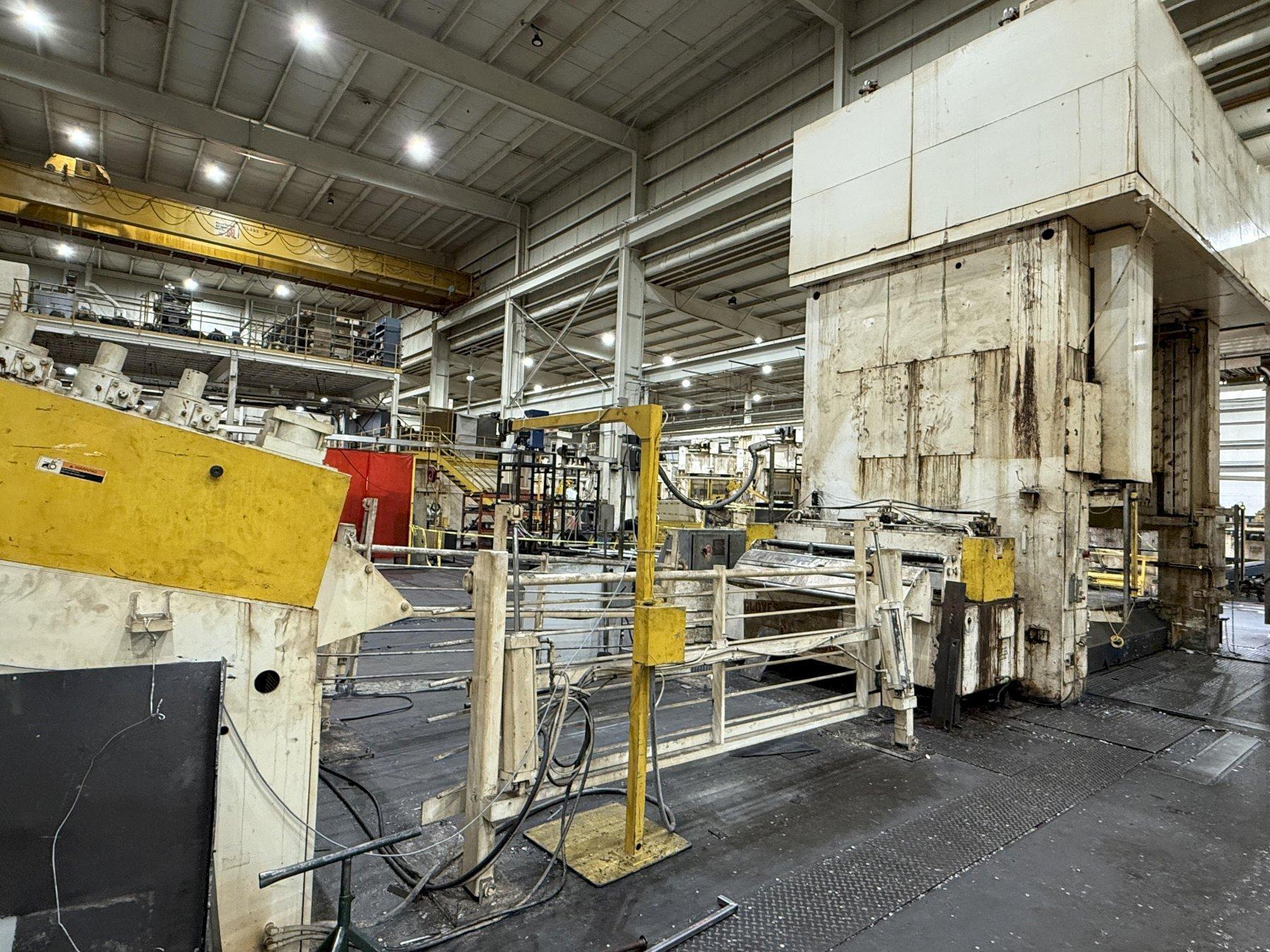

72" Coe Press Equipment: Coil Processing

Conventional Coil Feed Line

Model CPPR-PO-30072 / CPPS-PO-50072 / CPRF-872

30,000 lbs. Maximum Coil Weight at Full Width
72" Maximum Coil Width
.187" Stock Thickness Capacity at 72" Wide
.250" Stock Thickness Capacity at 36" Wide
23"-27" I.D. Mandrel Expansion Range
72" Maximum Coil O.D.
Right to Left Feed Direction

Equipment and Features:

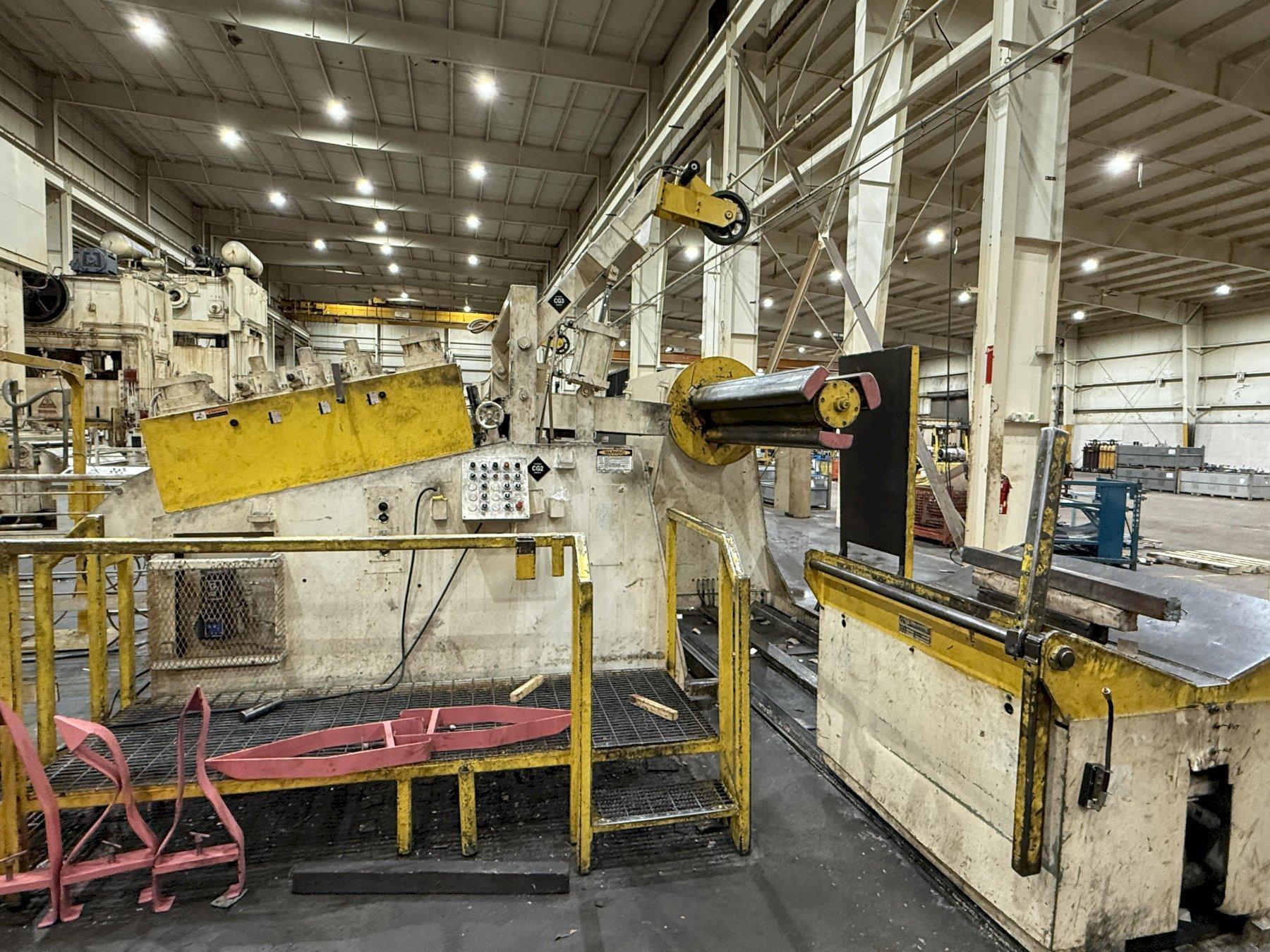

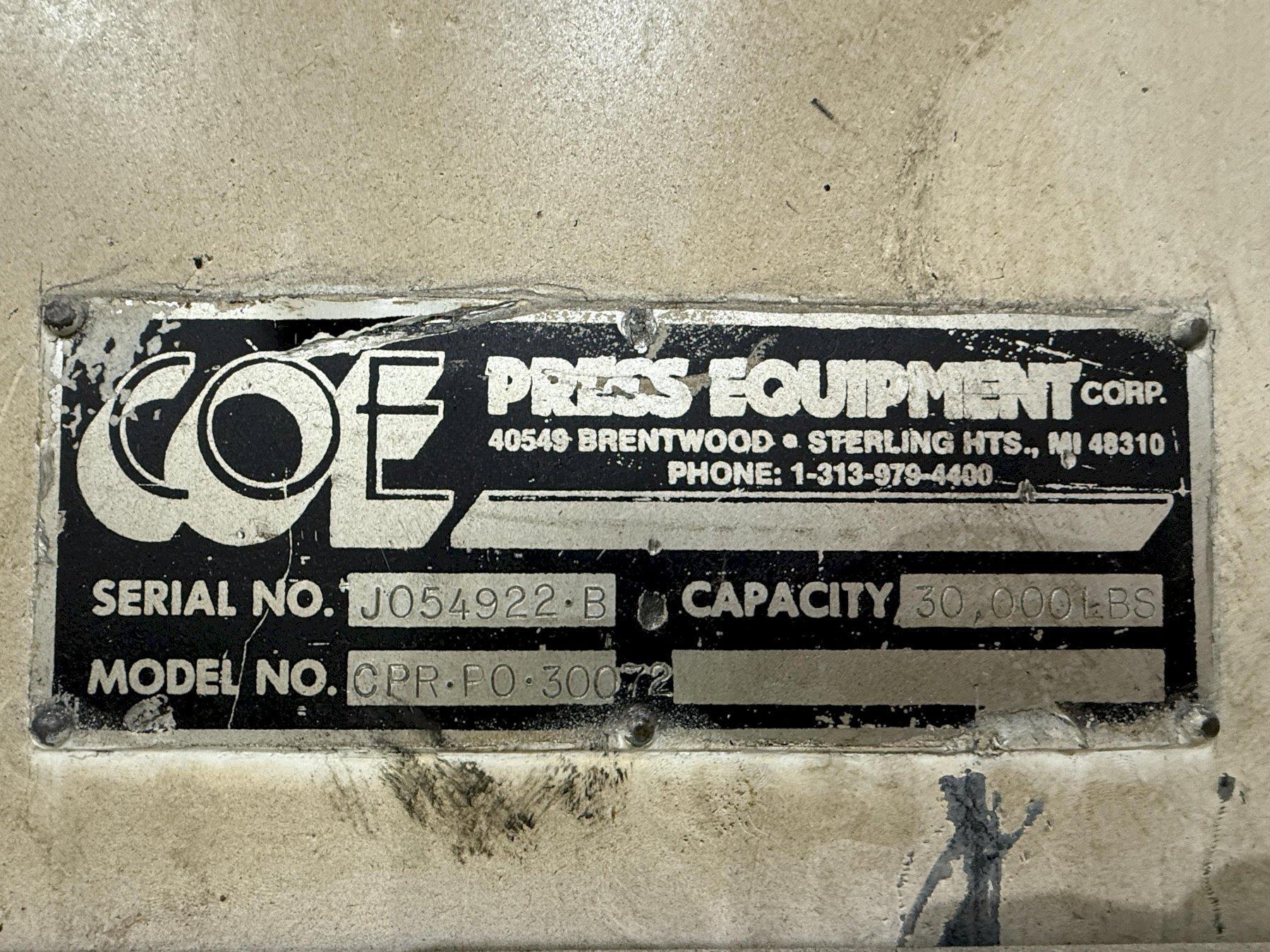

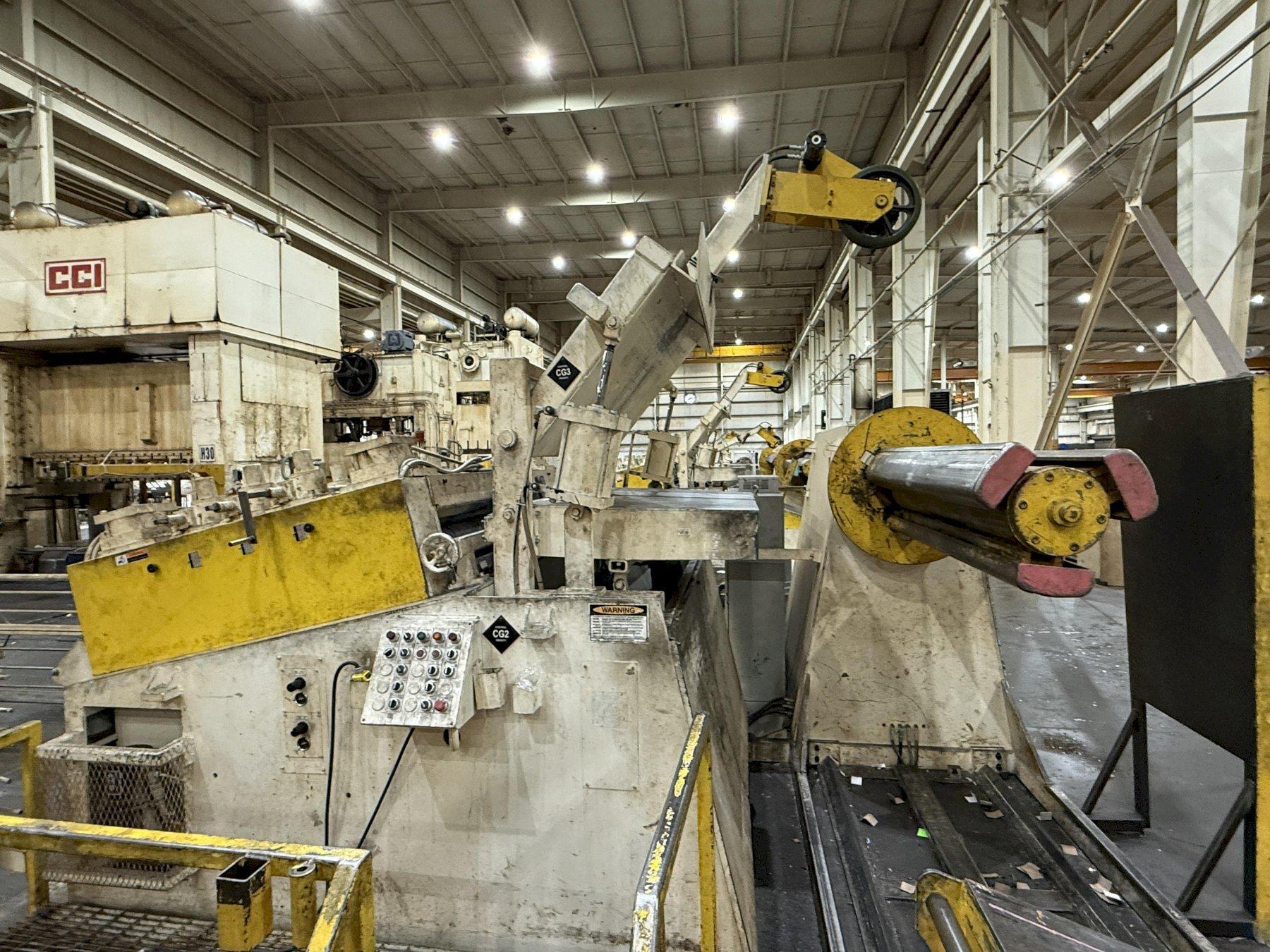

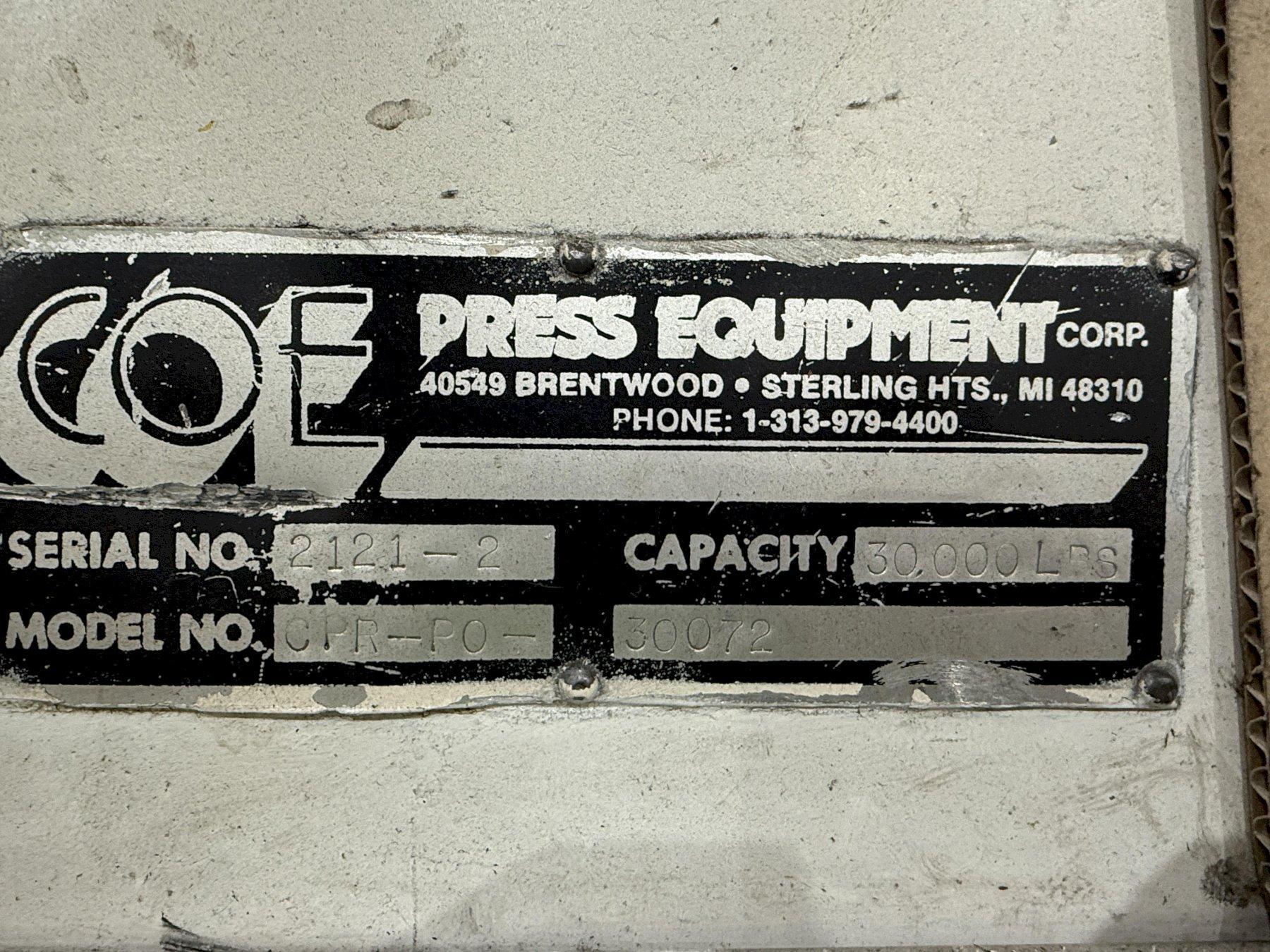

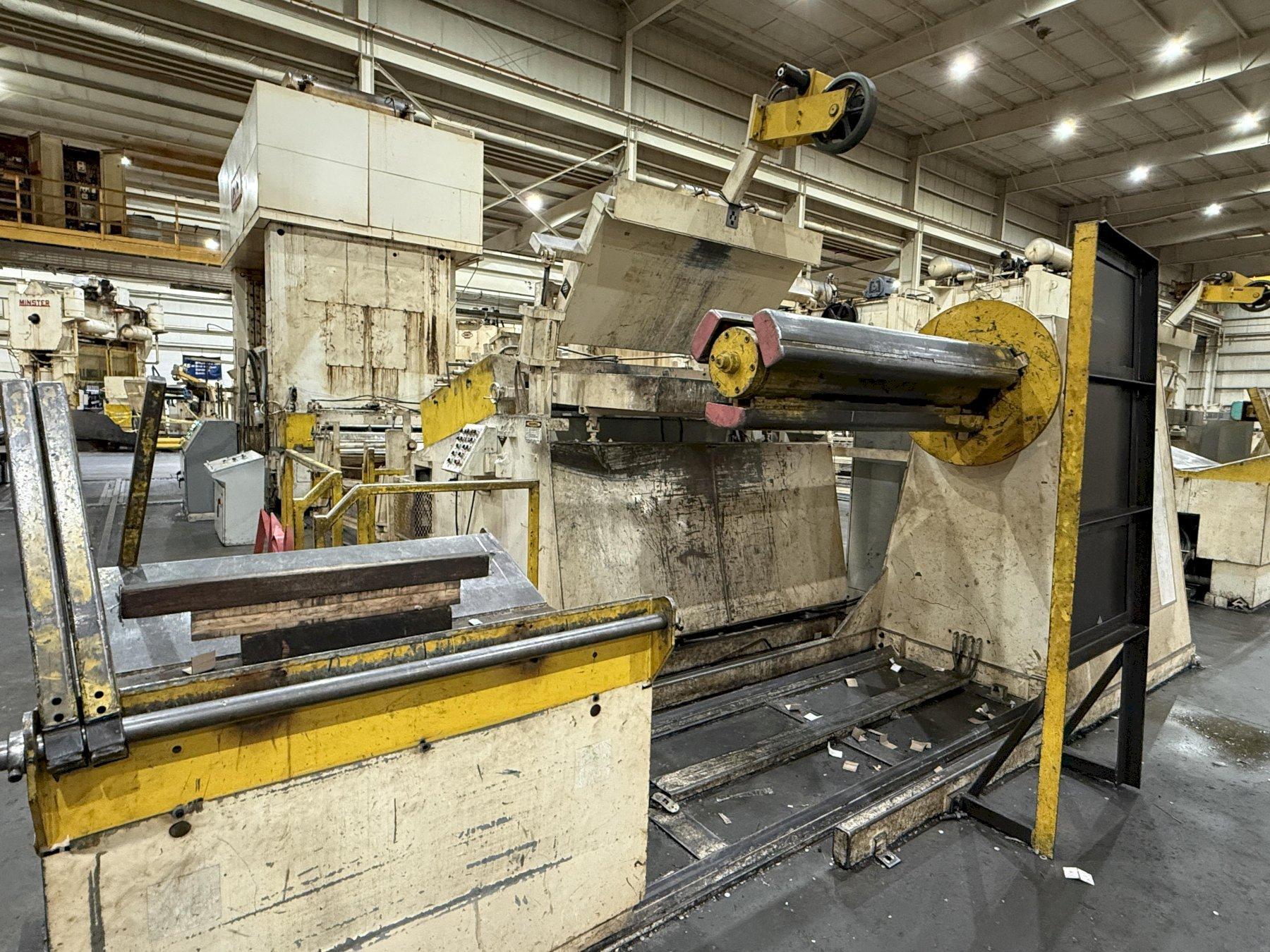

 Coe Press Equipment Coil Reel Model No. CPER-PO-30072
Three leaf mandrel
Hydraulic mandrel expansion
Heavy Duty Wedge Type Expansion
Air brake mounted on main spindle
Jog drive for threading
Set of Coil Keepers

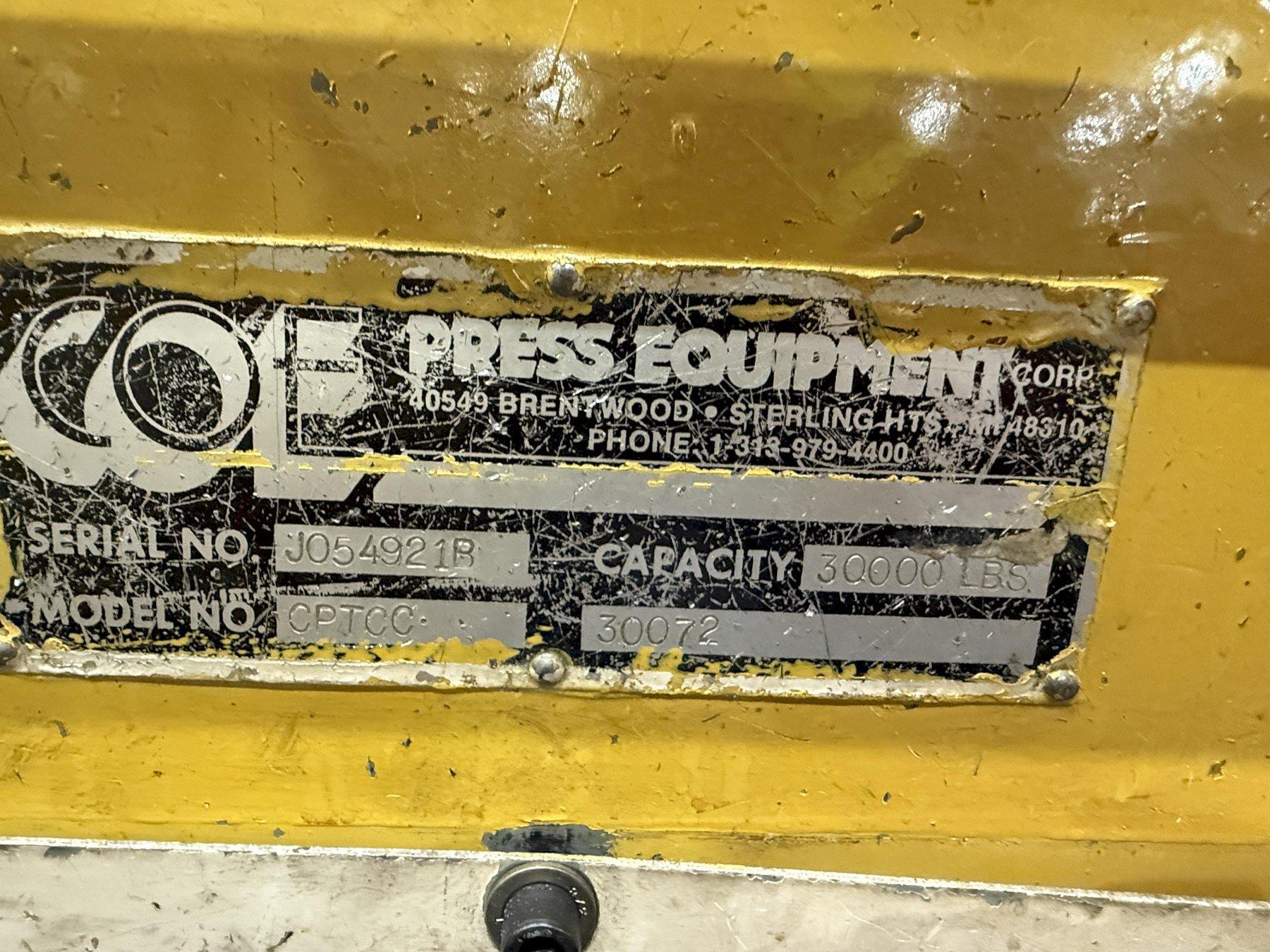

Coe Travelling Coil Load Car Model CPTCC-30072
Hydraulic Lift for Coils

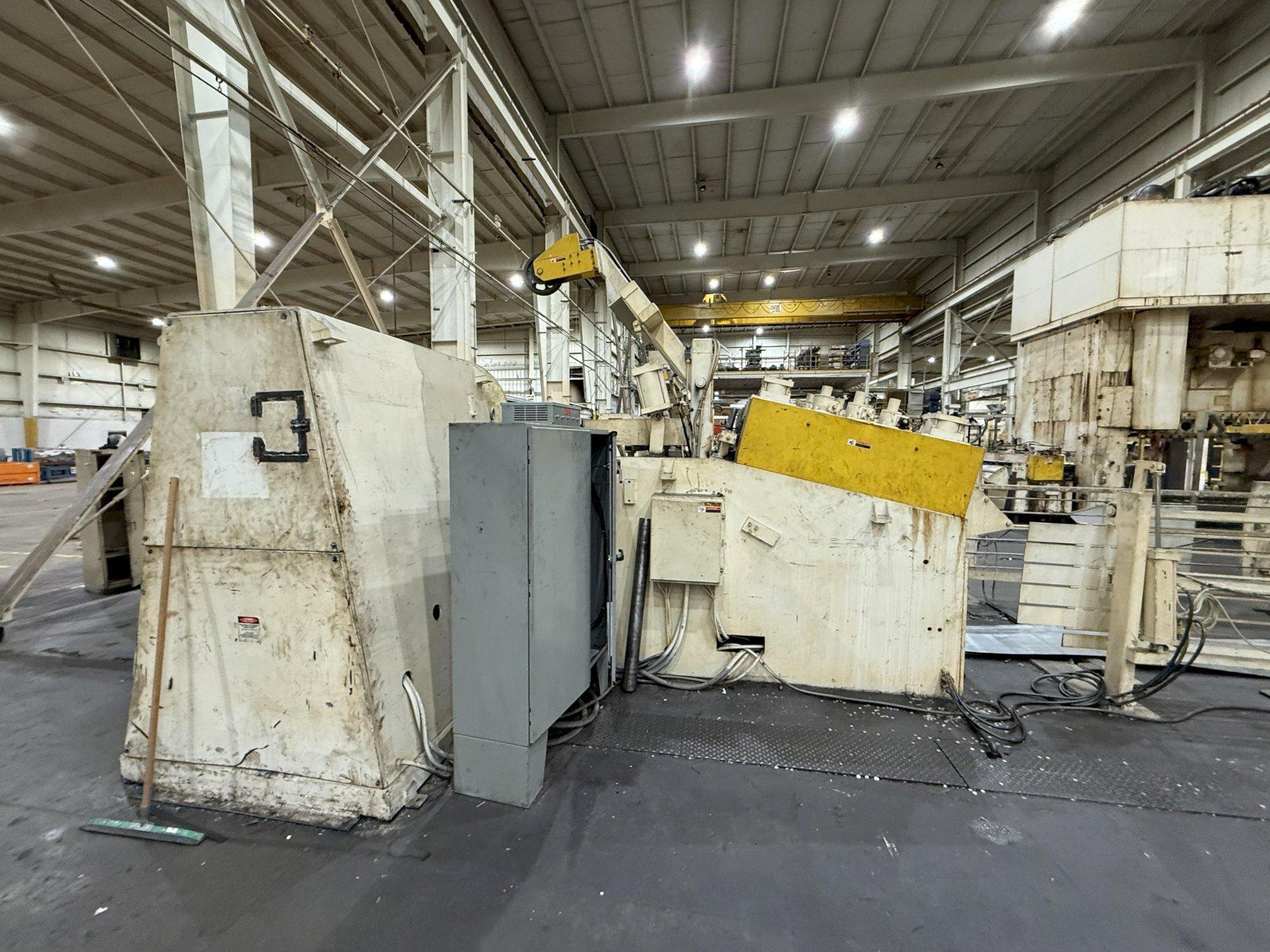

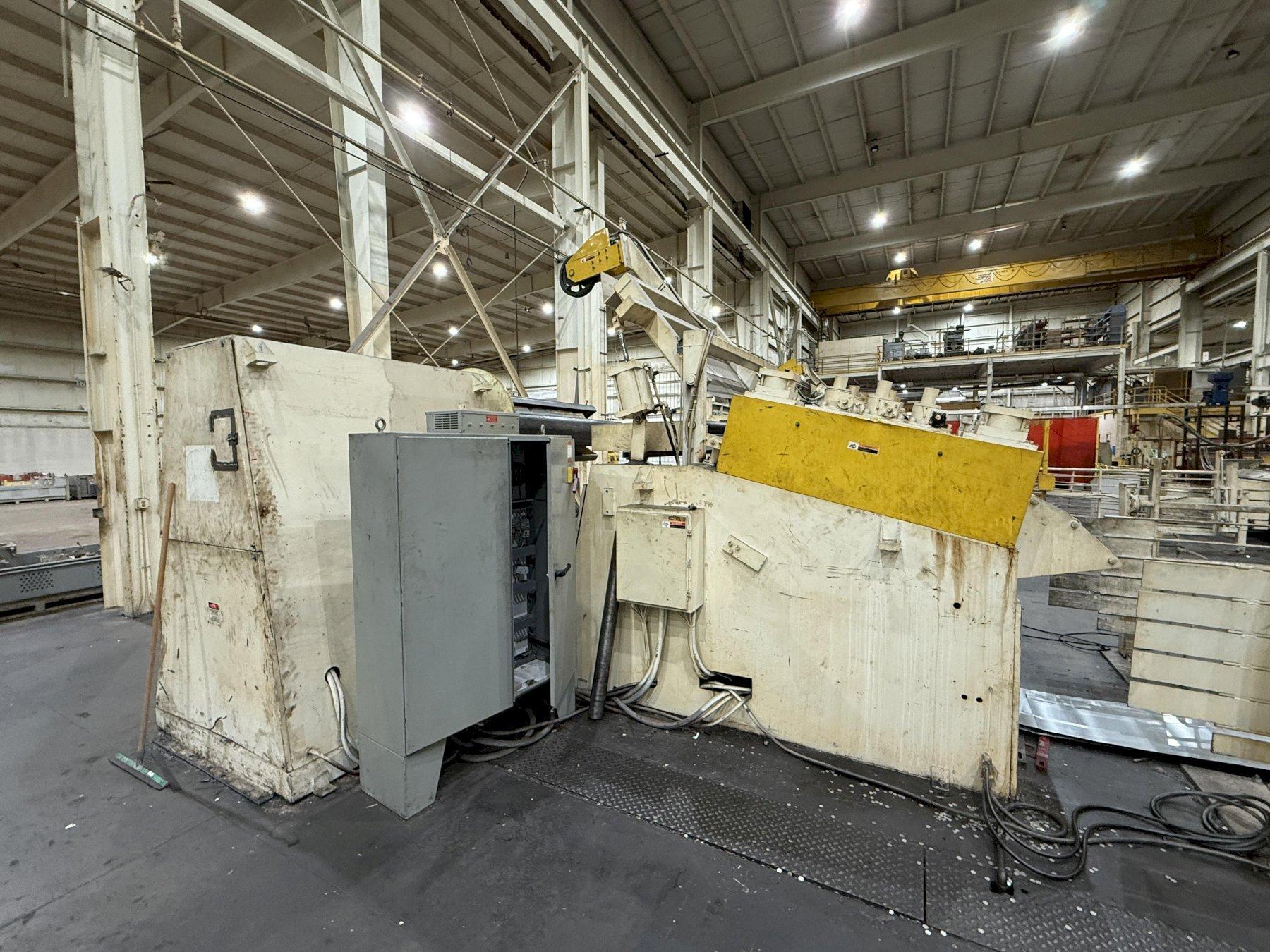

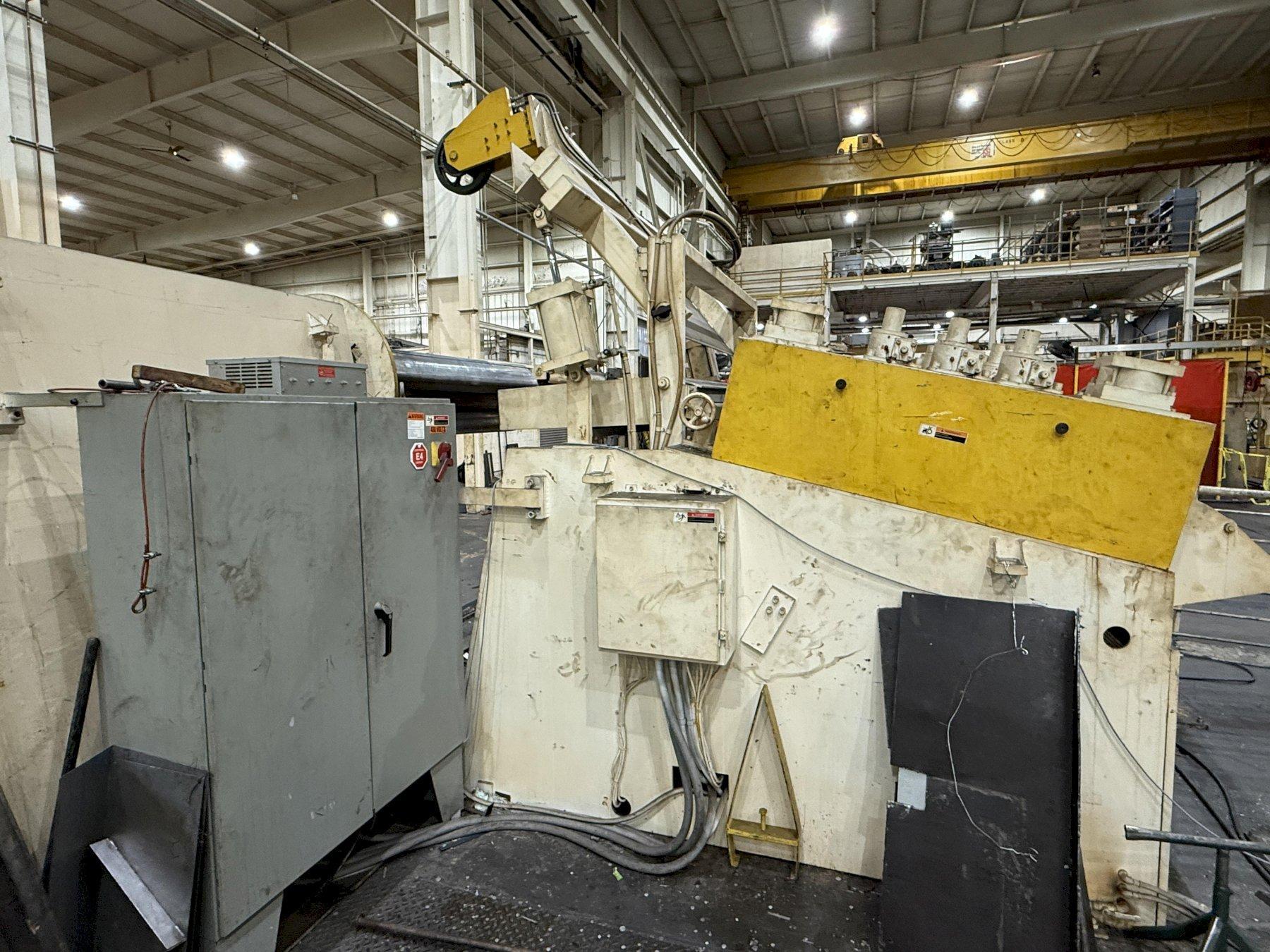

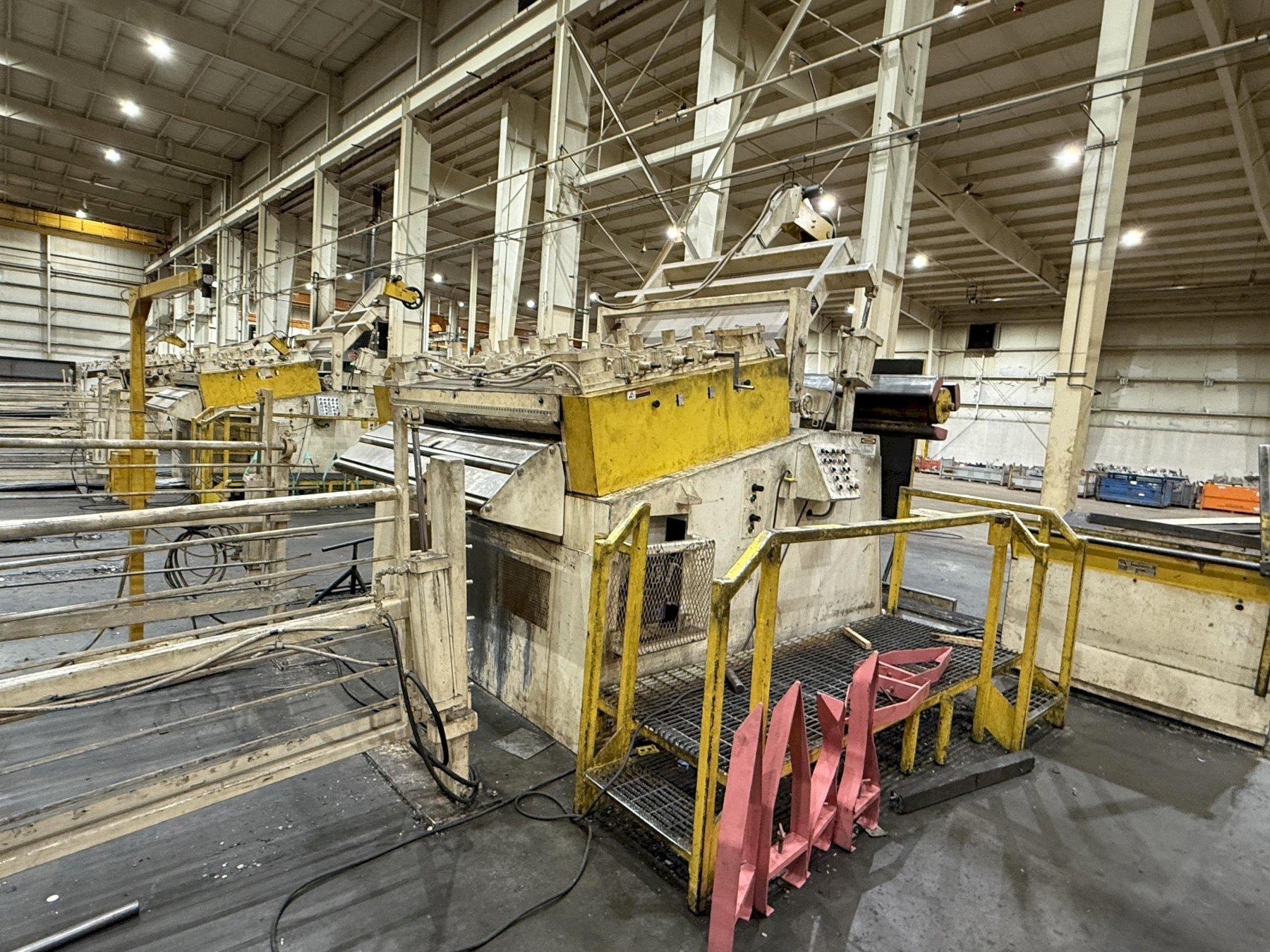

Coe Powered Coil Straightener Model No. CPPS-PO-500-72
Seven straightening rolls
Individual upper straightening roll adjustments
Pinch rolls with air operated adjustments
Hold Down Arm (Hydraulically Actuated)
Motorized End Wheel
Stock Peeler table with integrated end De-bender
Exit and Entry Pinch Rolls
Exit cascade rollers
Adjustable stock width edge guides
Exit cascade loop support rollers

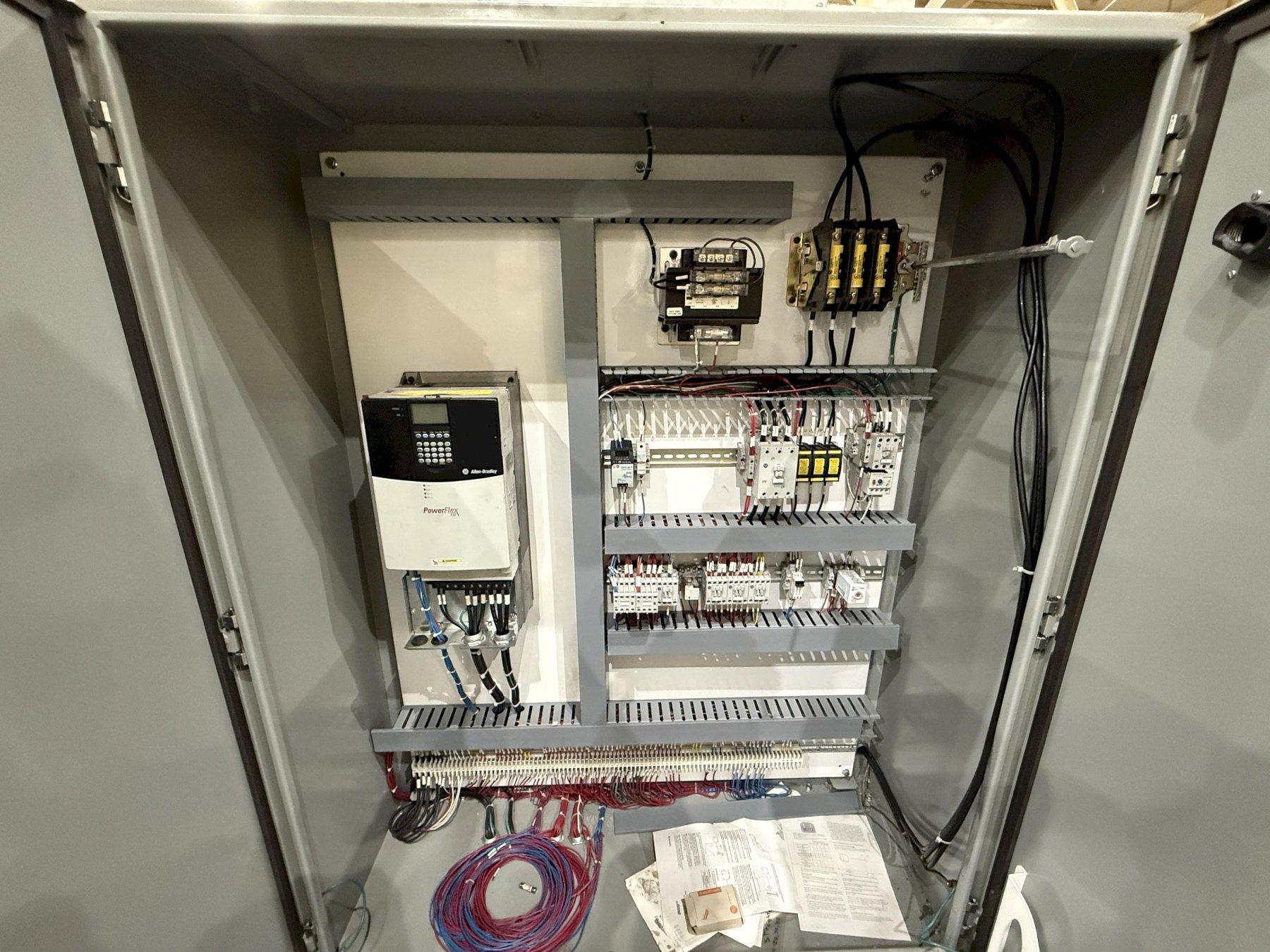

Updated Allen Bradley AC Variable Freq Drive and control system
Auto / run loop control

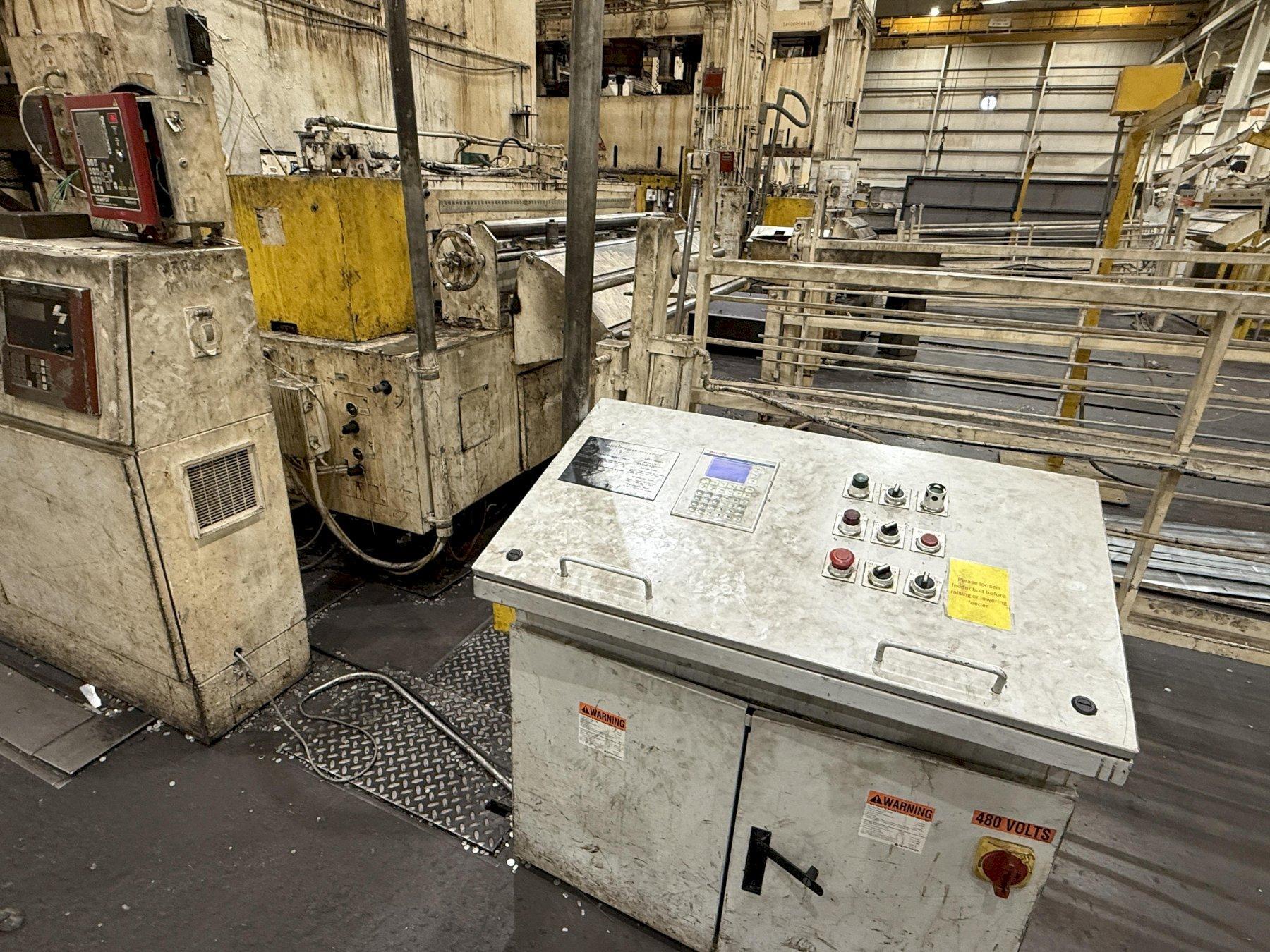

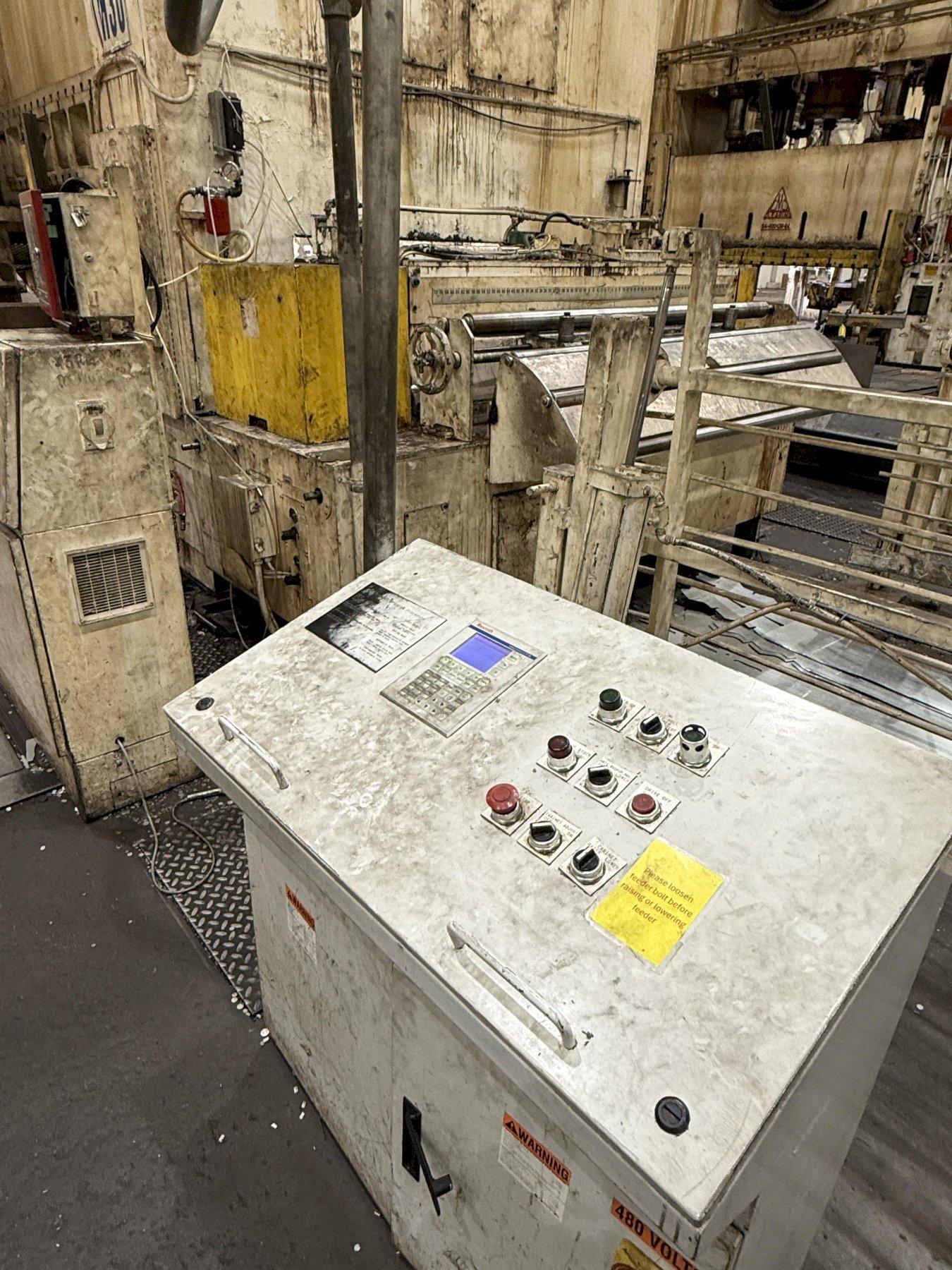

Operator's stations

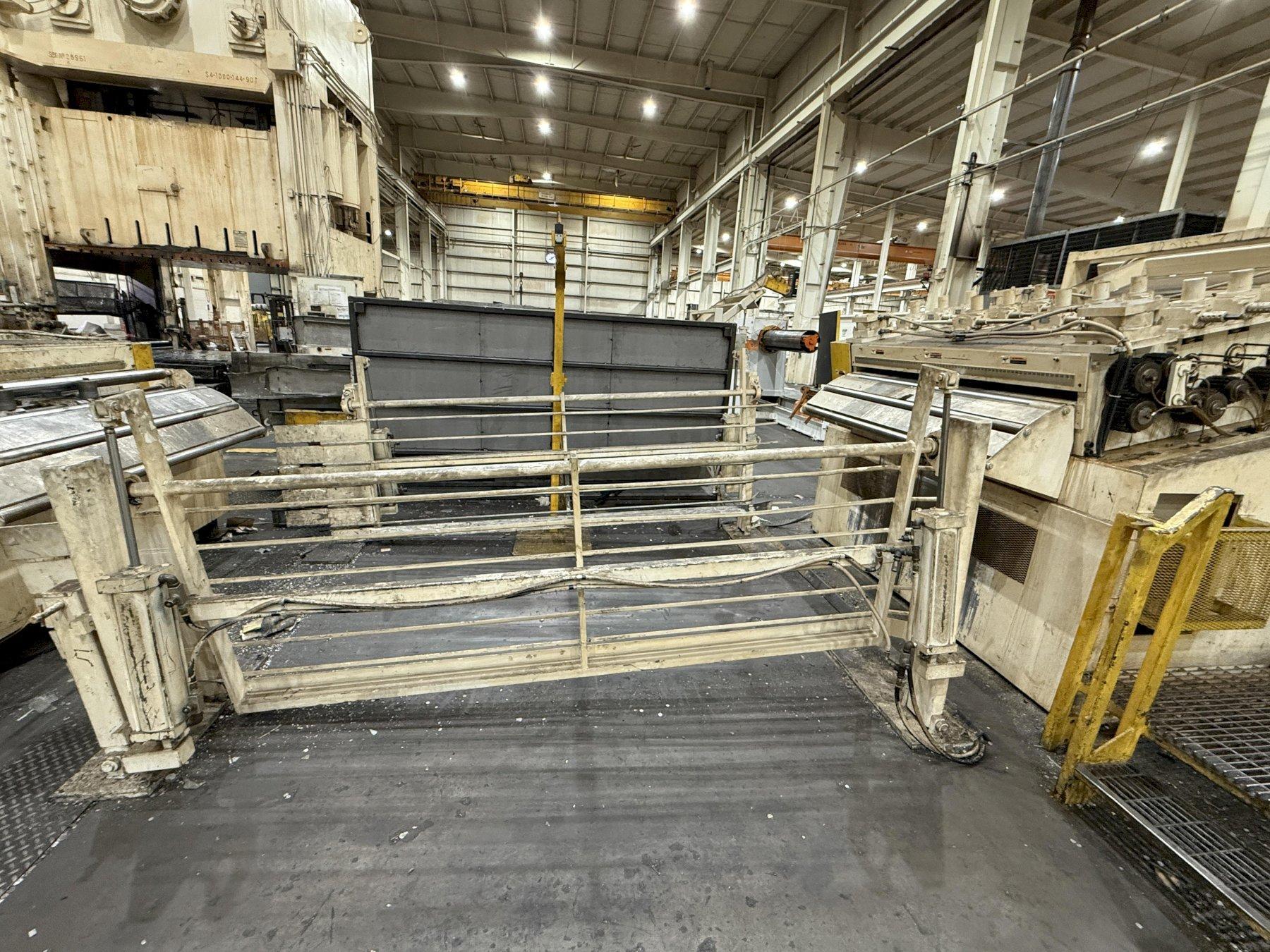

Dual Thread Table with Loop Control Model#: CPTT-1572

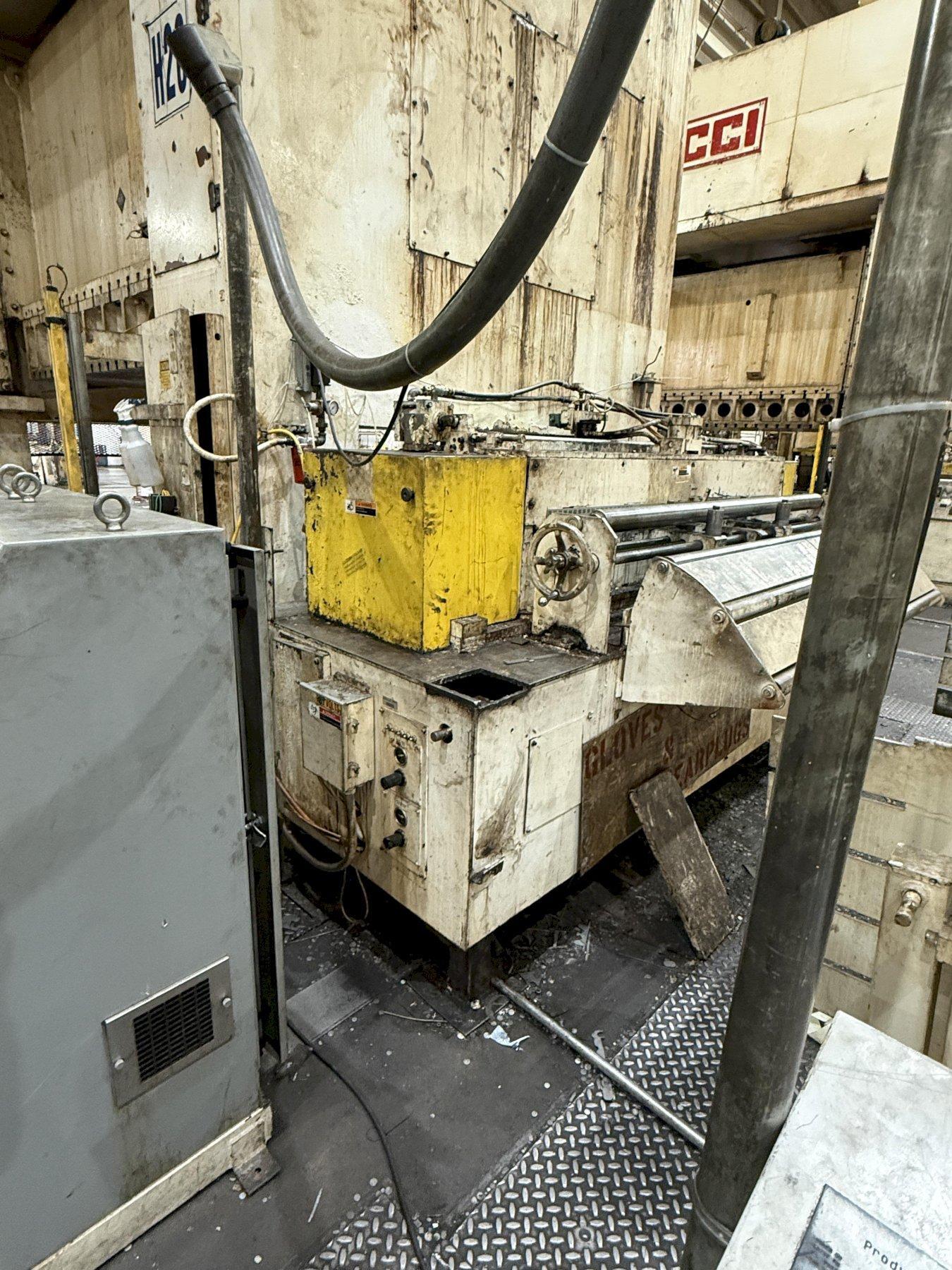

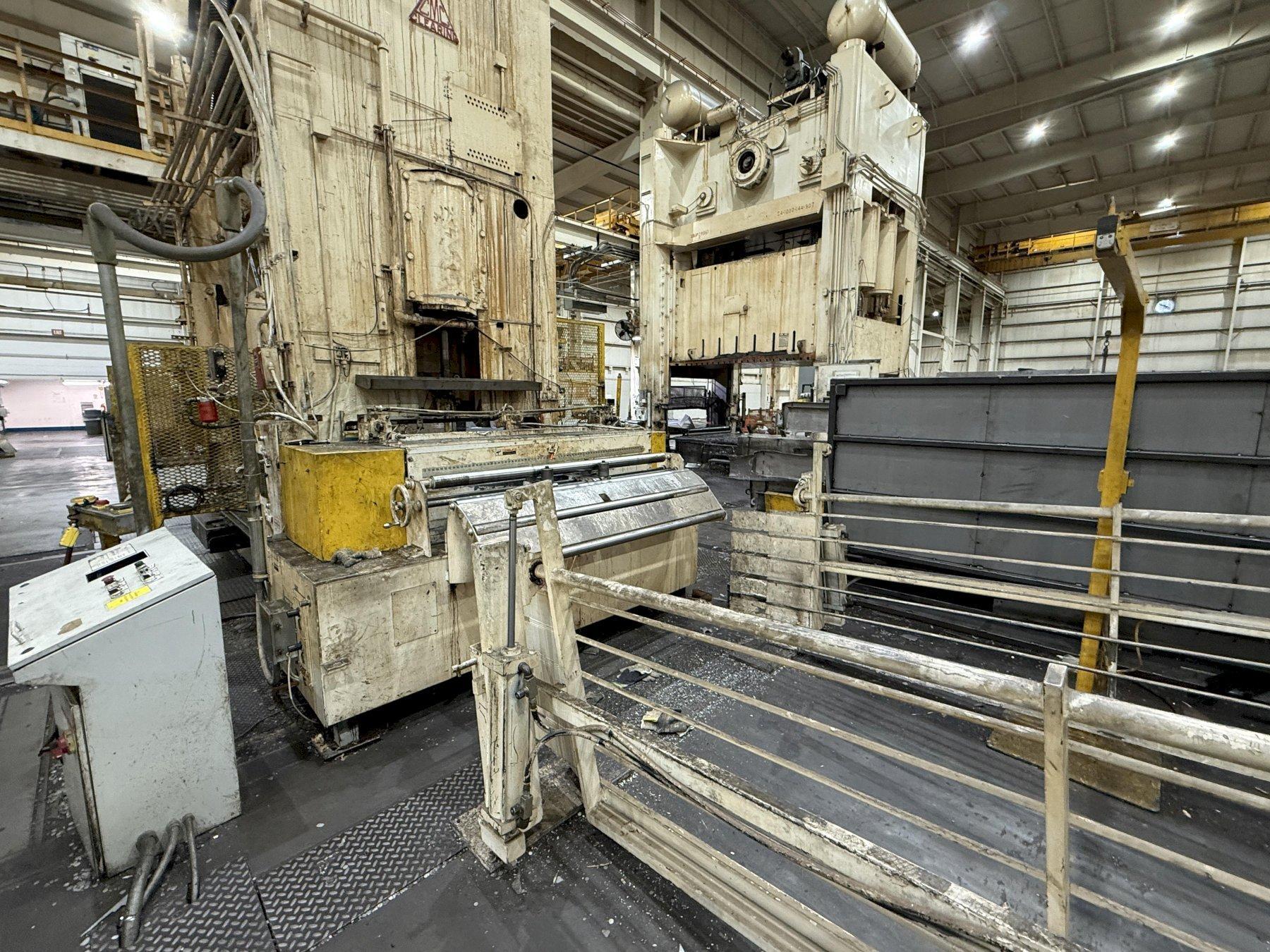

Coe Cabinet Mounted Feeder Model#: CPRF-8-72
8” diameter Upper and Lower Feed Rolls
Pilot Release of upper rolls
Cabinet Base Mounted
Entry Cascade Loop Support Rollers
AC Servo Drive and Controls
Adjustable Base Feeder
Motors and Controls

Can be seen under power in Midwest Plant with notice!  Call for more detail and schedule your inspection today.

Optimize your metal forming facility with this high-capacity 72" Coe Press Equipment Conventional Coil Feed Line. Engineered for heavy-duty performance, this line handles a 30,000 lbs. coil capacity and material thicknesses up to .187" at full 72" width. Featuring a CPPS-PO-500-72 straightener with seven rolls and a CPRF-8-72 cabinet-mounted servo feeder with 8” rolls, this system ensures precision flatness and feed accuracy for high-production environments.

When you buy from S&G Press and Machinery, you aren’t just buying equipment; you are gaining 26 years of technical expertise. We specialize in stocking and reconditioning premium brands like Coe, ensuring every line is production-ready. This specific Coe line features updated Allen Bradley AC Variable Frequency Drives and can be inspected under power, providing the ultimate transparency before your purchase. Trust S&G Press for reliable industrial machinery solutions that minimize downtime and maximize ROI.
