Trim Coil Winding Line, Michigan Roll Form, 24" x 0.024"

Stock

12057-HK

Model

None listed

Dealer Location

Ohio

Spec Sheet

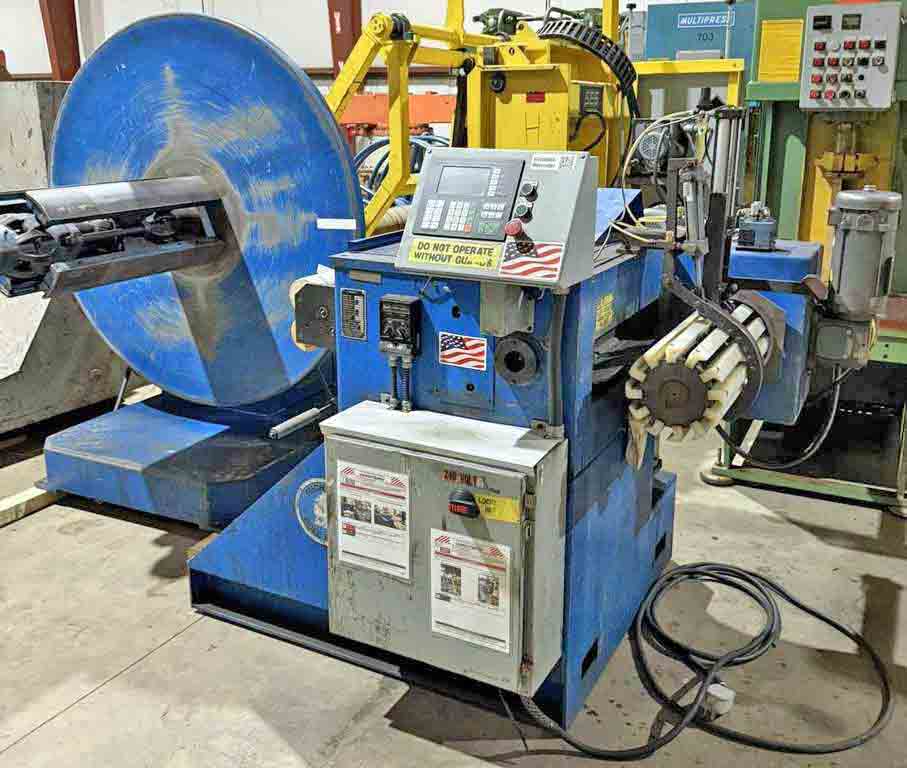

Michigan Rollform Trim Coil Winding Line

Capacity: 24" x 0.024" Mild Steel

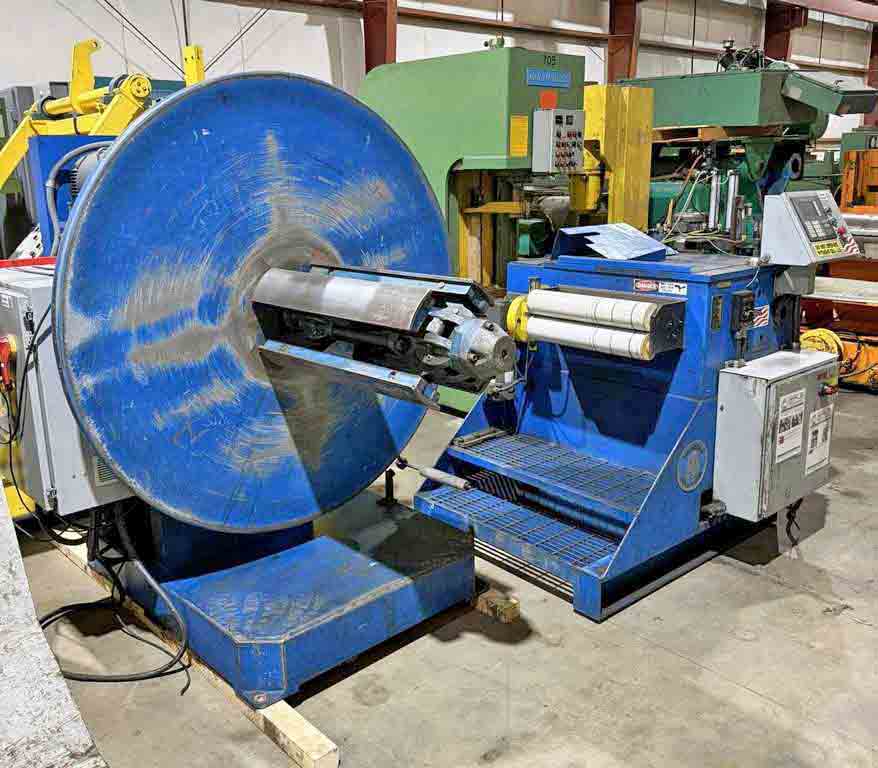

Consisting of the following:

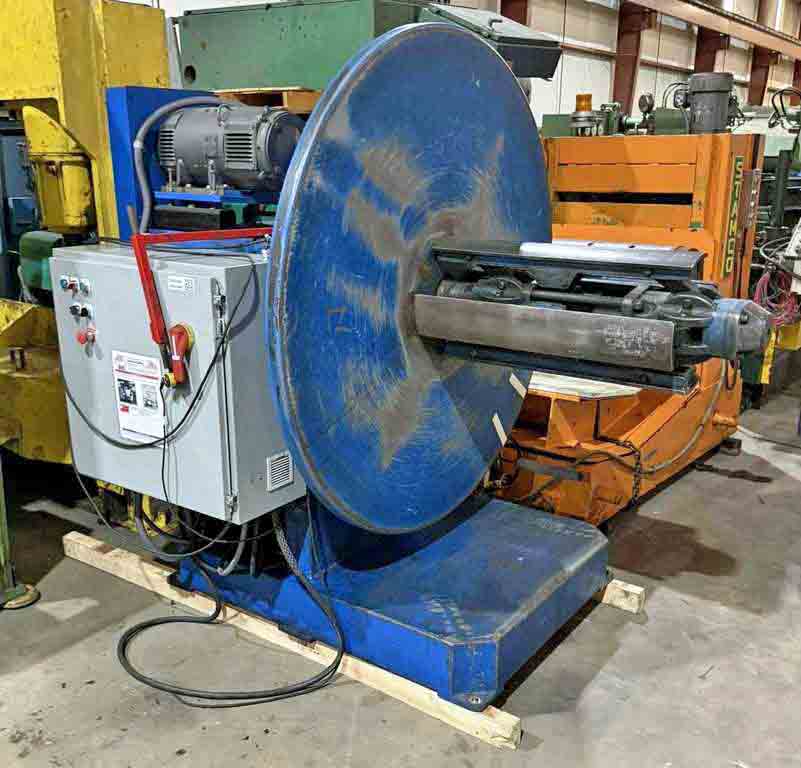

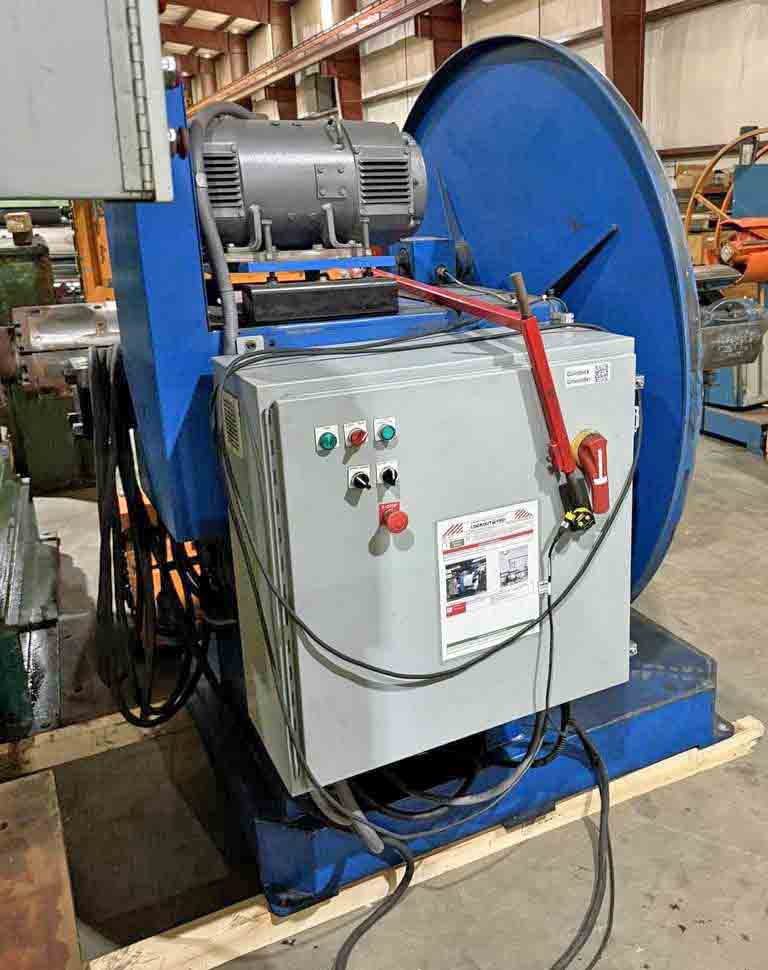

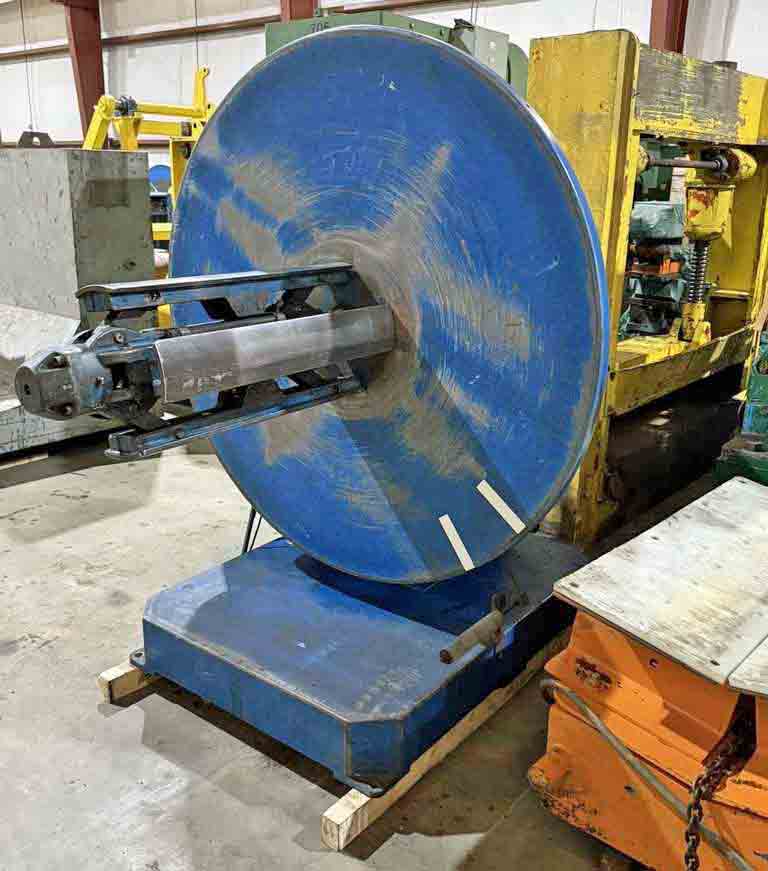

-Motorized Uncoiler:
Model: VHCH 60
Serial Number: 60269
Weight Capacity: 6,000 lbs.
Width: 26"
Hydraulic Expansion: 16" - 20"

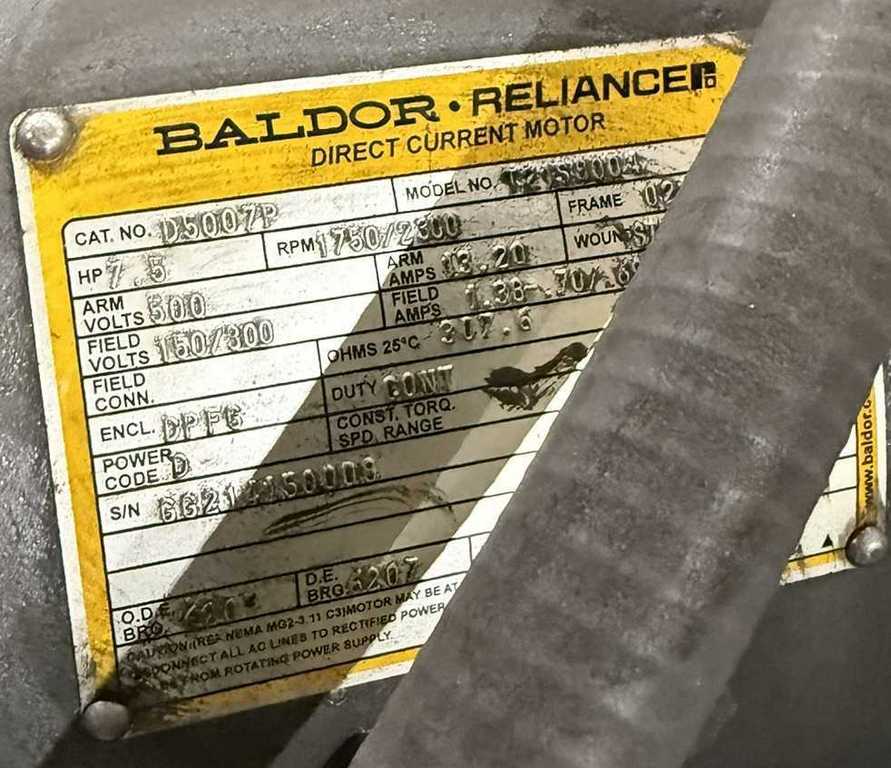

7.5 HP Baldor DC Motor, 1750/2300 RPM, 500 V
Line Speed: 0 - 350 FPM
Self-Contained Hydraulic Power Unit

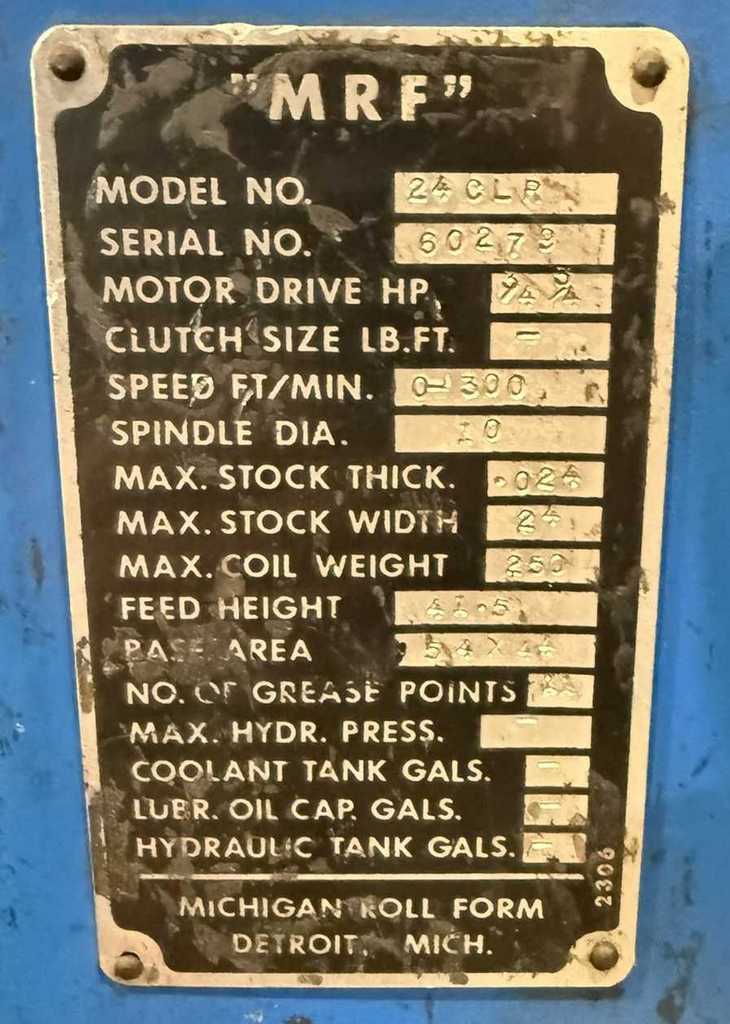

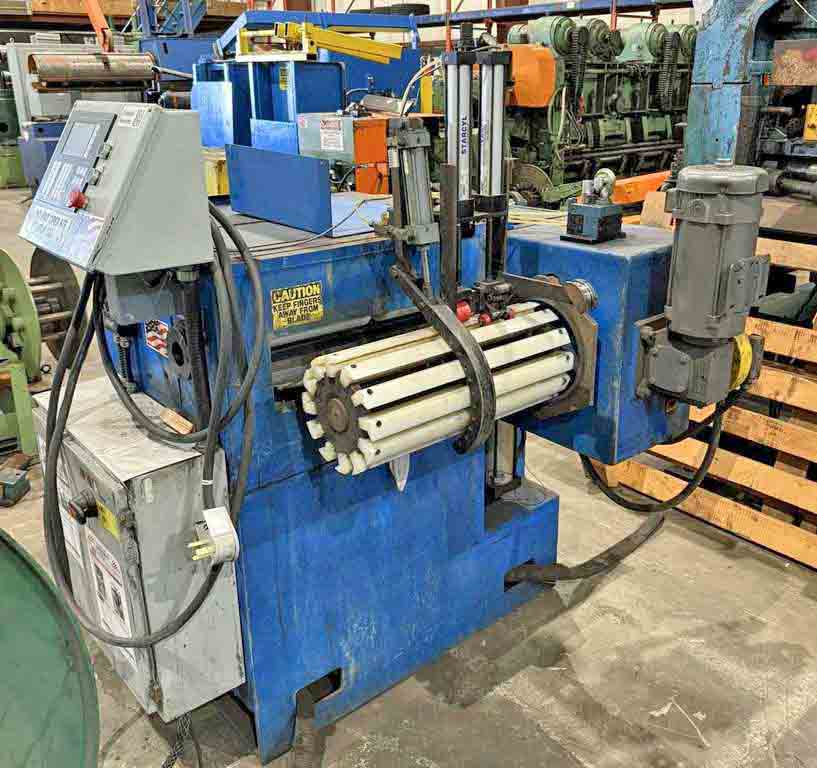

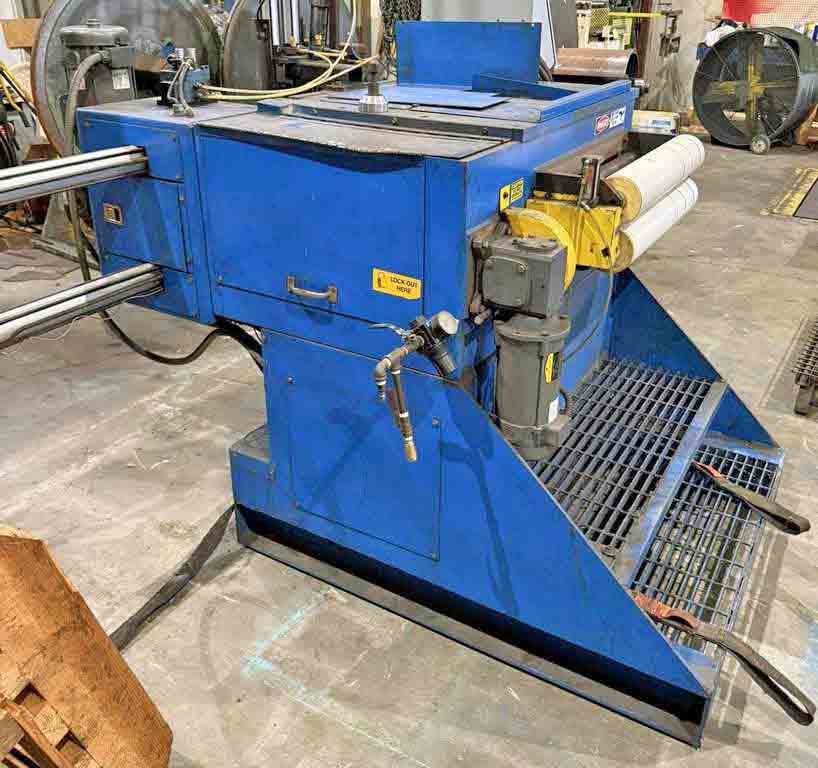

-Straightener & Rewind Unit:

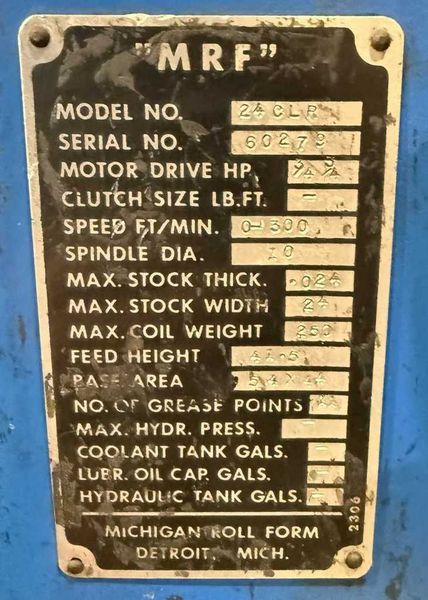

Model: 24CLR
Serial Number: 60278

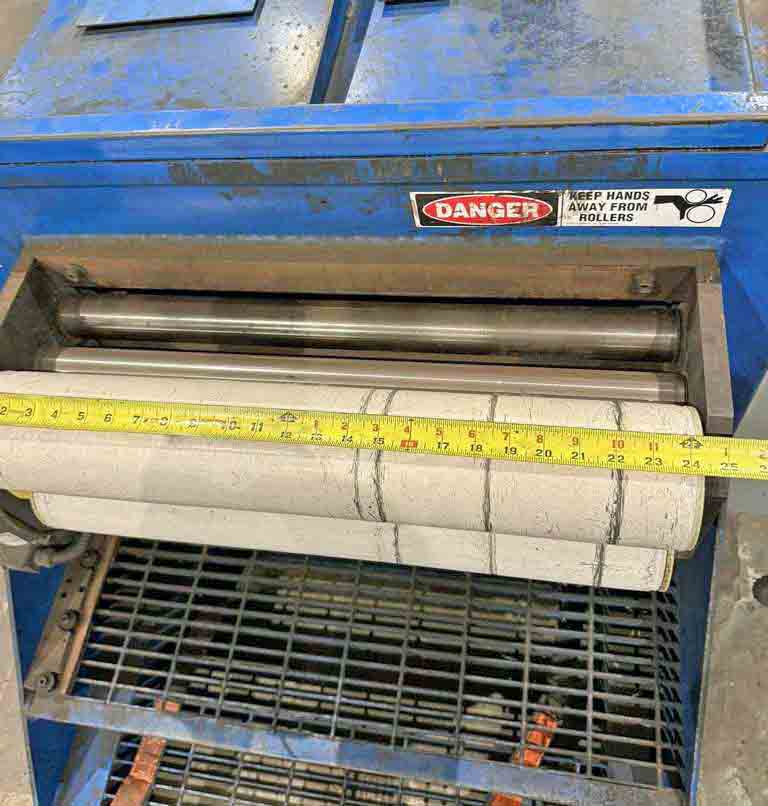

Stock Width Maximum: 24"
Maximum Thickness: 0.024"
Entry Passline Rolls
Entry 3 Roll Coil Breaker
Line Speed: 0 - 300 FPM
Straightener Motor: 0.75 HP Baldor DC Motor
Rewind Motor: 0.75 HP Baldor DC Motor, 1750 RPM

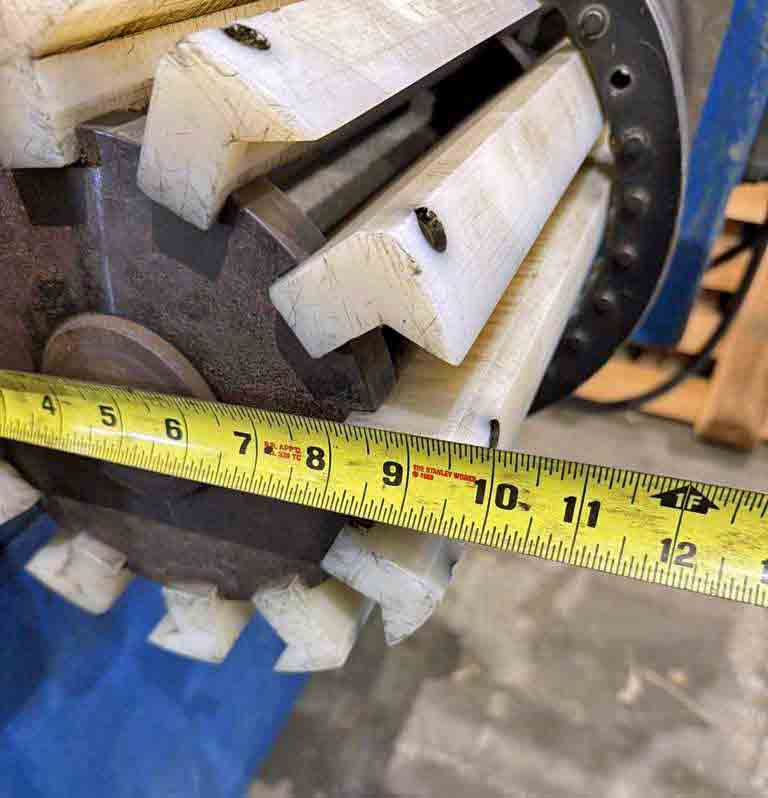

Rewind Mandrel Diameter: 10"
Rewind Coil Weight: 250 lbs. max.
Air Cylinder Pushoff
Passline Height: 41.5"
Touchscreen Control Panel

-Line Direction: Left to Right

-Overall Dimensions: 7' L x 7' W x 6' High

-Approx. Weight: 4,000 lbs.

-In Storage: Toledo, OH
