EUROTECH TTL-66-66-T1Y-TY2 - Horizontal Lathe

Manufacturer

EUROTECH

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

25908

Model

TTL-66-66-T1Y-TY2

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

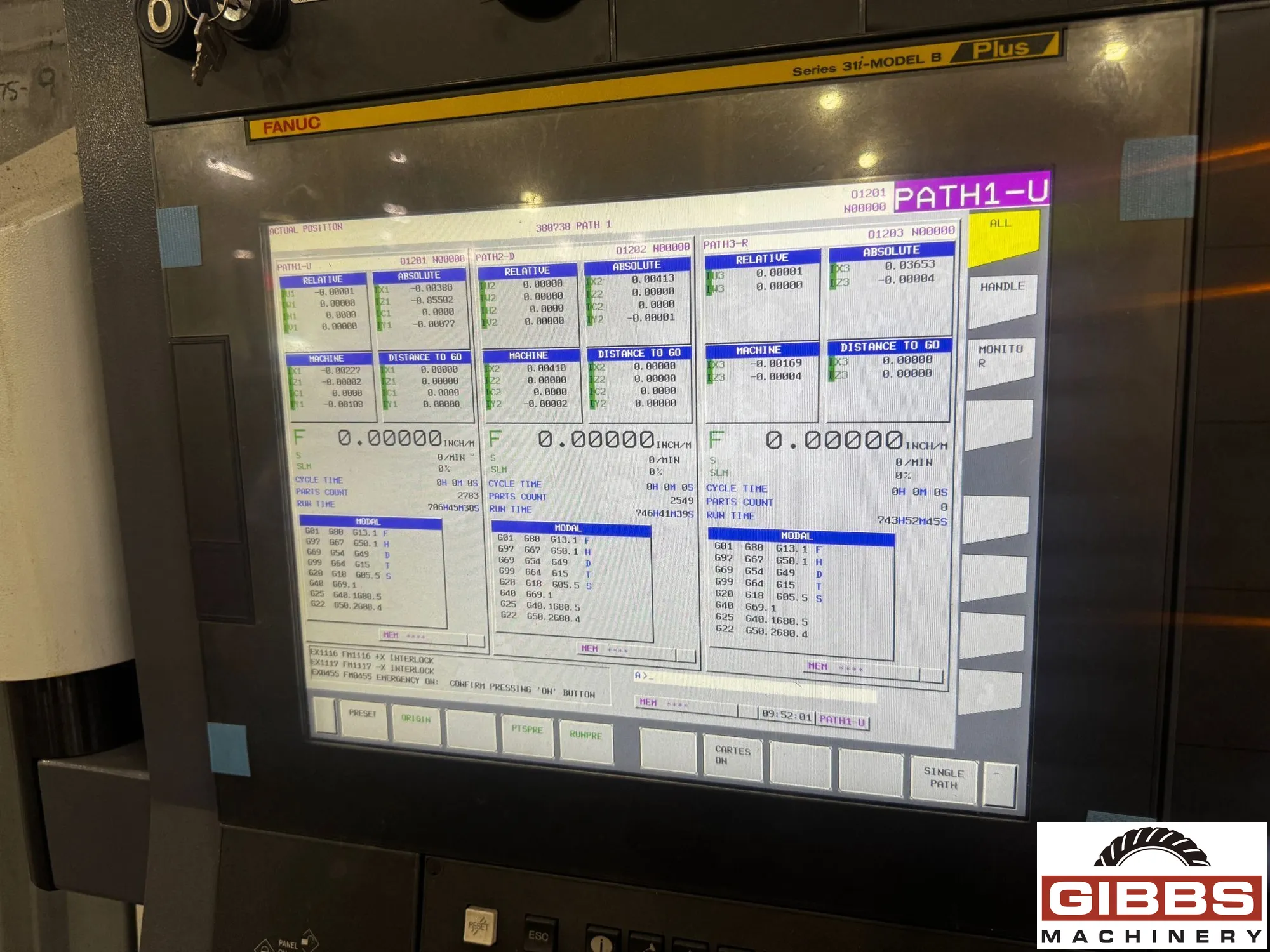

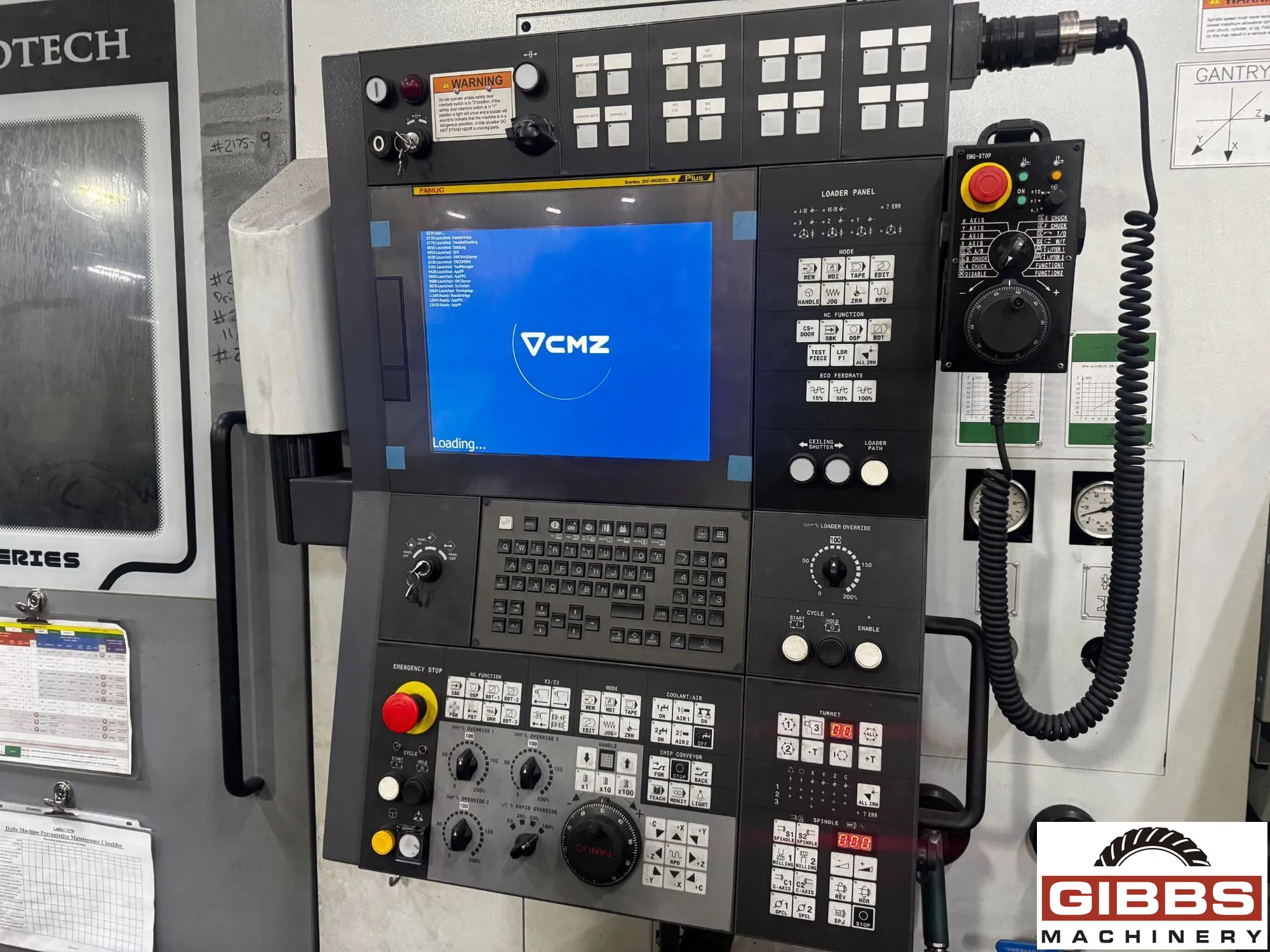

  • Fanuc 31iT CNC Control
  • 15" Color Monitor

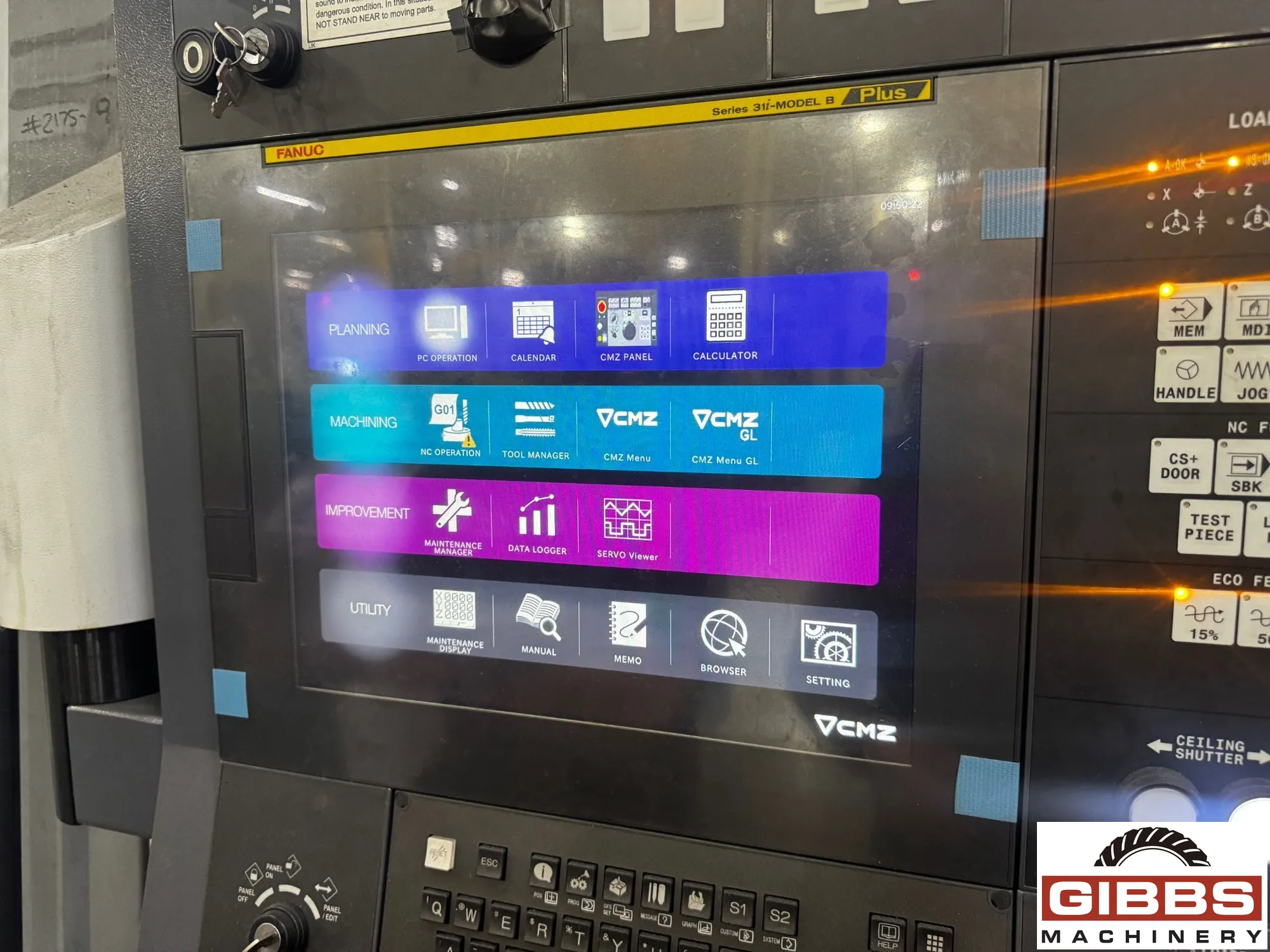

  • Fanuc iHMI Software
  • G Codes Type A in Fanuc
  • Coolant Through Left Spindle
  • SMW-Autoblock BB-D 210 3-Jaw Chuck L/R Spindles
  • Removeable Tool Pre-Setter

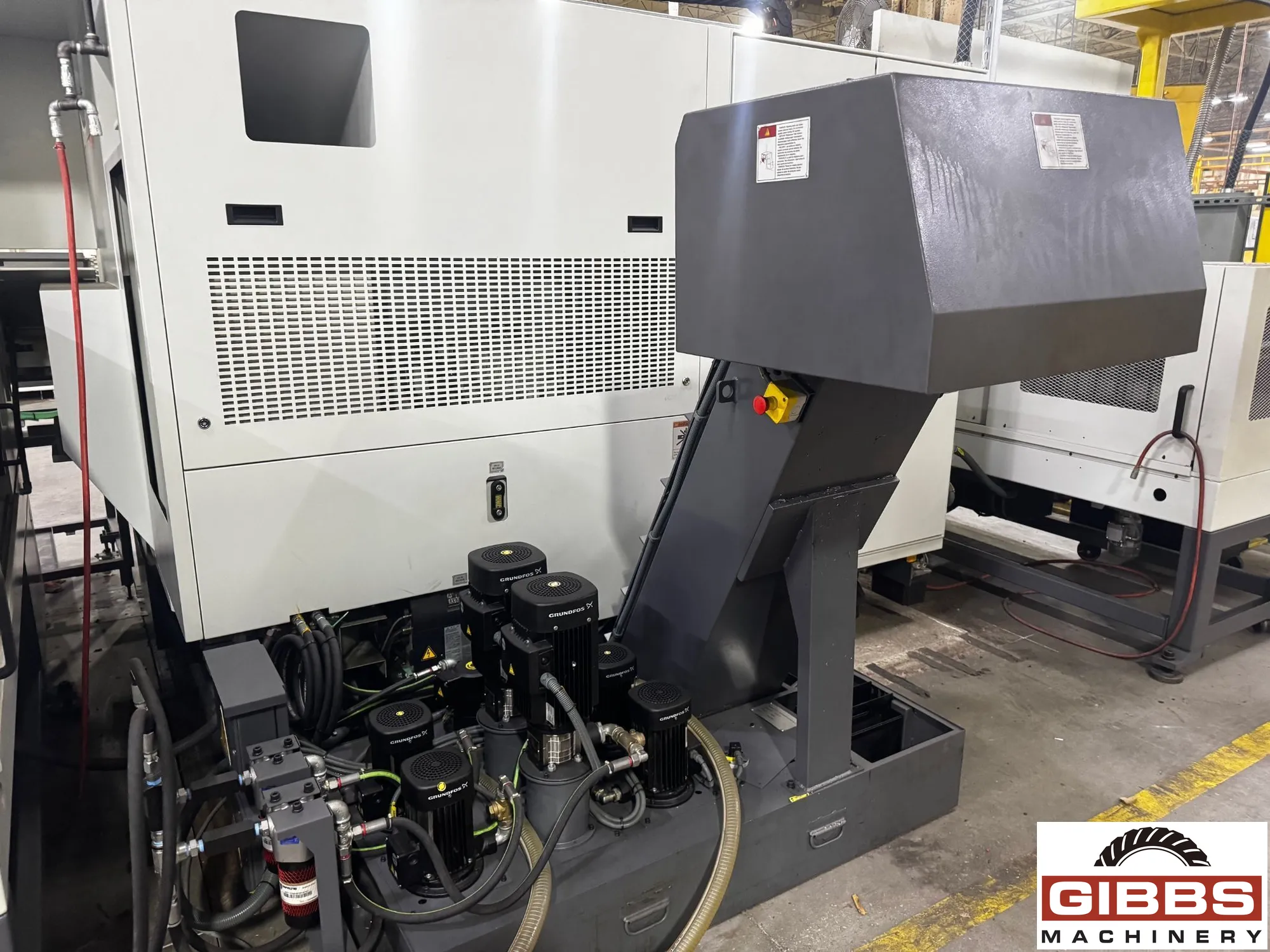

  • Upper Turret HP Coolant Pump (6+15 bar, 55l/min)
  • Lower Turret HP Coolant Pump (6+15 bar, 55l/min)

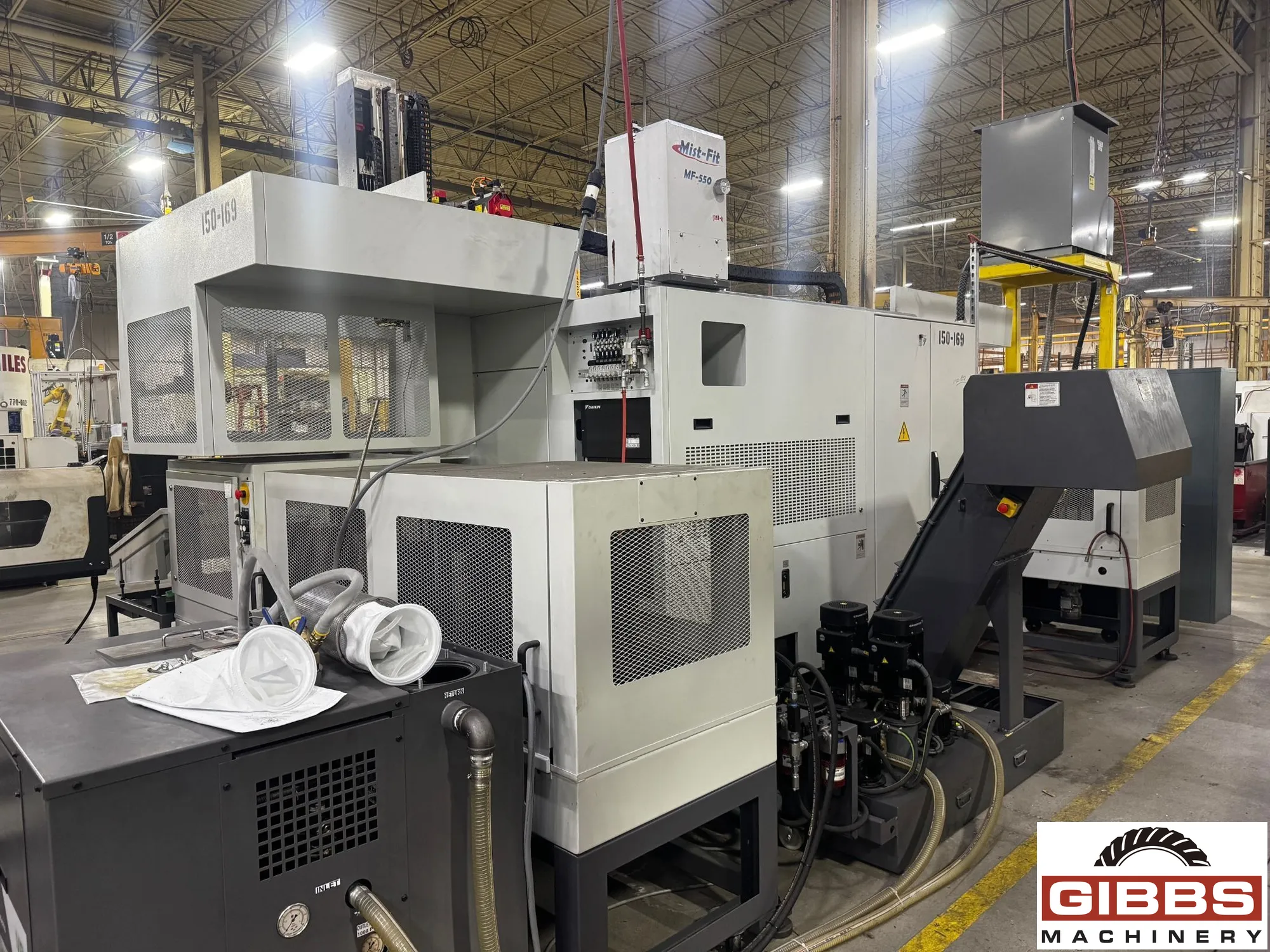

  • GL20-II 3-Axis CNC Gantry Loader Side Loading
  • Servo 2 x 180° Dual Gripper Gantry Swivel Head

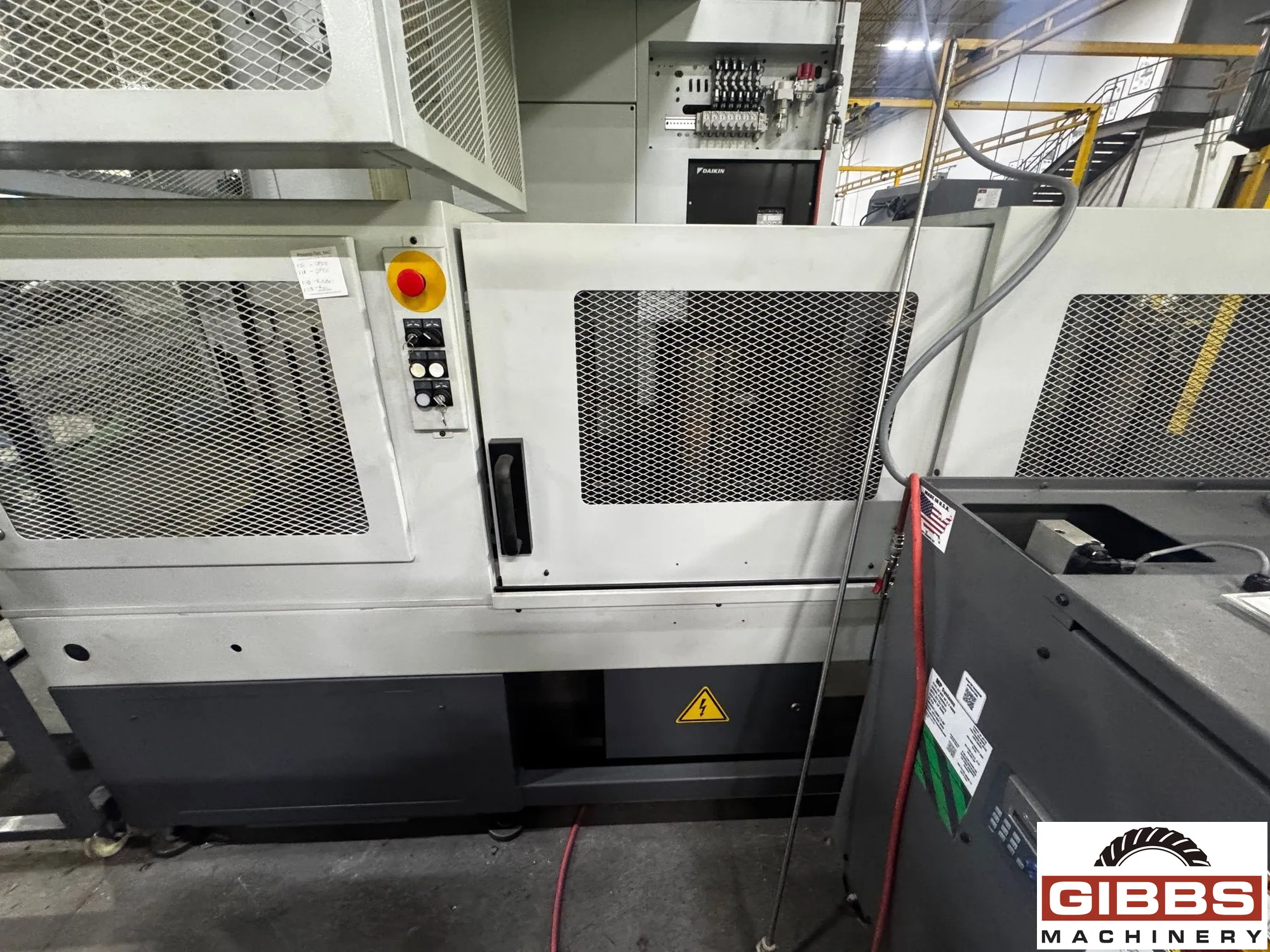

  • Work Stocker WS-280 x 400 x 14 (R/L Side of Machine)
  • Pallet with auto-centering Rods
  • Test Piece Chute and Table

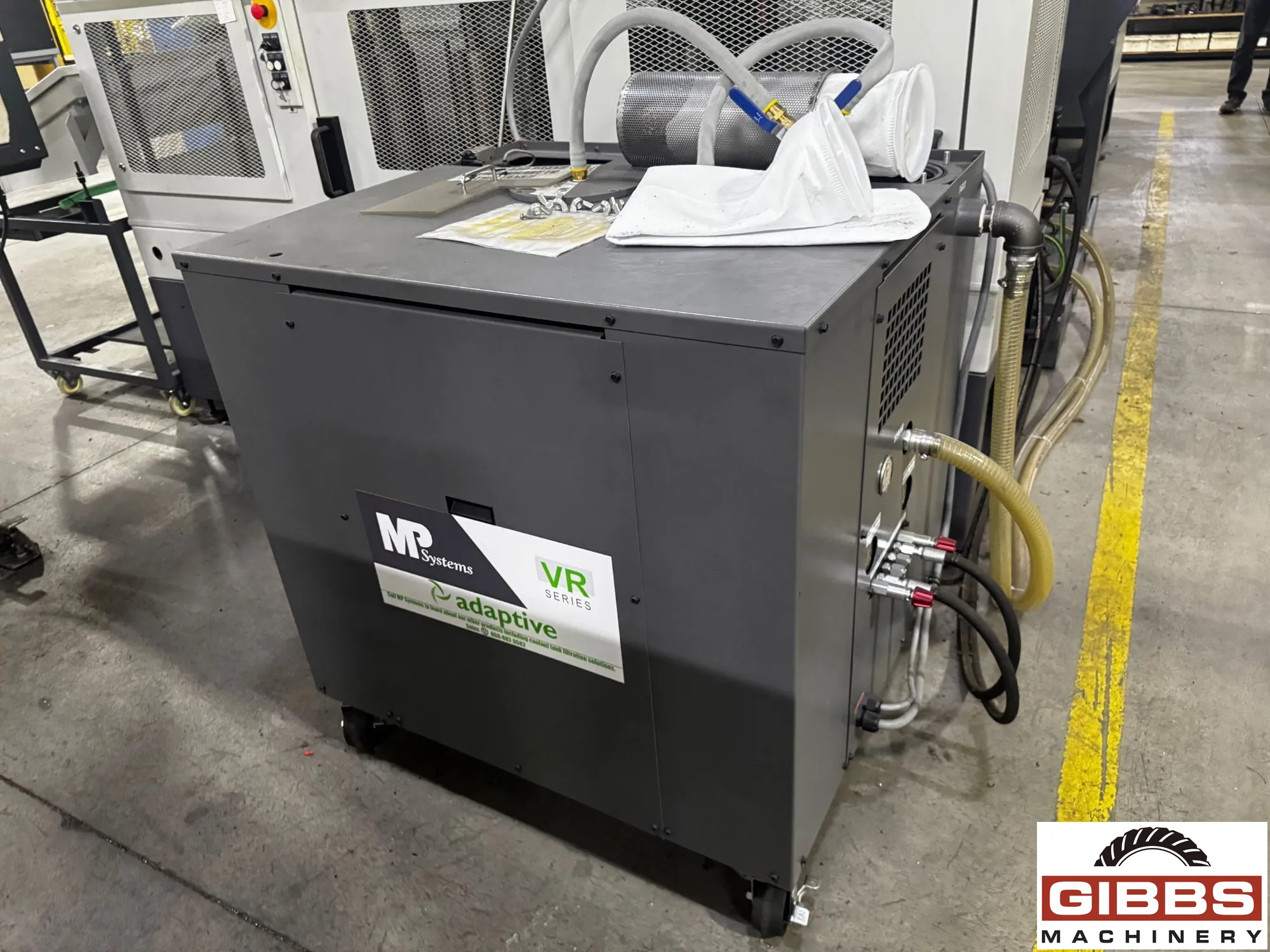

  • MP Systems Variable Rate HP Coolant System
  • Mist Collector
  • Transformer
  • Machine Status Light
  • Tool Life Management Function
  • Tool Load Monitoring Function
  • Barfeed Interface - Unimag
  • Interface for Mist Collector
  • Gantry Covers
,

Machine Specifications :

  • Year 2023
  • Manufacturer EUROTECH
  • Swing 9.45"
  • Machining Length 20.28"
  • # Axis 4.0
  • Chuck Size 8.0"
  • Bar Capacity 2.0"
  • Power 47.6 HP
  • Max RPM 4,000 RPM
  • Turning Dia 9.5"
  • Tailstock No
  • Live Tooling Yes
  • Sub Spindle Yes
,

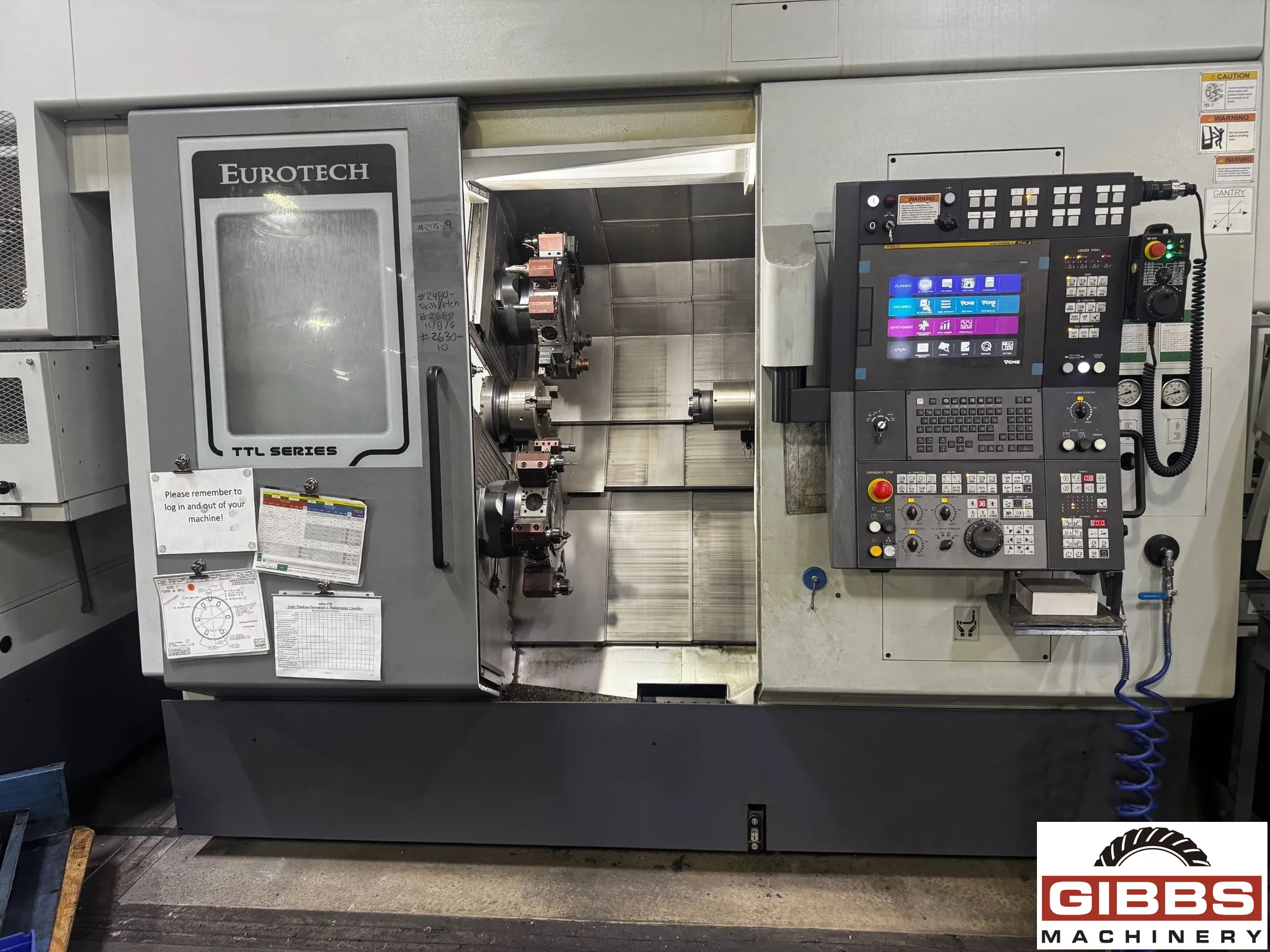

The Eurotech TTL-66-66-T1Y-T2Y is a 2023 twin-spindle CNC turning center from the CMZ TTL series, optimized for high-volume production of precision shafts and complex parts up to 66 mm bar capacity. It features dual Y-axis turrets with 12 live tools each (up to 12,000 rpm), enabling simultaneous machining, overlap, and off-center operations for superior throughput. Spindles deliver 35.5 kW/205 Nm torque at 4,000 rpm, paired with gantry automation compatibility for lights-out efficiency in job shops.

    Max Turning Diameter: 240mm

  • Turning length: 515mm
  • Bar diameter: 52mm
  • Turning speed main spindle: 4000min-1
  • Chuck size main spindle: 210mm
  • Spindle Power:35.5kW
  • Turning torque(max./S6 40%):205Nm
  • Turning speed subspindle: 4000min-1
  • Outside Ø bearing: 150mm
  • Inside Ø bearing: 100mm
  • Spindle Nose Mounting: ASA 6" A2

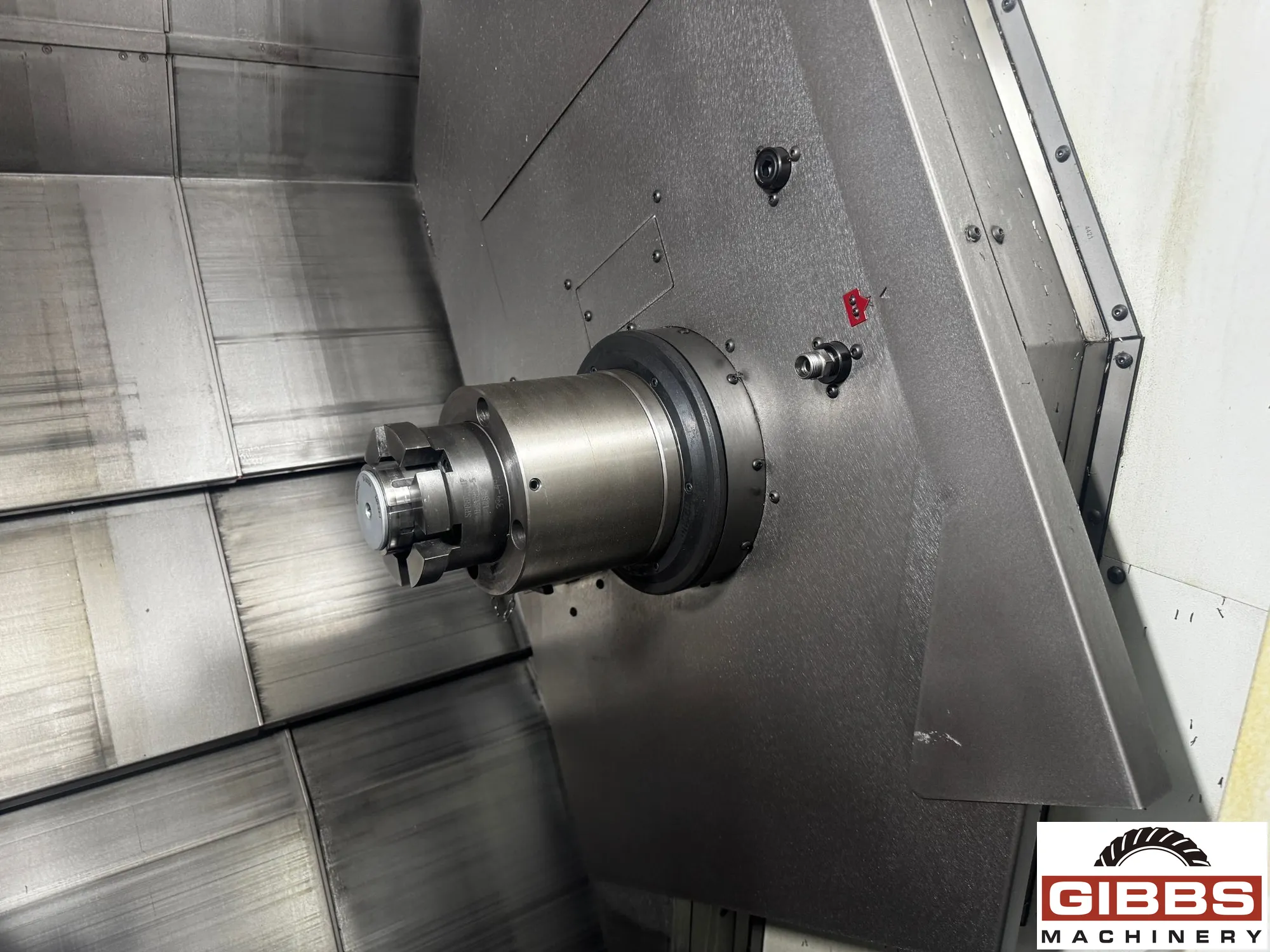

  • Bore diameter subspindle: 61mm
  • Bar diameter subspindle: 52mm
  • Chuck size subspindle: 210mm
  • Power subspindle: 35.5kW
  • Torque subspindle: 205Nm
  • Number of turrets: 2
  • Number of Tools: 12
  • Type of tooling on turret:BMT 55
  • Time to change tool: 0.1s
  • Number of rotary tools: 12
  • Speed of rotary tools: 12000min-1
  • Power: 14kW
  • Maximum torque:42Nm
