2001 Minster E2-600-120-60 Hevi-Stamper - 600-Ton Double Crank Press

Manufacturer

MINSTER

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

3002

Model

E2-600-120-60 Hevi-Stamper

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Tonnage - 600
Stroke - 16 inches
Shut Height - 32 inches
Adjustment - 6 inches
Bed Size - 120" LR x 60" FB
Ram Area - 120" LR x 60" FB
SPM - 30-60

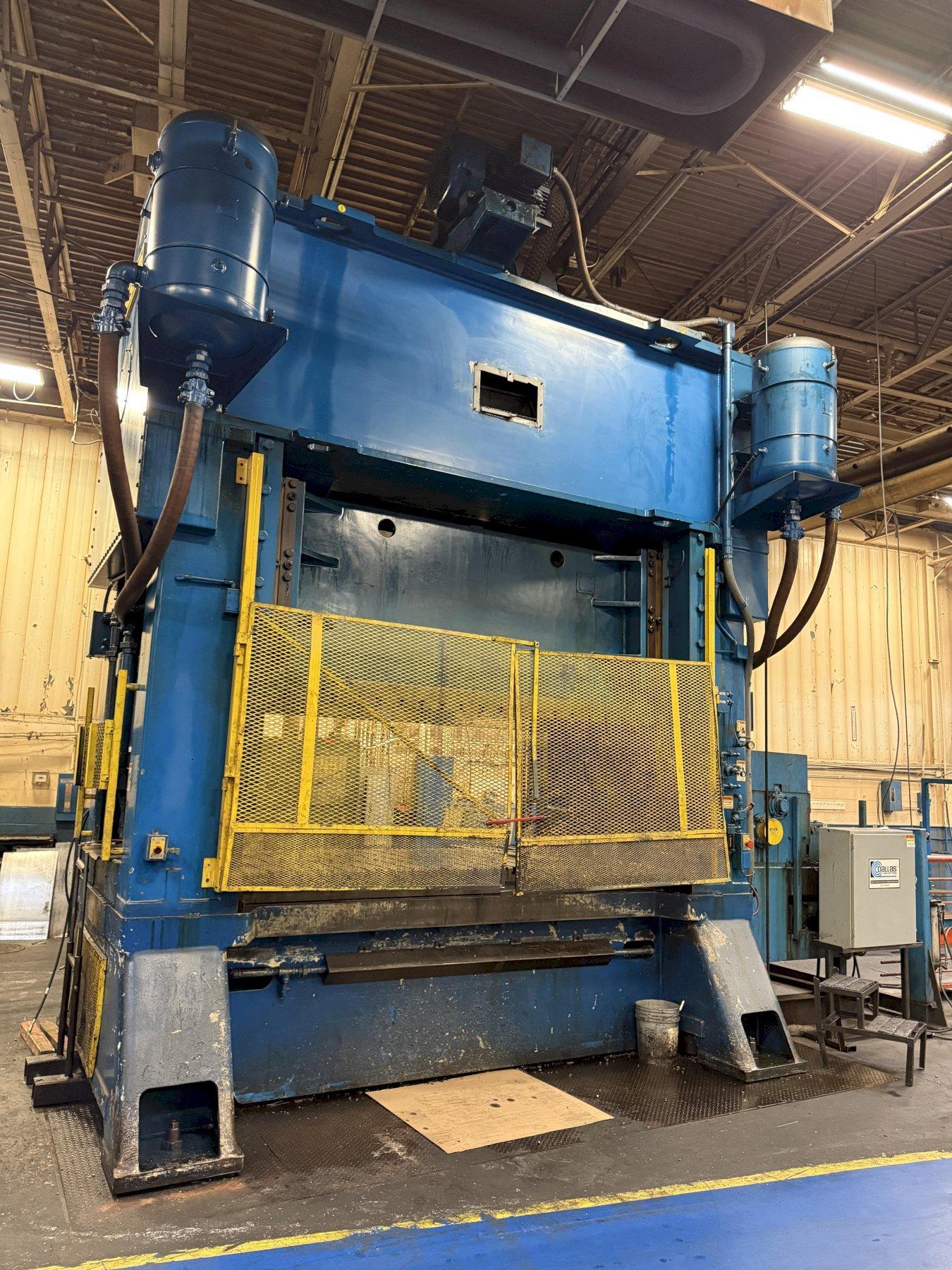

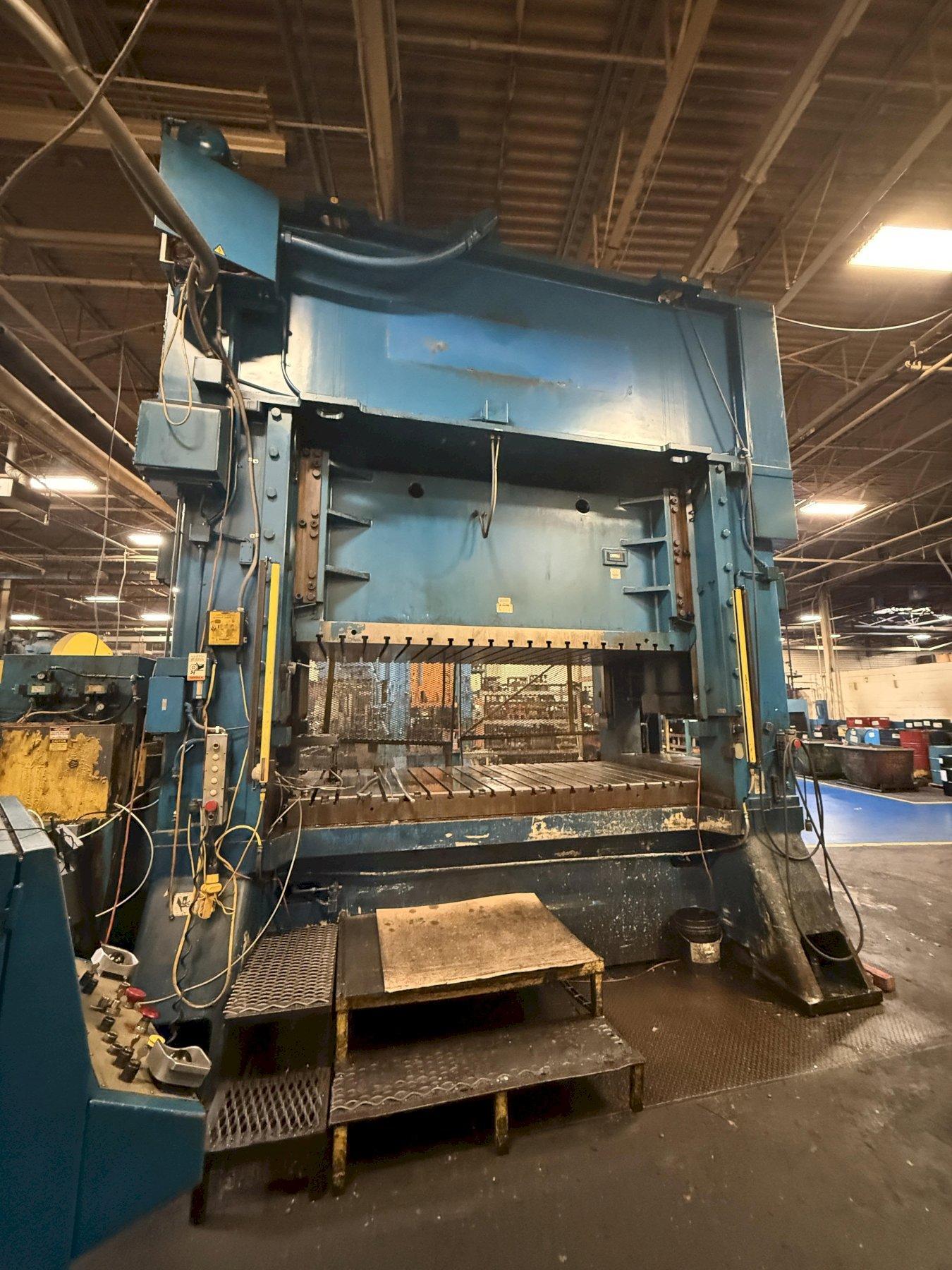

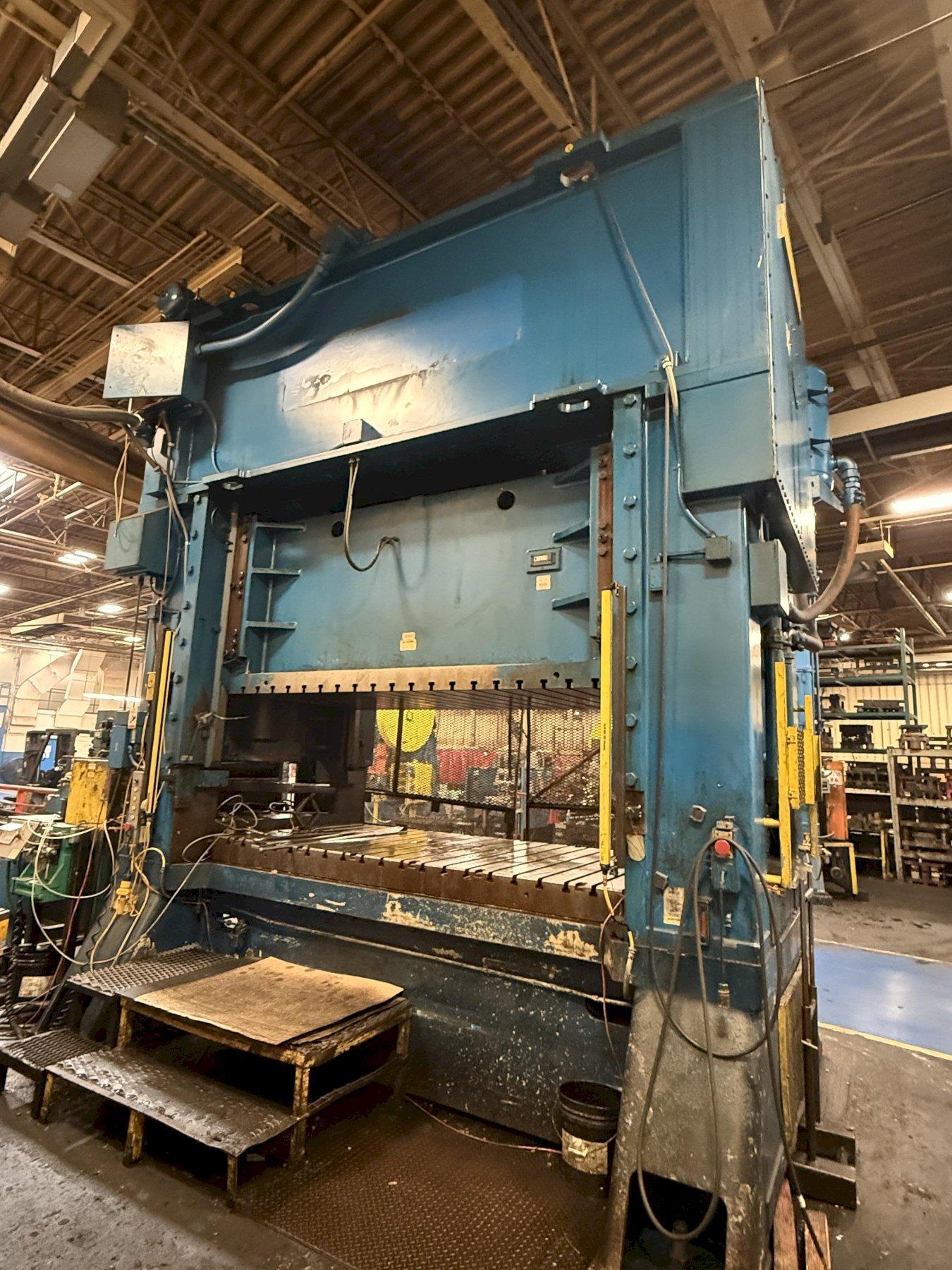

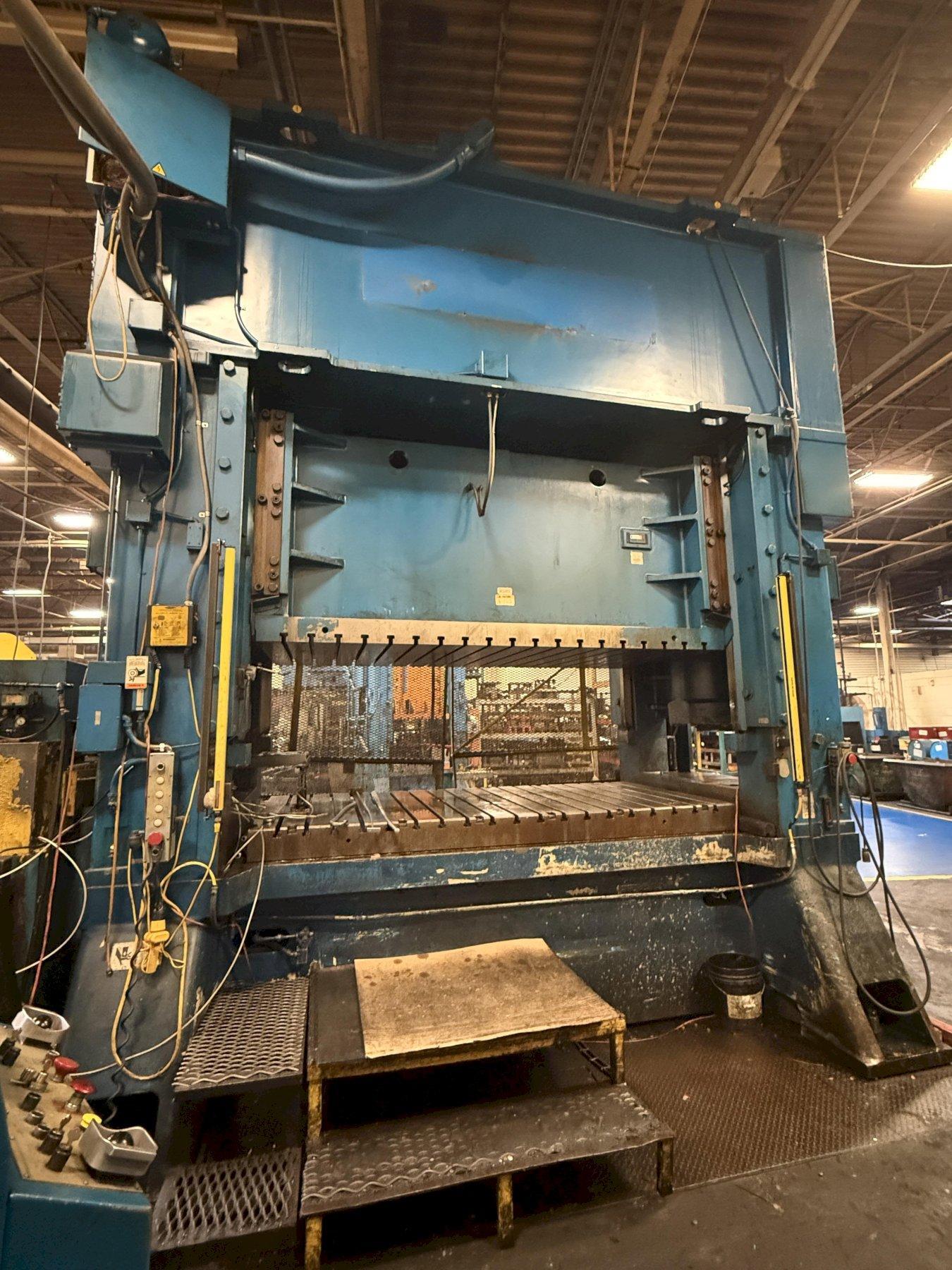

Year 2001 Minster E2-600-120-60 Hevi-Stamper

600-Ton Straight Side Press For Sale

Can be seen underpower!


600 ton Capacity
16" Stroke
32" Shut Height
6" Motorized Adjustment
120" LR x 60" FB Bed Area
120" LR x 60 FB Slide Area
30-60 Variable Strokes Per Minute

Equipment and Features
Minster Pneumatic Clutch and Brake
Minster Monitor Flow Lubrications System
Air Counterbalances
Twin End Drive - 8 Point Gibbing
One Piece Forged Eccentric Shaft
Tie Rod Construction with Heavy Uprights for Frame Rigidity
7" Thick Bolster Plate
T-Slotted Ram and Bolster
Light Curtains

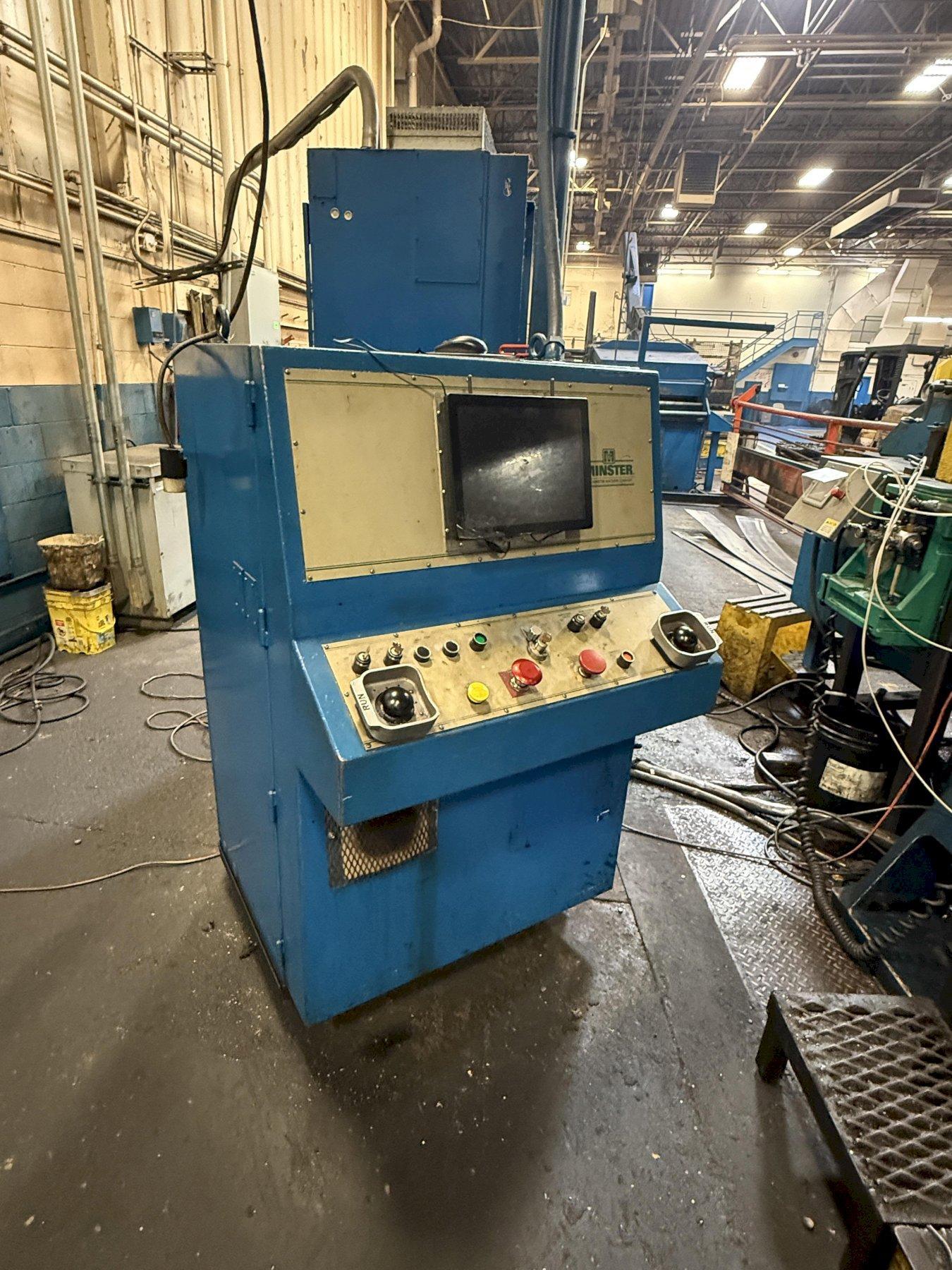

Free Standing Console Control
Variable Frequency Drive
Vibro Dynamic Floor Standing
53" Wide Windows
Floor Standing

Overall Height: 20' 5" Tall or 21' Tall with Vibro Mounts

Elevate your high-speed production with this 2001 Minster Hevi-Stamper, a premium 600-ton straight side mechanical press. Model E2-600-120-60 is engineered specifically for heavy-duty metal forming and complex progressive die applications. Currently available under power and in operation, this used Minster press delivers the industry-leading rigidity and precision required for high-tonnage stamping. With a massive 120" x 60" bed area, this robust machine provides a reliable, long-term solution for your most demanding industrial manufacturing needs.
