3690019
DNM4500S
Kentucky

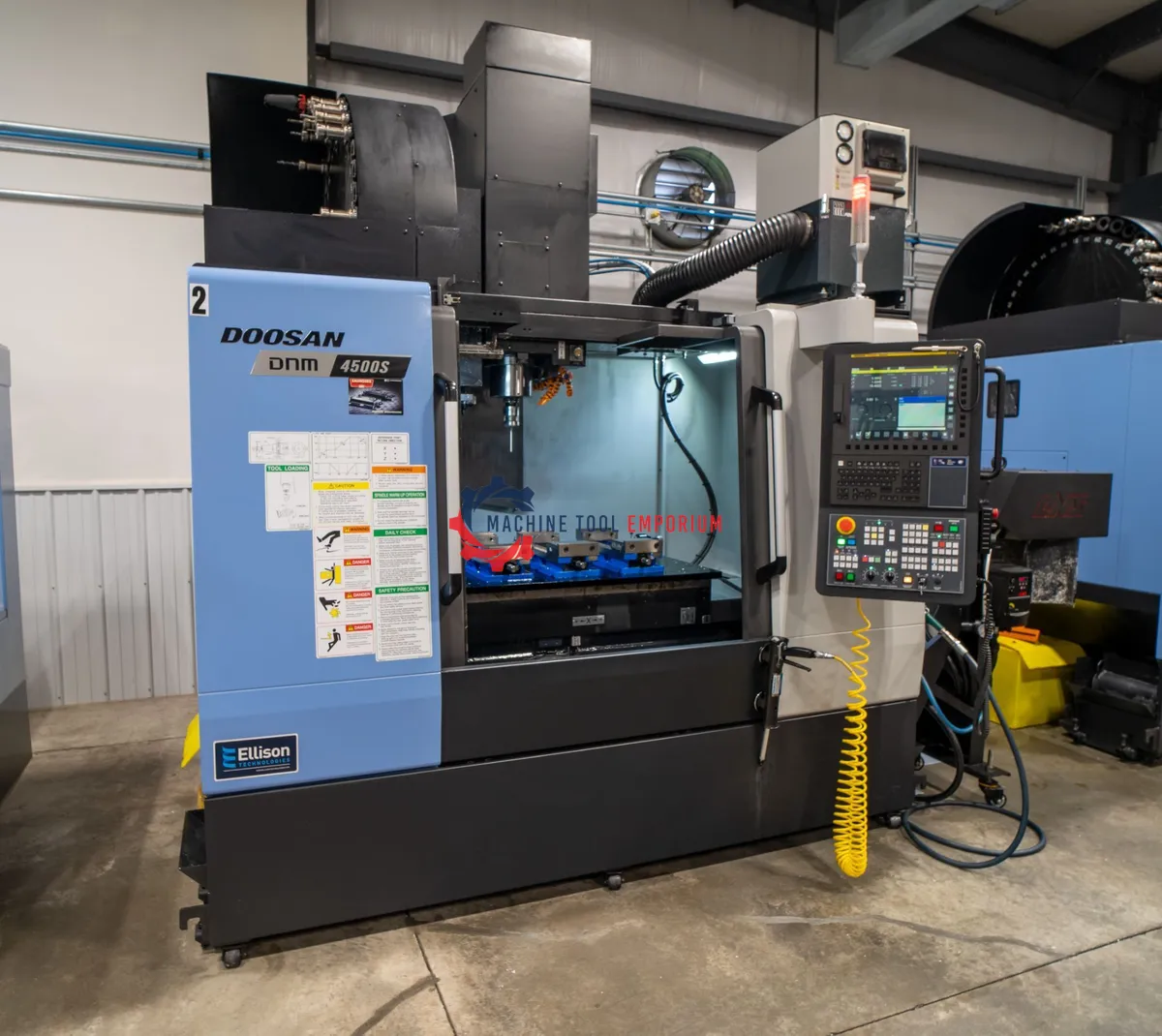

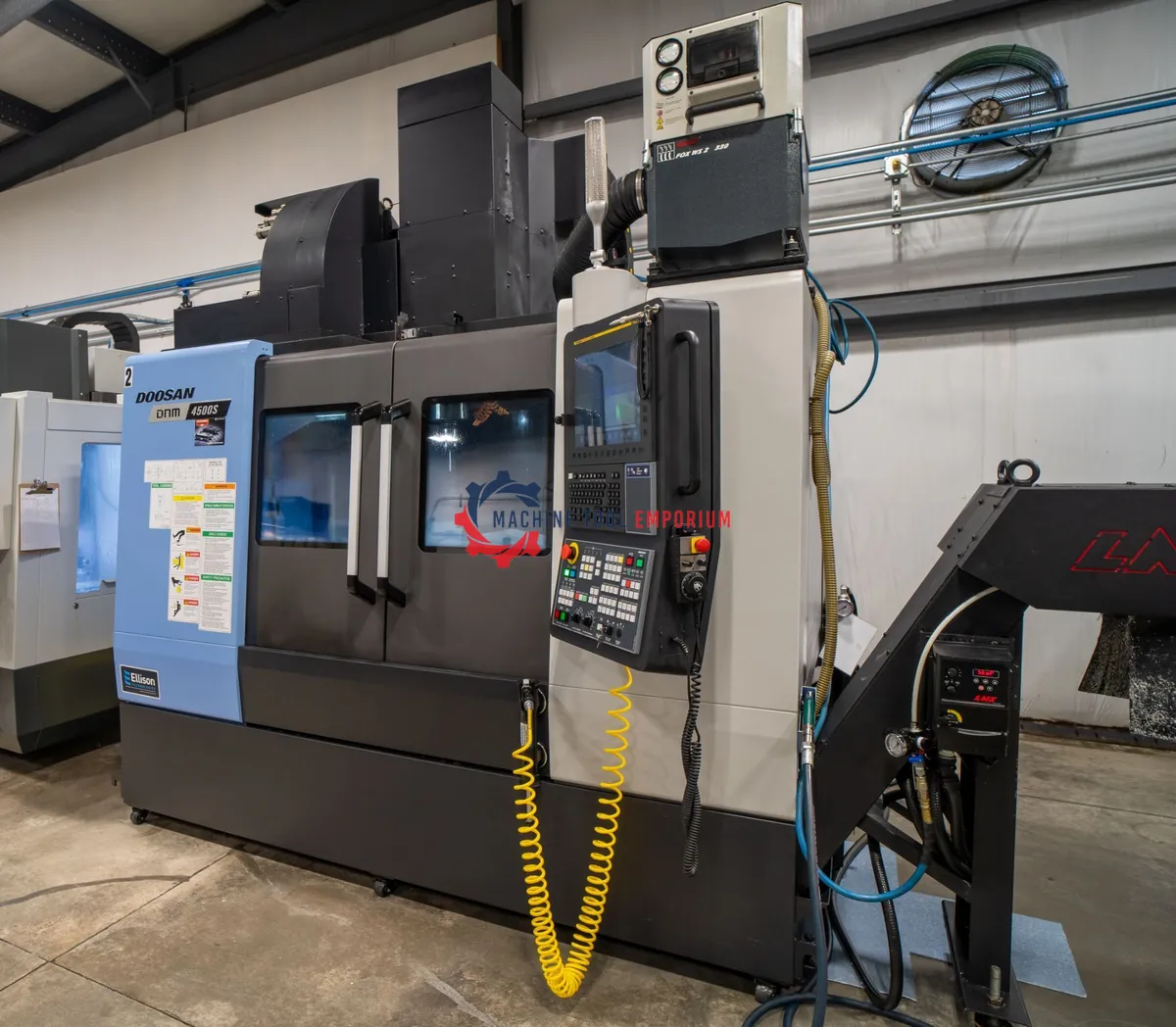

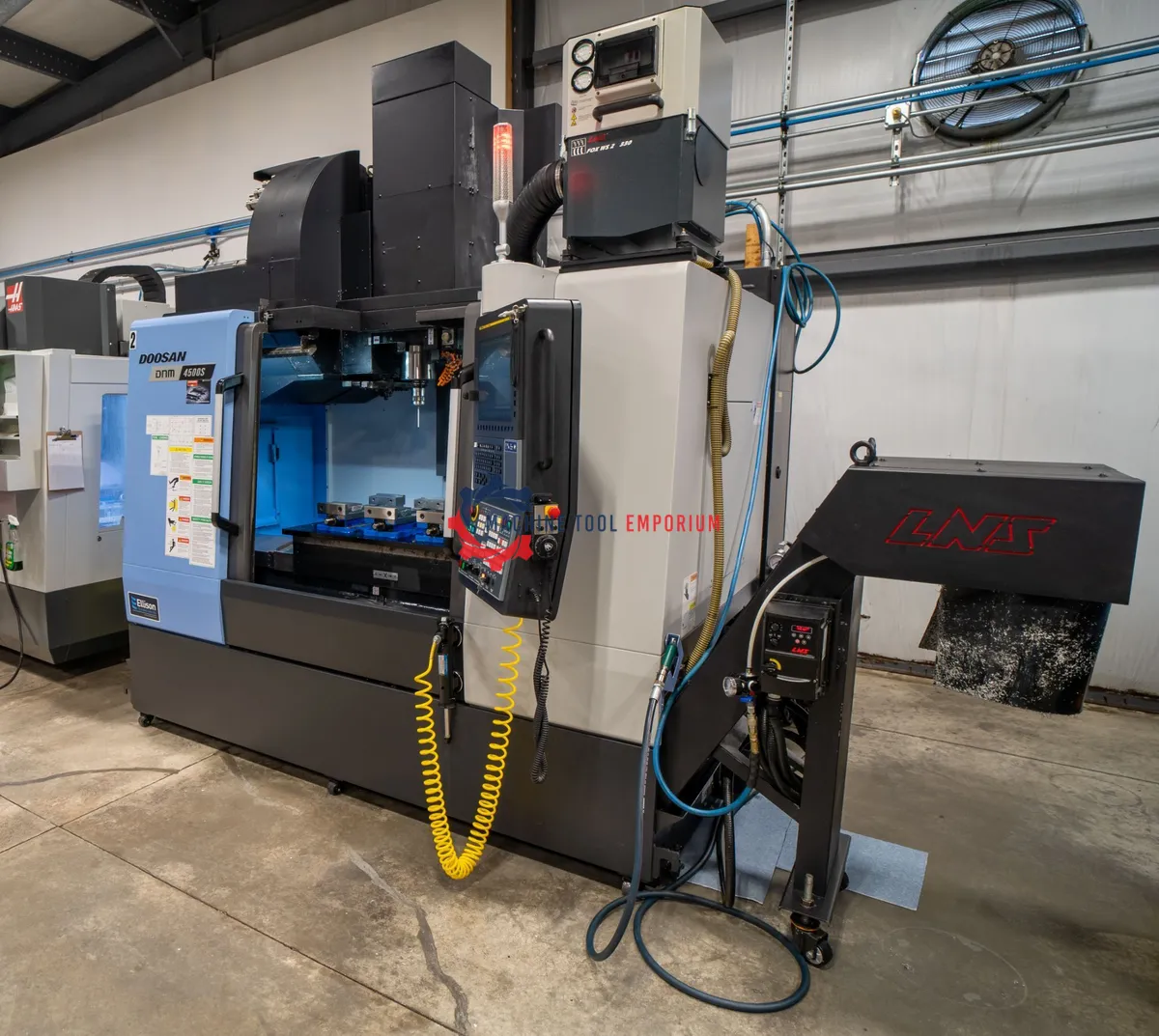

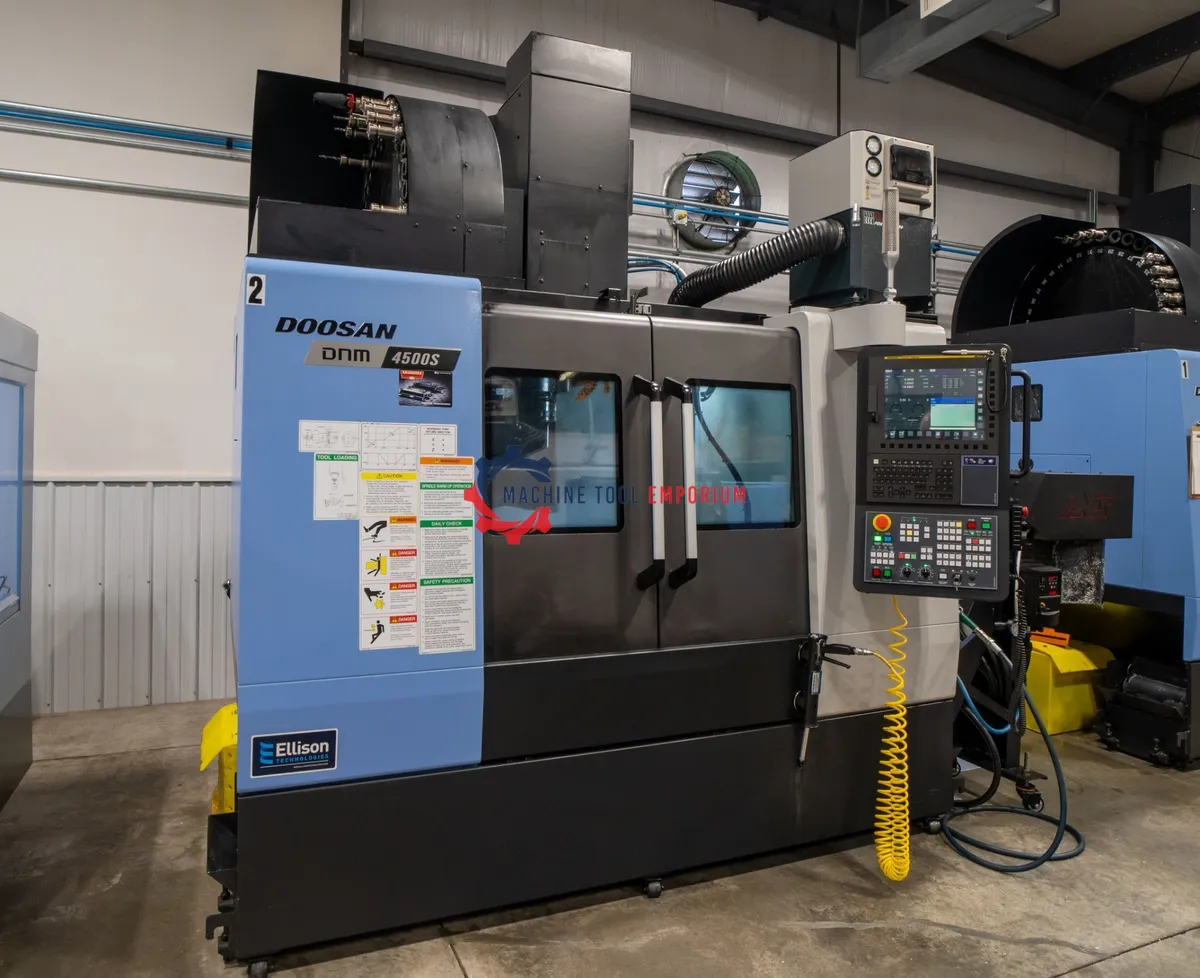

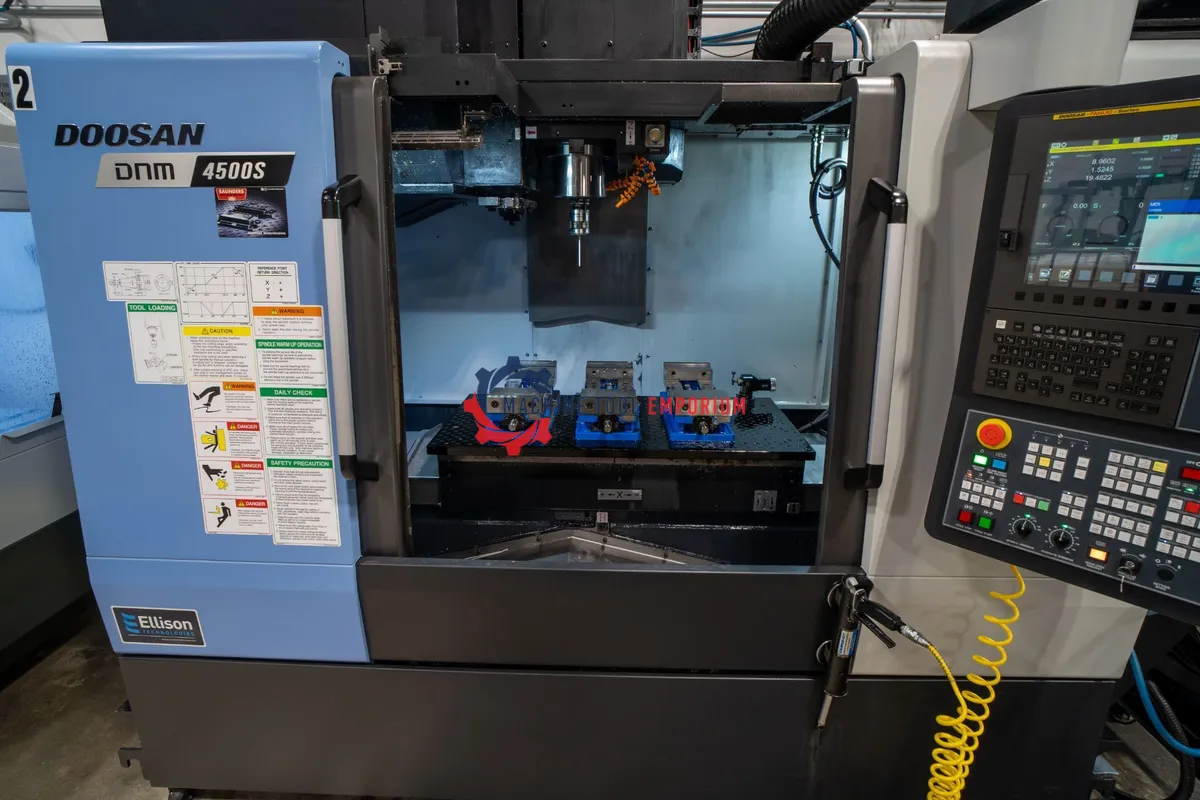

2022 Doosan DNM4500S CNC Vertical Machining Center built for high-speed, high-precision milling in production and job shop environments. This late-model VMC is designed for reliable performance, smooth cutting, efficient chip removal, and consistent repeatability across a wide range of machining applications. A strong option for shops needing speed, rigidity, and dependable Doosan performance.
Coolant Included
Chip Conveyer Included
Vices, tooling and sub plates not included.
| X | 31.5" | 800.1 mm |
| Y | 17.7" | 449.58 mm |
| Z | 20.1" | 510.54 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 39.4" | 1,000.8 mm |
| Table-L | 17.7" | 449.58 mm |
| # Axis | 5 | 5 |

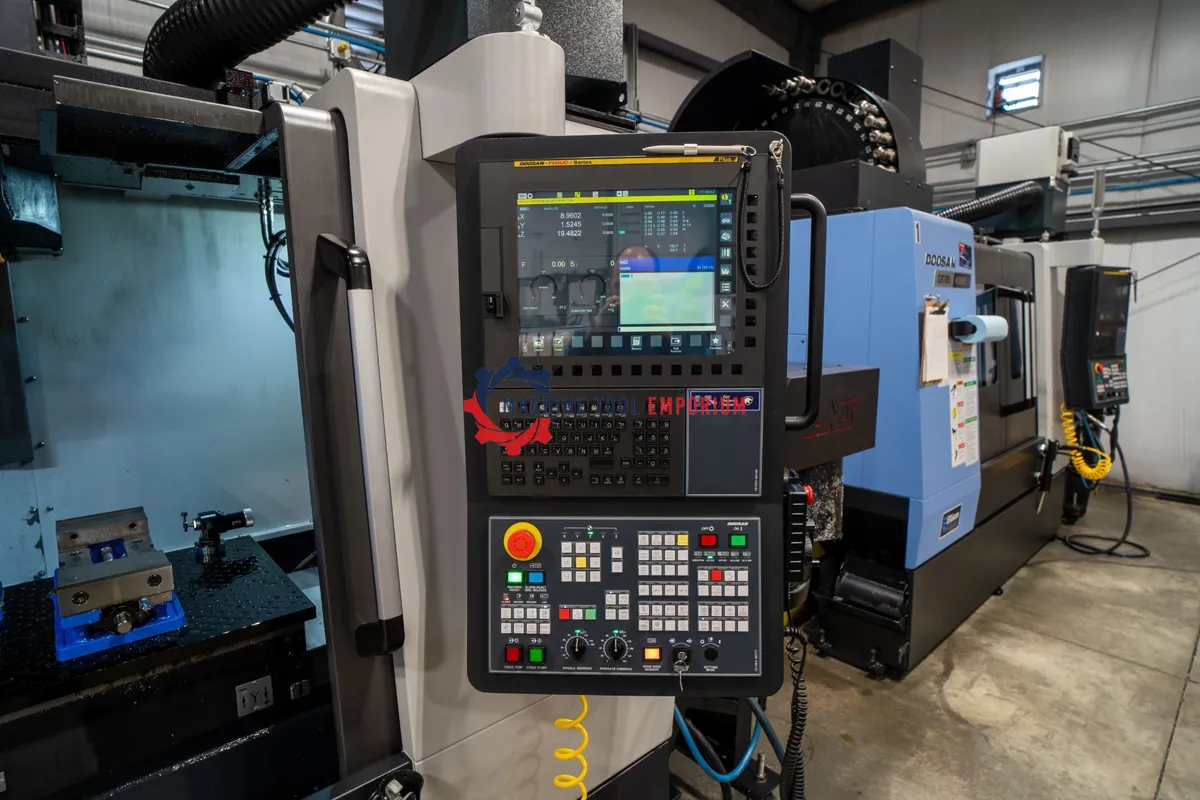

| Control | CNC (Fanuc) | CNC (Fanuc) |
Coolant Included
Chip Conveyer
Vices, tooling and sub plates not included.
