19 Stands 20.00" x 1.50" Michigan Rollform Rollforming Line

Consisting of the following:

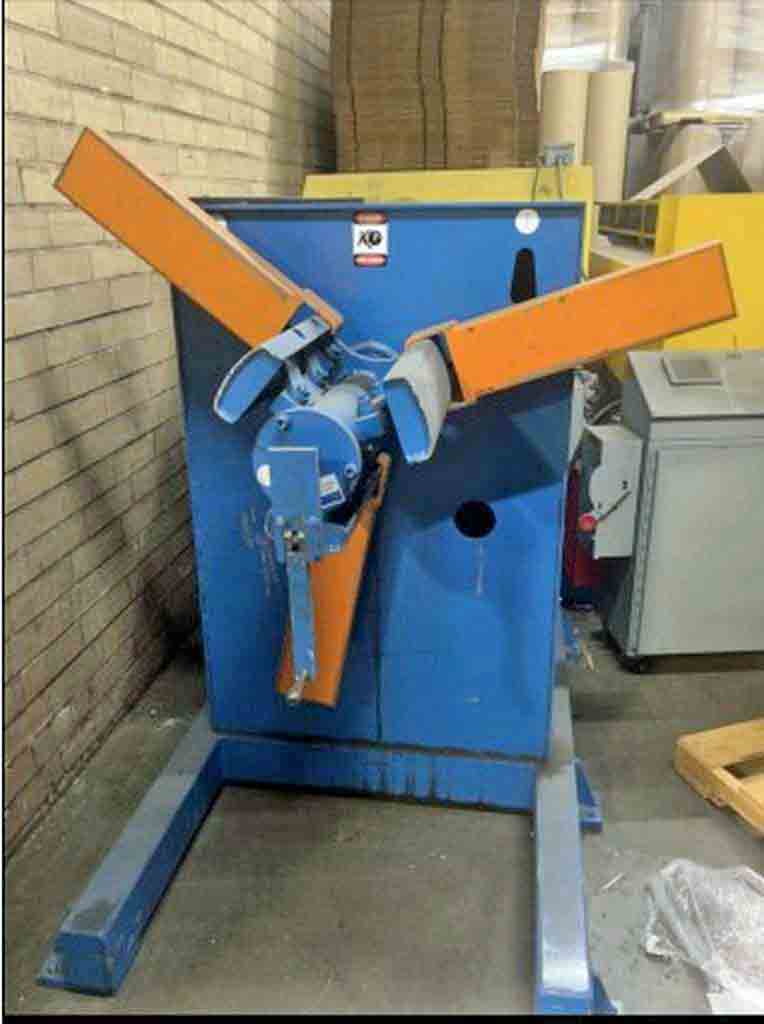

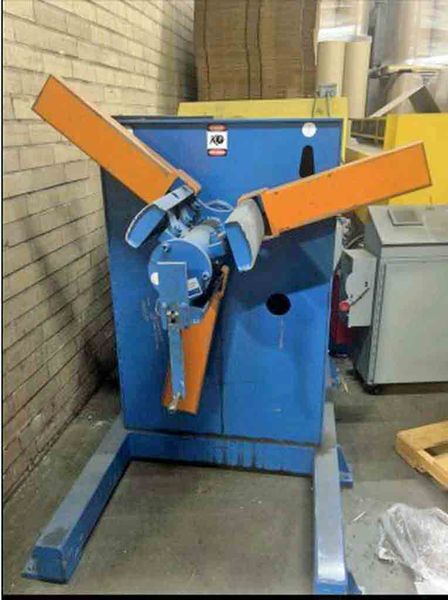

-Uncoiler:
6,000# Capacity Single Sided Unit
Non-Powered Pulloff Style Payoff Reel
Features Manual Mandrel Expansion, 16" - 20" Coil ID Standard with
16" Maximum Stock Width, includes (3) Coil Keepers.
Pneumatic Drag Brake with regulator, built-in snap out expansion
crank handle.
Features Variable Speed Drive with Dancer Arm, Controls and Disconnect.
100 FPM Maximum Speed.

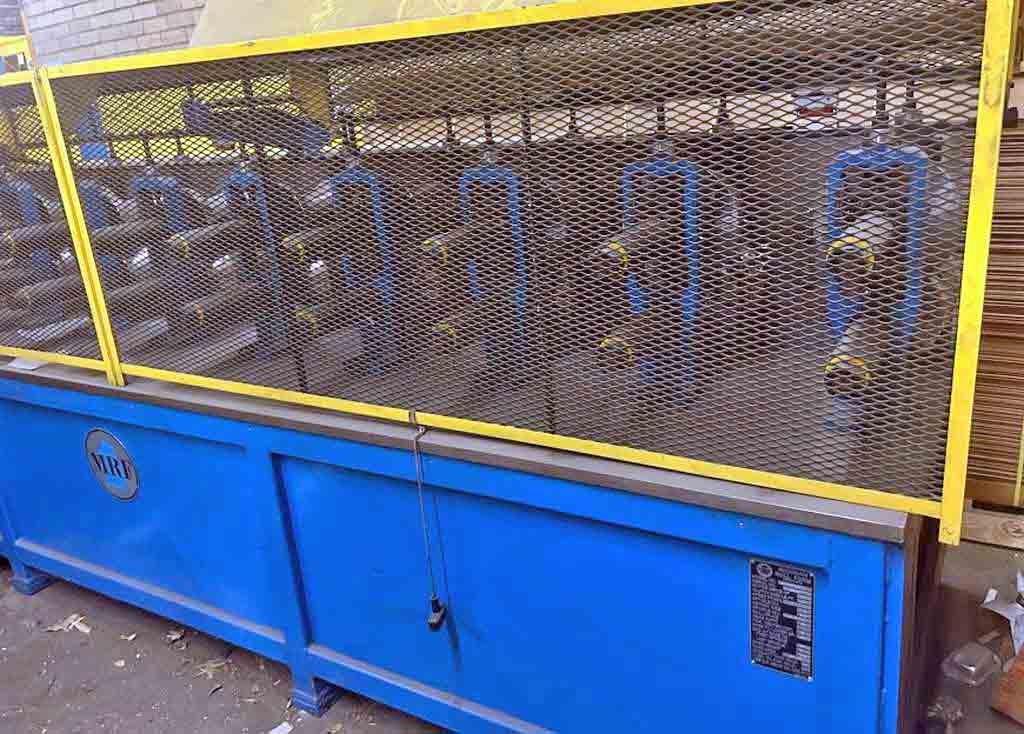

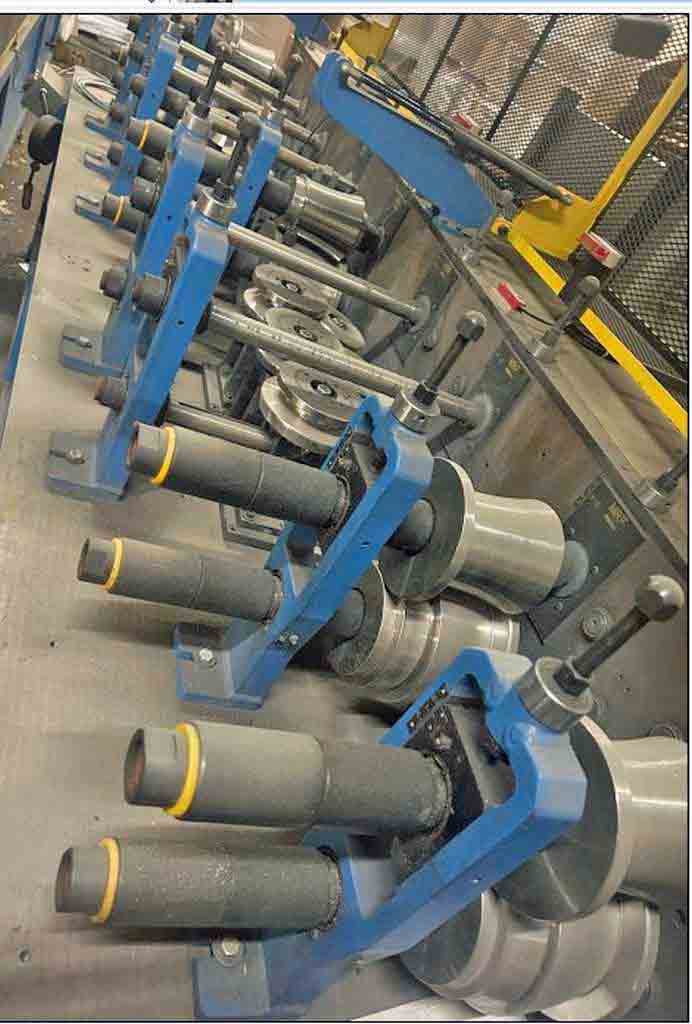

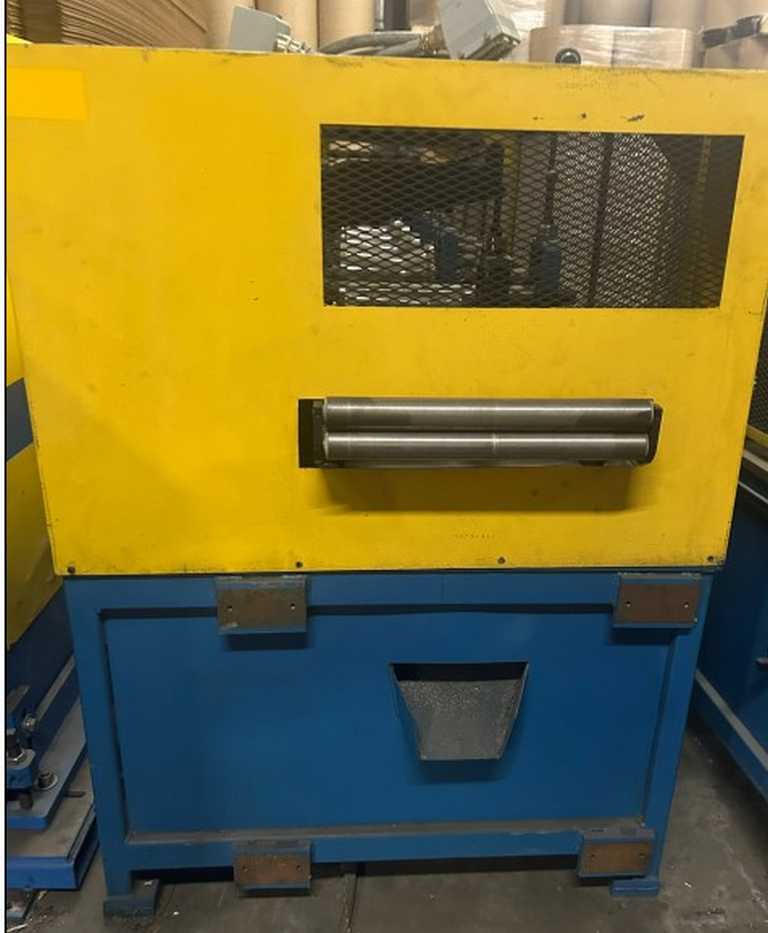

-Rollformer:

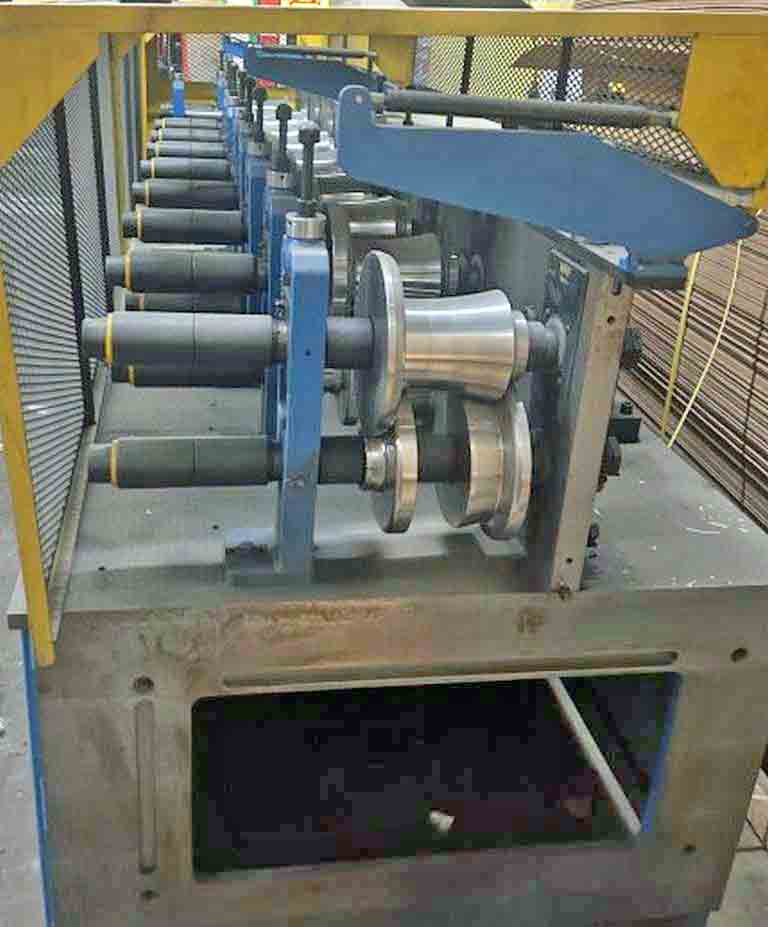

19 Stands with 1.500" Diameter Spindles (3/8" Keyways) and second pass
is special being the 1 Station with 2.000" Dia. Spindles (1/2" Keyways)
recommended Maximum Stock Thickness of 0.048" Mild Steel.
20" Roll Space
15" Horizontal Center Distance
Equal Geared (1:1.33 Maximum Unequal geared available, consult factory)
6.5" from center of lower spindle to the top surface of the base.
6.25" to 7.75" Vertical Adjustment Range
20 HP DC Drive/Motor System, with proper ratio for 25-35 FPM Opration.
(Machine is capable of 250 Feet/Minute Line Speed)

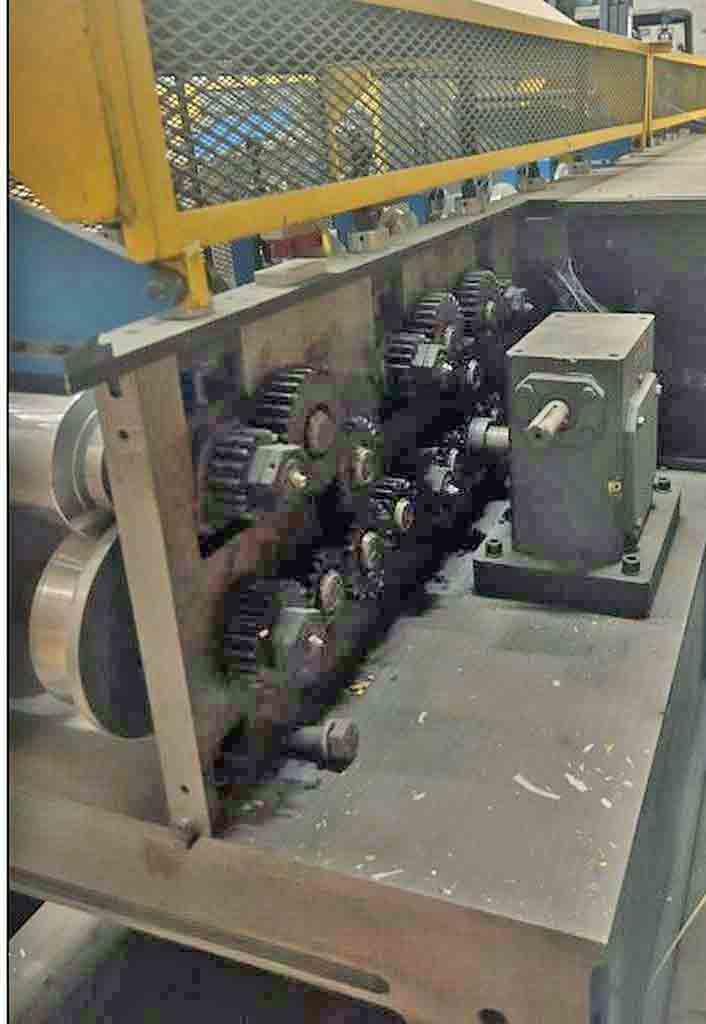

Machine is completely driven with hardened and ground gears which are
grease lubricated via manual grease.
Heavy Duty one piece style precision machined steel plate main blocks with
hardened micrometer style adjusting screws.
Hardened and ground spindles are mounted in Timken style precision taper
roller bearings.
Steel fabricated one piece machined outboard supports with cylinder roller
bearings feature zerk fittings on all bearings.
Hardened and ground micrometer style adjusting screws feature thrust bearings
for ease of operation and precision adjustment includes micrometer dial
indicator.
Does not include provisions for flood type lubrication/coolant system for the
roll tooling.

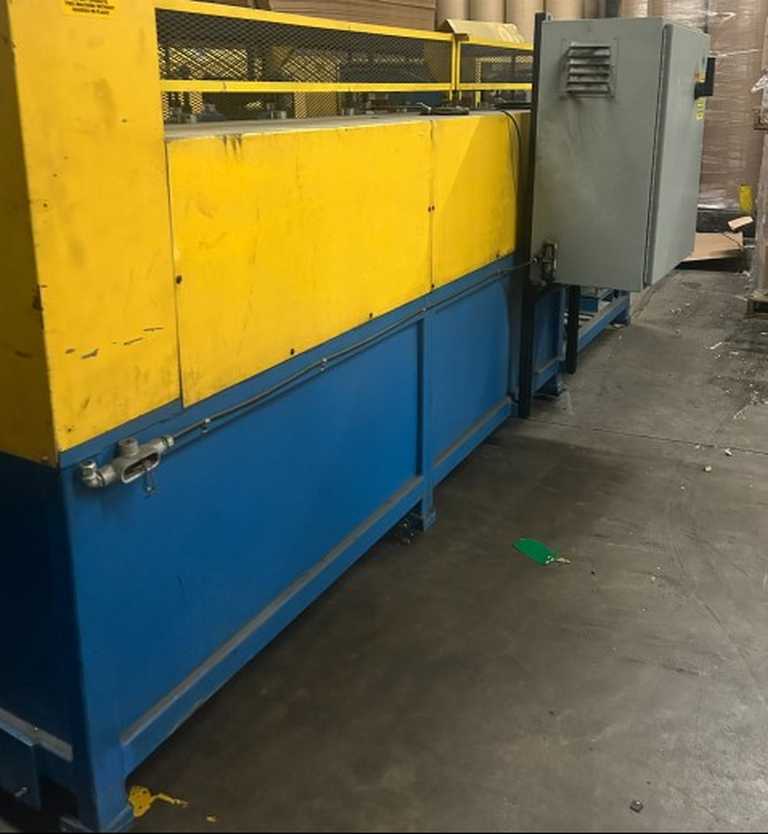

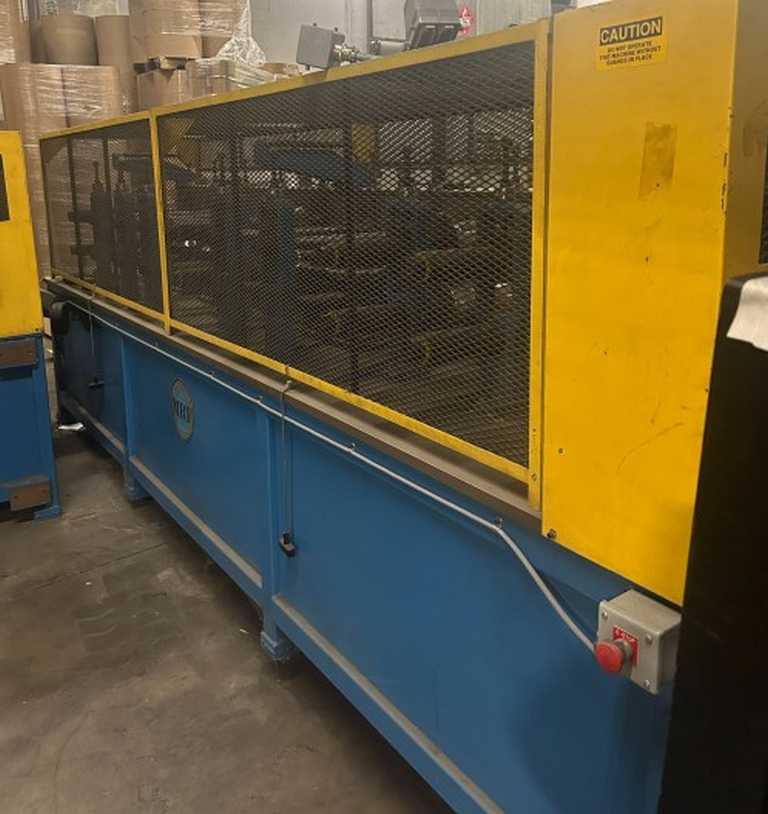

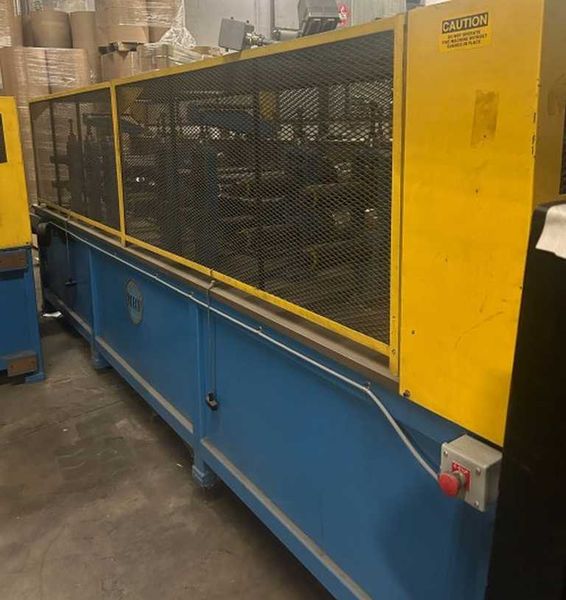

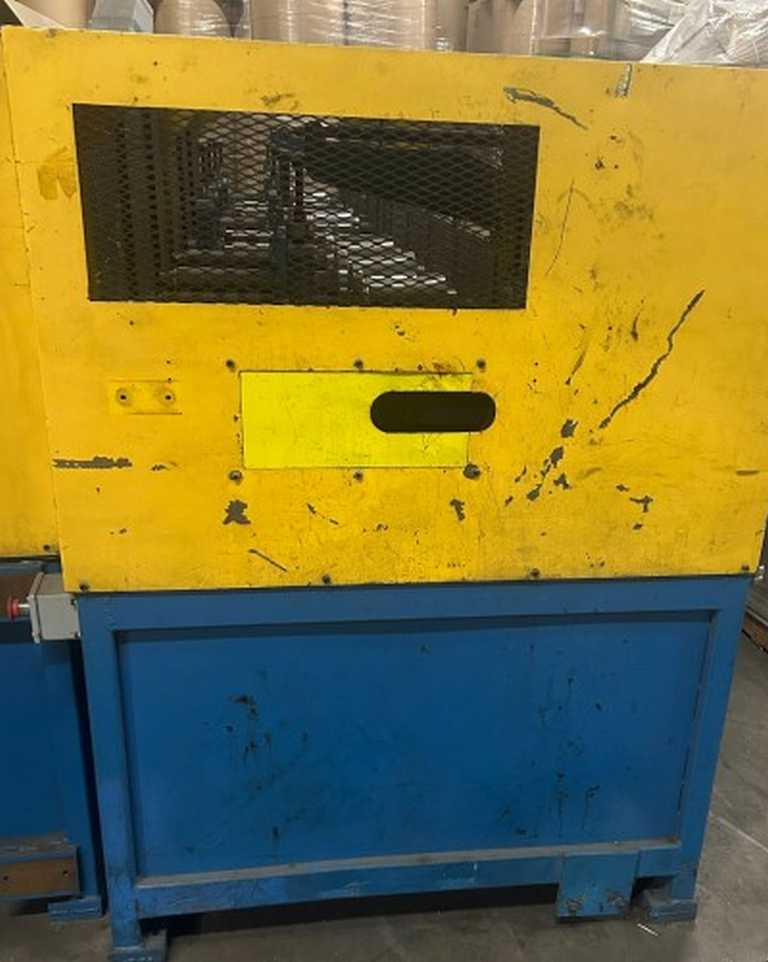

Features perimeter style end guards and electrically interlocked hinged roll
guarding (not a light curtain)
Requires 480/3/60 VAC Input Power and is supplied ready to run including
the electrical disconnect and necessary controls.
Complete with standard entry feed vise and machine is painted standard
MRF blue.
All components mounted to a full welded heavy wall tube/steel plate base
with 1 1/2" thick fully machined one piece top plate.

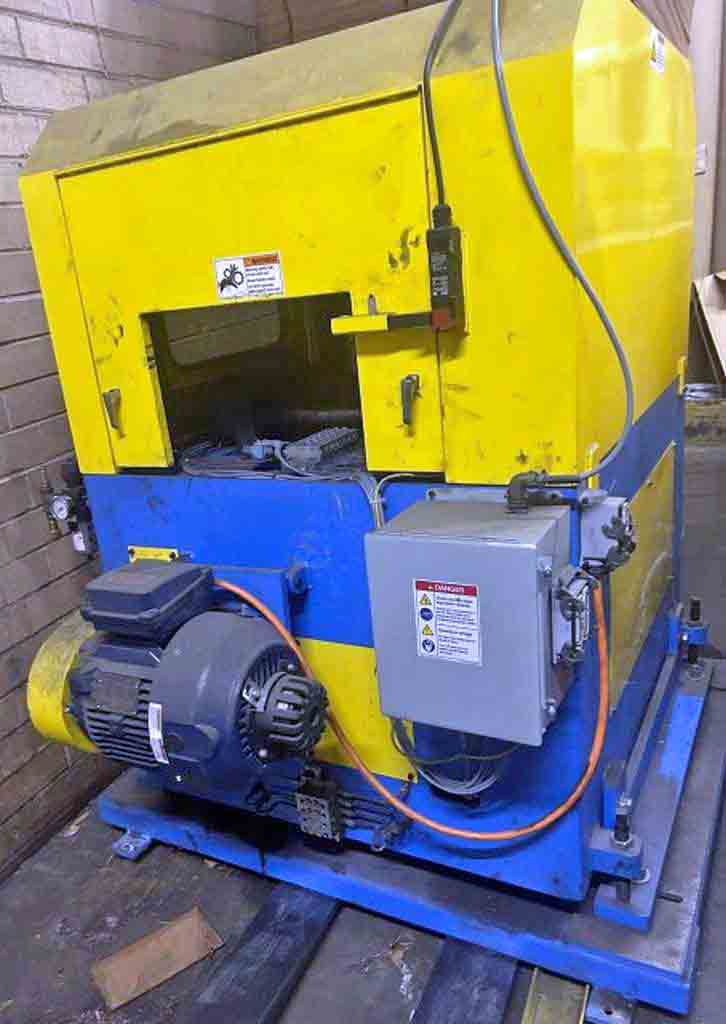

-Mechanical Press:
Model VHCO-202-4PV Heavy Duty Press
18 Ton Capacity, 4 Post underslung mechanical design press with integral
mechanical accelerator system, 18 3/4" Maximum Die Width, 3" Stroke
Standard (others available). 4" Cross and 4" Height Adjustment.
25 to 35 FPM Line Speed Range, gearing and mechanical accelerator cams
may be changed to allow for other line speed ranges and punching pitches.
Dual Cam Linkage System geared to flywheel used in common with crankshaft
for positive displacement motion and relationship of part/die motion to
press stroke.
Powered by a 5 HP 480/3/60 DC Drive (other voltages available at additional
cost) for line speed matching, includes closed loop tachometer feedback
with +/- 1% regulation.
Very low air consumption clutch and brake, hardened and ground die rails,
complete die change can be accomplished in approximately 5 minutes.
Furnished standard with complete automatic press lubrication system with
PLC Controlled Pneumatic Pump and Dual Quick Connect Die Feeds.
Integrated Mitsubishi PLC Control for maximum flexibility and serviceability
with interactive operator interface, includes accumulative press cycle
production counter.
Operator interface may be used to monitor and/or change system parameters,
with password protection utilized on access to the majority of the
adjustable parameters.

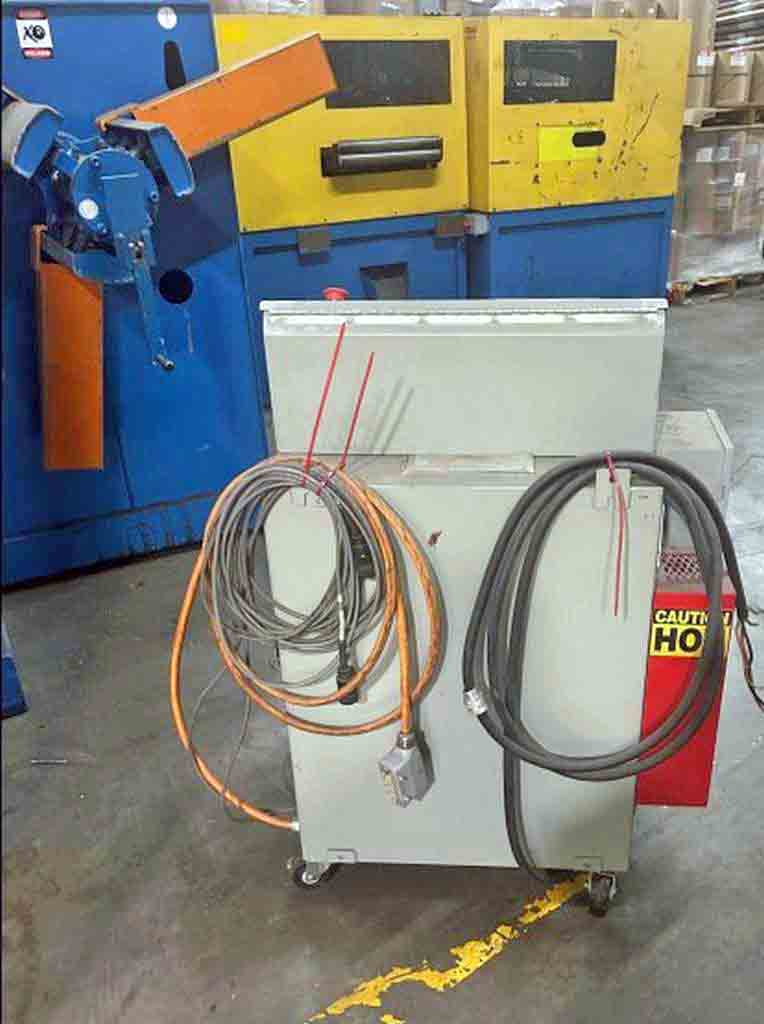

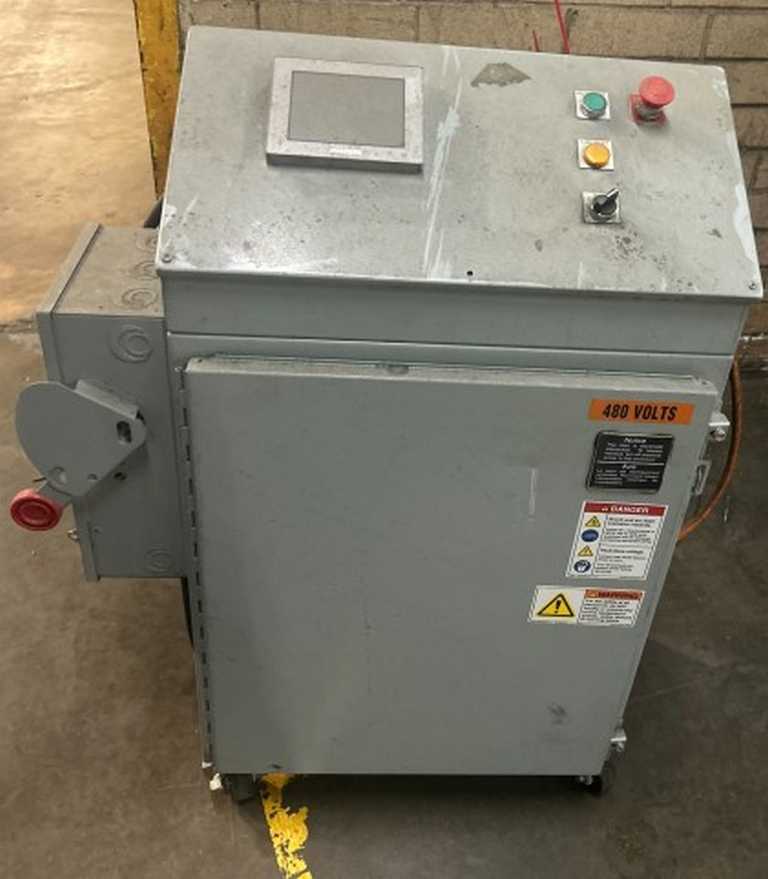

Furnished with a free standing, control enclosure mounted on a weighted base
Electrically interlocked die area guarding, open guarding, open guard or "Stop"
button will stop press at any point thru its cycle.
Unit constructed for continuous cycling, motion controlled by low inertia,
low volume air clutch and brake.
Height from floor to base of panel adjustable from approximately
38" to 42", 4" Cross Adjustment provided.

-In Storage

No Video Available
