incinnati 1406-R 3/16 x 6' Mechanical Shear, Squaring Arm, Front Support Arm

Manufacturer

CINCINNATI

Category

Shears

Type

SHEARS, POWER SQUARING (Inches)

Stock

68813

Model

1406R

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

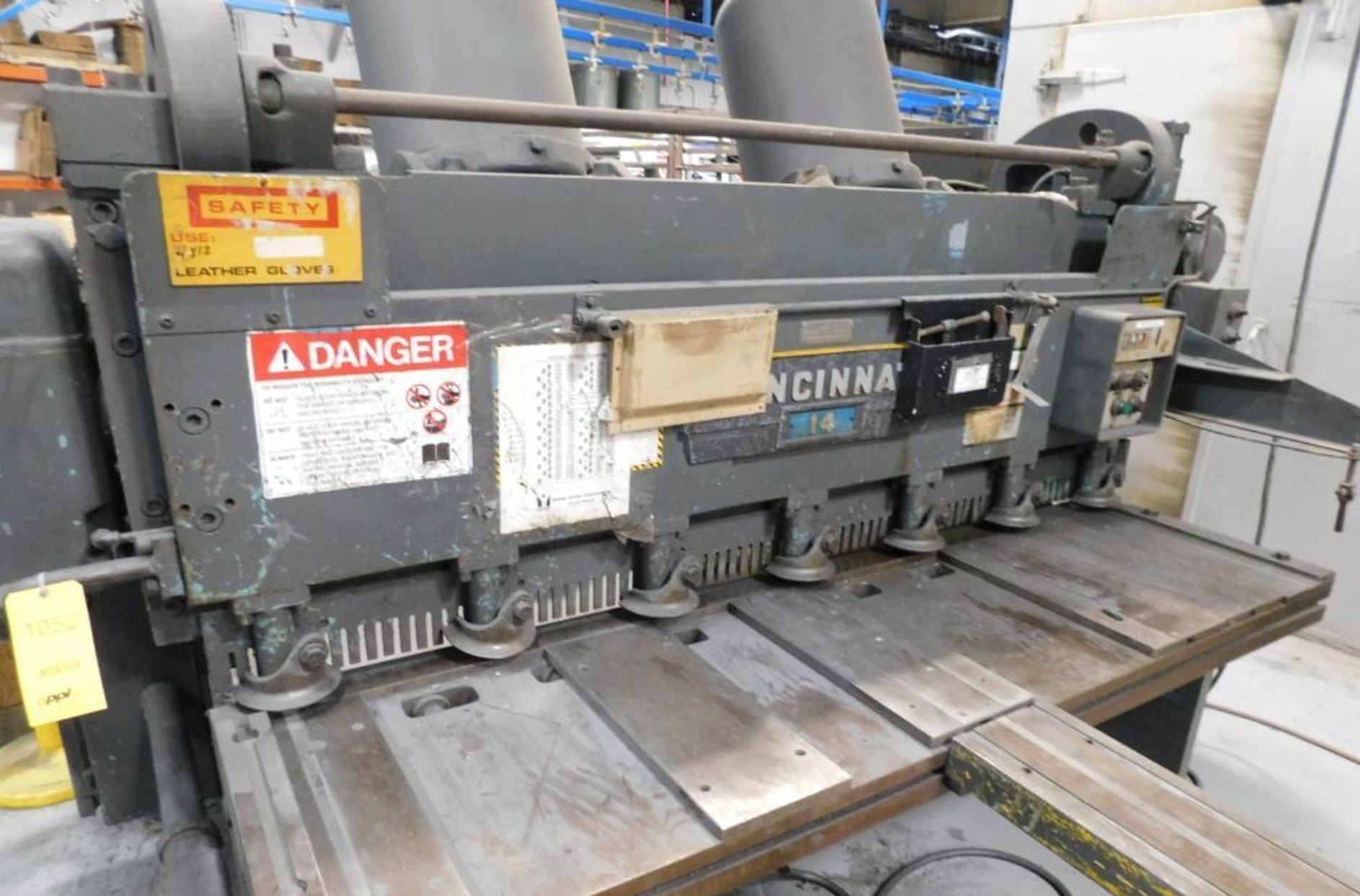

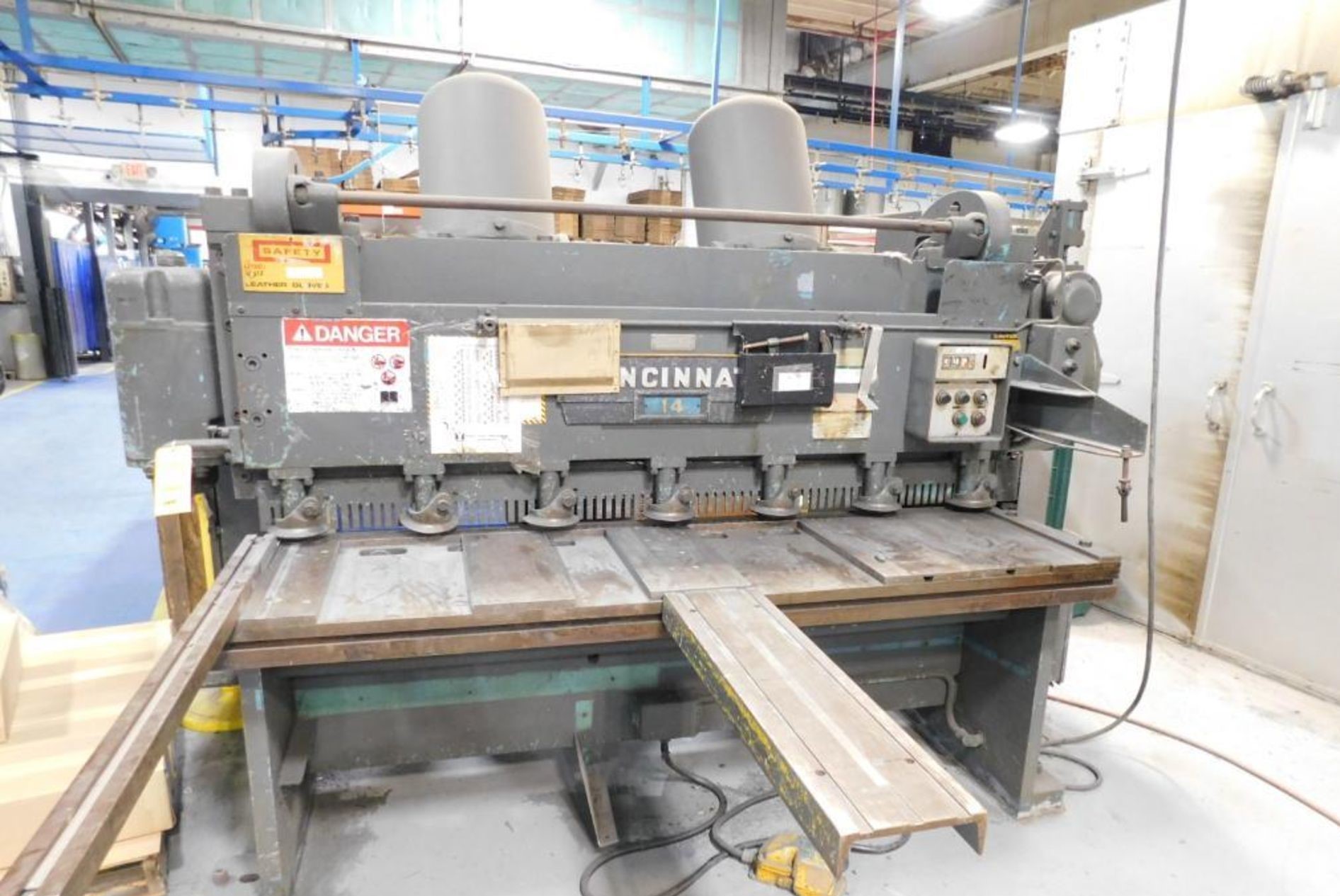

6' x 3/16" Cincinnati Mechanical Shear

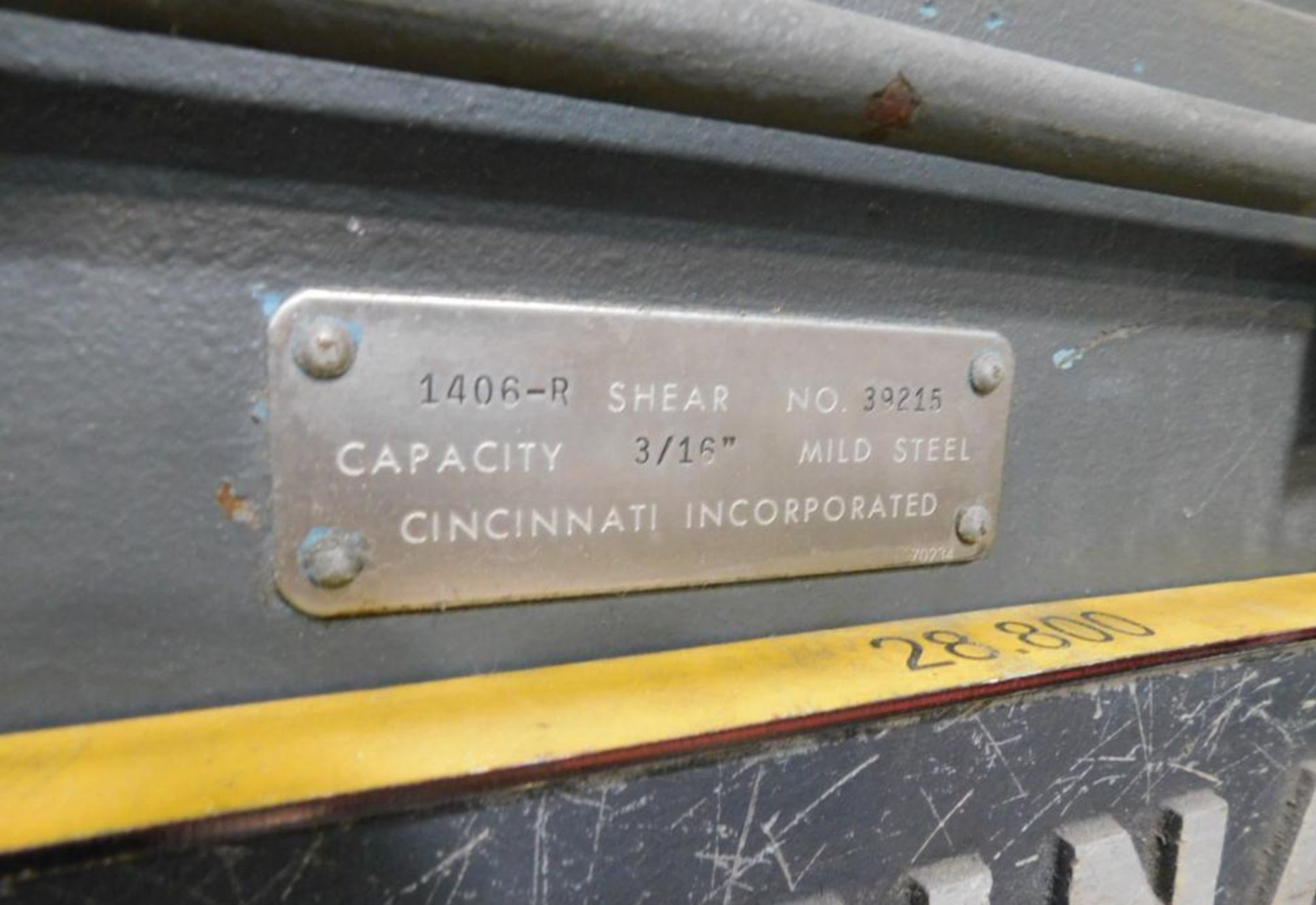

Model 1406-R S/N 39215 New 1974

Thickness .............................. 3/16" (.187")
Cutting Length ......................... 6'2"
Gap .................................... 18"
Std. Back Gage Range ................... 36"
Rake Angle ............................. 1/4"
Number of Hyd. Holddowns ............... 7
Std. Maximum Strokes / Min. ............ 60 SPM
Std. Motor HP .......................... 5
Current Voltage ........................ 480

Approx. Shipping Weight ............ 13,500 Lbs.
Approx. Dimensions ............. 98" x 85" x 80"

Equipped With:

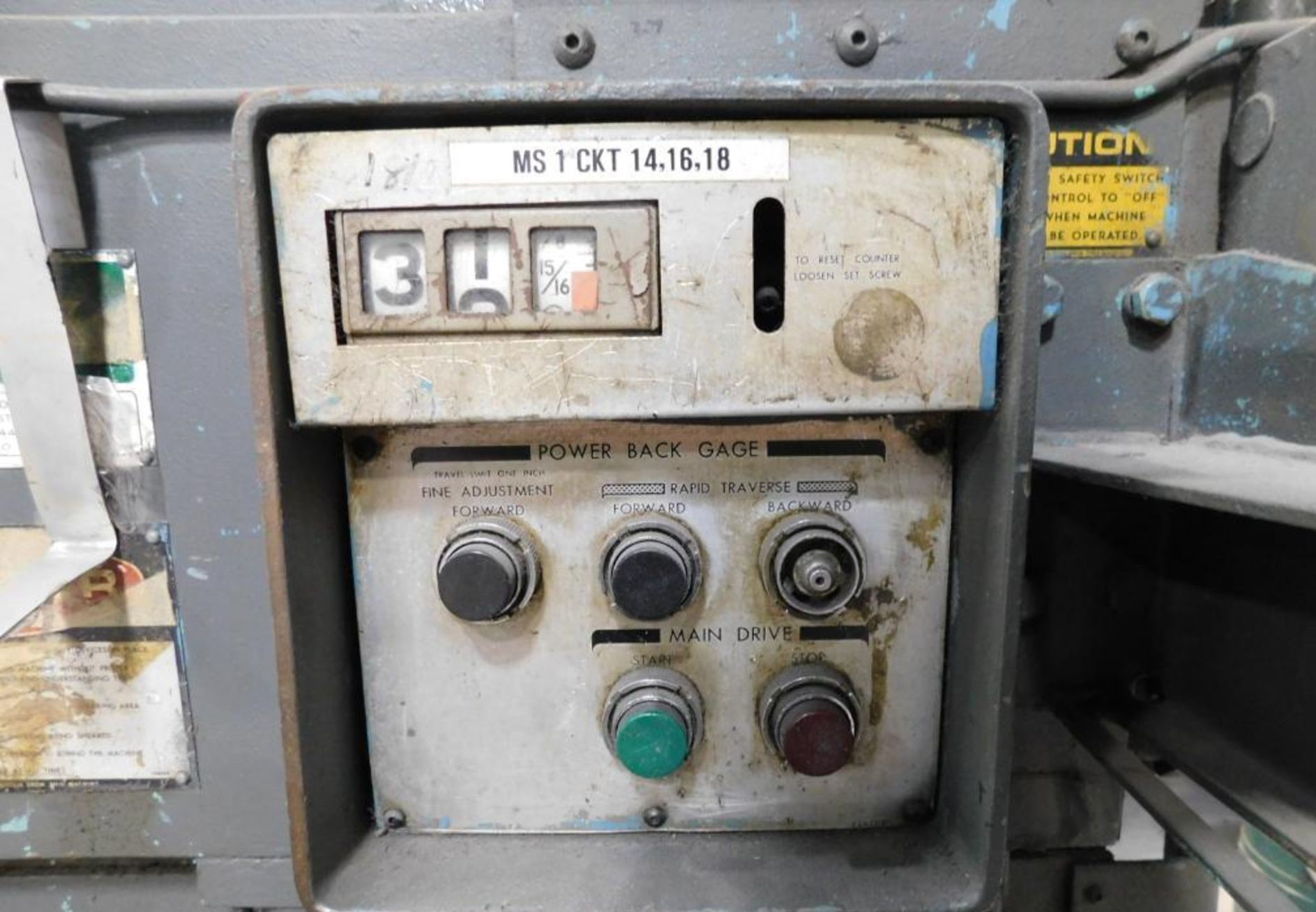

- 36" Powered Back Gauge With Front Indicator, Fine Forward, Rapid Forward / Rapid Reverse

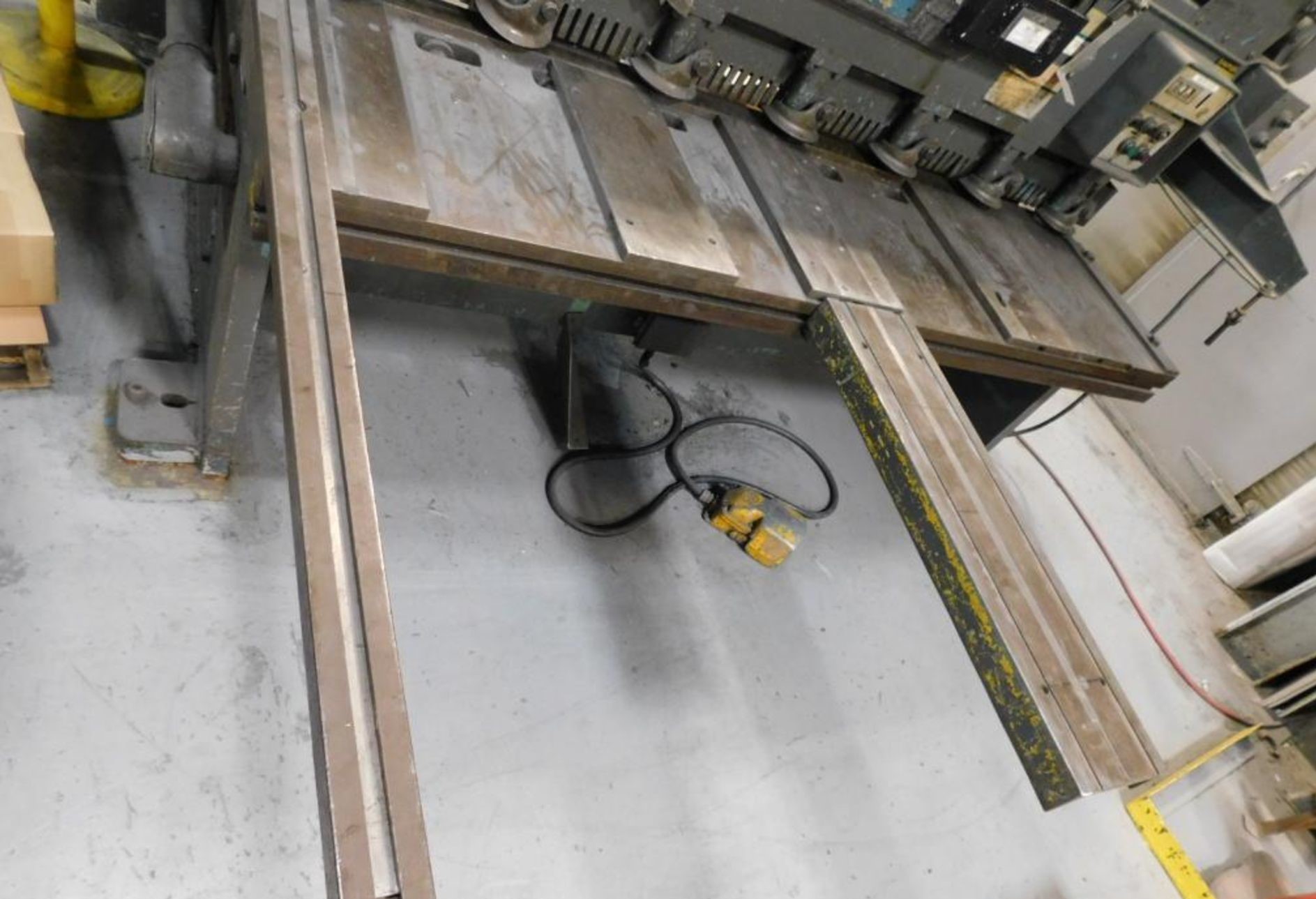

- 6' Squaring Arm with Adjustable Stops
- (2) Support Arms
- Foot Pedal
- 3 Spot Worklight with Shadow Light Shearing
