15" x 50" HARRISON TOOLROOM ENGINE LATHE MODEL: M390, S/N: G70118, MFG: 1996

Manufacturer

HARRISON

Category

Lathes

Type

LATHES, GAP, REMOVABLE GAP

Stock

69338

Model

M390

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

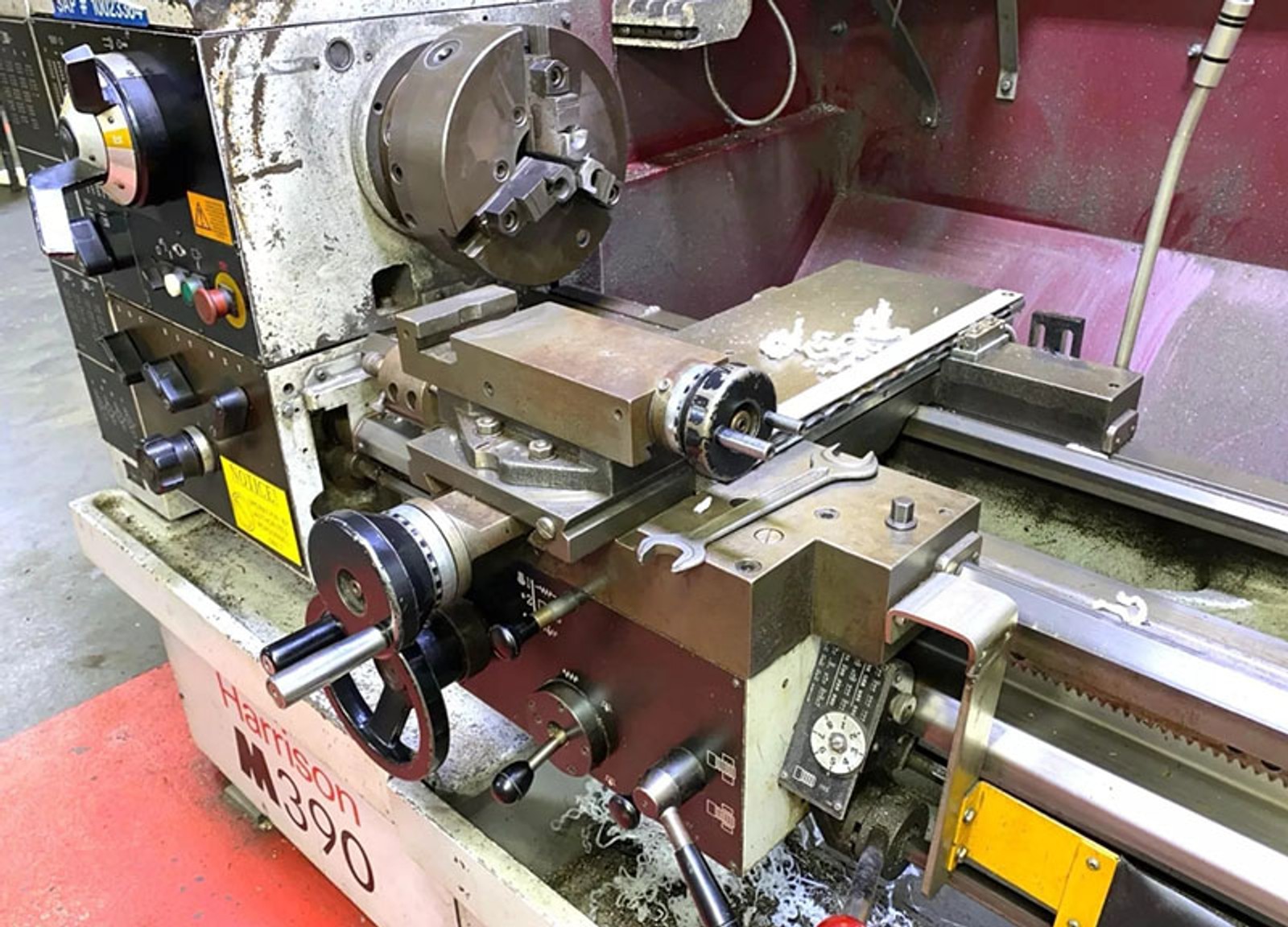

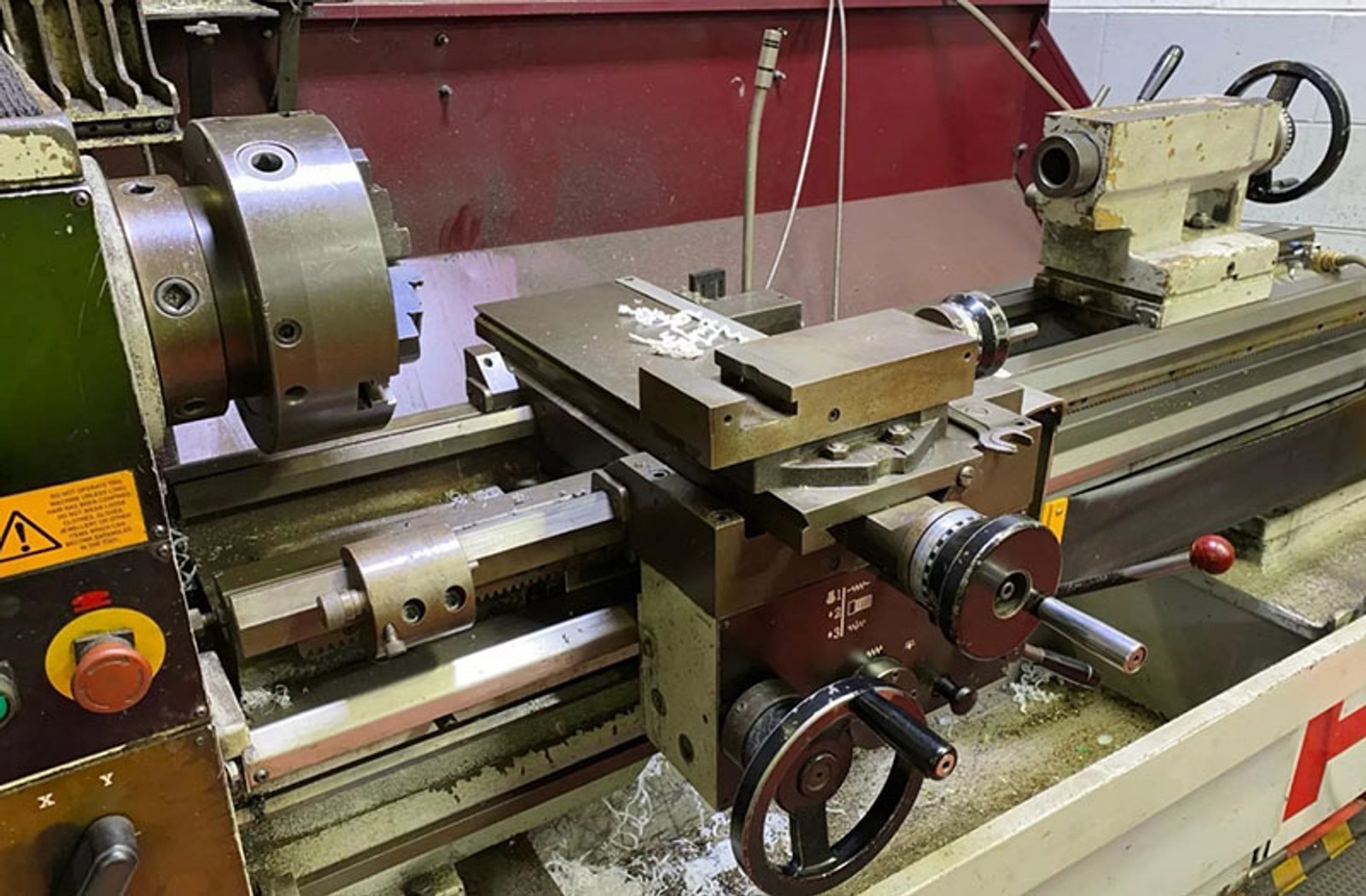

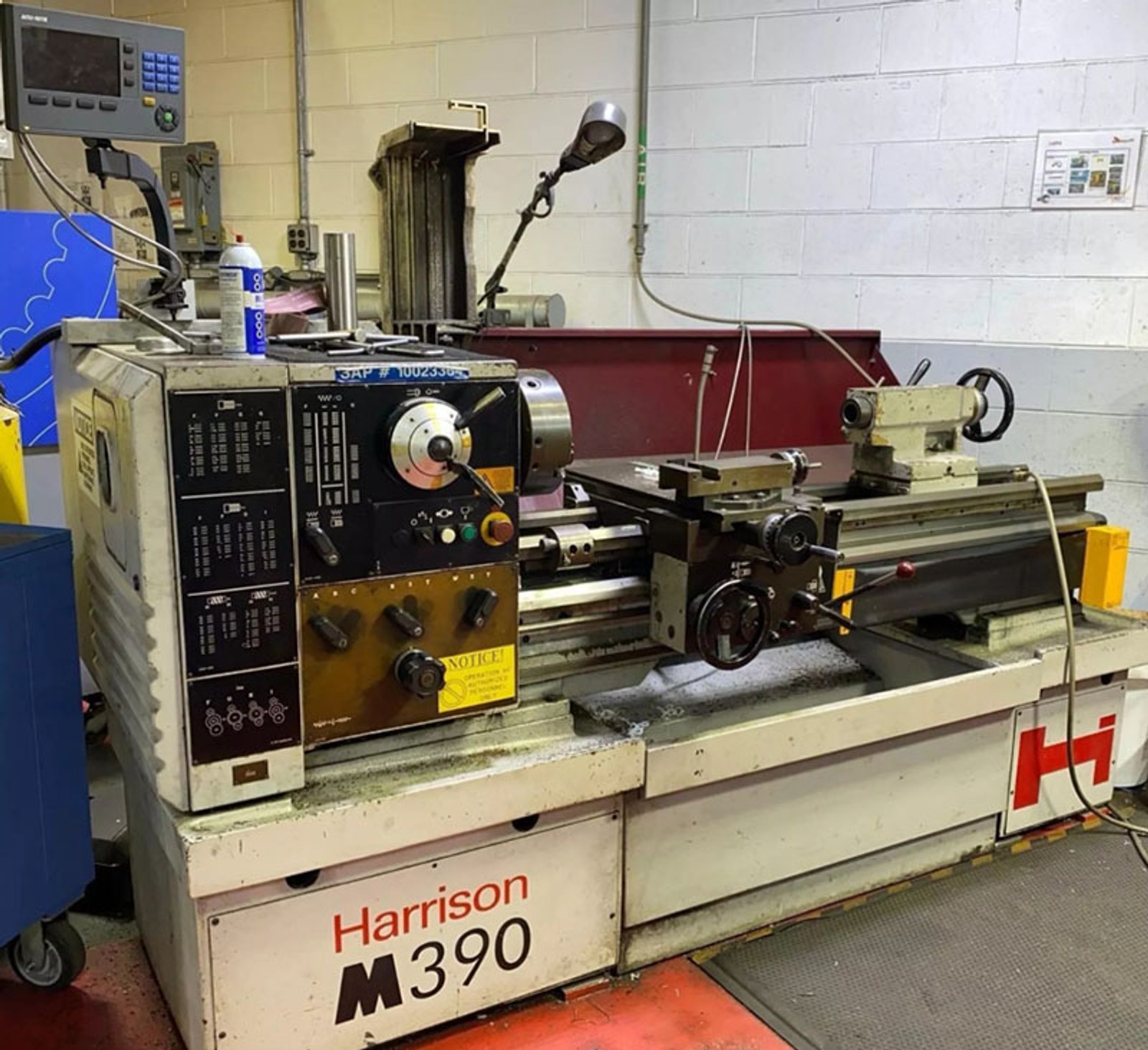

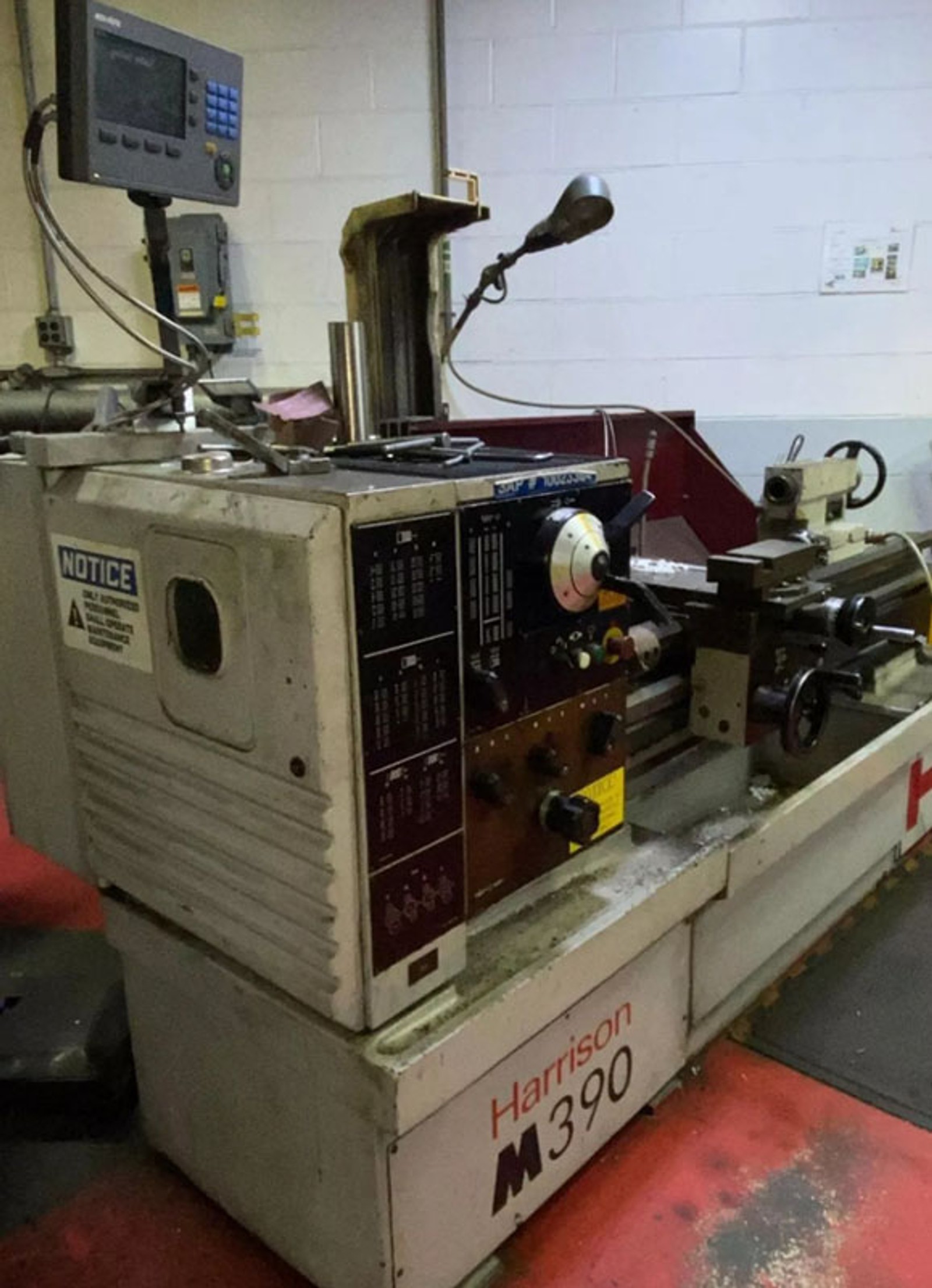

15" x 50" HARRISON TOOLROOM ENGINE LATHE
MODEL: M390, S/N: G70118, MFG: 1996

SPECIFICATIONS:
SWING OVER BED .......................... 15.7"
SWING IN REMOVEABLE GAP ................. 23"
SWING OVER CROSS SLIDE .................. 9.7"
DISTANCE BETWEEN CENTERS ................ 50"
HOLE THROUGH SPINDLE .................... 2.125"
SPINDLE NOSE ............................ D1-6 CAMLOCK

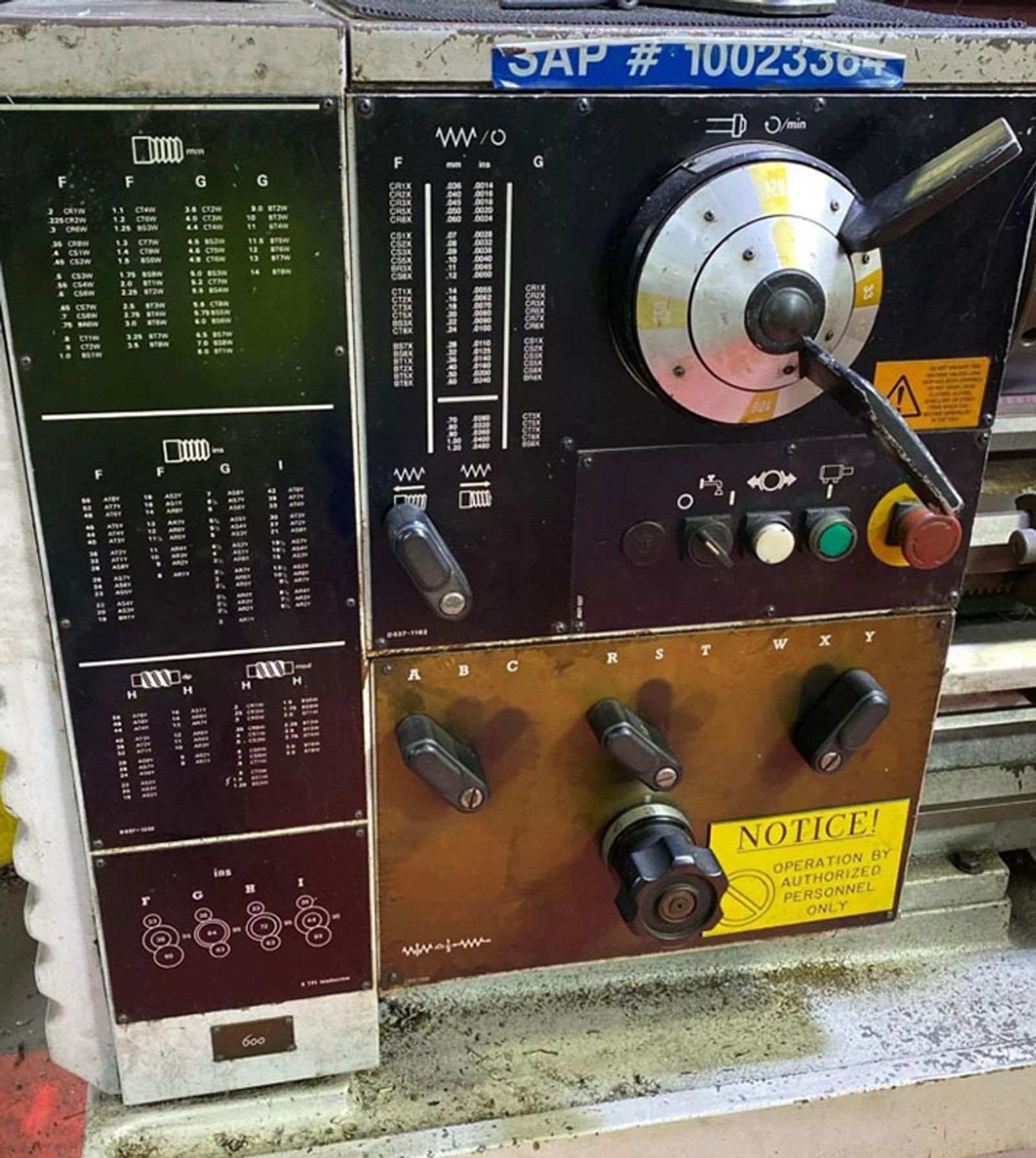

SPINDLE SPEED RANGE (16) ................ 25 - 2000 RPM
ENGLISH THREADING RANGE (56) ............ 2 - 56 TPI
METRIC THREADING (51) ................... .2 - 14 mm
FEED RANGE LONGITUDINAL (42) ............ .0014 - .096 IPR
CROSS FEED 1/2 OF LONGITUDINAL SETTING
WIDTH OF BED ............................ 12.5"
CROSS SLIDE TRAVEL ...................... 9.8"
TOP SLIDE TRAVEL ........................ 5.1"
TAILSTOCK SPINDLE TRAVEL ................ 5.5"
TAILSTOCK SPINDLE TAPE .................. #5MT
APPROX DIMENSIONS ....................... 99"L x 49"W x 51"H
APPROX WEIGHT ........................... 3500 LBS

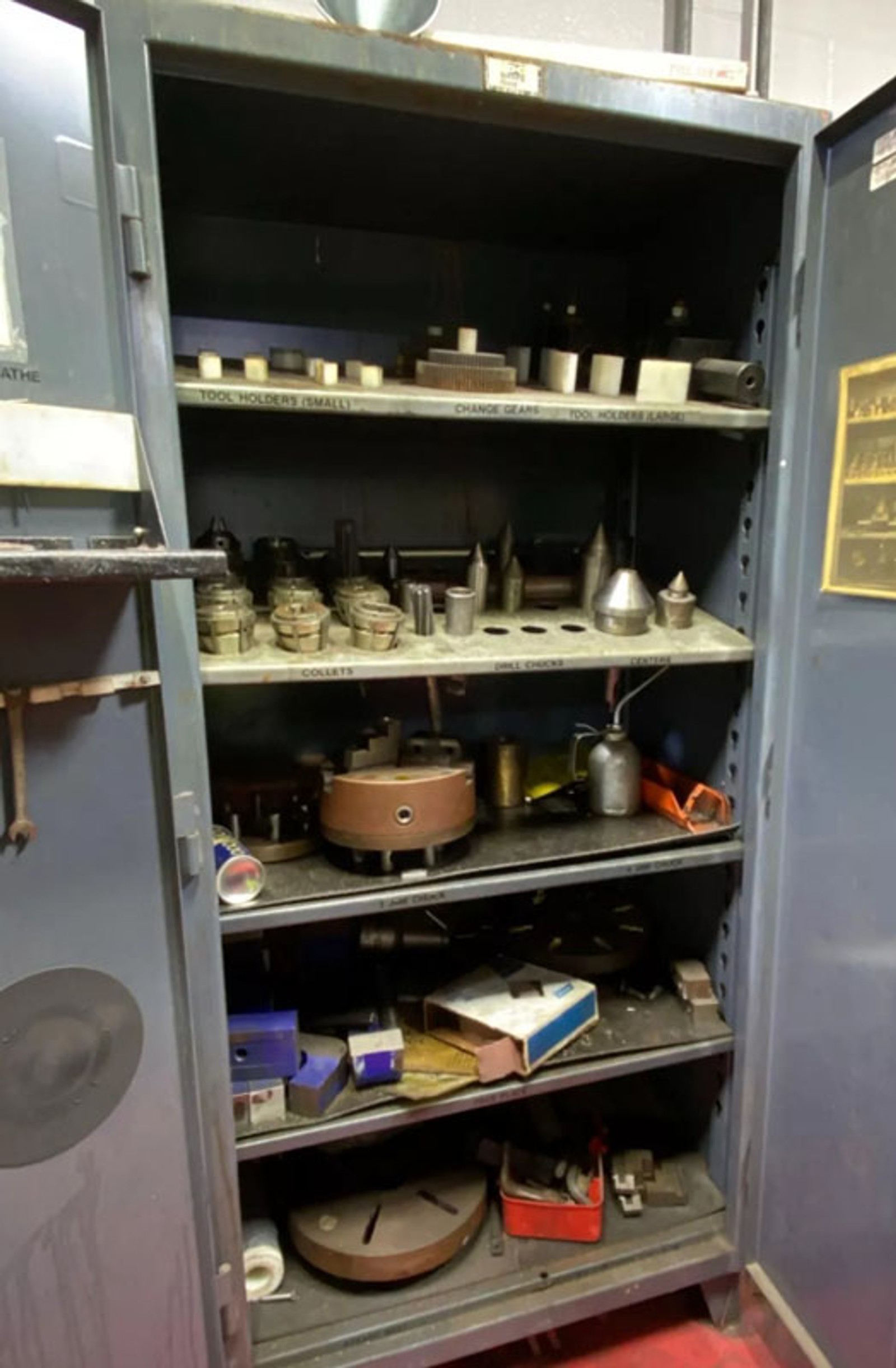

EQUIPPED WITH:

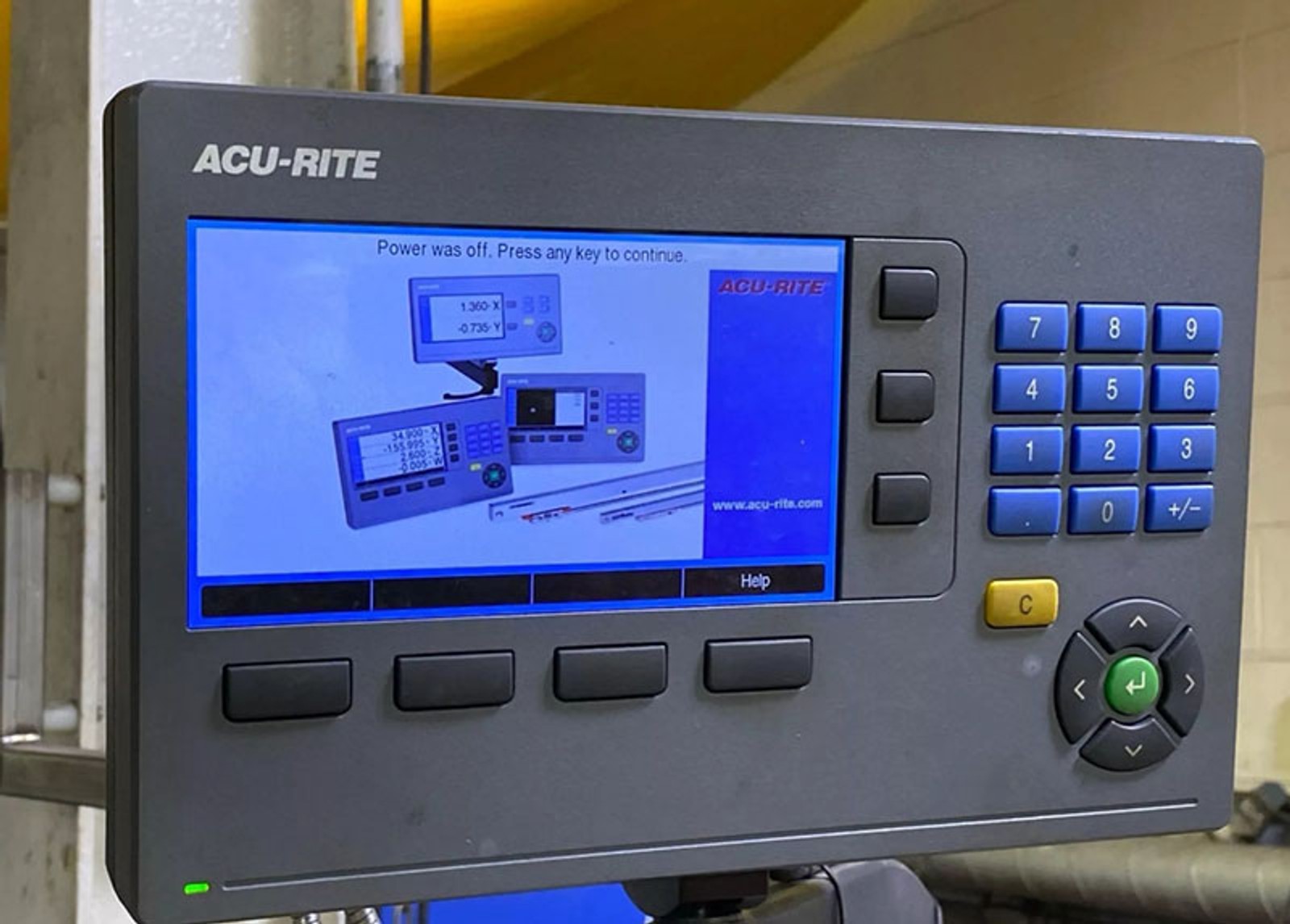

ACU-RITE DIGITAL READOUT
TAPER ATTACHMENT
10" 3-JAW BUCK CHUCK
12-1/4" PRATT BURNERD 4-JAW CHUCK
FACEPLATE
PRATT BURNERD MULTI-SIZE COLLET CHUCK w/COLLETS

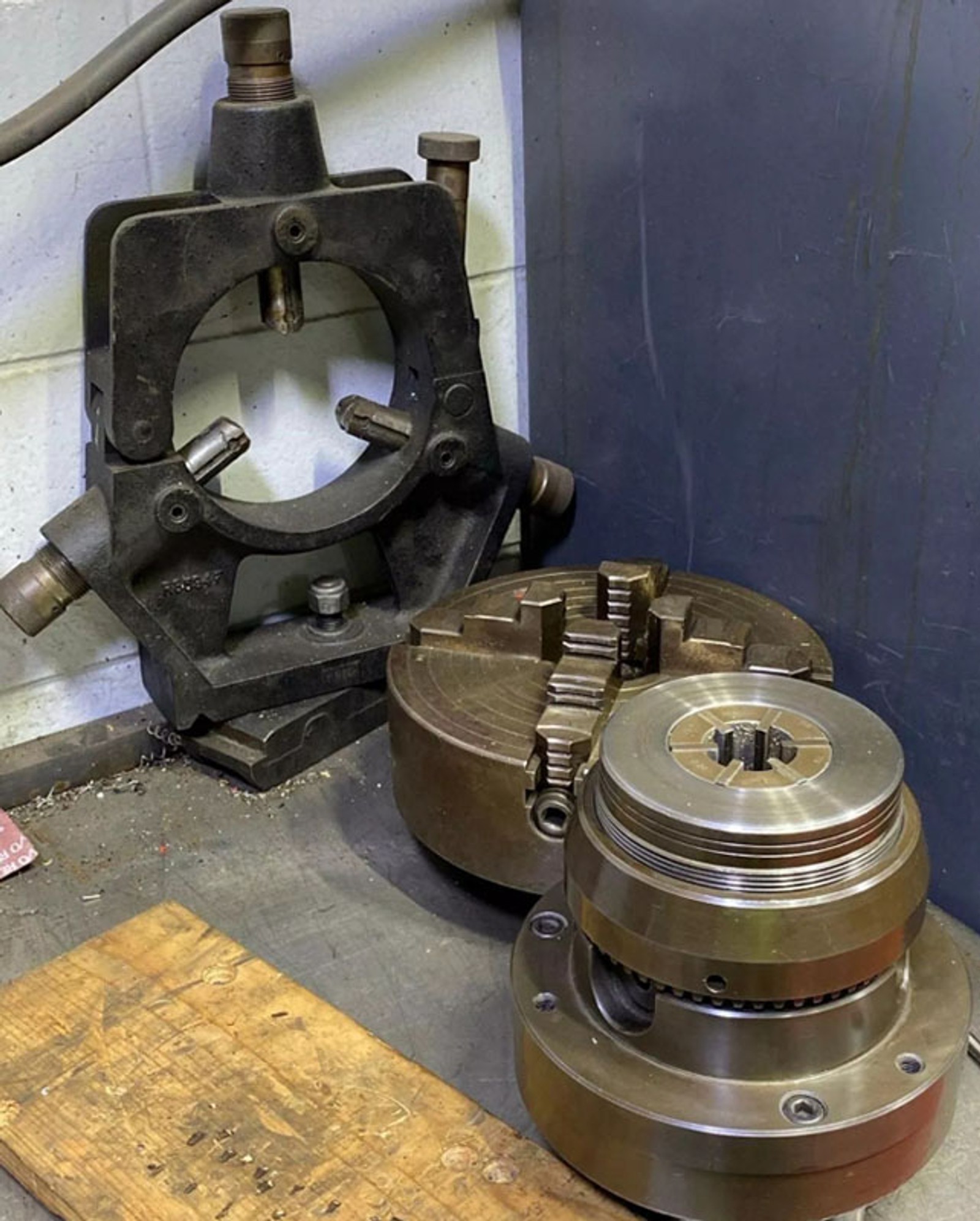

ROLLER TYPE STEADY REST
FOLLOW REST
HEADSTOCK CENTER SLEEVE & CENTER
LIVE & DEAD CENTER FOR TAILSTOCK
MICROMETER CARRIAGE STOP
THREAD DIAL INDICATOR
COOLANT SYSTEM WITH REMOVABLE CHIP PAN
7.5 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
