Used 2019 MICRO DYNAMICS TERA 50V

Manufacturer

MICRO DYNAMICS

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

3690025

Model

TERA 50V

Dealer Location

Kentucky

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
Vertical Machining Centers
Manufacturer:
MICRO DYNAMICS
Model:
TERA 50V
Year:
2019
Stock #:
3690025
Status:
For Sale

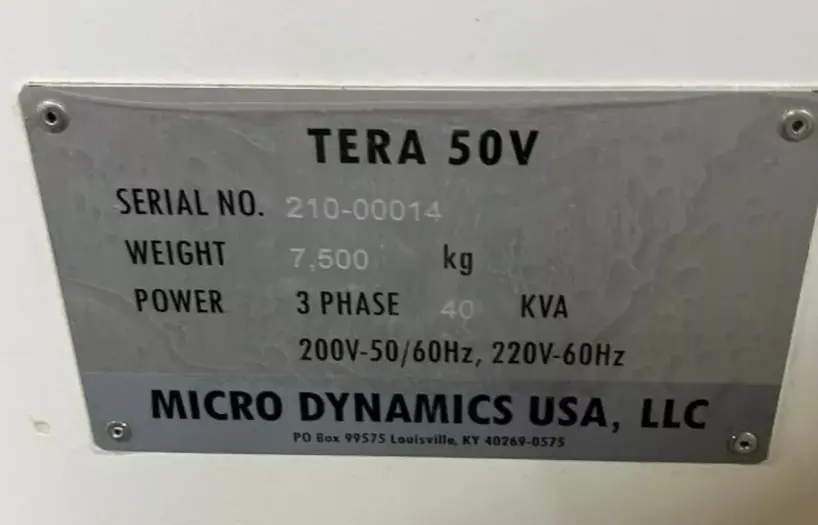

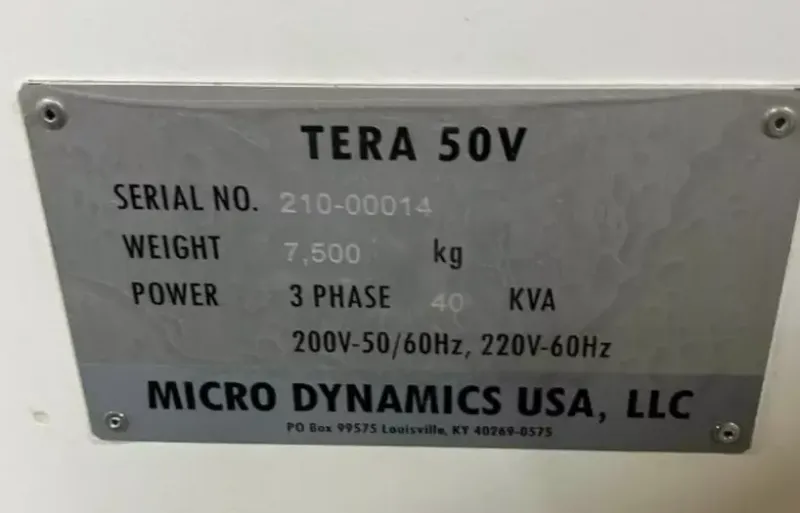

Serial #:
210-00014
Country:
United States

Description

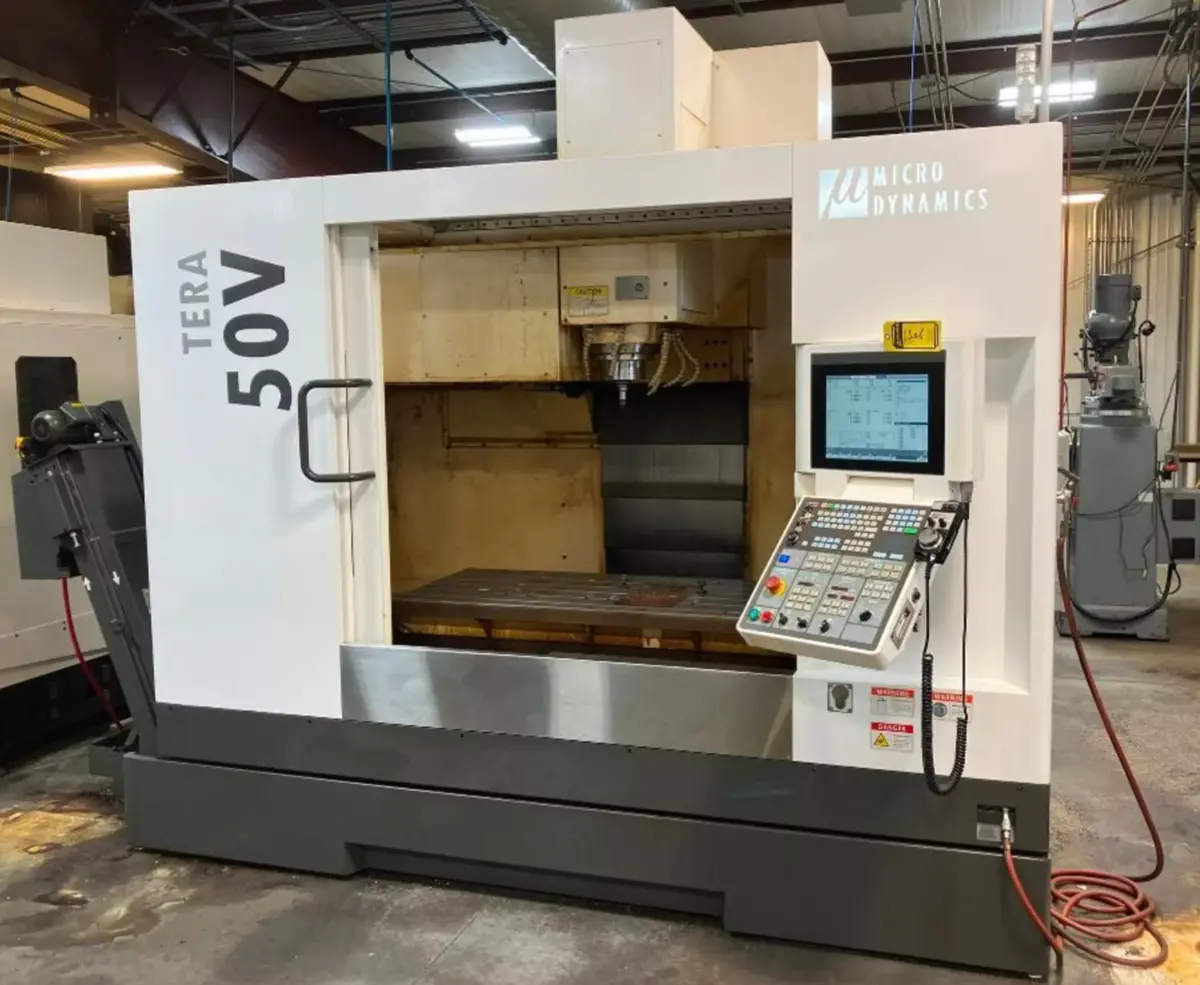

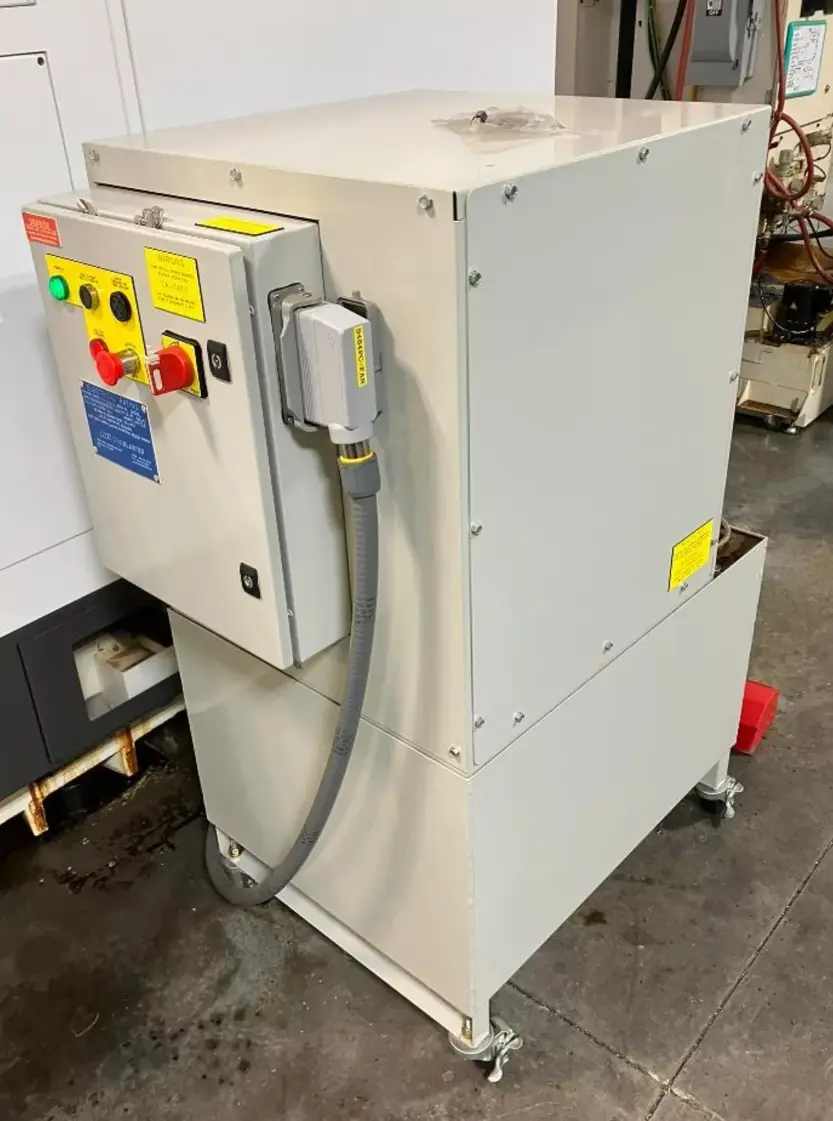

MicroDynamics Tera 50V CNC Vertical Machining Center Complete w/ 50" X, 25" Y, 25" Z Axis Travels, Cat 40 Taper, Spindle, Chip Blaster, Chip Conveyor, MircoDynamics CNC Control, S/N 210-00014 (Mfg 2019) new certified rebuilt spindle, 50-15,000 rpm, rigid tap to 6,000 rpm, Rapid X/Y 2,047 ipm, Z 1,889 ipm, Cutting 0-787 ipm

X50"1,270 mm
Y25"635 mm
Z25"635 mm
Power34 kW45.6 hp
RPM15,000 RPM15,000 RPM
# ATC4040
Taper4040
Table-W24.8"629.92 mm
Table-L55.9"1,419.9 mm
# Axis33
ControlCNC (Mitsubishi)CNC (Mitsubishi)
Dimensions141"x97"141"x97"
Weight1741617416

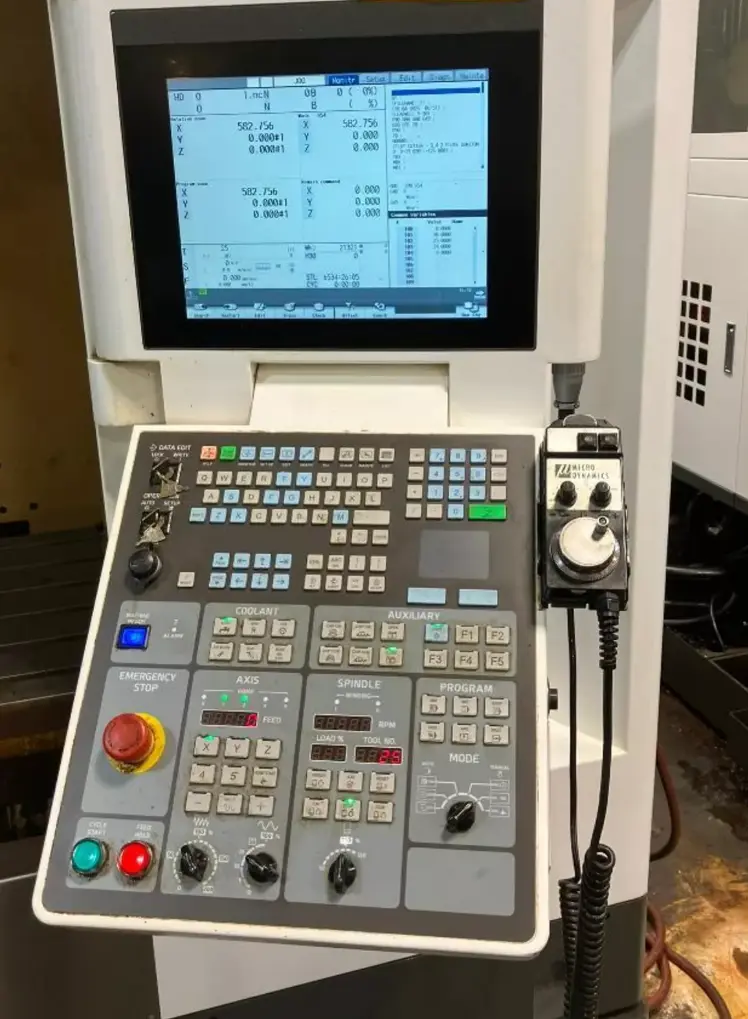

Powerful Mitsubishi M830 windows based CNC Control

Heavily ribbed, FC300 Cast Iron Structure, Meehanite processed, FEA Analyzed

High Torque Integral Spindle Motor from ATE is rated at 41 HP and delivers 104 Ft-Lbs of torque

Advance 15,000 RPM Spindle couple with the Integral Motor for faster machining speeds

1.5 Sec Spindle Acceleration to 12,000 rpm for less Idle Time

Spindle Oil Cooler

DYPEC® Thermal Compensation system to maintain accuracy from the effects of thermal growth

Large Size 30mm (X) and 35mm (Y, Z) Cross Roller Linear Rails for extra stiffening

Large Diameter Ballscrews 32mm X, 40mm Y and Z axis

High Horsepower Servos generating 3,942 lbs Thrust X, Y and 7,548 Lbs in Z for Higher Metal Removal Rates

High rapid rates of 2,047 X, Y and 1,889 Z rival most other Vertical Machining Centers

SSS Gen 4 High Speed Super Smooth Surface for Mold and Die

2,700 Block Look Ahead

15” Touchscreen display with built in “Operator Convenience” HMI

DYCON® on board simple conversational programming

Floor Space 141” (including chip Conveyor) x 97” depth

- Specifications are believed to be accurate and are to be verified by the buyer.
