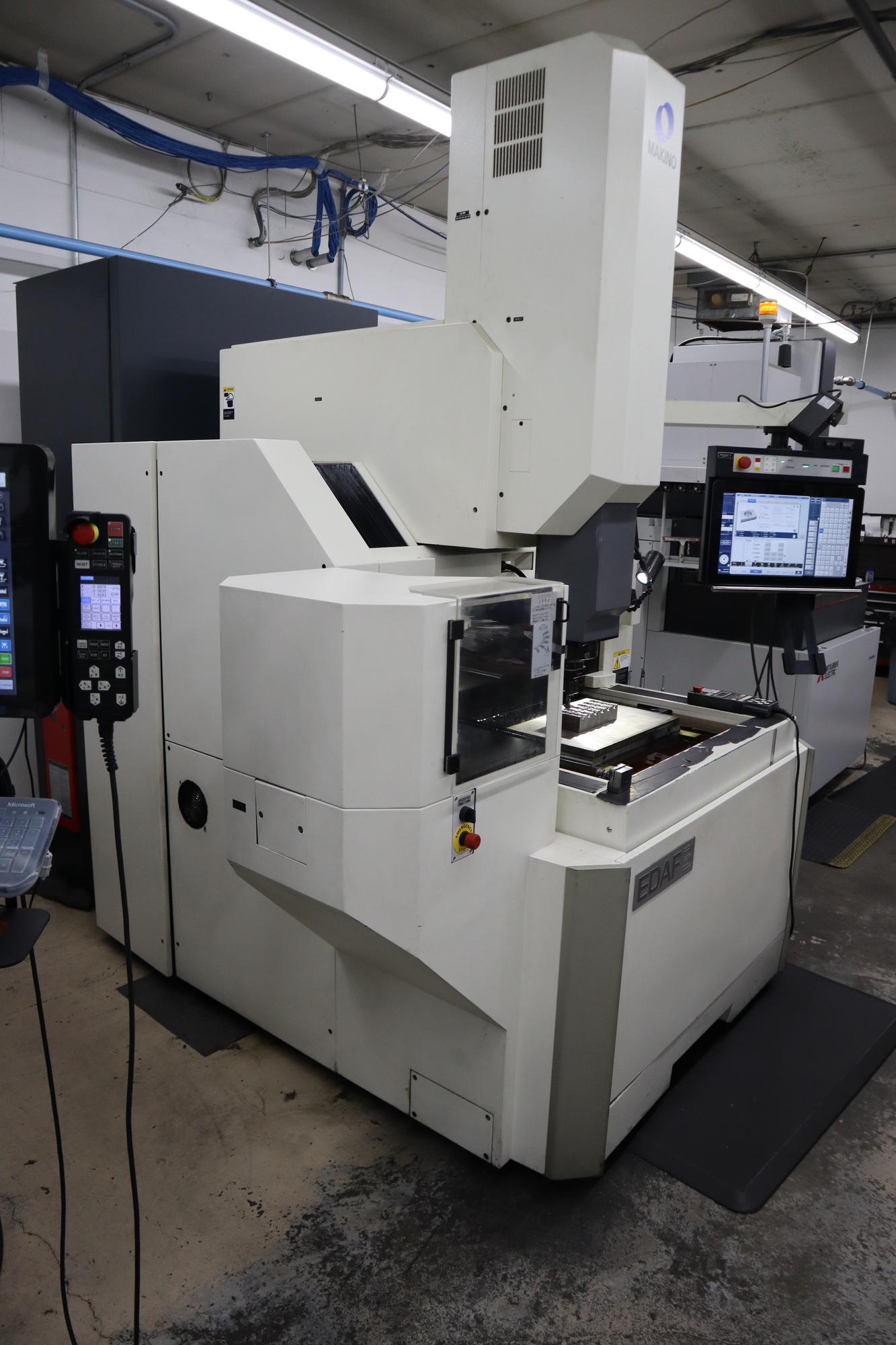

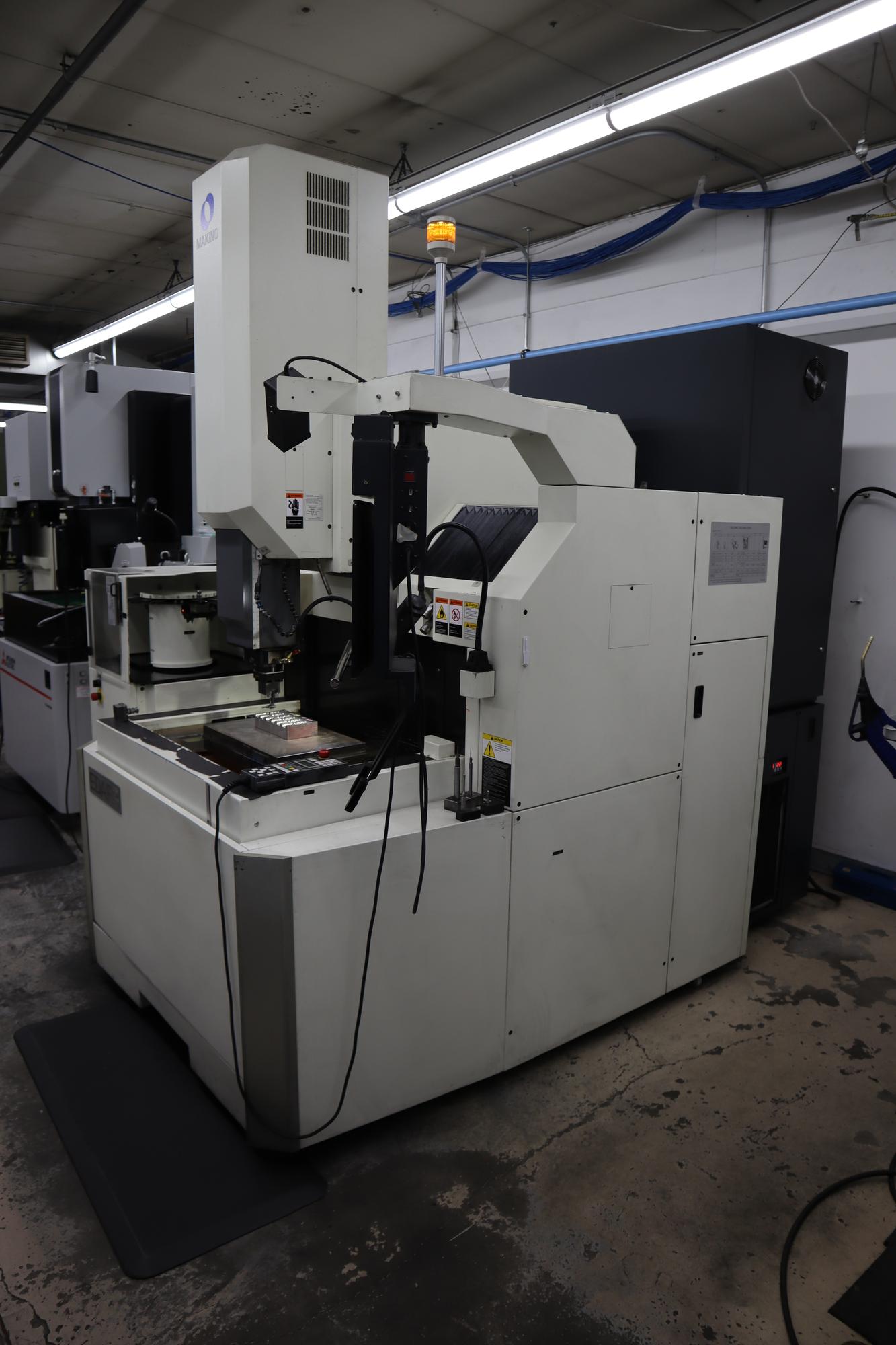

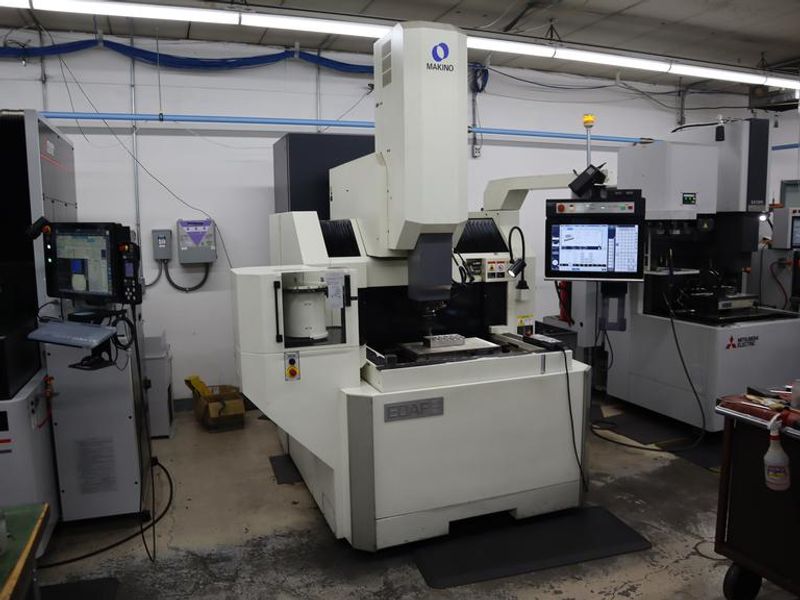

Makino EDAF3 CNC EDM Electrical Discharge Machine, Hyper i, 16ATC, C-Axis, New 2018

Manufacturer

Makino

Category

EDM Machines

Type

ELECTRIC DISCHARGE MACHINES, CONVENTIONAL, (Ram Type, Sinker)

Stock

C1002

Model

EDAF3

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

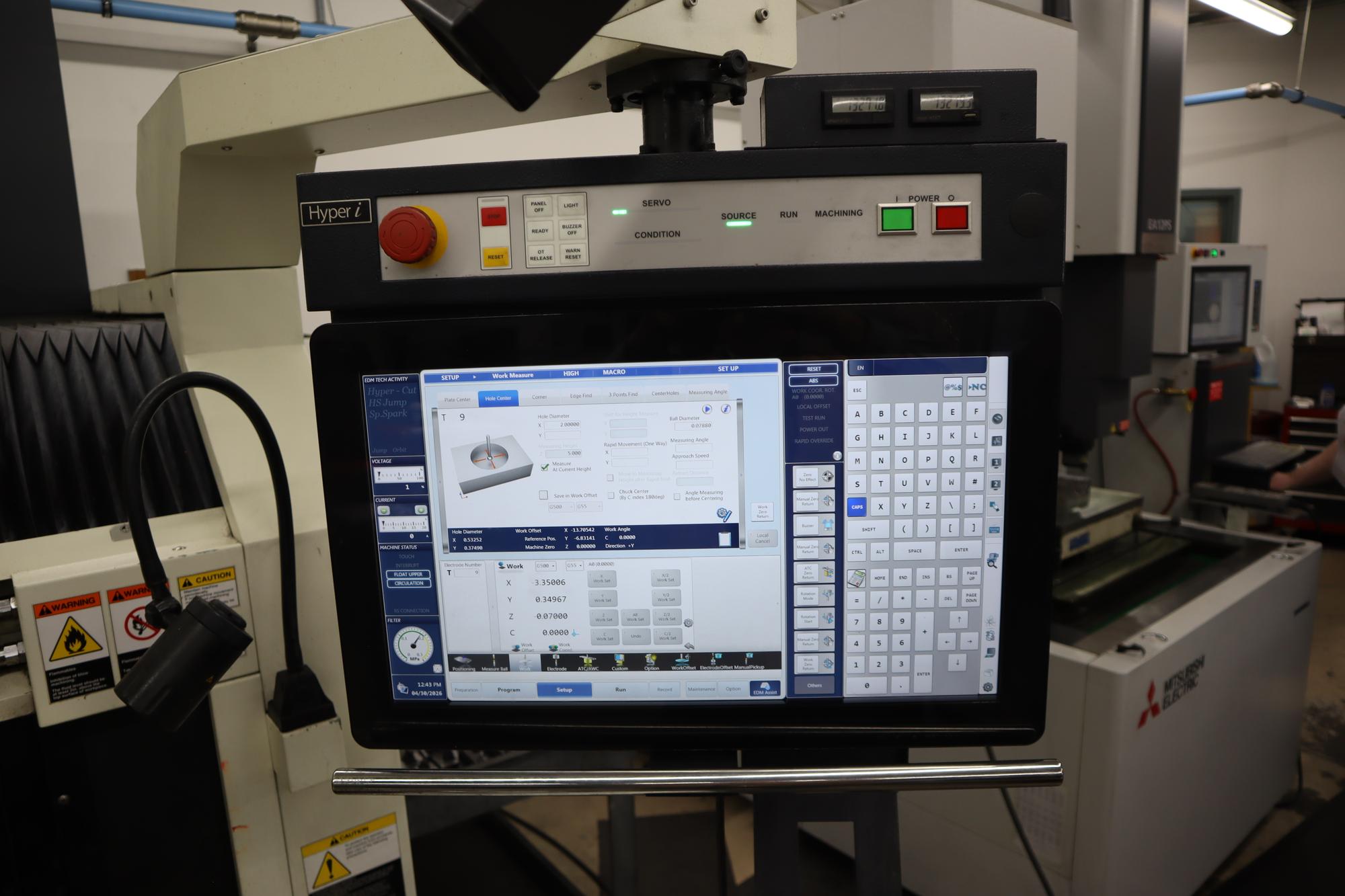

Control: Hyper i CNC Control

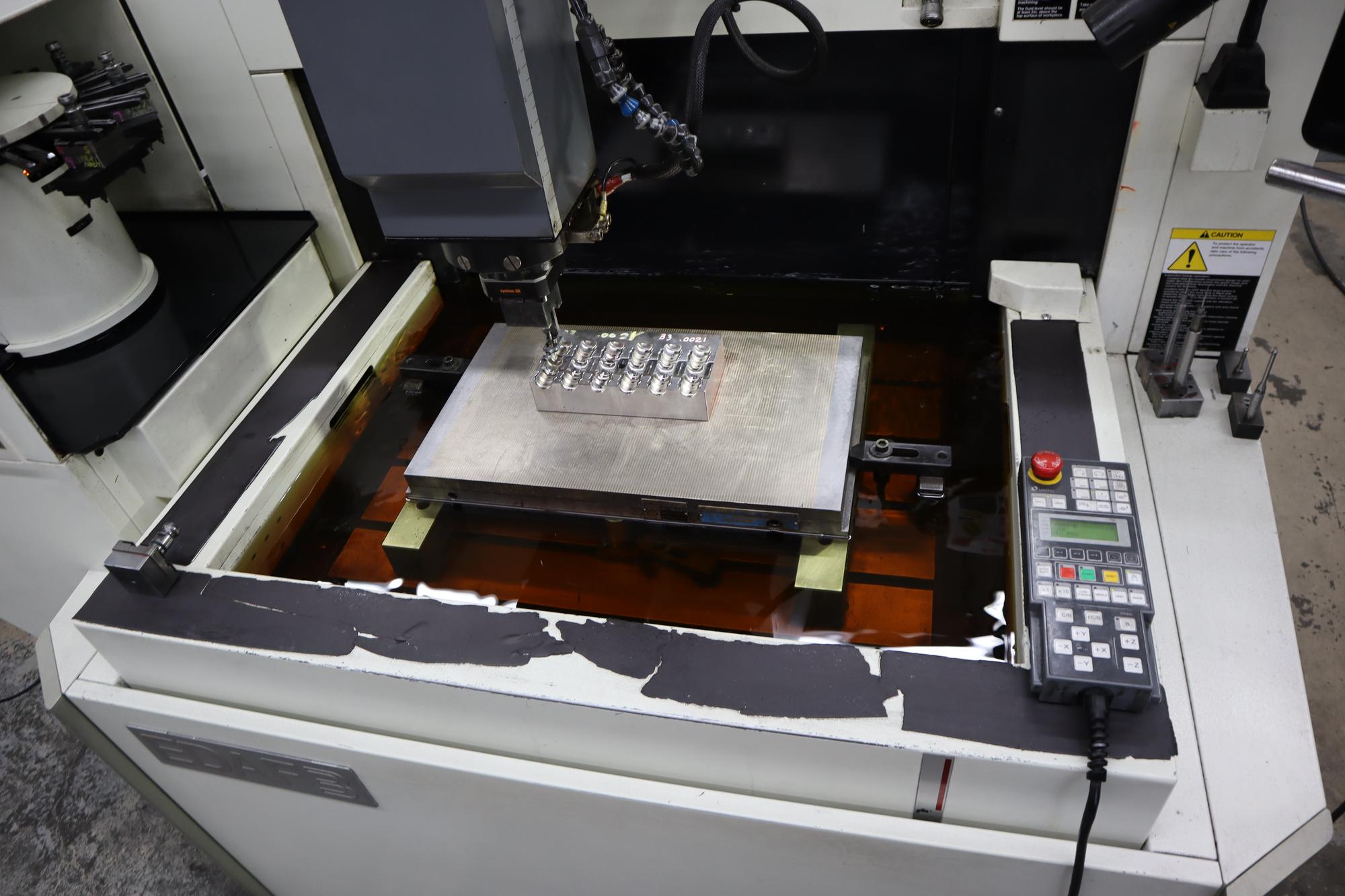

Tank Size: 33.5" x 25.6" x 15.8"

Table Size: 27.5" x 19.7"

Max Table Load: 1,760 Lbs.

Travels (X/Y/Z): 17.7" x 13.8" x 13.8"

Spindle C-Axis Positioning: Full C-axis Programmable .001 Degree

Generator Output: 60 Amps - 100 Max Amps Machining Current

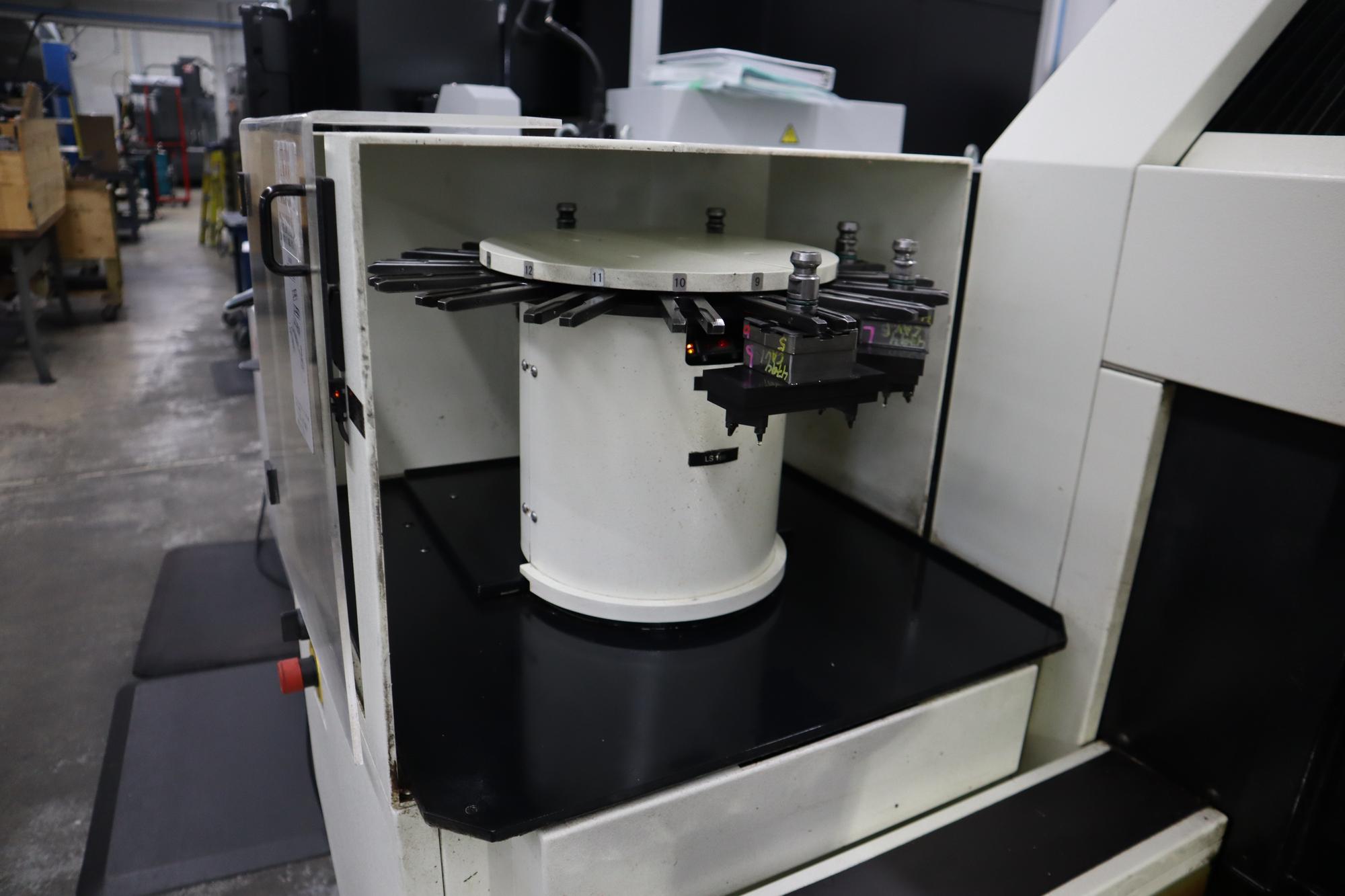

Tool Changer Capacity: 16

Programmable Spindle Rotation Speeds: MR Head 0-10 RPM

Spindle / Head Tooling Type: MR, 0-10 RPM, 60 Amperes in Stationary and Live

Max Electrode Weight: 132 Lbs (Full weight requires C-Axis Cover)

Dielectric Reservoir Capacity: 194 Liter Tank / 450 Liter Total Dielectric

Description:

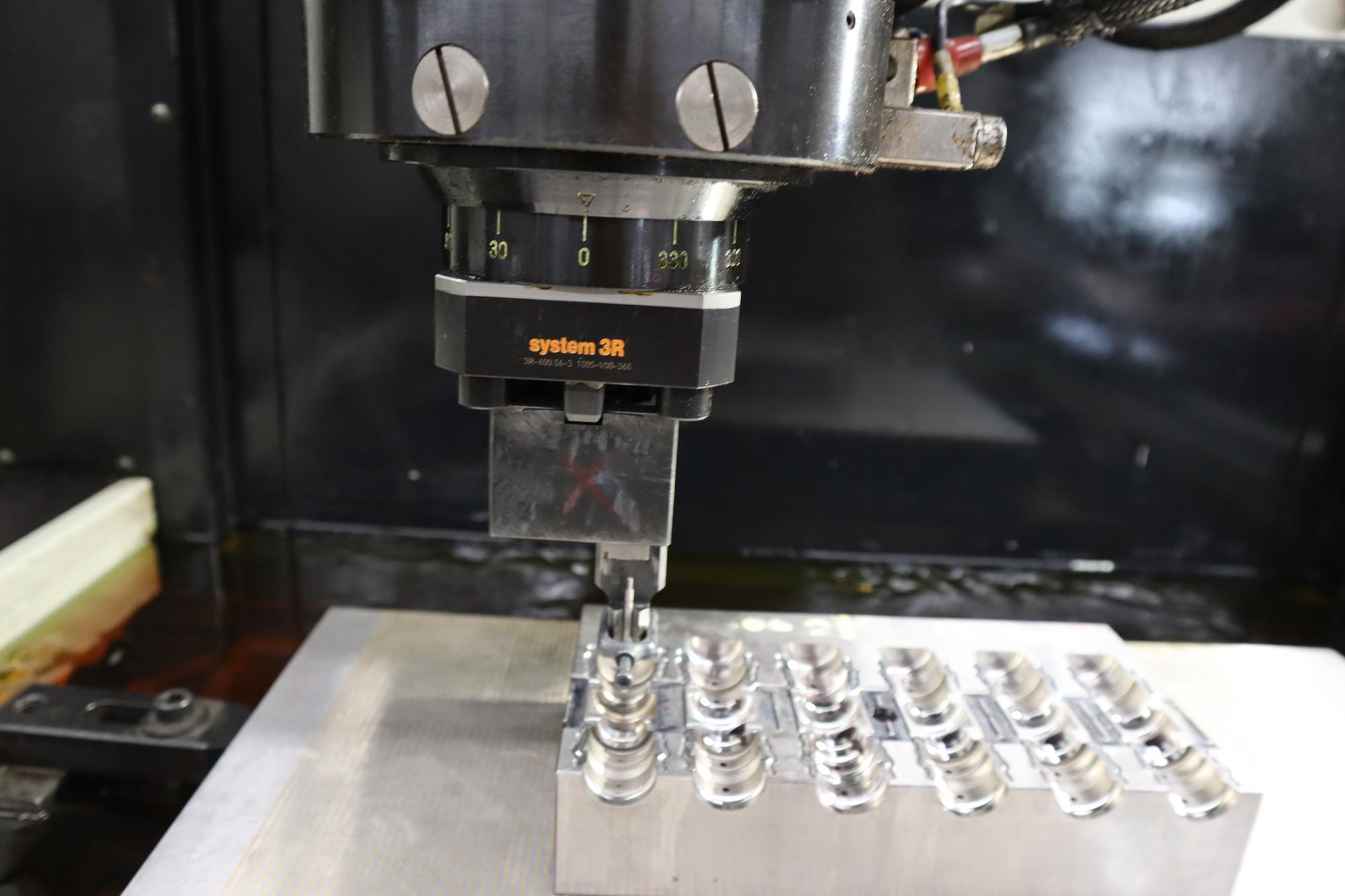

The Makino EDAF3 Sinker Type CNC Electric Discharge Machine is a high‑precision EDM solution designed for demanding mold, die, and toolroom applications. This 2018 model is equipped with the Makino MR head and Hyper i CNC control, providing stable machining performance and intuitive operation. A System 3R automatic chuck interface supports fast, repeatable electrode changes, helping reduce setup time and improve accuracy. The machine also features a full C‑axis for advanced electrode positioning and contouring, along with a 16‑station automatic tool changer to support extended unattended operation. A remote control pendant enhances operator access and setup convenience. Built with Makino’s well‑known EDM engineering and reliability, the EDAF3 is well suited for shops requiring consistent precision, automation capability, and efficient electrode handling.

Equipped With:

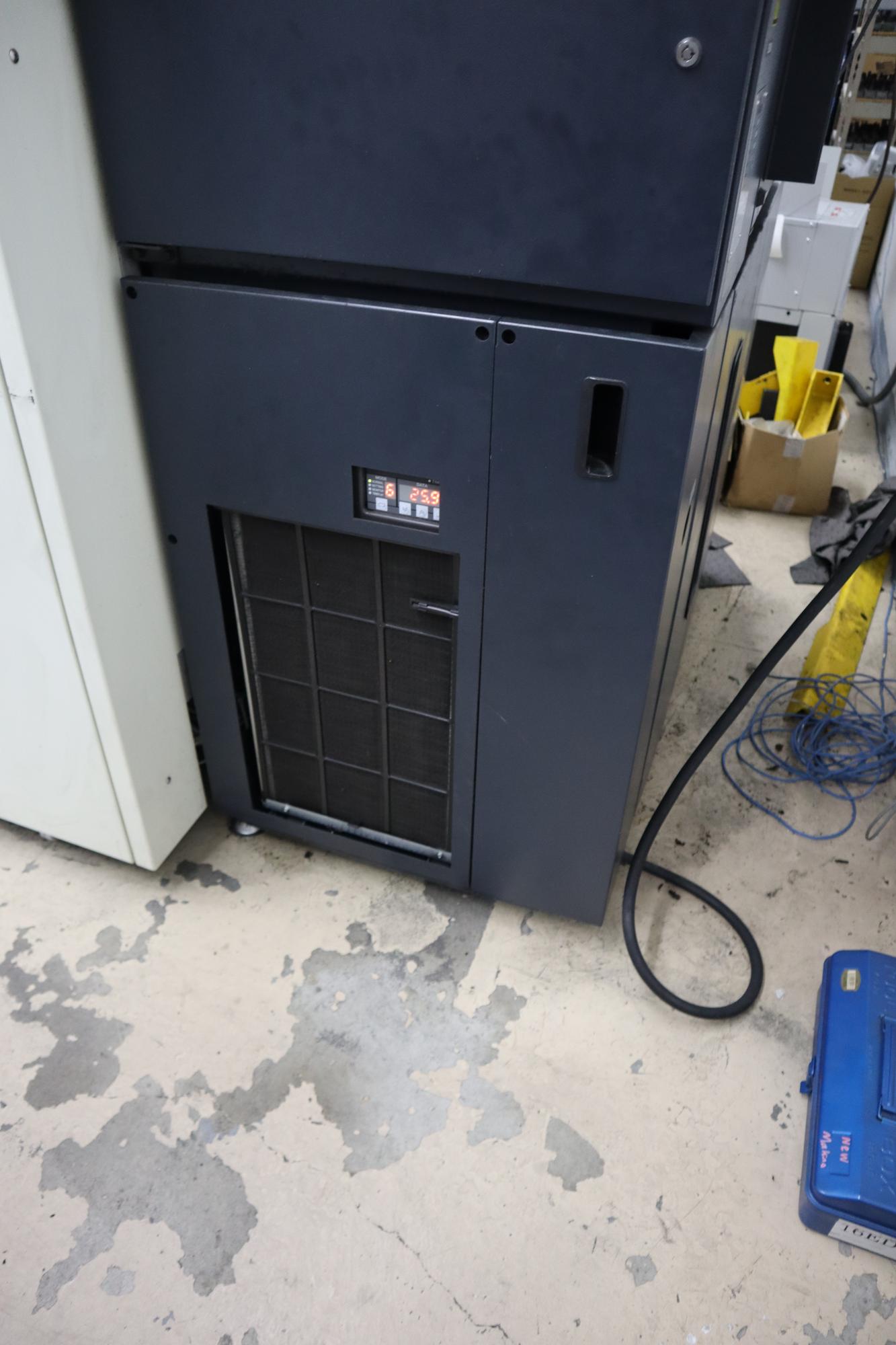

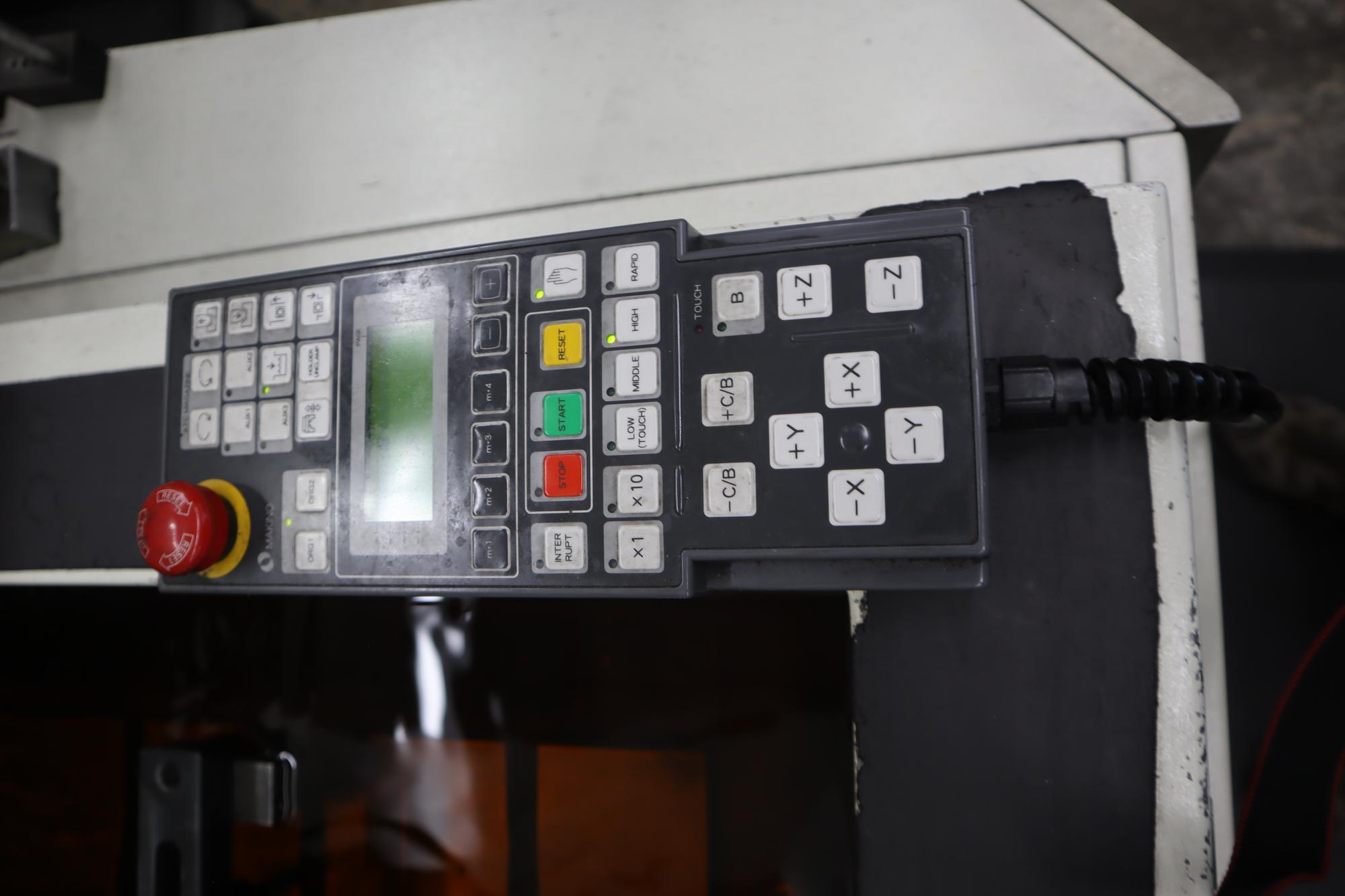

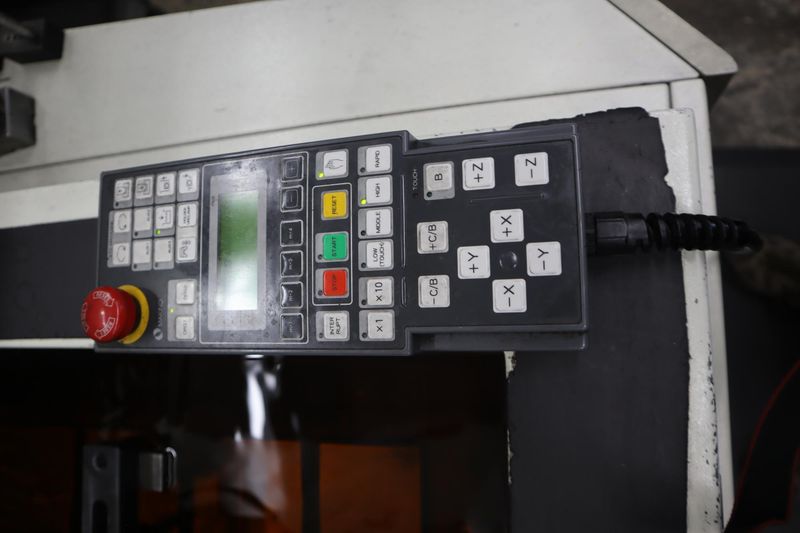

Hyper-i CNC COntrol, MR Rotary Head, System 3R Auto Chuck, Full C-Axis Programmable, 16 Station Automatic Electrode Changer, Remote Control Pendant, Chiller, Dielectric System.

Electrics:

208 Volt, 50 Amps, 3 Phase
