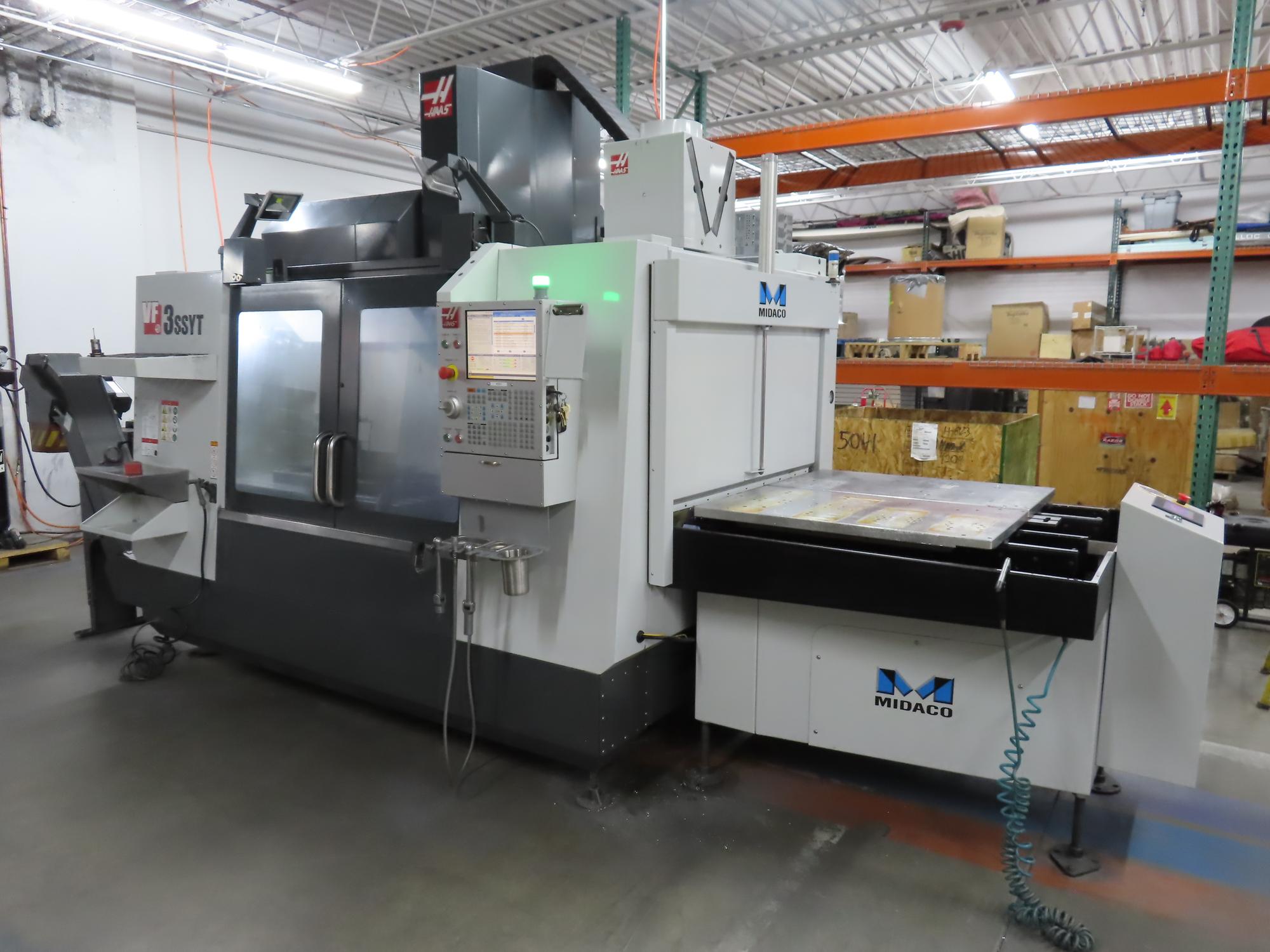

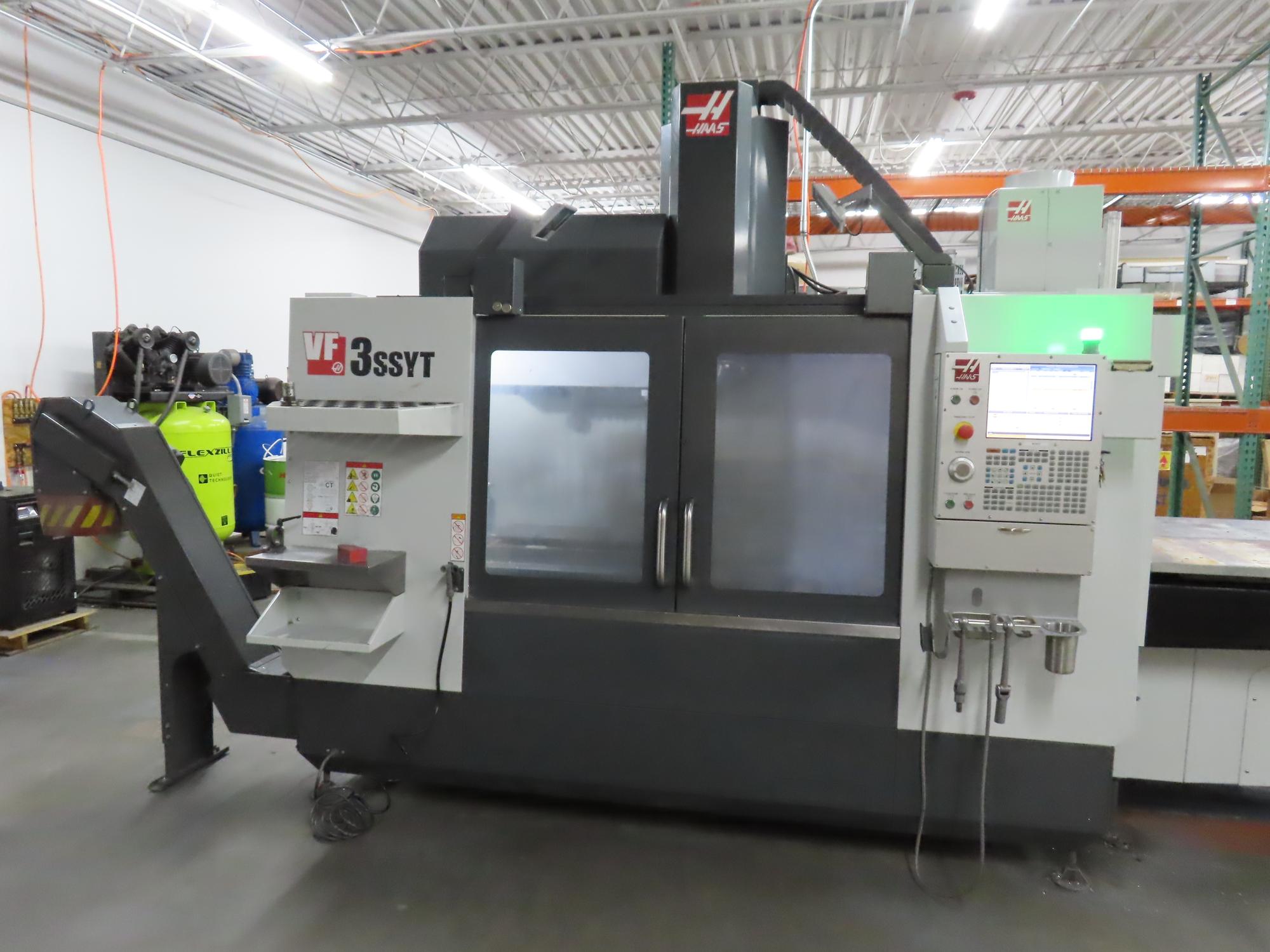

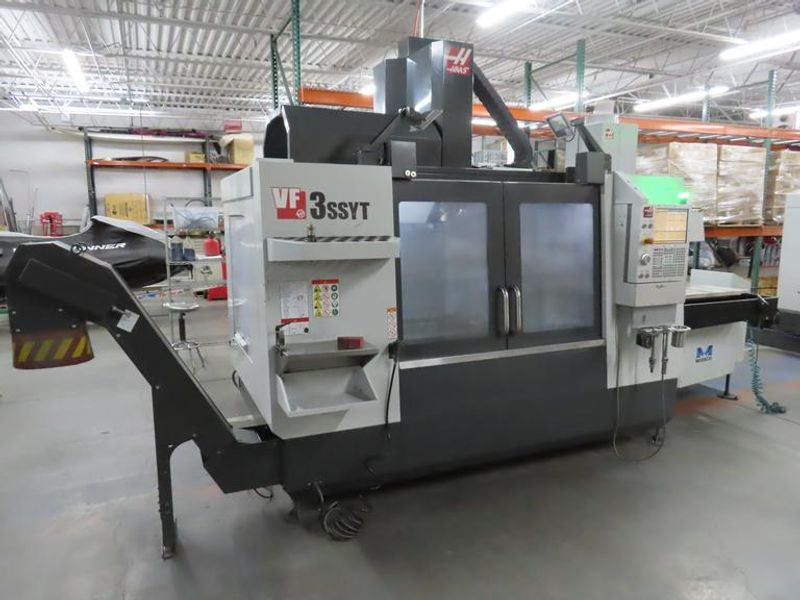

Haas VF-3SSYT CNC Vertical Machining Center with Midaco Pallet Changer, Thru Spindle Coolant, Probing

Manufacturer

Haas

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

C1009

Model

VF-3SSYT

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

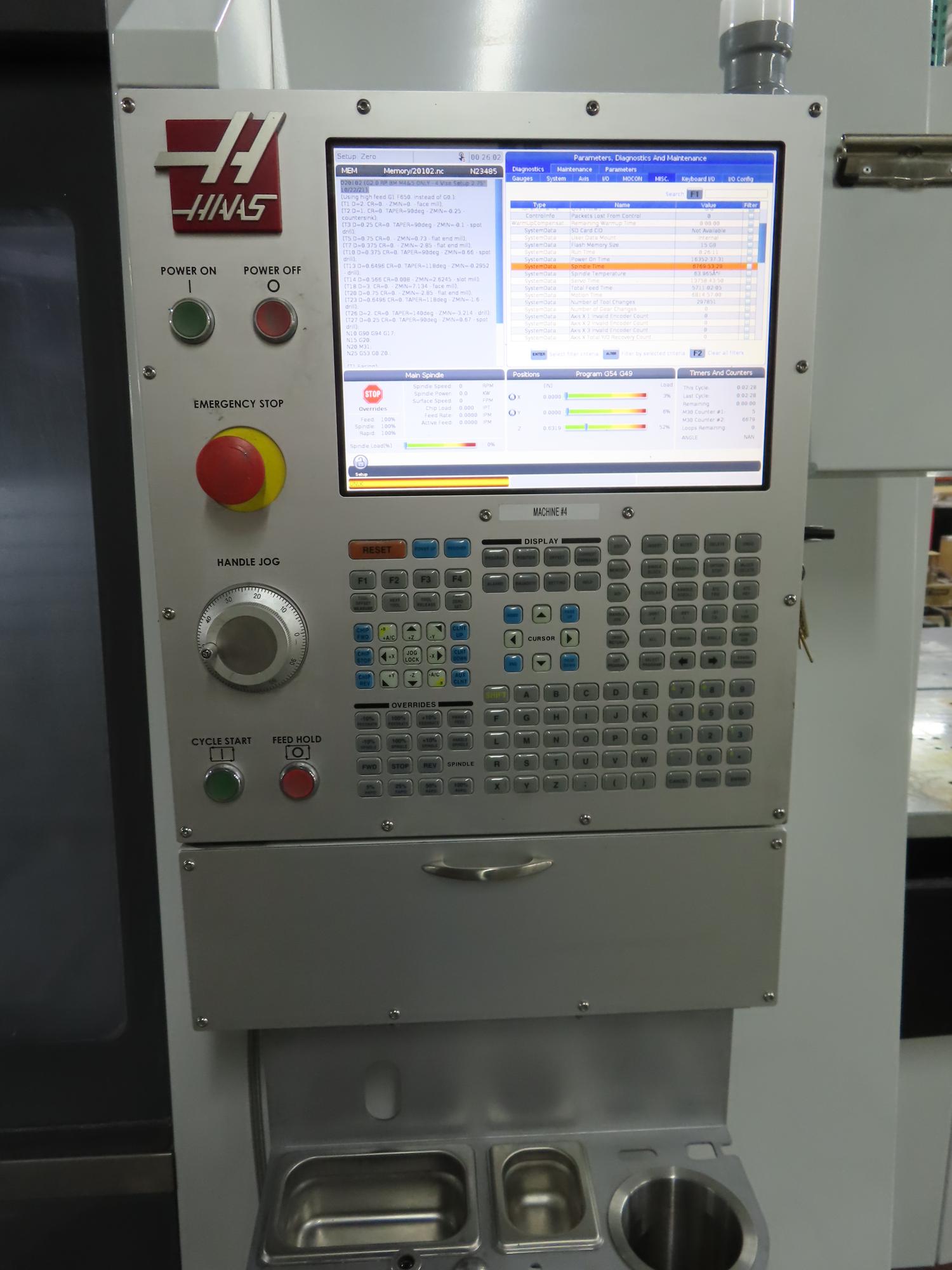

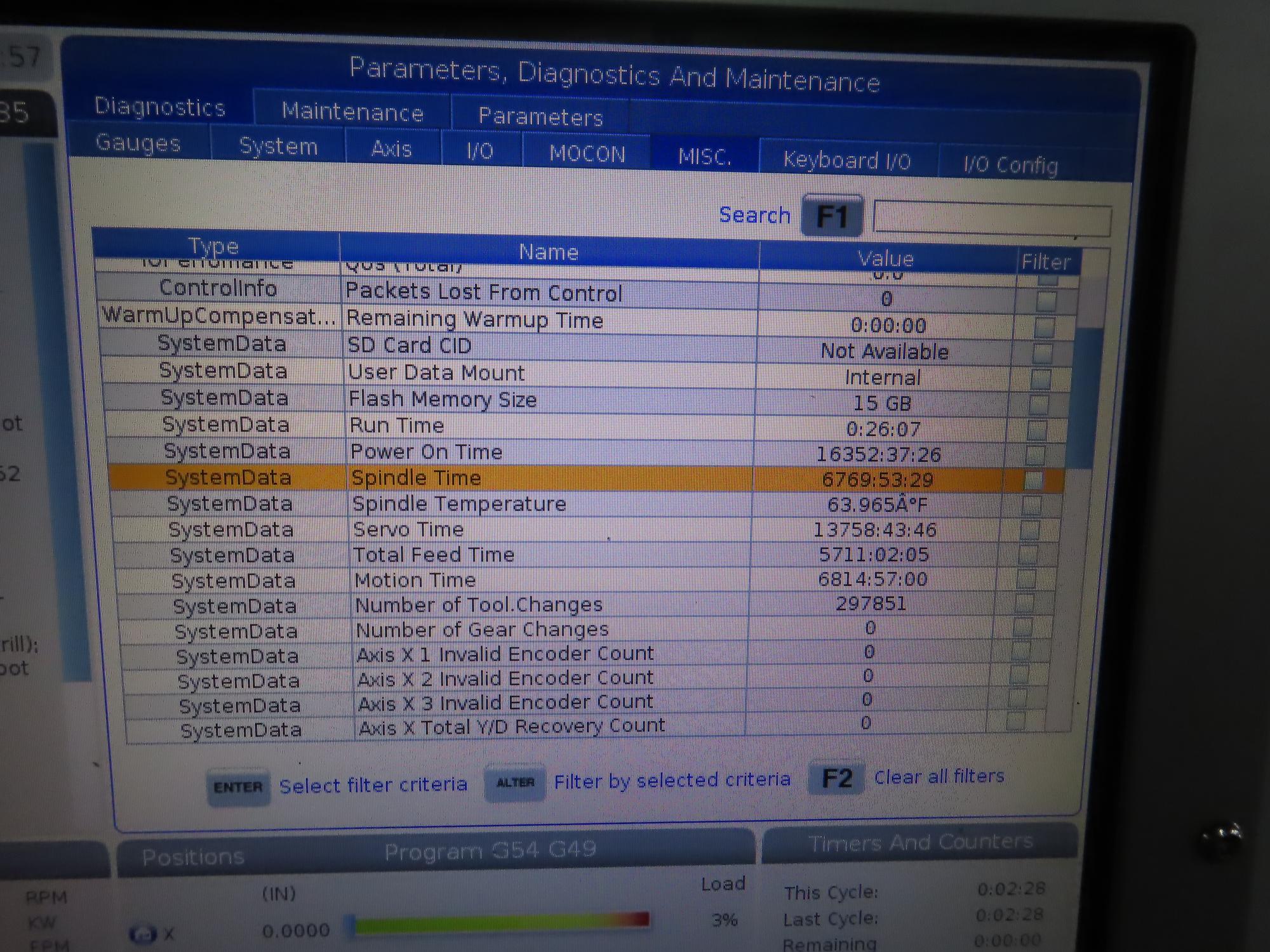

Machine Control: Haas Next Generation CNC Control

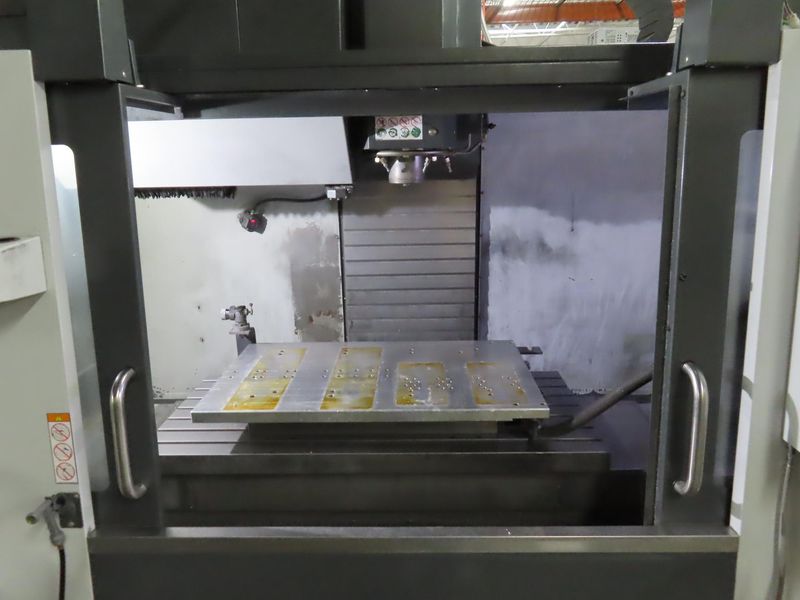

Table Size: 54" x 25"

Machine Travels (X/Y/Z): 40" / 26" / 25"

Table Capacity: 1750 lbs

Spindle Taper: CT 40

Spindle Speeds: 12,000 RPM Max

Transmission: Inline Direct Drive

Rapid Traverse Rate (X/Y/Z): 1400 ipm.

Maximum Cutting Feed Rate: 833 ipm.

Tool Changer Style: Side Mount, Twin Arm

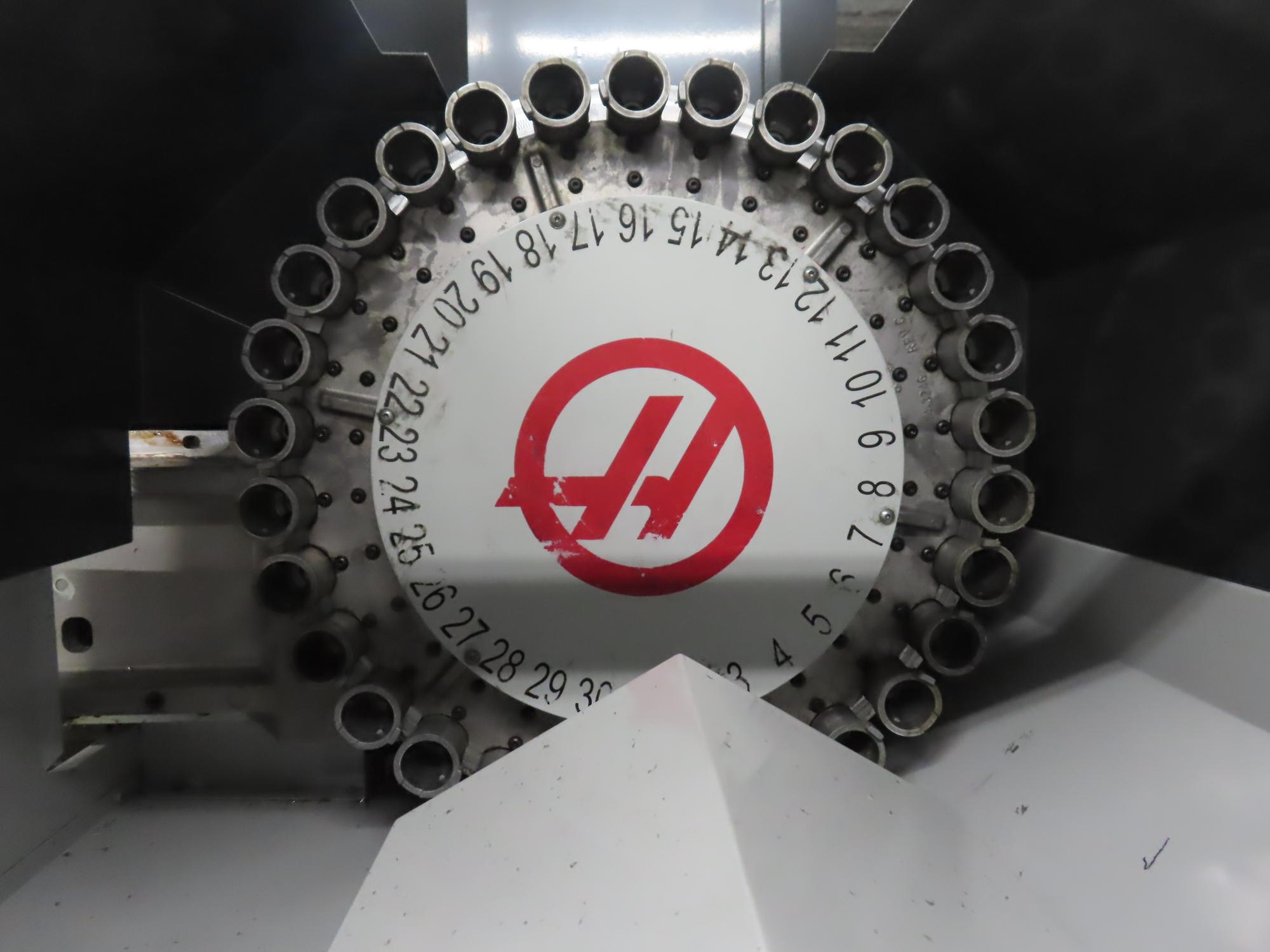

Tool Changer Capacity: 30 Stations

Tool Change Time: 1.8 Tool to Tool

Max Tool weight: 12 Lbs.

Spindle To Table Distance: 4" - 29"

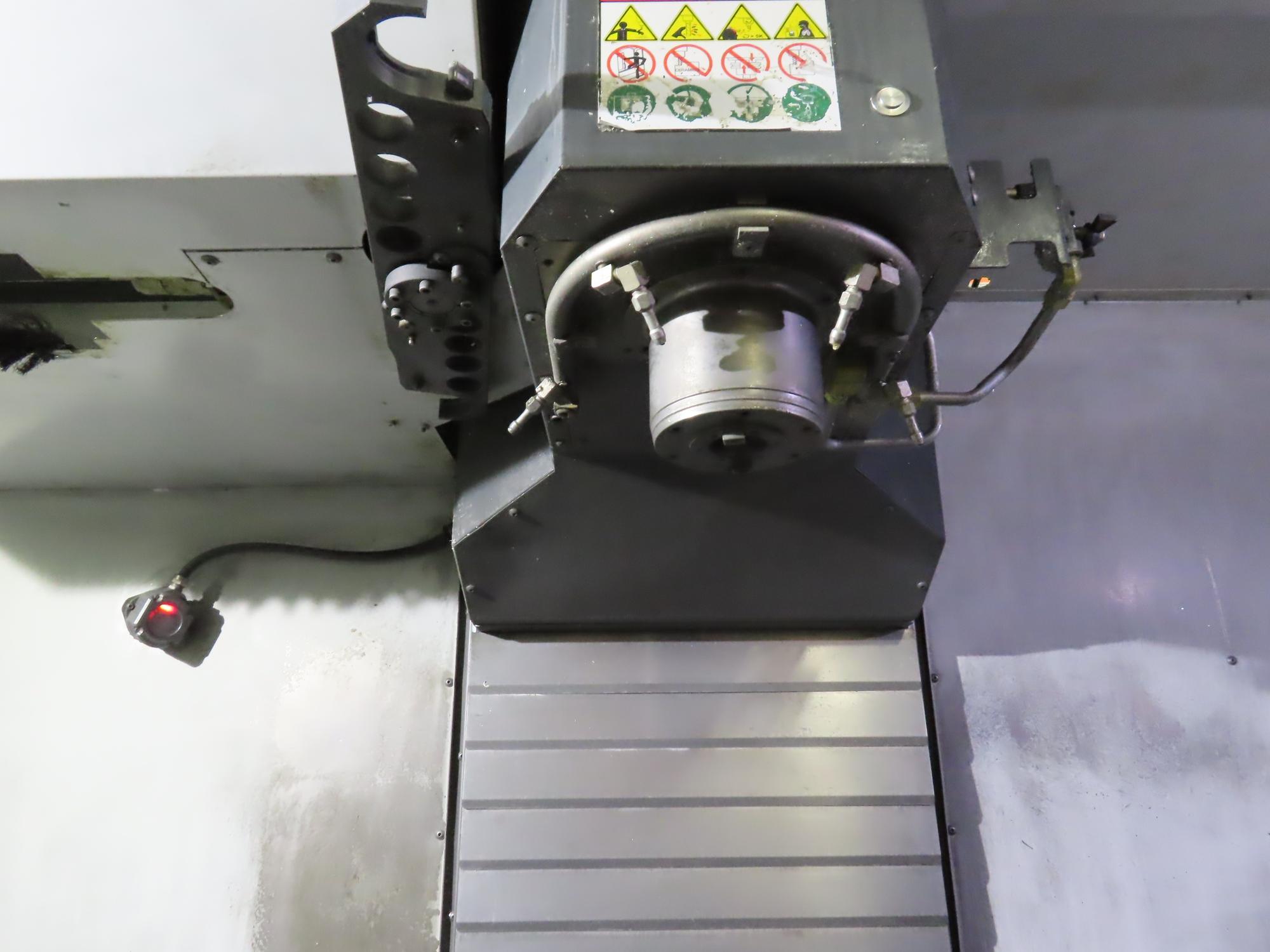

Spindle Drive: 30 Hp Inline Direct Drive

Description:

The Haas VF‑3SSYT is a high‑performance vertical machining center designed for speed, accuracy, and productivity. As part of Haas’ Super‑Speed (SS) line, this machine features faster rapids, a high‑speed spindle, and improved acceleration, making it ideal for high‑mix or production machining environments. The “YT” configuration provides increased Y‑axis travel, allowing for larger fixtures and greater machining flexibility compared to standard VF‑3 models. This machine is equipped with a MIDACO automatic pallet changer, significantly reducing spindle idle time and increasing throughput by enabling concurrent part loading and unloading. With thru‑spindle coolant (TSC) and Haas probing, this VF‑3SSYT is well suited for unattended operation, tight‑tolerance work, and repeatable setups.

Equipped With:

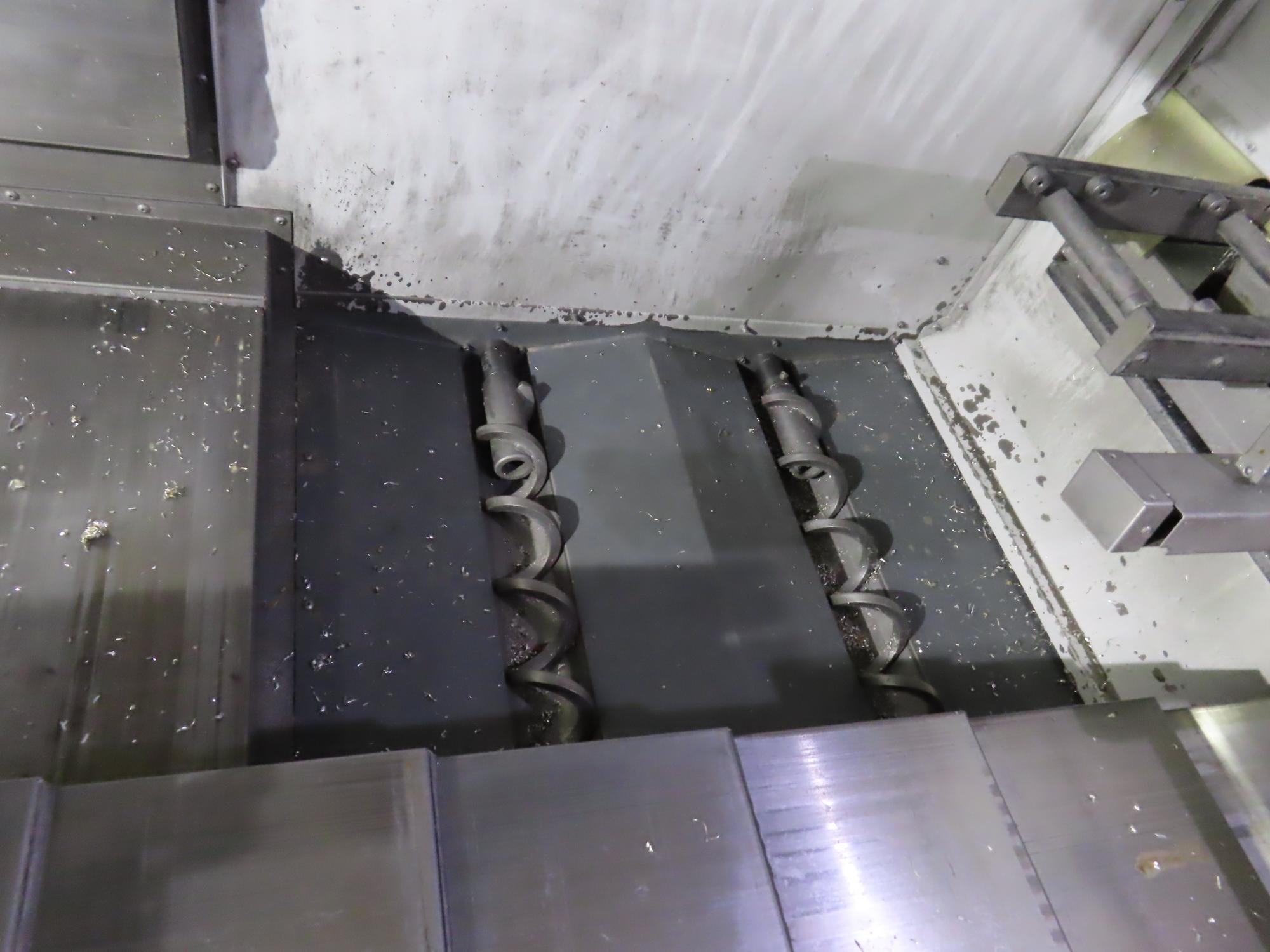

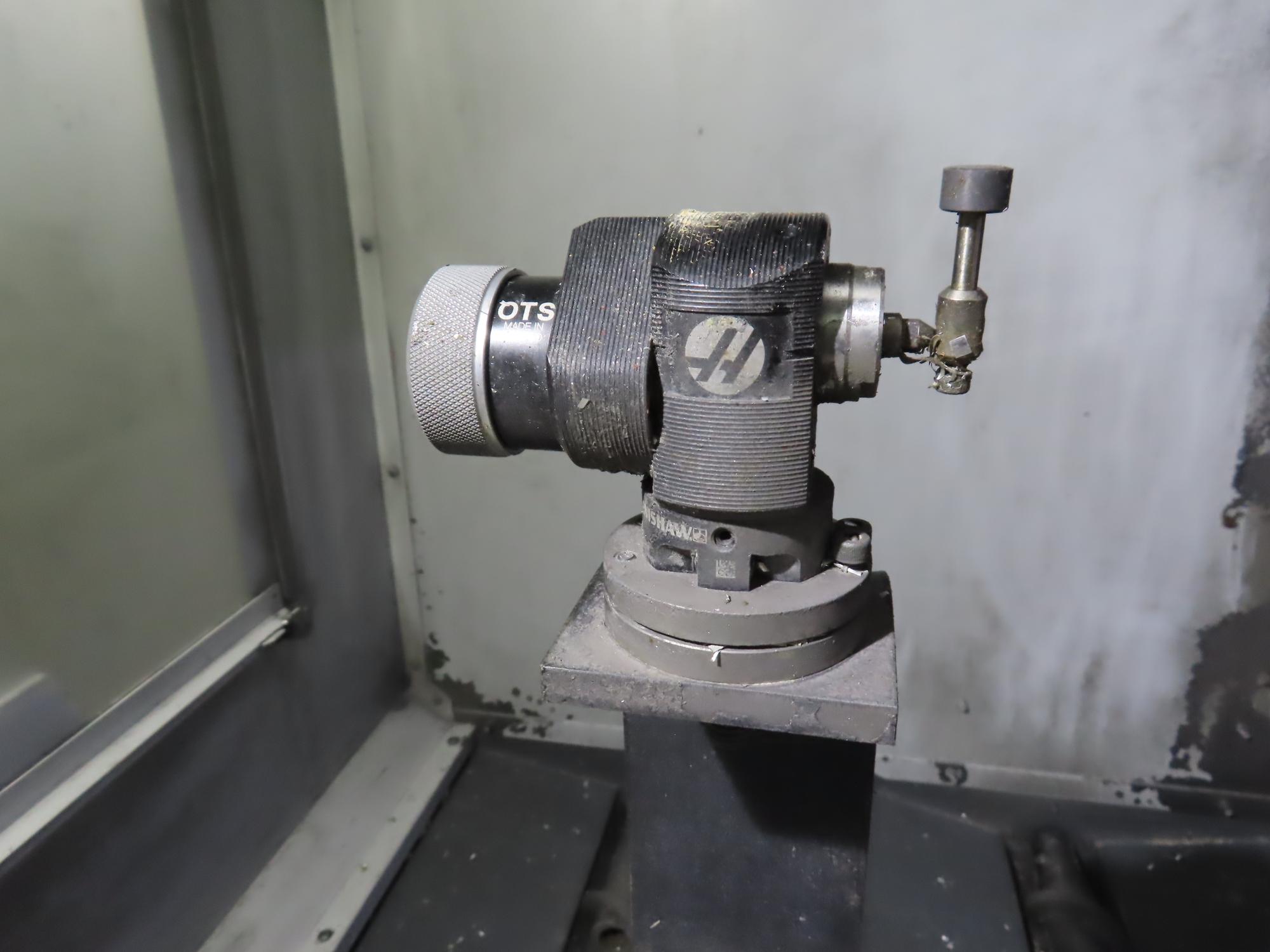

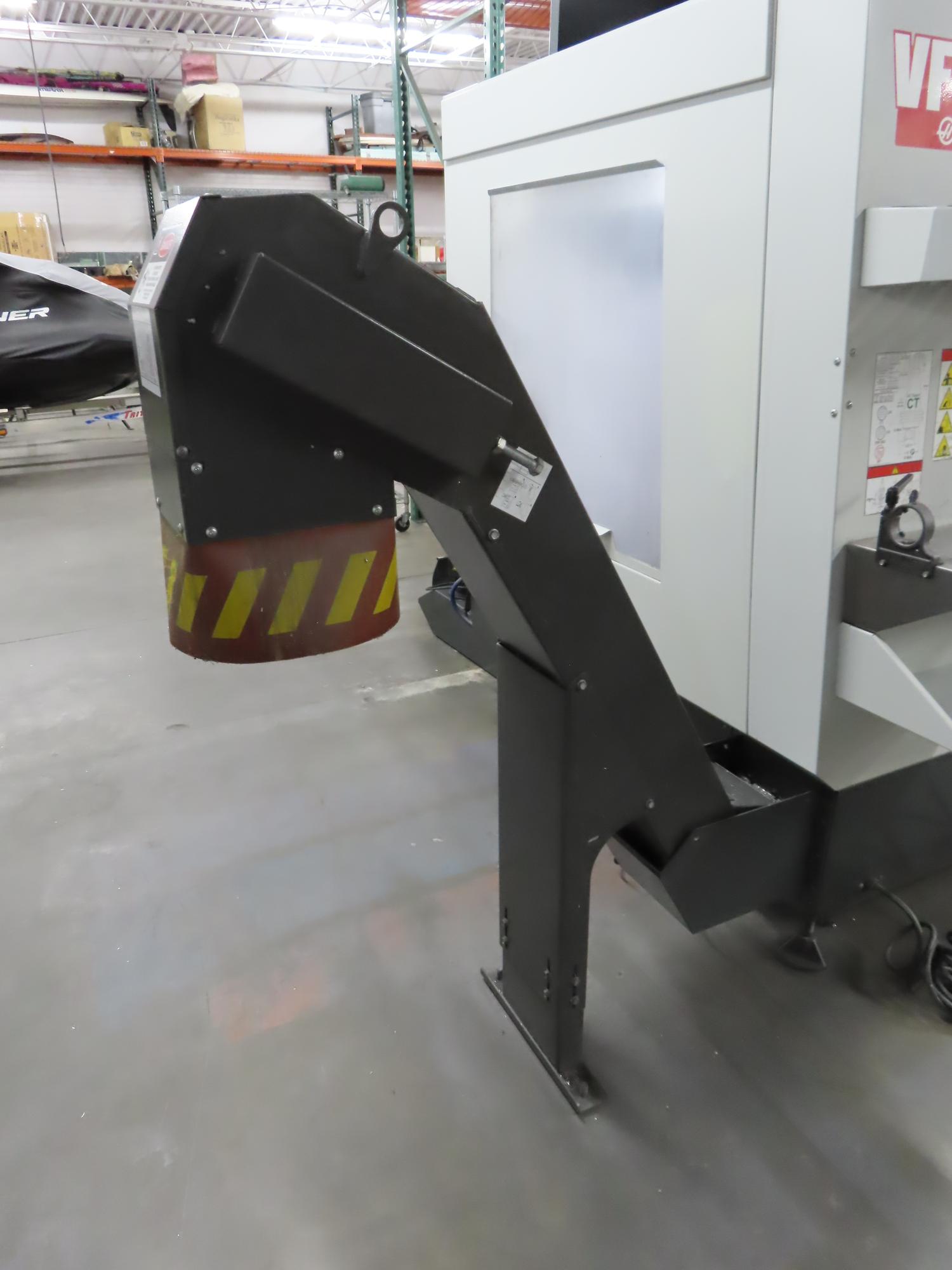

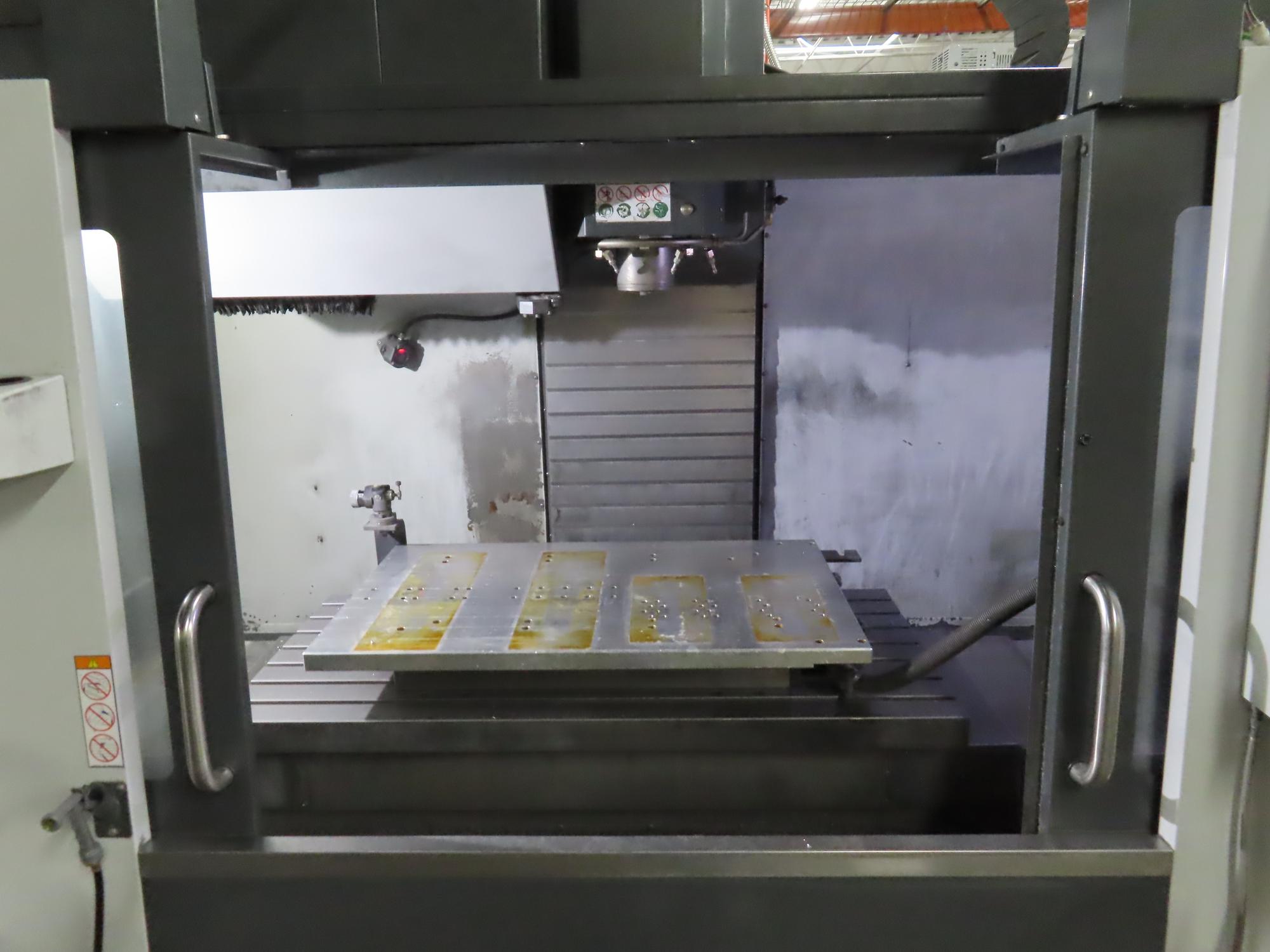

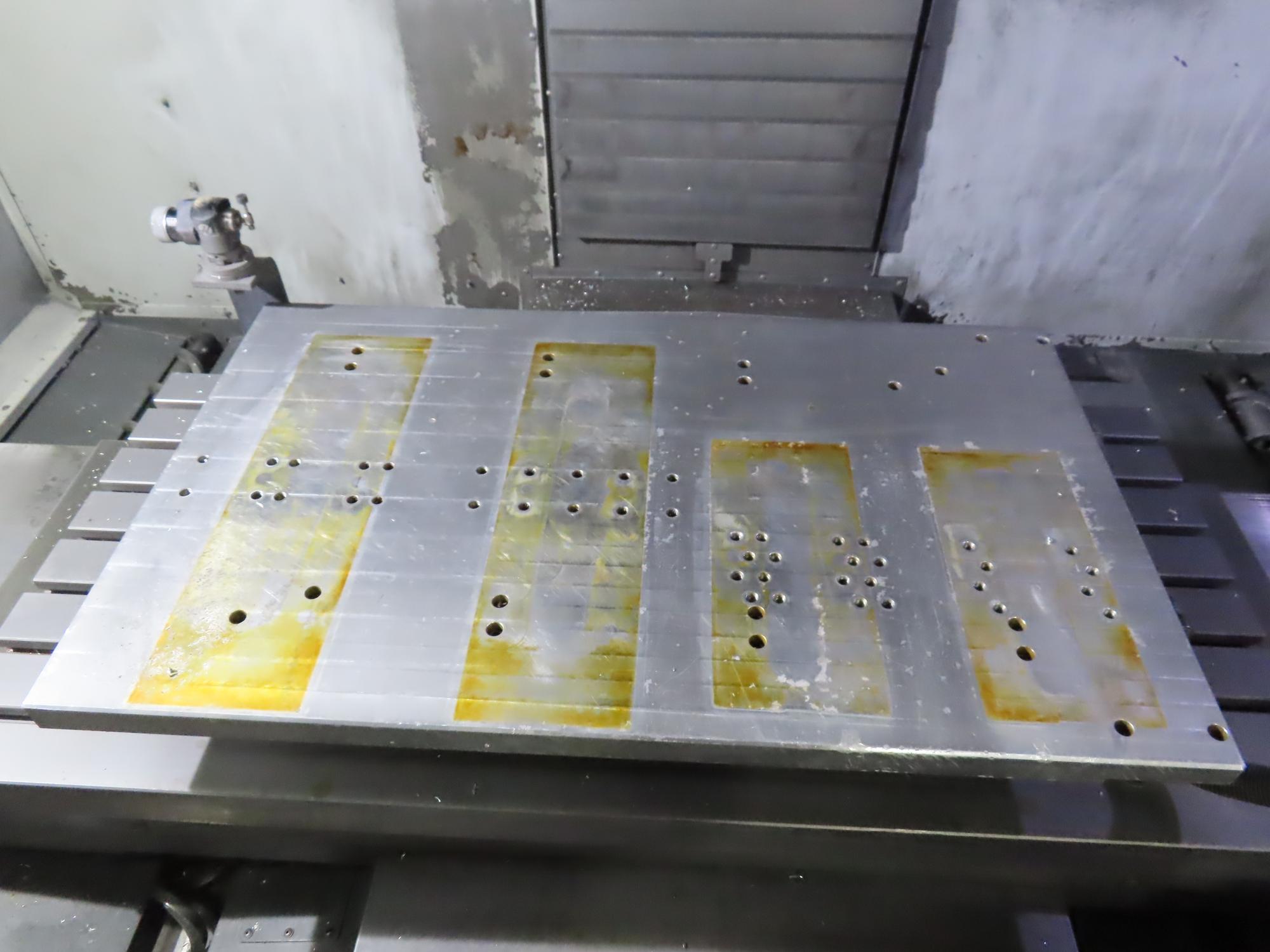

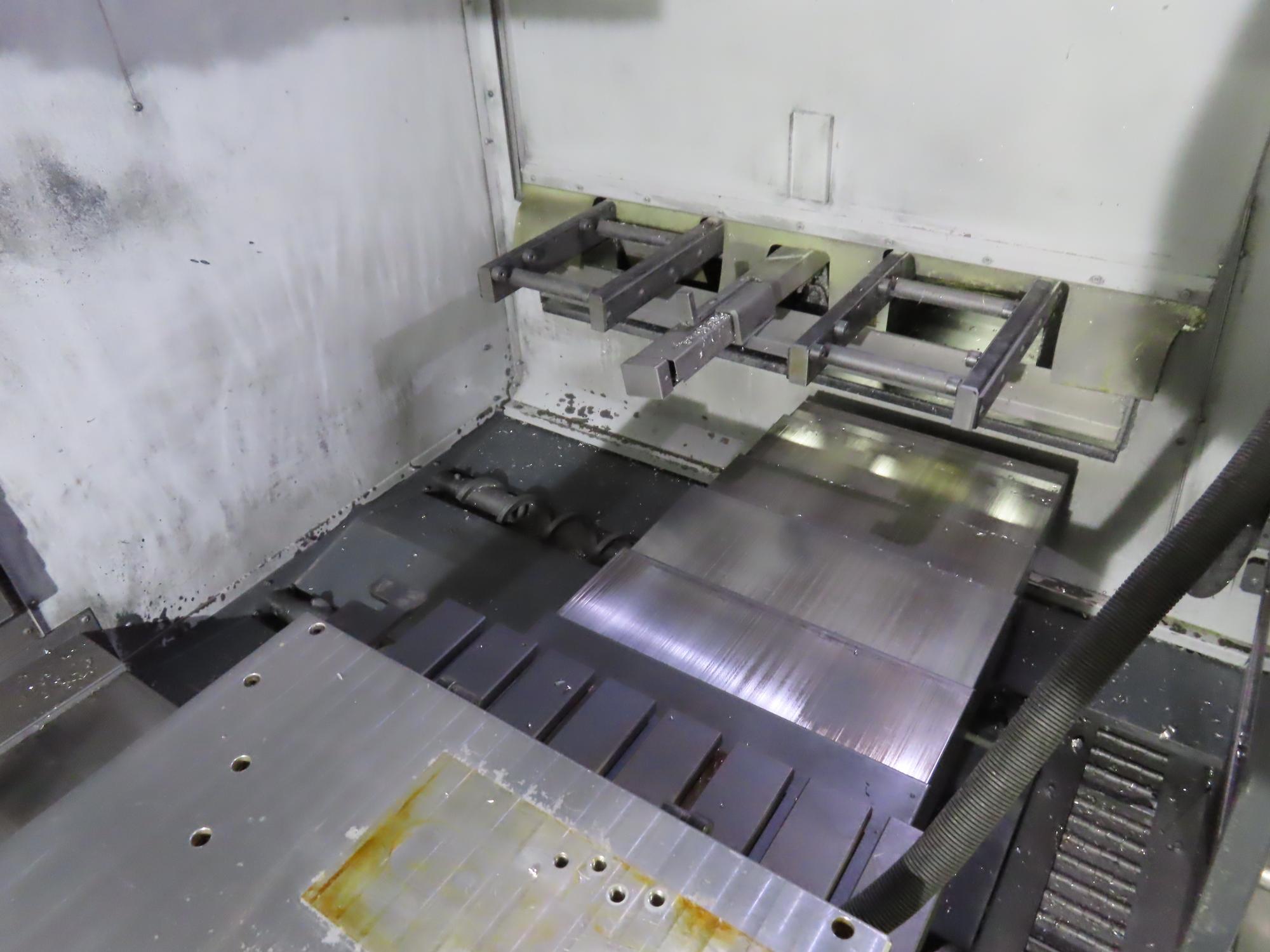

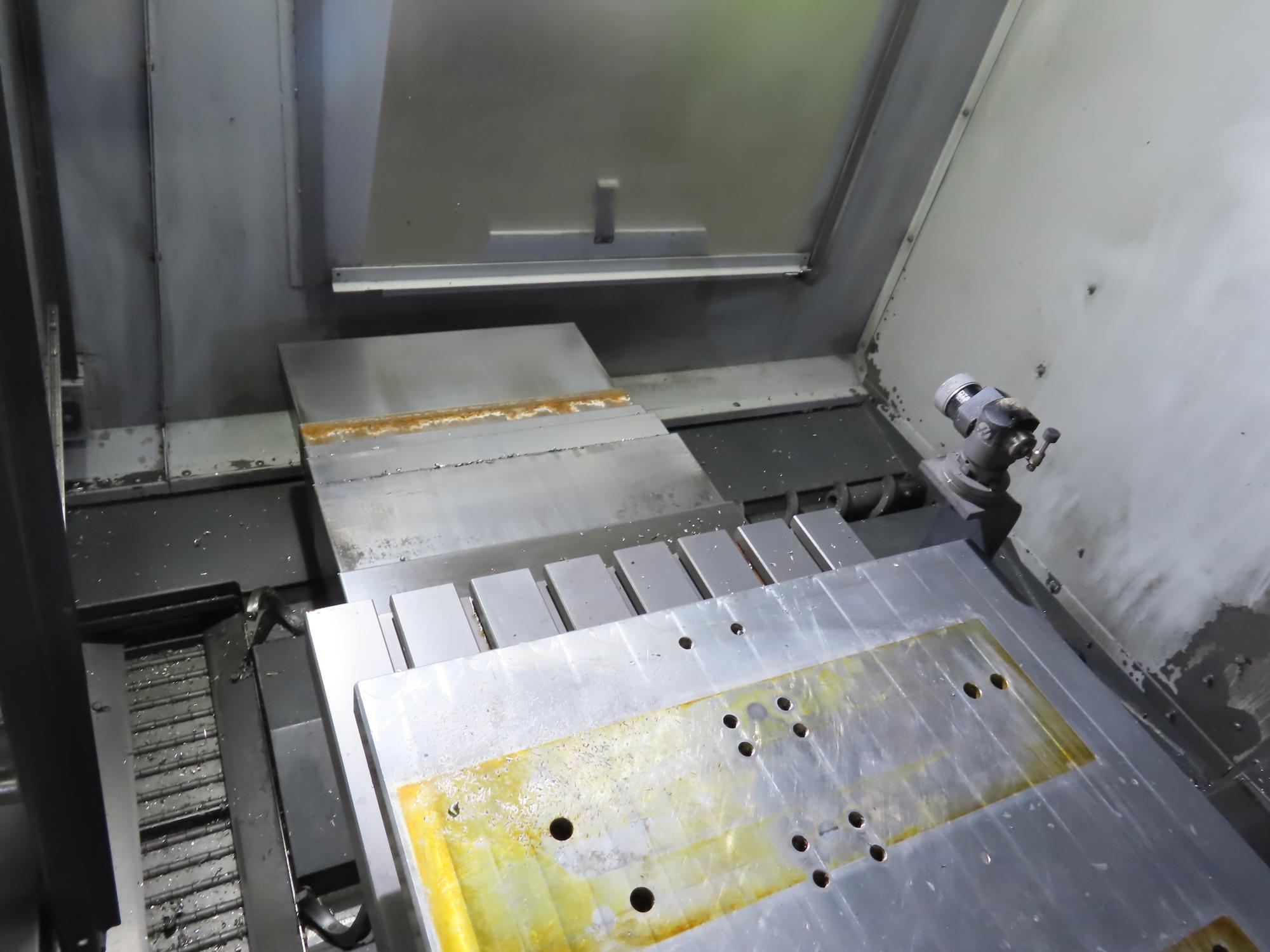

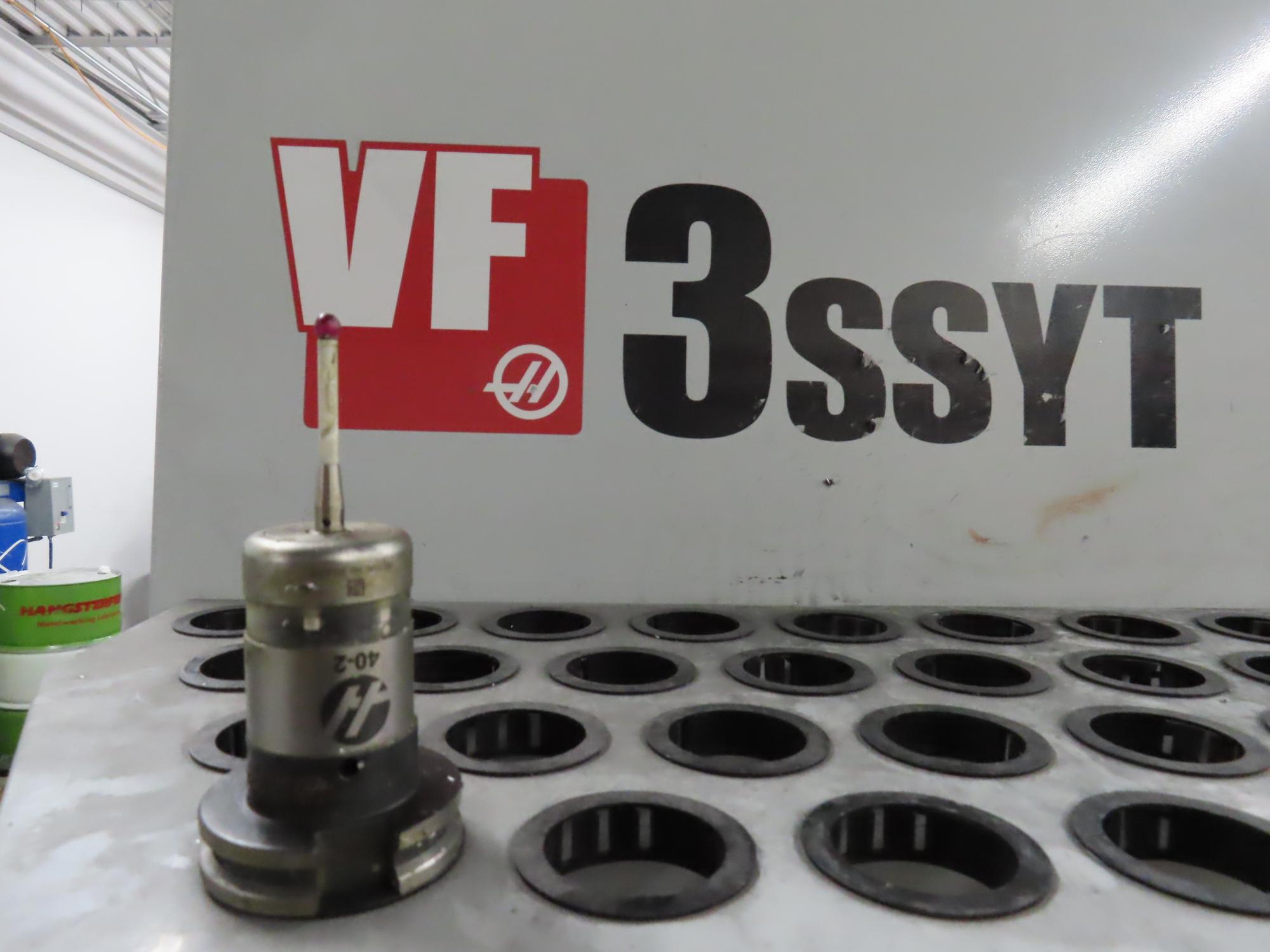

Haas Next Generation CNC Control, 12,000 RPM Max Spindle Speed, 30 Station Automatic Tool Changer, Midaco A40SD Automatic Pallet Changer with Mitsubishi Touch Screen PLC Controler, (2) 24" x 40" Pallets, 300 PSI Thru-Spindle Coolant, Haas Probing System with Tool and Parts Probes, Multi-Auger Chip Conveyor System, Rigid Tapping, WIFI Connect, 1GB Memory, Coolant Tank and Pumps, Keys
