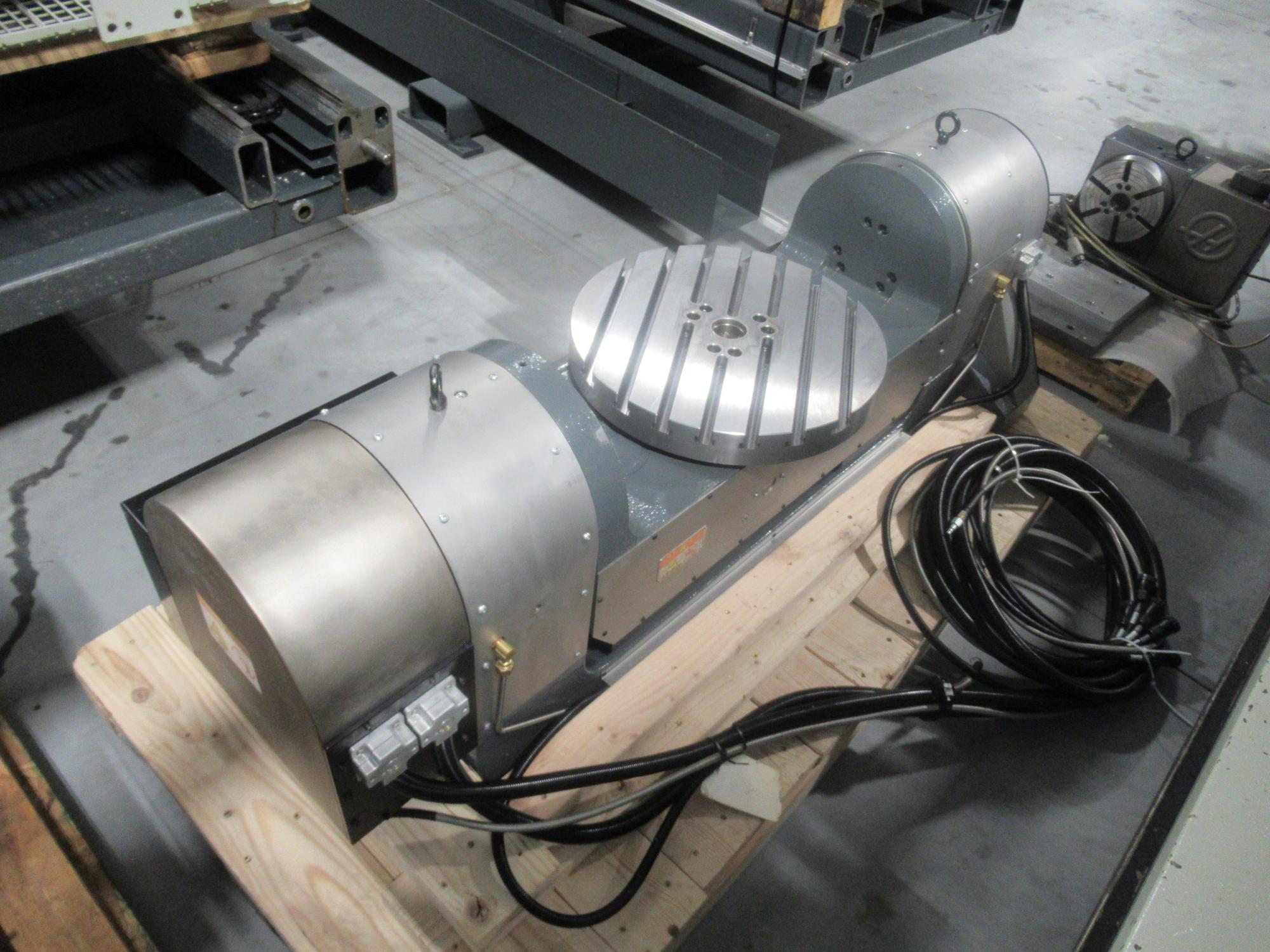

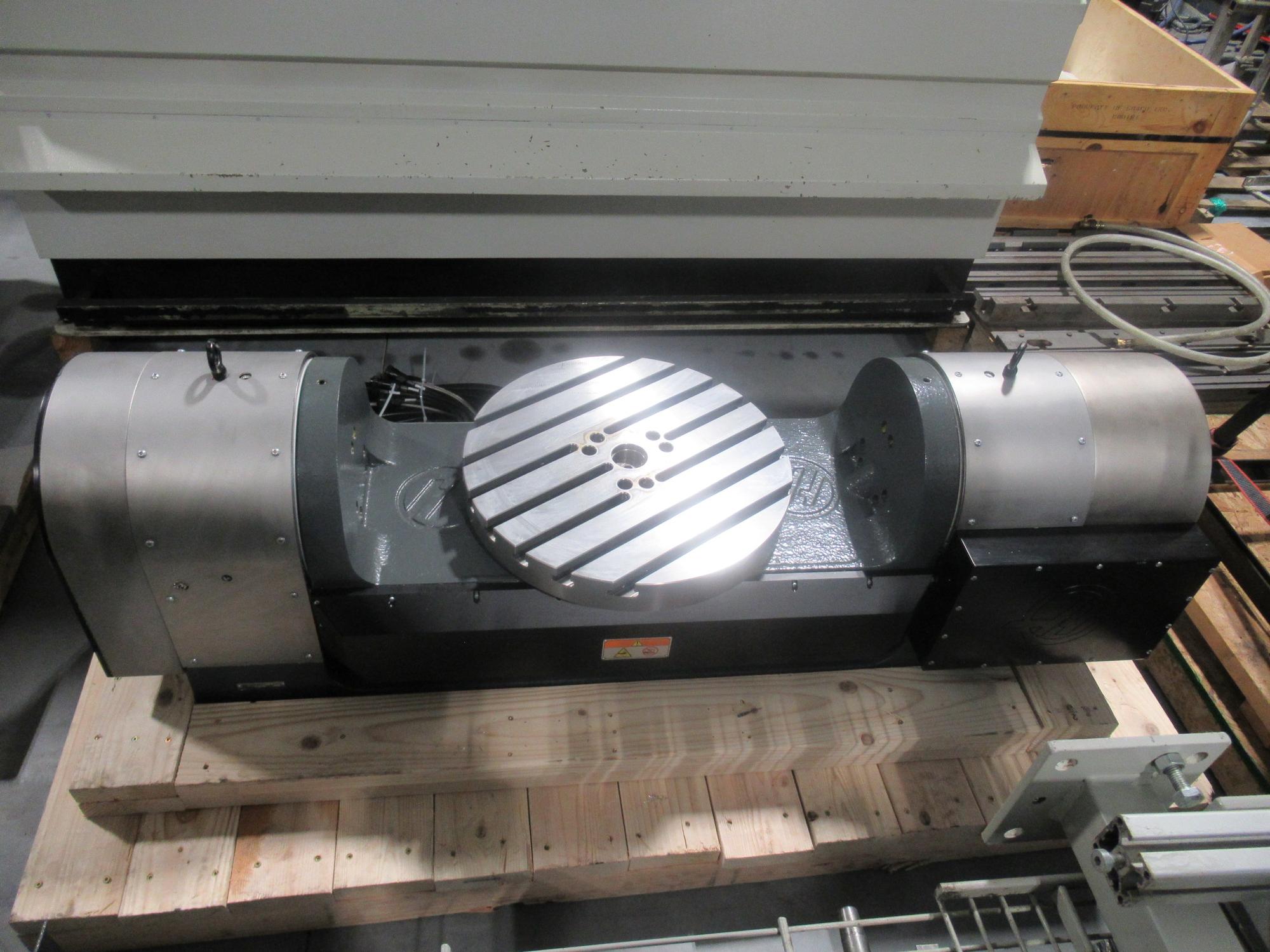

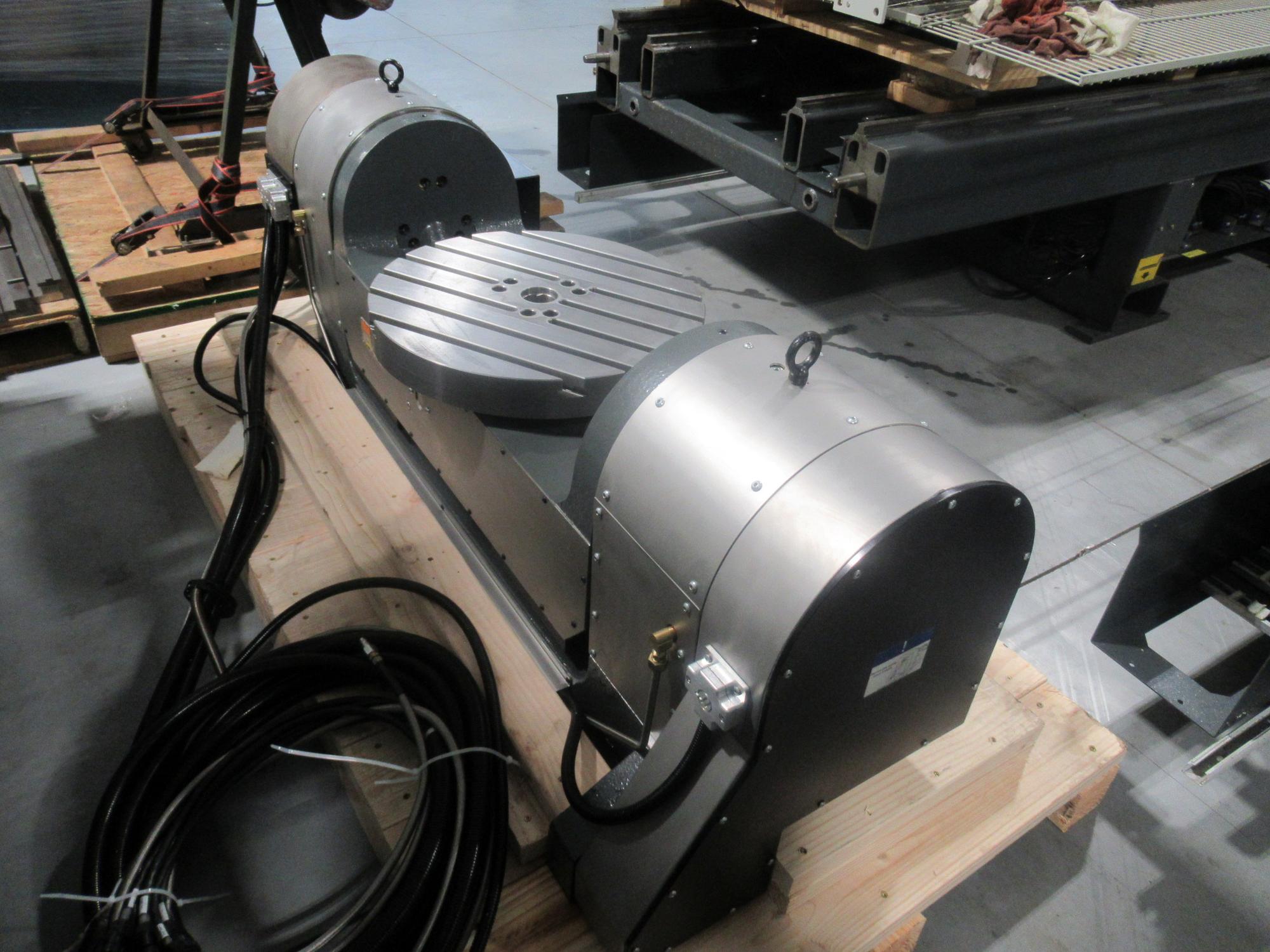

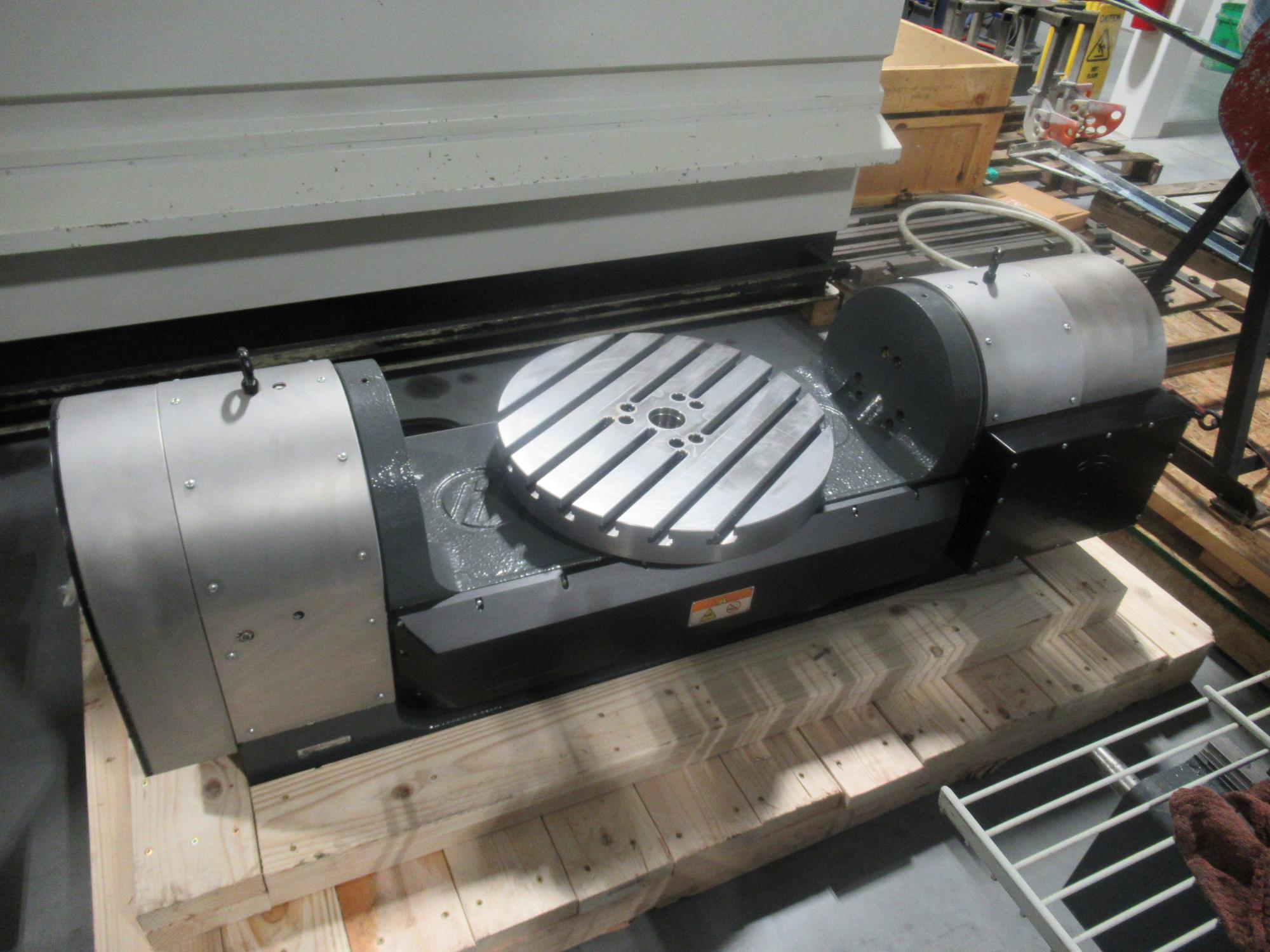

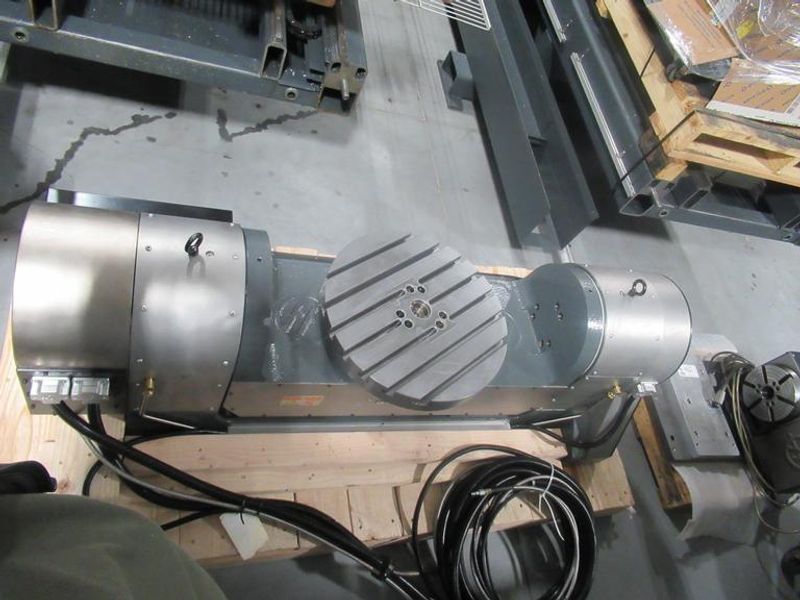

Haas TR-310 4th/5th Axis Trunnion Rotary Table, 500mm Work Platen, Sigma 7 with Cables And Connectors

Manufacturer

Haas

Category

Tooling & Accessories

Type

ROTARY TABLES

Stock

7356

Model

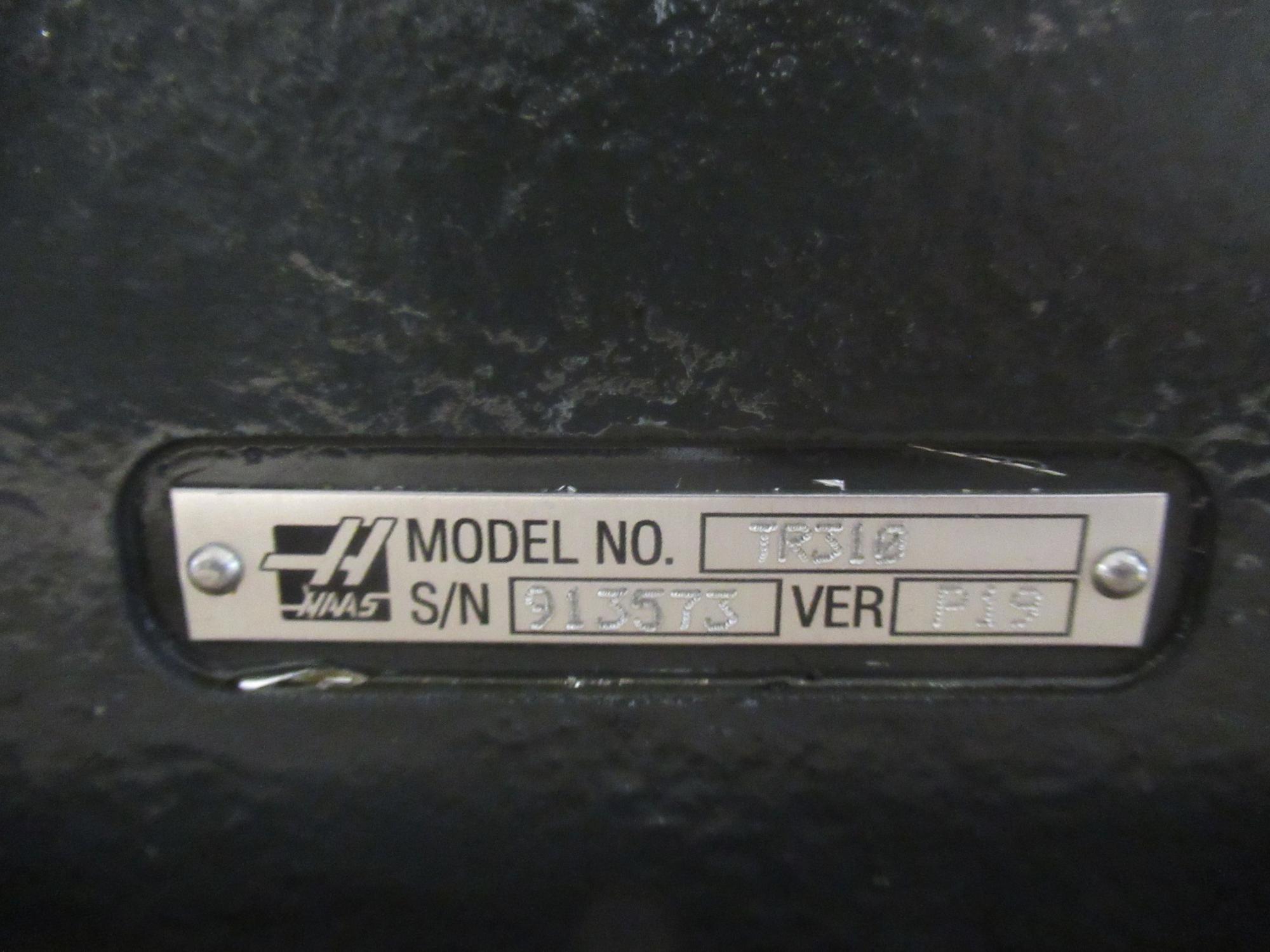

TR-310

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

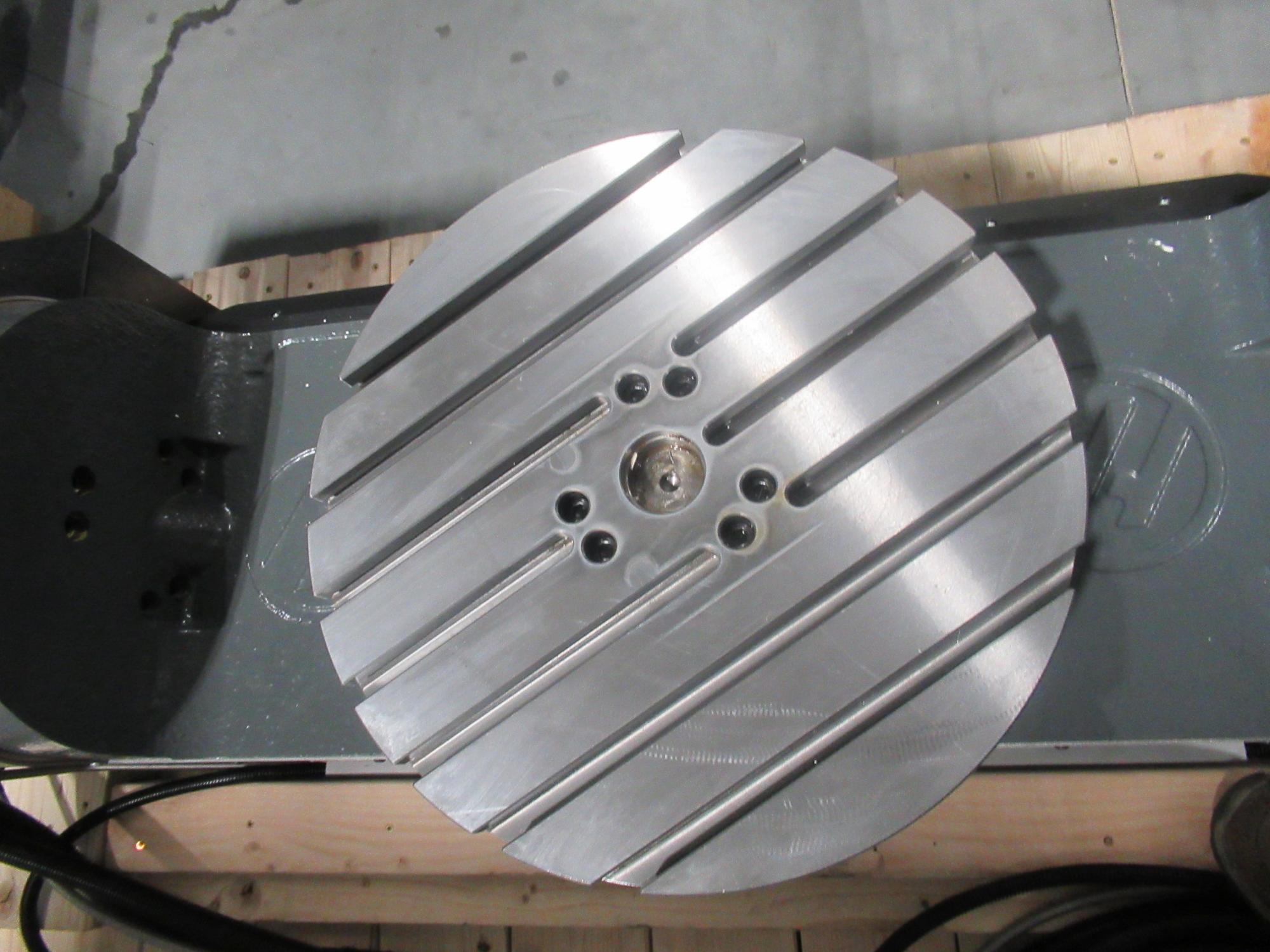

Platter Diameter: 500 mm (19.685")

A Axis (Tilt) Max Speed: 50 °/sec

Max Weight on Platter: 500 Lbs.

A Axis (Tilt) Max Torque: 300 ft-lbf

A Axis (Tilt) Gear Ratio: 1000 ft-lbf

A Axis (Tilt) Center Height: 72:1

B Axis (Rotary) # of Heads / Platens: 1

B Axis (Rotary) Max Speed: 50 °/sec

B Axis (Rotary) Max Torque: 300 ft-lbf

B Axis (Rotary) Nose or Platen: Platen

B Axis (Rotary) Gear Ratio: 72:1

Max Part Swing: 31" Diameter

Description:

The Haas TR‑310 Trunnion Rotary Table is a robust dual‑axis CNC trunnion designed to expand vertical machining centers into full 5‑axis machining platforms. With a large 310 mm platter and heavy‑duty construction, the TR‑310 allows shops to accurately machine complex, multi‑sided parts in a single setup. Designed for seamless integration with Haas vertical machining centers, the TR‑310 delivers high positioning accuracy, repeatability, and rigidity for demanding applications. It is an excellent solution for manufacturers requiring efficient indexing, contouring, and simultaneous 5‑axis motion without sacrificing floor space or spindle access.

Equipped With:

Brushless Sigma 7 (P19) Drive Motor, 500 mm (19.685") Tee Slotted Work Platen, Rotary Axis Feedback Scale, Cables and Connectors, Operator Manual
