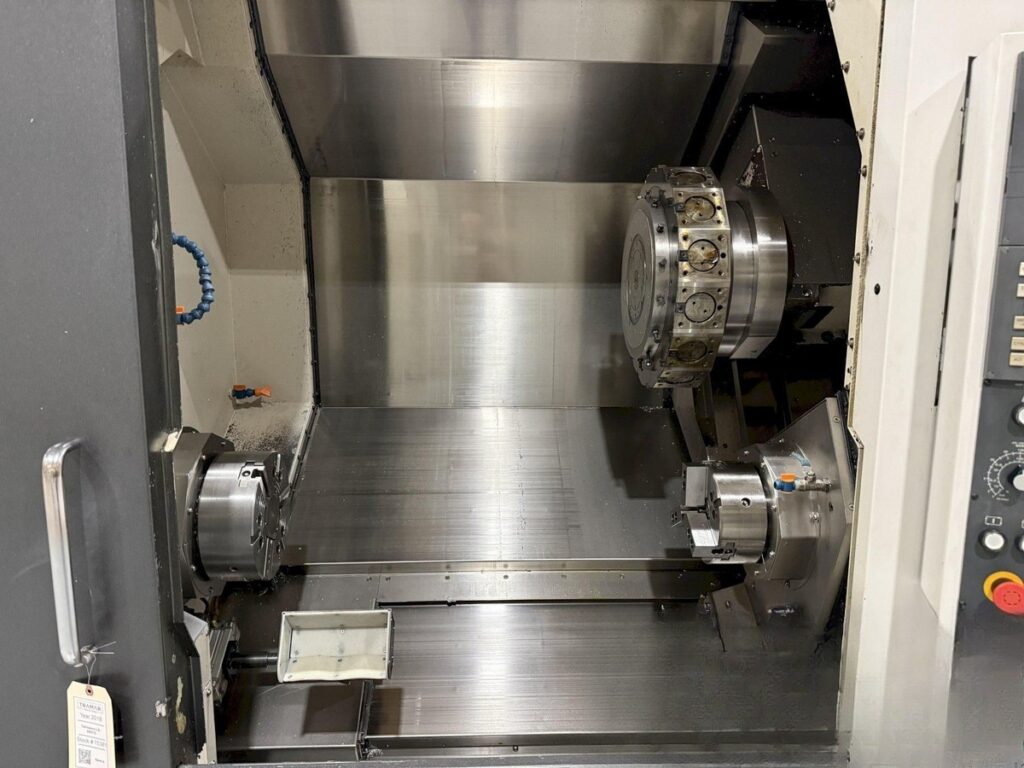

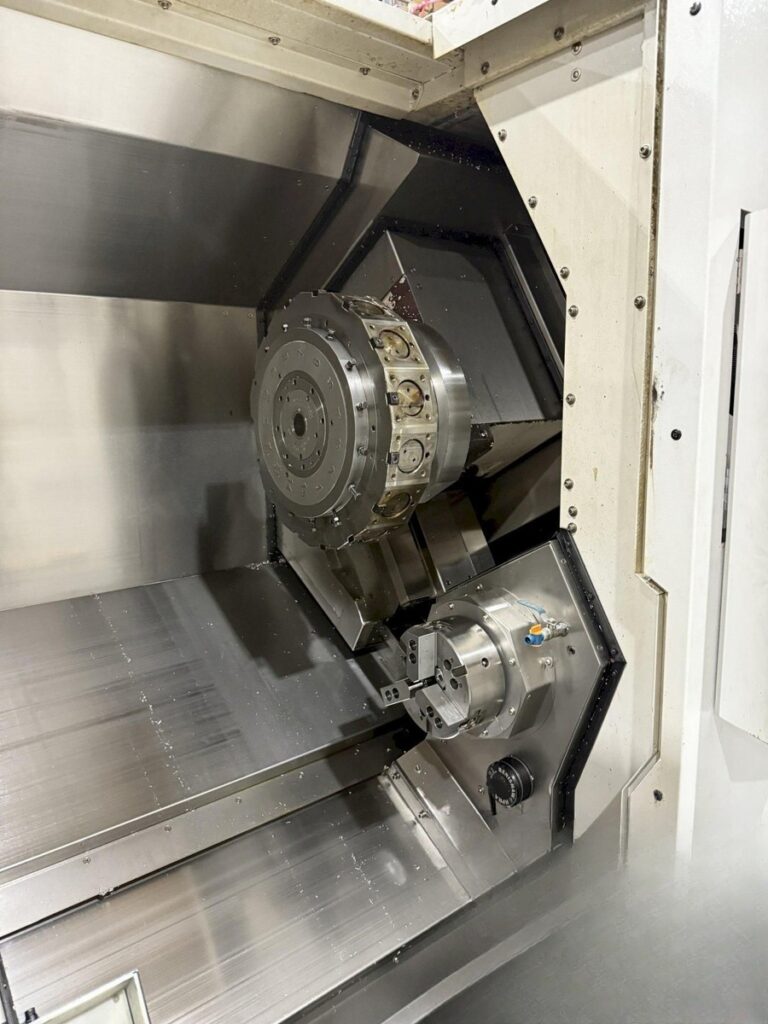

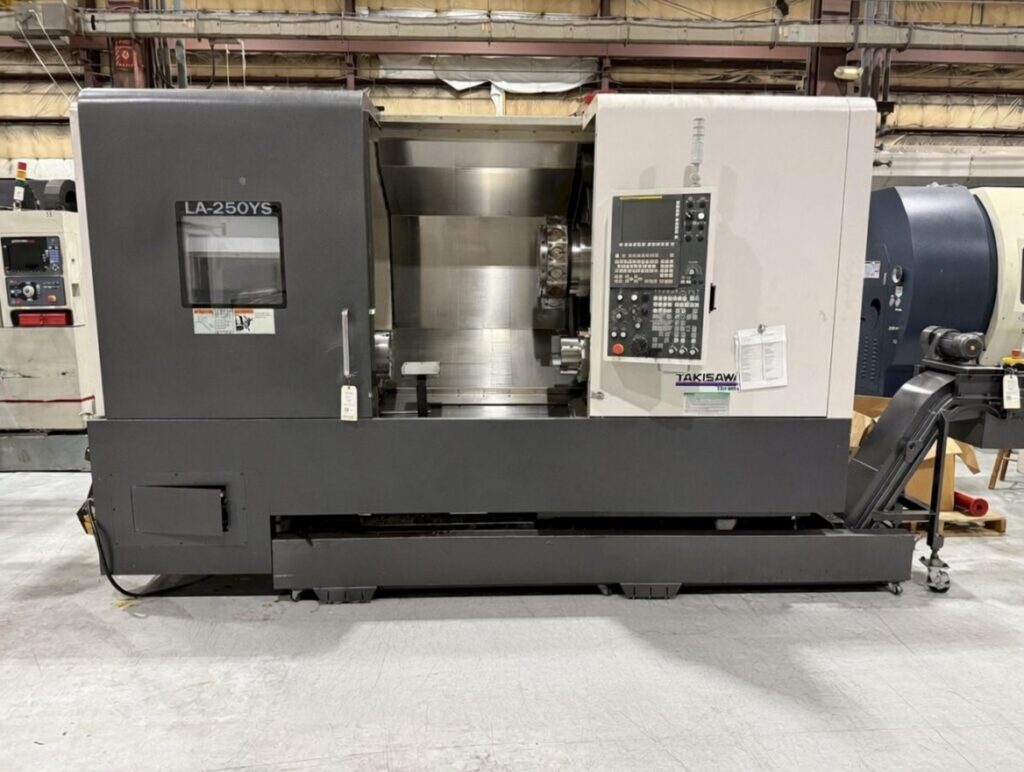

Takisawa LA-250YS CNC Lathe (2018)

Manufacturer

Takisawa

Category

Lathes

Stock

173260005

Model

LA-250YS

Dealer Location

Georgia

Spec Sheet

  • Stock #: 173260005
  • Location: MI
  • Brand: Takisawa
  • Model: LA-250YS
  • Year: 2018
  • Approx. Shipping Weight: 17800 pounds
  • Approx. Shipping Dimensions: 149″ x 73″ x 98″

Specifications

  • Type: Lathes (3-Axis or More)
  • CNC Control: Yes

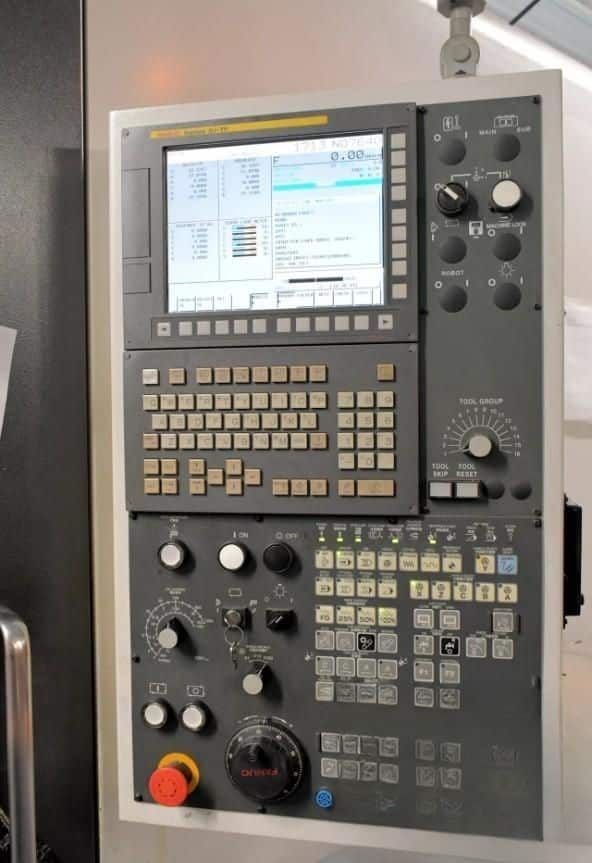

  • Control Type: Fanuc 0i-TF
  • # Axis: 6
  • Swing: 23.6″
  • Turning Diameter: 14.6″
  • Center Distance: 43.11″

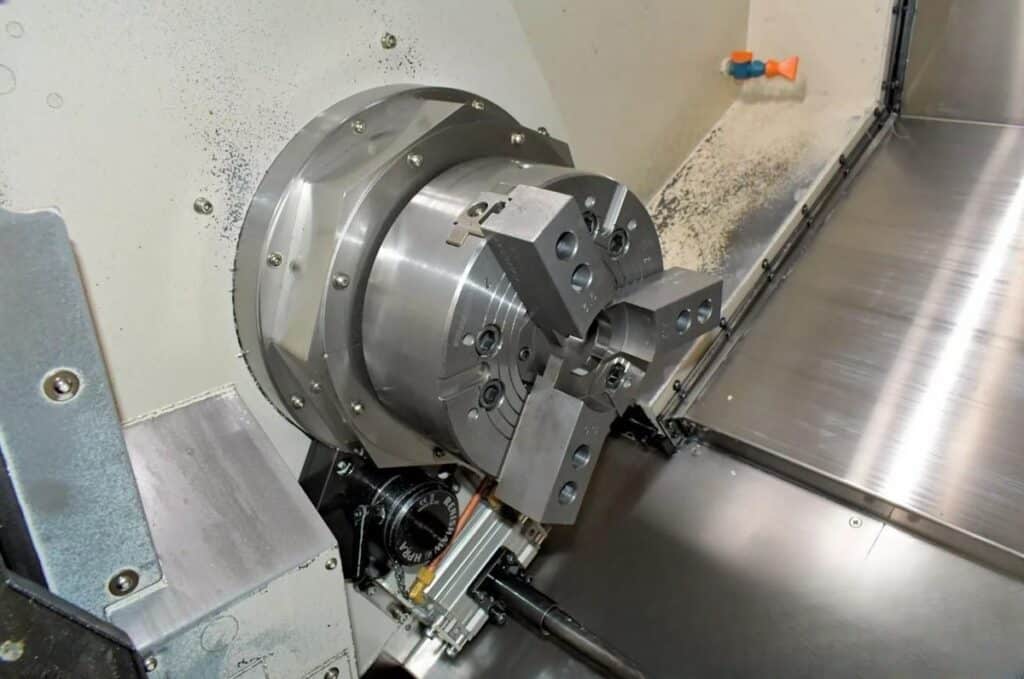

  • Chuck Size: 10″
  • Bar Capacity: 3.05″
  • X Axis Travel: 10.6″
  • Y Axis Travel: 3.92″
  • Z Axis Travel: 31.49″
  • B Axis Travel (Sub Spindle): 28.93″
  • C1/C2 Axis Index: 0.001°
  • Rapid Traverse (X/Y/Z): 787/393/797 ipm
  • Spindle Nose: A2-8
  • Spindle Speed: 3500 rpm
  • Main Motor: 30 hp
  • Tailstock: No
  • Y Axis: Yes
  • Live Tooling: Yes
  • Live Tooling Speed: 5000 rpm
  • Live Tooling Motor: 5 hp

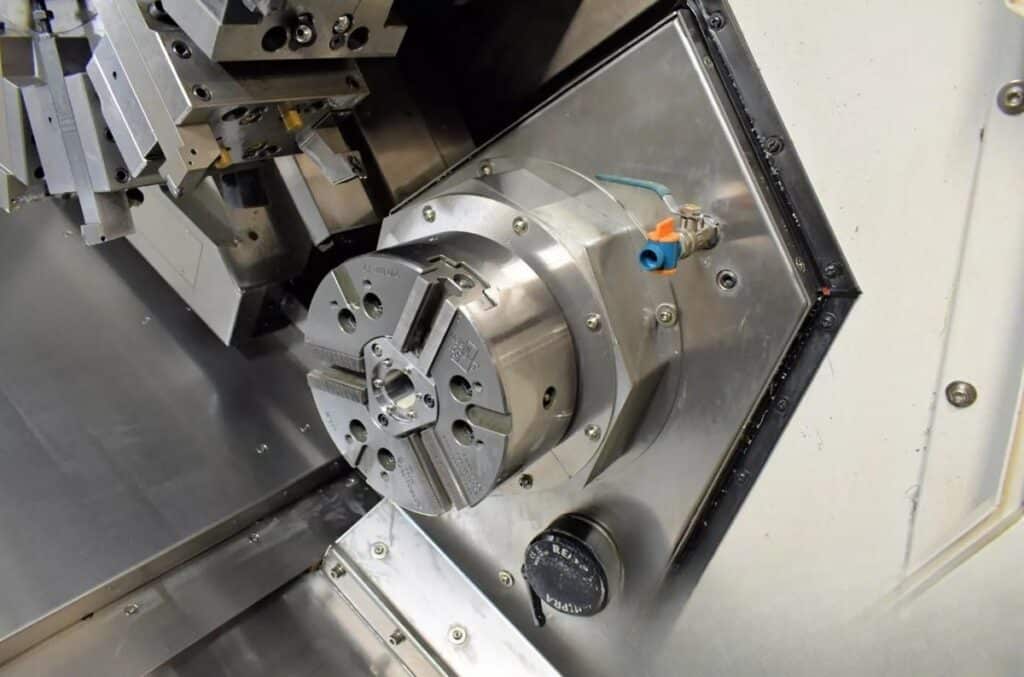

  • Sub Spindle: Yes
  • Sub Spindle Chuck: 8″
  • Sub Spindle Bar Capacity: 2″
  • Sub Spindle Nose: A2-6
  • Sub Spindle Speed: 3500 rpm
  • Sub Spindle Motor: 15 hp

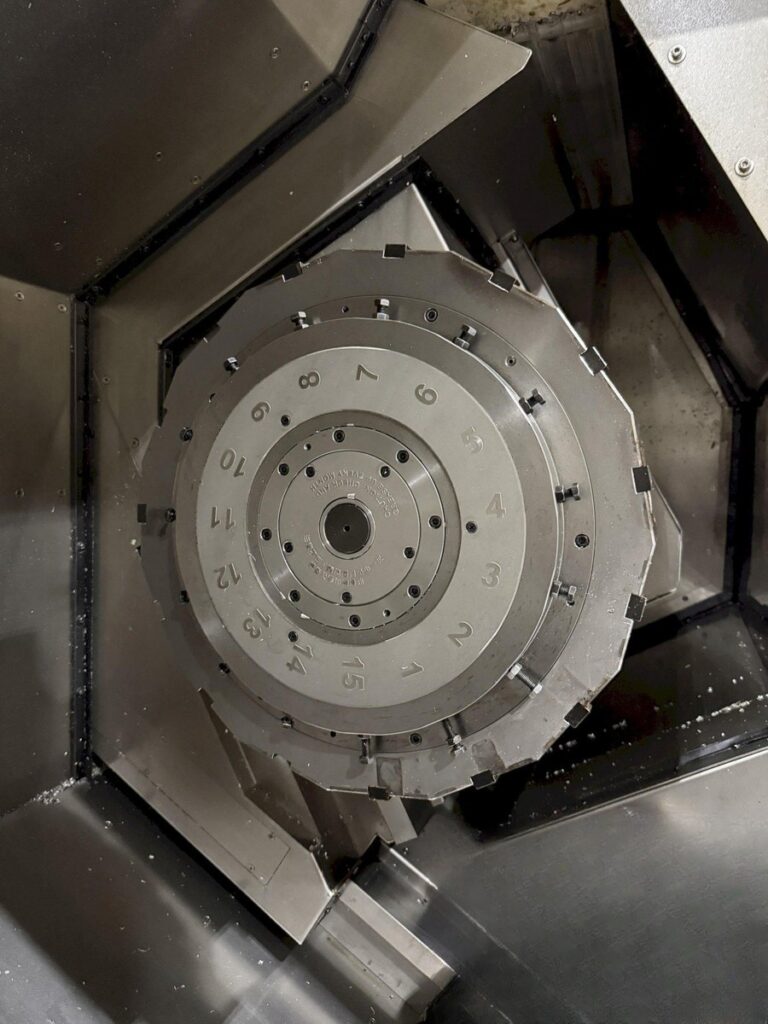

  • Turret Capacity: 15 Stations
  • Heavy Duty Box Way Machine: Yes

Equipped With

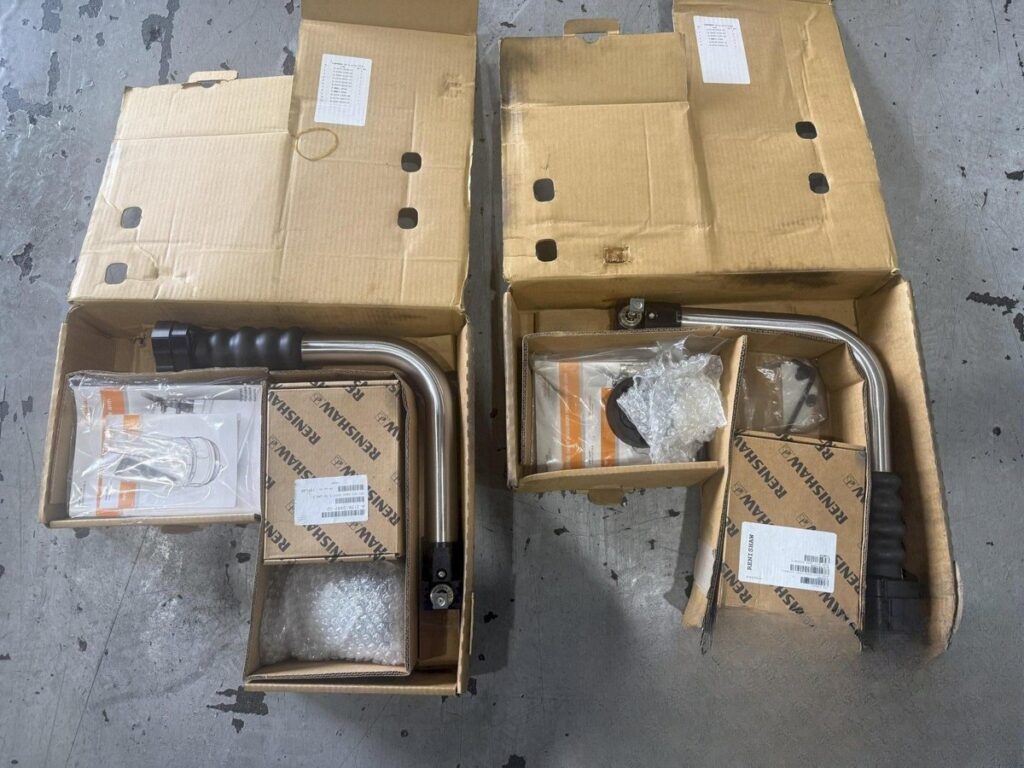

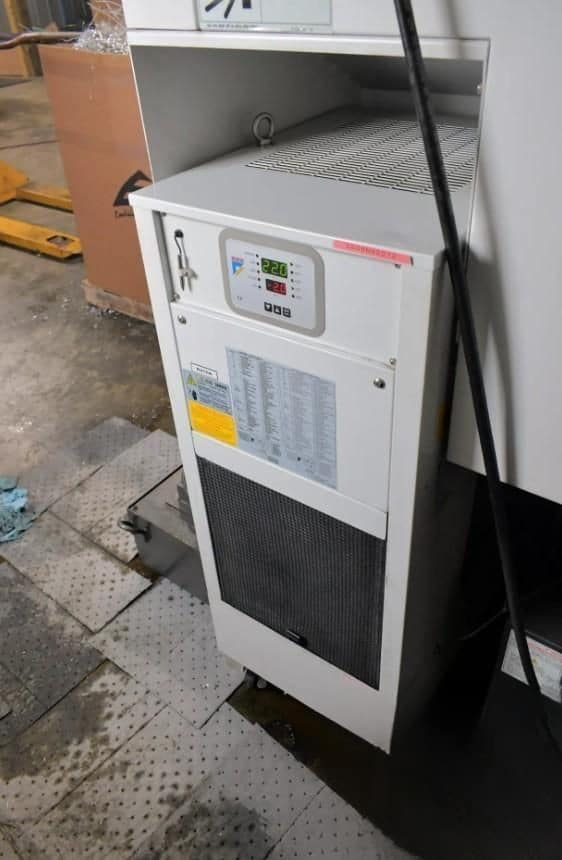

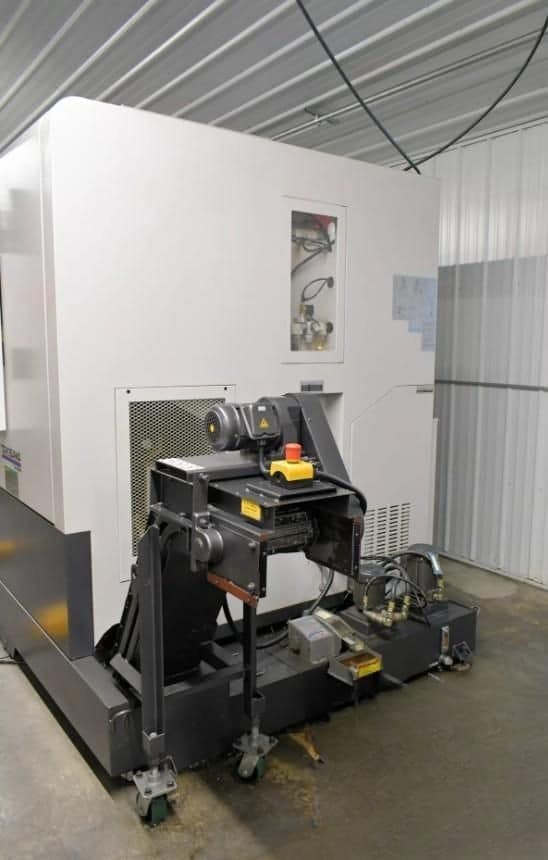

Chip Conveyor, Coolant Tank & Pump, Parts Conveyor, Tool Presetter, Spindle Chiller, Manual Guide i (Conversational Programming), Misc. Static Tooling Available, (2) Straight Live Tool Holders, (2) Right Angled Live Tool Holders
