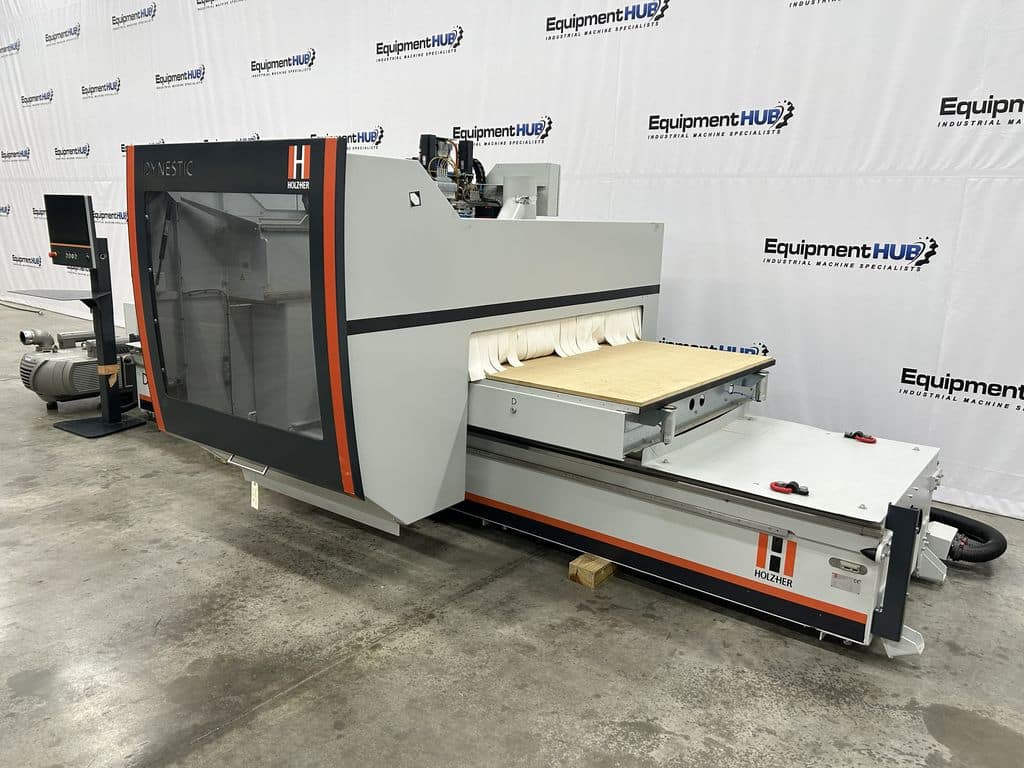

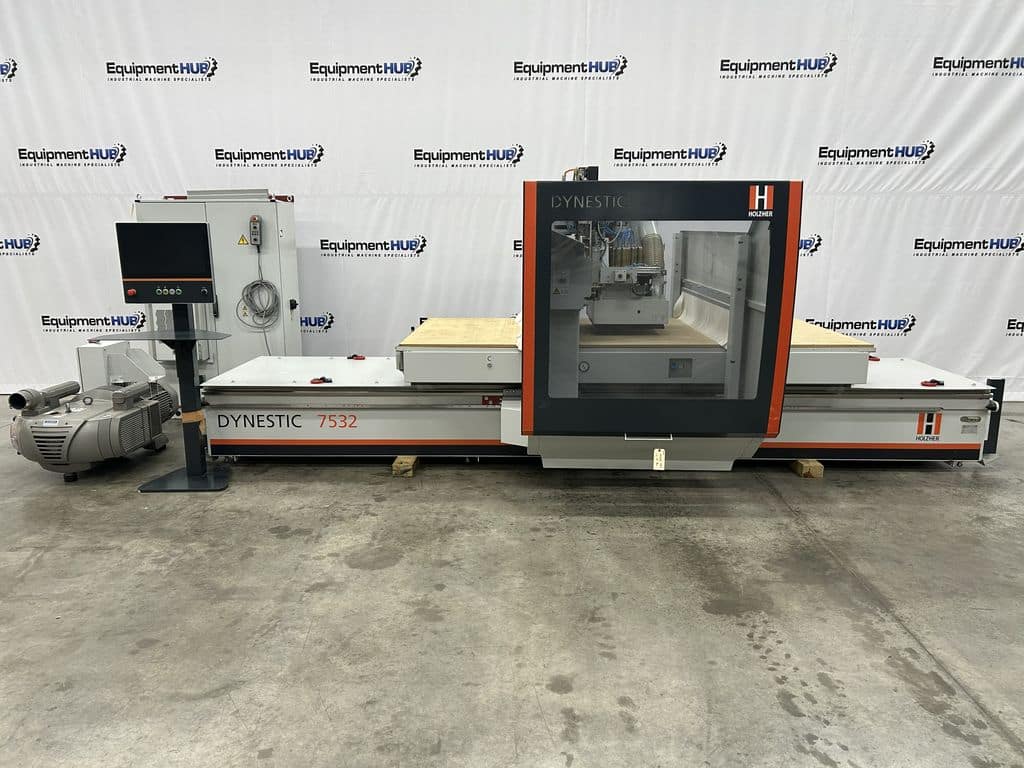

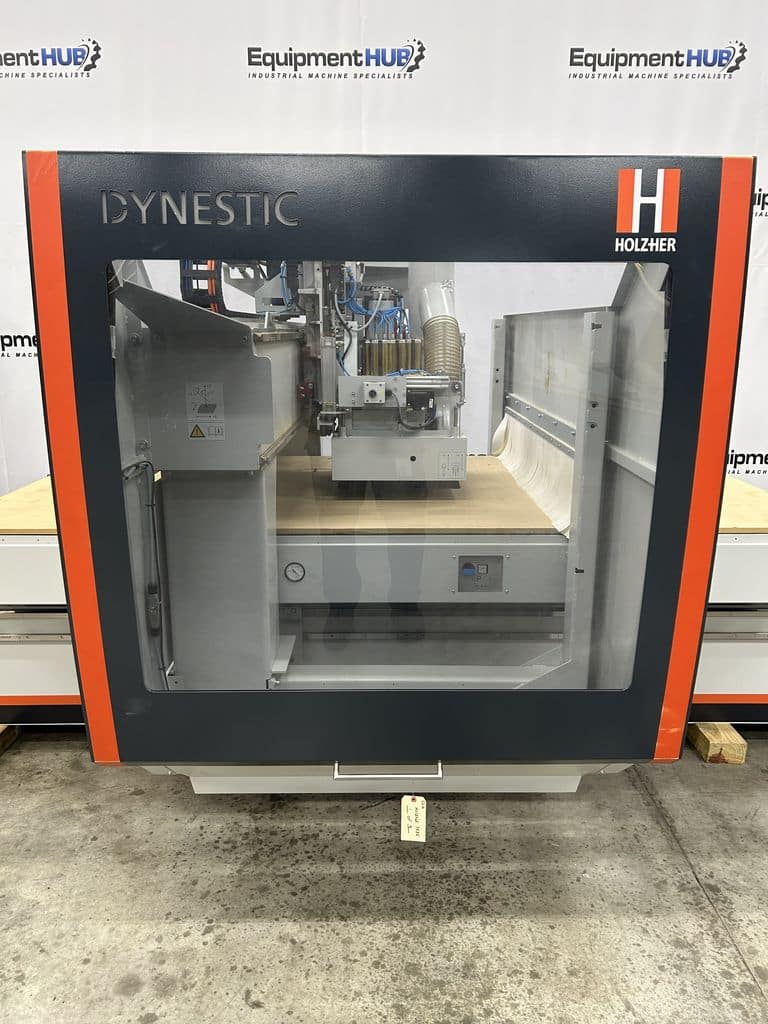

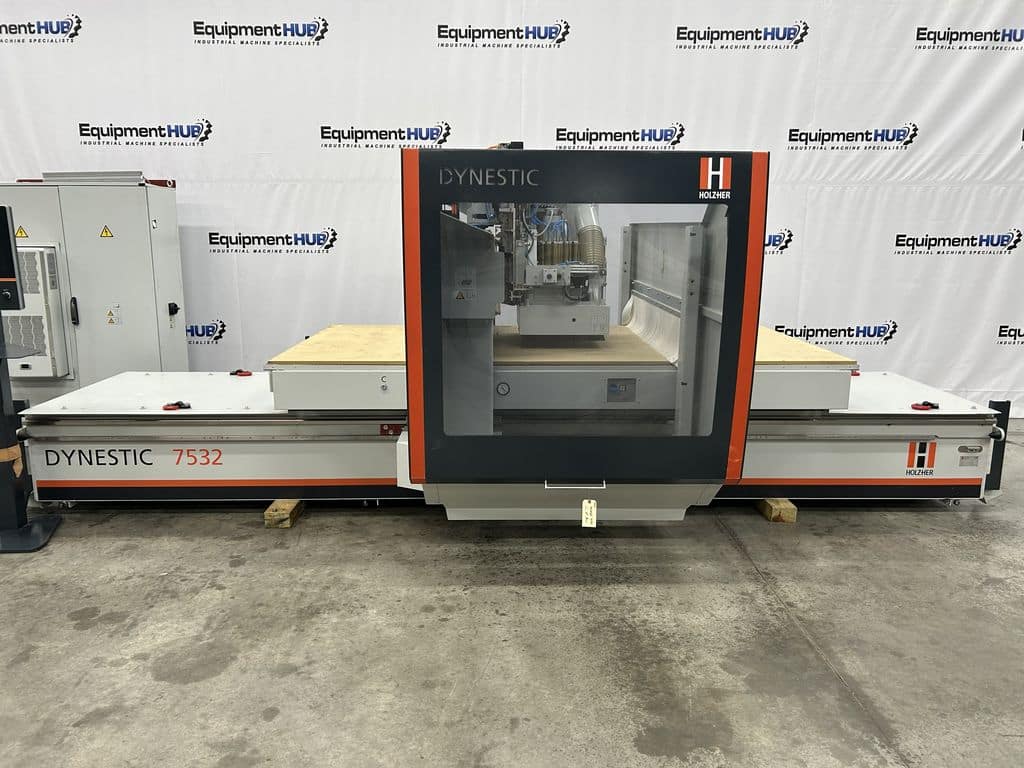

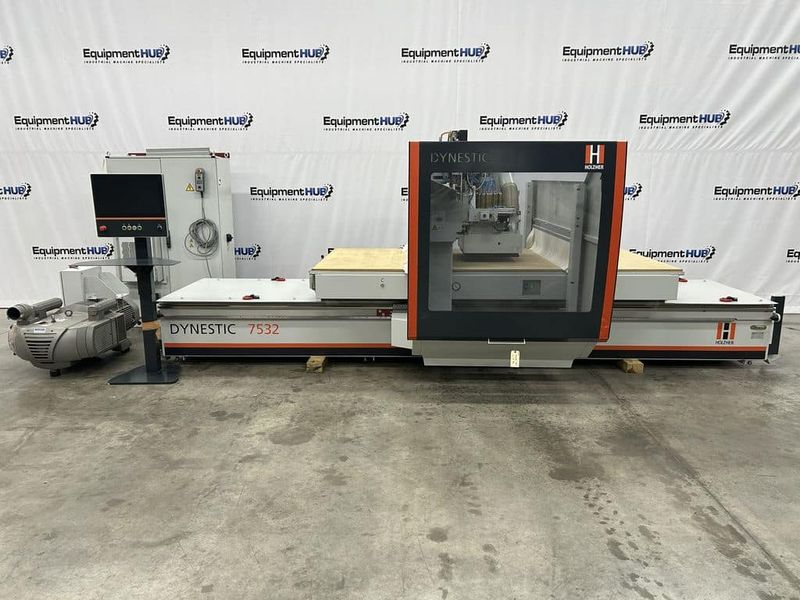

Holz-Her Dynestic 7532 B CNC Gantry Nesting Machining Center Router (2022)

Manufacturer

Holz-Her

Stock

116260003

Model

Dynestic 7532 B

Dealer Location

Georgia

Spec Sheet

  • Stock #: 116260003
  • Location: Decatur, GA
  • Brand: Holz-Her
  • Model: Dynestic 7532 B
  • Serial #: 132/2 207
  • Year: 2022
  • Approx. Shipping Weight: 20,000 Lbs.
  • Approx. Shipping Dimensions: 28′ L x 9’2″ W x 7′ H

Specifications

  • Machining Dimensions (X): 3,048 mm (120″)
  • Machining Dimensions (Y): 1,524 mm (60″)
  • Vector Speed: 100 m/min
  • Spindle: 8 kW Air-Cooled Precision Milling Spindle
  • Spindle Speed: 1,000 – 24,000 RPM

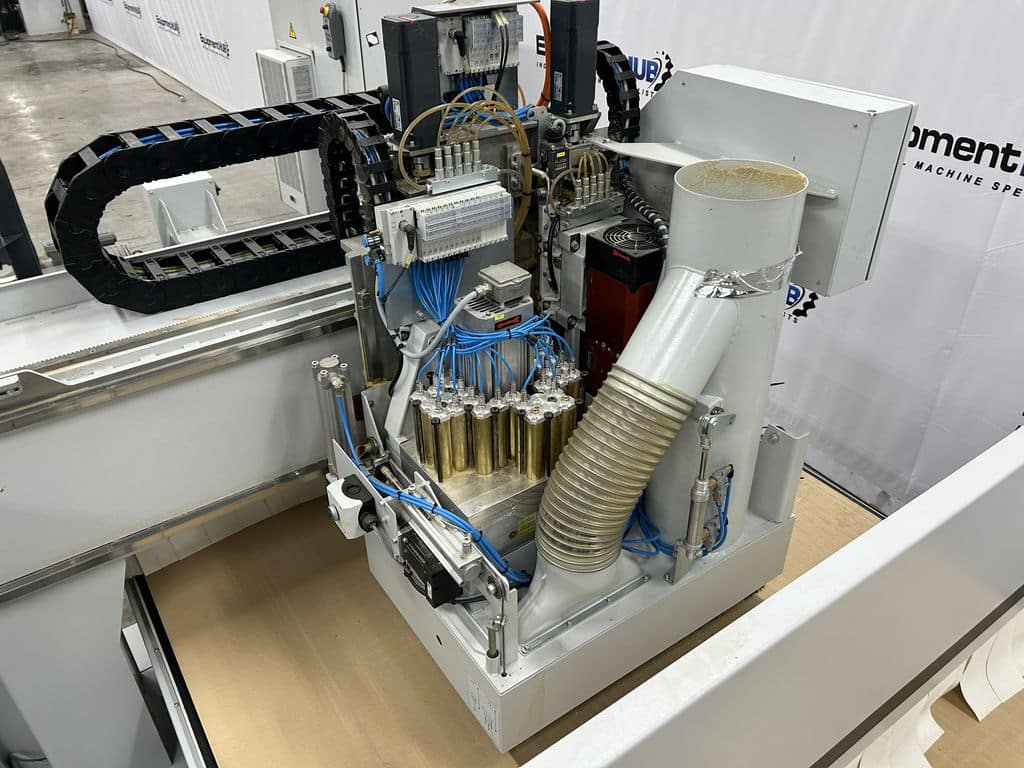

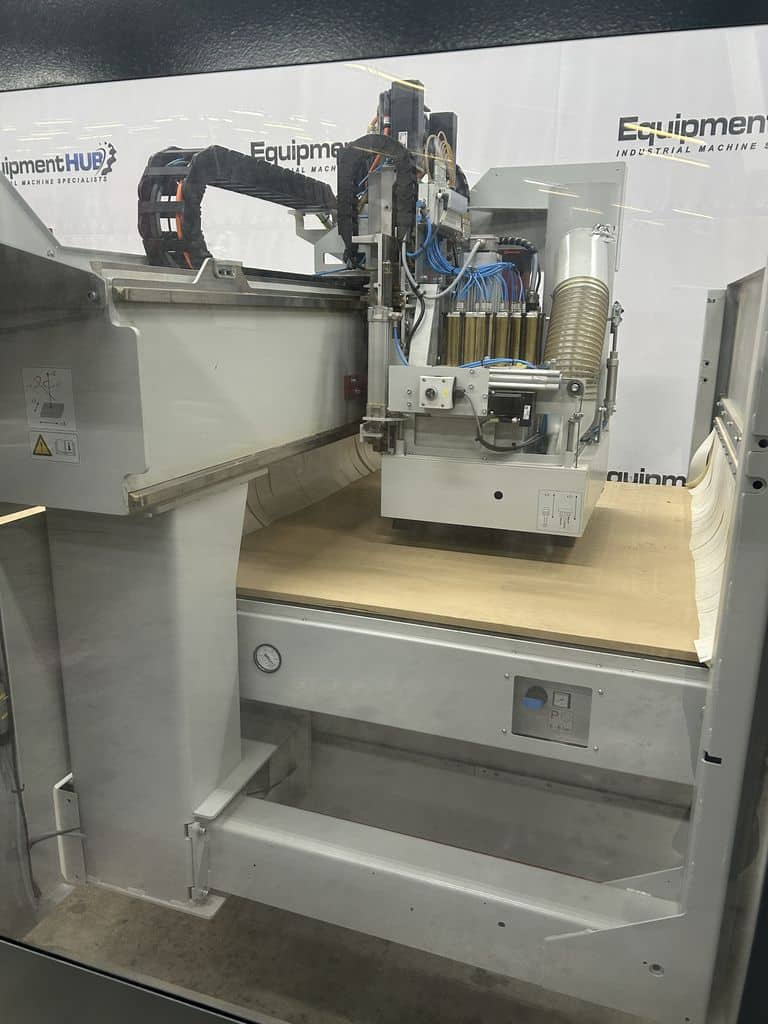

  • Drilling Head: 15 Spindles (9 Vertical, 6 Horizontal) w/ Sawing Unit for Grooving in X Direction
  • Tool Changer: 14-Position Pick-Up Tool Changer w/ Tool Cover

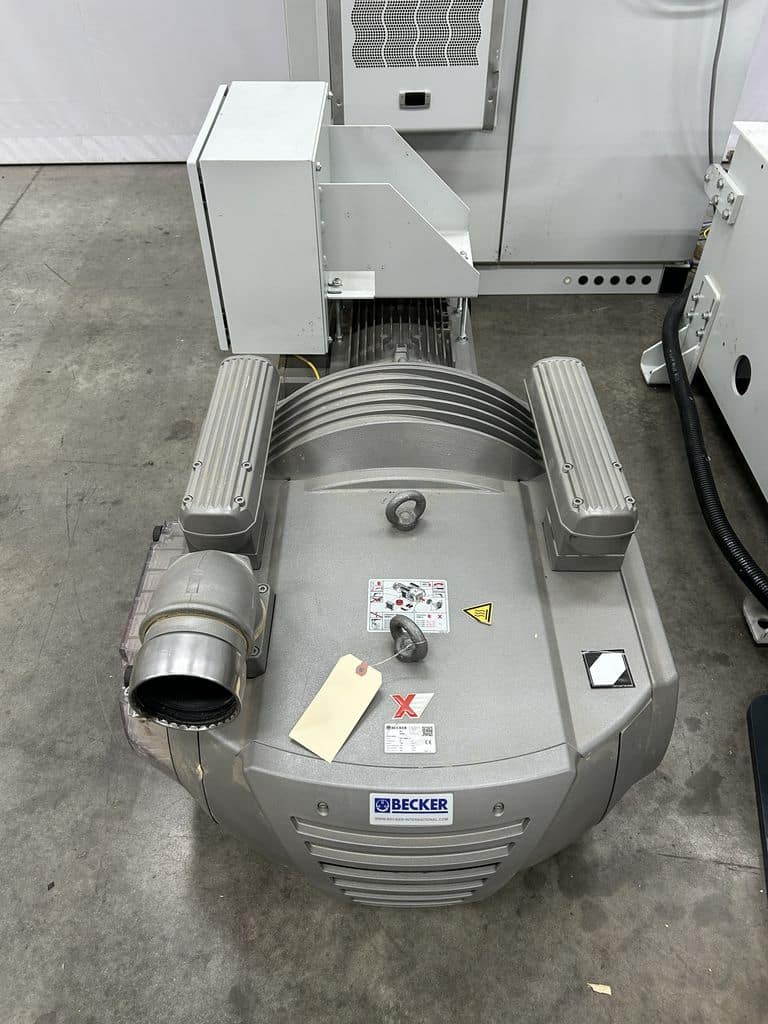

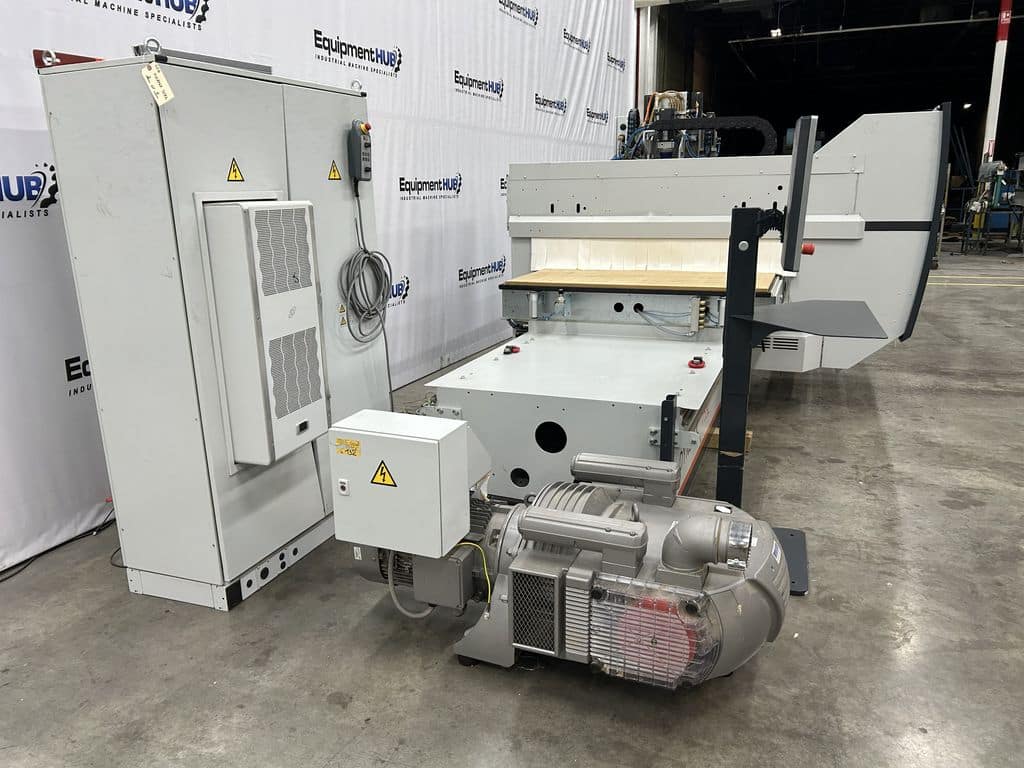

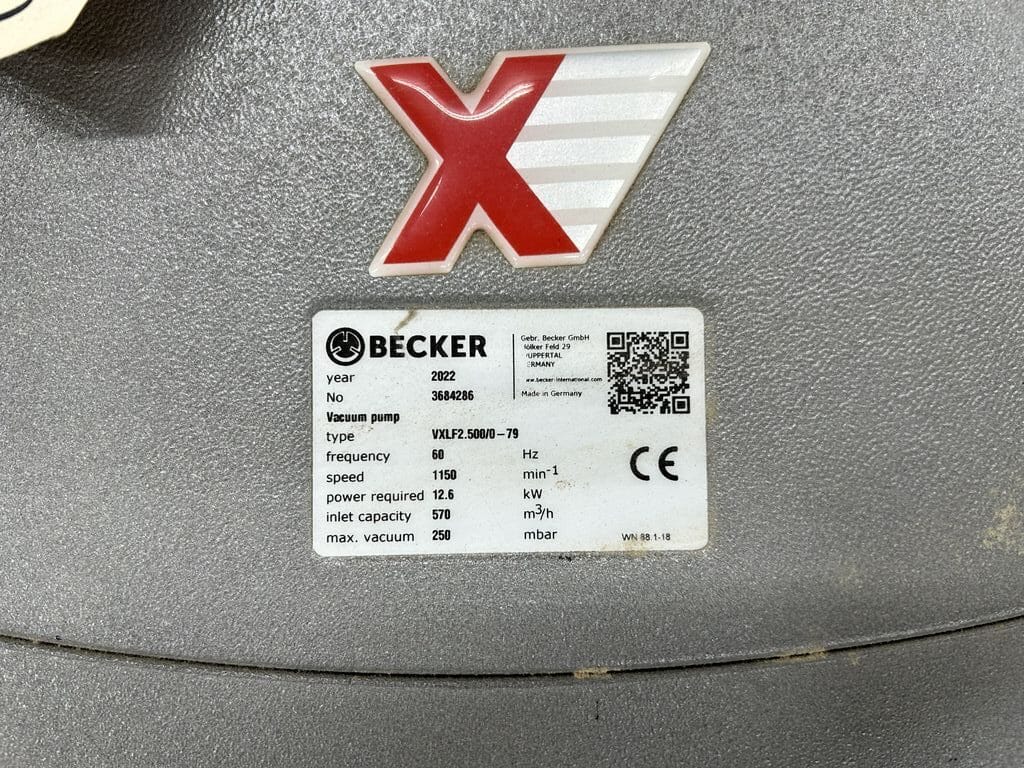

  • Vacuum Pump: Becker VXLF2.500D-79 (12.6 kW, 570 m³/h, 250 mbar Max Vacuum)

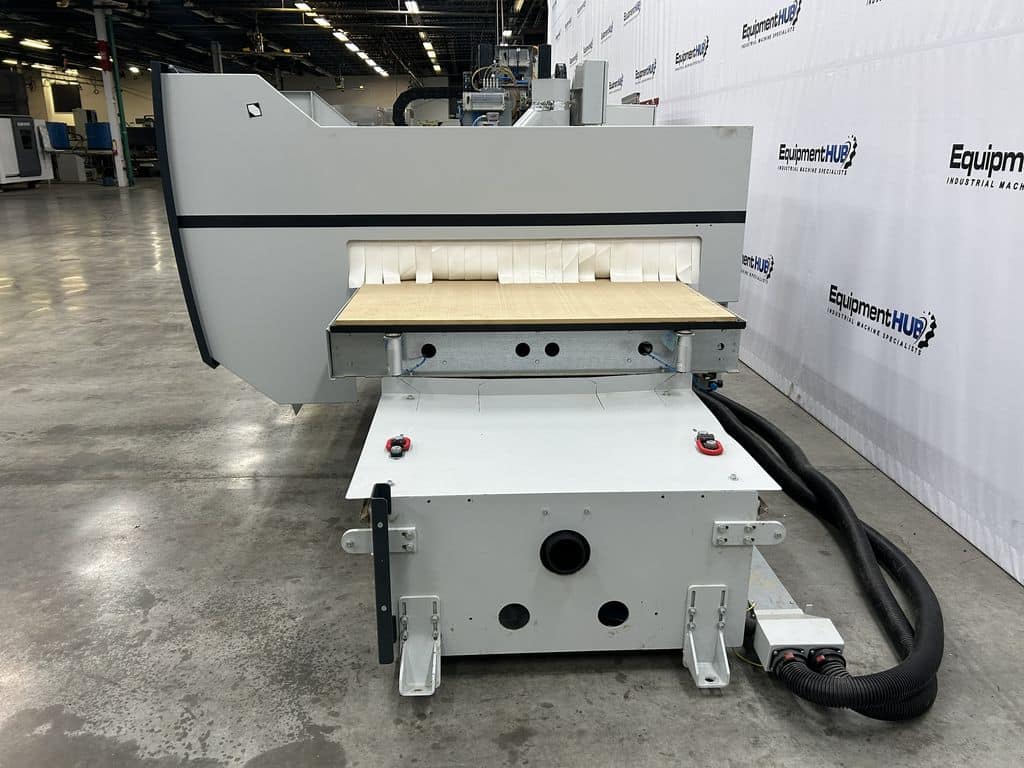

  • Table Type: High-Flow Nesting Table w/ Continuous Vacuum Field

Equipped With

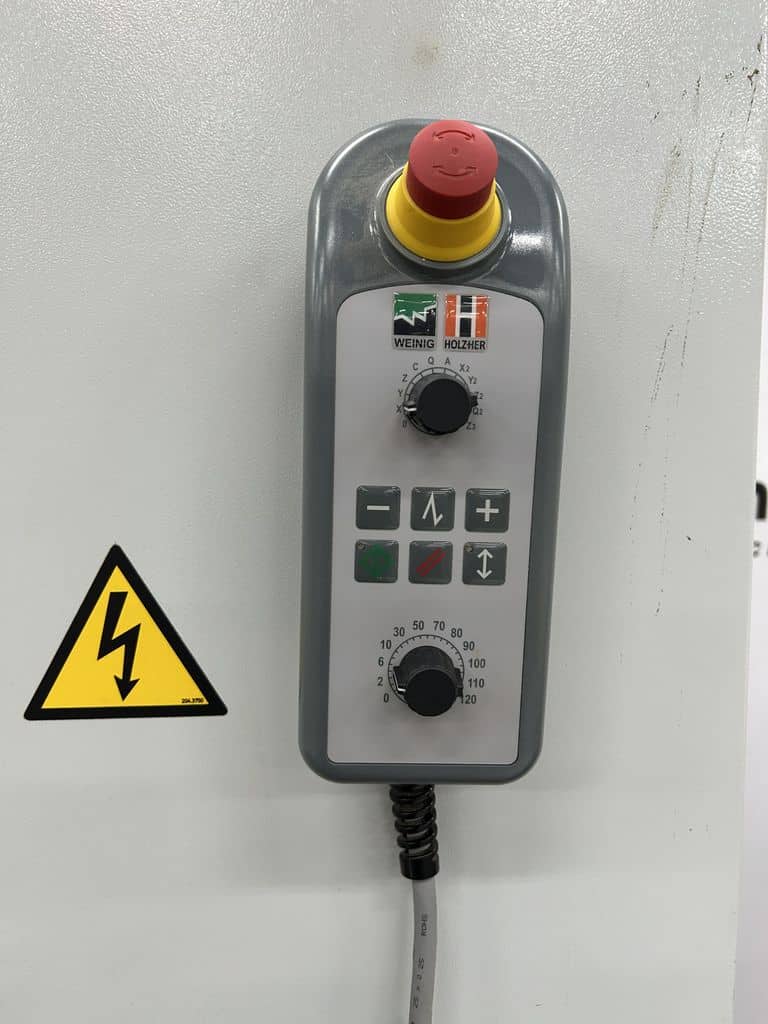

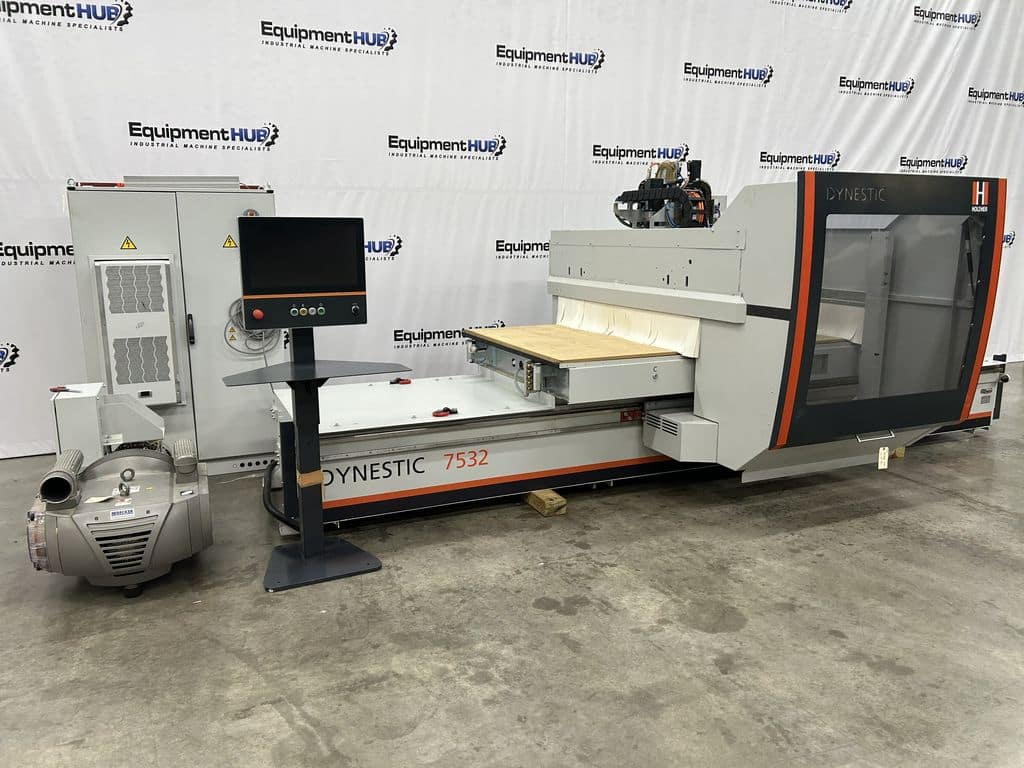

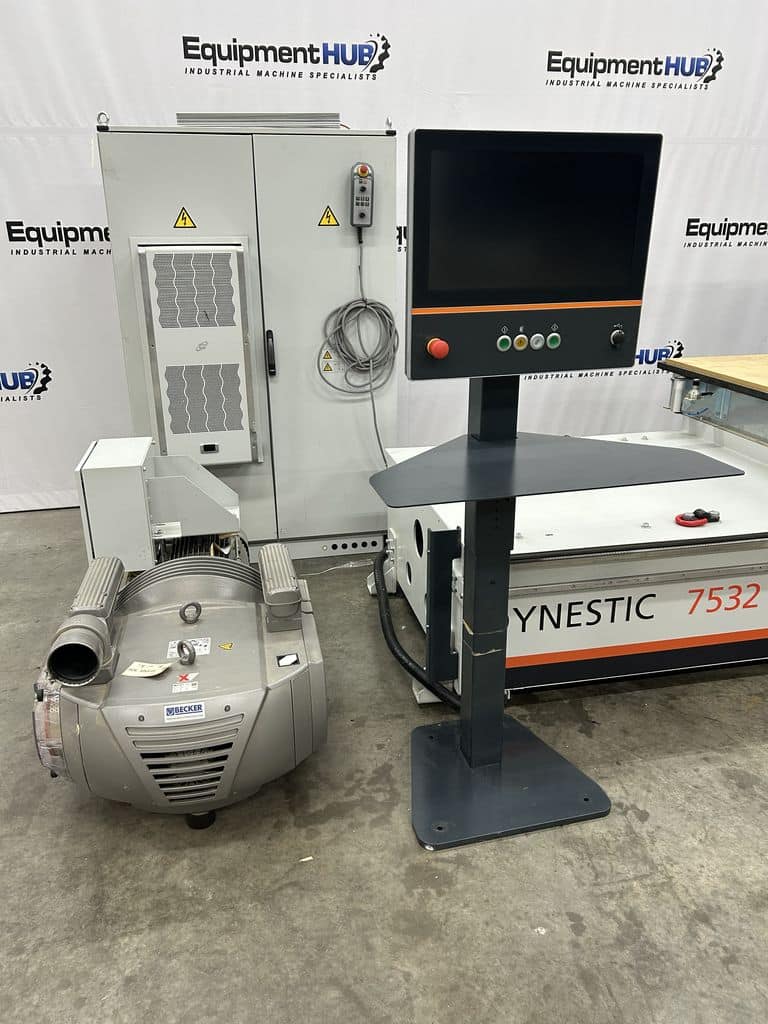

CAMPUS Software w/ aCADemy CAD/CAM Module, CabinetControl Base, 21.5″ Touchscreen Control Console, Weinig Holz-Her Handheld Pendant/Remote Jog, Becker Dry-Running Vacuum Pump, Light Grid Safety System, Brush Strip Table

Additional Info

The Holz-Her Gantry CNC machine can be demoed upon request.

No Video Available
