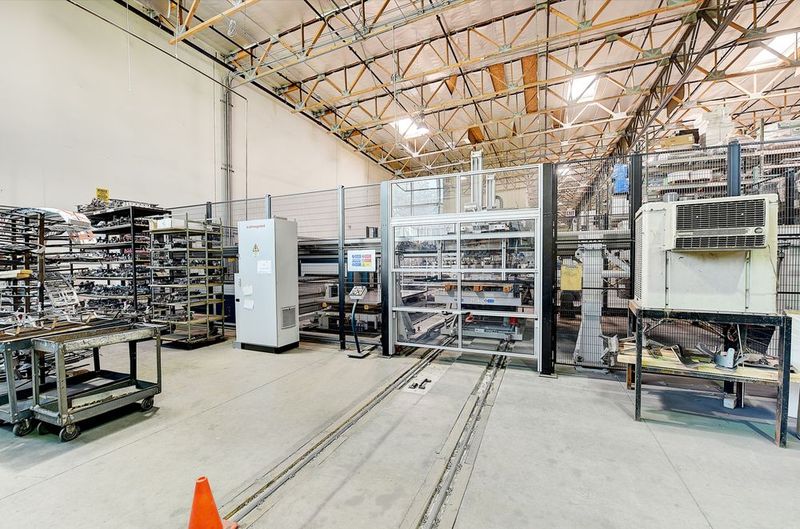

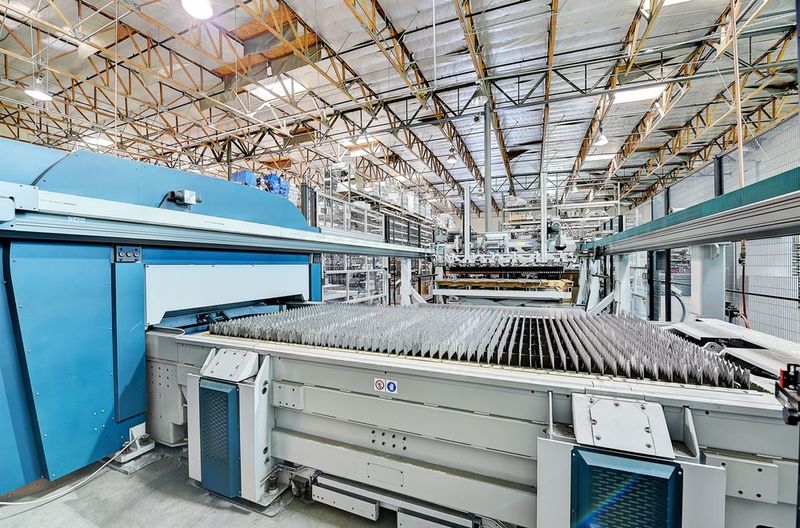

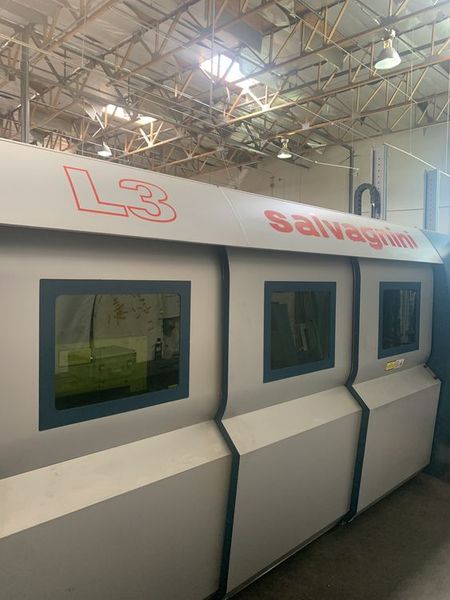

Salvagnini L3 – 30 CNC Fiber Laser w/ Automation

Manufacturer

Salvagnini

Category

Laser Cutting

Type

LASERS

Stock

121260017

Model

L3 – 30

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 121260017
  • Brand: Salvagnini
  • Model: L3 – 30
  • Year: 2015
  • Loading Fee: Riggers Required

Specifications

  • Table Size: 5′ x 10′
  • Working Range: 5′ x 10′
  • Z Axis Stroke: 3.9″
  • Maximum Positioning Speed: 4724 IPM
  • Positioning Accuracy: .003″
  • Average Position Range: .001″
  • Assist Gases: Nitrogen, Oxygen, Compresser Air
  • Cutting Capacity (Steel): 24 Gauge to 3/4″
  • Cutting Capacity (Stainless Steel): 24 Gauge to 7/16″
  • Cutting Capacity (Aluminum): 24 Gauge to 3/8″
  • Cutting Capacity (Copper): 24 Gauge to 24″ x 5/16″
  • Cutting Capacity (Brass): 24 Gauge to 7/32″
  • Hours: 6313
  • Electrical: 460V / 60 Hz / 3 PH

Equipped With

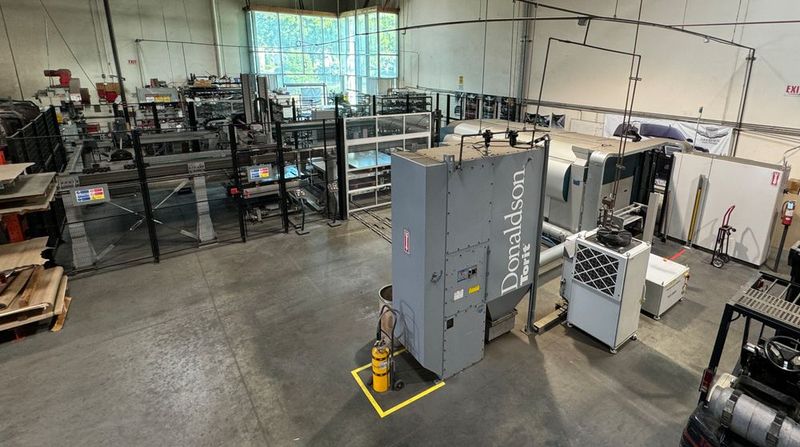

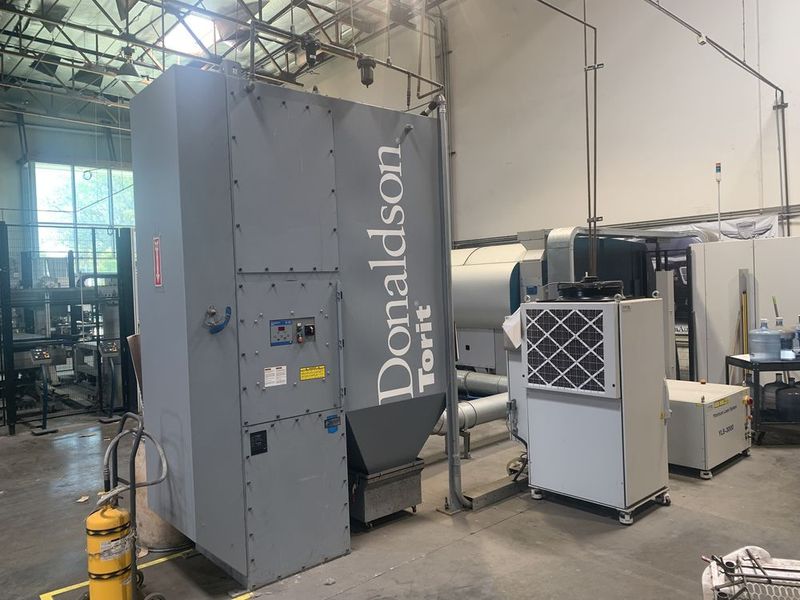

3000 Watt IPG Laser Power Source, 5′ x 10′ Shuttle Tables, Donald Torit Dust Collector, Chiller

Additional Info

Current Beam On Hours 8,517. Can be inspected upon request
