CROSS 55 - Gear Chamfering & Deburring

Manufacturer

CROSS

Category

Gear Machines

Type

GEAR CHAMFERING, POINTING, ROUNDING

Stock

25788

Model

55

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

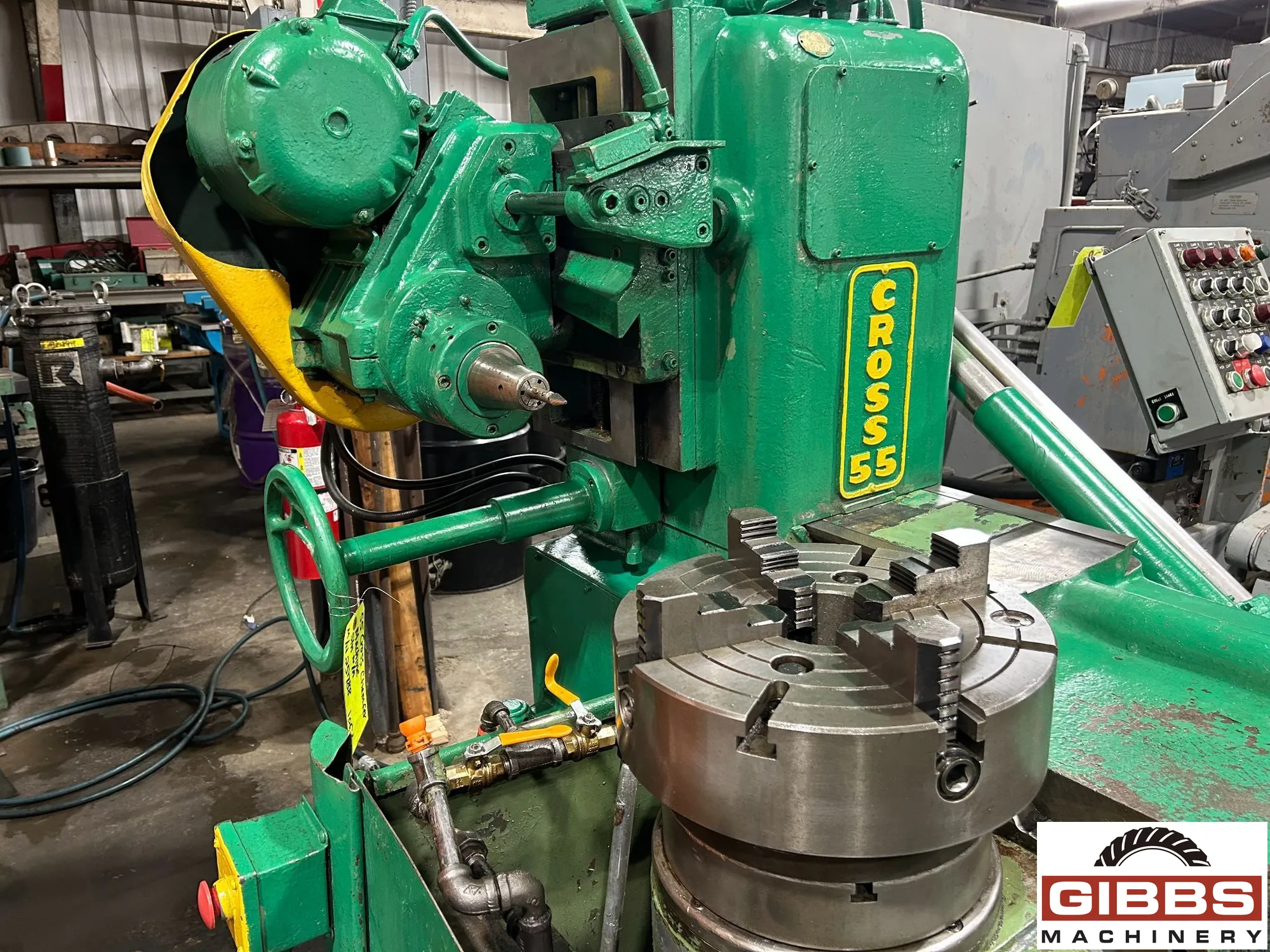

  • 12" 4-Jaw Chuck
  • Change Gears
  • Hydraulic Draw Bar
  • Hydraulic System
  • Coolant Pump
,

Machine Specifications :

  • Year
  • Manufacturer CROSS
  • Maximum Workpiece Diameter 18.0"
  • Diametral Pitch 1.5
,

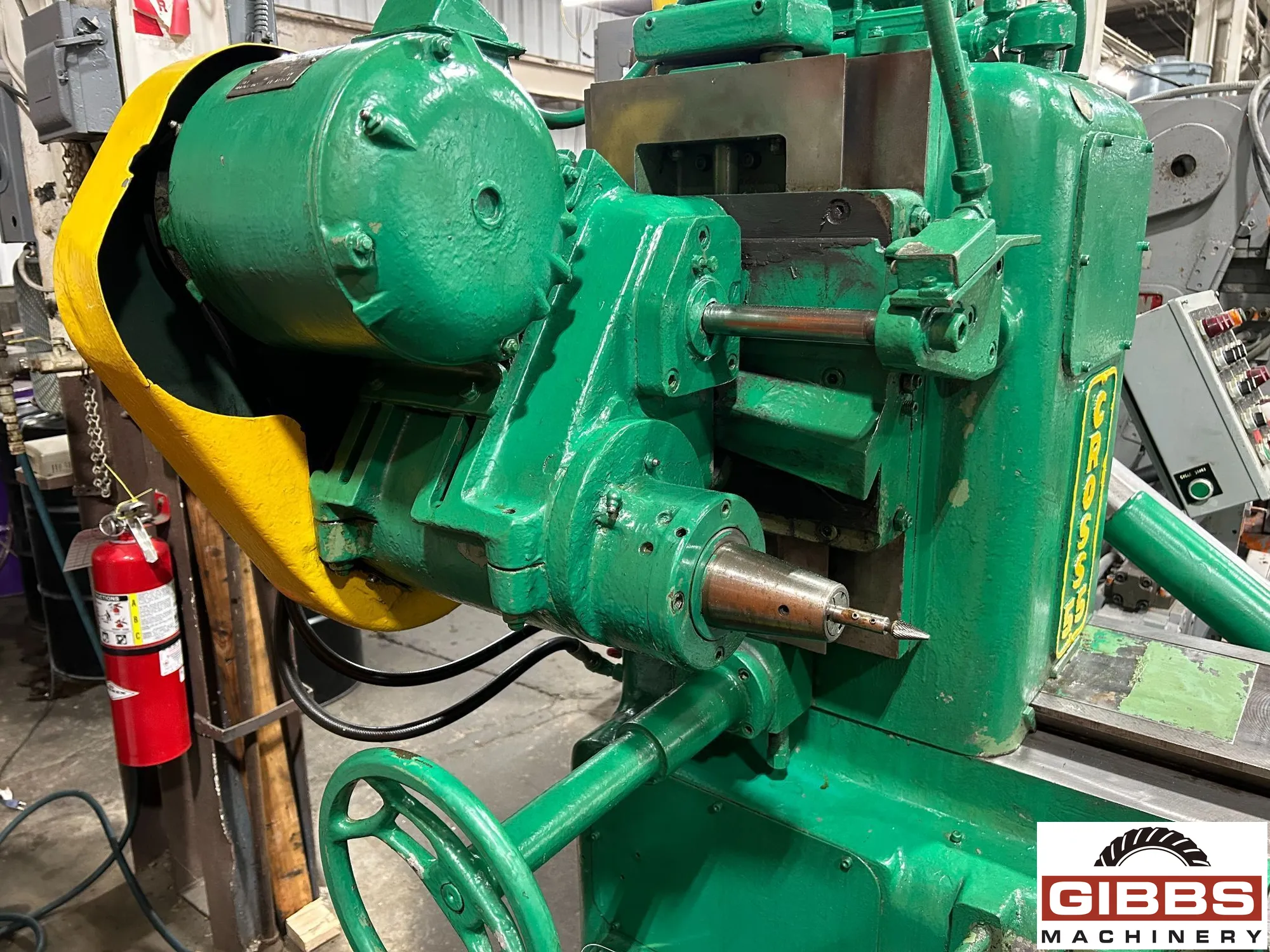

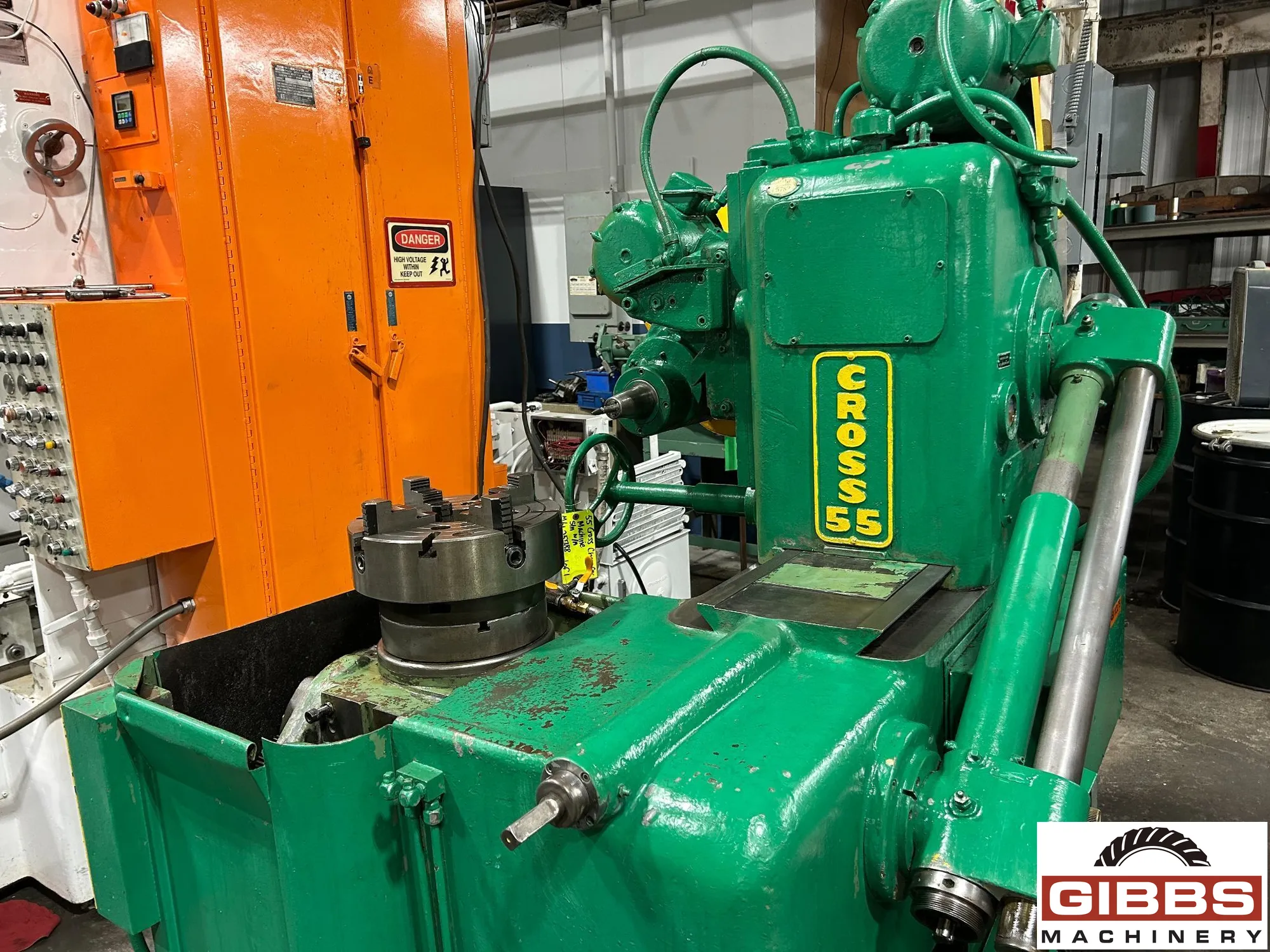

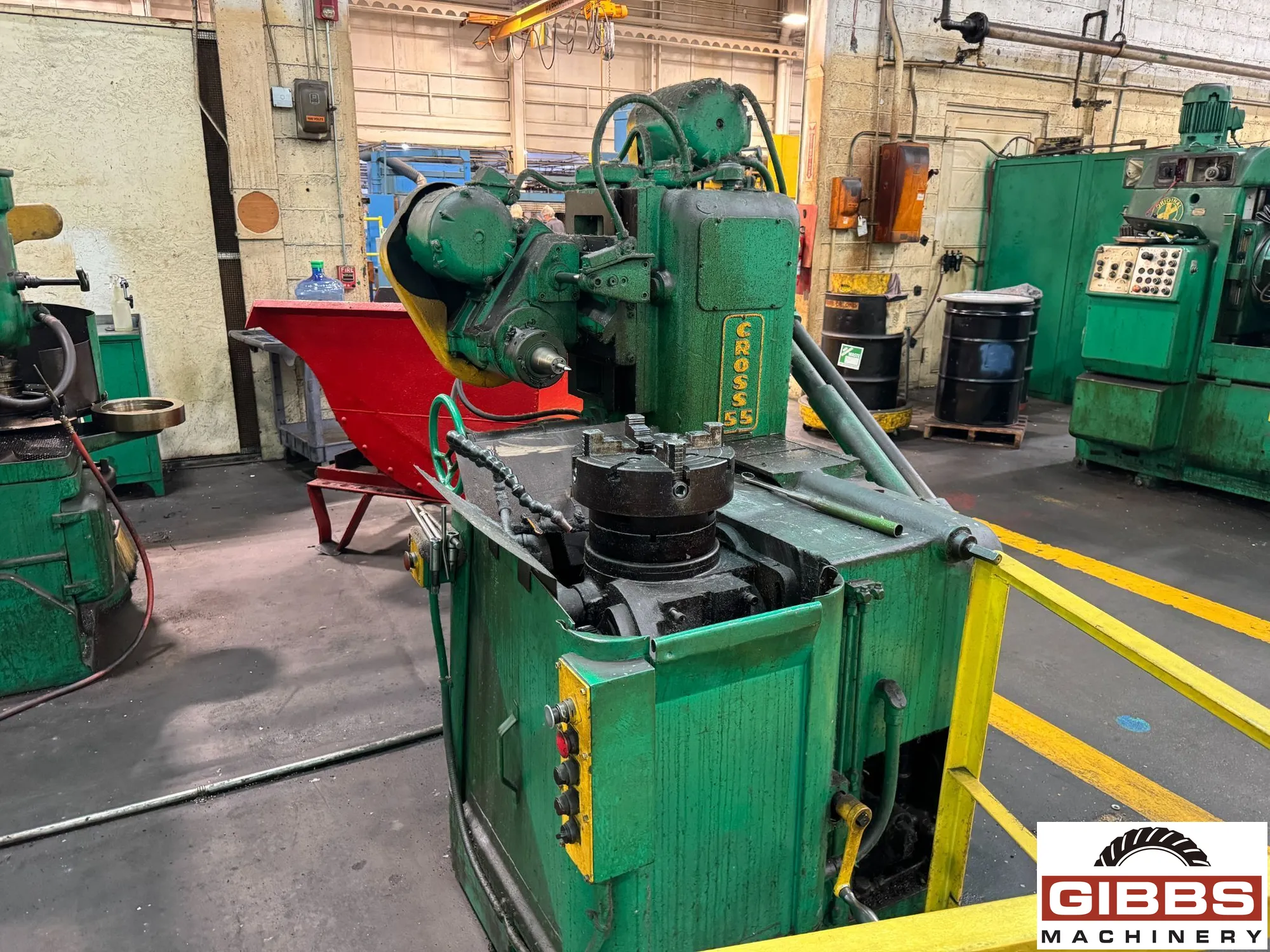

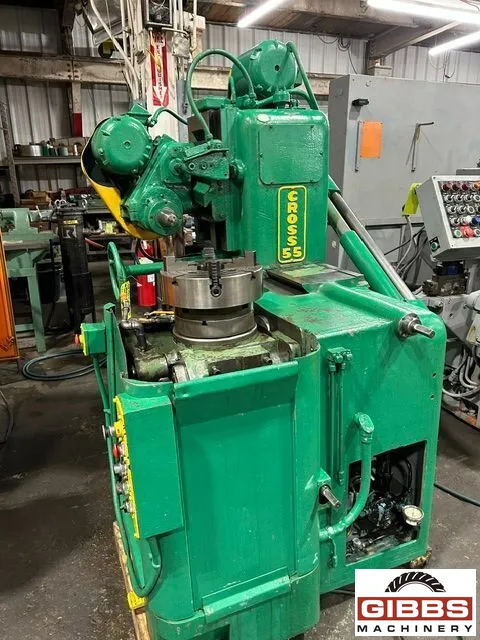

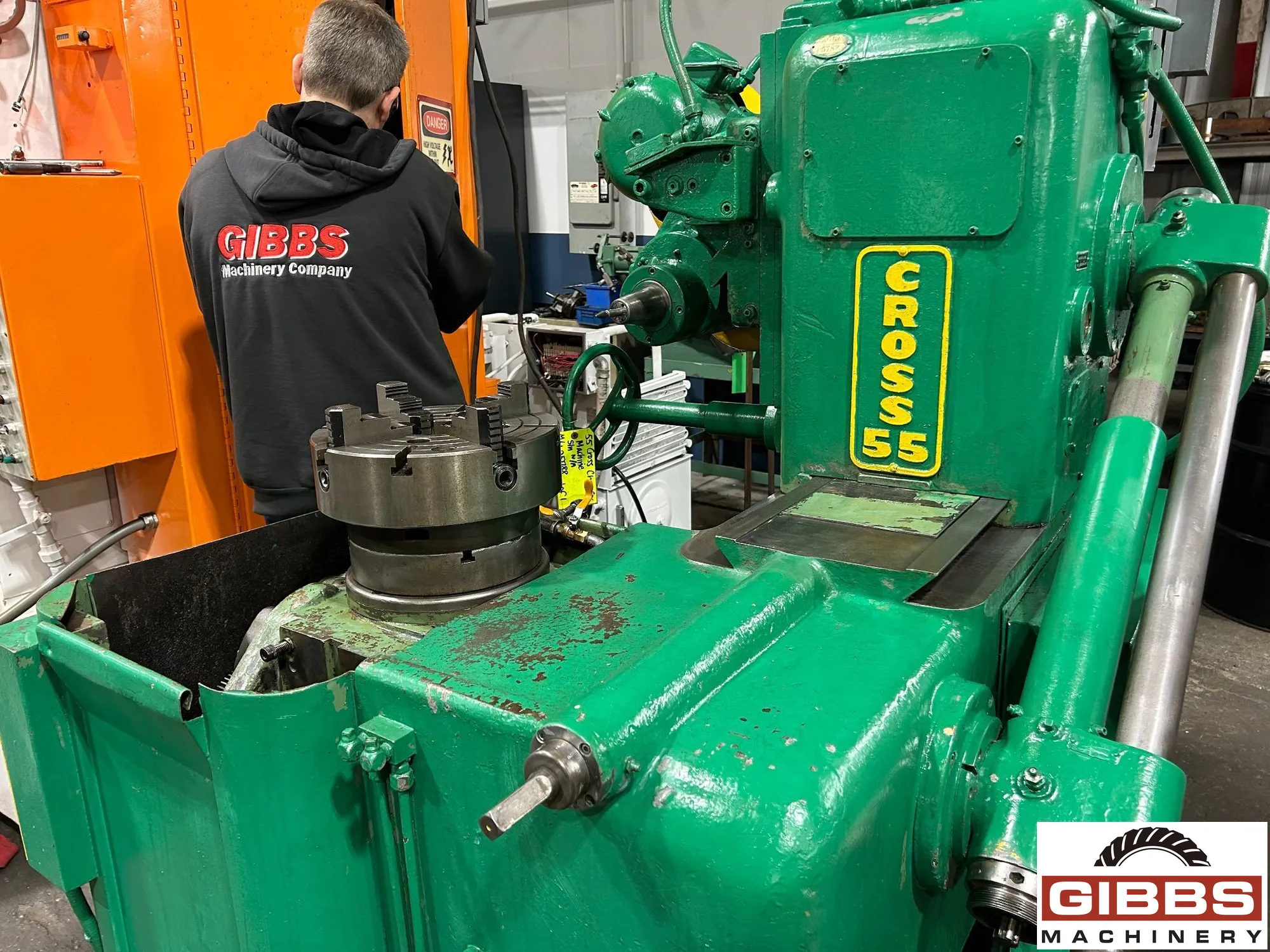

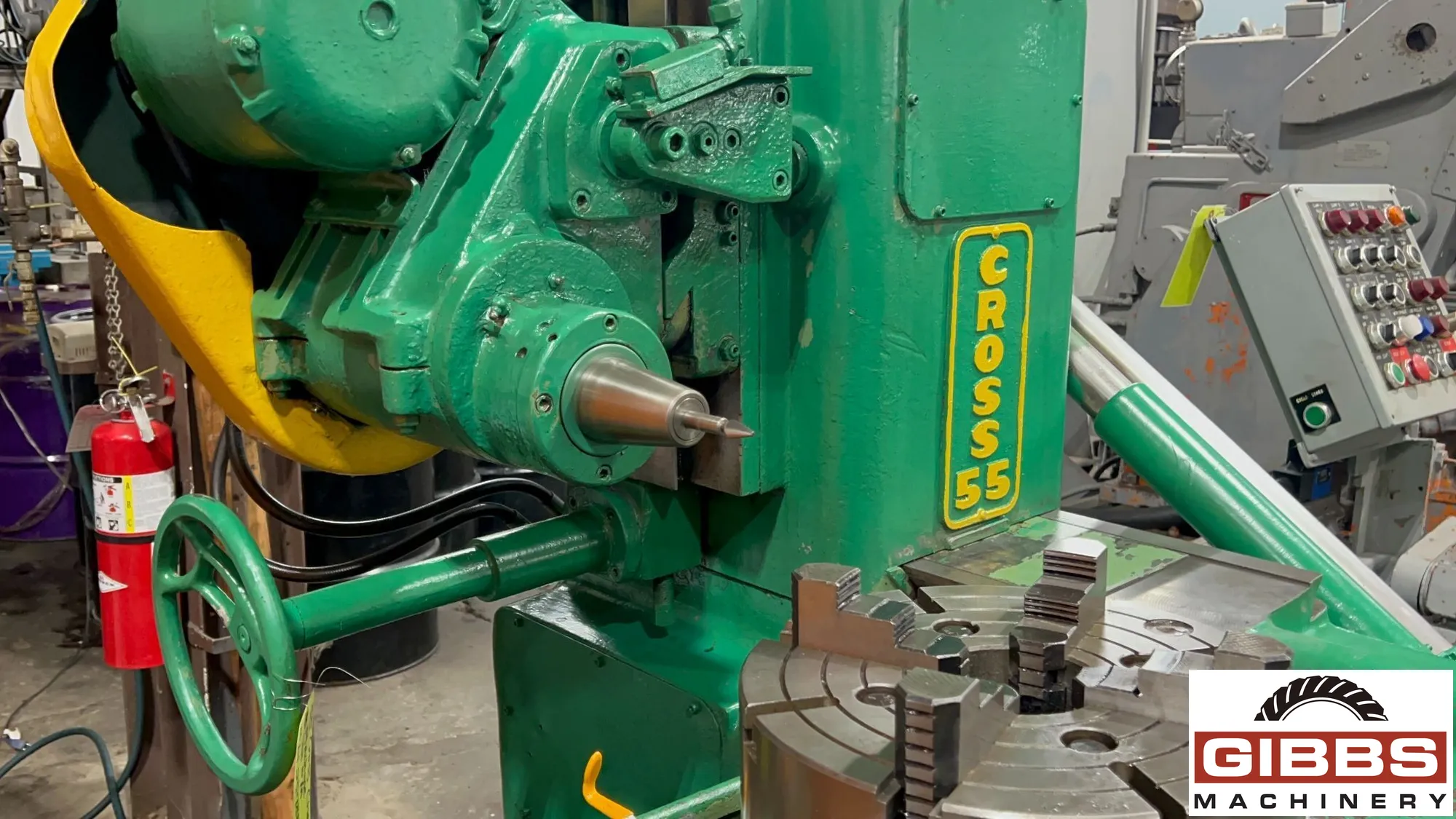

The Cross Model 55 Gear Tooth Chamfering Machine is a heavy-duty industrial tool used to finish and shape the edges of gear teeth. It cuts a smooth angle onto sharp 90-degree gear edges. This makes the gears easier to put together, makes them run quieter, and stops them from breaking under stress.

    Specifications:

  • Diameter of Gear to be Processed: 0-18"
  • Gear Face Width Capacity: 0-14"
  • Max Pitch 1.6 DP (16.9 Module)
  • Indexing Range: 10-80 Teeth (When equipped with suitable gears)
  • Diameter of Hole Through Worktable: 3"
  • Cutter Spindle/Main Drive Motor: 1 HP
  • Indexing Drive: Continuous
  • Oil Capacity: 15 Gallon
  • Floor Space Requirements: 50" x 50"
  • Net Weight: 3,700#
