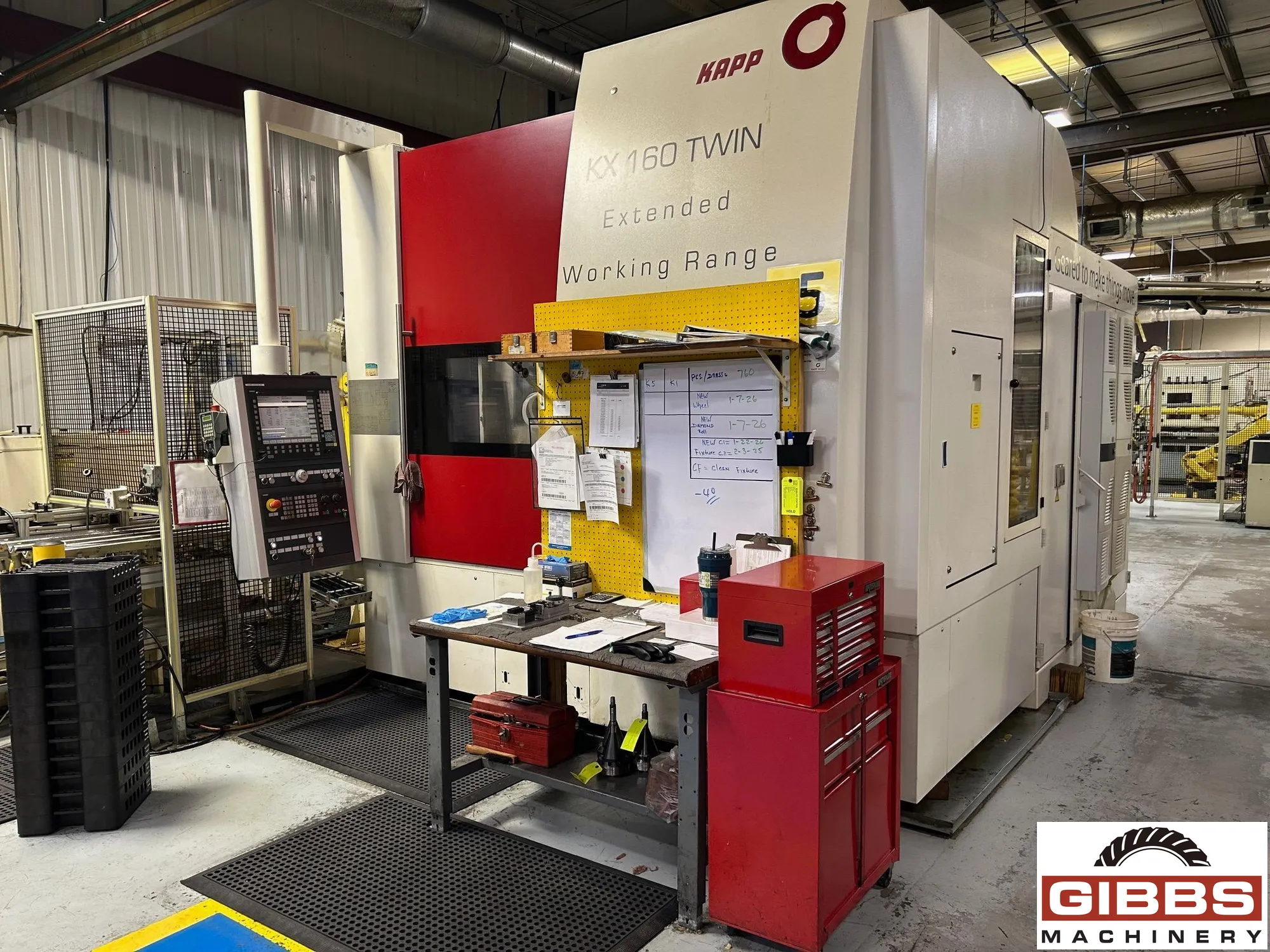

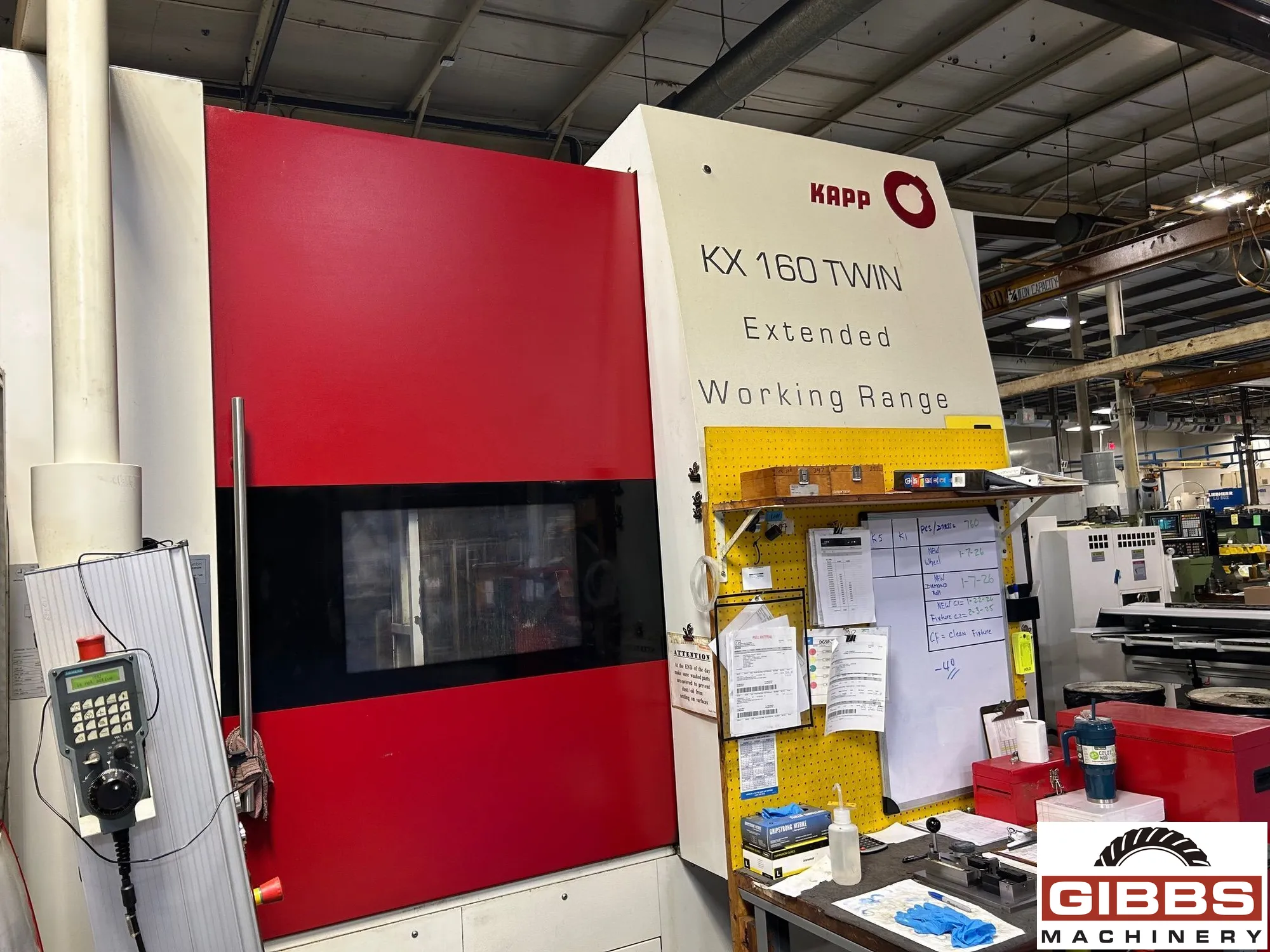

KAPP KX 160 TWIN - Gear Grinder

Manufacturer

KAPP

Category

Gear Machines

Type

GEAR GRINDERS, CNC

Stock

25910

Model

KX 160 TWIN

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

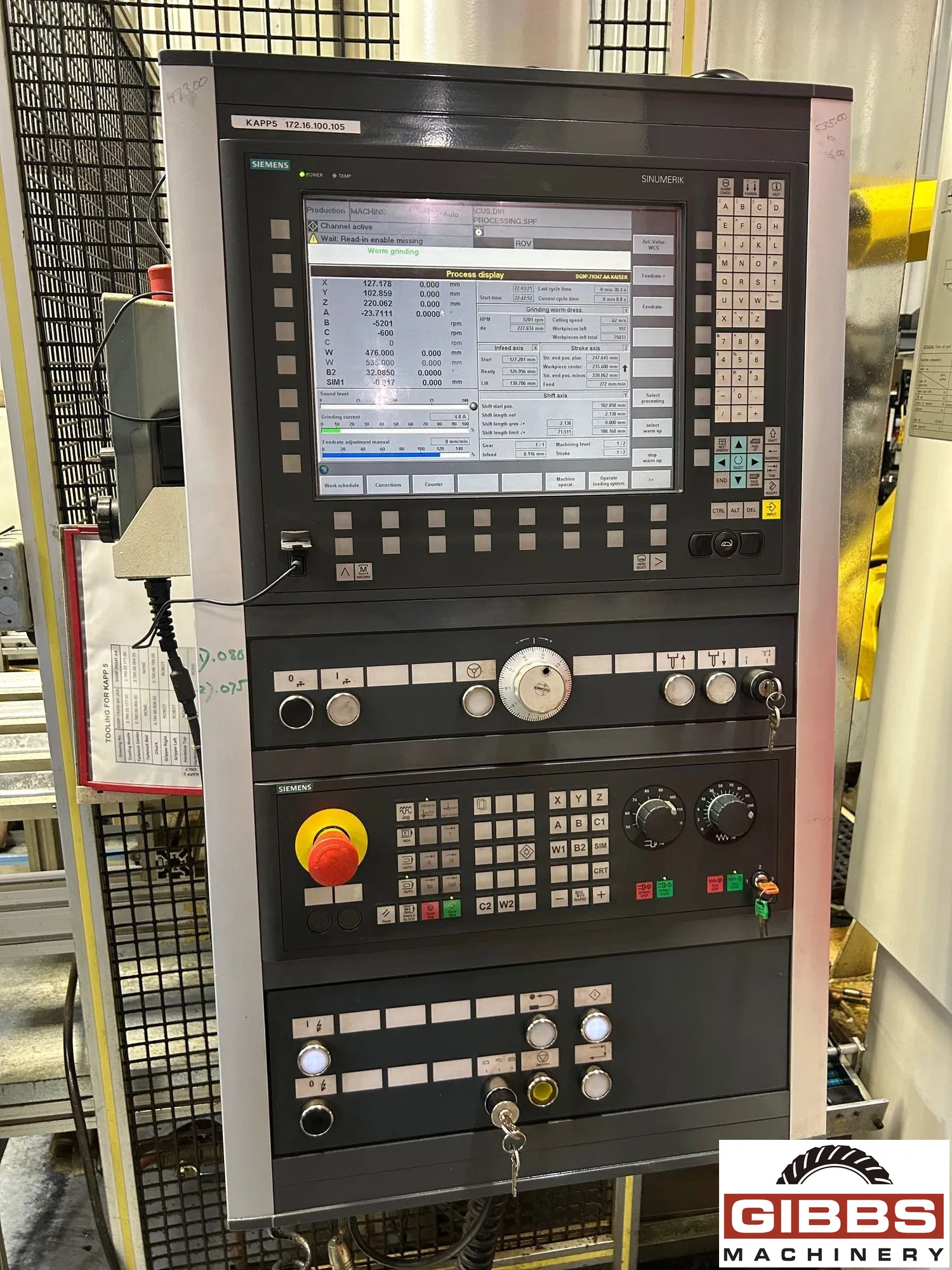

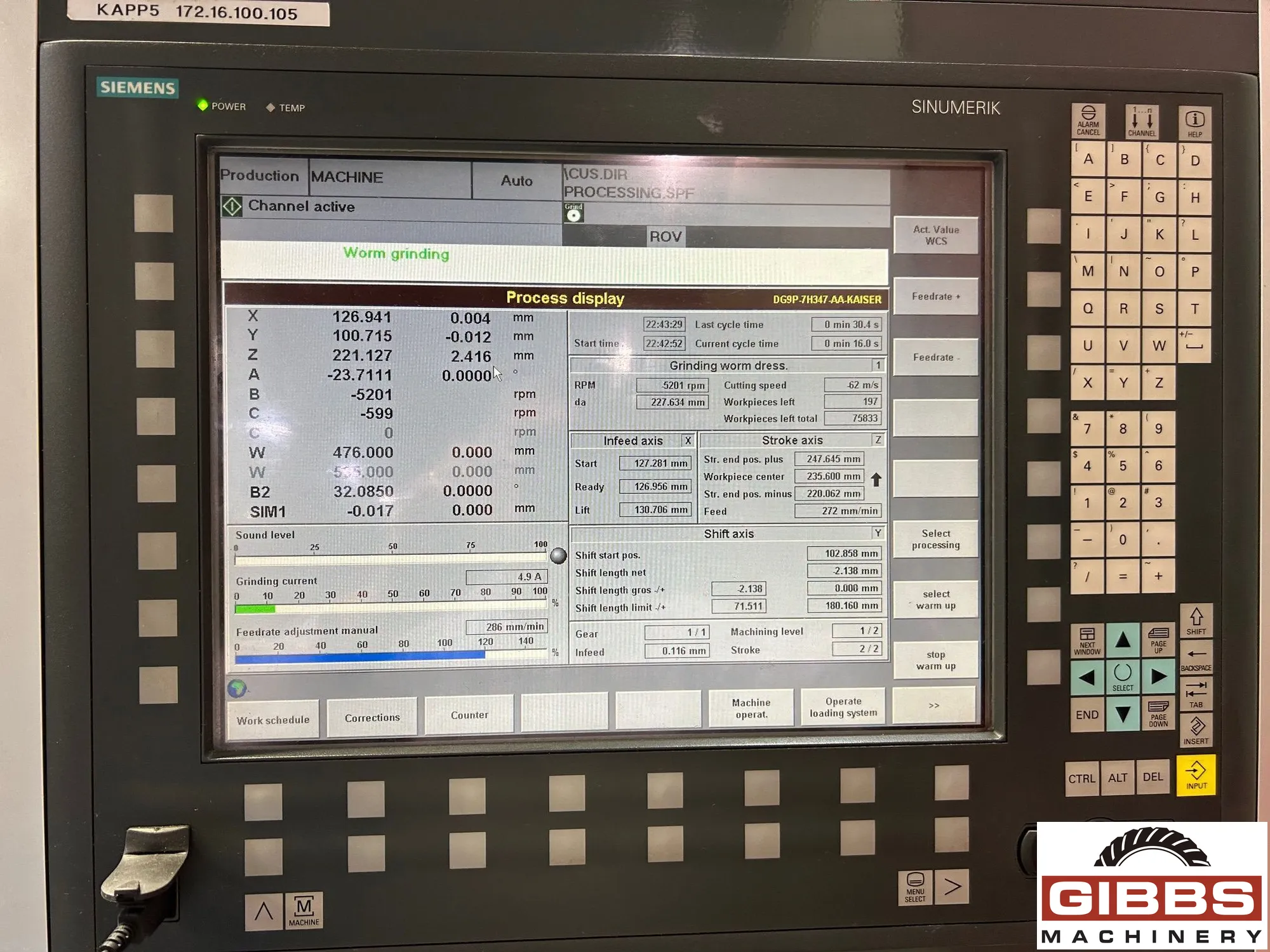

  • Siemens 840D Control

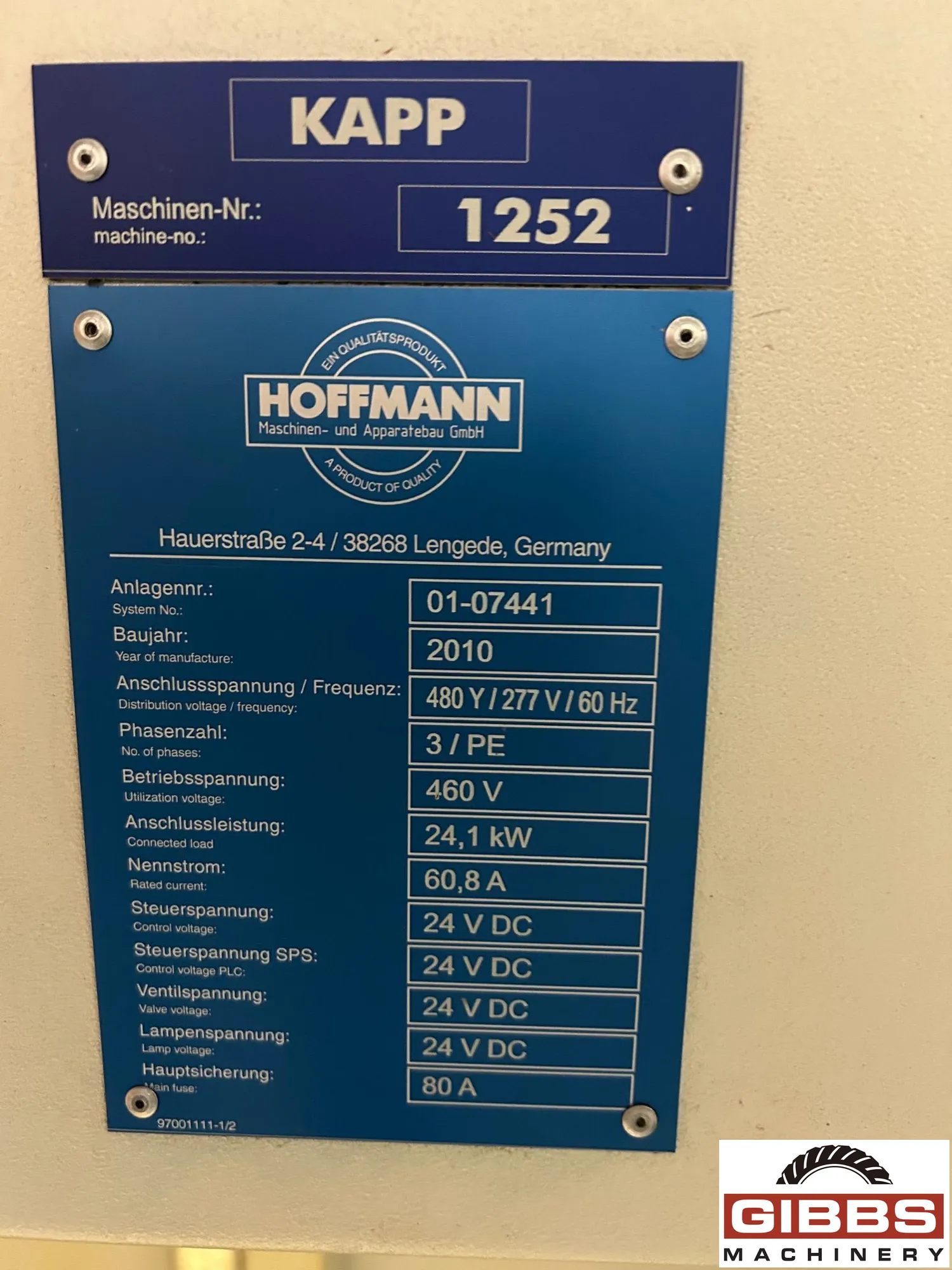

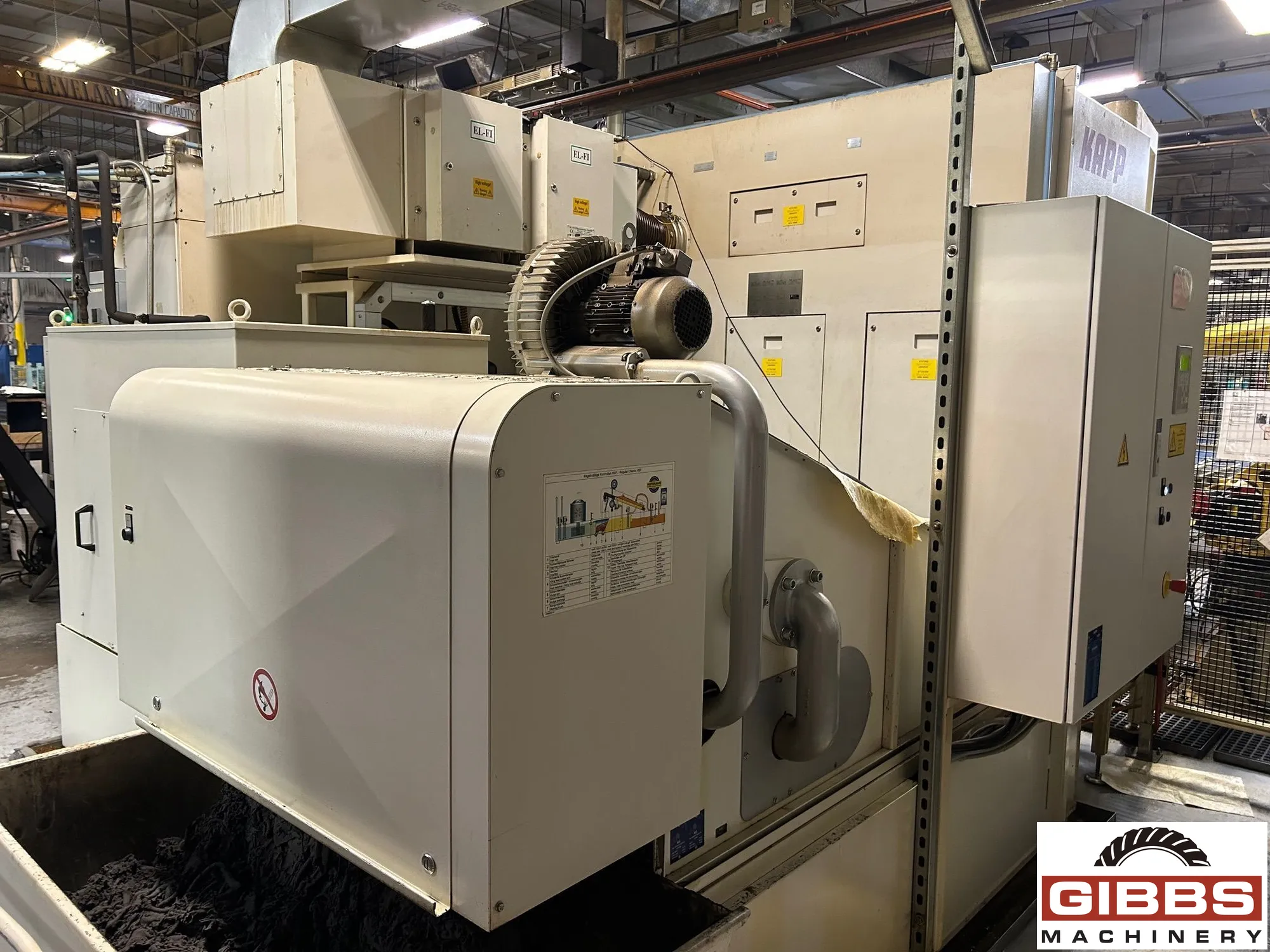

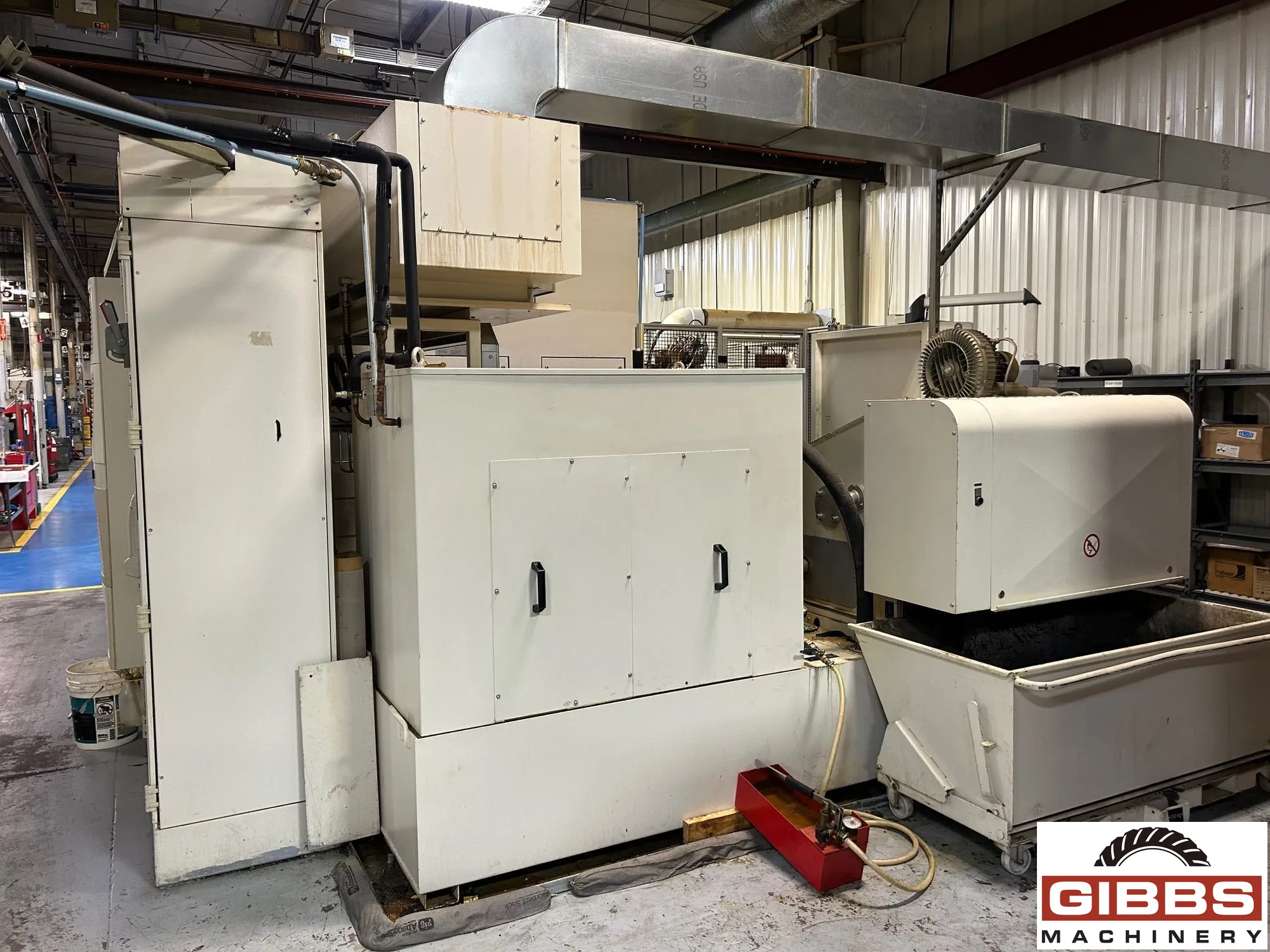

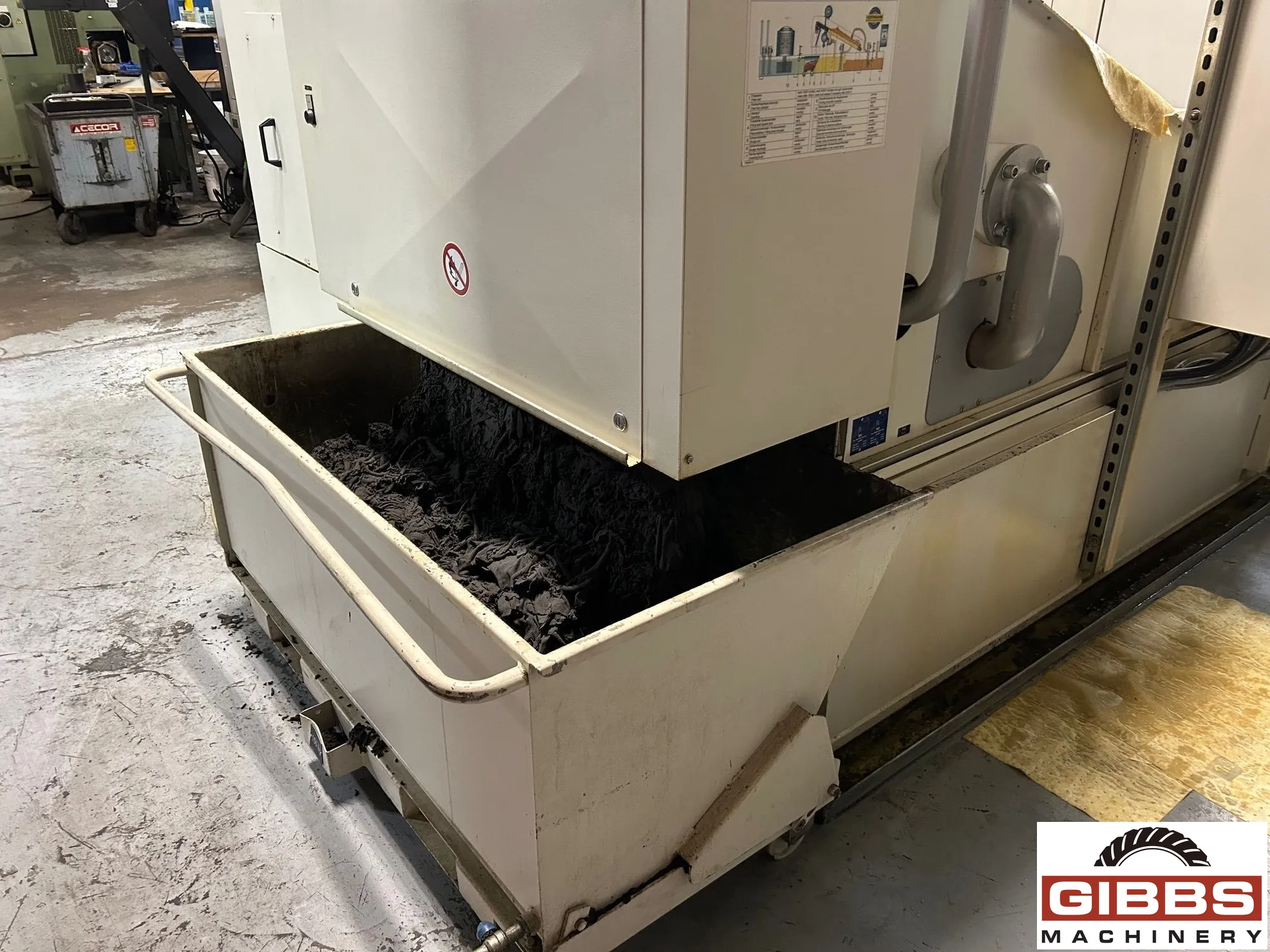

  • Hoffman Filtration System
  • Extended Working Range
  • Rotary Dresser
  • Load Table
  • Hand Held HMI

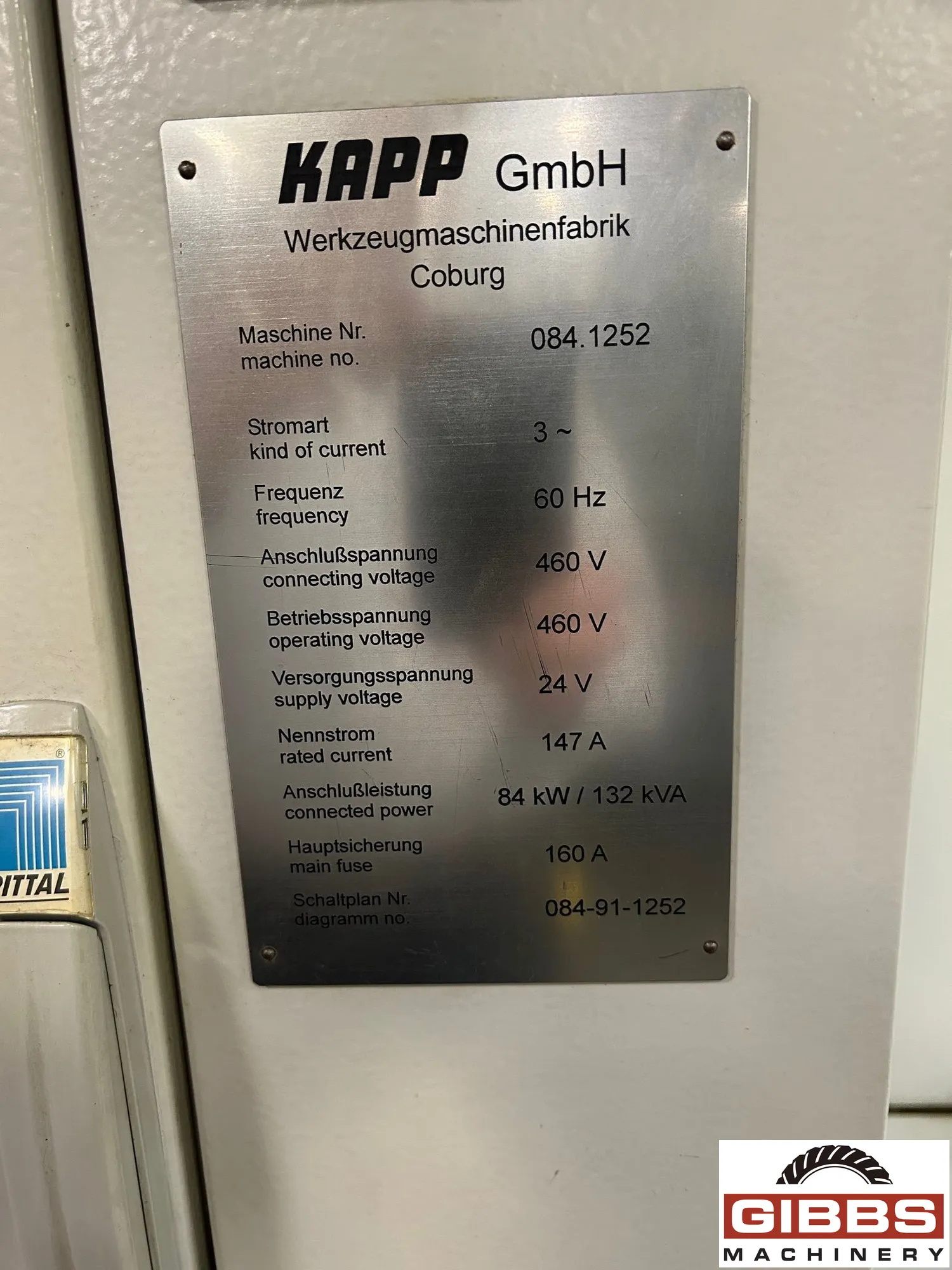

  • 3/60/460 Electrics

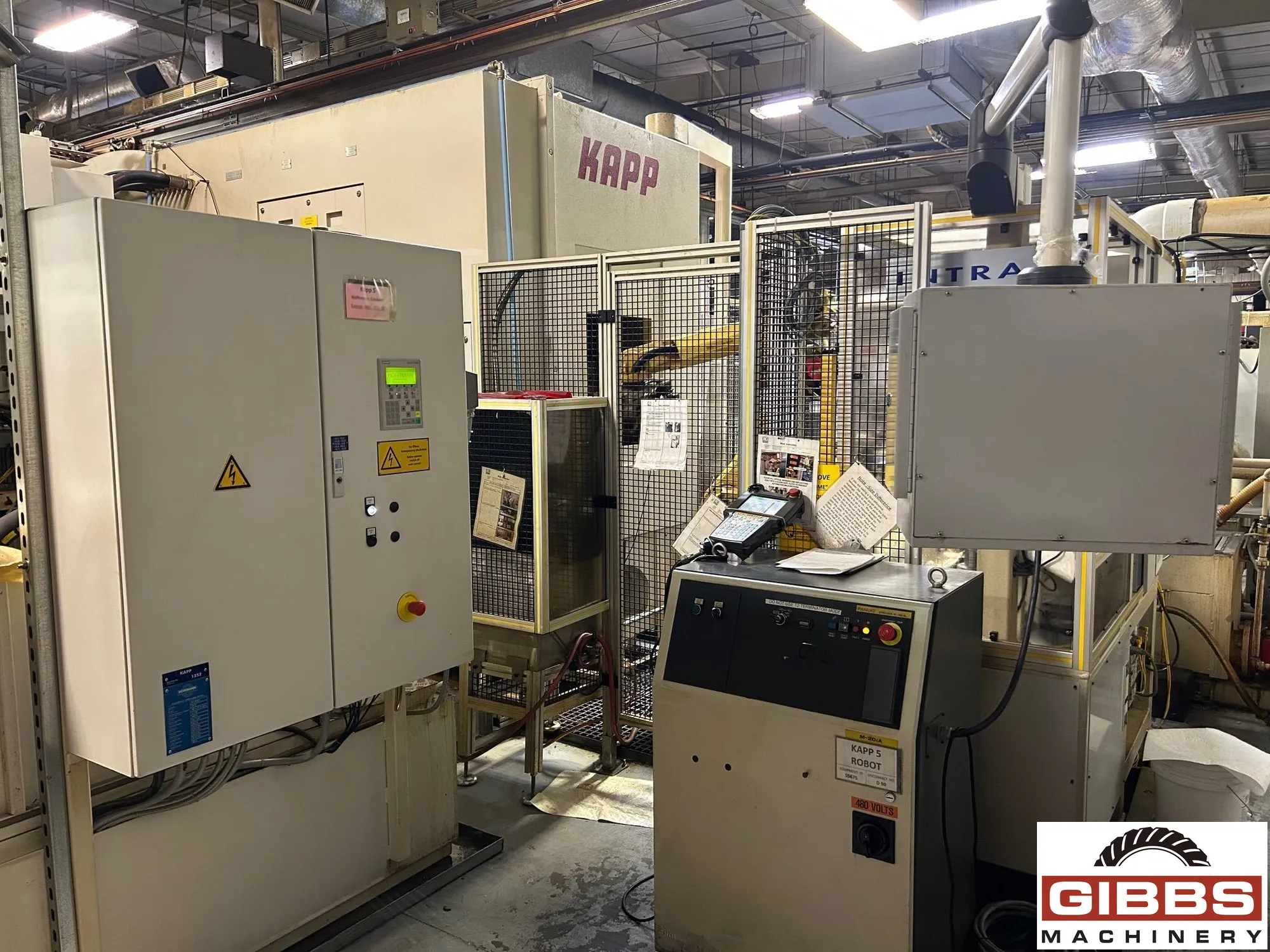

  • Creative Automation Cell
  • ---Fanuc Robot
  • ---Fanuc System AR-30ia Controller
  • ---Grapar Cap Auto/Wash
  • ---Intra Gaging
,

Machine Specifications :

  • Year 2010
  • Manufacturer KAPP
  • Generating Grinding YES
  • Profile Grinding NO
  • Internal Grinding NO
  • Worm Grinding NO
  • Workpiece Diameter (max.) 6.7"
  • Work Area Over Table (max.) 6.3"
  • Grinding Stroke (max.) 13.7795"
  • Module 4.5
  • Grinding Wheel Speed (max.) 6,000 RPM
  • Swivel Angle (min.) -45.0
  • Swivel Angle (max.) 45.0
  • Grinding Wheel Diameter (min.) 4.72"
  • Grinding Wheel Diameter (max.) 10.236"
  • Grinding Wheel Width (max.) 12.5984"
  • Grinding Worm Width (max.) 300.0
  • Axial Travel 13.7795"
  • Diametral Pitch 0.0
  • Maximum Workpiece Length 11.81"
  • Grinding Spindle 33.5 HP
  • Table Load (max.) 220.0
  • Control Manufacturer Siemens
,

KAPP KX160 TWIN Gear Grinder. Features Siemens 840D, Hoffman filtration, and Fanuc automation. Handles up to 170mm workpiece.

    Specifications:

  • Maximum Wheel Diameter: 260 mm
  • Gear Width: 320 mm
  • Maximum Module: 4,5
  • Minimum Module: 0,5
  • Maximum Helix Angle: +/- 45 Degrees
  • Total Power Requirement: 68 kW
  • Machine Weight: 15,50 T
  • Machine Dimensions: 3,25 x 3,25 x 3,30 m
  • Number of Teeth: 1 - 999
  • X-Axis: 345 mm
  • Y-Axis: 250 mm
  • Z-Axis: 320 mm
  • B-Axis: 360 Degree
  • C-Axis: 360 Degree
