KAPP KX 300 P - Gear Grinder

Manufacturer

KAPP

Category

Gear Machines

Type

GEAR GRINDERS, CNC

Stock

25912

Model

KX 300 P

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

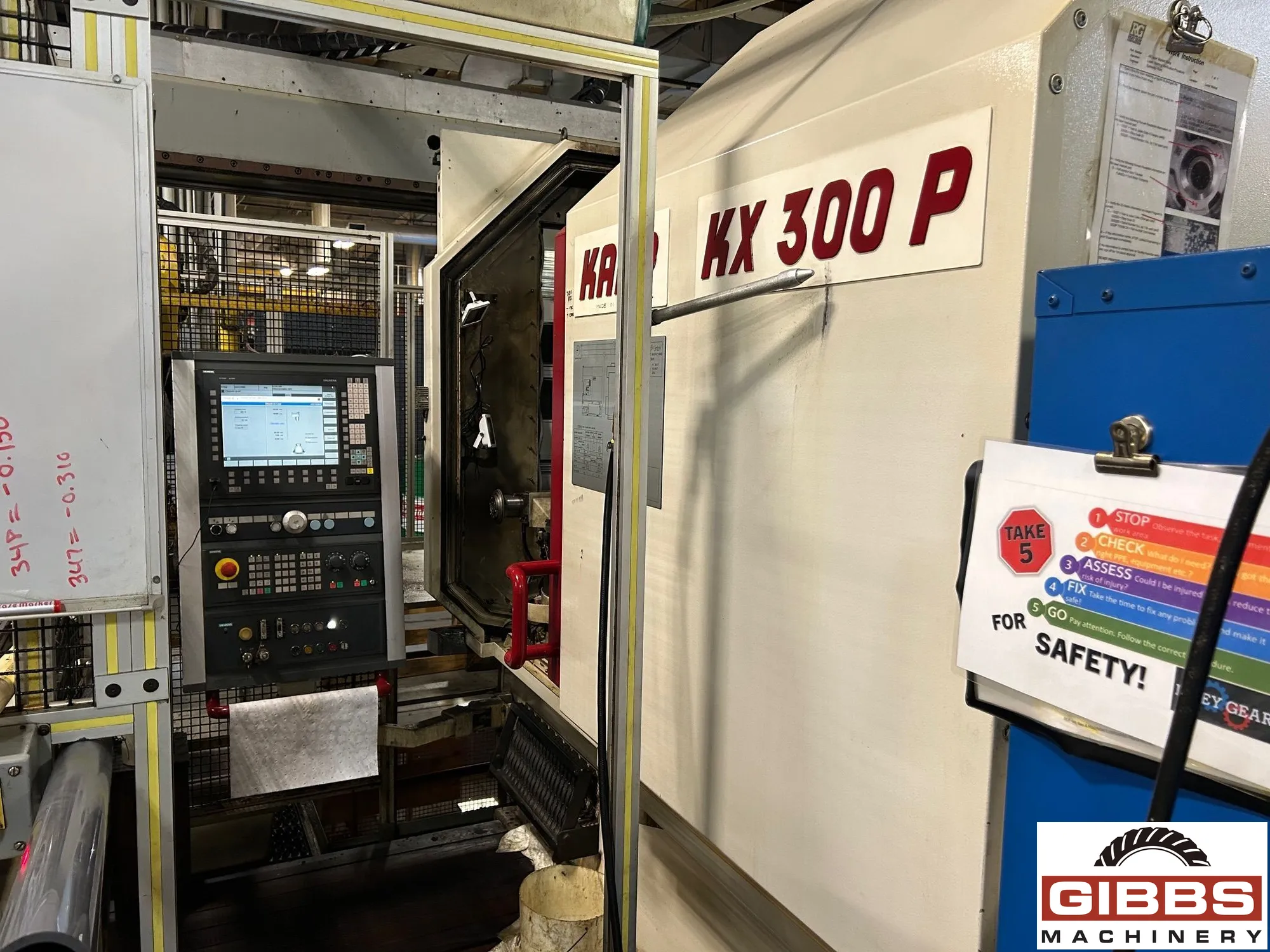

  • Siemens 840D Control

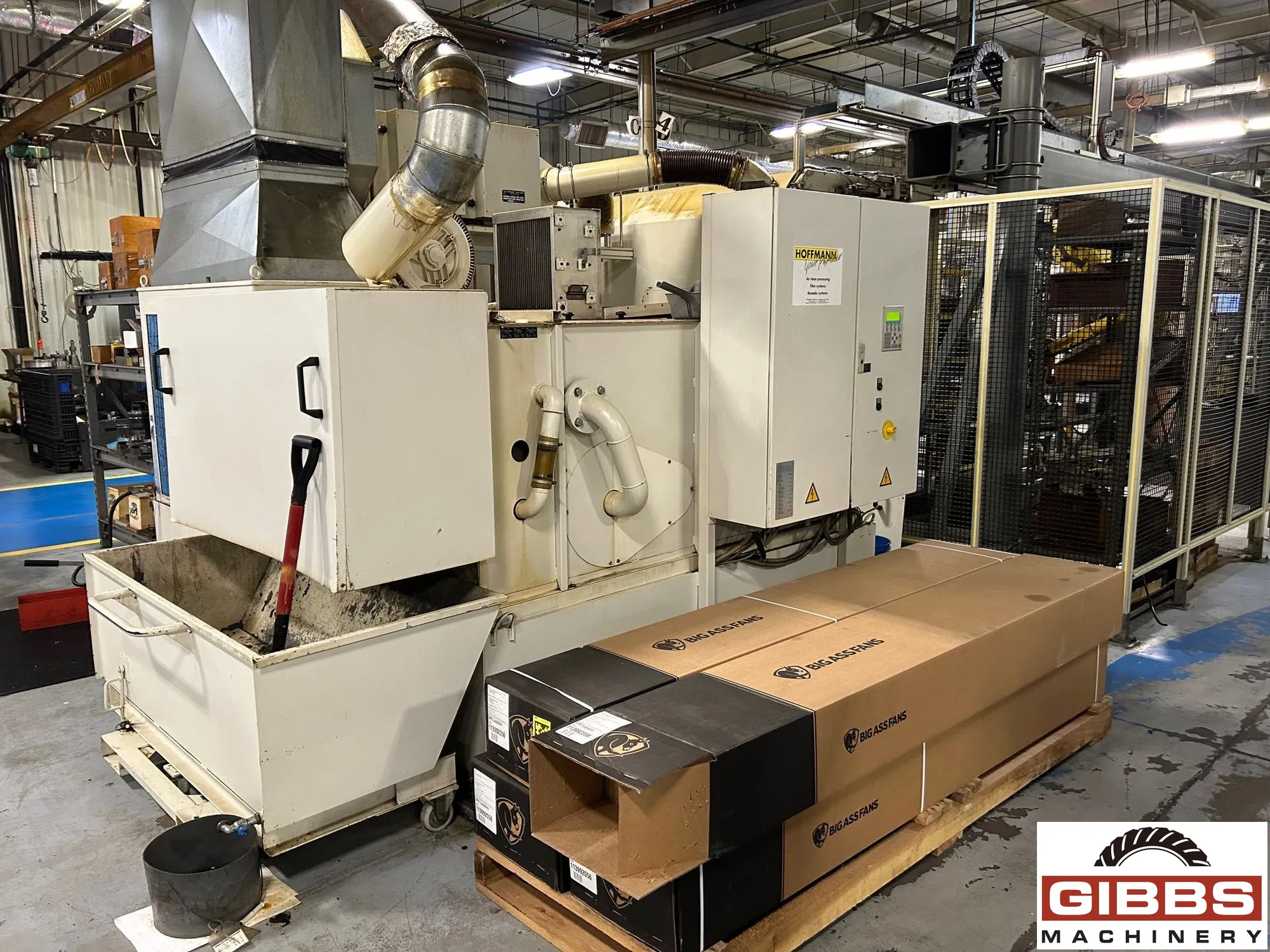

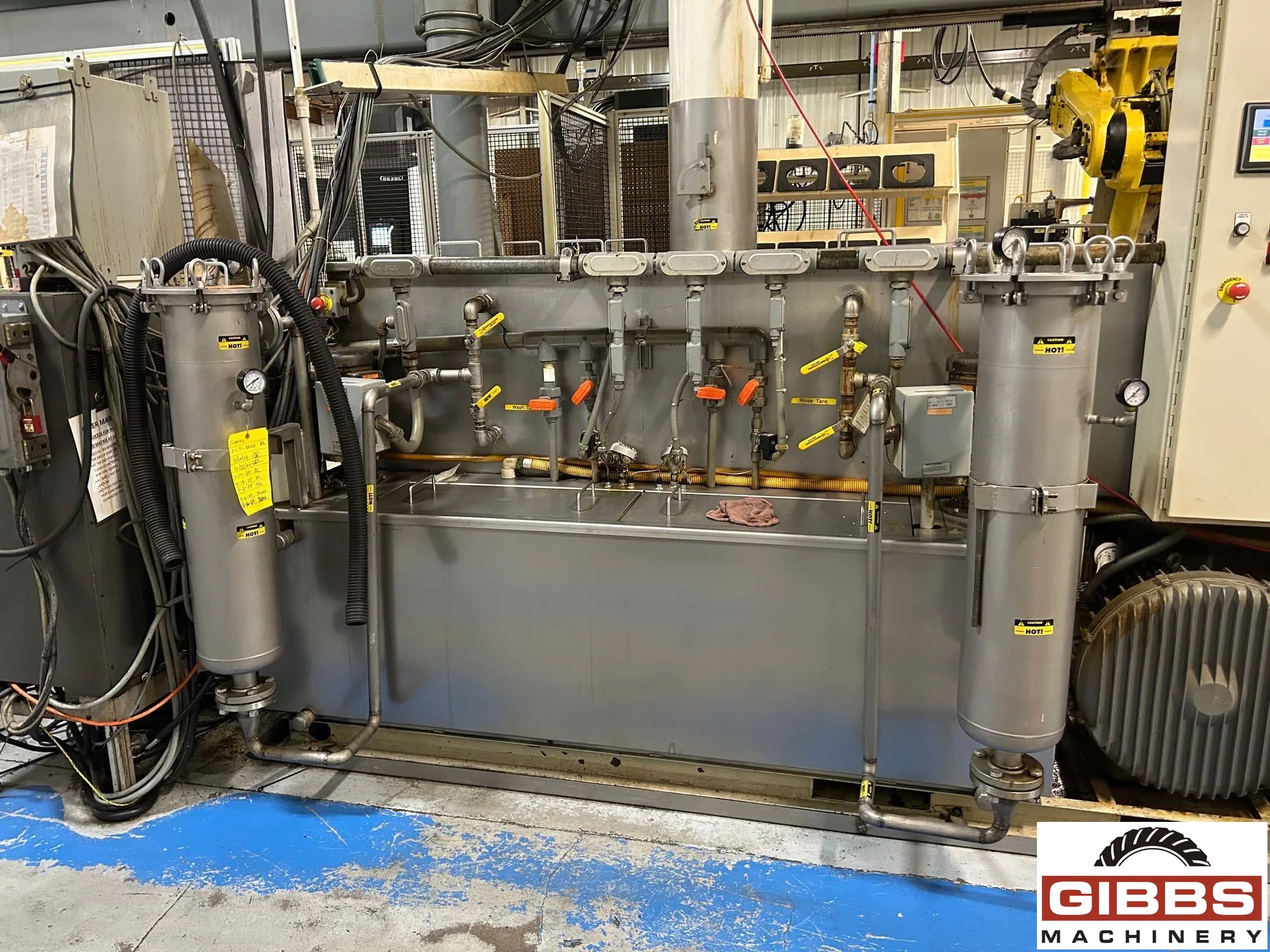

  • Hoffman Filtration
  • Extended Tailstock
  • Rotary Dresser
  • 460/3/60 Electrics
  • Load Table

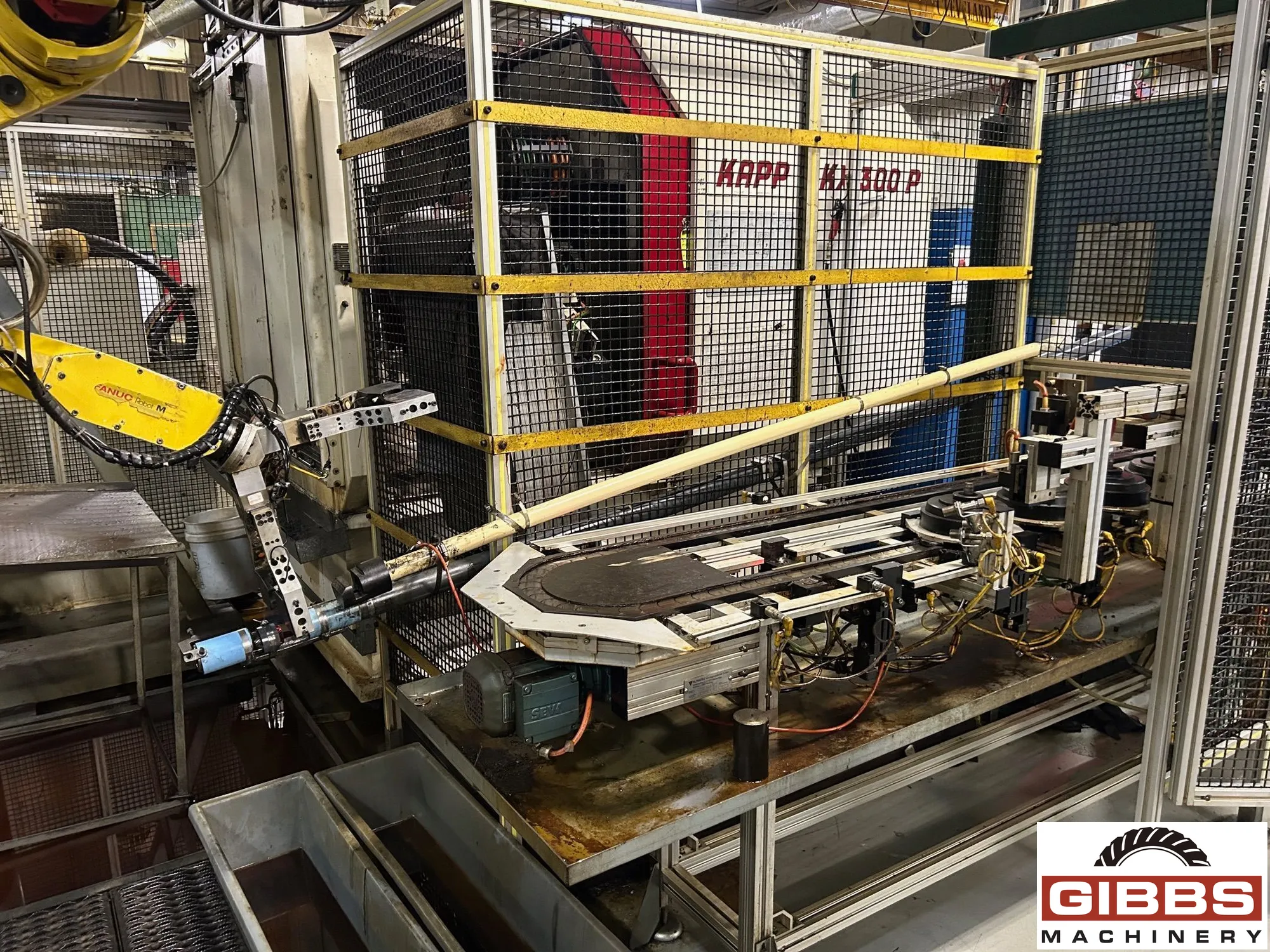

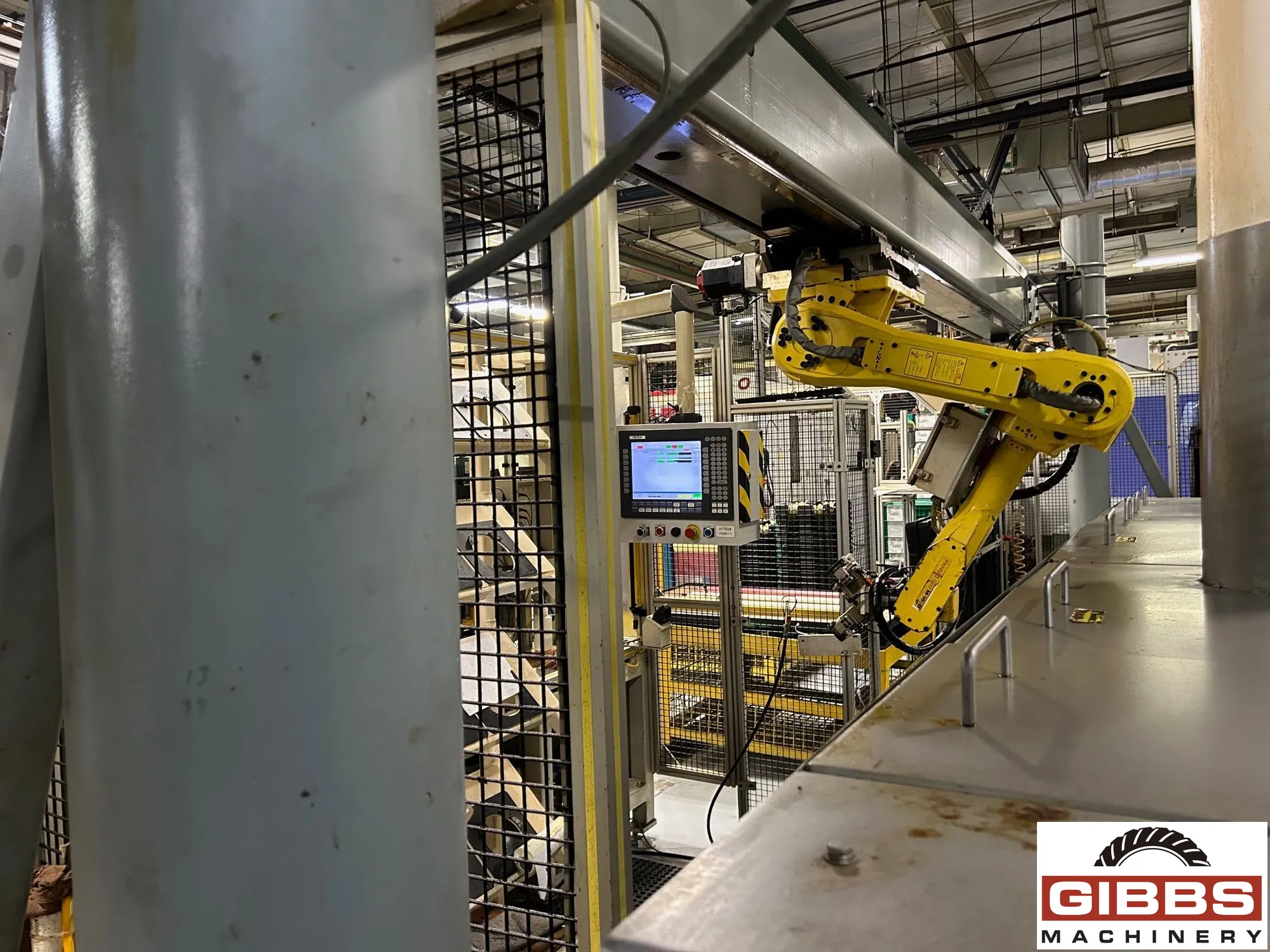

  • Creative Automation Cell:
  • ---Fanuc Robotic Rail

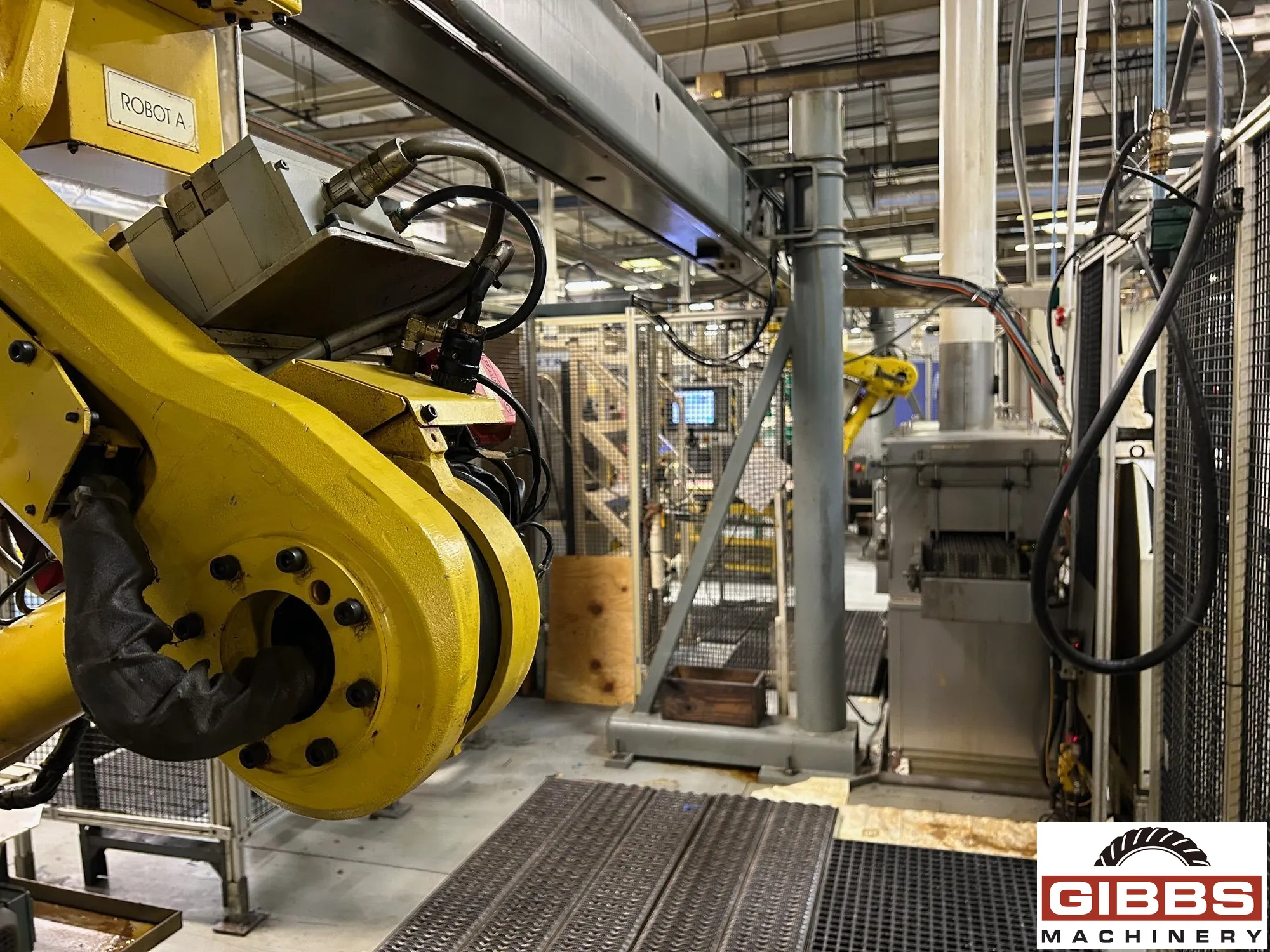

  • ---(2) Fanuc M161iB Robots

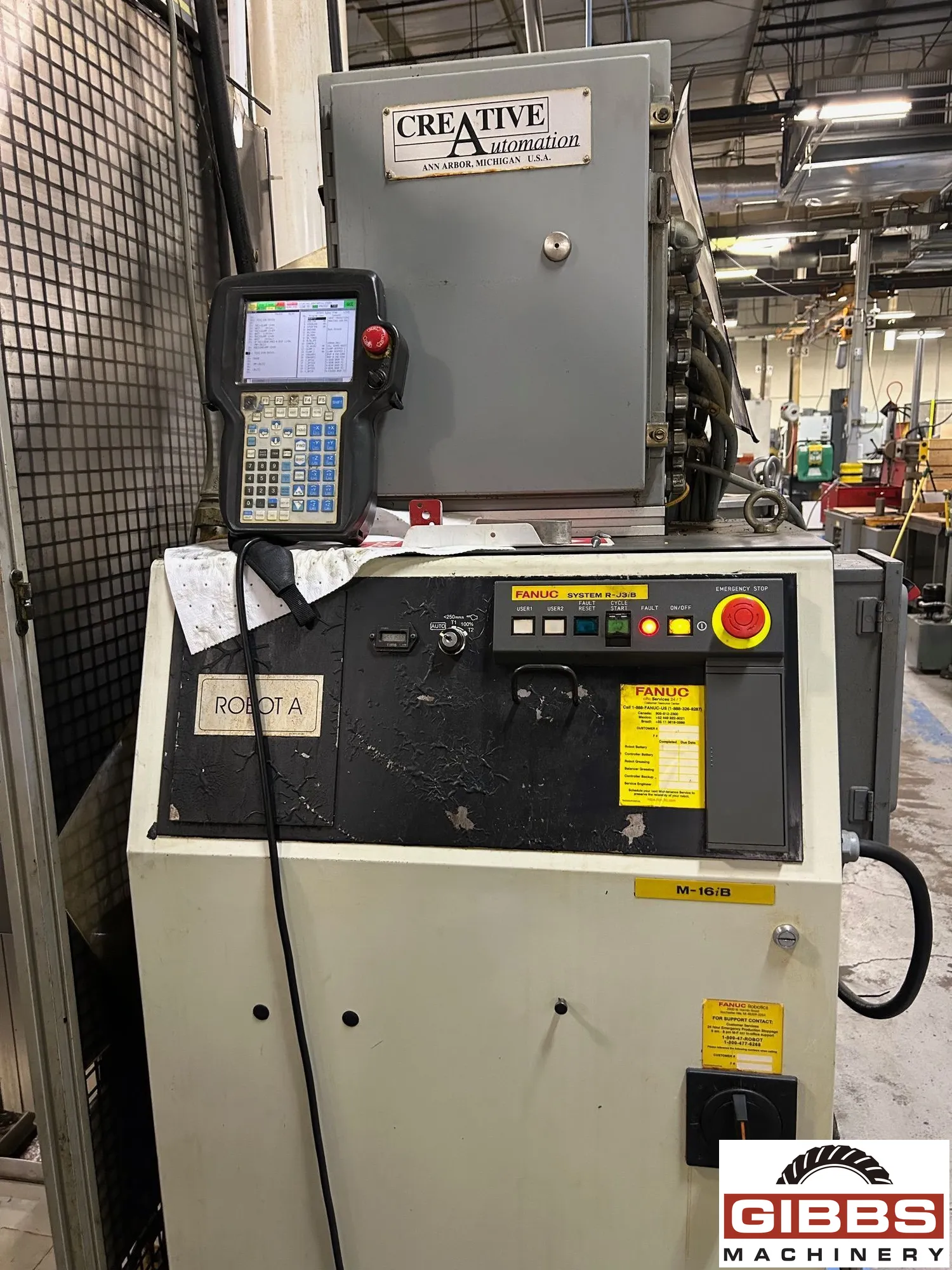

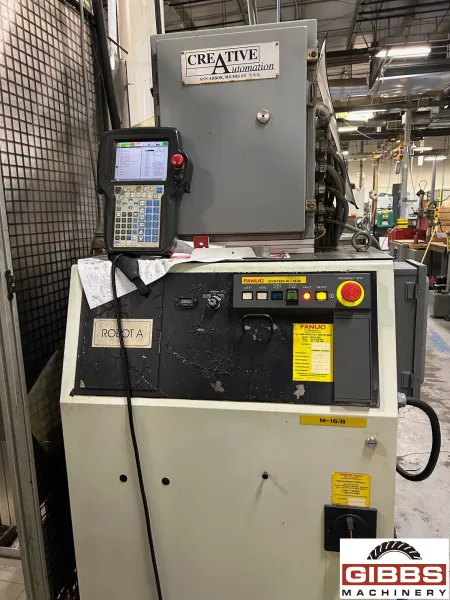

  • ---(2) Fanuc R-J3iB Controllers

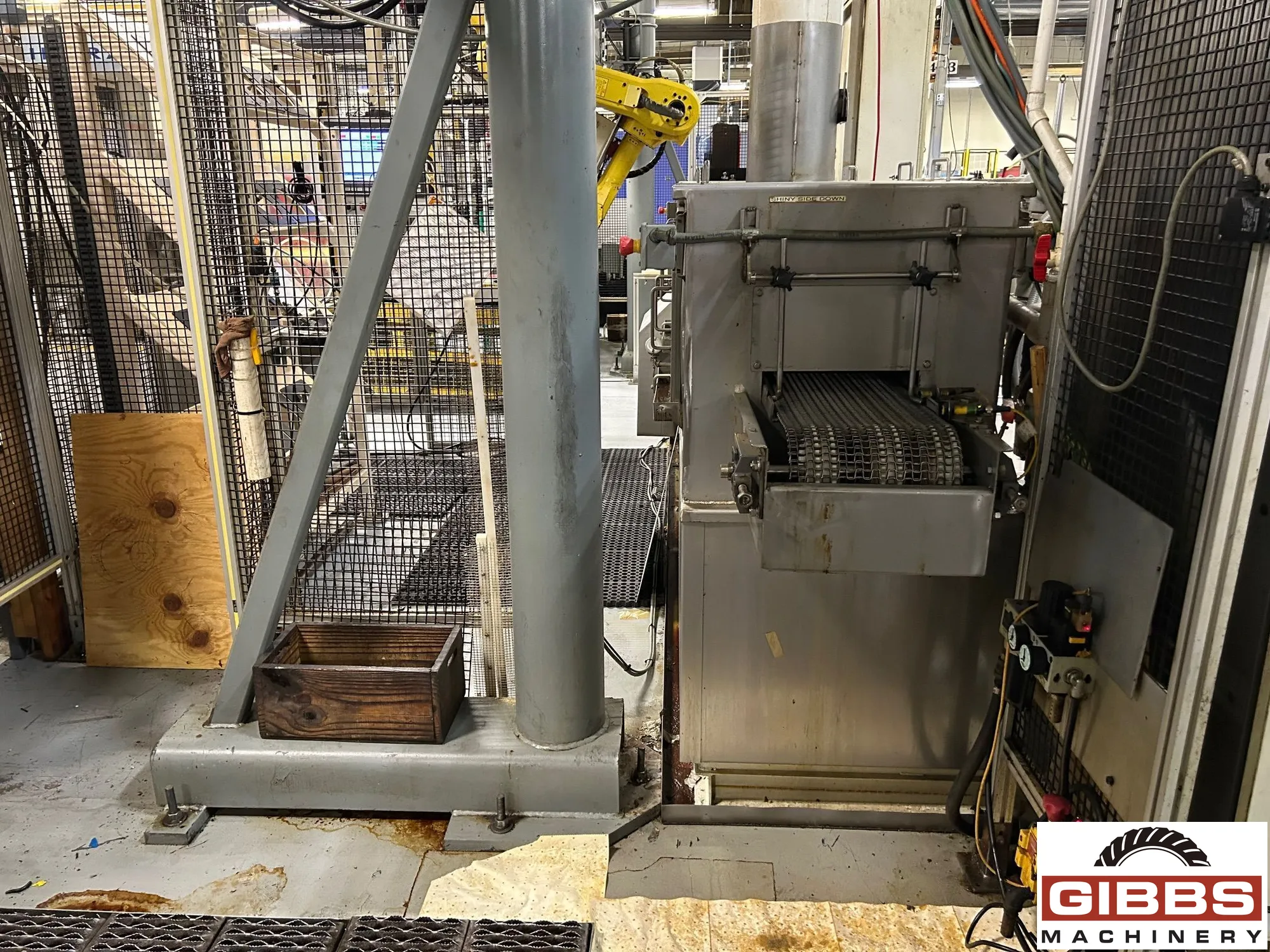

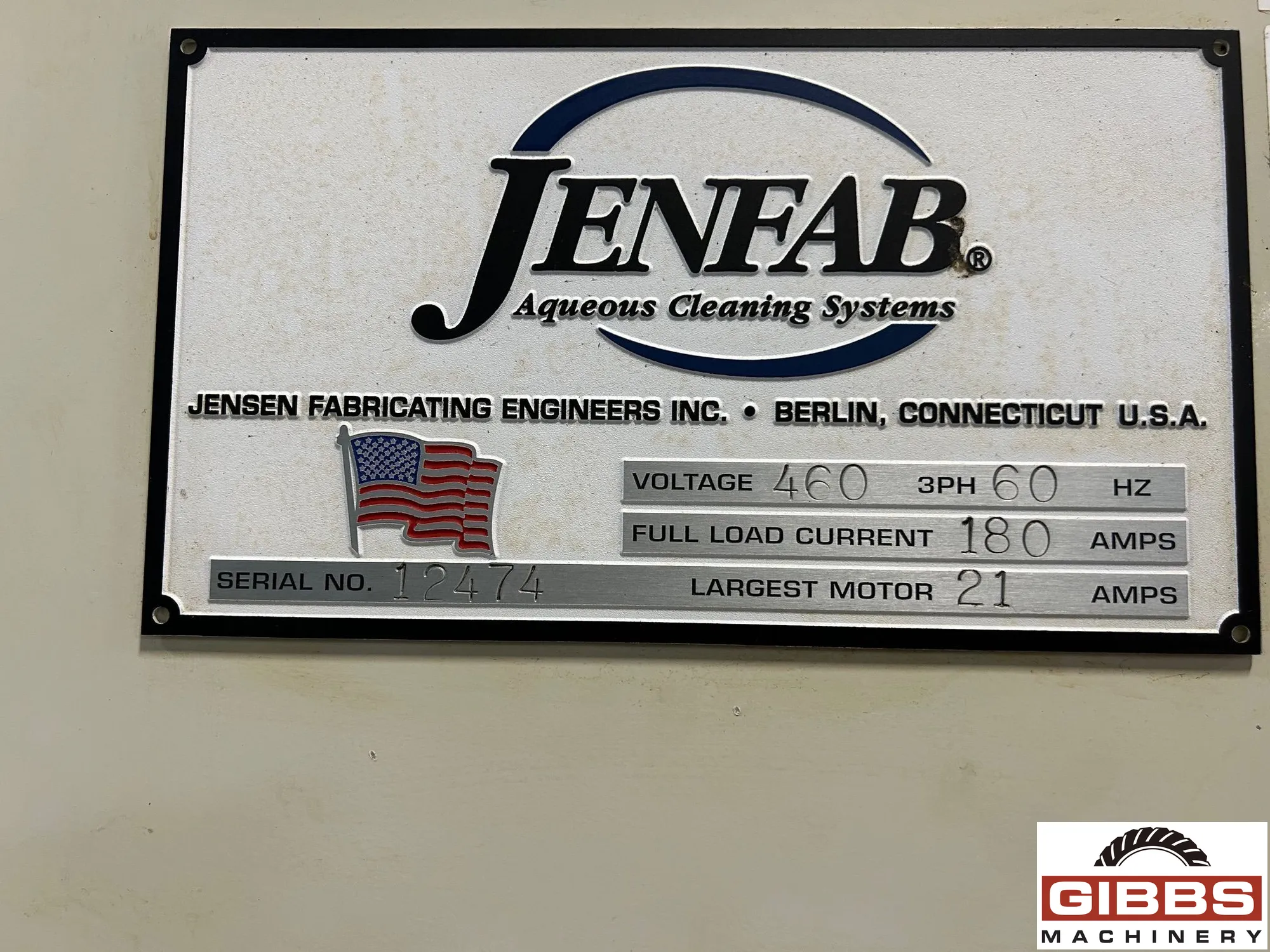

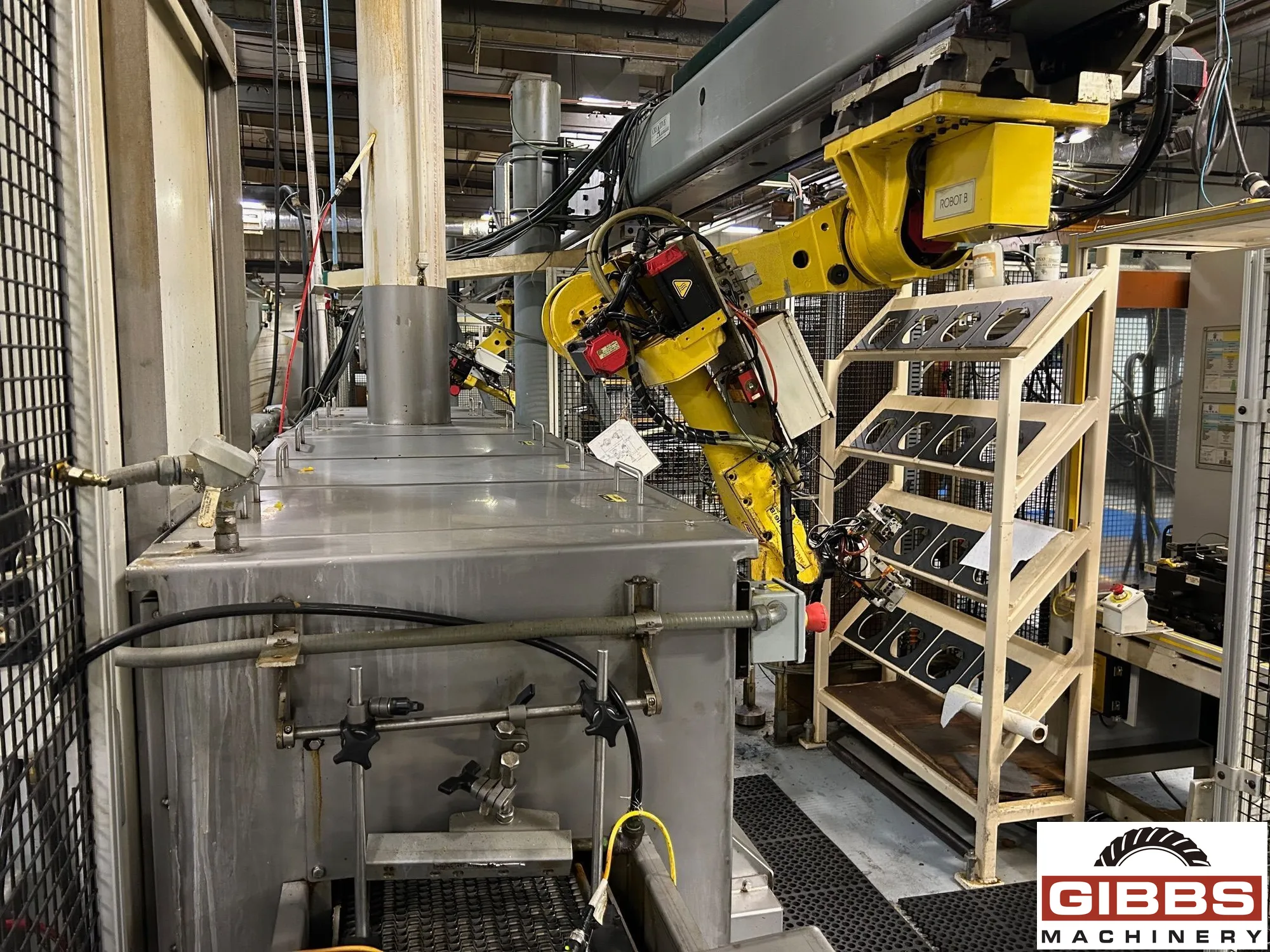

  • ---Jenfab Washer - Washer - Blowoff
  • ---Intra Gaging
  • ---Packout Station
,

Machine Specifications :

  • Year 2004
  • Manufacturer KAPP
  • Workpiece Diameter (max.) 11.8"
  • Module 0.5/10
  • Swivel Angle (min.) 45.0
  • Swivel Angle (max.) 45.0
  • Grinding Wheel Diameter (max.) 11.81"
  • Grinding Wheel Width (max.) 12.59"
  • Control Manufacturer Siemens
  • Generating Grinding YES
  • Profile Grinding YES
  • Internal Grinding NO
,

KAPP KX 300P CNC Gear Grinder available. Max workpiece diameter: 300 mm, Siemens 840D control, Hoffman Filtration, rotary dresser, load table and more.

    Specifications:

  • Maximum Wheel Diameter: 300 mm
  • Gear Width: 320 mm
  • Minimum/Maximum Module: 0,5/10
  • Maximum Helix Angle: 45 Degree
  • Frequency: 50 Hz
  • Voltage; 400 V
  • Main Fuse: 125 A
  • X-Axis: 270 mm
  • Y-Axis: 250 mm
  • Z-Axis: 320 mm
  • A-Axis: +/- 45 Degrees
  • B-Axis: 360 Degrees
  • C-Axis: 360 Degrees
  • Total Power Requirement: 89 kW
  • Machine Weight: 23,5 T
  • Machine Dimensions: 11,2 x 5,5 x 2,9 m
