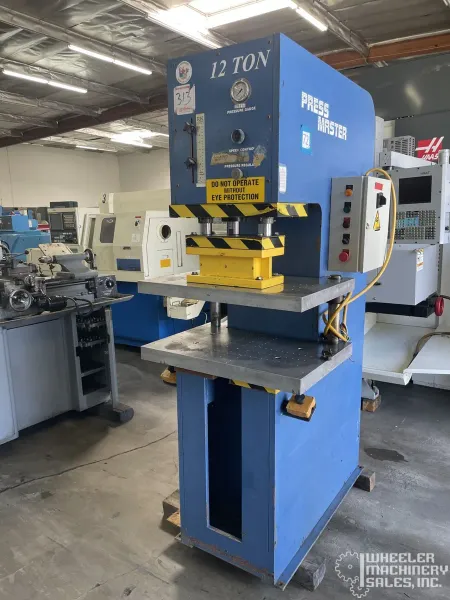

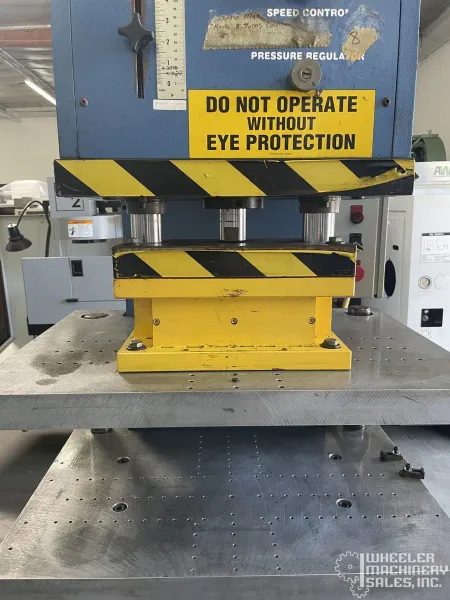

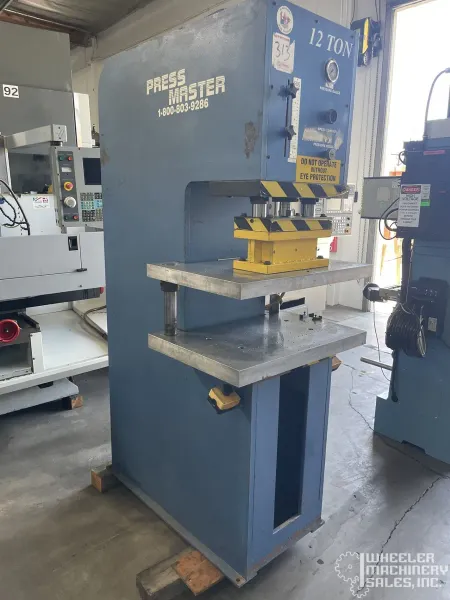

PRESSMASTER CFP-12 Hydraulic C-Frame Press #8204 #1

Manufacturer

PRESSMASTER

Category

Presses

Type

PRESSES, HYDRAULIC

Stock

8204

Model

None listed

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
PRESSES, HYDRAULIC
Manufacturer:
PRESSMASTER
Model:
CFP-12
Stock #:
8204
Status:
For Sale
Serial #:
n/a
Country:
United States

Description

PRESSMASTER CFP-12 Hydraulic C-Frame Press in used condition. Key specs include 12-ton tonnage and 18" daylight. Ideal for demanding tasks, delivering reliable performance and efficiency.

PRESSMASTER CFP-12 Hydraulic C-Frame Press #8204 #1

SPECIFICATIONS:
TONS OF FORCE ......(MAX).............. 12 TONS
APPROACH SPEED ........................ 186 IPM
PRESS SPEED ........................... 44 IPM
RETURN SPEED .......................... 269 IPM
TABLE ..............(LR X FB).......... 21" X 16"
DAYLIGHT .............................. 18"
MAX. STROKE ADJUSTABLE ................ 12"
THROAT ................................ 11"
U-SLOT OPENING ........................ 4"
FLOOR TO TABLE ........................ 36"
FRONT TO BACK ......................... 46"
HEIGHT (OVERALL) ...................... 87"
CLEARANCE ............................. 6"
WIDTH ................................. 26"
UPPER PLATEN .......(LR X FB).......... 21" X 16"
MOTOR HP @ 1750 RPM ................... 5 HP
VOLTAGE AVAILABLE ..................... 230v / 3 PH

STANDARD FEATURES:
- PRESSURE GAUGE
- PRESSURE REGULATOR
- ADJUSTABLE SPEED CONTROL
- ADJUSTABLE STROKE CONTROL
- PRESSURE REVERSAL SWITCH
- RAM TRAVEL IS GUIDED BY 4 PRECISION-GROUND CHROMED RODS
- JOG MODE USED FOR SIMPLIFYING SETUPS
