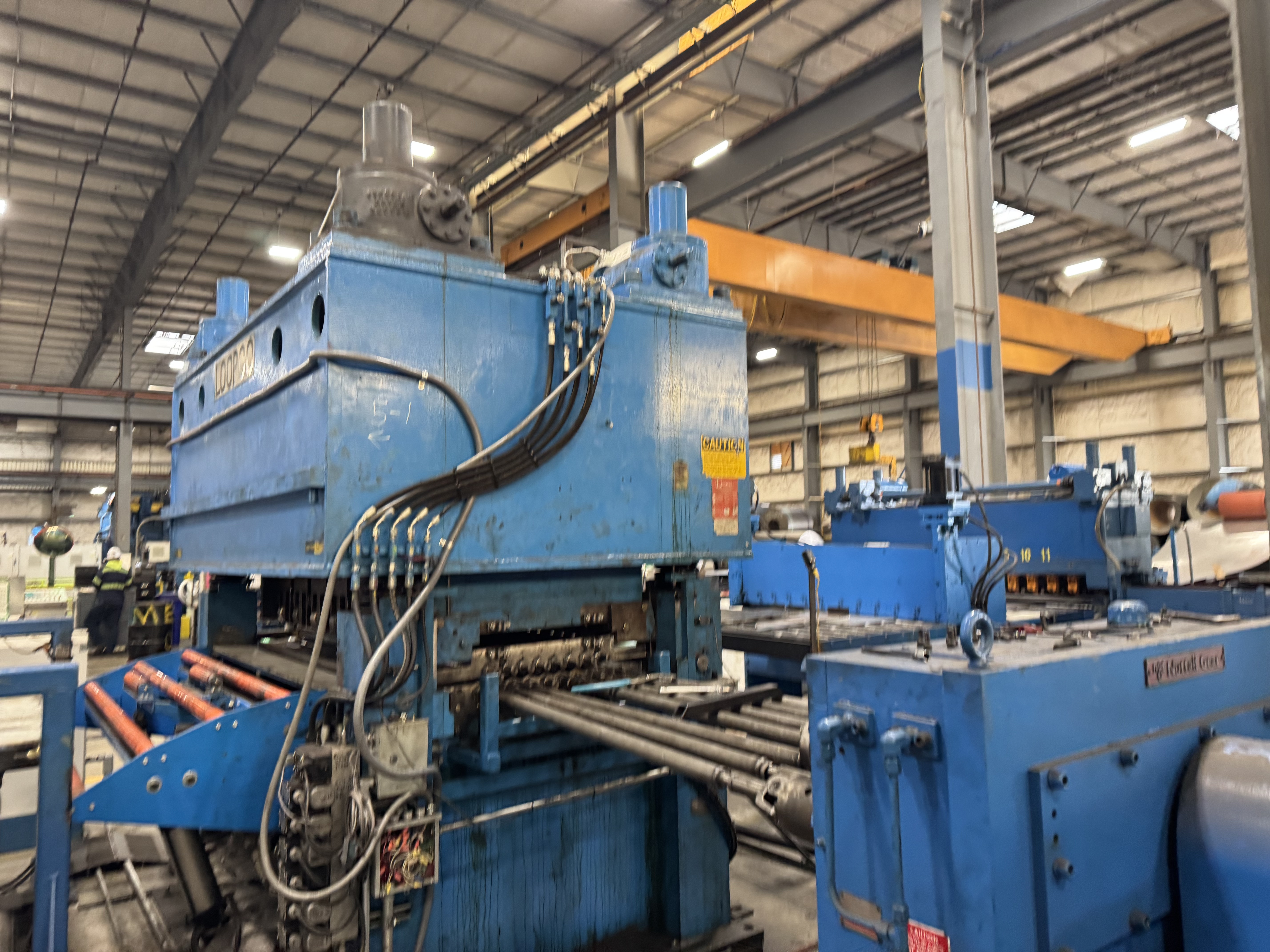

72" x .250" Loopco 5-High Precision Leveler

Manufacturer

LOOPCO

Category

Fabricating Machines

Type

LEVELERS, TENSION

Stock

102215

Model

None listed

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Year 1990
Serial No. 9071-9000

5-High Design

Thickness Range: .050" - .250"
Width Range: 72" - 12"
17 Rolls (8 over 9)
Work Roll Diameter: 2.50" (on 2.75" Centers)
Intermediate Roll Diameter: 1.75"
Max Speed: 300 FPM
Diameter Back-Up Rolls: 5"
7 Flights Top & Bottom Back-Up Rolls
5 Flights individual Motorized Adjustment
Linear Vertical Roll Positioners
Motorized Tilt
250 HP DC Motor
Entry Pinch Rolls
Operator Push Button Stands
Allen Bradley Panel View Readouts
Hydraulic Manifold Assembly
Hydraulic Lines


Updated in 2011: New Springs, New Jacks, New Wedge Assemblies
