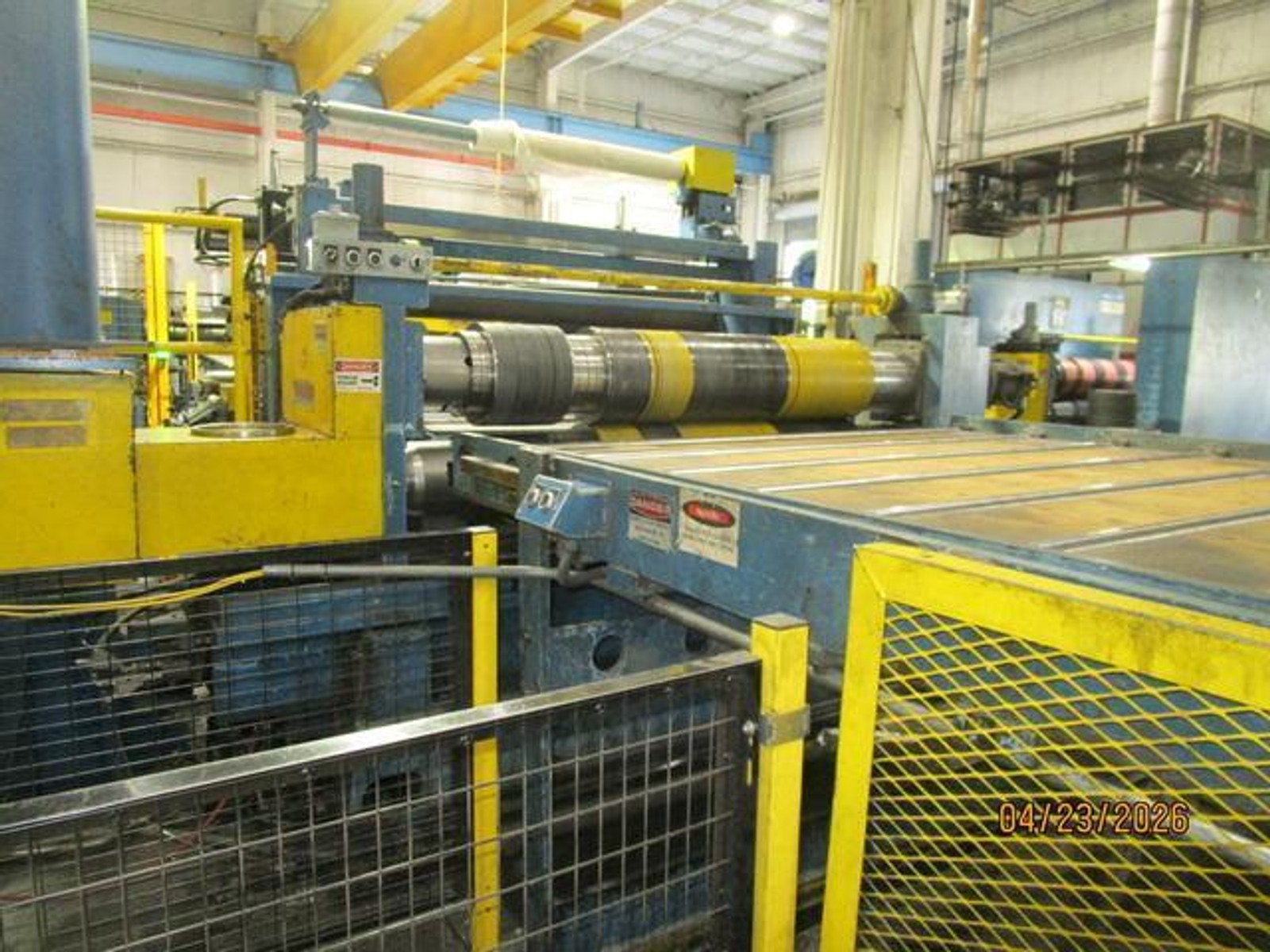

72" x .187" x 50,000# Chicago Triple Injector Head Loop Slitting Line with Braner Banding Line

Name: 72" x .187" x 50,000# Chicago Triple Injector Head Loop Slitting Line with Braner Banding Line
Brand: CHICAGO
SKU: 102216

Manufacturer

CHICAGO

Spec Sheet

Line Direction: Left to Right
Thickness Range: .187" - .010"
Max Coil Width: 72"
Entry Coil ID: 20" - 24"
Exit Coil ID: 20" & 24"
Coil OD: 72"
Line Speed: 1000 FPM

Complete Line With:
Entry 4 Arm Turnstile
Entry L-Type Coil Car
Paper Winder
Mandrel Uncoiler with 4 Leaf Hydraulic Expansion
Peeler Table and Pinch Rolls
2 Sets of Edge Guides
Crop Shear
(3) Injector Style Quick Change Slitter Heads: 9" Diameter Arbors
Shimless Tooling
Run Out Conveyor & Looping Pit Crossover Table
Rotary / Drag Board Tension Stand
Exit Crop Shear & Exit Feed Up Table
Dual Turret Style Recoiler
Exit L-Type Coil Car
Operator Push Button Station
Parker Digital Drives
72" x 10,000# Braner Coil Banding Line
4 Arm Exit Turnstile
72" x 10,000# Horn Type Downlayer
30' Powered Conveyor with Photo Electric Eye Coil Positioning
Banding Table with 3 Conical Rolls & 2 Banding Heads
Coil Positioning Table
72" x 10,000# Braner Turret Stacker
6 Position Turntable
Exit Conveyor with Scale
Push Button Station
Complete Line
Can Be Inspected Under Power and Operating
