26 inch Minster Servo Feed Model MEF 526-S For Sale

Manufacturer

MINSTER

Stock

3015

Model

MEF-526

Dealer Location

Michigan

Spec Sheet

Coil Width - 26 inches
Coil Thickness - .156 inches


Minster Servo Feed For Sale

Model MEF 5-26S

Cabinet Mounted

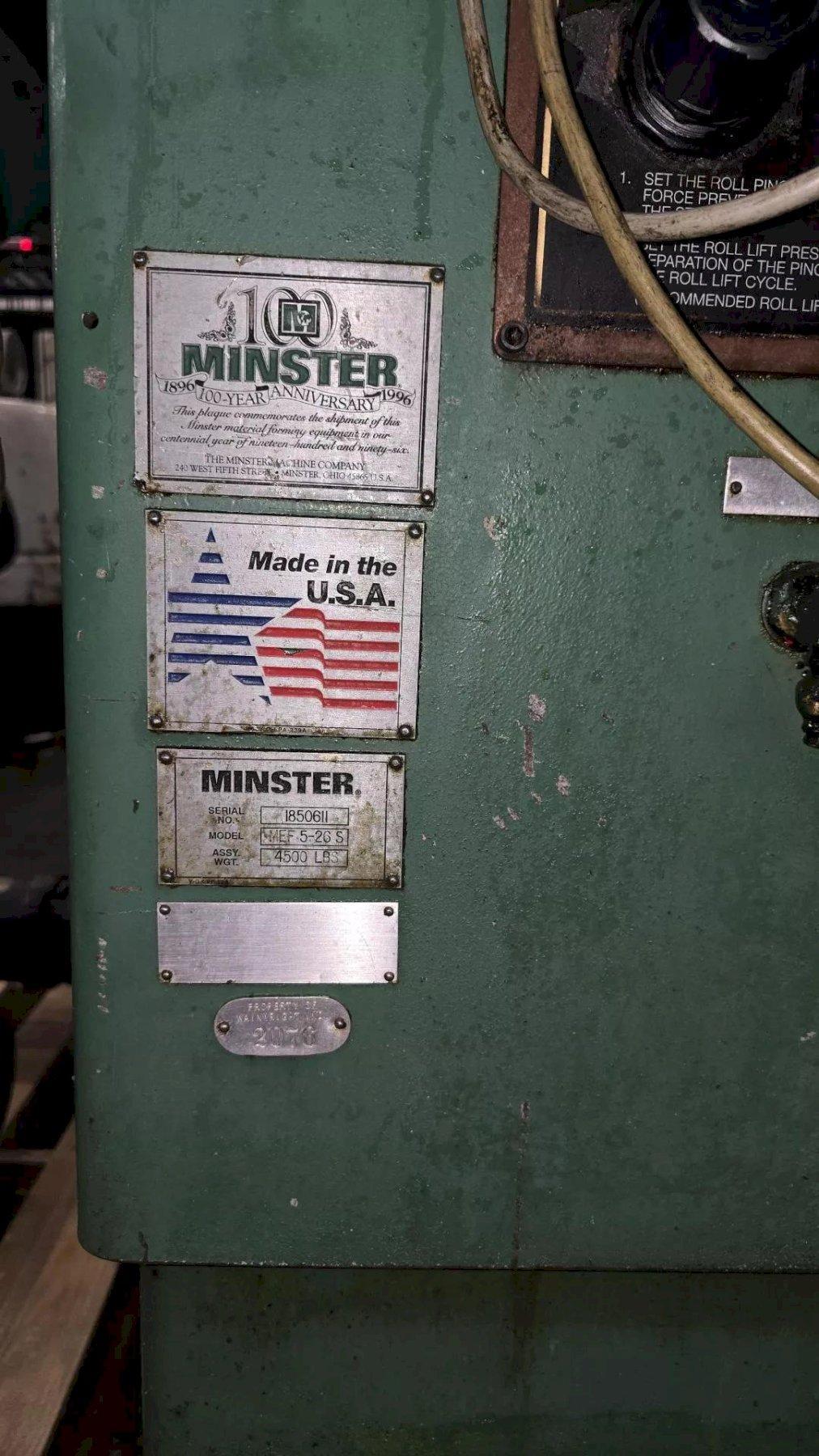

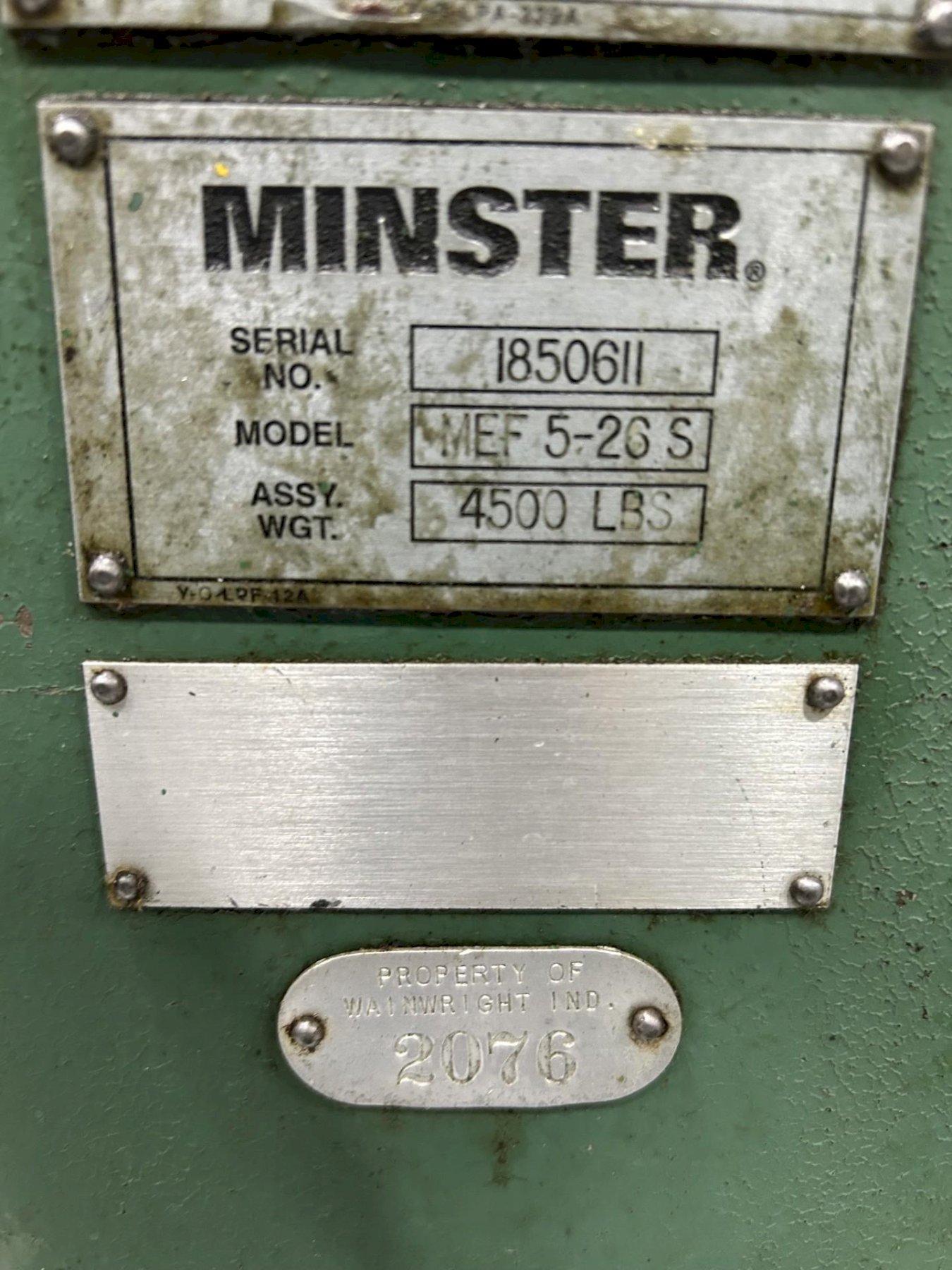

sn/ 1850611
Stock Width Capacity: 26"
Stock thickness capacity: .156" x 26" Wide
Stock thickness capacity: .250" x 16" Wide

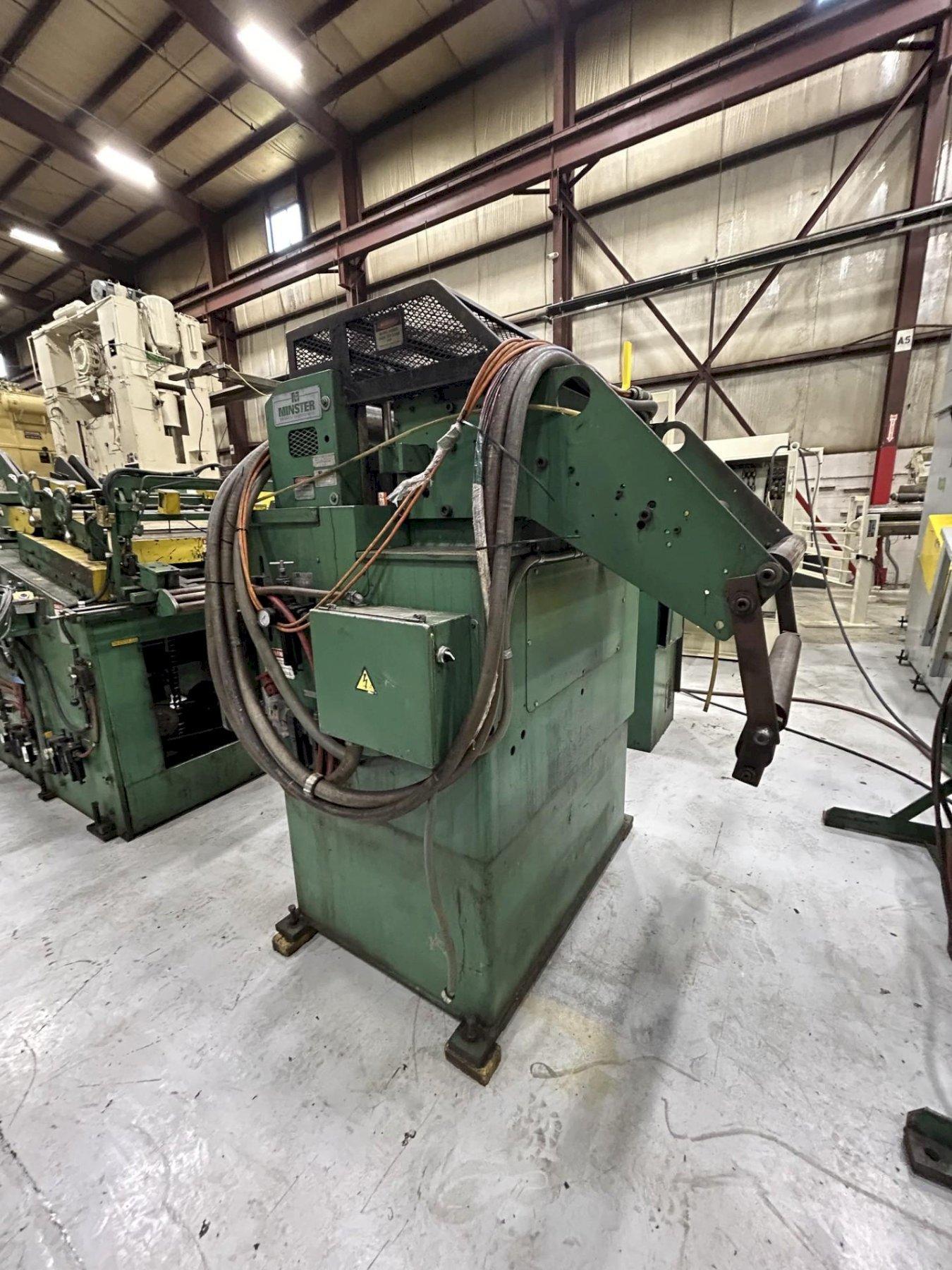

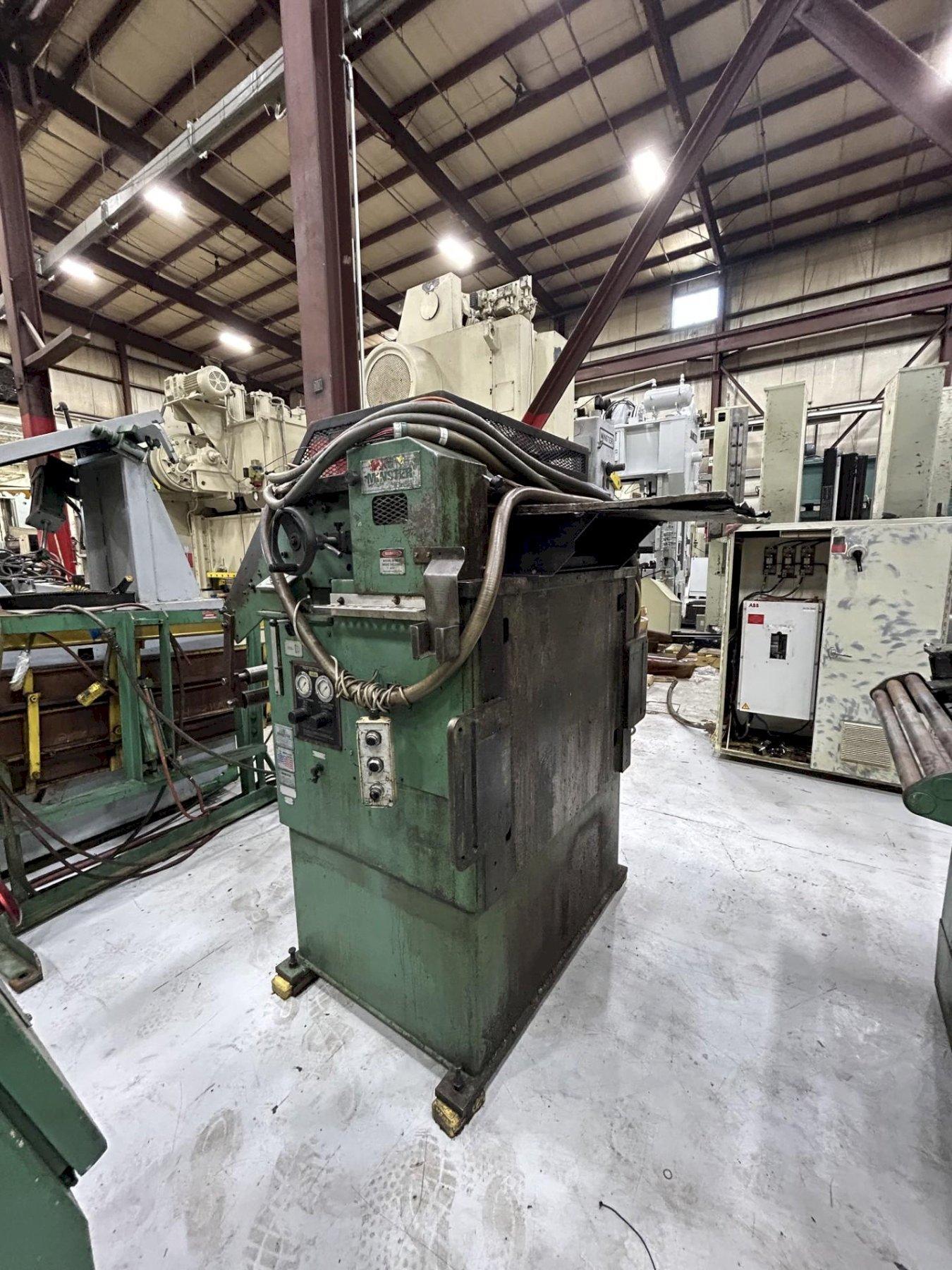

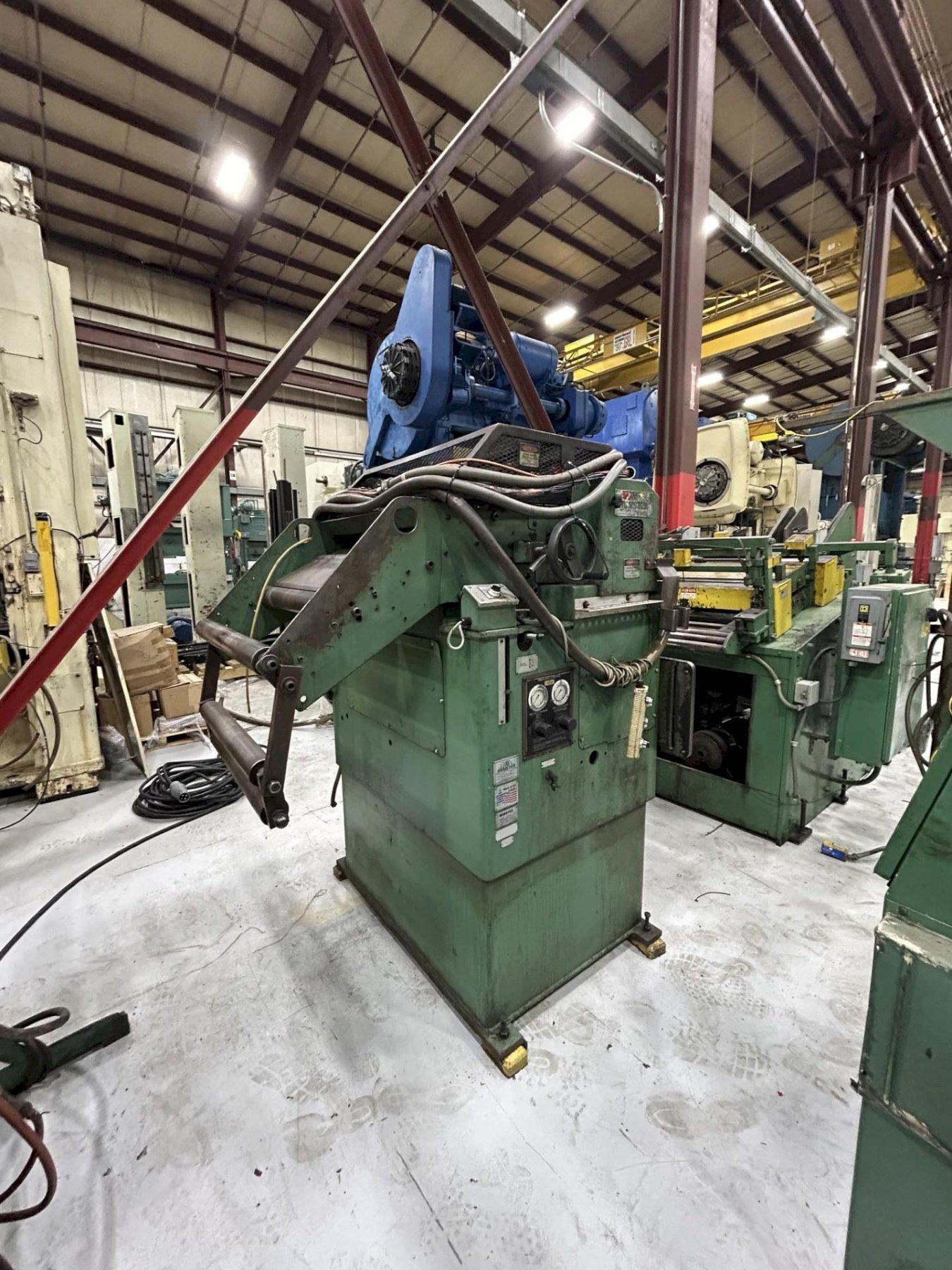

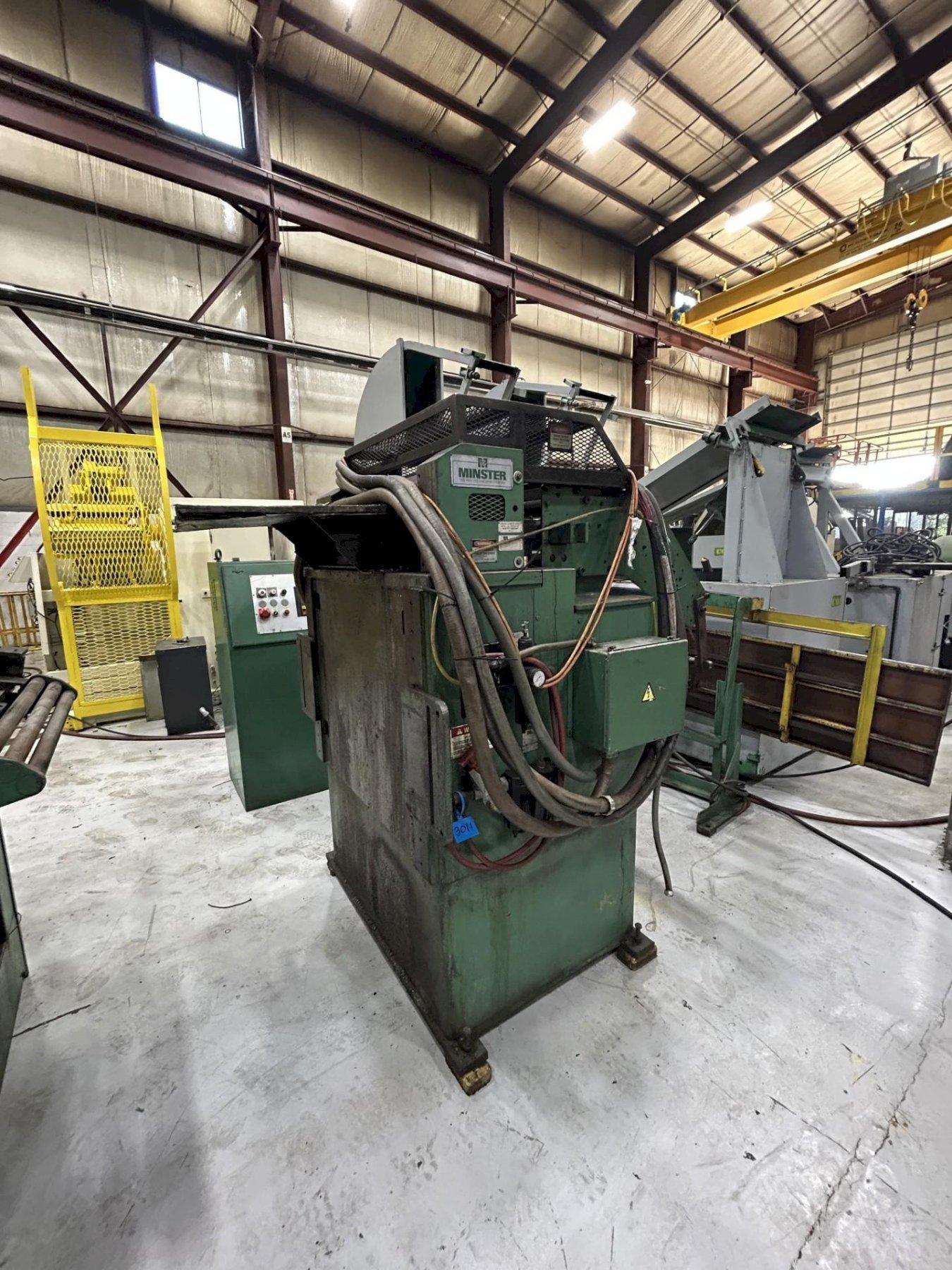

MINSTER Servo Roll Feed Model No.: MEF5-26S, Serial No.: 18-50611
5" diameter full width upper and lower servo feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll adjustment / pilot
Entry side cascade material support section
Solenoid controlled pilot release
Stock width edge guides
Air pressure/regulator
Cabinet base mounted w/ air operated adjustable pass line height
AC servo roll feed drive and controls
Job memory, batch counting, on the fly micro adjustment

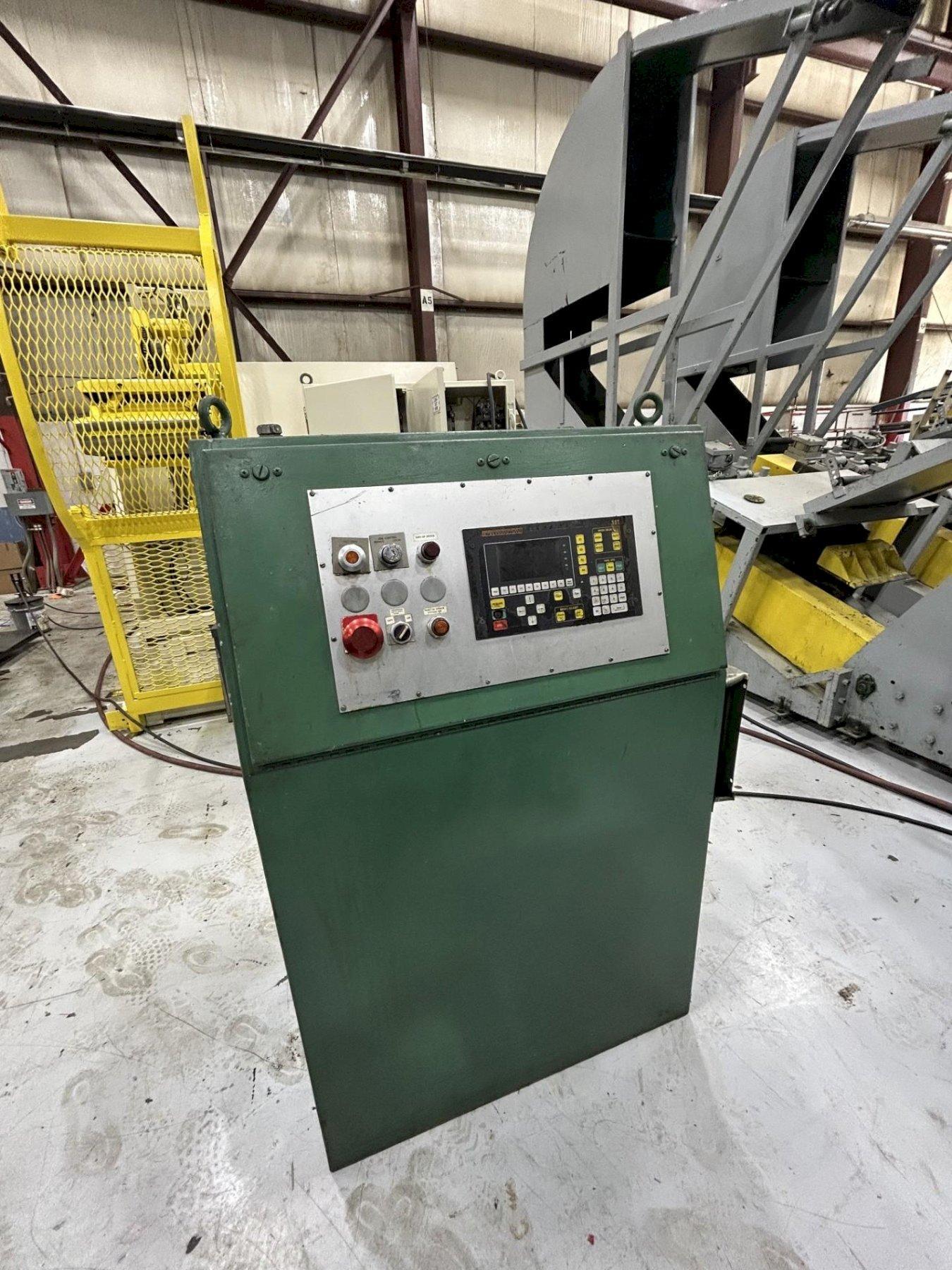

Free standing sloped front servo roll feed control console
Remote pendant control for jog forward and reverse
Fused disconnect
480 Volt


The standard specifications for the Minster MEF-526 electric servo roll feed typically include the following mechanical capacities and features:


Standard Engineering Features

  • Roll Lift / Pilot Release: Pneumatically actuated upper feed roll for high-speed material piloting, compatible with standard press automation signaling.

  • Stock Edge Guides: Manual hand-crank adjustable edge guides with hardened rollers for precise stock tracking.

  • Cascade Entry: Typically paired with entry cascade loop support rollers or basic thread-table integration.
