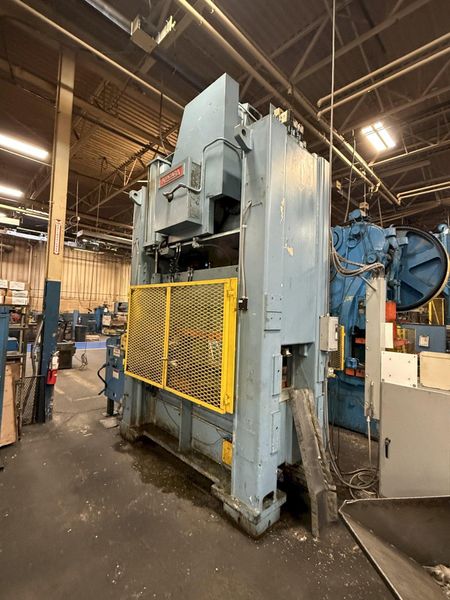

200-ton Niagara SE2-200-72-42 Straight Side Double Crank Press For Sale, Year 1990 with Updated

Manufacturer

NIAGARA

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

3024

Model

SE2-200-72-42 UH

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Tonnage - 200
Stroke - 4 inches
Shut Height - 29 inches
Adjustment - 9 inches
Bed Size - 72" LR x 42" FB
Ram Area - 72" LR x 42" FB
SPM - 50-100


Niagara Mechanical Metal Stamping Press

Press Model SE2-200-72-42 UH
Year 1990

200 ton Metric Capacity Used Press
220 ton US Capacity Press
4" Stroke
29" Shut Height
9" Motorized Adjustment
72" LR x 42" FB Bed Area
72" LR x 42" FB Slide Area
50-100 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
8 Point Gibing
Vibro Dynamic Floor Pads
T-Slotted Ram and Bolster
Update Press Controls
T-Stand Palm Buttons
25" Wide Windows (Confirmed)
Floor Standing

16' Overall Height

This high-performance 200-ton Niagara Mechanical Straight Side Press (Model SC2-200-72-42) is an exceptional investment for precision, high-speed stamping applications. Engineered for rigorous production environments, it delivers a versatile operating speed of 50 to 100 variable strokes per minute (VSPM), allowing manufacturers to significantly boost throughput on progressive die runs. The heavy-duty 8-point gibbing design ensures superior slide-to-bed parallelism, minimizing deflection and drastically extending tool life during rapid, continuous cycles.

Featuring a robust 4" stroke, an expansive 28" shut height with a 9" motorized adjustment, and a generous 72" x 42" bed and slide area, this floor-standing machine easily accommodates complex, multi-station tooling configurations. It comes well-equipped with premium features like an air clutch and brake system, air counterbalances, a recirculating lube system, Vibro Dynamic floor pads, and 25" wide side windows for seamless automation or coil feed integration.

Available for immediate inspection under power at the S&G Press warehouse in Livonia, Michigan, this reliable Niagara press offers the rigid structural integrity required to optimize your high-speed stamping line.
