MITSUBISHI ZA30A - Gear Cutter Sharpener

Manufacturer

MITSUBISHI

Category

Gear Machines

Type

GEAR CUTTER GRINDERS (Including CNC)

Stock

25920

Model

ZA30A

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

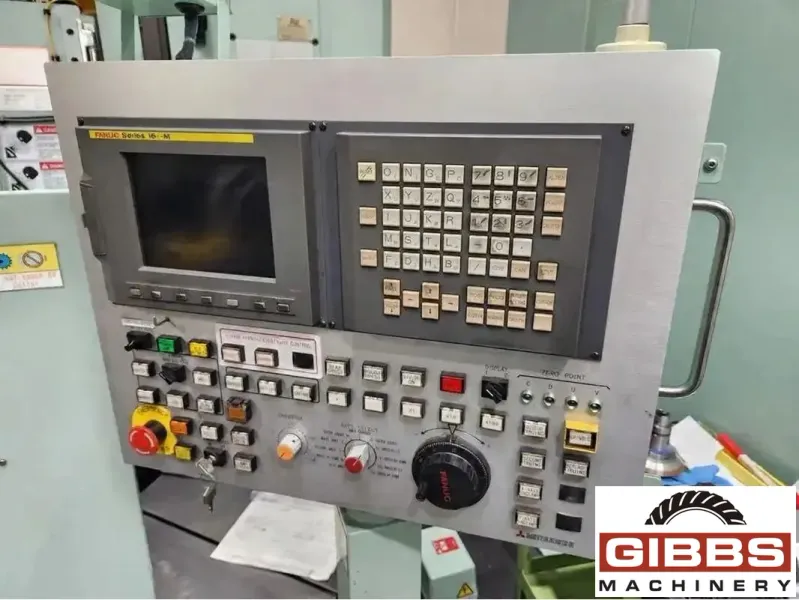

  • Fanuc 16i-M Control
  • HMI
  • FN-0013 Dust Collector
  • 200/220 Volt/3 Phase
,

Machine Specifications :

  • Year 2003
  • Manufacturer MITSUBISHI
  • Maximum Cutter Diameter 13.8"
,

The Mitsubishi ZA30CNC (also known as the ZA30A) is a high-precision, multi-axis CNC Shaving Cutter Grinding Machine engineered to sharpen rotary gear shaving cutters. It utilizes advanced CNC synchronous control to produce highly accurate, arbitrary gear profiles without the need for traditional pitch blocks or split plates.

    Specifications:

  • Outer Diameter: φ150 ~ φ350 mm
  • Module: M1 ~ 14 mm
  • Maximum Face Width: 60 (opt.70) mm
  • Maximum Pressure Angle: 25 Degree
  • Helix Angle: ±35° Degree
  • Control: 11 Axis
  • Cutter Spindle, Table: Simultaneously Controlled 2 Axes
  • Dressing Forward/Back, Up/Down: Simultaneously Controlled 2 Axes
  • Grinding Wheel Diameter: φ650 ~ φ760 mm
  • Table Feed Rate: 1 ~ 9,000 mm/min
  • Grinding Wheel Dressing Device: Single-Point Diamond Nib
  • Grinding Wheel Spindle Motor: 1.5 kw
  • Floor to Work Center Height: 1,040 mm
  • Machine Weight: 8,500 kgs
