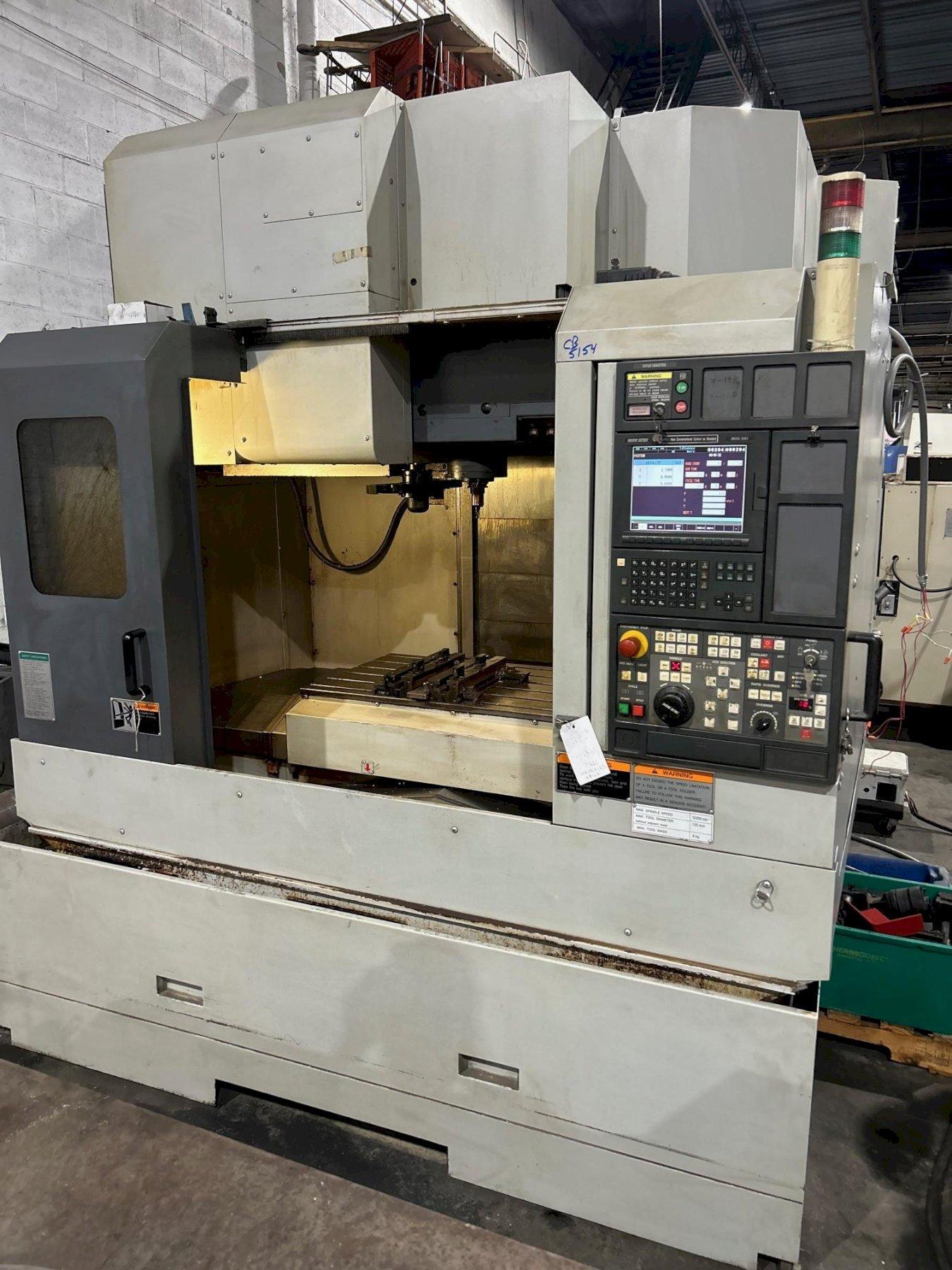

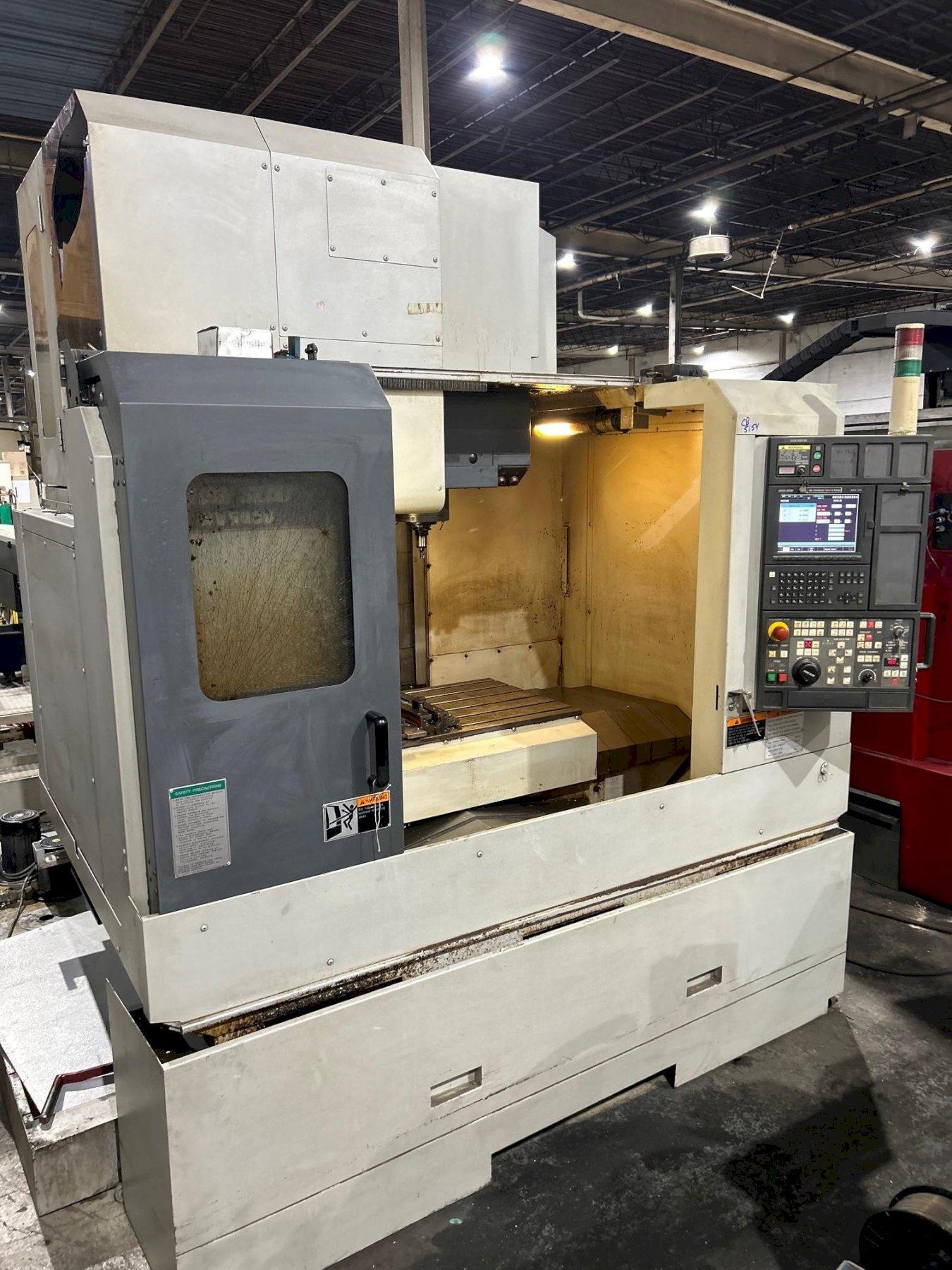

Mori-Seiki Model NV5000A/40 CNC Vertical Machining Center

Stock

MT5154

Model

NV5000A/40

Dealer Location

Illinois

Spec Sheet

Table Size - 43.3" x 23.6"
X-Axis Travel - 31.5 inches
Y-Axis Travel - 20 inches
Z-Axis Travel - 20 inches
Table Load Capacity - 2200 pounds
Distance Table to Spindle - 5.9" - 26"
Spindle Speed - 12,000 RPM
Spindle Taper - CT-40
Rapid Traverse Feedrate (X, Y, Z) - 1653 IPM
ATC Capacity - 30 tools
Maximum Tool Diameter - 4.92 inches
Maximum Tool Weight - 17.6 pounds
Spindle Motor - 30/25 HP
Approximate Dimensions - 96.9" x 106.7" x 102.5"H
Approximate Machine Weight - 14000 pounds
F.O.B. - Cleve;and OH

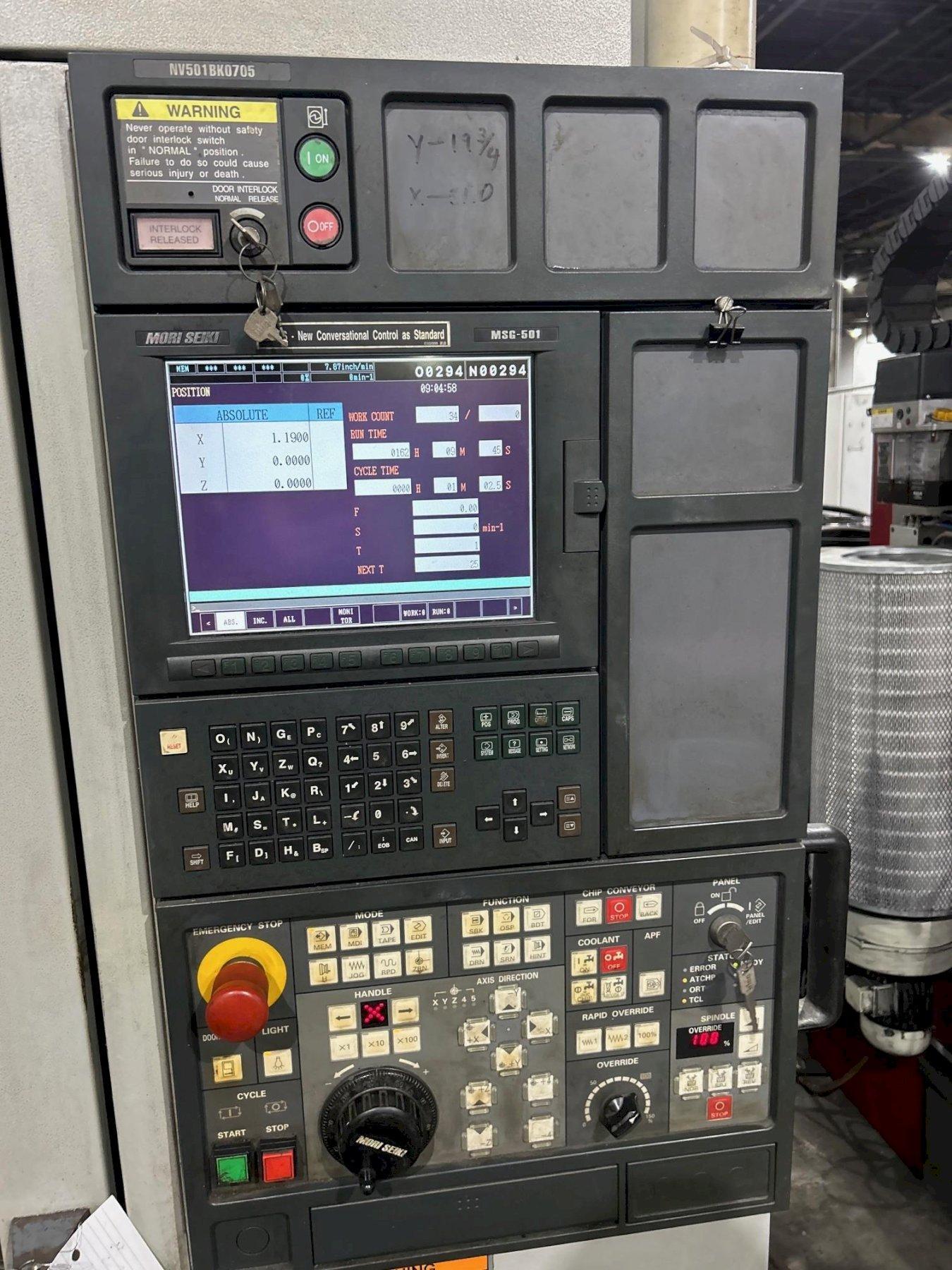

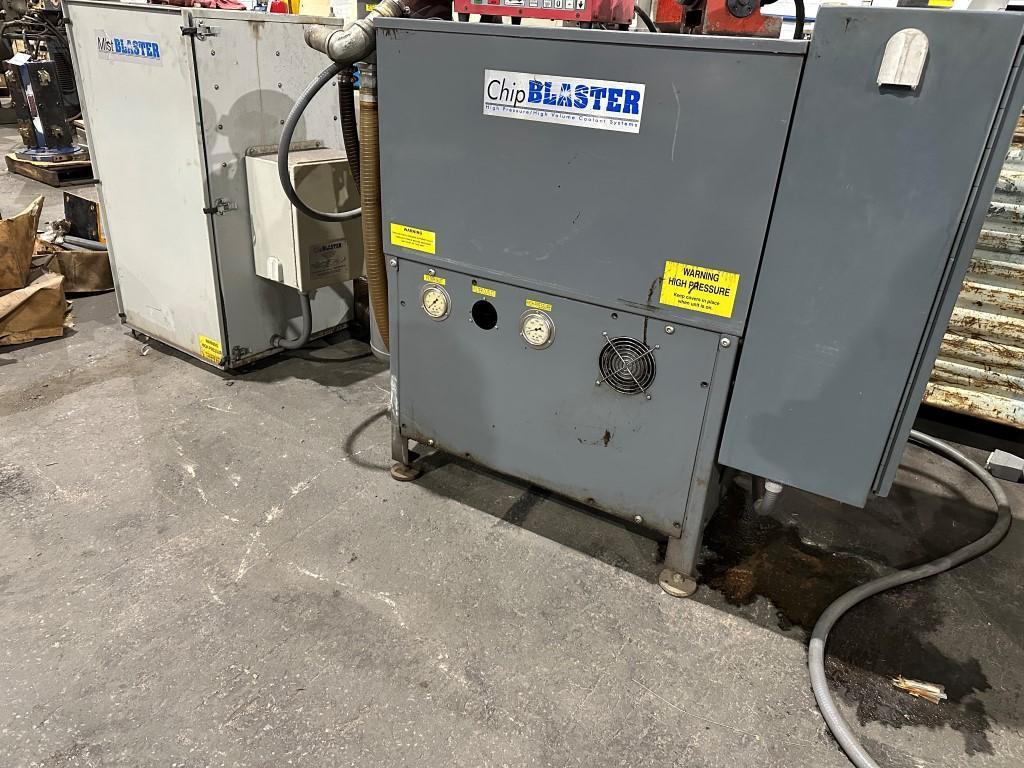

Mori-Seiki #MSC-501MB (Fanuc 18iMB) CNC Controls with MAPPS Conversational with CRT and Keyboard. Jog Control. Technitron 4th Axis Interface. 30-Position Automatic Tool Changer. Load Meter. Automatic Door. Thru Spindle Coolant. Shower Coolant. Oil Chiller. Coolant System with Pull Out Drawer. High Pressure Chip Blaster.
