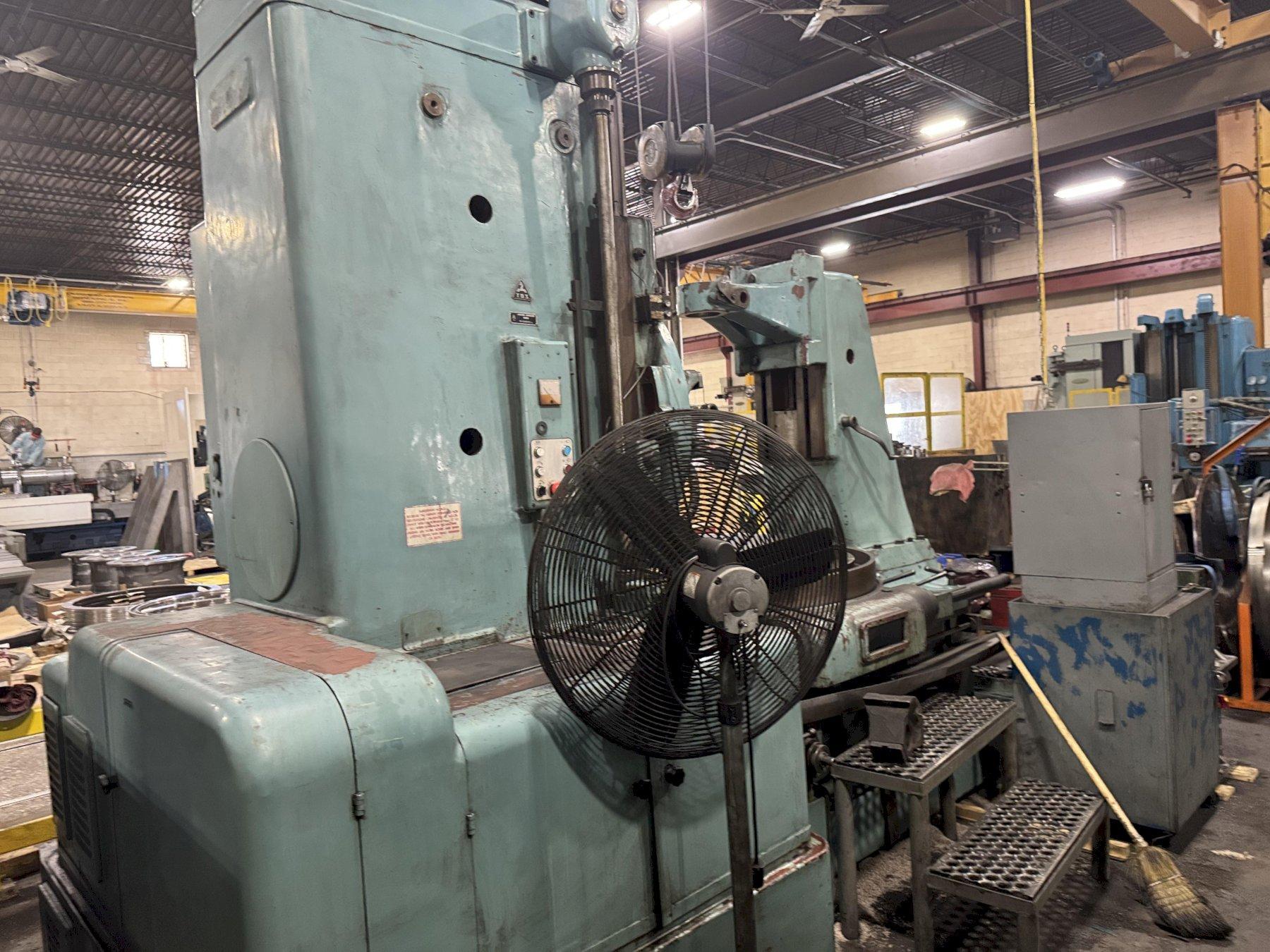

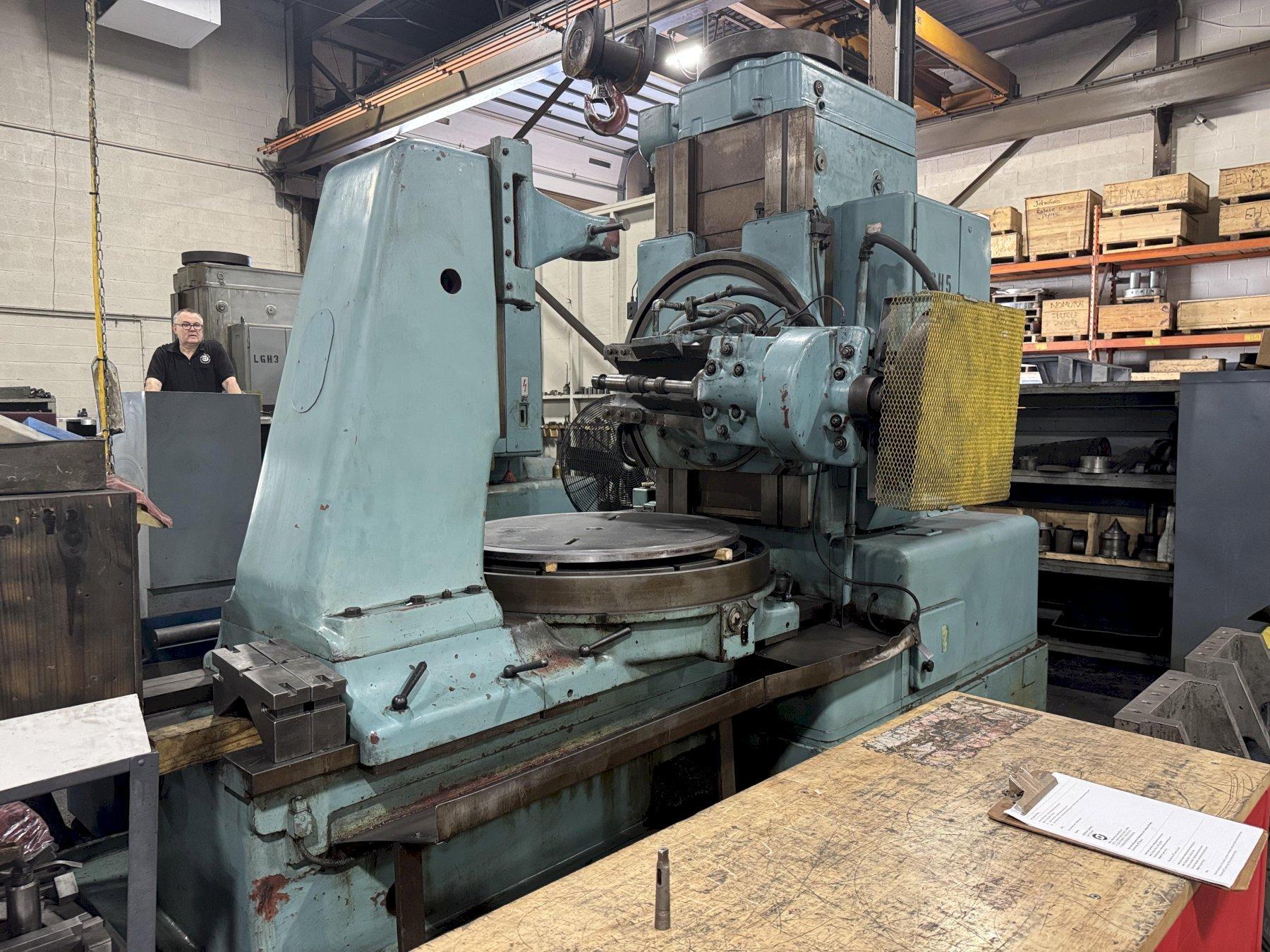

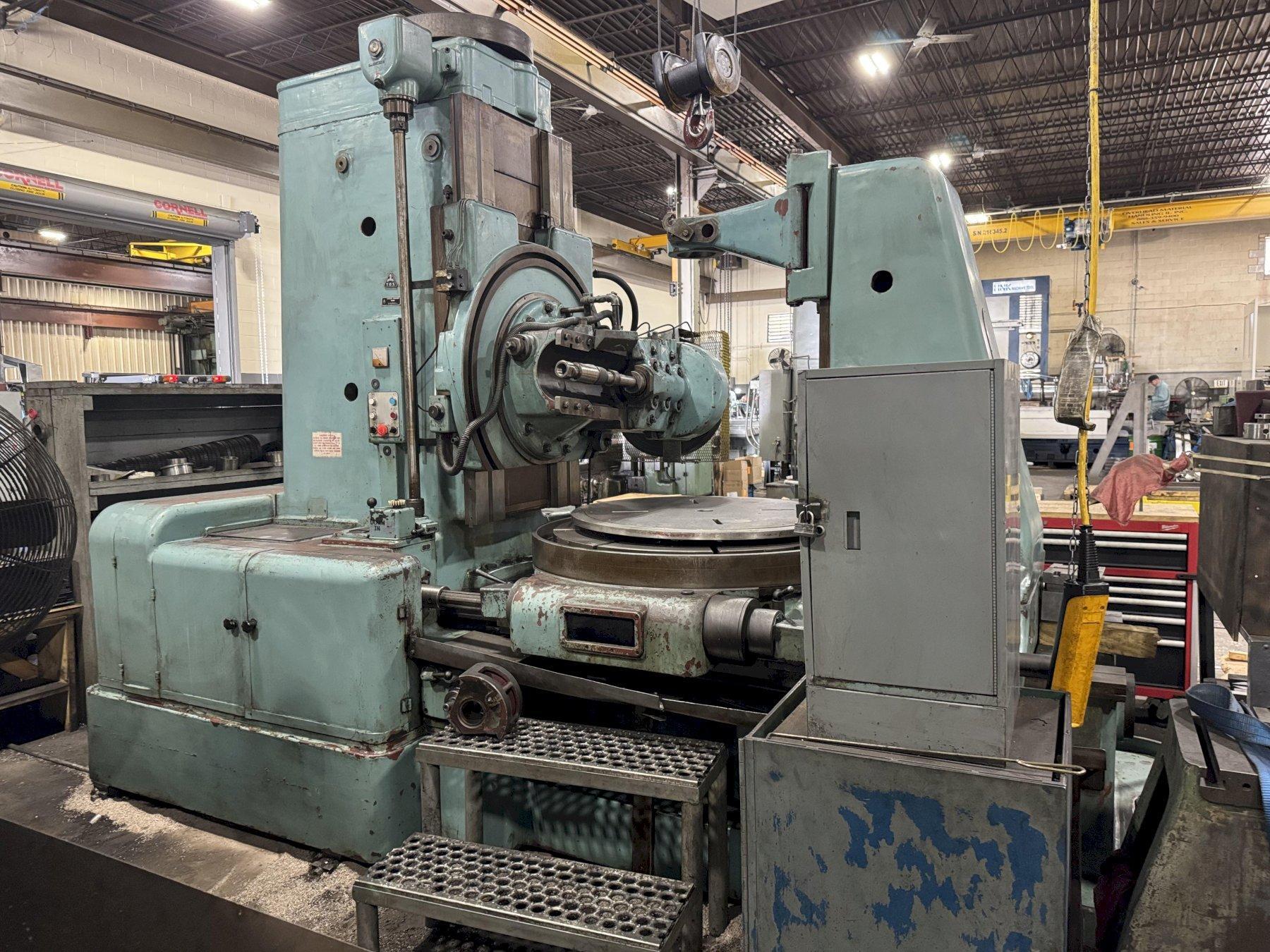

1600mm Tos F016 Vertical Gear Hobbing Machine

Manufacturer

TOS

Category

Gear Machines

Type

GEAR HOBBERS, VERTICAL, CNC

Stock

M115

Model

FO16

Dealer Location

Illinois

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Horz/Vert - vertical
CNC Control - no
Max Cutting Dia - 1600mm/62.3"
Max Cutting Length - 560mm/22.04"
Max Module - 16
Min Module - 4
Max Size of Hob - 250mm x 300mm
Table Diameter - 1350mm/53.19"

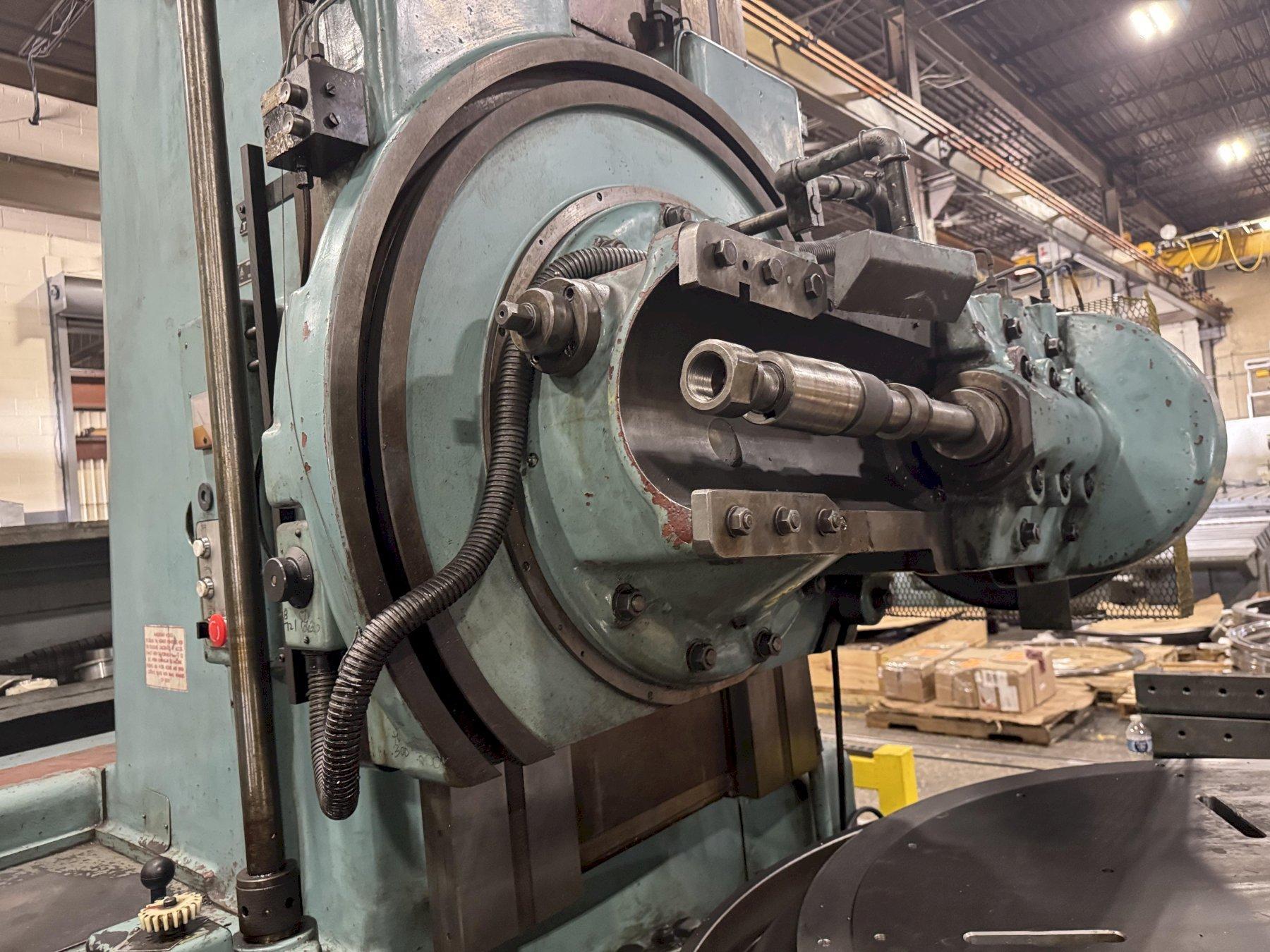

Hob Slide Tilt (left/right) - +/- 45 degrees
Main Motor - 15 HP
Max Table Load - 7000 Kg
Approx Weight - 18 Tons/ 42000 lbs
Max Dia with Tailstock - 1250mm/49.2"
Max Dia With Tailstock - 800mm/ 31.94"

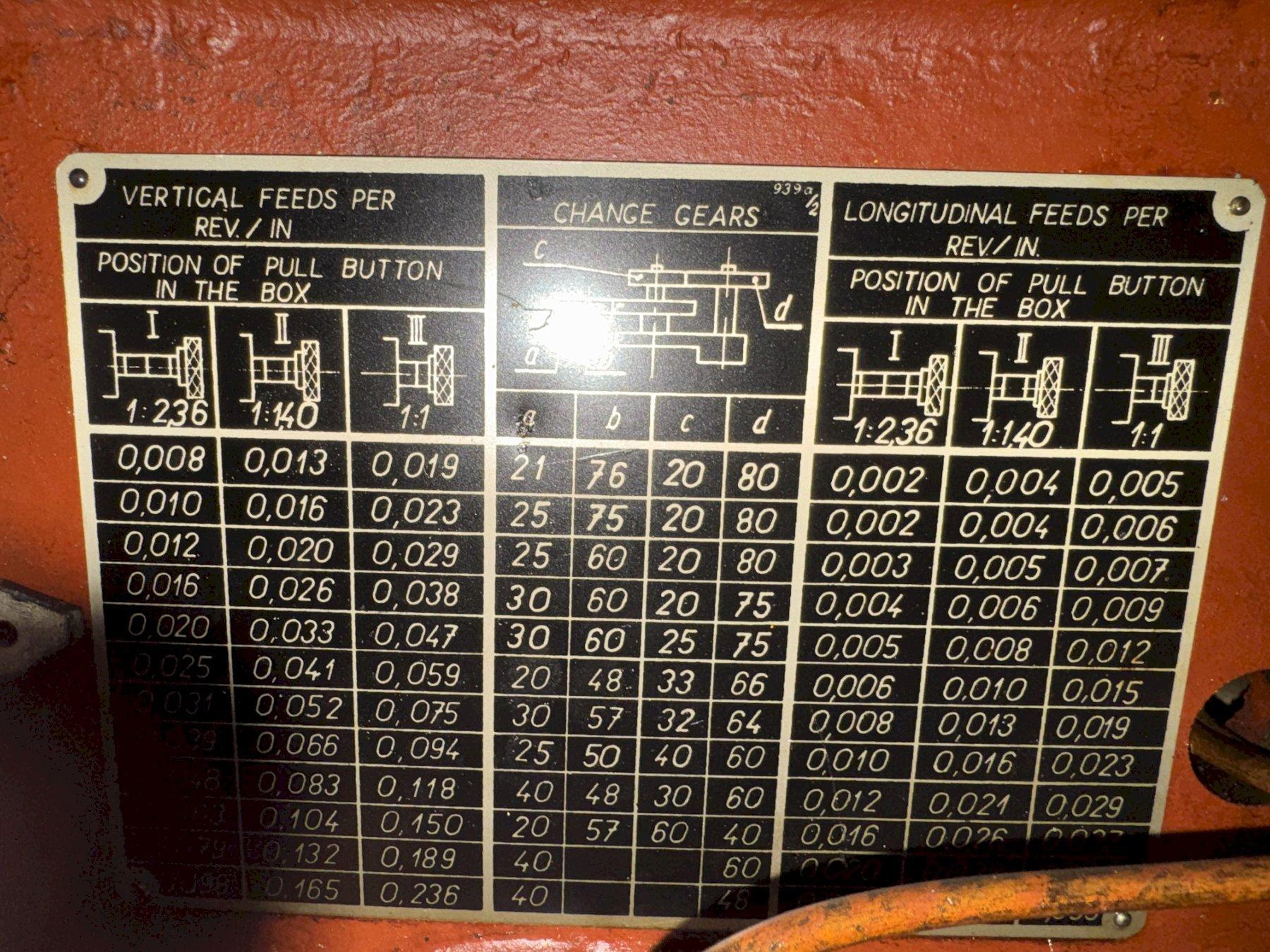

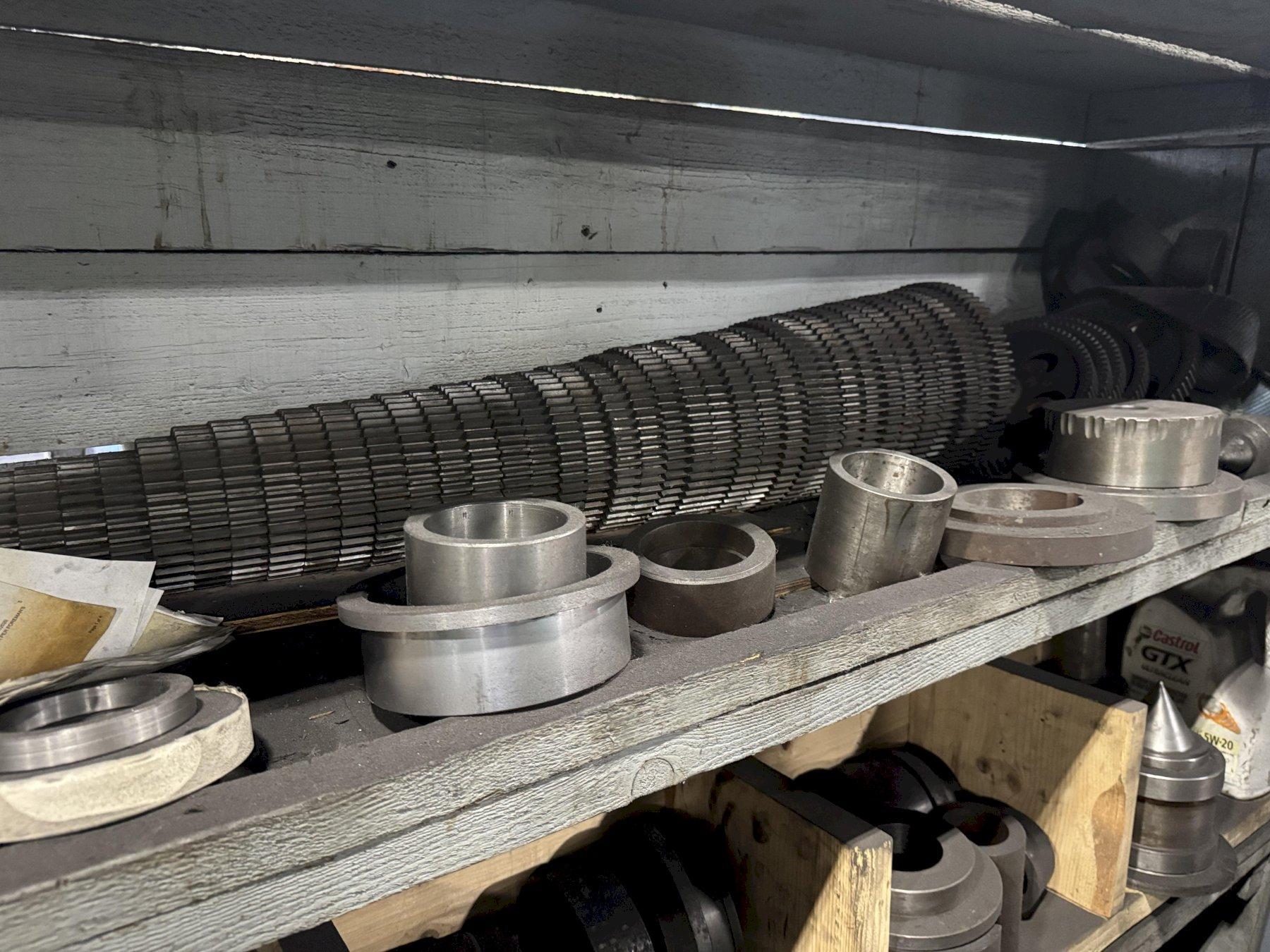

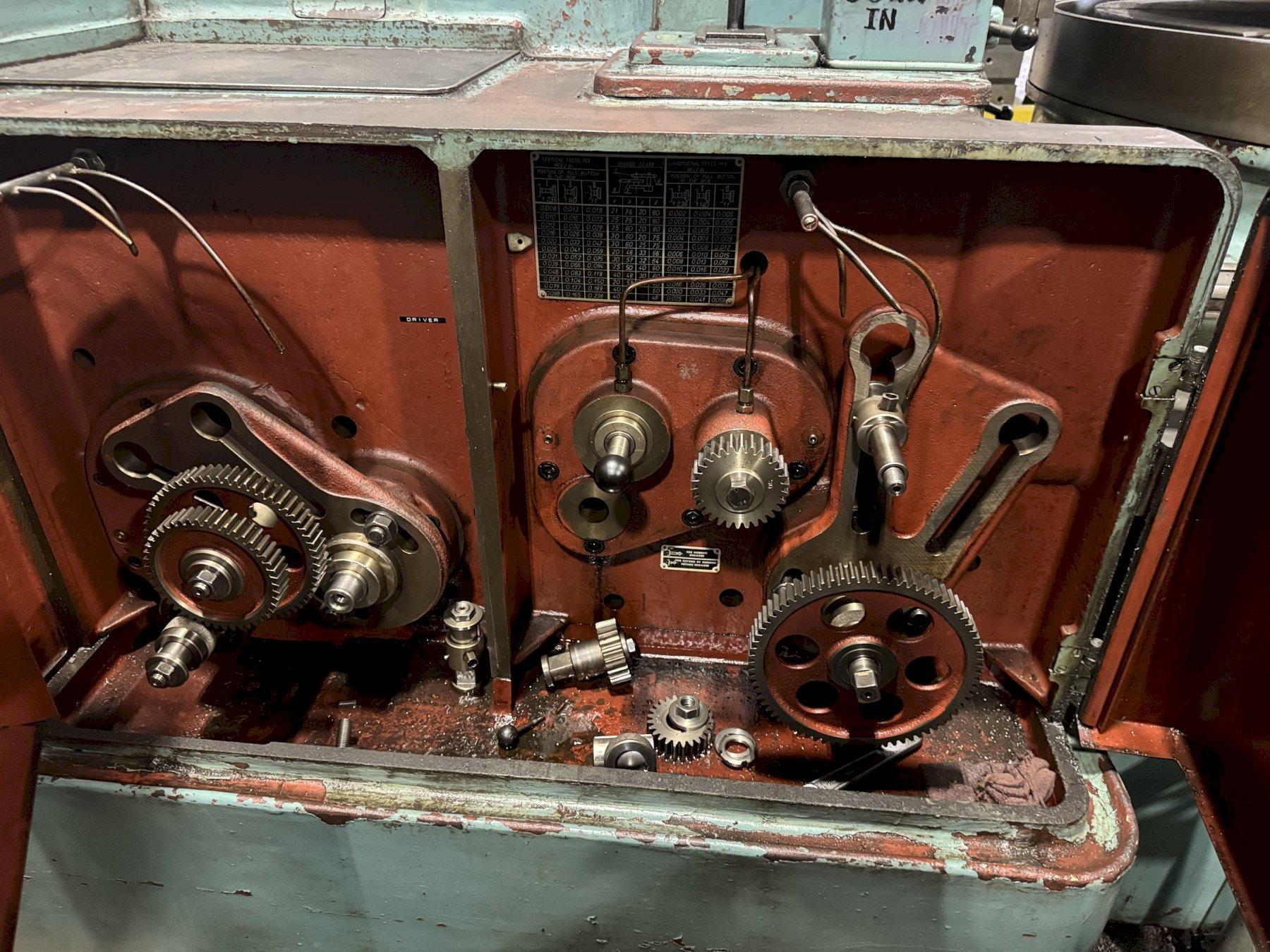

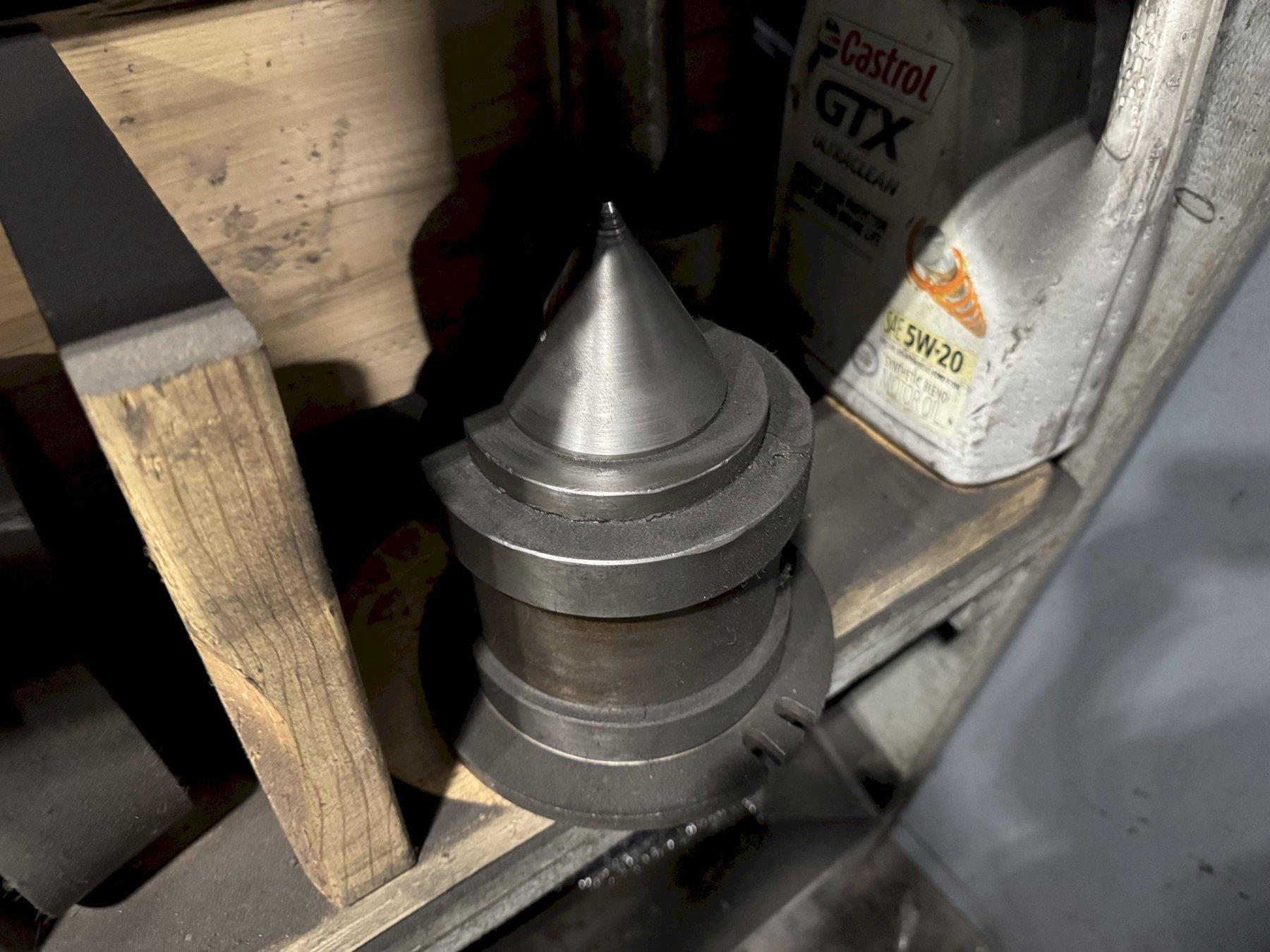

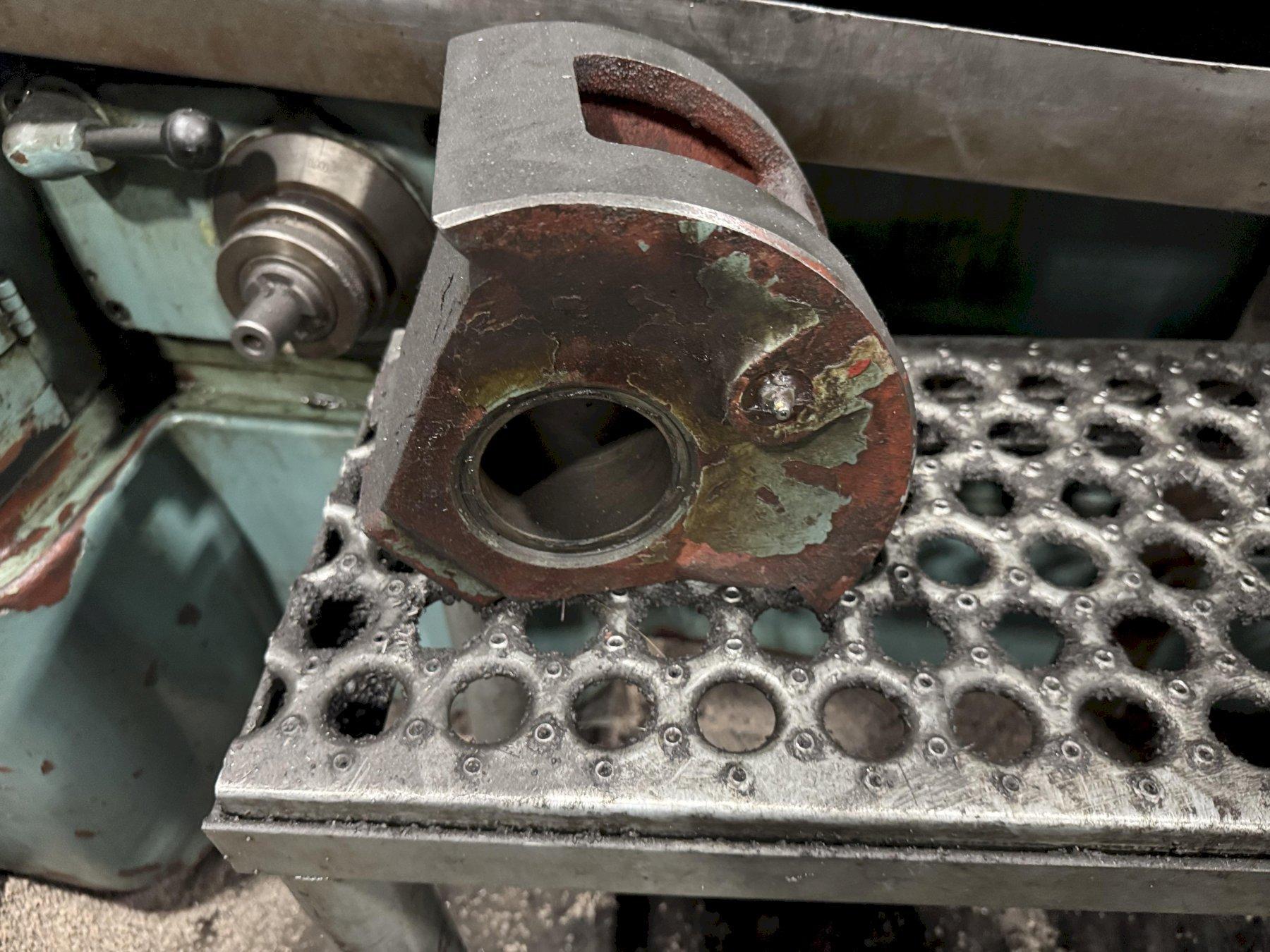

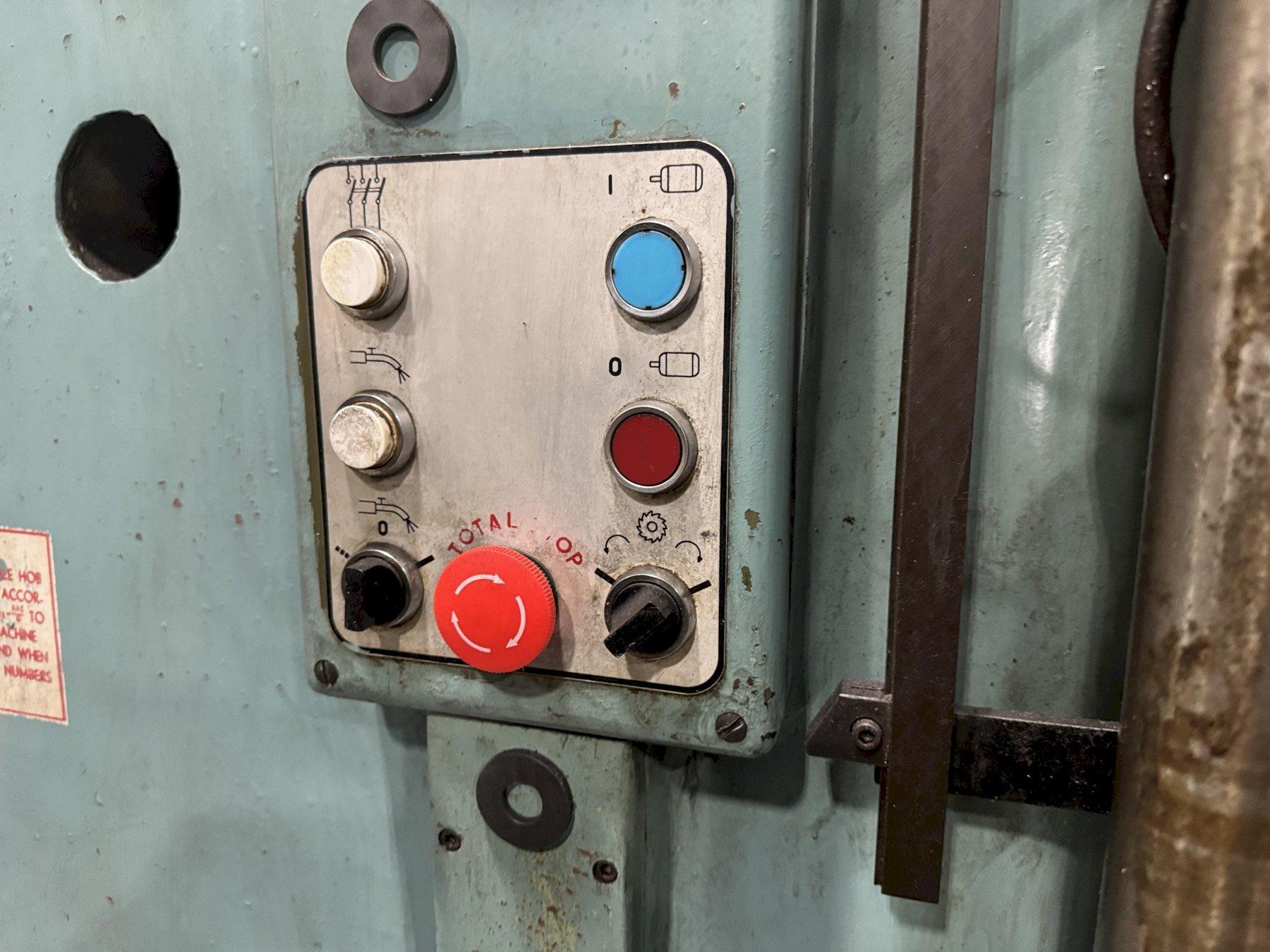

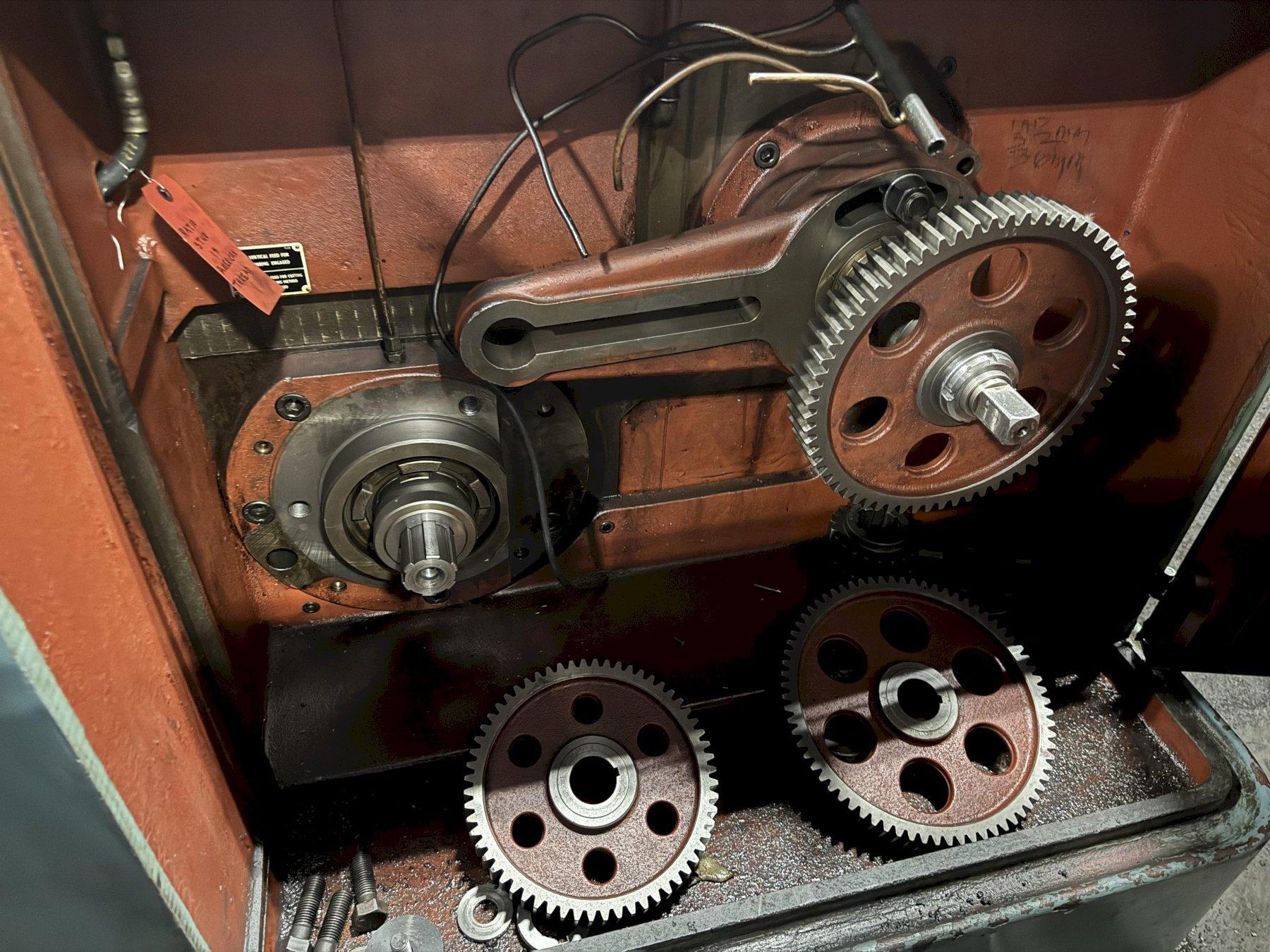

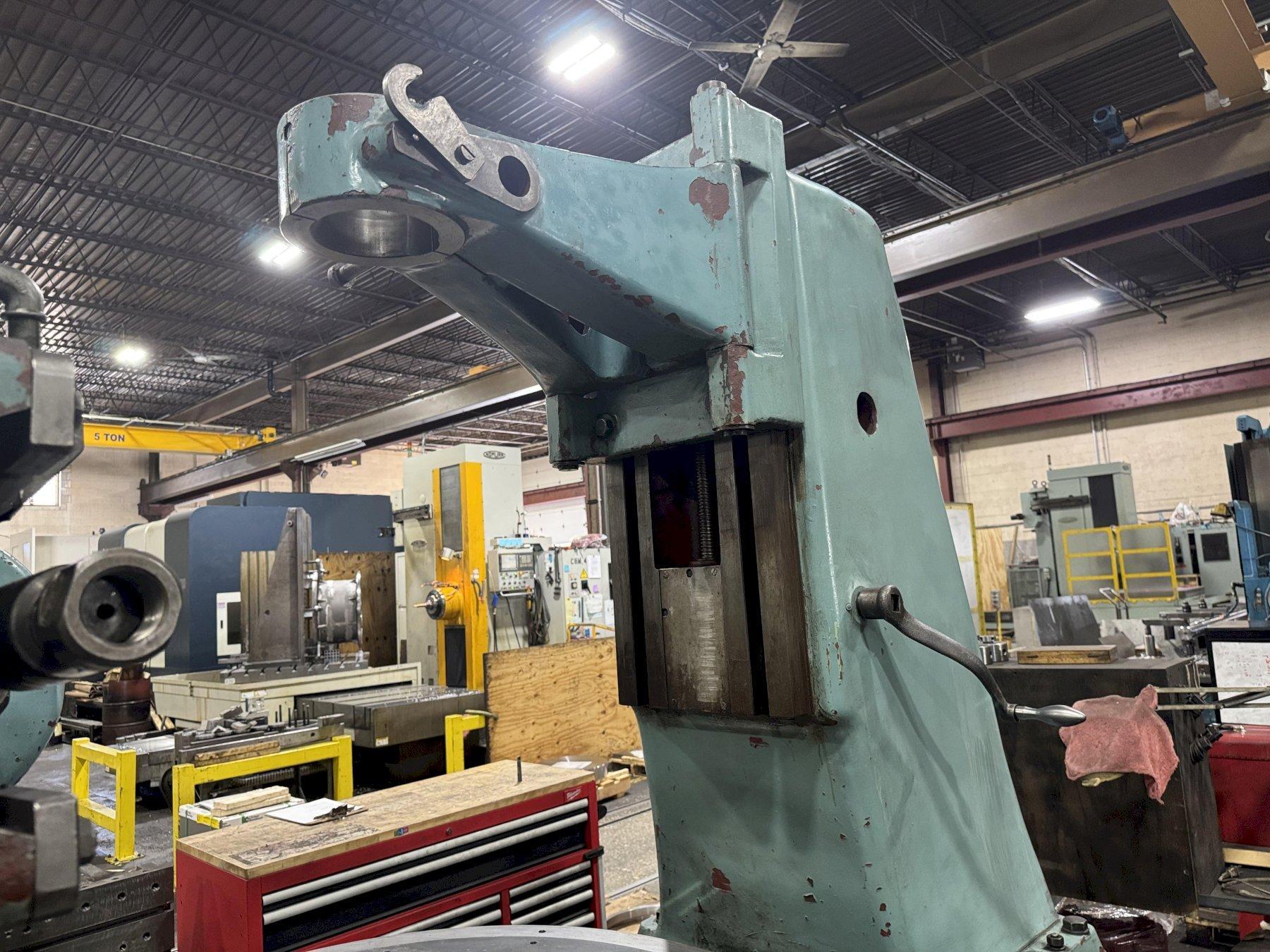

Equipped With: Operators Control.  Work Arbors.  Hob Arbors.  Change Gears. Swing away Tailstock. Work Fixtures.  Coolant System with magnetic separation.  Free Standing Electrical Cabinet. Full Enclosure.
