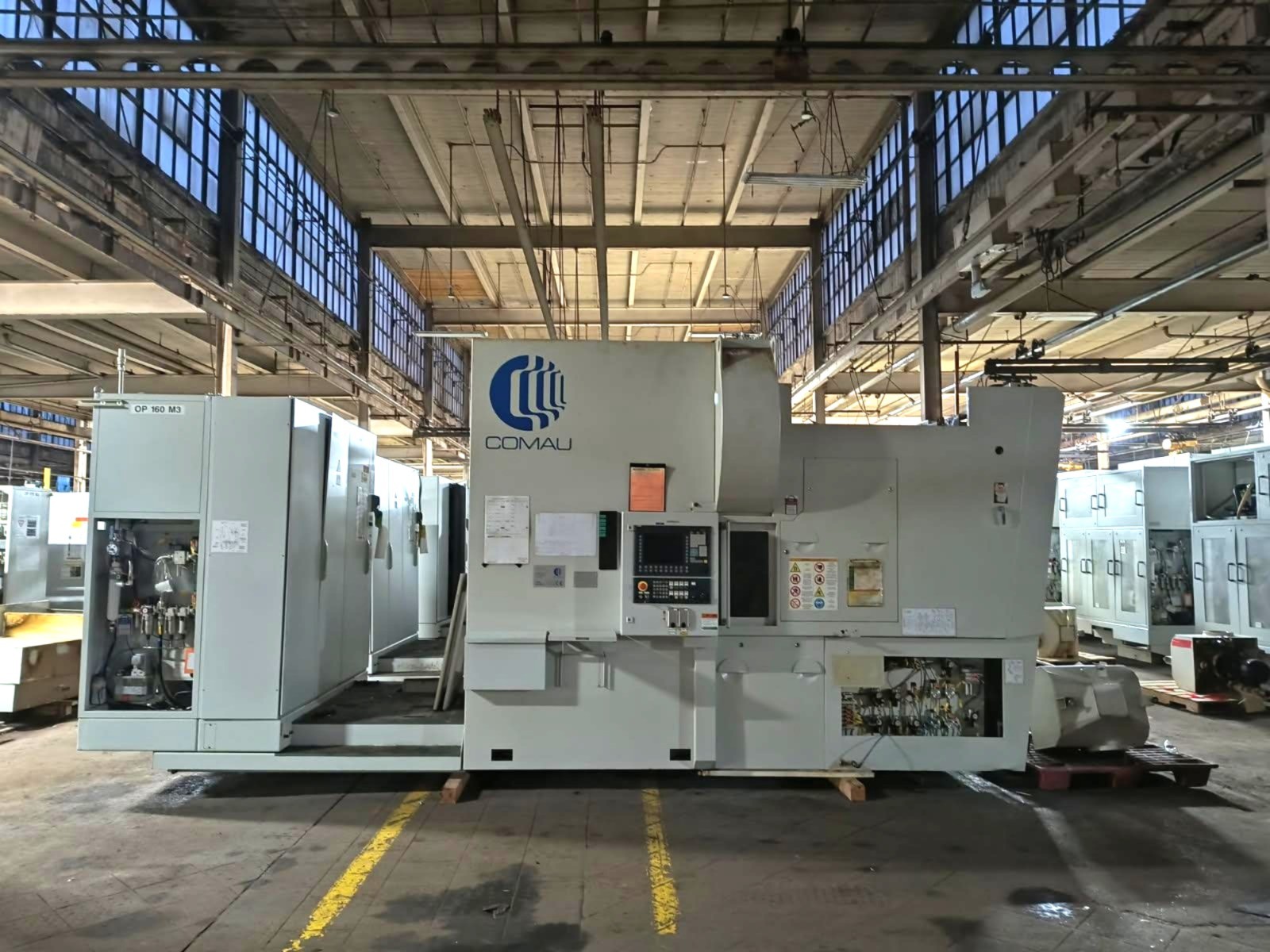

Comau, Model Urane 25, 5 Axis Horizontal Machining Center, Linear Drives, 40 Pot ATC, HSK63, 18,000 RPM, 30/37 kW, X-axis 800mm, Y-axis 700mm, Z-Axis 400mm, (5) Units

Name: Comau, Model Urane 25, 5 Axis Horizontal Machining Center, Linear Drives, 40 Pot ATC, HSK63, 18,000 RPM, 30/37 kW, X-axis 800mm, Y-axis 700mm, Z-Axis 400mm, (5) Units
Brand: Comau
SKU: 2926-1

Manufacturer

Comau

Spec Sheet

"A" Axis Table:...................................635 mm Diameter
Max Table Load:................................450 Kgs
"A & B" Axis Speed: .........................100 RPM Max.
Working Travels: ..............................X 800mm Y 700mm Z 400mm
Max Travel Speeds: ........................100 m/min
Thrust 'X': ........................................5.8/15.5 Kn
Thrust 'Y & Z':...................................3.7/10.3 Kn
Positioning Accuracy:.......................0,004 mm
Repeatability: ..................................0.0029 mm
Spindle Taper:..................................HSK-A63
Spindle Power: ...............................30/37 kW
Spindle Speed:................................18,000 RPM Max.
Tool Pockets:...................................40
Max Tool Weight..............................4 Kgs
Max Tool Diameter..........................95 mm
Tool Change Time...........................3.75 secs.
