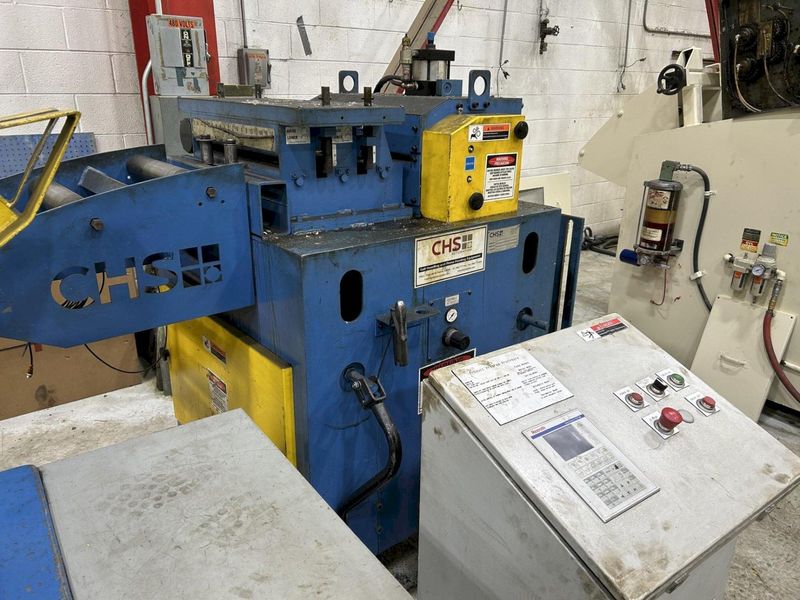

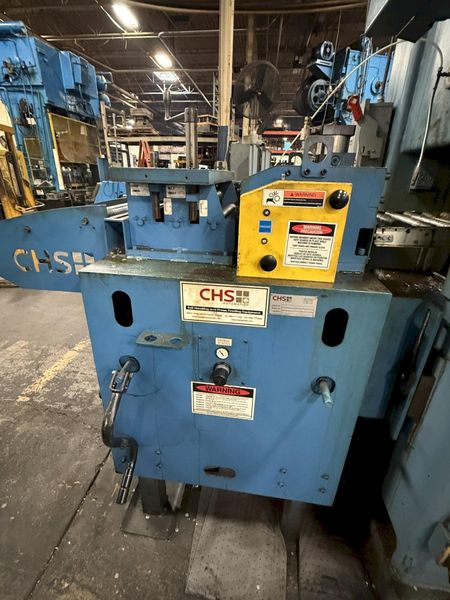

Nidec-CHS Automation Servo Feed Straightener - 18" Maximum Coil Width

Manufacturer

CHS AUTOMATION

Category

Feeders & Straighteners

Type

FEEDING & STRAIGHTENING MACHINES

Stock

3025

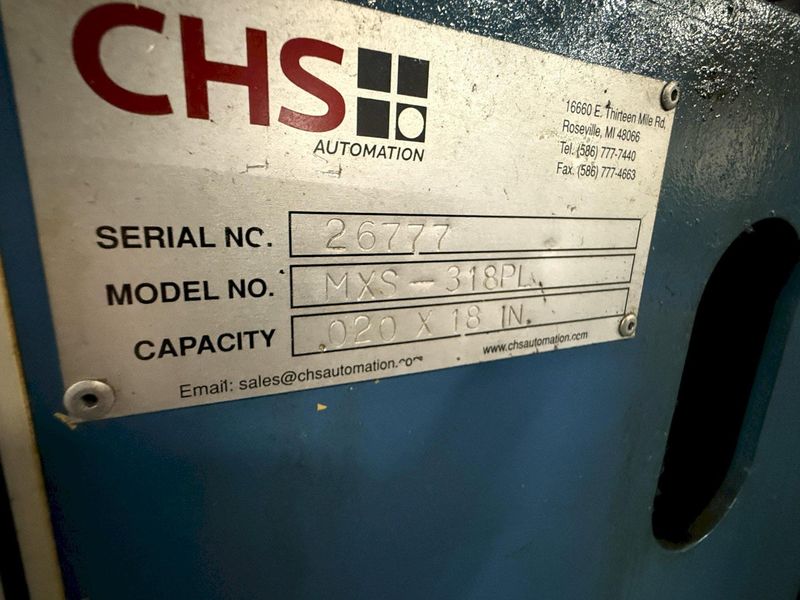

Model

MXS-318PL

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Coil Width - 18 inches
Coil Thickness - .125 inches


NIDEC-CHS Servo Roll Feed Straightener Combination Press Feed Specifications:
Stock width capacity: 18"
Stock thickness capacity: .125" x 18" Wide
Stock thickness capacity: .150" x 12" Wide
Maximum Feed Length........ 999.99 inches
Material Feed Accuracy within 0.003 inches
Required Air Pressure Supply 60-80 PSI

NIDEC-CHS Servo Roll Feed Straightener Combination Press Feed Equipment and Features:
Three inch diameter full width upper and lower servo feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll adjustment / pilot
Centralized lubrication points
Cabinet base mounted with heavy duty pass line adjustment
Solenoid controlled pilot release
Straightener model no PL-225-5-18
Five servo feed straightening rolls x 2.25" diameter
Upper servo feed straightening roll adjustments

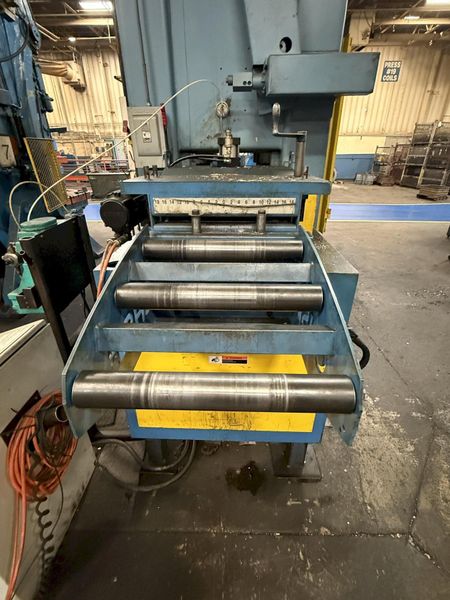

Cascade loop support rollers
AC servo roll feed drive and controls (Consult sales for complete details)
End of stock detector for automatic shut-off
Job memory storage
Batch counting
On the fly micro adjustment

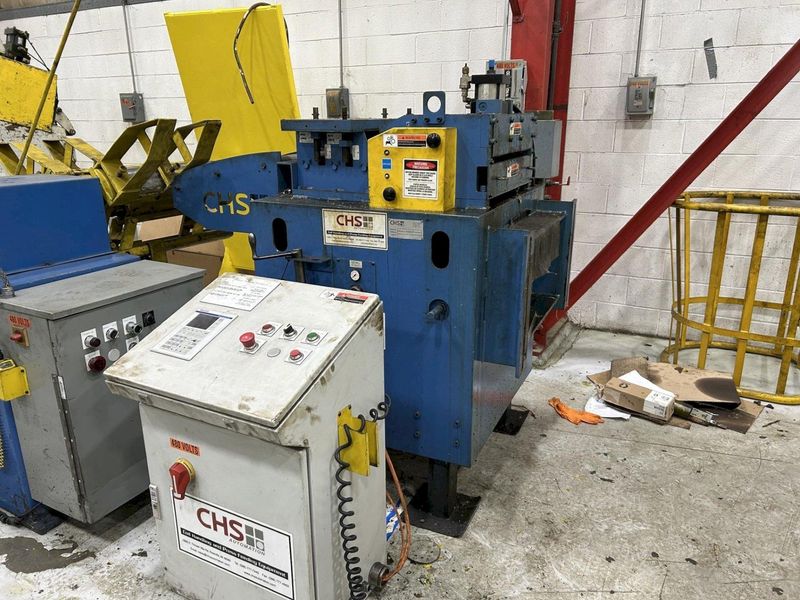

Free standing sloped front servo roll feed control console
Remote pendant control for jog forward and reverse
Fused disconnect
480 Volt

Boost manufacturing efficiency with this high-performance Nidec-CHS Servo Roll Feed Straightener Combo (Model PL-225-5-18). Designed to optimize pressroom space, this compact combination feed flawlessly handles material widths up to 18" and stock thicknesses up to .125" at full width, or .150" at 12" wide.

Engineered for precision progressive die applications, it features 3" diameter matte chrome servo feed rolls, a 5-roll straightener, and advanced AC servo controls with job memory storage. Equipped with a free-standing console, remote jog pendant, and heavy-duty pass line adjustment, it delivers unparalleled accuracy.

Contact S&G Press today to schedule an inspection under power!
