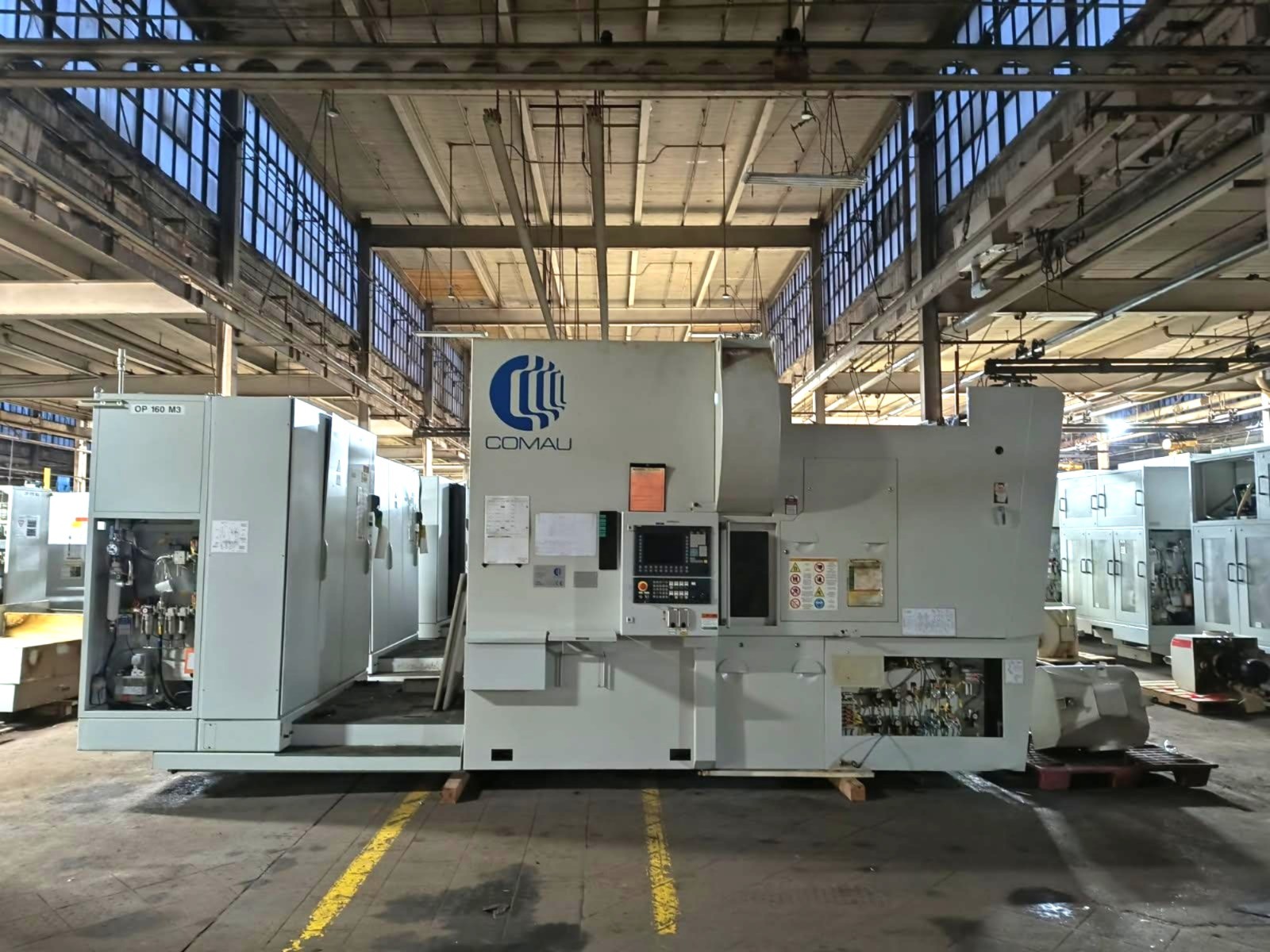

Comau, Model Urane 25, Linear Drives, 4-Axis / "B" Rotary Axis, X,Y, Z 800mm / 700mm / 400mm, HSK-A63 18,000 RPM, 40 ATC (30 Units)

Manufacturer

Comau

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

2026-2

Model

Urane 25 4 Axis Linear Drive

Dealer Location

None listed

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

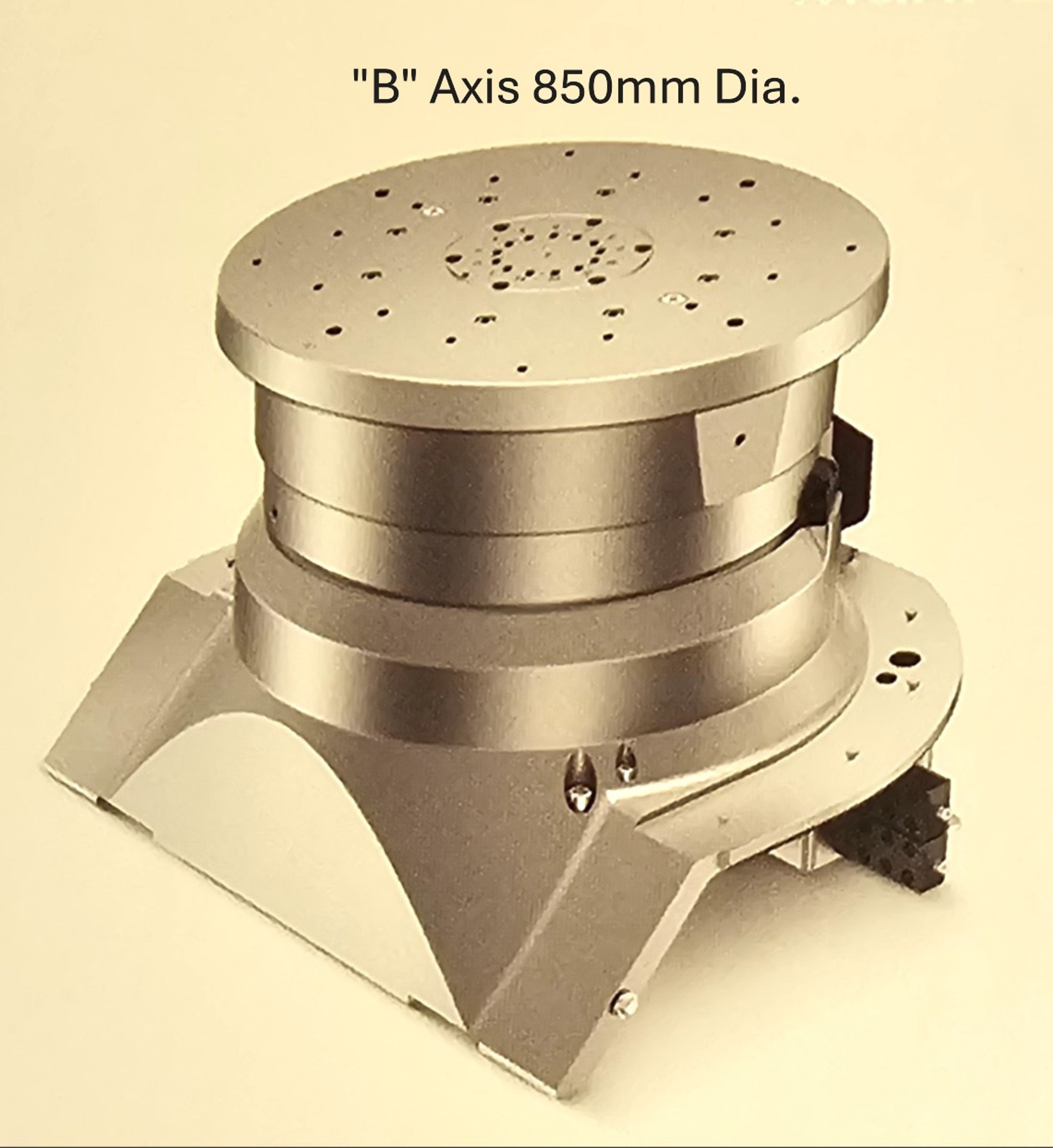

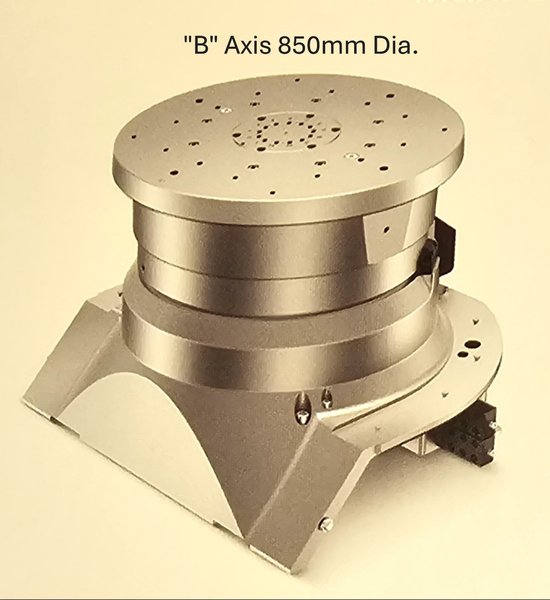

"B" Axis Table:...................................850 mm Diameter
Max Table Load:................................900 Kgs
"B" Axis Speed: ................................100 RPM Max.
Working Travels: ..............................X 800mm Y 700mm Z 400mm
Max Travel Speeds: ........................100 m/min
Thrust 'X': ........................................5.8/15.5 Kn
Thrust 'Y & Z':...................................3.7/10.3 Kn
Positioning Accuracy:.......................0,004 mm
Repeatability: ..................................0.0029 mm
Spindle Taper:..................................HSK-A63
Spindle Power: ...............................30/37 kW
Spindle Speed:................................18,000 RPM Max.
Tool Pockets:...................................40
Max Tool Weight..............................4 Kgs
Max Tool Diameter..........................95 mm
Tool Change Time...........................3.75 secs.
